ComFlor Composite Flooring System
Description

ComFlor is a new generation in composite steel floor decking systems distributed by Steel & Tube New Zealand as distributor of steel and stainless steel products and services.

Extensive testing has been undertaken in conjunction with the UK-based Steel Construction Institute to ensure ComFlor meets internationally recognised construction standards. Steel & Tube is applying British research and technology along with New Zealand-made equipment and steel to manufacture ComFlor in New Zealand.

ComFlor is a registered trade mark used in Australia and New Zealand under licence from Tata Steel UK Limited.

Trapezoidal Profile Available Sizes

  • ComFlor 60
  • ComFlor 80
  • ComFlor 210
Key Features

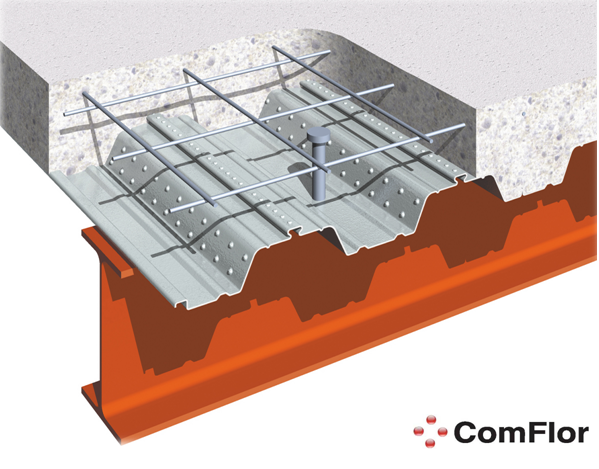

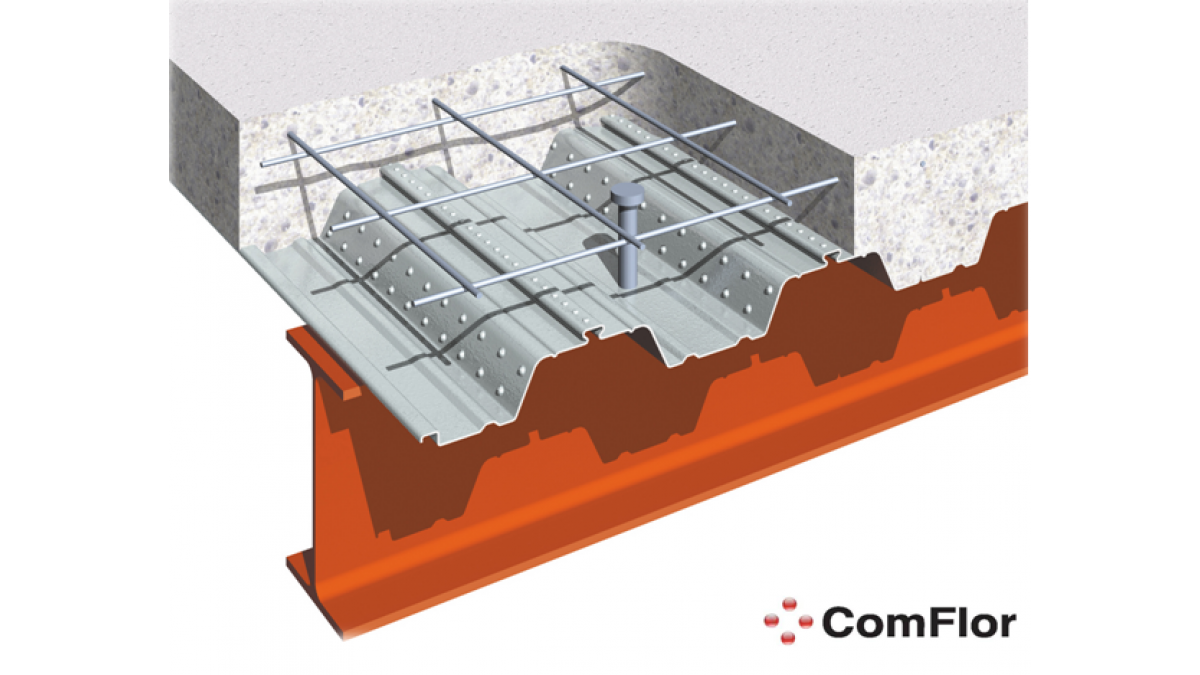

  • Large curved corners for longer spans.

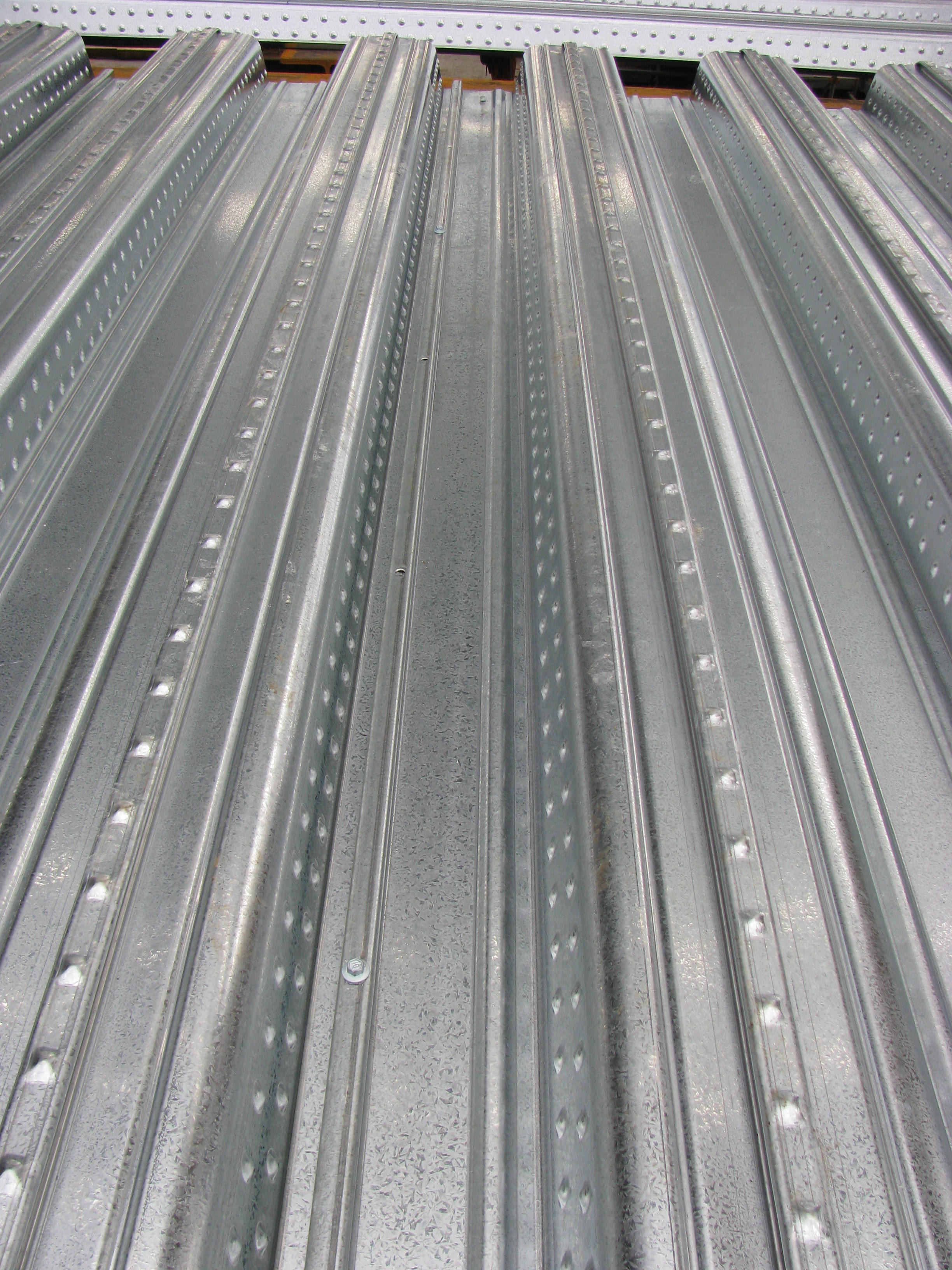

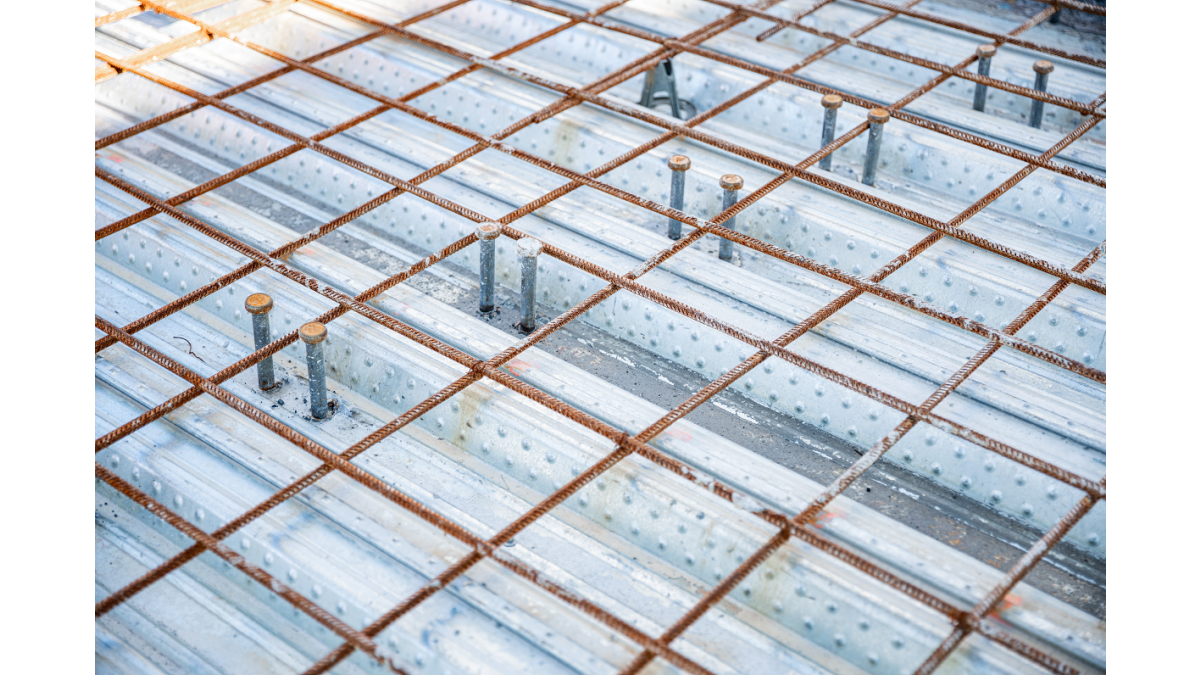

  • Circular embossments for strong composite action between concrete and steel.
  • Bottom stiffeners pushed apart allowing studs to achieve full capacity.
  • Interlink seamlessly to deliver reliable, cost-effective solutions for bathroom and balcony set downs.
  • S&T CFDL (Composite Floor Decks Ltd) provide design, installation and stud wellding services.
NZ Made
NZ Made
Scope of Use

Spans propped and unpropped:

ComFlor 60
  Propped Unpropped
0.75mm up to 6.00m up to 3.25m
0.90mm over 6.00m over 3.50m
1.00mm over 6.10m over 3.80m
1.20mm over 6.20m over 4.00m
ComFlor 80
  Propped Unpropped
0.75mm over 6.00m up to 3.50m
0.90mm over 6.10m over 4.100m
1.00mm over 6.20m over 4.40m
1.20mm over 6.30m over 4.60m
ComFlor 210
  Propped Unpropped
1.25mm over 8.50m over 5.00m
In-Service History

ComFlor is a registered trade mark used in Australia and New Zealand under licence from Tata Steel UK Limited.

Other Performance Attributes

Extensive testing has been undertaken in conjunction with the UK-based Steel Construction Institute to ensure ComFlor meets internationally recognised construction standards. Steel & Tube is applying British research and technology along with New Zealand-made equipment and steel to manufacture ComFlor in New Zealand.

Documents
ComFlor Acoustic Performance

2019 April

Design Details Full Library
ComFlor product guide
Specification Support (Masterspec work sections)
ComFlor Installation and Information
Brochure: Product Showcase
ComFlor 60 Brochure

V2026

ComFlor 80 Brochure

V2026

ComFlor SR Brochure
Additional Information
RPV Level 3 Certificate - Responsible Products
BIM
Filters
Revit Version
ComFlor Profile
Components
Steel & Tube BIM-spec ComFlor 210 (Detail) 2016
Steel & Tube BIM-spec ComFlor 210 (Detail) 2017
Steel & Tube BIM-spec ComFlor 210 (Profile) 2016
Steel & Tube BIM-spec ComFlor 210 (Profile) 2017
Steel & Tube BIM-spec ComFlor 60 (Detail) 2016
Steel & Tube BIM-spec ComFlor 60 (Detail) 2017
Steel & Tube BIM-spec ComFlor 60 (Profile) 2016
Steel & Tube BIM-spec ComFlor 60 (Profile) 2017
Steel & Tube BIM-spec ComFlor 80 (Detail) 2016
Steel & Tube BIM-spec ComFlor 80 (Detail) 2017
Steel & Tube BIM-spec ComFlor 80 (Profile) 2016
Steel & Tube BIM-spec ComFlor 80 (Profile) 2017
Steel & Tube BIM-spec ComFlor Edge Trim 2016
Steel & Tube BIM-spec ComFlor Edge Trim 2017
Steel & Tube BIM-spec ComFlor Full Project 2016
Steel & Tube BIM-spec ComFlor Full Project 2017
Steel & Tube BIM-spec ComFlor Shear Stud 2016
Steel & Tube BIM-spec ComFlor Shear Stud 2017
Steel & Tube BIM-spec ComFlor SR (Detail) 2016
Steel & Tube BIM-spec ComFlor SR (Detail) 2017
Steel & Tube BIM-spec ComFlor SR (Profile) 2016
Steel & Tube BIM-spec ComFlor SR (Profile) 2017

Steel & Tube are a New Zealand supplier of a range of steel products and services, including roofing, cladding, purlins, composite flooring, reinforcing, fasteners, stainless steel drainage systems.

Product Enquiries

News from Steel & Tube

From Steel Structure to Roofing and Cladding: Steel & Tube Supports 4WD Warehouse Taupō Expansion

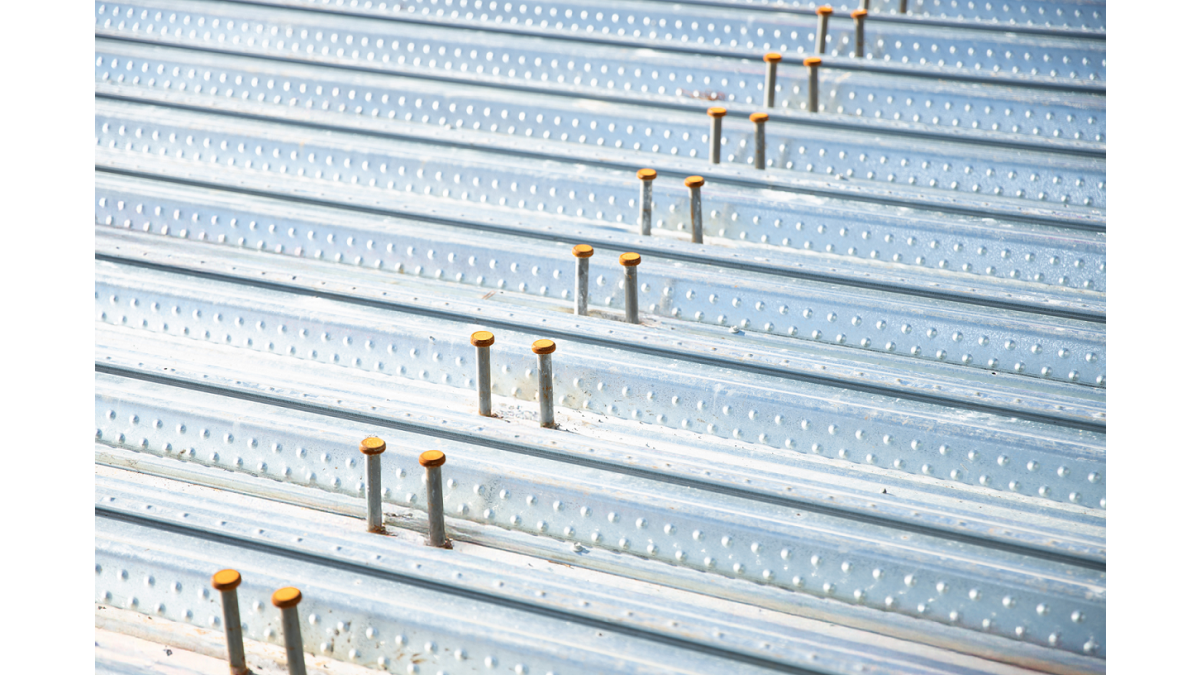

2 Devonport Road: Raising the Standard for Multi-Storey Construction with Integrated Steel Solutions
