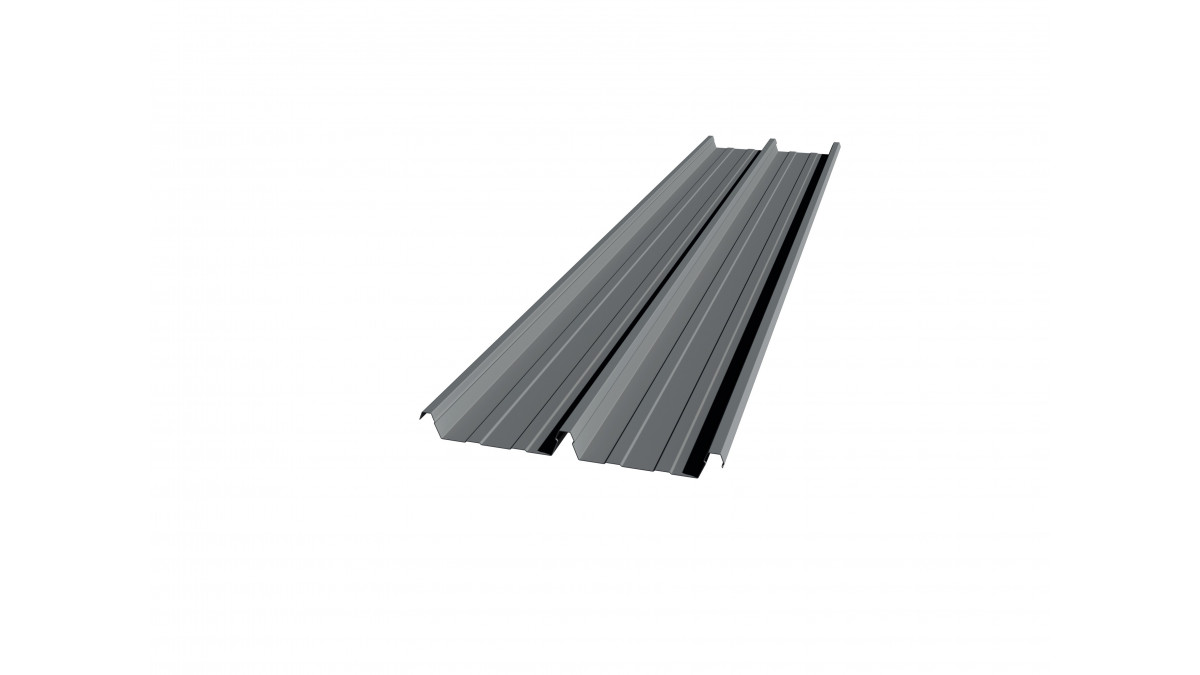

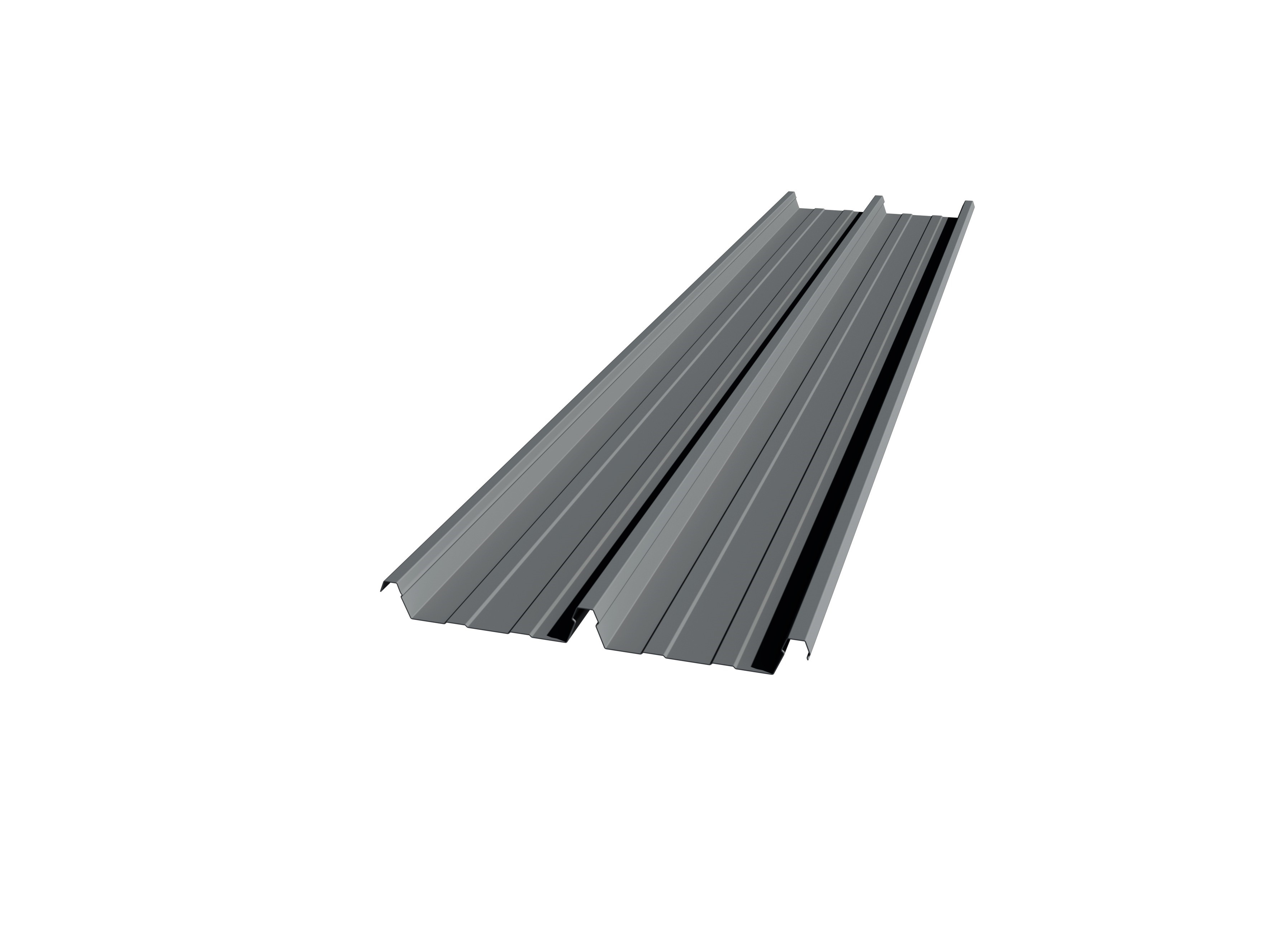

Kliplok
Description

Steel & Tube's trough section profiles are designed to meet a variety of needs from low pitch and long lengths to steep pitches where the clean lines are enhanced by the secret fixings.

Legacy, Hi Rib and Kliplok deliver exceptional performance capabilities because they are all manufactured from high tensile steel.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.



Key Features
  • Manufactured in Wellington
  • Minimum pitch 3°

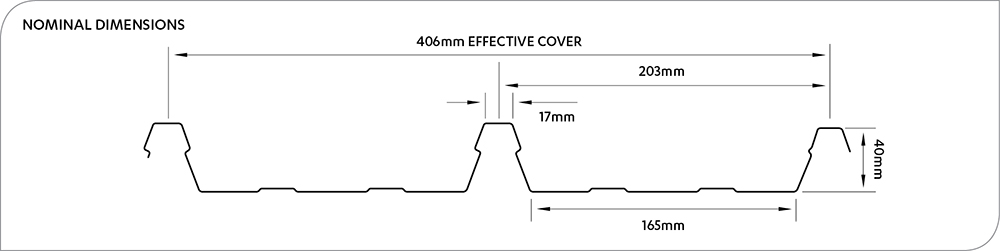

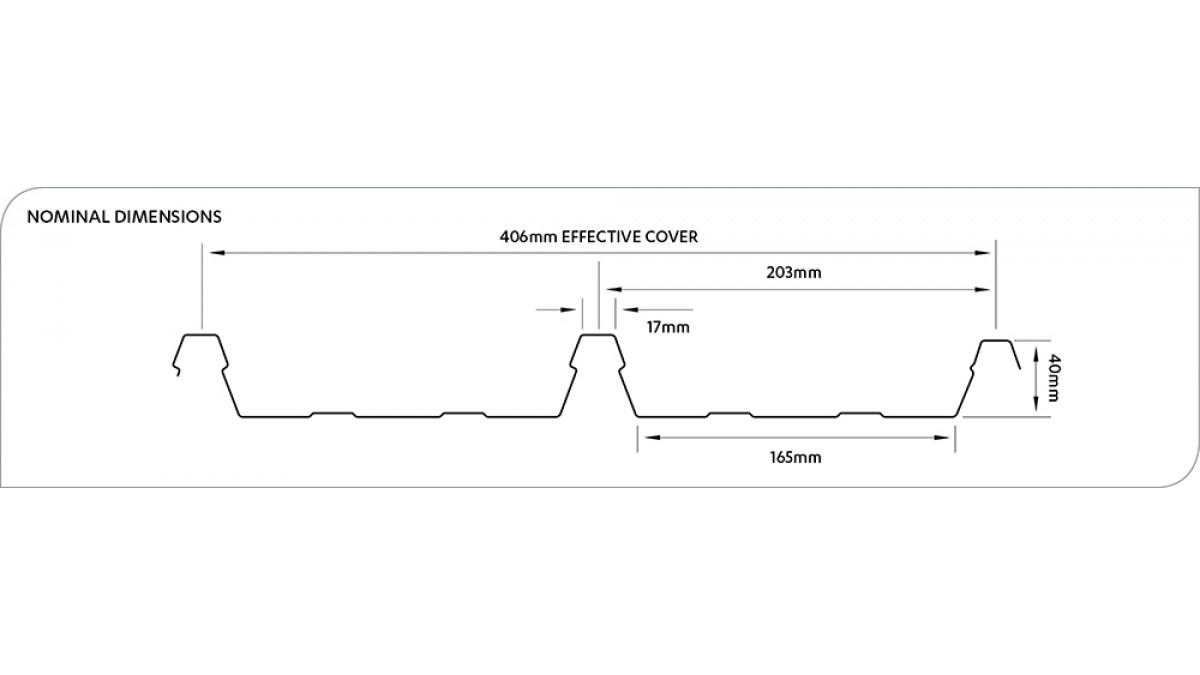

  • 165mm wide swaged pan, 40 mm rib and 406mm effective cover
  • Secret fixed trough section profile
  • High tensile steel for greater strength
  • Trapezoidal rib for greater stability
  • Can be end lapped
  • Available in a wide selection of materials
  • Translucent sheeting available to match
Eco Choice Aotearoa (ECNZ) Licensed
ECNZ Licensed
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Residential roofing and cladding
  • Commercial and industrial cladding
  • Steel & Tube Kliplok is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
  • A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
Limitations on Use
  • Minimum pitch 3°
3° Minimum Roof Pitch Required
NZS 3604 Corrosion Zone B suitable
Corrosion Exposure Zone B
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Other Performance Attributes

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
Documents
BIM Files Kliplok
CAD/PDF Link Kliplok
PTS / Data Sheet
Environmental Choice NZ Award - Wellington Branch

2022 March

Test Results: Fire Testing
Colorsteel Material Selection
Maintenance Instructions
Warranty
Brochure: Product Showcase
Brochure: Roofing Solutions Product Guide
Colour Range
Order Roofing and Wall Cladding Samples
Product resources and links

Steel & Tube are a New Zealand supplier of a range of steel products and services.

Product Enquiries

News from Steel & Tube

A Modern Cladding Profile for Historic Sports Club Refurbishment
SELO: Efficient Construction Opens Up 236 Affordable Houses in a Near 10-Month Timeframe

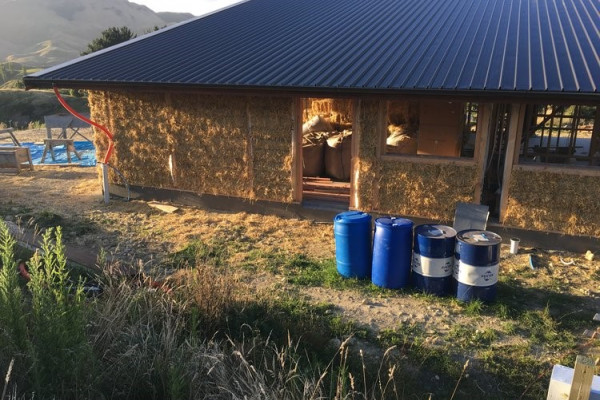

Plumbdek Brings New Life to an Old Bach
