Beam-to-Post Fixing Solution
Description

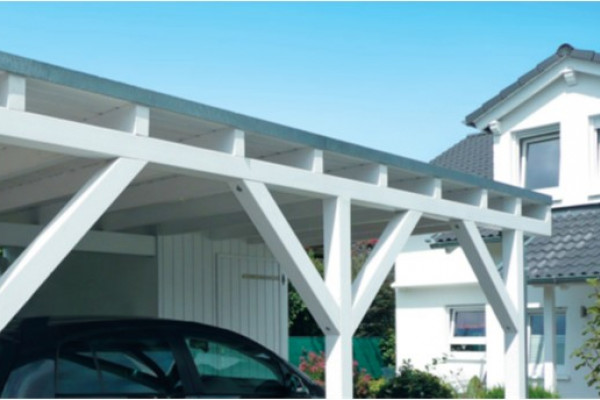

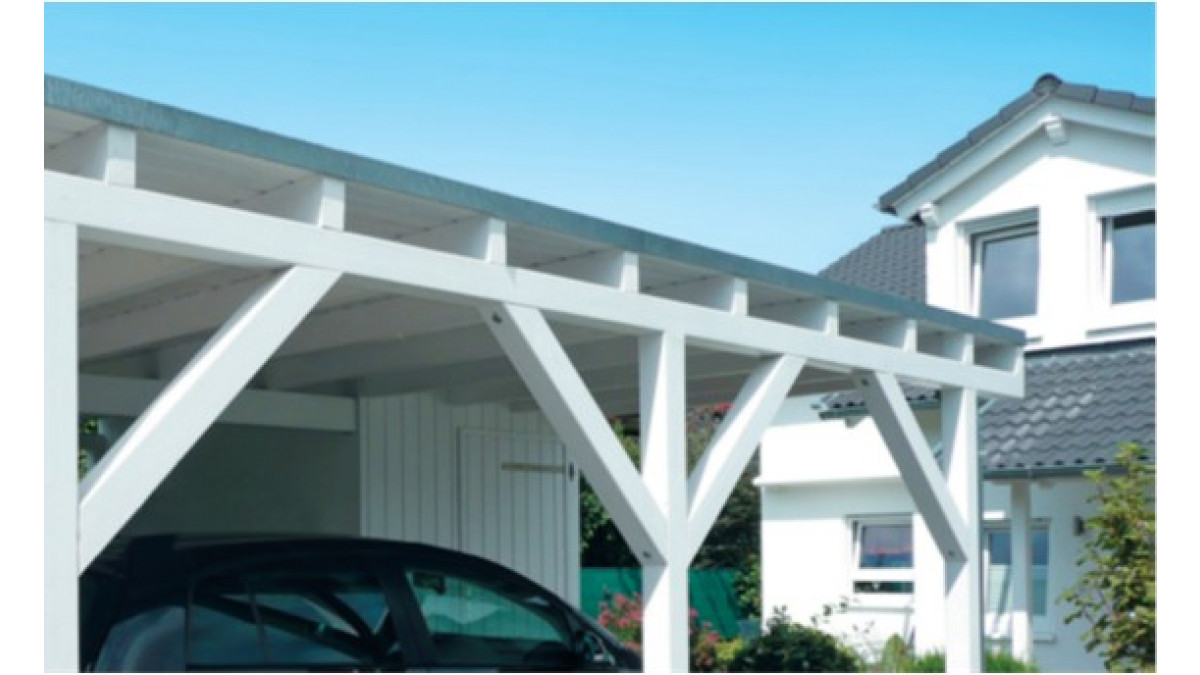

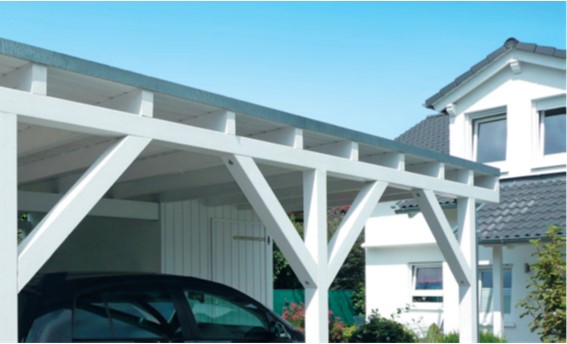

The SPAX beam-to-post solution is a bracket-less method of fastening a beam to a post to providing a very strong, but invisible, connection. It is ideal for pergolas and carports and is extremely cost-effective.

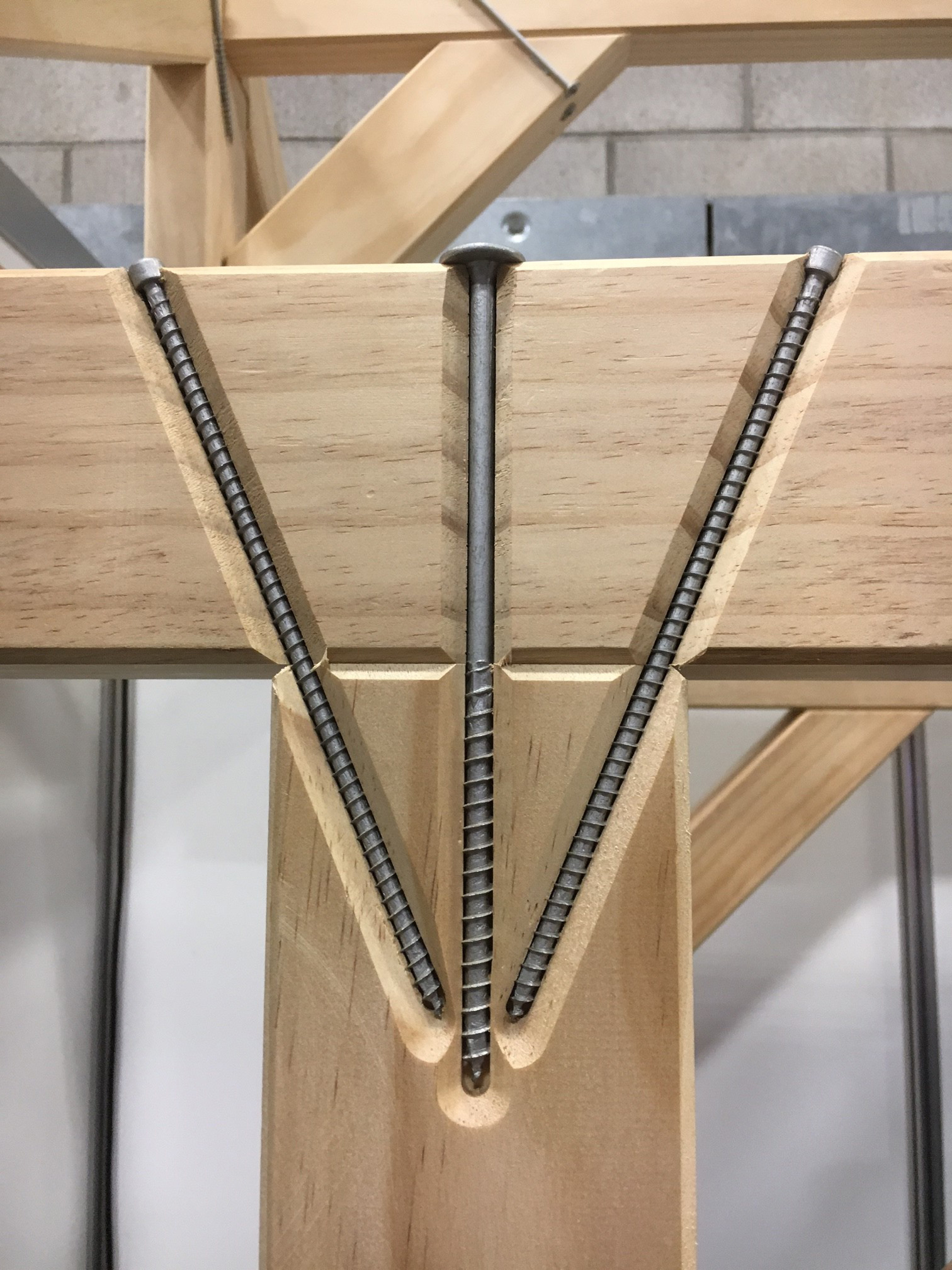

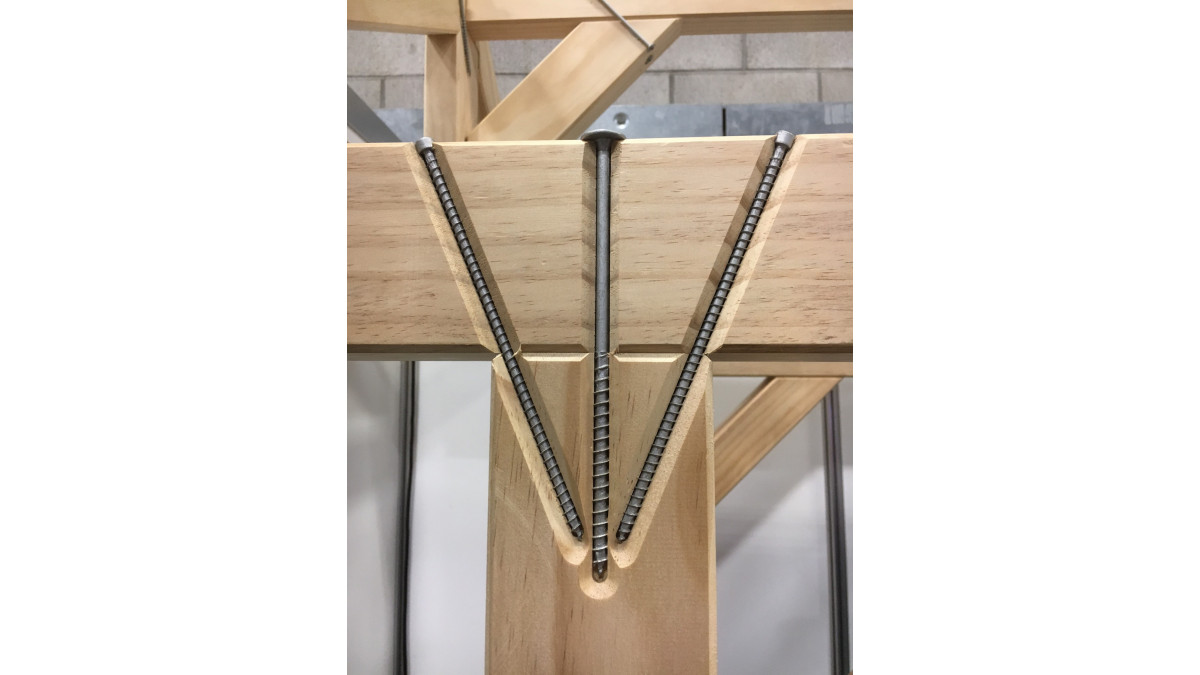

This solution is easy to install by first using a SPAX washer head screw to clamp the beam and post tightly together and then installing SPAX cylinder head full thread screws to provide strength to the connection.

Key Features

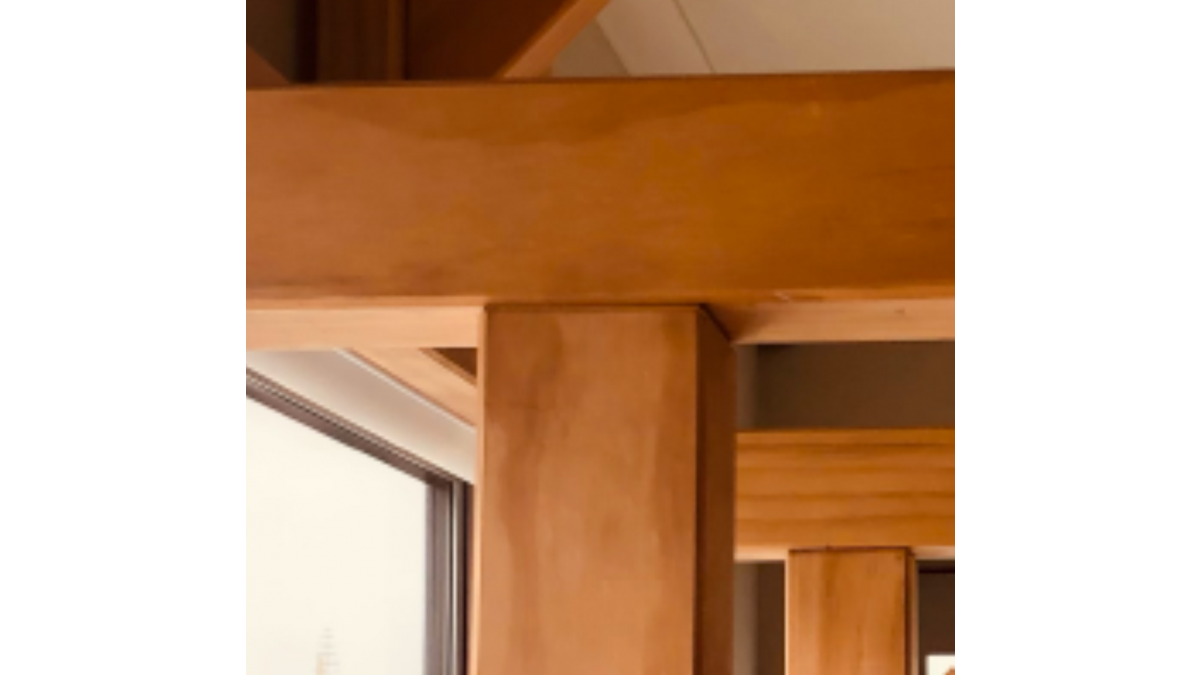

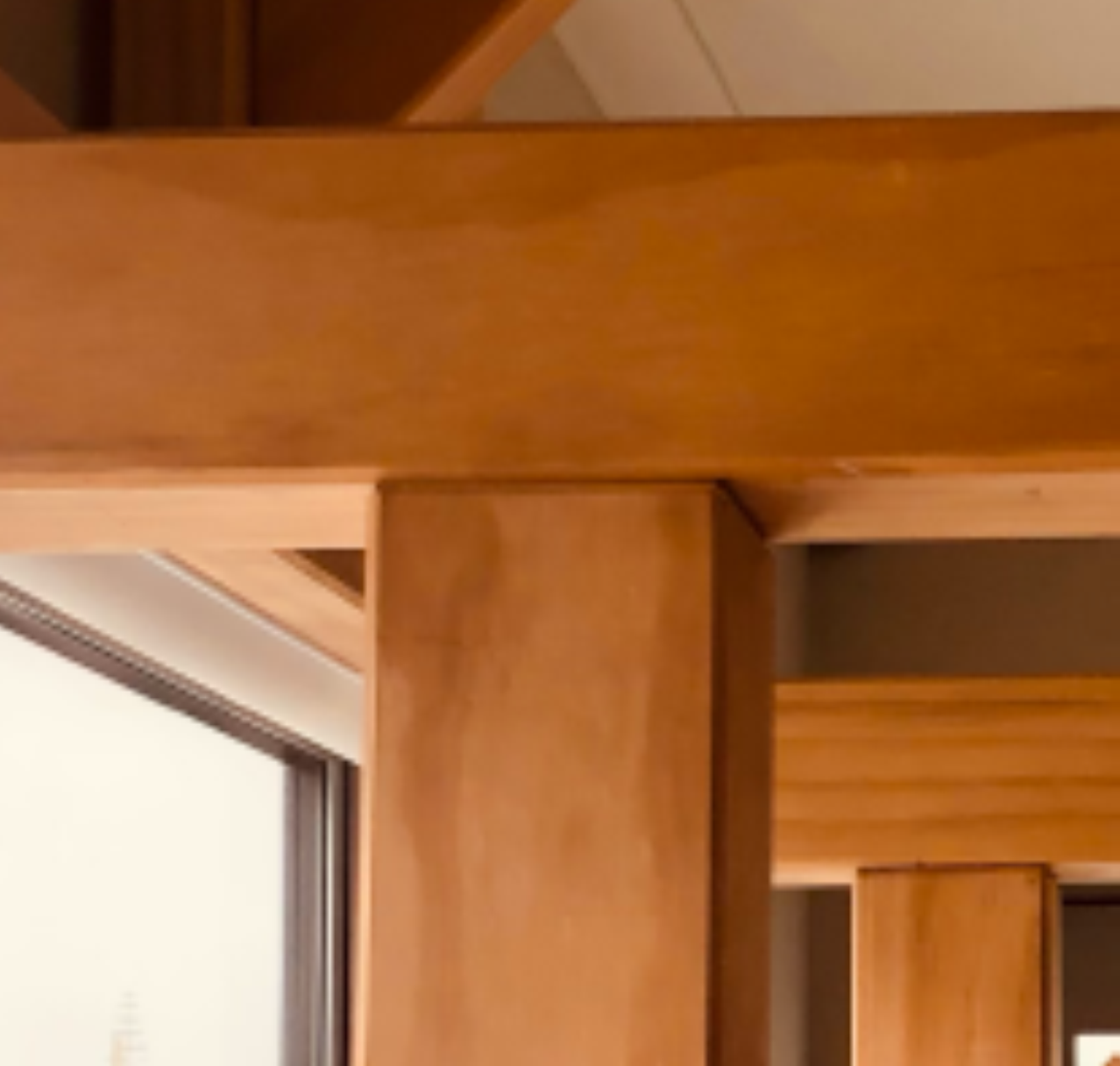

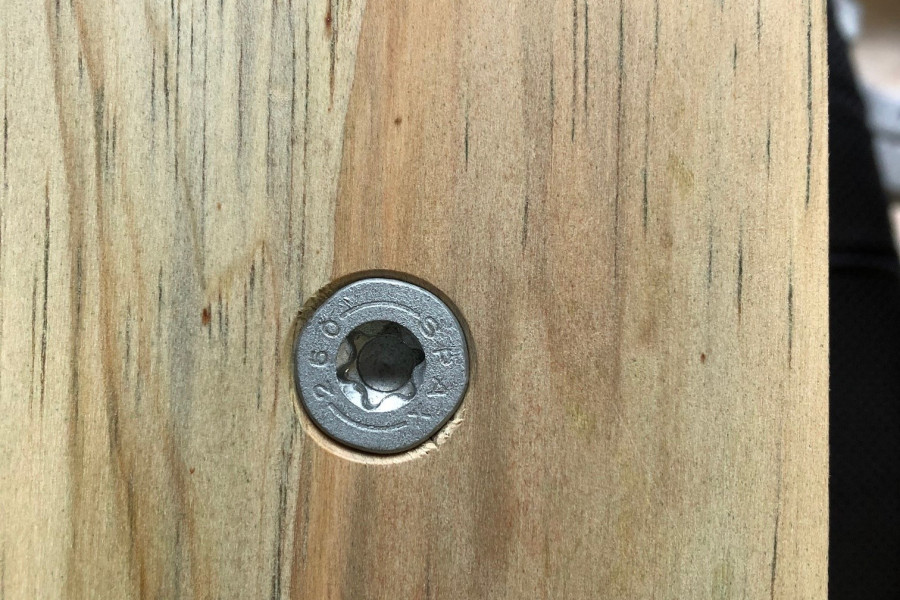

  • Invisible connection — no brackets required and the cylinder head can be buried below the timber surface
  • High load capacity to resist wind uplift
  • DELTA-SEAL coating for superior corrosion protection and resistance to timber treatments
  • Unique cut point and serrated thread for reduced chance of splitting the timber and reduced screwing-in torque
  • Patented T-STAR plus recess for better torque transfer and reduced chance of stripping the head
Scope of Use

The principal application is for fastening 90mm wide beams, with a height of 90mm to 240mm onto a 90mm x 90mm post on structures such as pergolas and carports.

Statement of Building Code Compliance
  • SPAX products are manufactured in Germany and comply with the latest European requirements but have also been tested in local New Zealand timbers
  • A PS1 producer statement is available for the SPAX Beam-to-Post Fixing Solution showing compliance to clause B1 of the New Zealand Building Code as an alternative solution



Documents
Data Sheet: 1A — Continuous Beam Application

1A

Data Sheet: 1C — Beam End Application

1C

SPAX is a German manufacturer of quality, innovative screws for timber connections such as framing, timber construction, decking, flooring, and cladding.
