Slimline Mini Corrugate
Roofing Industries
All products
Slimline mini corrugate Commercial cladding 302h

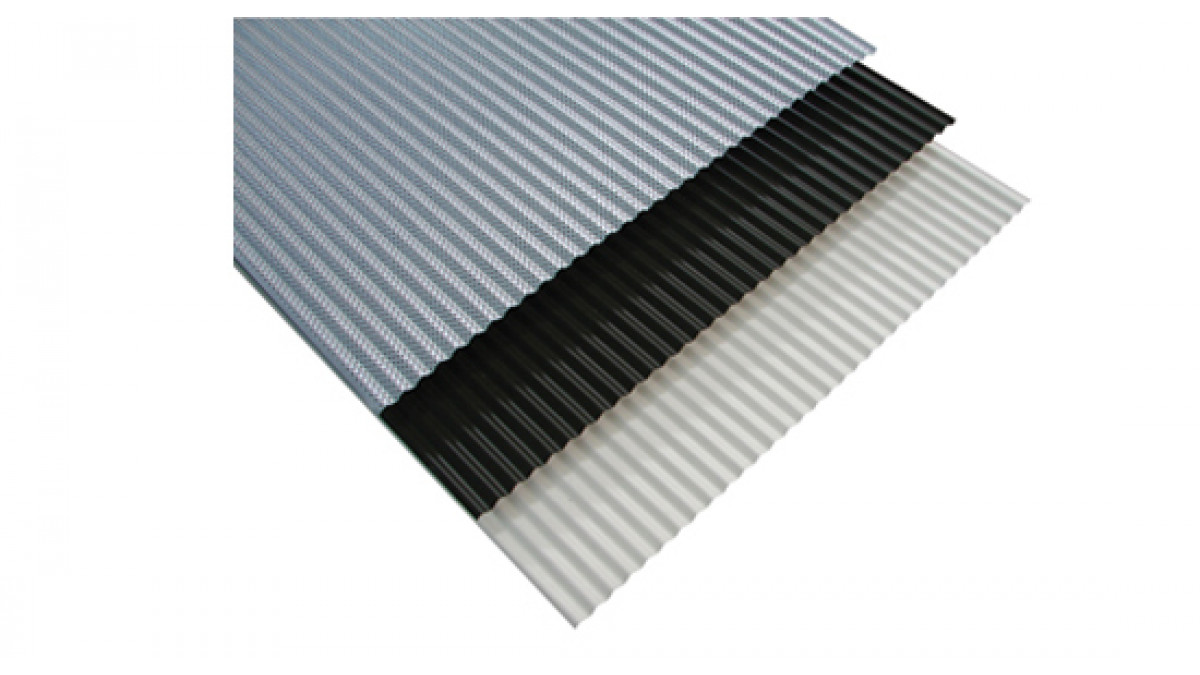

slimline mini corrugate
Description

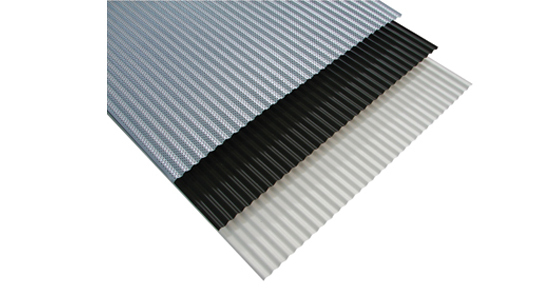

Slimline mini corrugate is a miniature version of the traditional corrugated shaped product and offers designers, builders and home owners a unique and decorative alternative with the range of end uses only limited by the imagination.

Key Features
  • Strong and aesthetically pleasing
  • Vast range of end uses only limited by imagination
  • Look for the unique NZ designed, smooth and perfectly formed sinusoidal wave shape
  • Unique close-fitting lapping edge design disguises lap lines
  • Available as unpainted Zincalume
  • Also manufactured in Colorcote prepainted modern colours to one, or both sides of the sheet
Categories
Metal Cladding Metal Roofing
Scope of Use

Although not suitable for use as a trafficable roofing product, when coupled with a range of substrate materials, surface finishes and perforated options, Slimline Mini Corrugate exhibits flexibility, and practicality as a modern architectural product.

Applications

  • Residential cladding
  • Interior linings
  • External and internal partitions
  • Acoustic linings
  • Soffits
  • Neigbour-friendly fencing
  • Decorative claddings
  • Sign writing substrate
  • Spring curving

Metal Roof and Wall Cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice.
Statement of Building Code Compliance

Slimline Mini Corrugate will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B2 - Durability: Performance B2.3.1(b)

Clause E2 - External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Slimline Mini Corrugate performs satisfactorily in the environment it is to be installed, meeting the requirements of the NZBC.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
Product Brochure: Slimline Mini Corrugate

February 2019

pdf
Selection Guide: Slimline Mini Corrugate

2012

pdf
Brochure: Ezy-Flo Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
Brochure: Roofing with Style

2023

pdf
Profile Technical Summary

2012

pdf
Tekton Report — E2 Compliance: Slimline

2021

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
Brochure: Re-Roof
pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Commercial or Residential
Roofing Details
Wall Cladding Details
Clear filters
Roofing Industries Gutter Profiles

RI-F01

2020

dwg
pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf
Slimline Residential Full Set of Drawings

RI-RSL

pdf

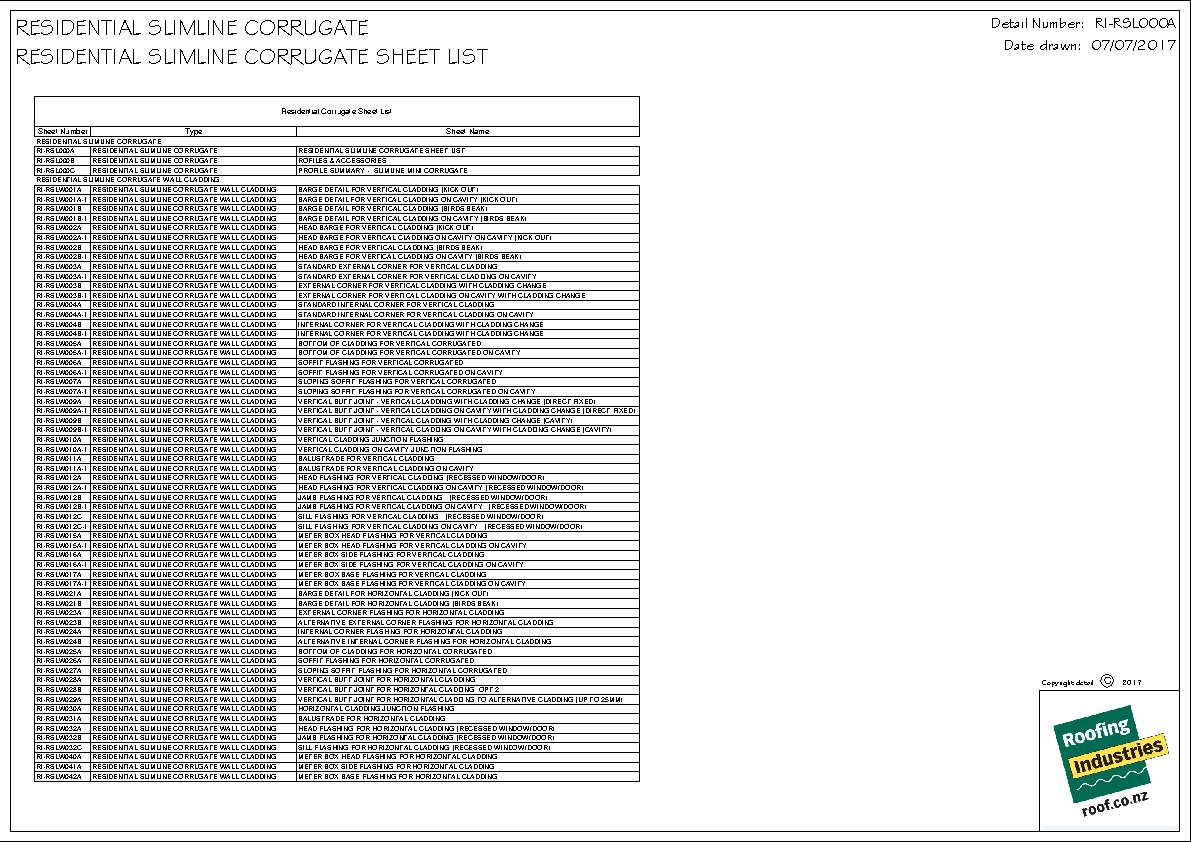

Slimline Residential Sheet List

RI-RSL-000A

dwg
pdf

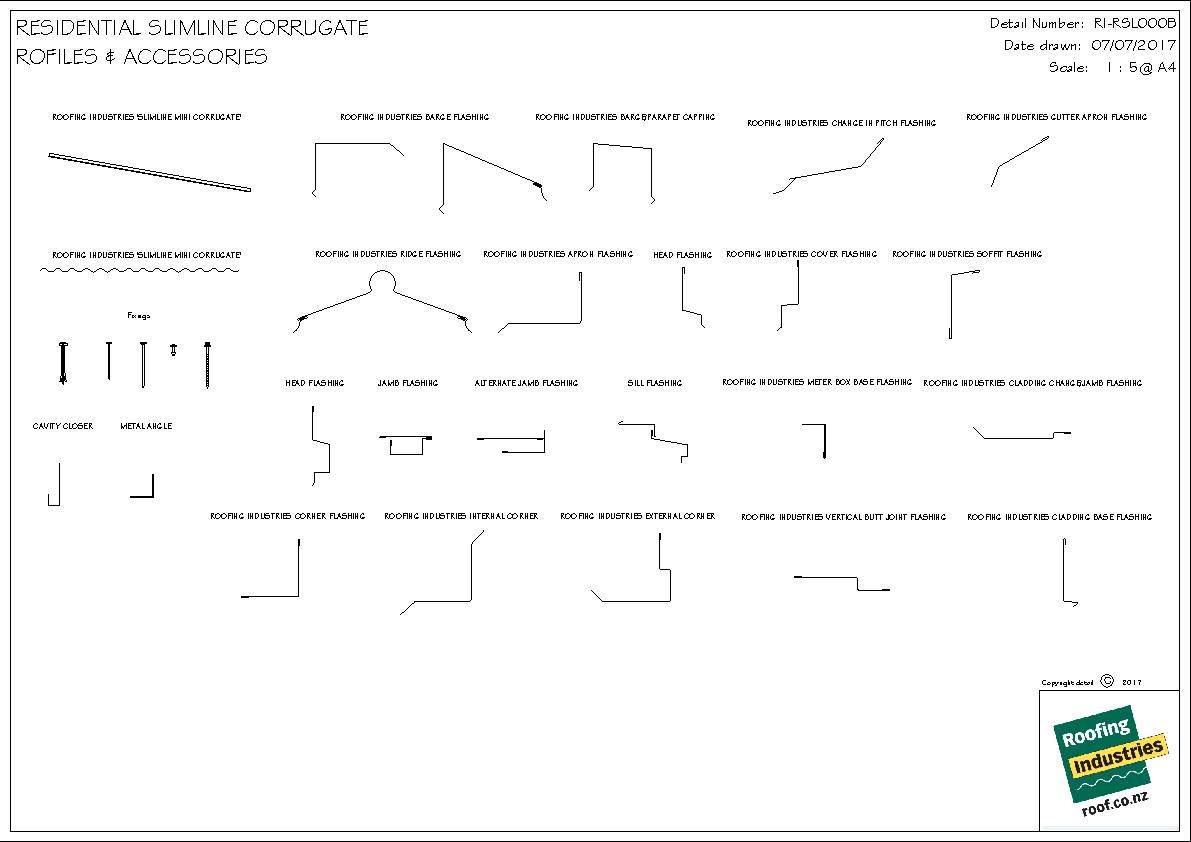

Slimline Residential Profiles and Accessories

RI-RSL-000B

dwg
pdf

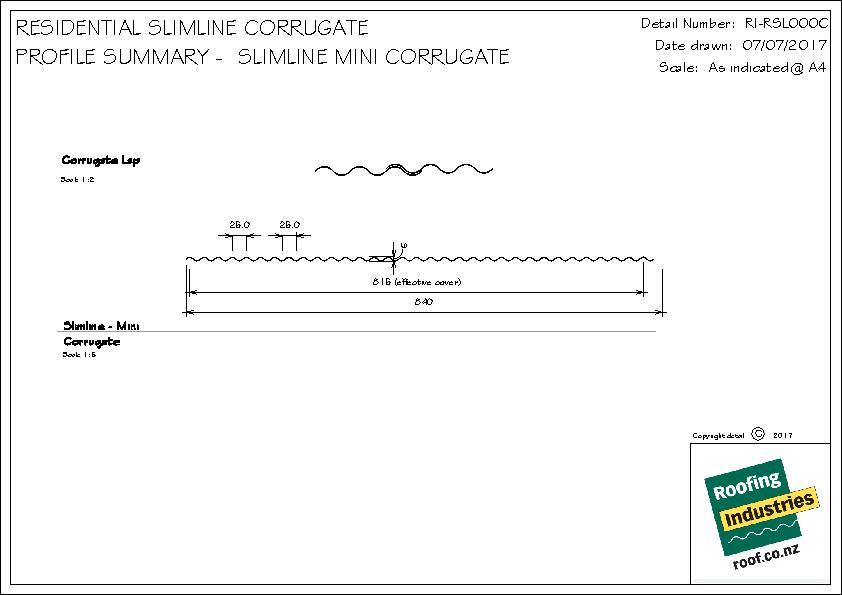

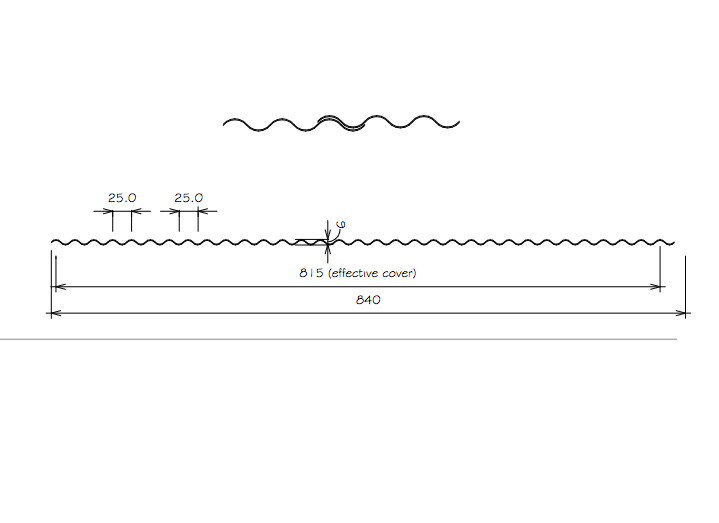

Slimline Profile Summary

RI-RSL-000C

dwg
pdf

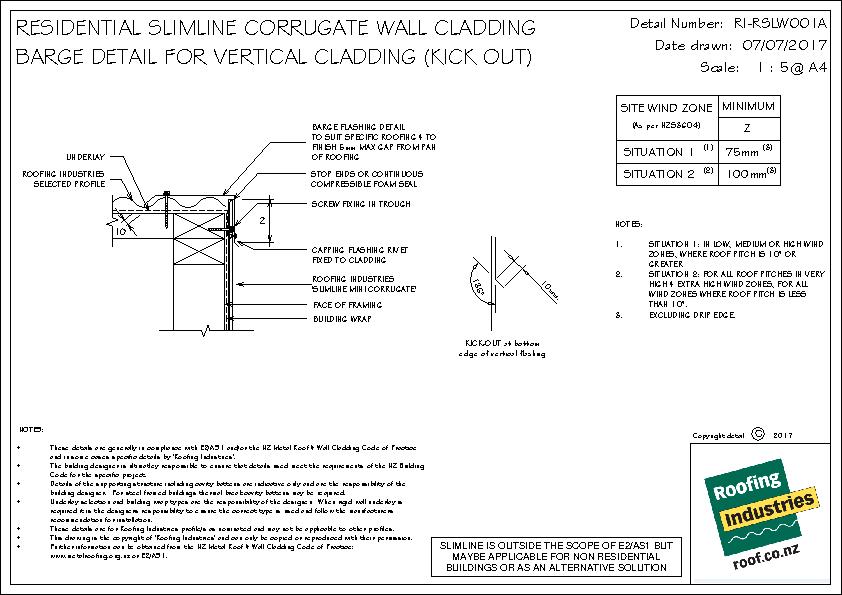

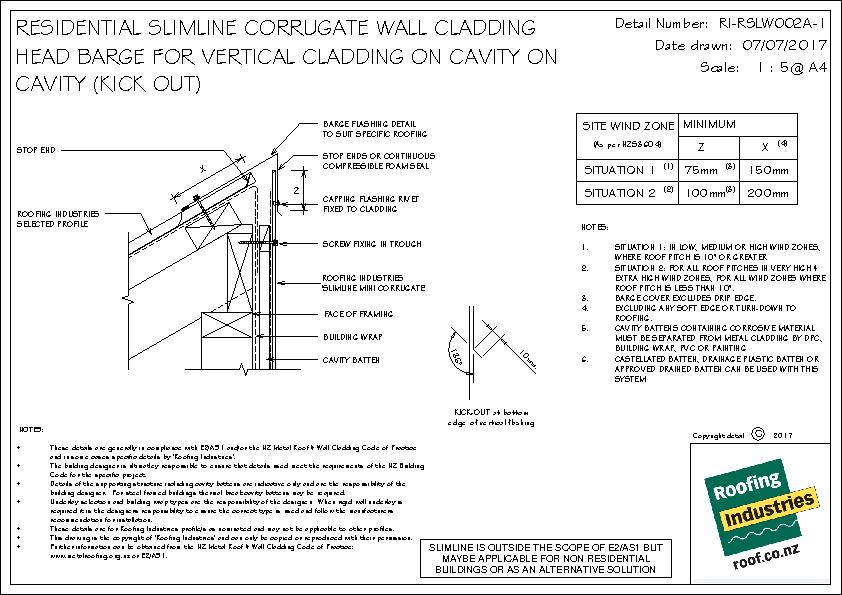

Slimline Barge Detail for Vertical Cladding (Kick Out)

RI-RSL-W001A

dwg
pdf

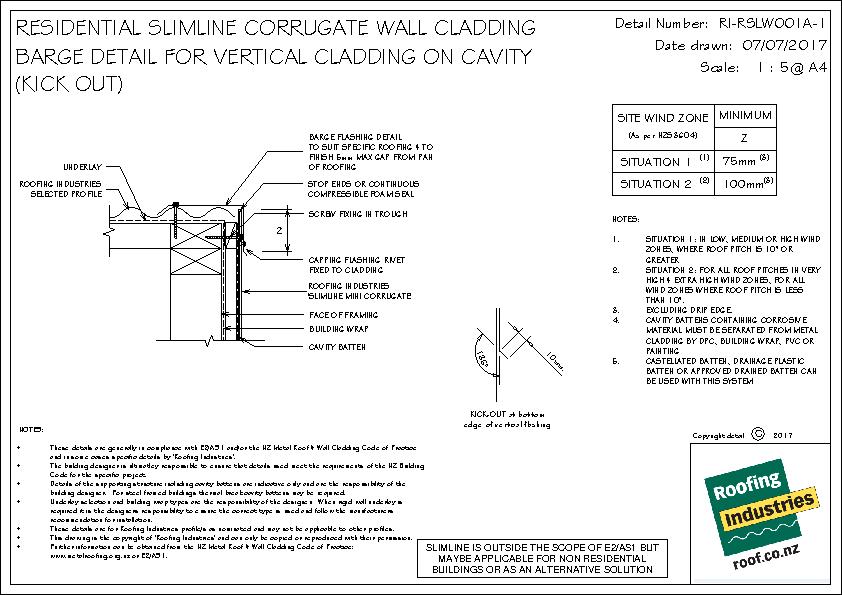

Slimline Barge Detail for Vertical Cladding on Cavity (Kick Out)

RI-RSL-W001A-1

dwg
pdf

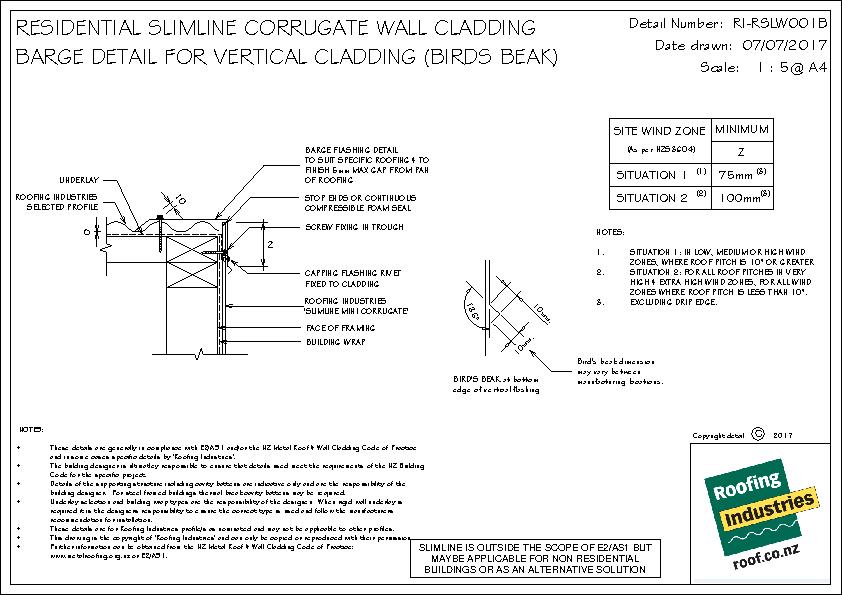

Slimline Barge Detail for Vertical Cladding (Bird's Beak)

RI-RSL-W001B

dwg
pdf

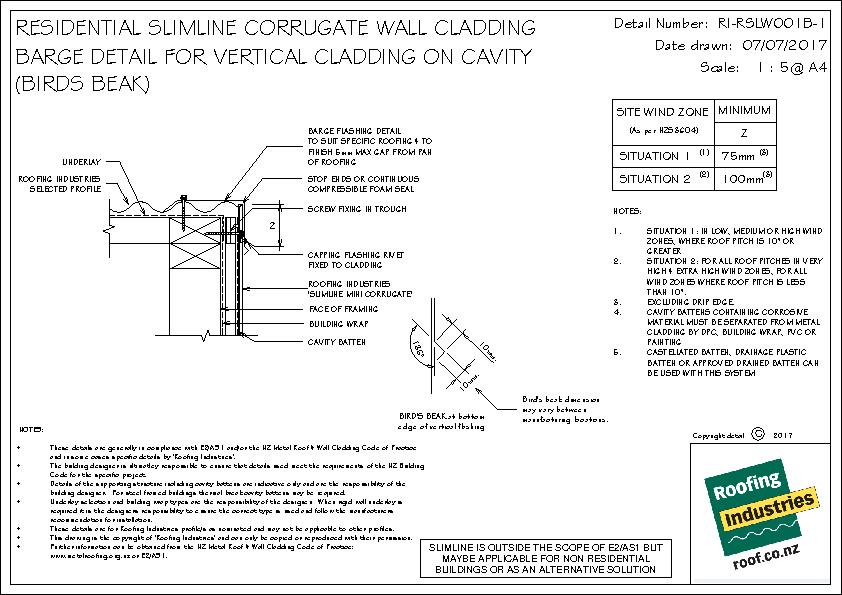

Slimline Barge Detail for Vertical Cladding on Cavity (Bird's Beak)

RI-RSL-W001B-1

dwg
pdf

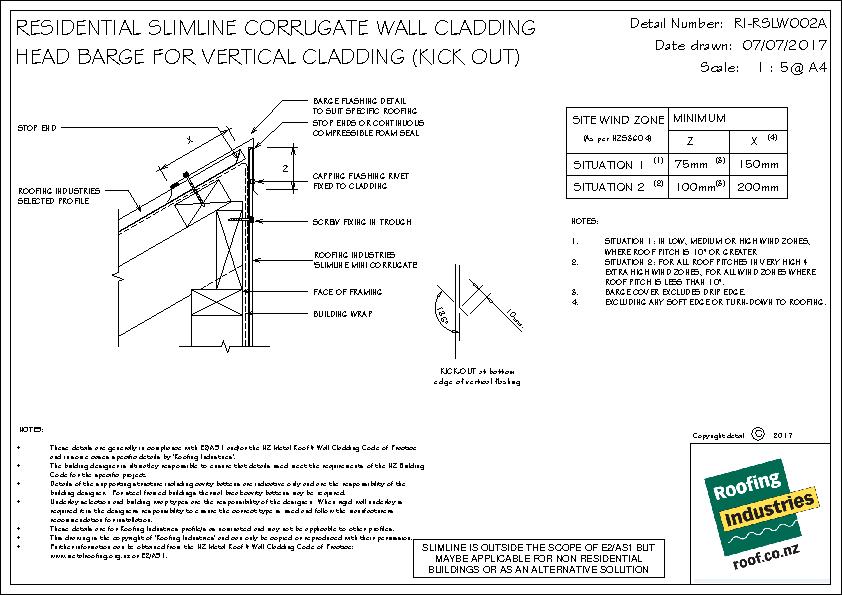

Slimline Head Barge for Vertical Cladding (Kick Out)

RI-RSL-W002A

dwg
pdf
Slimline Head Barge for Vertical Cladding on Cavity (Kick Out)

RI-RSL-W002A-1

dwg
pdf

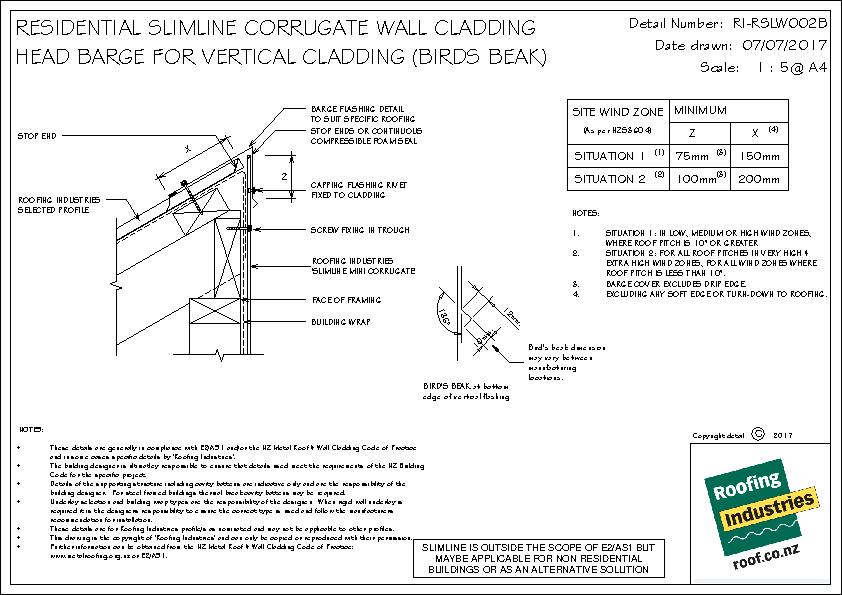

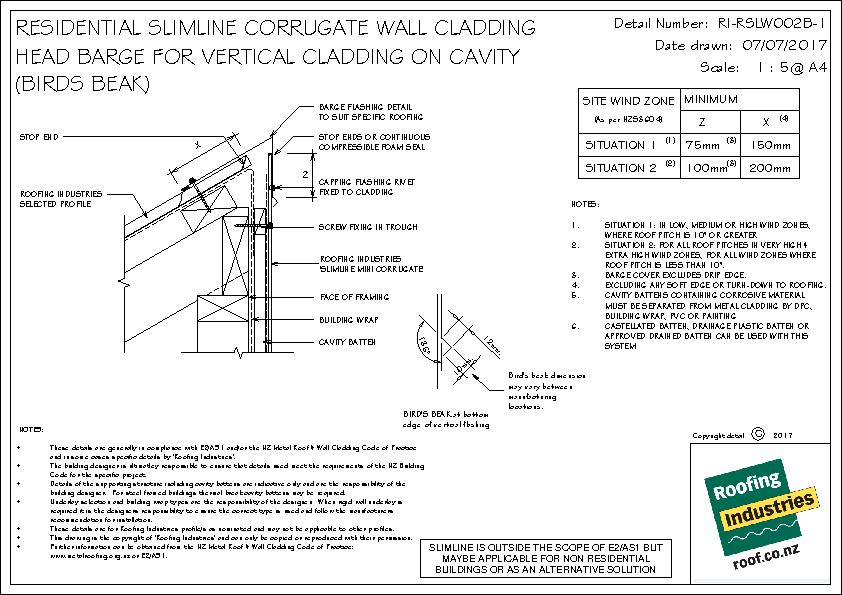

Slimline Head Barge for Vertical Cladding (Bird's Beak)

RI-RSL-W002B

dwg
pdf
Slimline Head Barge for Vertical Cladding on Cavity (Bird's Beak)

RI-RSL-W002B-1

dwg
pdf

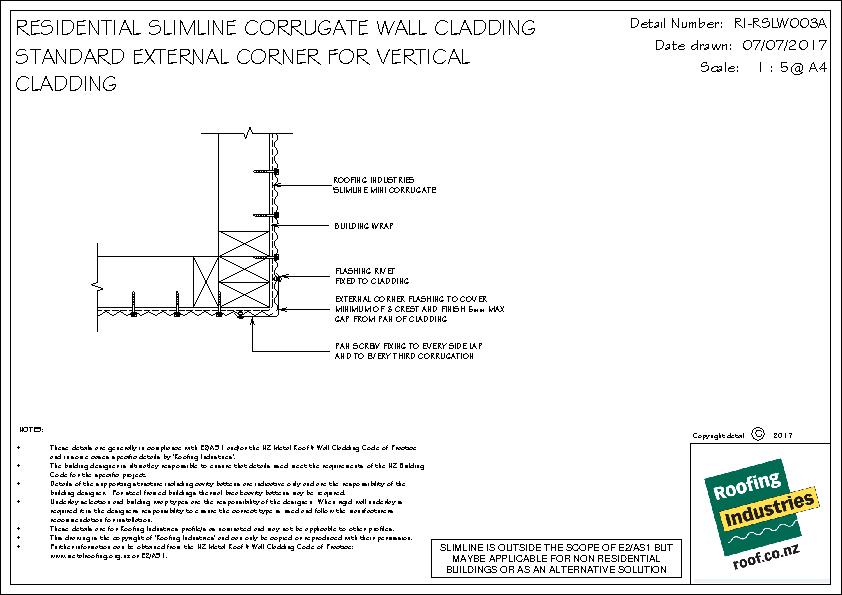

Slimline Standard External Corner for Vertical Cladding

RI-RSL-W003A

dwg
pdf

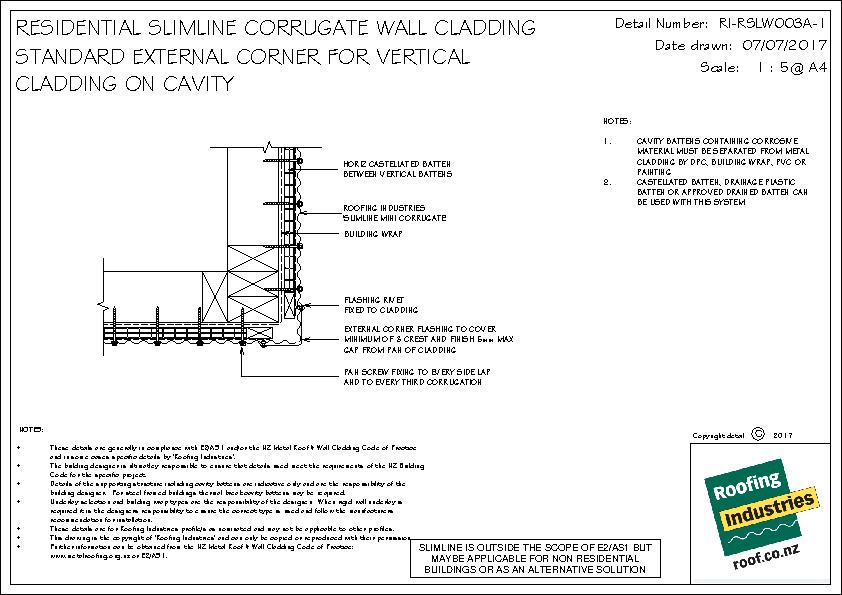

Slimline Standard External Corner for Vertical Cladding on Cavity

RI-RSL-W003A-1

dwg
pdf

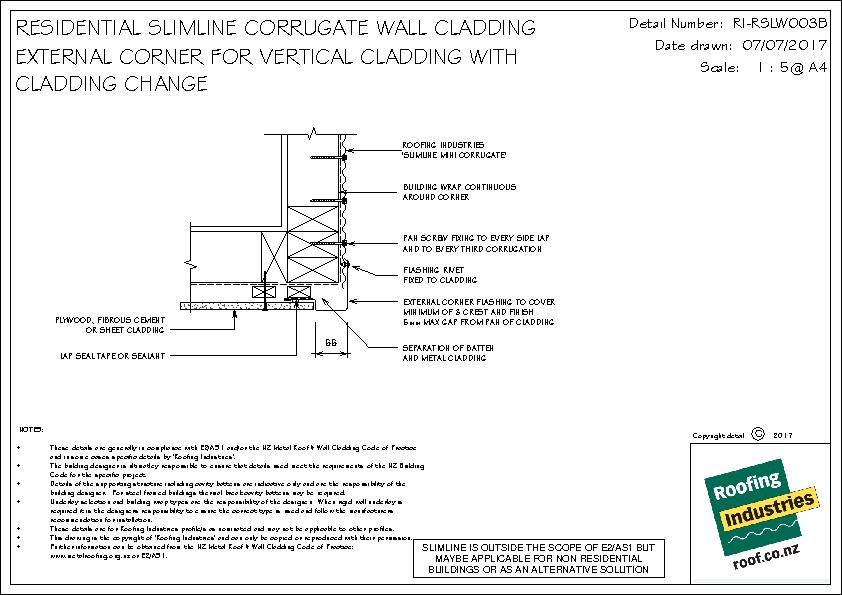

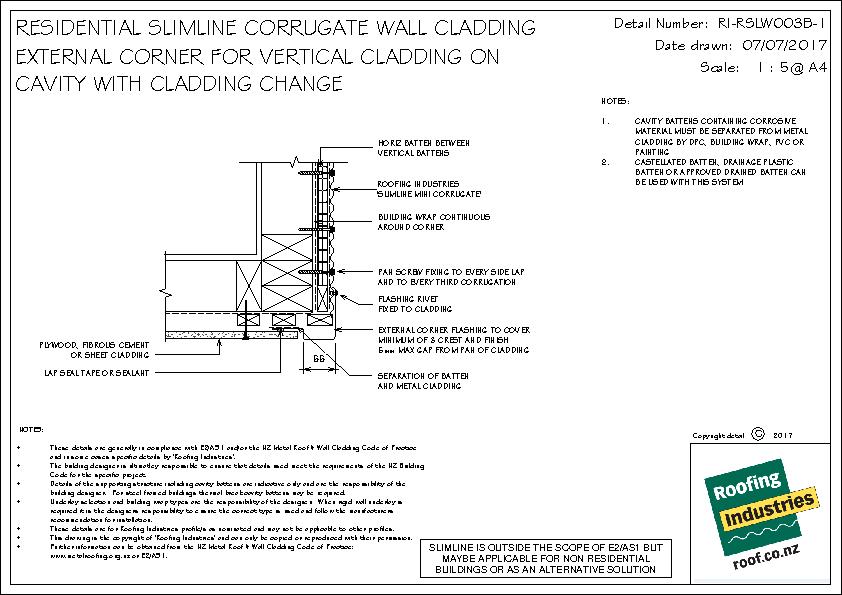

Slimline External Corner for Vertical Cladding with Cladding Change

RI-RSL-W003B

dwg
pdf
RI-RSLW003B-1-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-pdf.jpg
Slimline External Corner for Vertical Cladding on Cavity with Cladding Change

RI-RSL-W003B-1

dwg
pdf

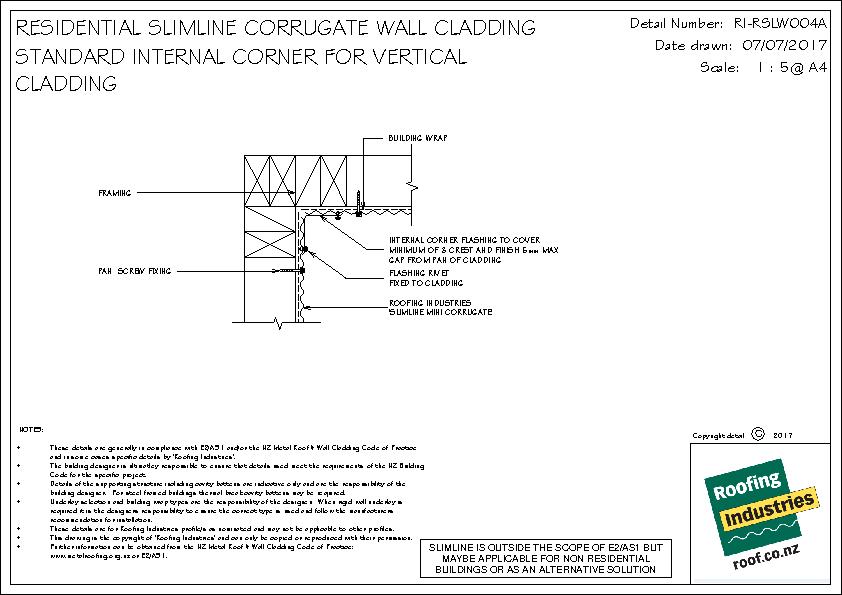

Slimline Standard Internal Corner for Vertical Cladding

RI-RSL-W004A

dwg
pdf

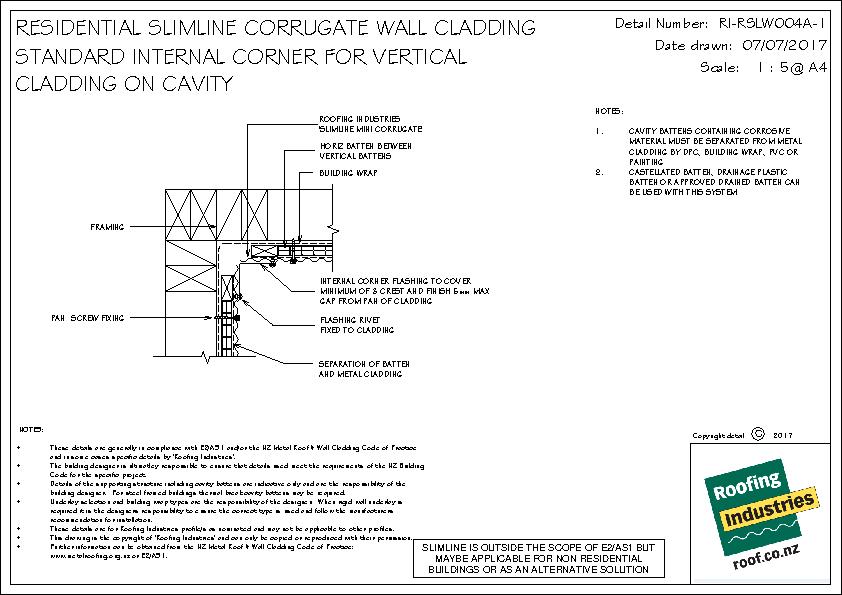

Slimline Standard Internal Corner for Vertical Cladding on Cavity

RI-RSL-W004A-1

dwg
pdf

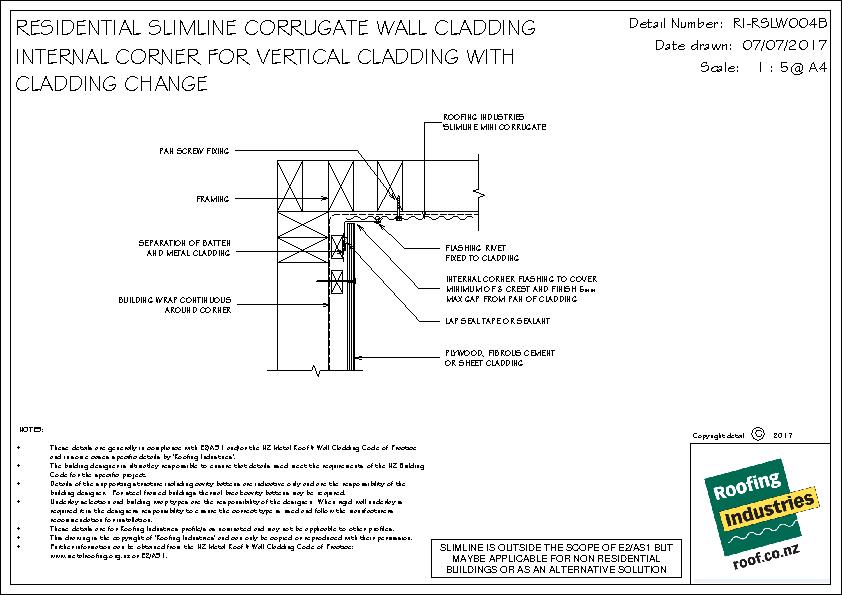

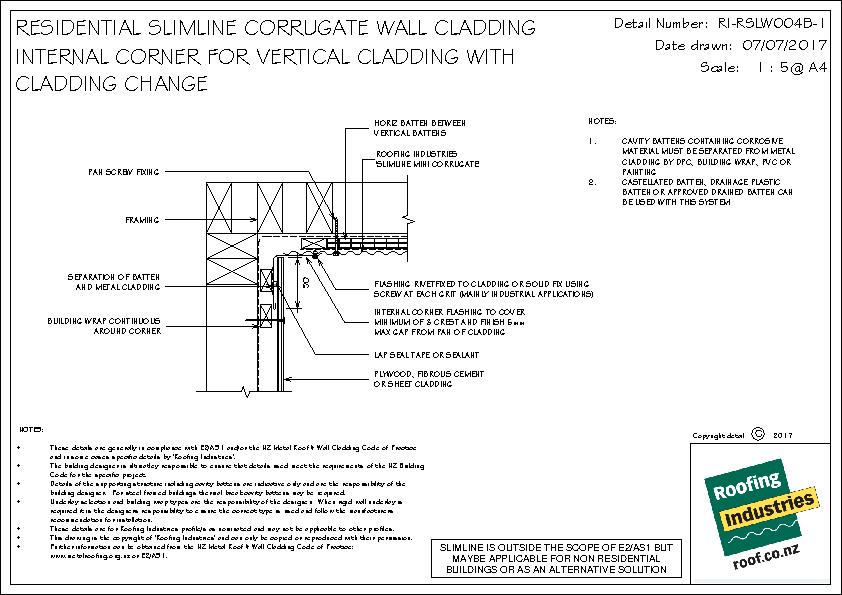

Slimline Internal Corner for Vertical Cladding with Cladding Change

RI-RSL-W004B

dwg
pdf
RI-RSLW004B-1-INTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-pdf.jpg
Slimline Internal Corner for Vertical Cladding On Cavity with Cladding Change

RI-RSL-W004B-1

dwg
pdf

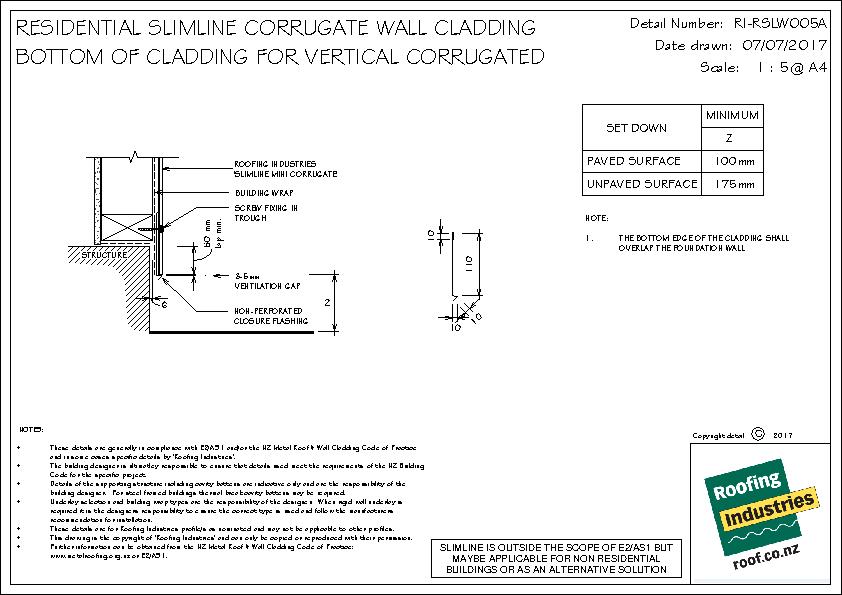

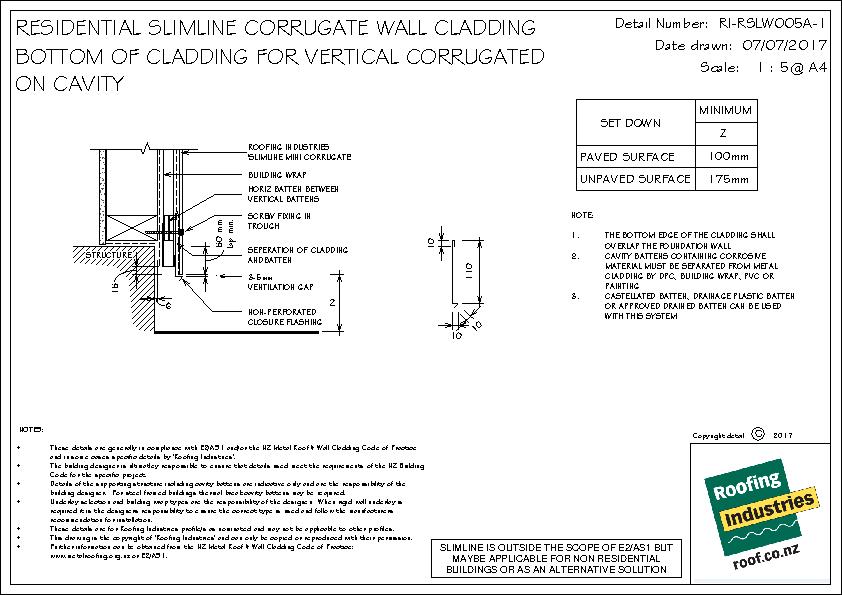

Slimline Bottom of Cladding Vertical Corrugated

RI-RSL-W005A

dwg
pdf
Slimline Bottom of Cladding Vertical Corrugated on Cavity

RI-RSL-W005A-1

dwg
pdf

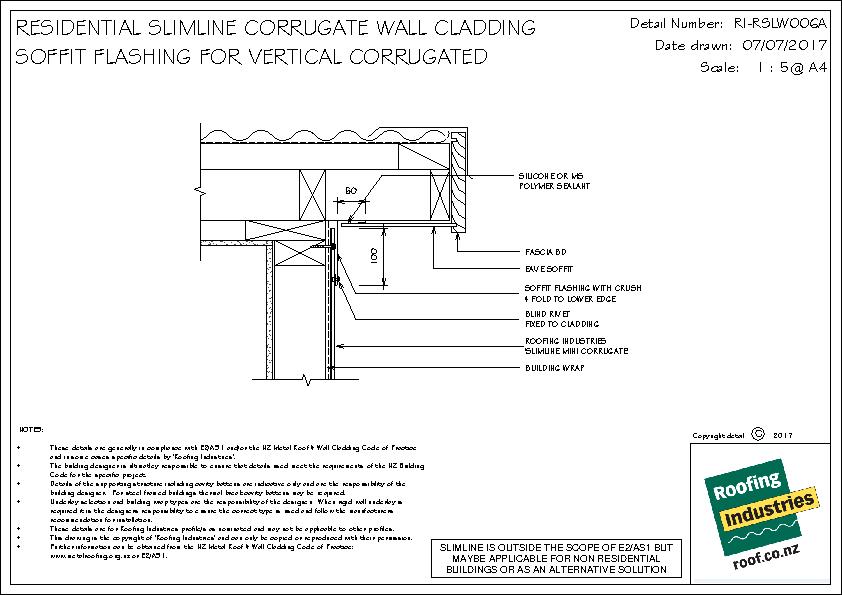

Slimline Soffit Flashing for Vertical Cladding

RI-RSL-W006A

dwg
pdf

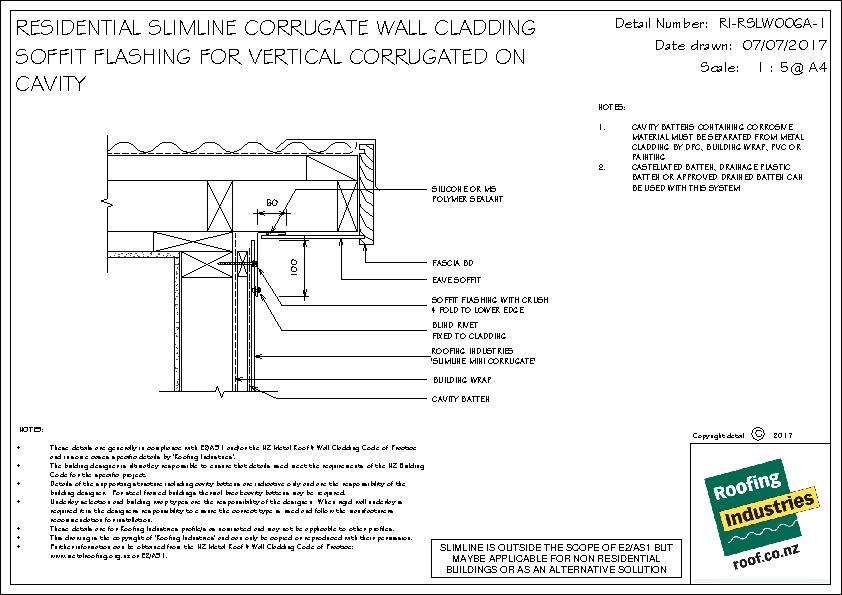

Slimline Soffit Flashing for Vertical Cladding on Cavity

RI-RSL-W006A-1

dwg
pdf

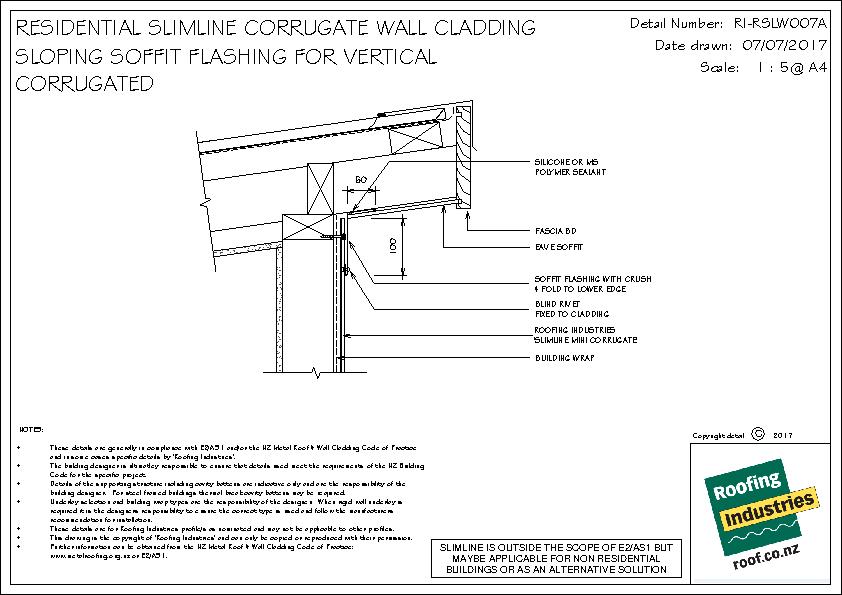

Slimline Sloping Soffit Flashing for Vertical Cladding

RI-RSL-W007A

dwg
pdf

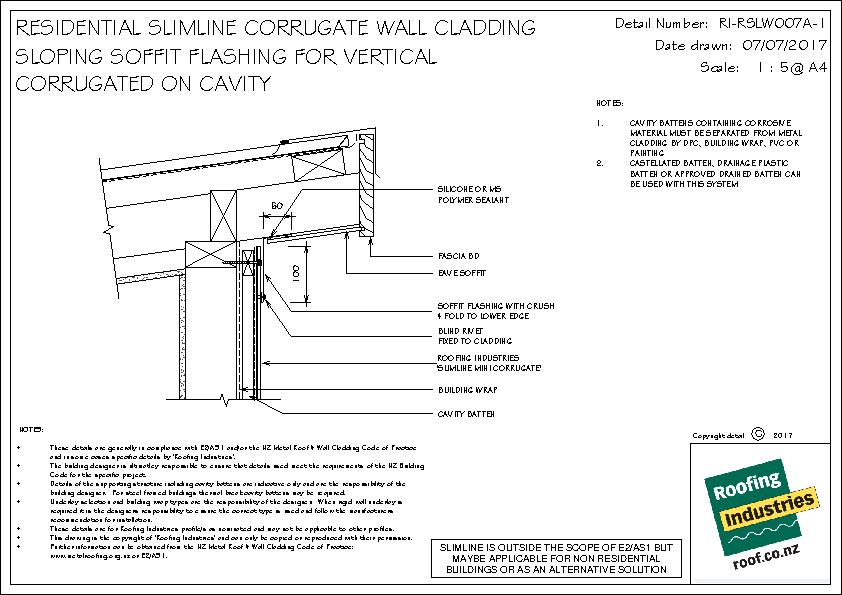

Slimline Sloping Soffit Flashing for Vertical Cladding on Cavity

RI-RSL-W007A-1

dwg
pdf
RI-RSLW009A-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg

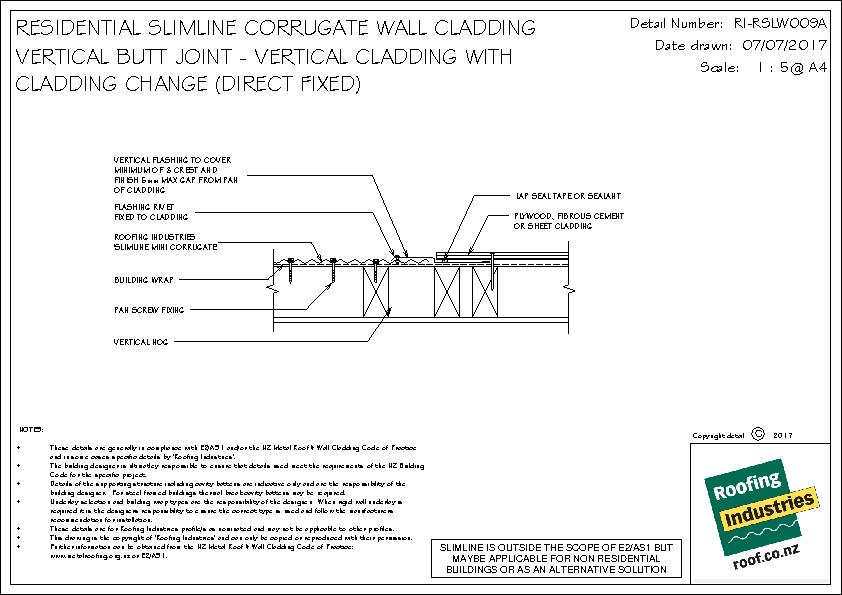

Slimline Vertical Butt Joint Vertical Cladding with Cladding Change (Direct Fixed)

RI-RSL-W009A

dwg
pdf

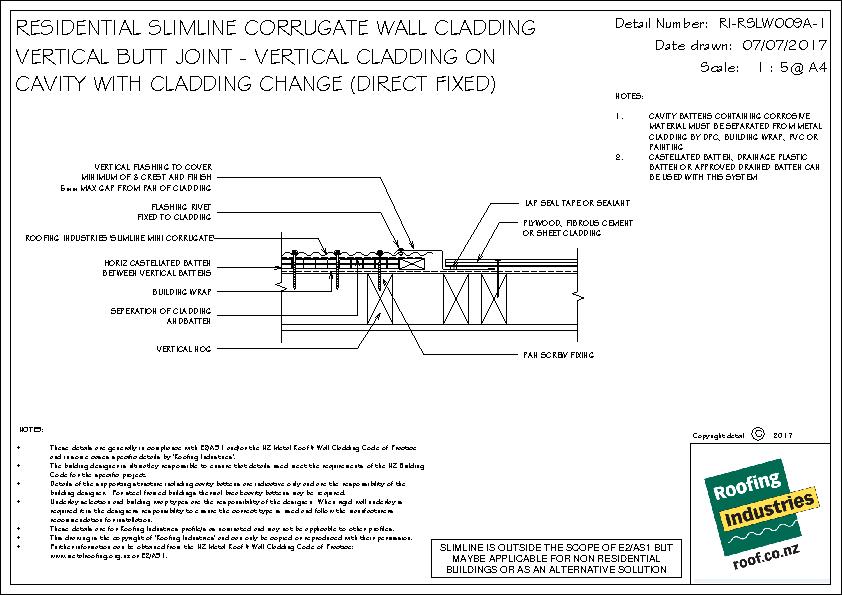

RI-RSLW009A-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg

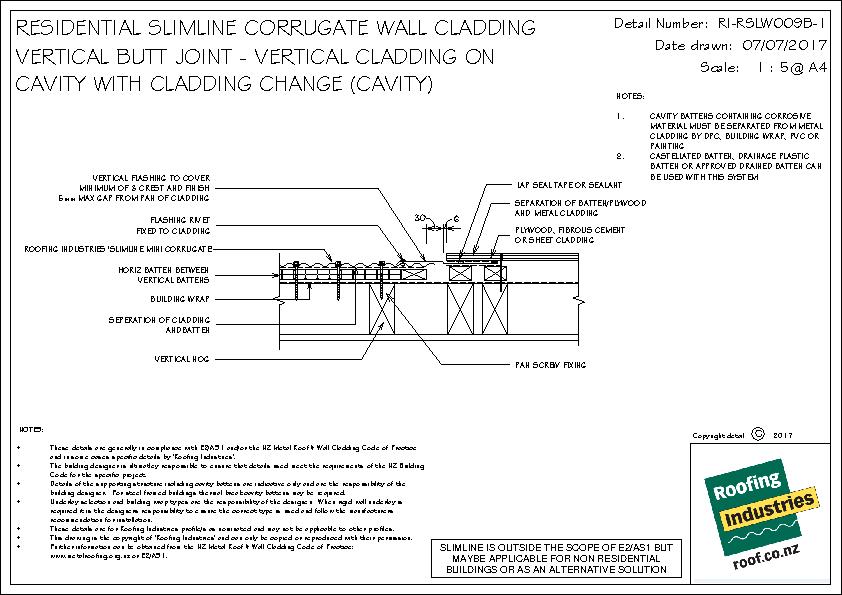

Slimline Vertical Butt Joint Vertical Cladding on Cavity with Cladding Change (Direct Fixed)

RI-RSL-W009A-1

dwg
pdf

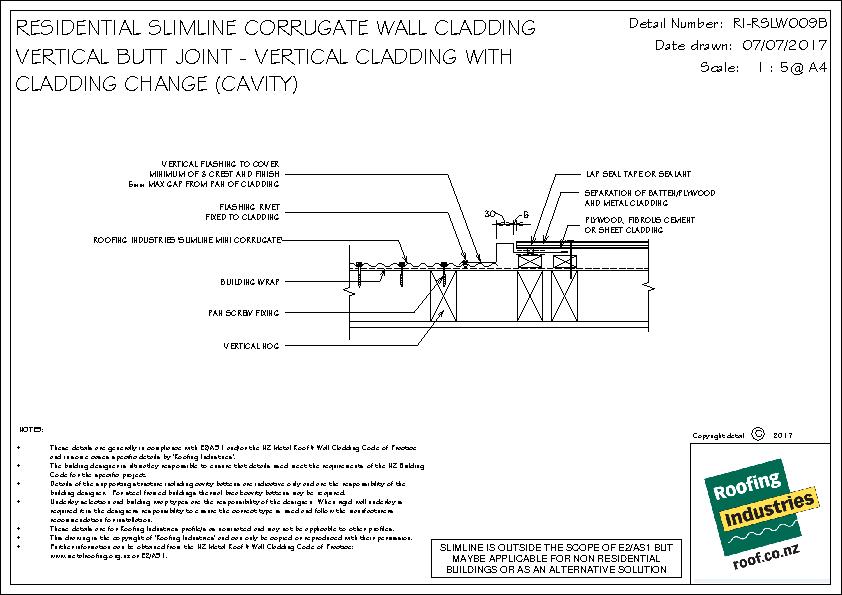

RI-RSLW009B-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg
Slimline Vertical Butt Joint Vertical Cladding with Cladding Change (Cavity)

RI-RSL-W009B

dwg
pdf
RI-RSLW009B-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg
Slimline Vertical Butt Joint Vertical Cladding on Cavity with Cladding Change (Cavity)

RI-RSL-W009B-1

dwg
pdf

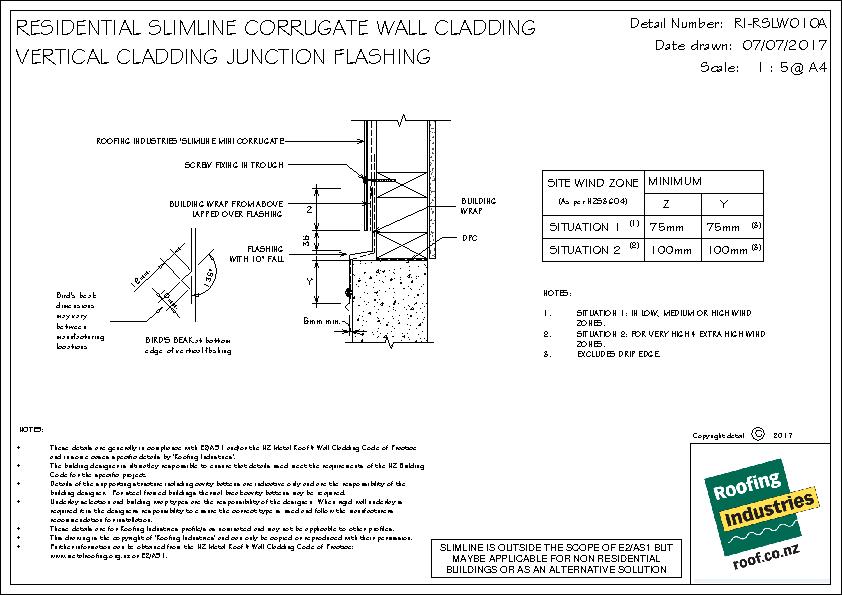

Slimline Vertical Cladding Junction Flashing

RI-RSL-W010A

dwg
pdf

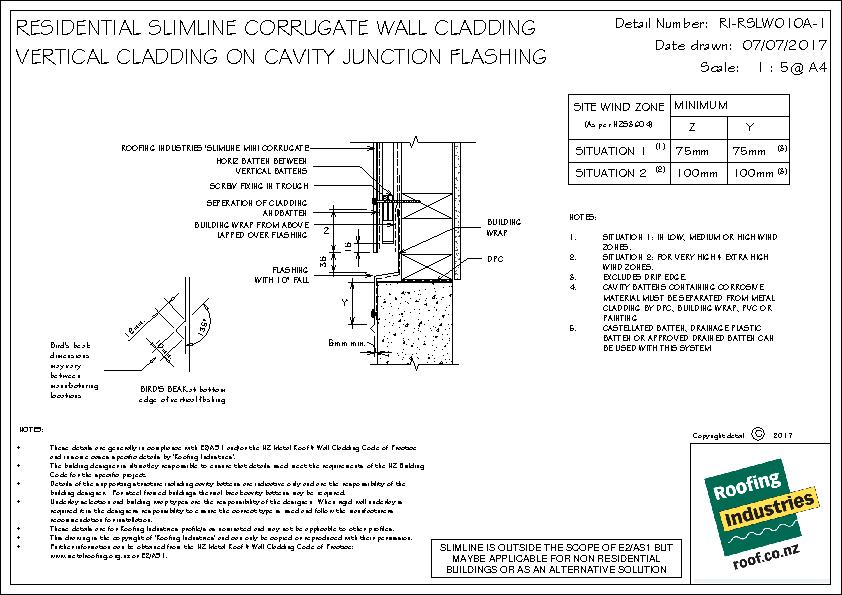

Slimline Vertical Cladding on Cavity Junction Flashing

RI-RSL-W010A-1

dwg
pdf

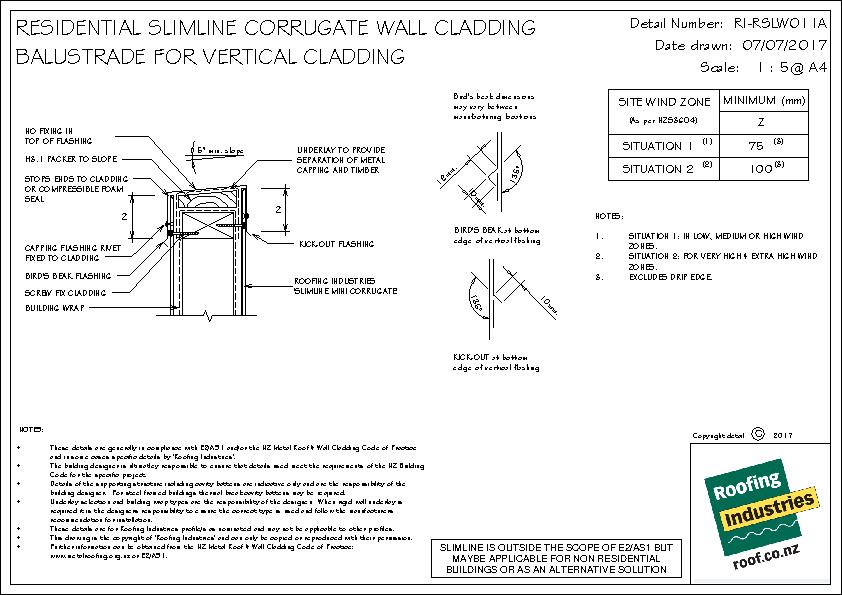

Slimline Balustrade for Vertical Cladding

RI-RSL-W011A

dwg
pdf

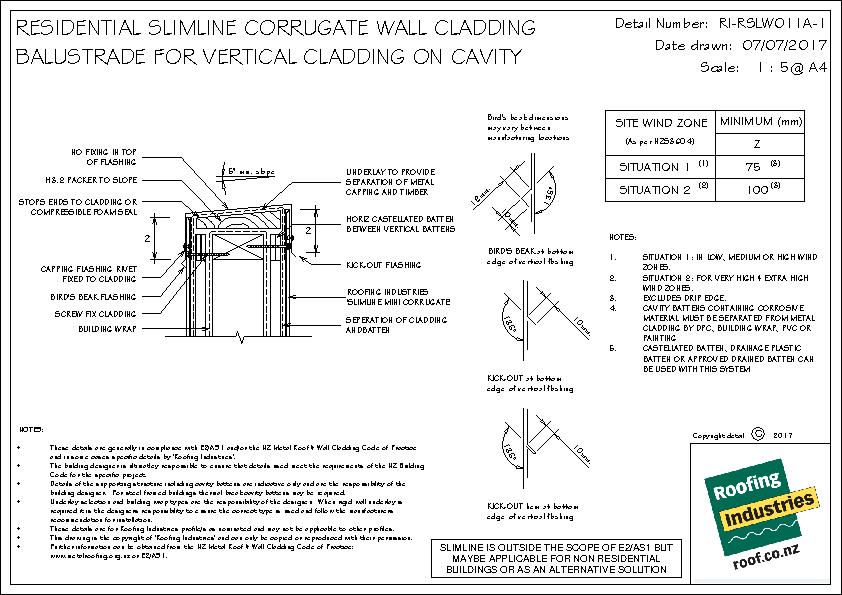

Slimline Balustrade for Vertical Cladding on Cavity

RI-RSL-W011A-1

dwg
pdf

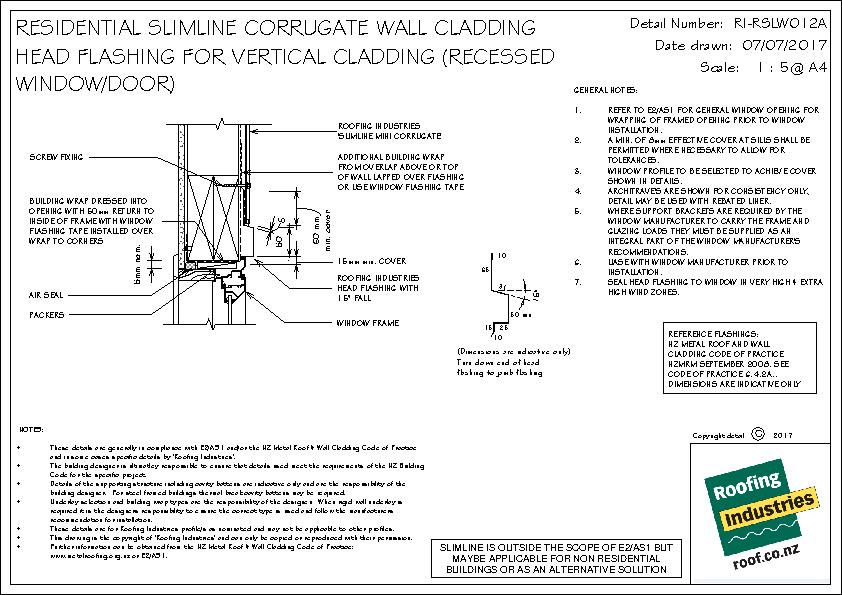

Slimline Head Flashing for Vertical Cladding (Recessed Window/Door)

RI-RSL-W012A

dwg
pdf

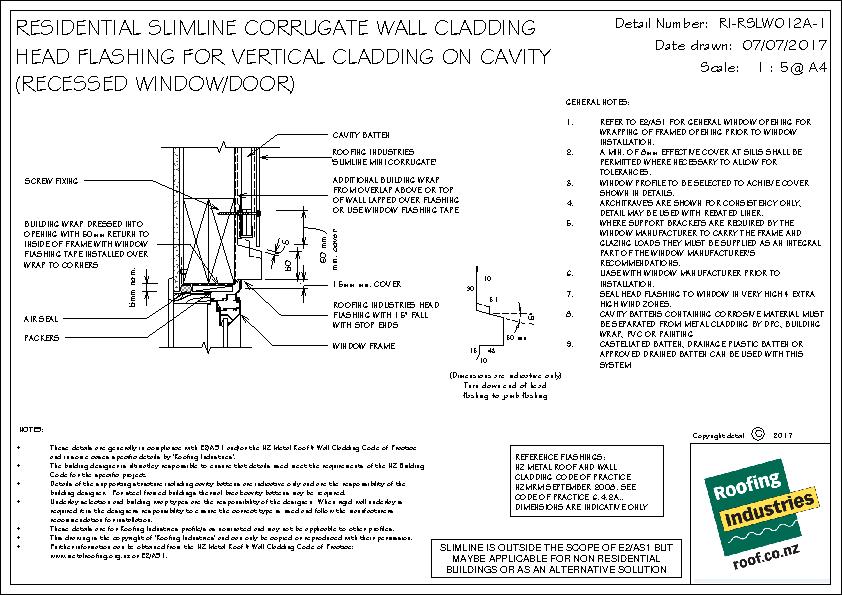

RI-RSLW012A-1-HEAD-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Slimline Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RSL-W012A-1

dwg
pdf

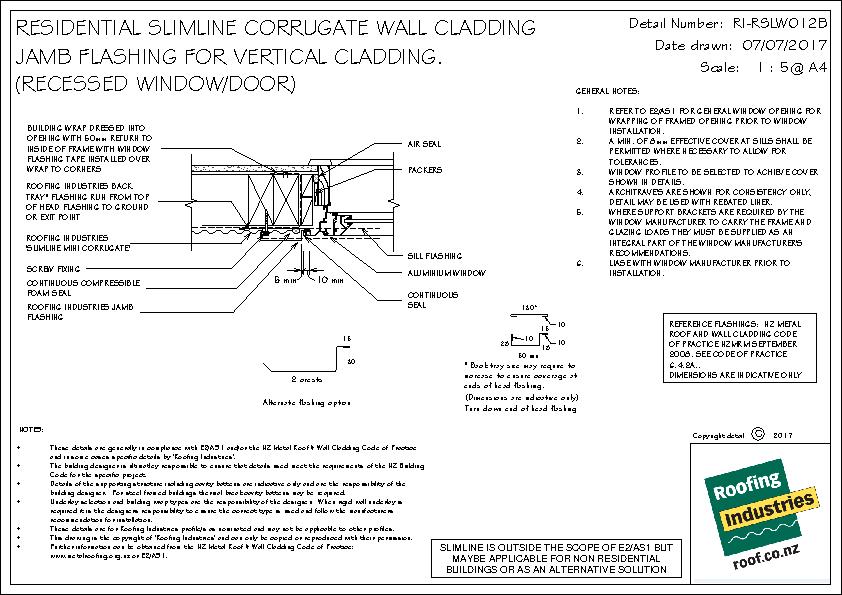

Slimline Jamb Flashing for Vertical Cladding (Recessed Window/Door)

RI-RSL-W012B

dwg
pdf

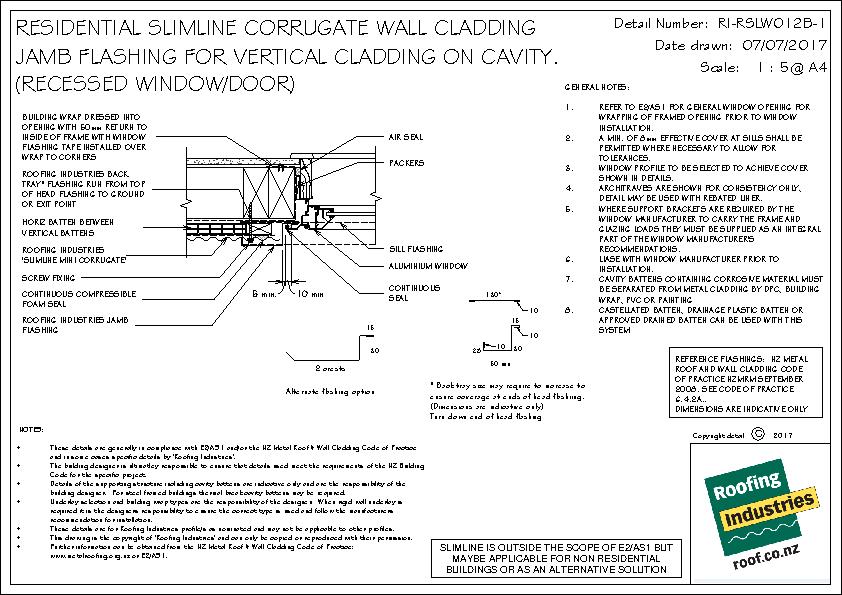

RI-RSLW012B-1-JAMB-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Slimline Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RSL-W012B-1

dwg
pdf

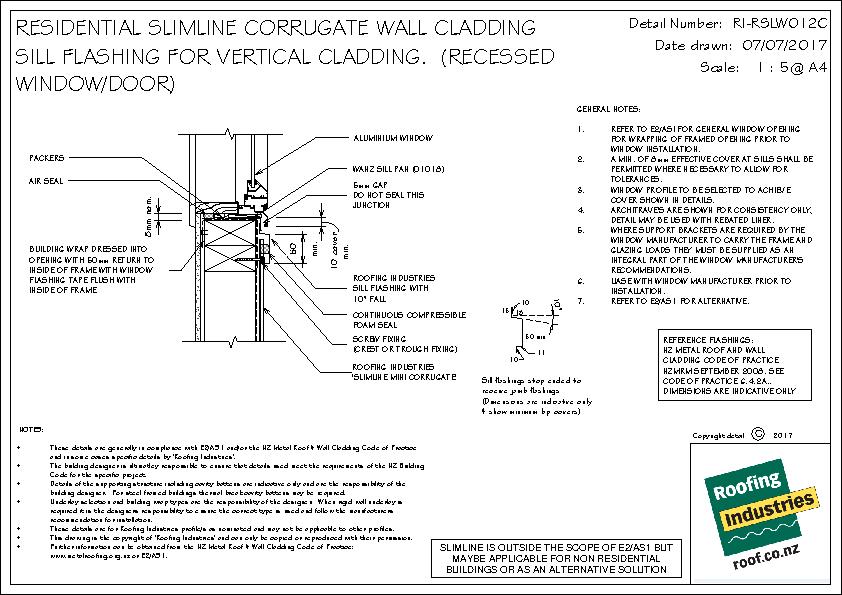

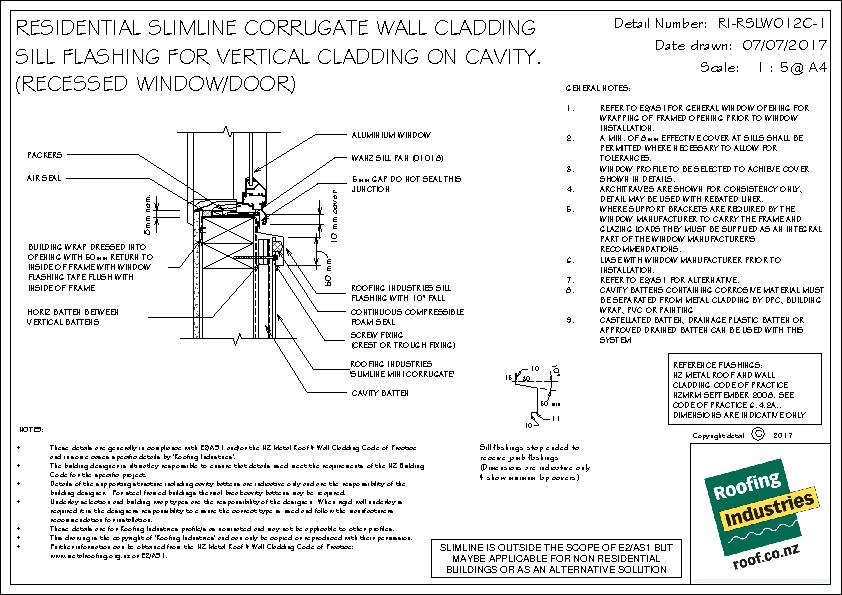

Slimline Sill Flashing for Vertical Cladding (Recessed Window/Door)

RI-RSL-W012C

dwg
pdf
RI-RSLW012C-1-SILL-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Slimline Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RSL-W012C-1

dwg
pdf

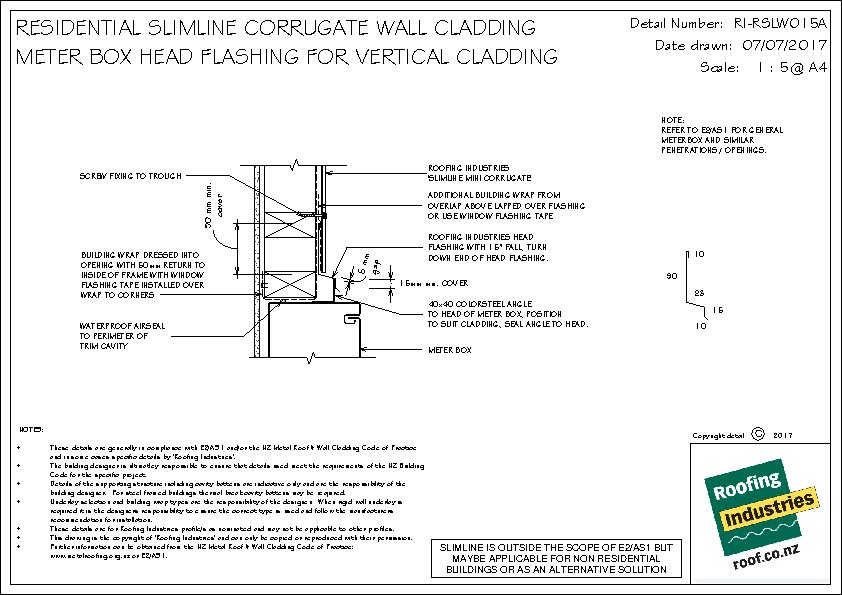

Slimline Meter Box Head Flashing for Vertical Cladding

RI-RSL-W015A

dwg
pdf

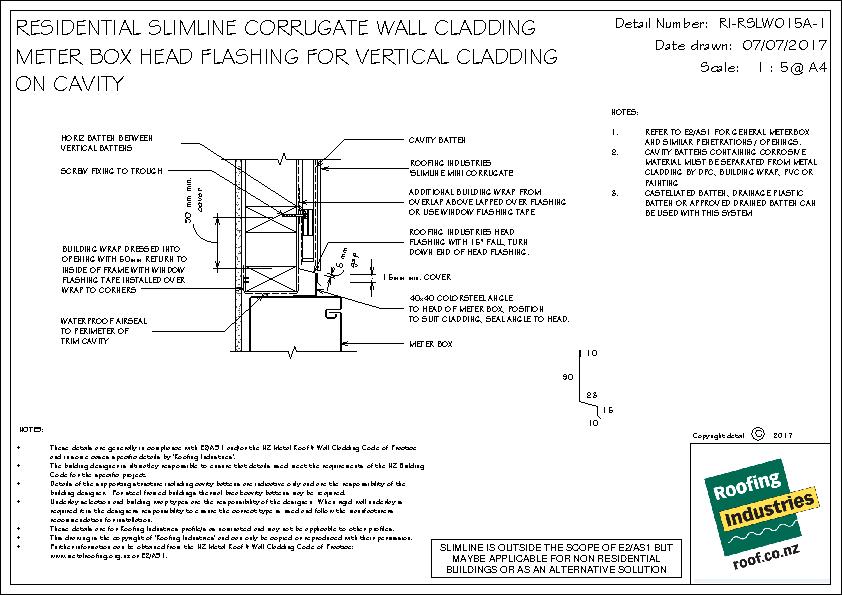

Slimline Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RSL-W015A-1

dwg
pdf
Slimline Meter Box Side Flashing for Vertical Cladding

RI-RSL-W016A

dwg
pdf

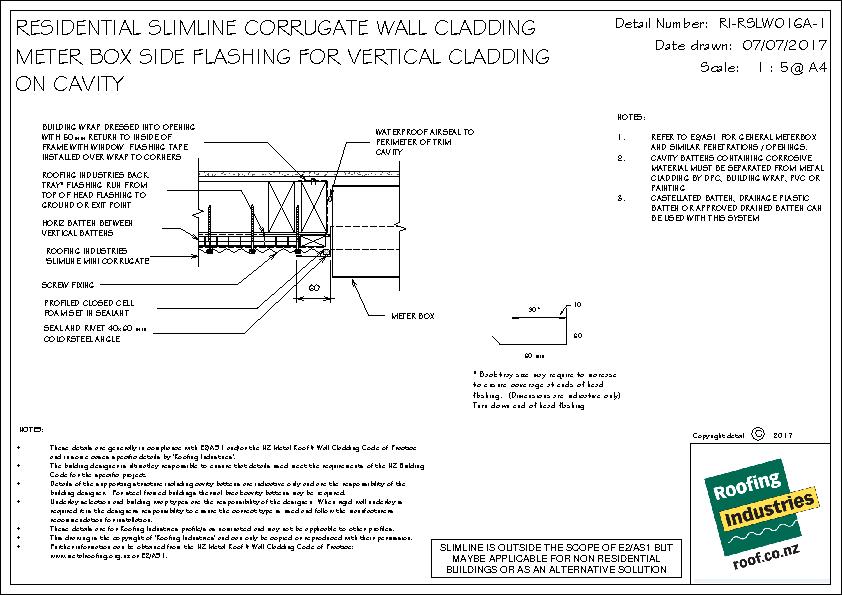

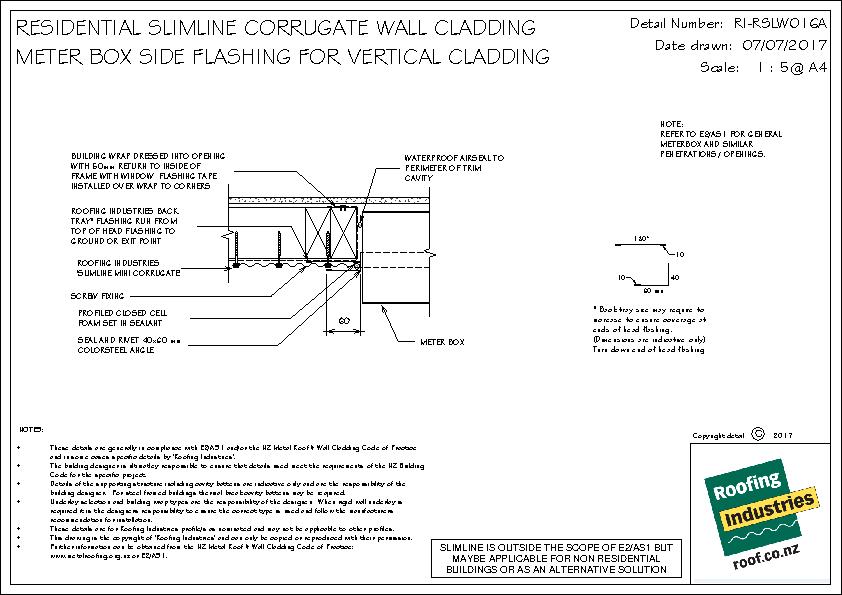

Slimline Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RSL-W016A-1

dwg
pdf

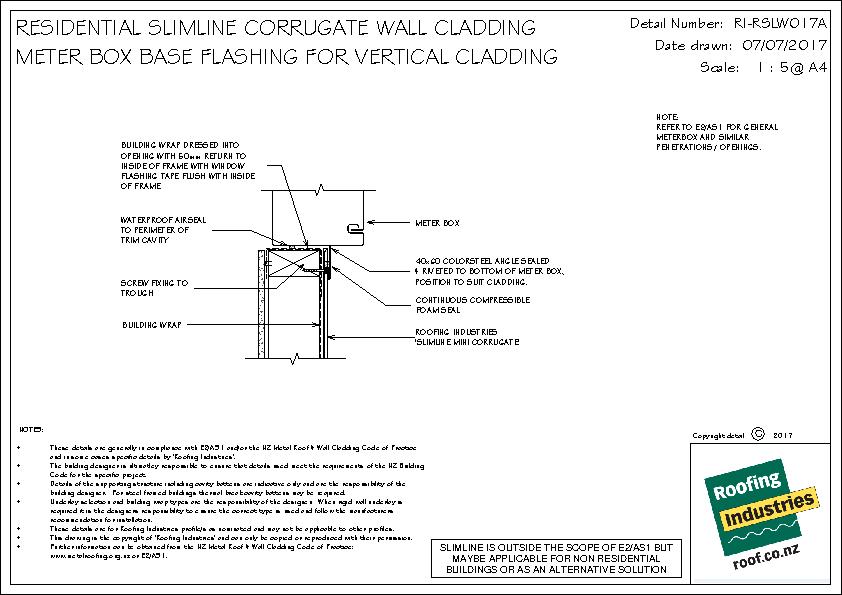

Slimline Meter Box Base Flashing for Vertical Cladding

RI-RSL-W017A

dwg
pdf

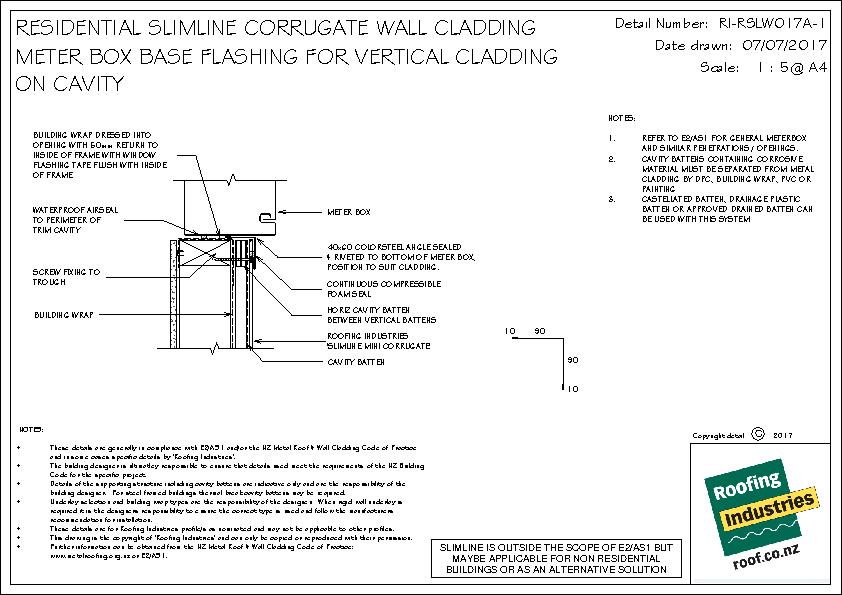

Slimline Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RSL-W017A-1

dwg
pdf

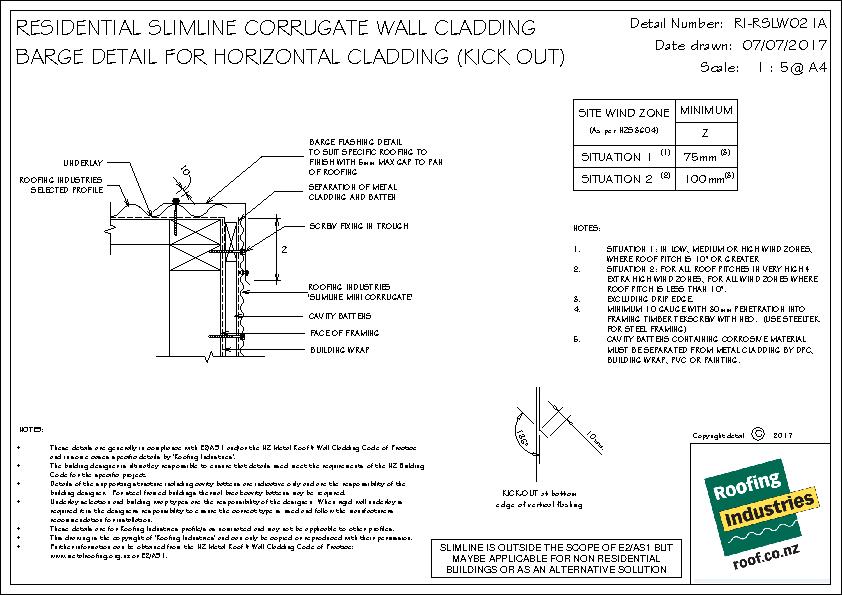

Slimline Barge Detail for Horizontal Cladding (Kick Out)

RI-RSL-W021A

dwg
pdf

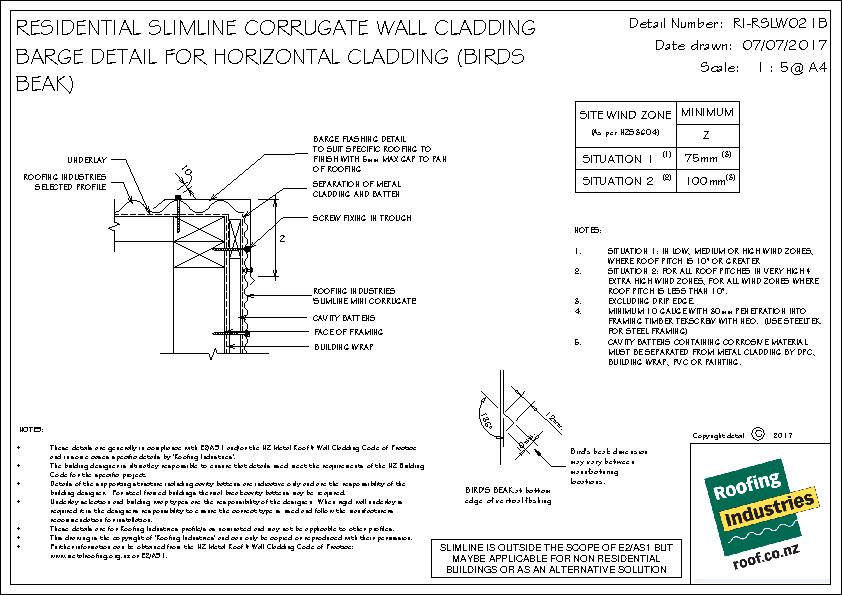

Slimline Barge Detail for Horizontal Cladding (Bird's Beak)

RI-RSL-W021B

dwg
pdf

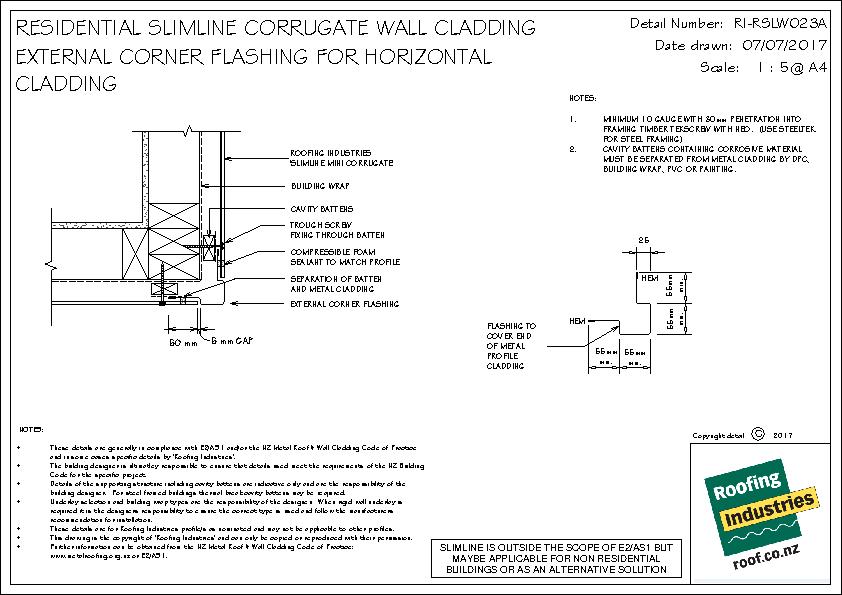

Slimline External Corner Flashing for Horizontal Cladding

RI-RSL-W023A

dwg
pdf

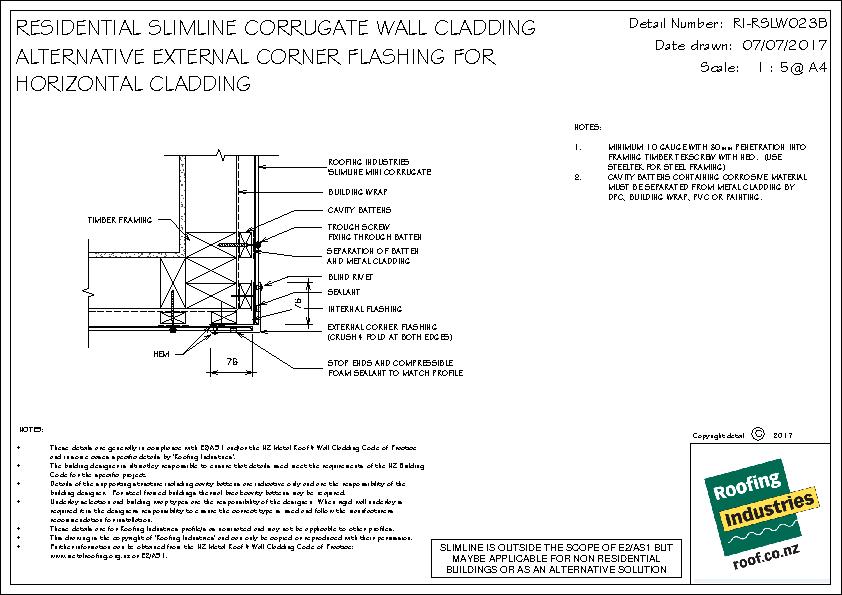

Slimline Alternative External Corner Flashing for Horizontal Cladding

RI-RSL-W023B

dwg
pdf

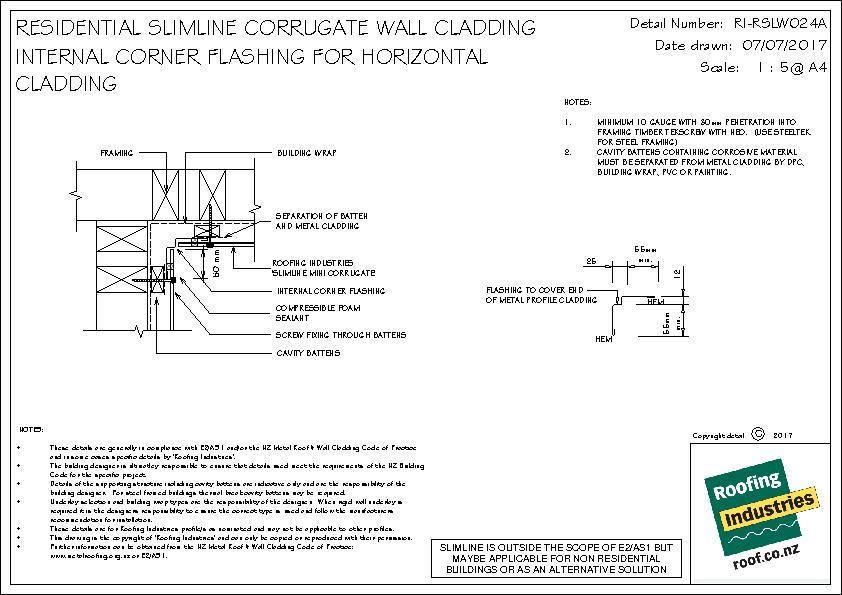

Slimline Internal Corner Flashing for Horizontal Cladding

RI-RSL-W024A

dwg
pdf

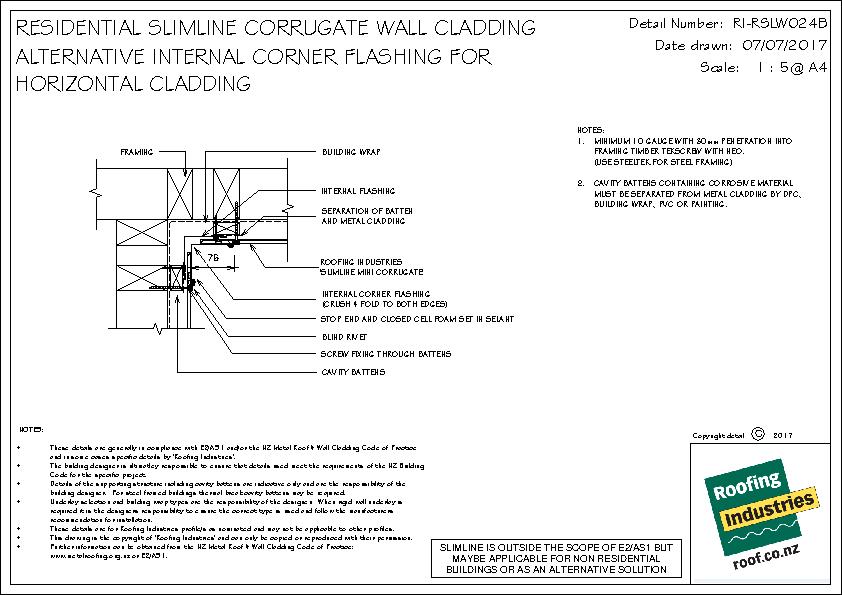

Slimline Alternative Internal Corner Flashing for Horizontal Cladding

RI-RSL-W024B

dwg
pdf

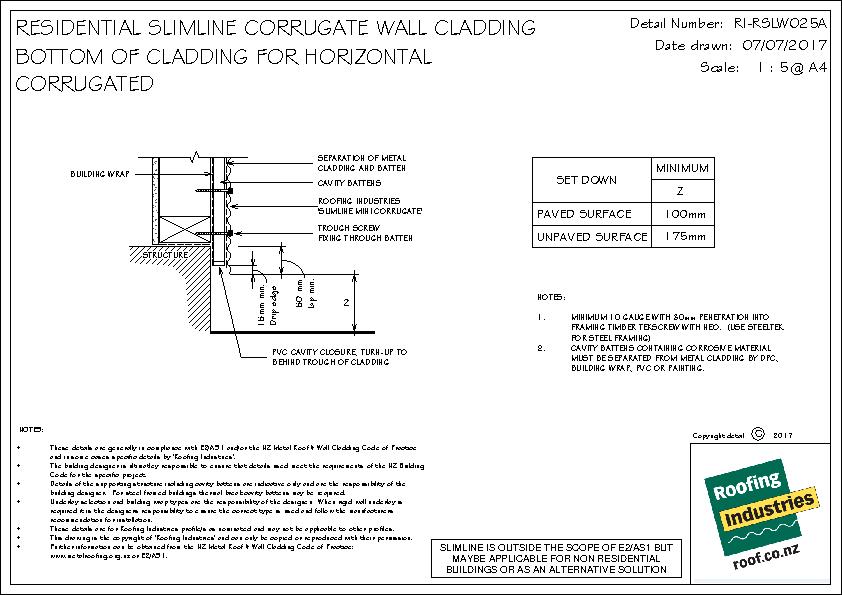

Slimline Bottom of Cladding for Horizontal Corrugated

RI-RSL-W025A

dwg
pdf

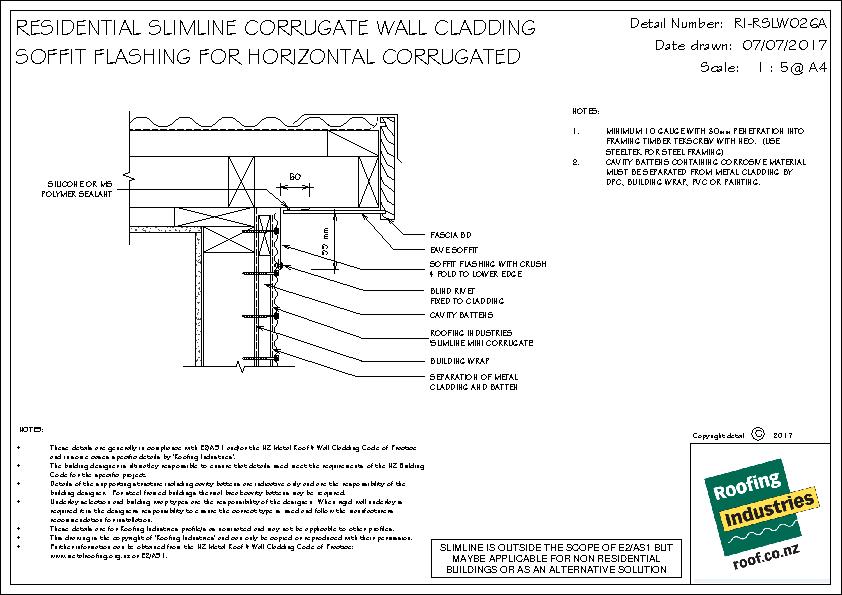

Slimline Soffit Flashing for Horizontal Corrugated

RI-RSL-W026A

dwg
pdf

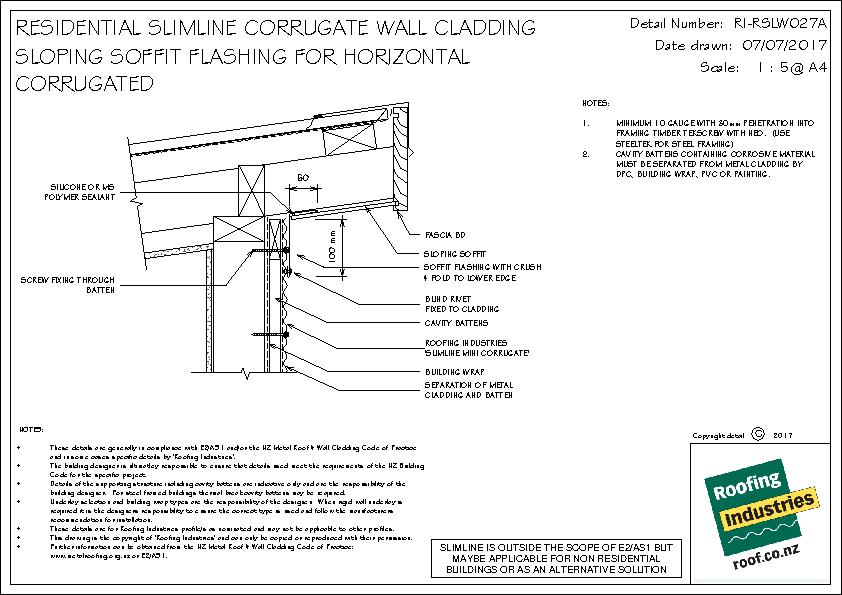

Slimline Sloping Soffit Flashing for Horizontal Corrugated

RI-RSL-W027A

dwg
pdf

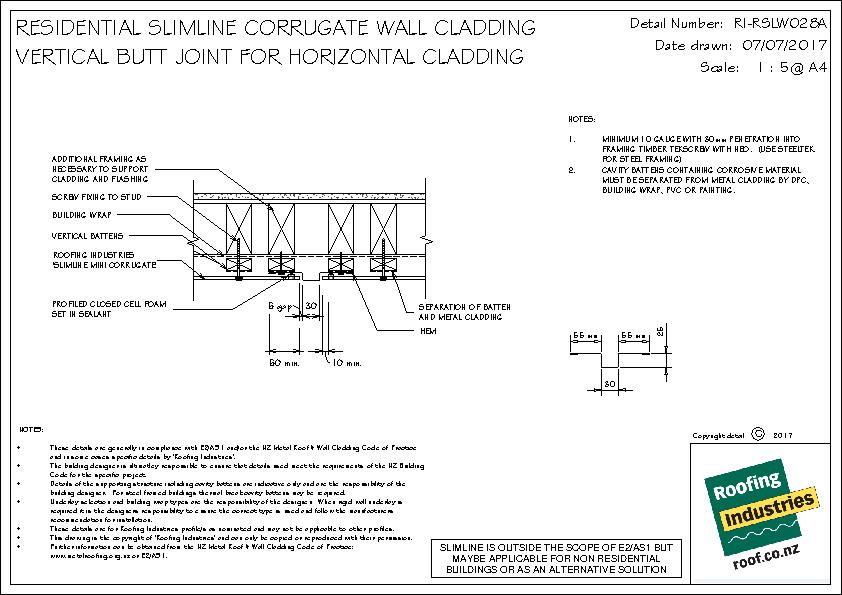

Slimline Vertical Butt Joint for Horizontal Cladding

RI-RSL-W028A

dwg
pdf

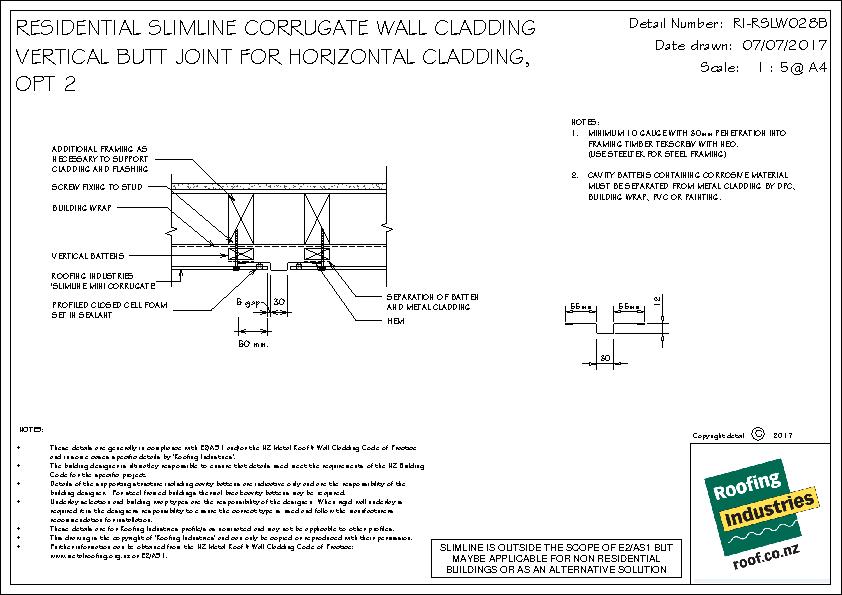

Slimline Vertical Butt Joint for Horizontal Cladding (Option 2)

RI-RSL-W028B

pdf
RI-RSLW029A-VERTICAL-BUTT-JOINT-FOR-HORIZONTAL-CLADDING-TO-ALTERNATIVE-CLADDING-UP-TO-25MM-pdf.jpg

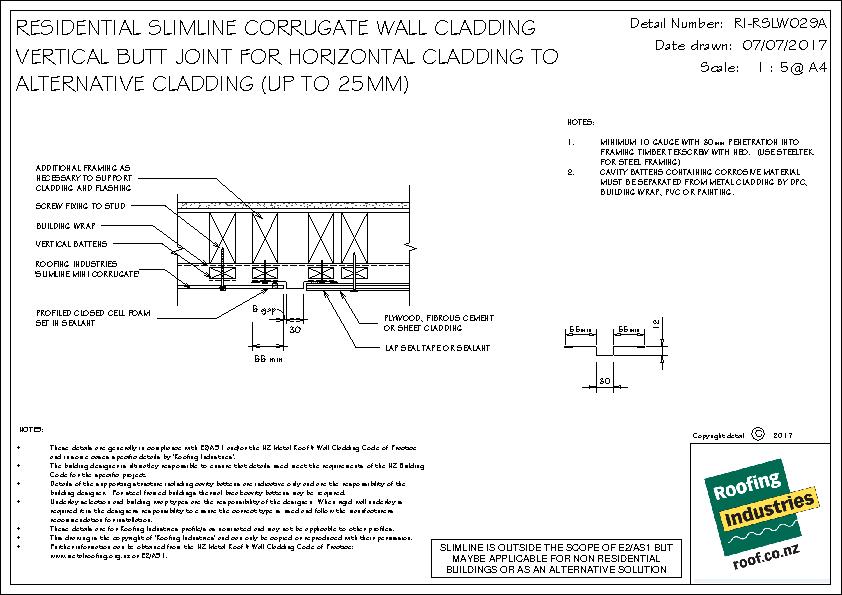

Slimline Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25mm)

RI-RSL-W029A

dwg
pdf

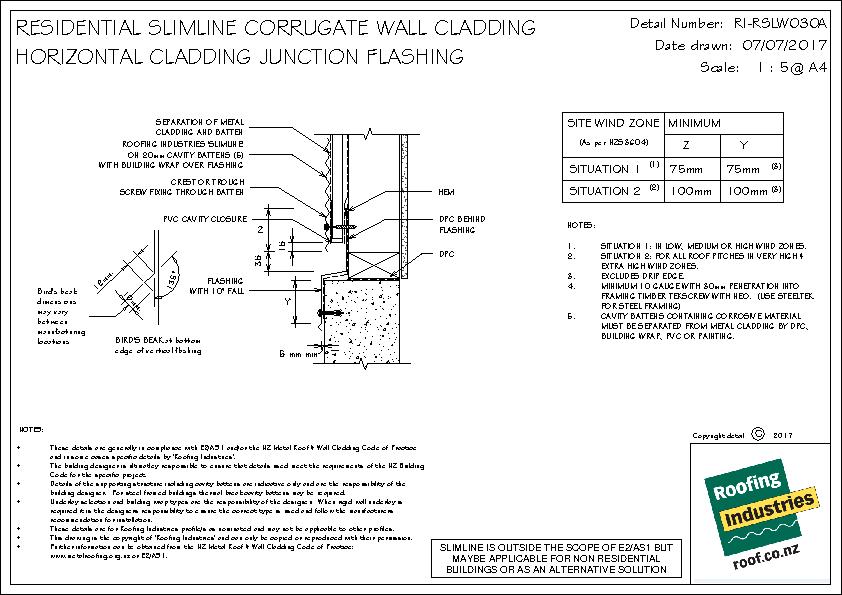

Slimline Horizontal Cladding Junction Flashing

RI-RSL-W030A

dwg
pdf
Slimline Head Flashing Horiz Clad W032A pdf
Slimline Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RSL-W032A

2020

dwg
pdf

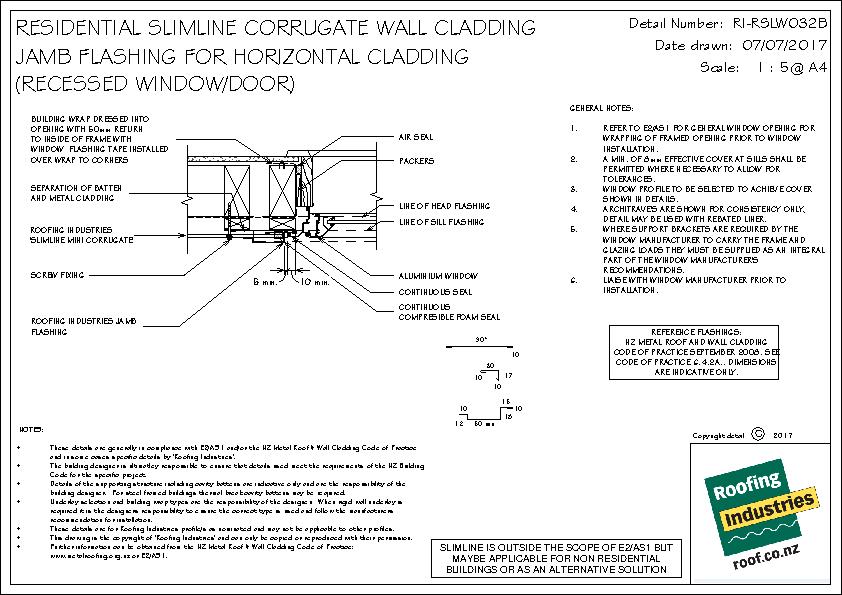

Slimline Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RSL-W032B

dwg
pdf

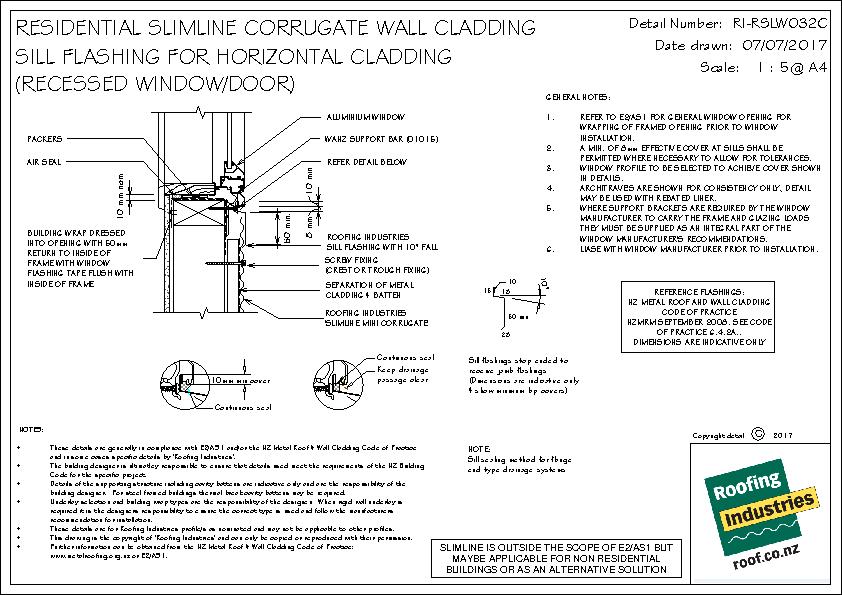

Slimline Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RSL-W032C

dwg
pdf

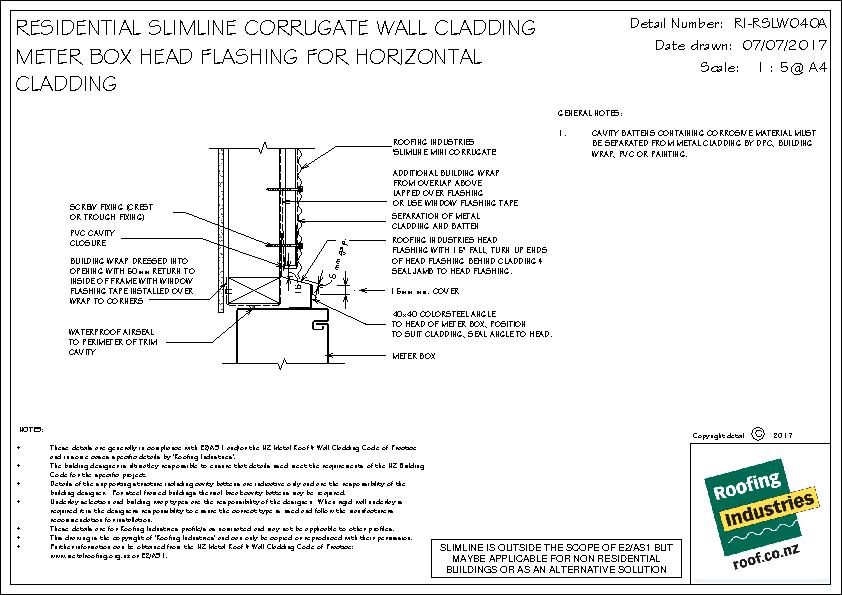

Slimline Meter Box Head Flashing for Horizontal Cladding

RI-RSL-W040A

dwg
pdf
Slimline Meter Box Side Flashing for Horizontal Cladding

RI-RSL-W041A

dwg
pdf

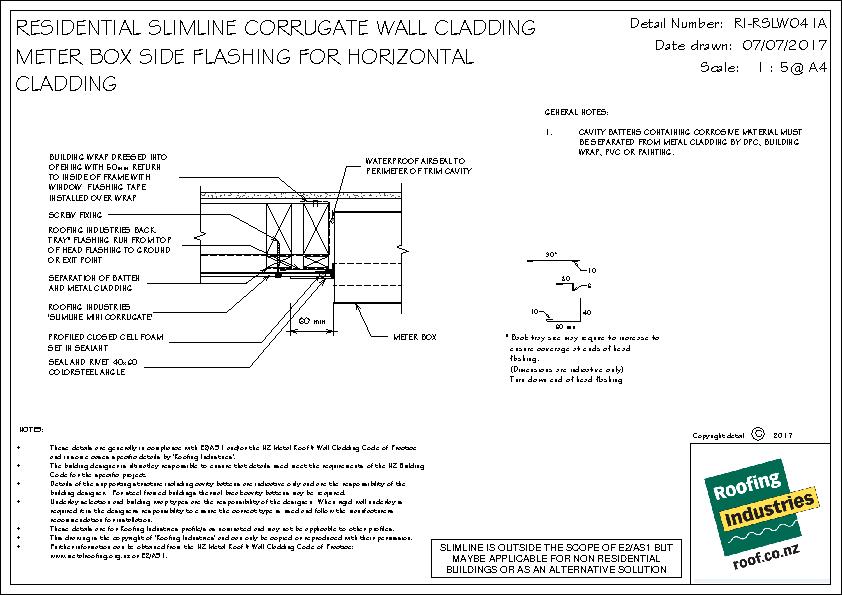

Slimline Meter Box Base Flashing for Horizontal Cladding

RI-RSL-W042A

dwg
pdf
