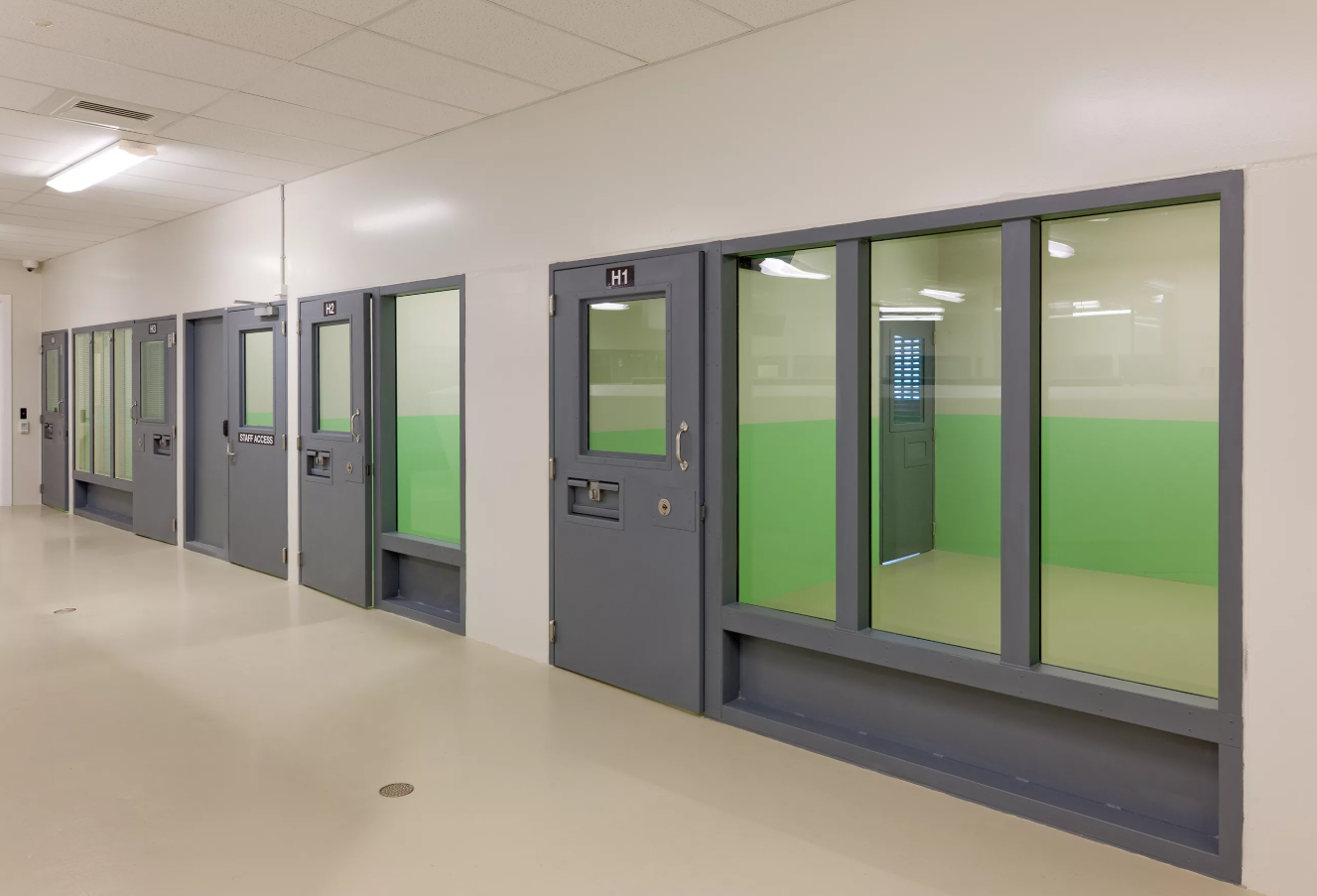

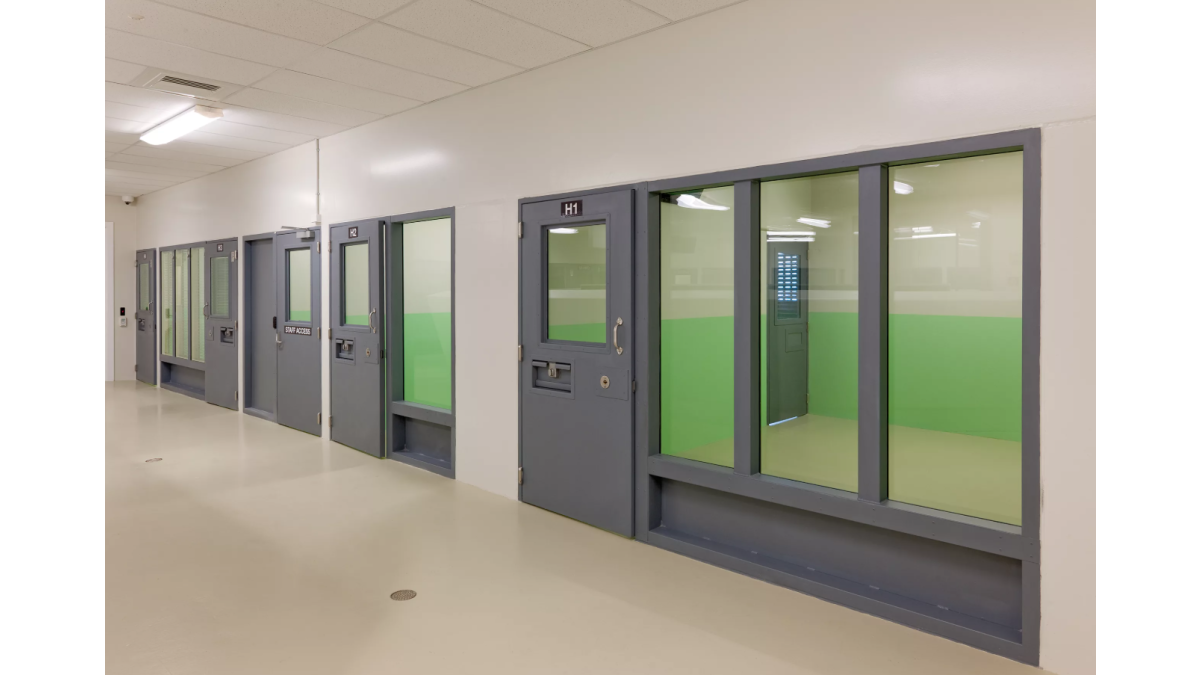

Typical applications:

·         Prison Fire Door

·         Police Station Cell Door

·         Commercial Security Fire door

·         Stairwell door in multi-level buildings

For further information on this product, visit: https://www.pacificdoors.co.nz/products/security/custodial-doors/sps1-fr

Security Testing

The SPS1 door set was subjected to 50 impacts from a 200kg cement-filled bag at 4.8m/s, in the direction of opening of the door. The door was able to be opened at the end of the test and was substantially undamaged.

Ballistic Testing

The SPS1-FR door set has been successfully tested to AS 2343:1984 “Bullet-resistant panels for interior use” with ratings of:

·         G1 .357 Magnum

·         S0 Shotgun 12 gauge SG shot

Thermal Insulation

This door leaf has a thermal insulation rating (R-value) of 0.615km2/W.
