MetraCeilings
Description

Compatible with traditional timber framed buildings, MetraCeilings reduce falling-from-height issues in residential construction. In comparison to traditional plasterboard ceilings, the solid 25mm thick engineered wood panels provide a safe platform for builders to eliminate Health and Safety issues on site. No ceiling fixings are required from inside the house, so nail popping is prevented and stopping reduced, and with the ceiling acting as a diaphragm there is minimal movement (no twisting or warping).

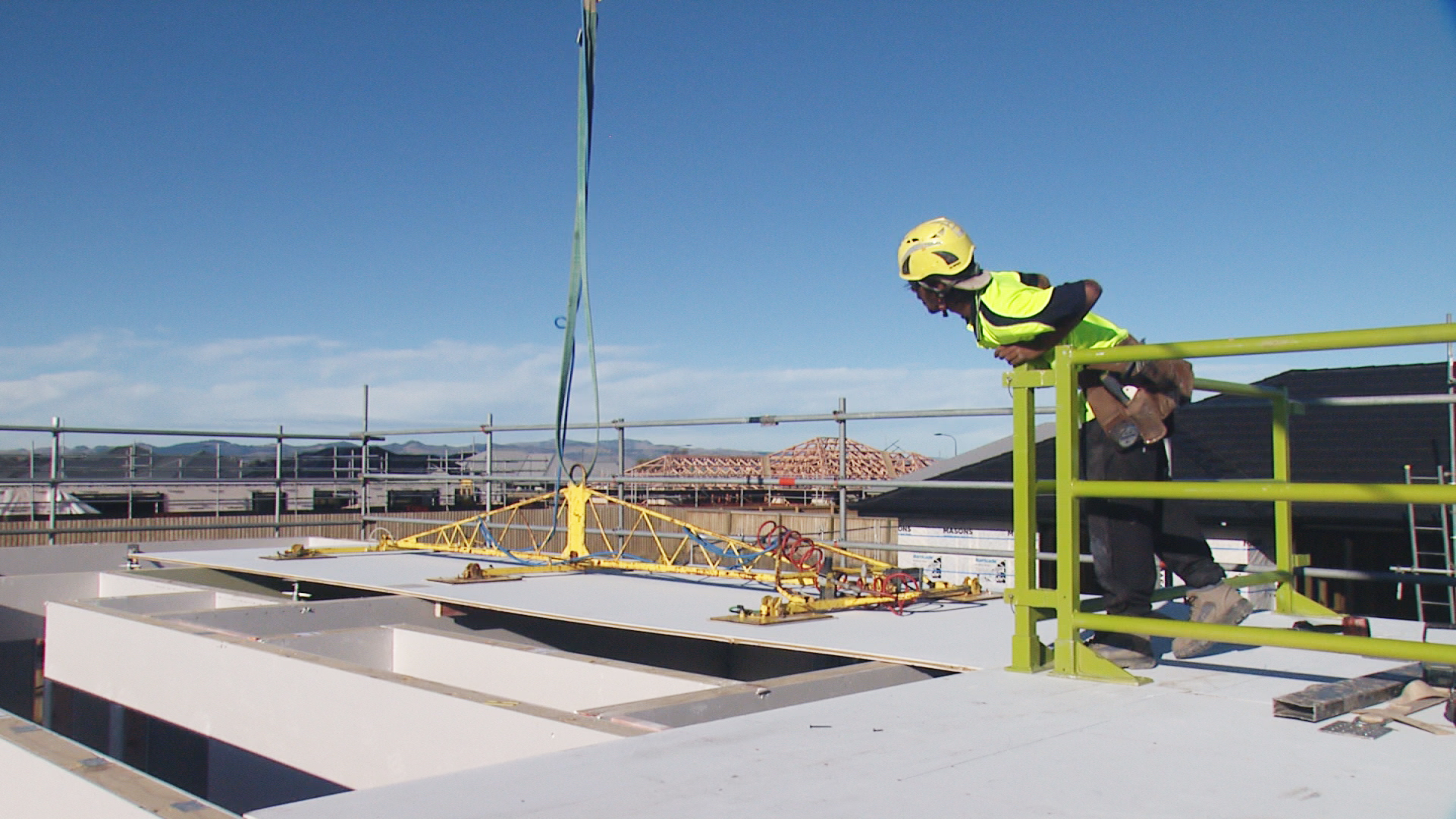

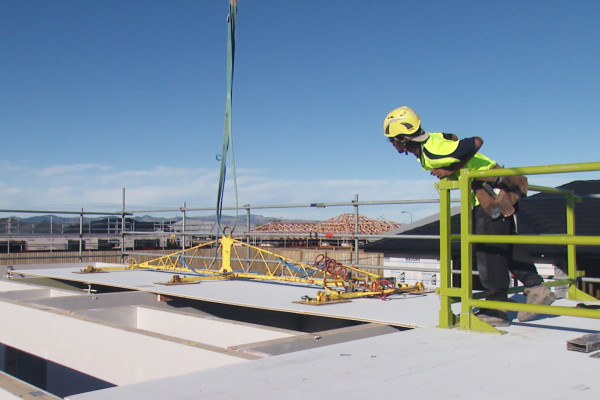

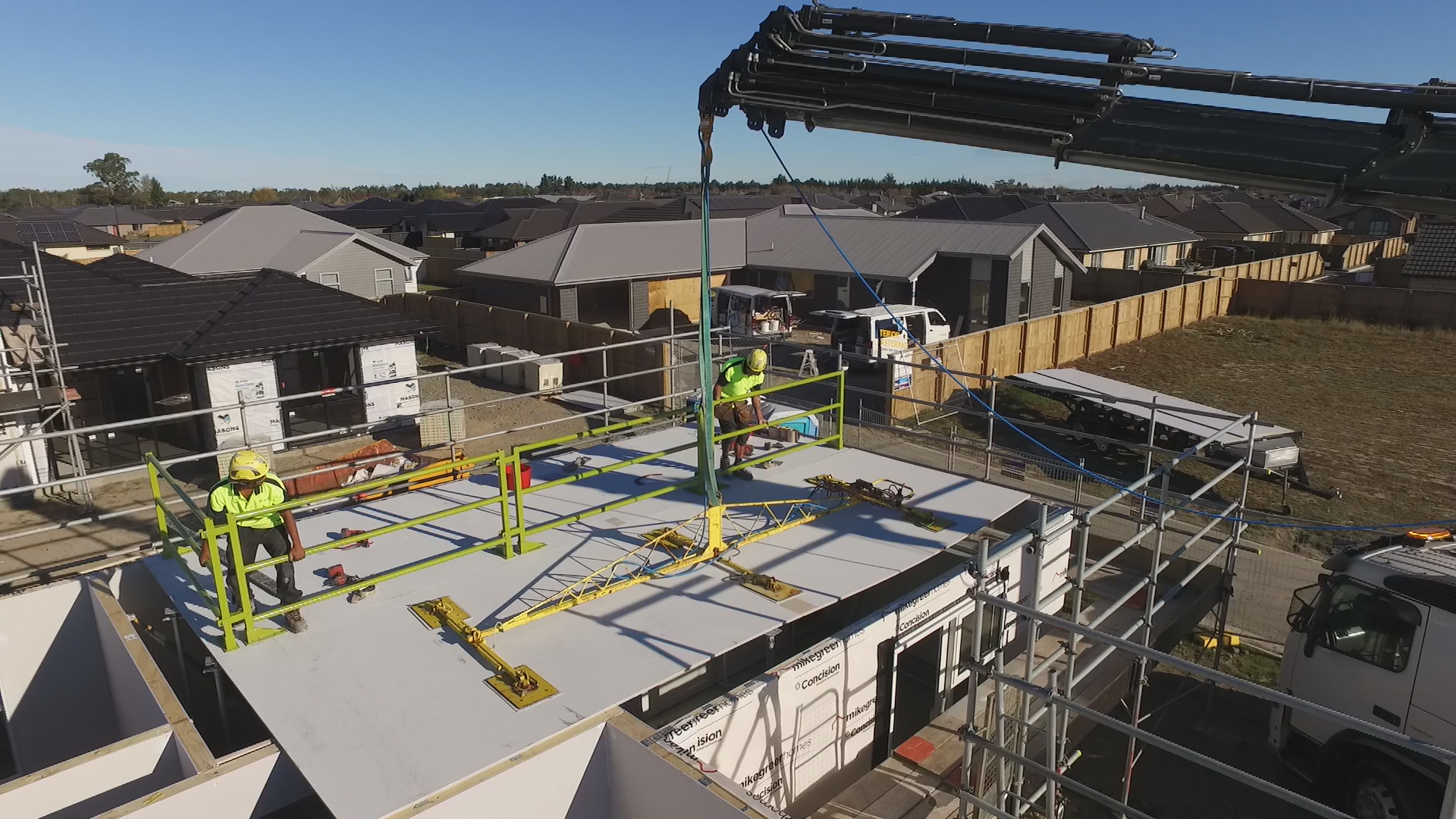

By utilising Metra Panel’s 7.35m x 2.45m x 25mm panels as a 'Falling from heights' safety solution, MetraCeiling provides a rigid and flat ceiling surface, and replaces conventional ceiling lining and ceiling battens. With ceiling panels installed over walls and fixed to top plates, a bracing element is created and the ceiling acts as an effective diaphragm up to 12m long, for the internal bracing of the walls. The panel joints can be tapered to allow plastering using conventional materials before the application of internal finishes.

There is no wastage, thermal insulation of the ceiling is conventional, and free attic space is provided which is also safe to walk on.

Key Features

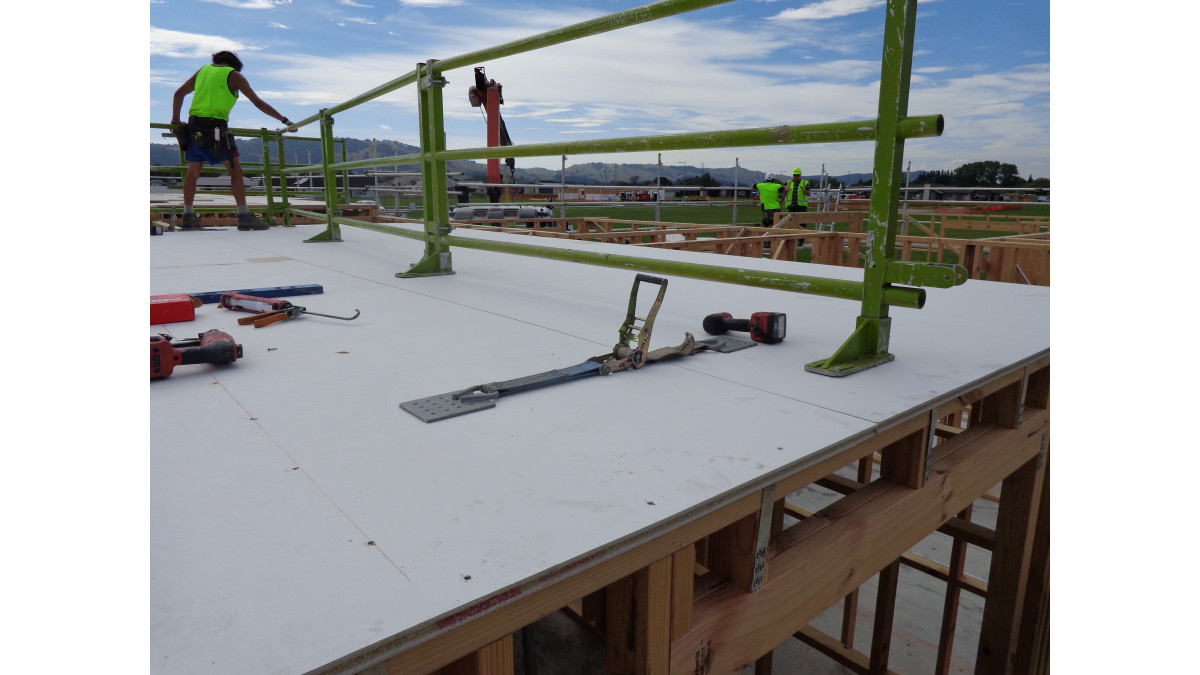

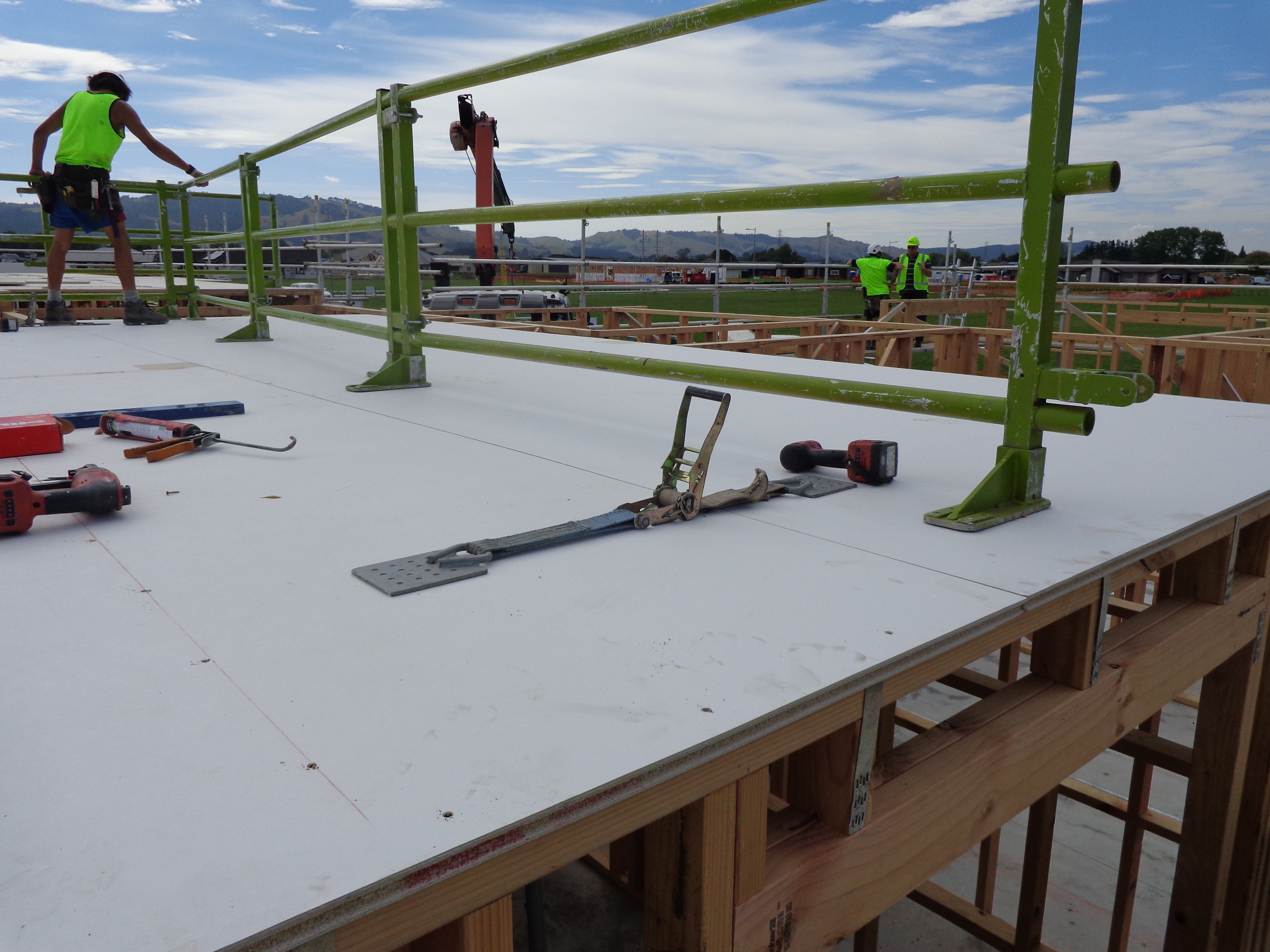

  • The completed ceiling provides a rated ‘work platform’ brace over the entire footprint
  • MetraCeiling is primer sealed for moisture resistance up to 28 days and provides a weatherproof 'lid' over the build
  • MetraCeilings are suitable for use as ceilings in buildings in all Wind Zones up to and including Very High
  • Durabilty and impact resistance with 640kg/m3 density
  • The panel joints are all tongue and grooved and are glued along the entire length
  • Above all joints a 50mm steel ribbon plate is glued and screwed which provides a remarkably strong joint
  • Roof trusses are fitted and clipped to MetraCeiling from above — no ceiling fixings are required from inside the house
  • The ability to have a modern square stopped look, or a more traditional look with the use of scotia
  • Provides time and cost savings with reduced trade hours and material requirements
Lifemark Product Partner
Lifemark Product Partner
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • MetraCeiling has been appraised for use as ceilings in timber-framed buildings subject to specific engineering design.
  • Trusses are the subject of specific engineering design following the information in the Technical Literature.

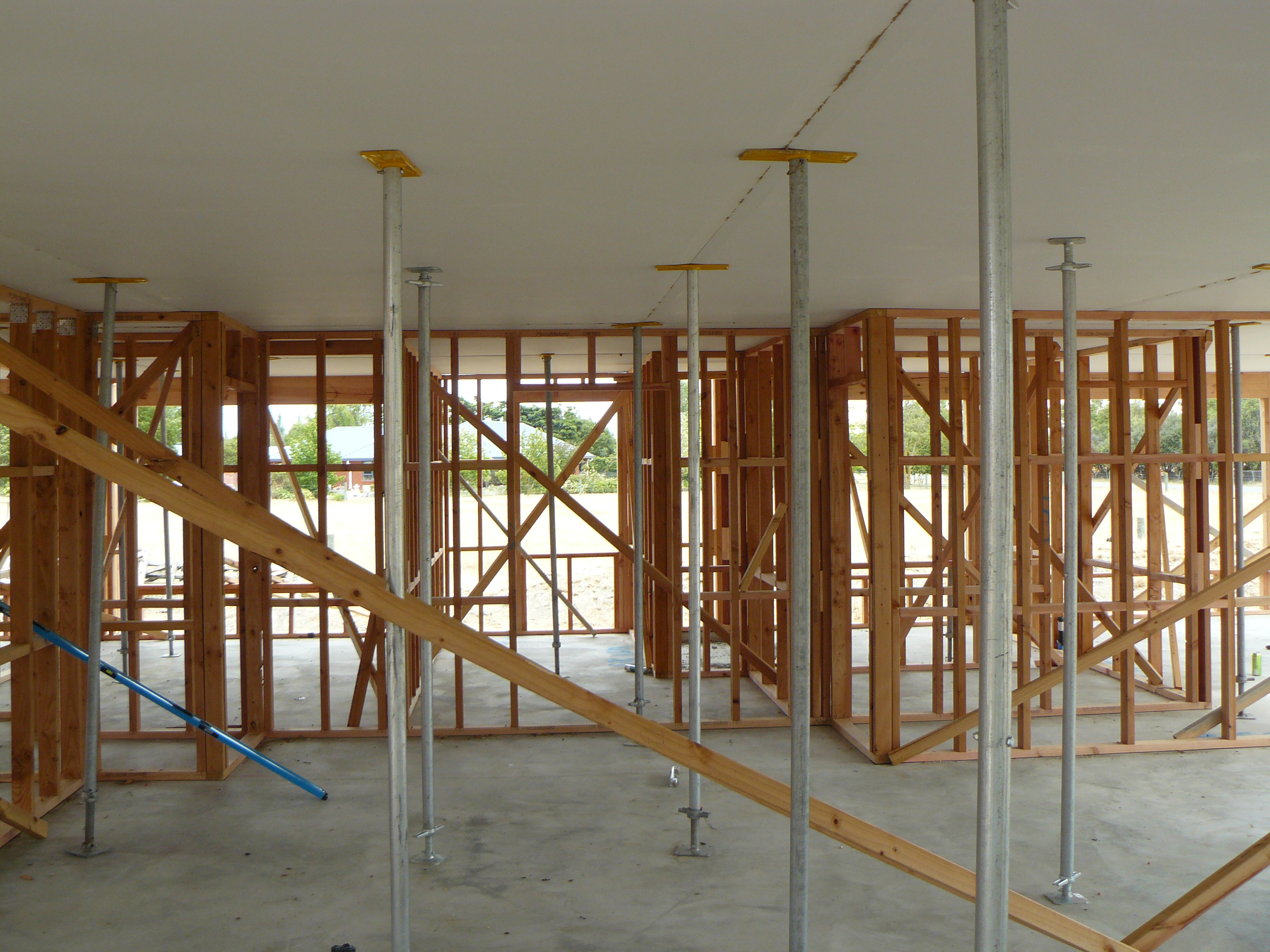

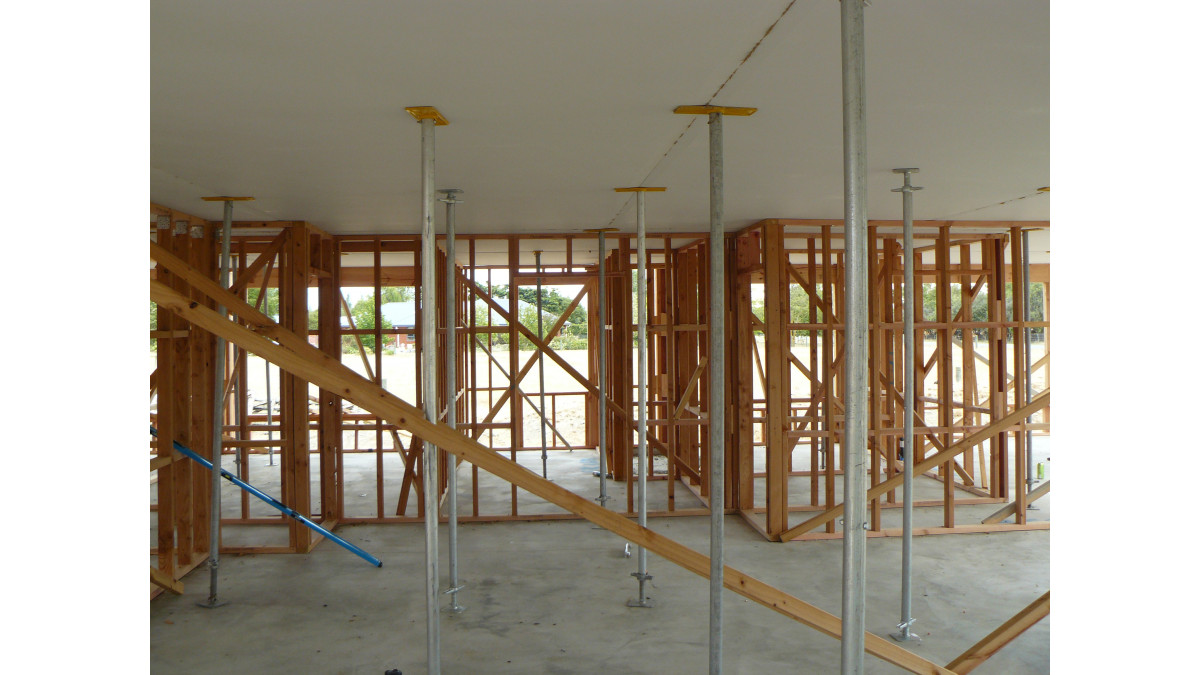

  • The safe working platform system comprises of separate panels supported by pre-certified scaffolding posts (props) along the edge and centre of each panel.
  • Free edges of the panel are attached to existing walls to give rigidity to the platform.

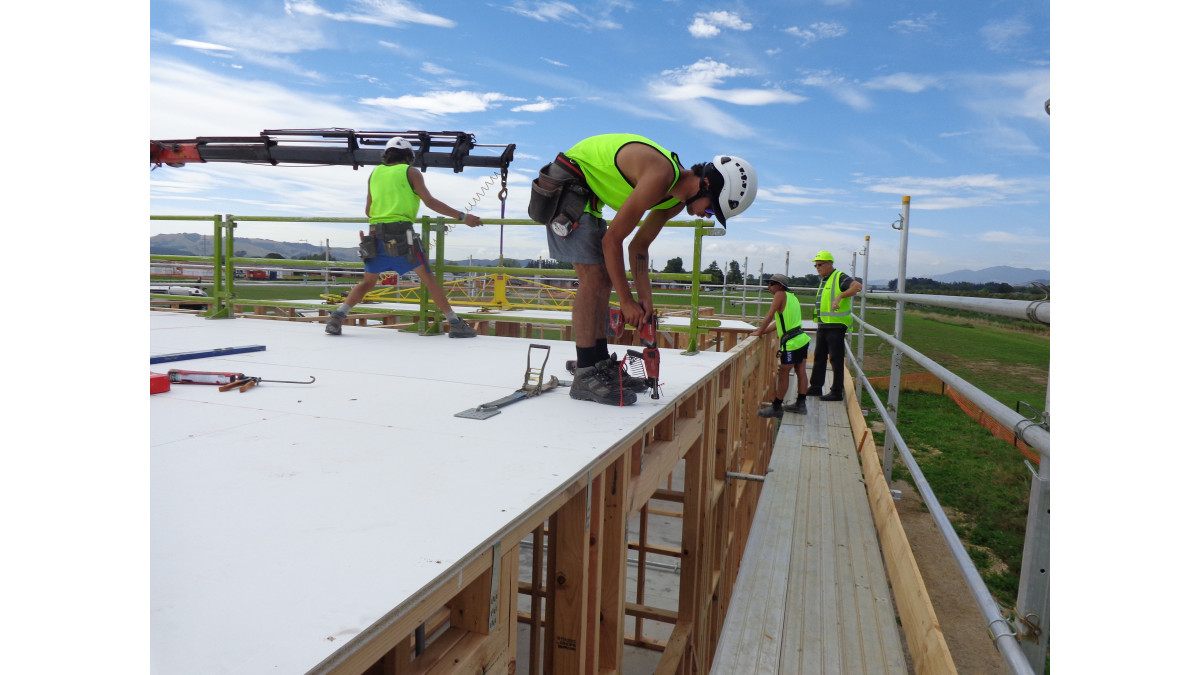

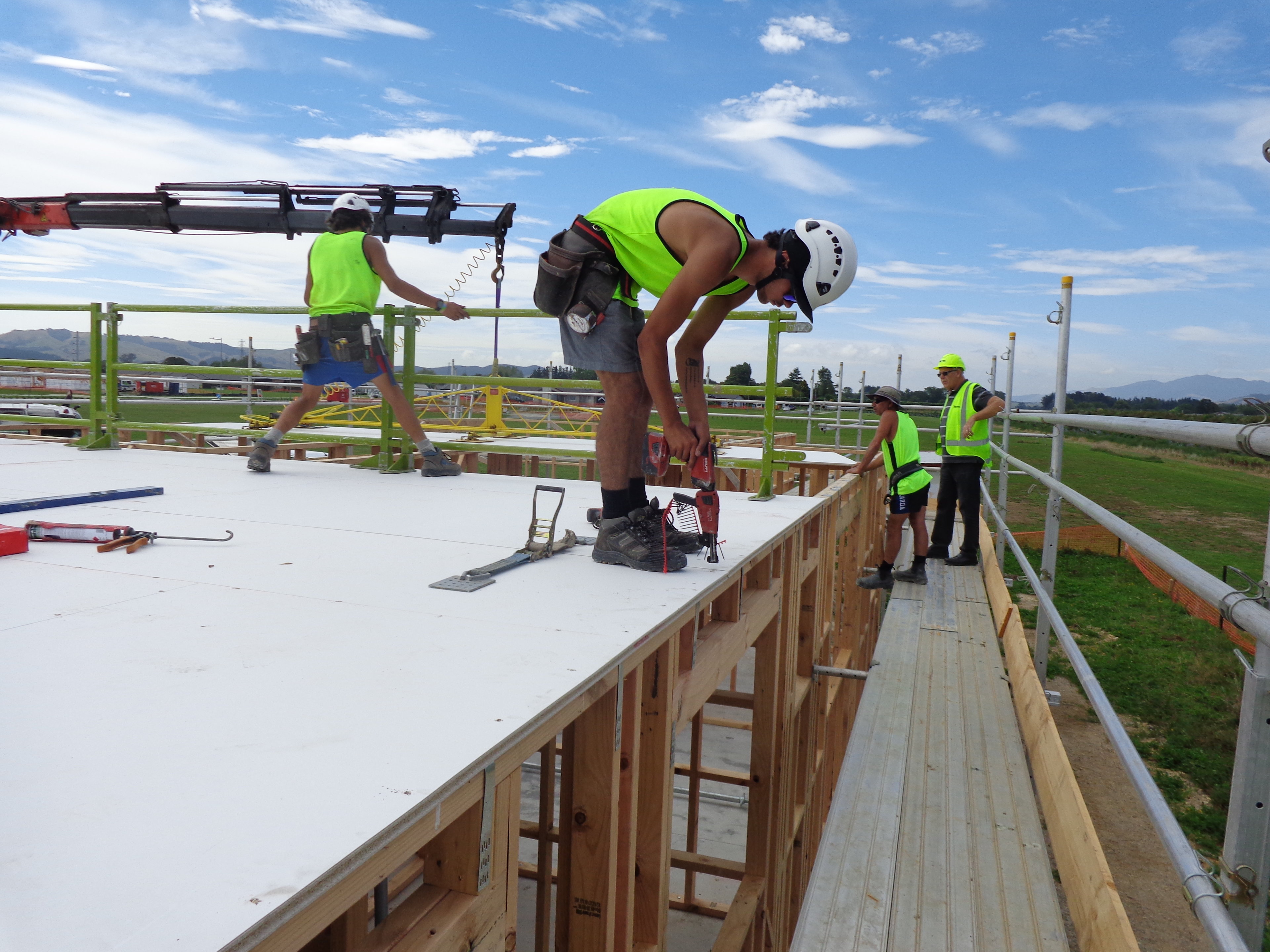

  • Ceiling panels are installed on the temporary props and fixed on top of the wall framing prior to the installation of roof trusses.
  • Roof space ventilation should be provided when using MetraCeiling.

Metra Panel Installers are responsible for the quality of the installation of MetraCeiling panels, the building contractor is responsible for the quality of installation of the roof, and the building owner is responsible for the maintenance of MetraCeiling.

MetraCeiling Components and accessories

  • MetraCeiling panels
  • Ceiling straps (CP1), 50x 1.2mm thick galvanised steel
  • Ceiling clips (CPC40), 60x40x50x 2mm thick galvanised steel right angle bracket
  • Ceiling U-channels, 600mm x 1.2mm thick galvanised steel
  • Ceiling square plates, 200x200x 2mm galvanised steel
  • Connection and fixing screws, adhesive, sealer/primer paint
Limitations on Use
  • The use of MetraCeiling has not been assessed for rooms exposed to sustained high humidity (greater than 85% RH) such as a sauna, or areas where the temperatures are in excess of 35 degrees for prolonged periods such as ceiling heating installations, or in excess of 50 degrees in localised areas (e.g. adjacent to a fuel burning appliance).
  • Some permanent ventilation, not reliant on window openings, must be provided in wet areas, such as bathrooms and laundries. Vented windows, wall or ceiling mounted extract fans, or similar fittings are recommended. Extract fans for moisture laden air must be vented externally.
Statement of Building Code Compliance

In the opinion of BRANZ, the MetraCeiling if designed, used, installed and maintained in accordance with the statements and conditions of the BRANZ Appraisal 951 (2017), will meet the following provisions of the NZBC:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2, B1.3.4. The MetraCeiling meets the requirements for loads arising from self-weight, imposed gravity loads, earthquake, and wind (i.e B1.3.3 (a), (b), (f), and (h)).
  • Clause B2 Durability: Performance B2.3.1 (a) not less than 50 years. The MetraCeiling will meet this requirement.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. MetraCeiling will meet this requirement.
In-Service History
  • The satisfactory performance of both Metra Panel wall and ceiling panels in New Zealand over a period of 20 years has been recognised by BRANZ.
  • MetraCeiling panels have over 25 years proven history when combined with the full Metra Panel construction system, providing reassurance that the system has stood the test of time.
  • The MetraCeiling panels have been utilised in the full Metrapanel build for over 9,000 building projects throughout New Zealand.
Other Performance Attributes

MetraCeilings in comparison to alternatives

Safety nets
A complex system that requires the correct sag and fall height to be calculated correctly makes the product very difficult to install. A timely installation process with individual nets needed for separate rooms and regular inspections are necessary. Safety nets are hired and reused, and are therefore an extra cost to the building structure itself. Delays often occur due to safety nets being installed prior to the roof trusses and then removed on installation of the roof cladding.

Fall Breakers
Daily inspections are required to ensure drain holes are not blocked which results in a catchment of water becoming heavy and potentially distorting the frame. The product cannot be used as a work surface for resting tools on, let alone walking across. Fall Breakers should be used within six months of receiving and need to be cut off and disposed of afterwards, as they cannot be incorporated into the building structure.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Metra Ceiling on Timber Framing

V1

Metra Surface Finishing Guide

V4

BRANZ Appraisal Metra Ceiling 951 2017

2017

Metra FRR 60/60/60 Ceiling Test Report
Warranty
Brochure
CAD/PDF Details

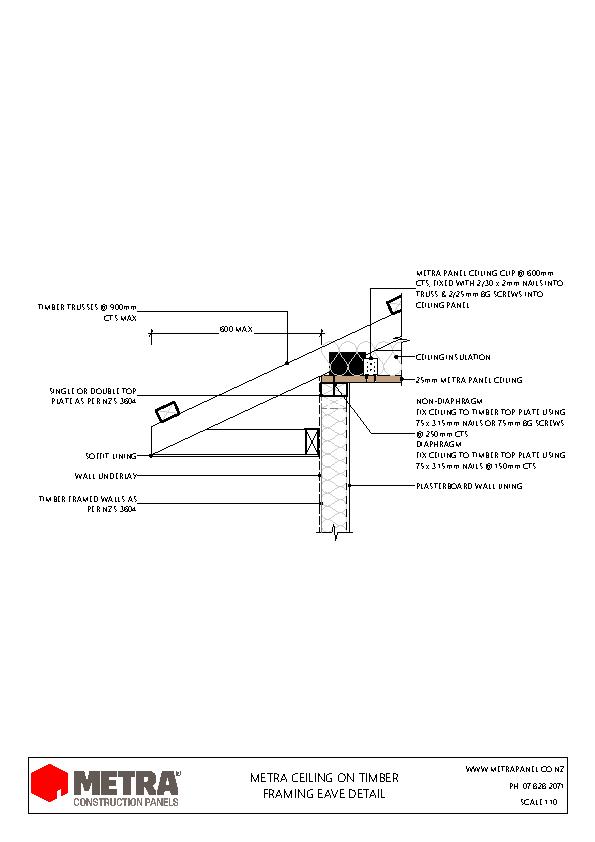

Metra Ceiling on Timber Framing Details
Metra Ceiling on Timber Framing DWG Details
