Metcom 965 Roofing and Wall Cladding System
Description

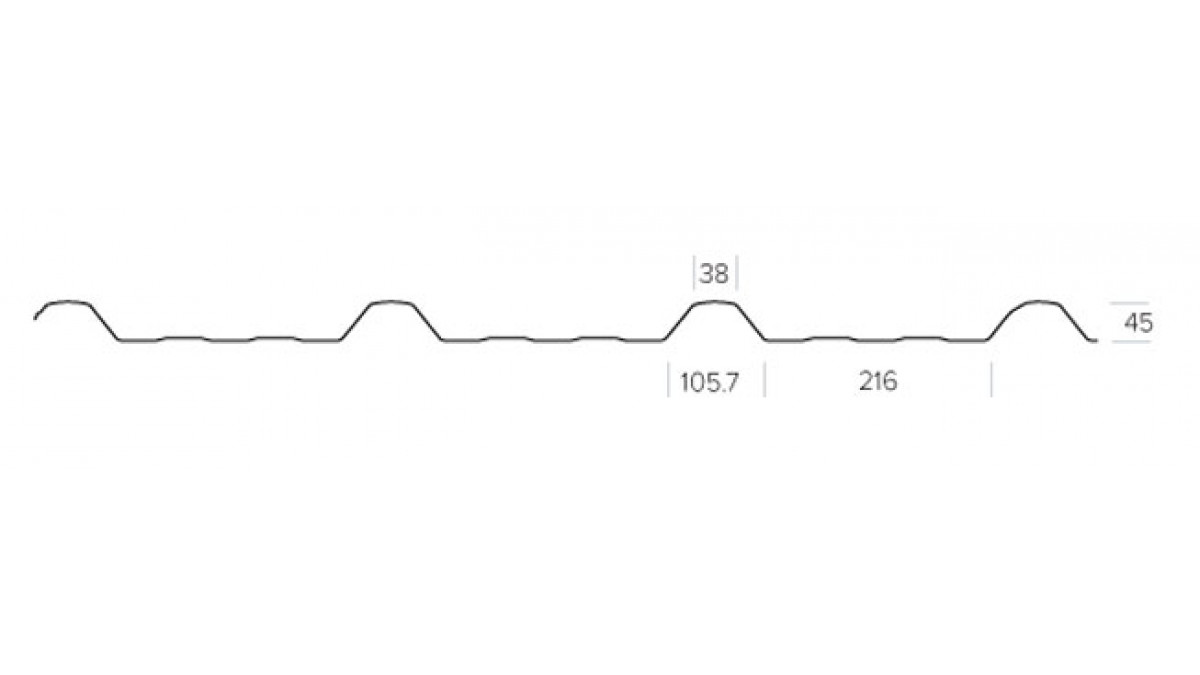

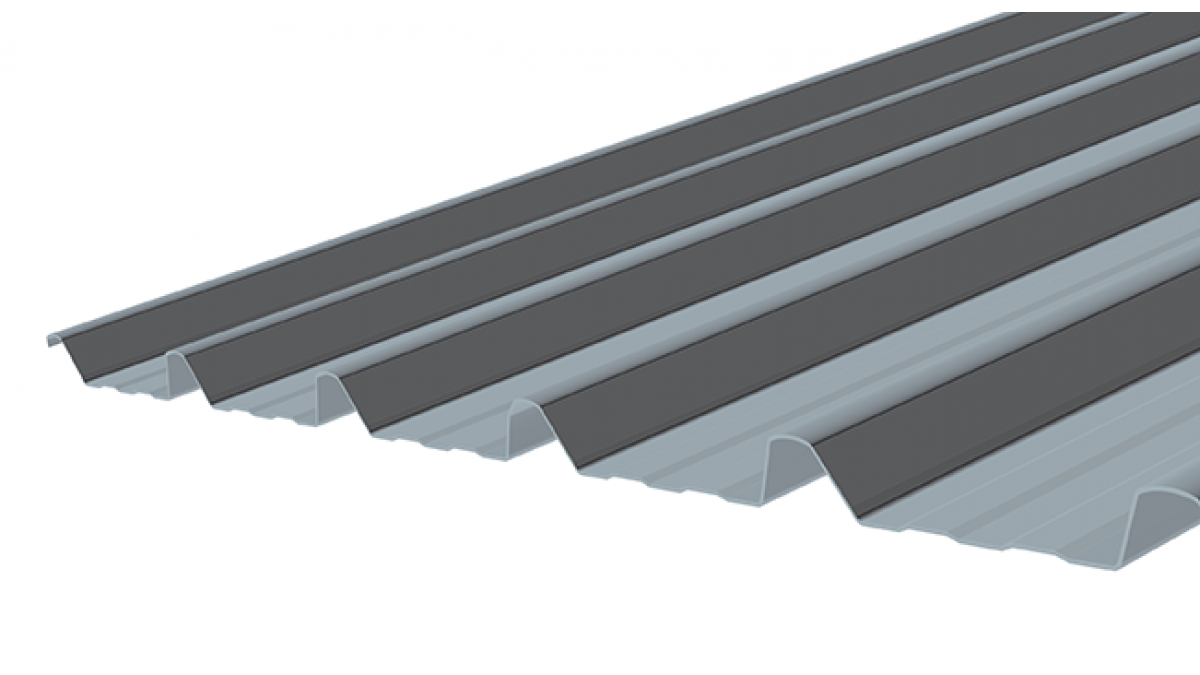

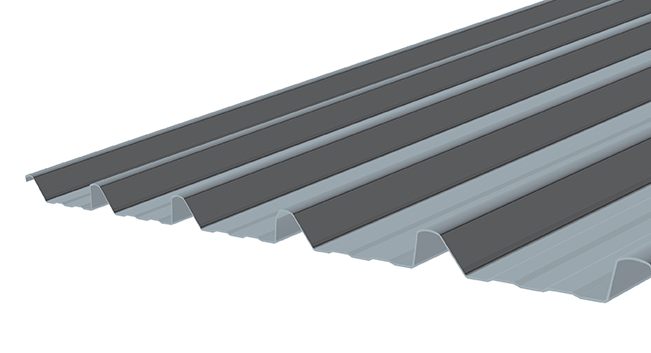

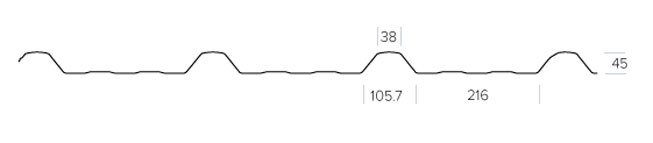

Metalcraft Roofing supply the new profile Metalcraft Metcom 965 for use as a roof and horizontally and vertically laid wall cladding. Metalcraft Metcom 965 is an assymetrical trapezoidal, long-run steel sheet. The profile was designed as a high rib profile for the commercial market.

Key Features
  • Fabricated from NZ Steel products, the sheets come in various protective coatings to ensure they withstand NZ's exposure zones. They are available in the full range of Colorsteel® colours
  • Metalcraft Metcom 965 sheets are available in the following New Zealand (NZ) Steel branded products, Colorsteel® Endura®, Galvsteel®, Colorsteel® Maxx® and Zincalume®.
  • Metcom 965 is an economical and versatile 5 rib trapezoidal roofing profile, suitable for roofing, and horizontal or vertical cladding and Ideal for low pitch roofs (min 3°)
  • The sheets are available in the following sizes:
    • Thickness (mm): 0.40 and 0.55
    • Width (mm): Cover = 965, Sheet = 1065
Scope of Use

The Metcom 965 system is a horizontal and vertical external wall cladding, and for roofs with a minimum pitch of 3 degrees, for use on commercial and residential buildings within the following scope:

Location:

  • In wind zones:
    • Up to and including Extra High as defined by NZS-3604:2011
    • Subject to specific engineering, if the engineer has satisfied themselves that the product, pitch and fixings will meet the conditions
  • In all climate zones as defined by NZS-3604:2011, subject to the limitations set out below
  • On buildings located within 1m of the relevant boundary, in respect of fire spread only

Building:

  • On new buildings that have been designed and constructed to comply with the NZ Building Code (NZBC) using timber or steel framing
  • On existing buildings using timber and steel framing where the designer and installer have satisfied themselves that the building is suitable for the intended building work
  • In conjunction with a vapour permeable building wrap that has a permeability of 36g/m2/day of a vapour resistance of no more than 500MNs/g
  • Can be used in conjunction with a potable water collection system
Limitations on Use

Location:

  • In wind zones:
    • Up to and including Extra High as defined by NZS-3604:2011
    • Subject to specific engineering, if the engineer has satisfied themselves that the product, pitch and fixings will meet the conditions
  • In all climate zones as defined by NZS-3604:2011, subject to the limitations set out below
  • On buildings located within 1m of the relevant boundary, in respect of fire spread only

Building:

  • On new buildings that have been designed and constructed to comply with the NZ Building Code (NZBC) using timber or steel framing
  • On existing buildings using timber and steel framing where the designer and installer have satisfied themselves that the building is suitable for the intended building work
  • In conjunction with a vapour permeable building wrap that has a permeability of 36g/m2/day of a vapour resistance of no more than 500MNs/g
  • Can be used in conjunction with a potable water collection system
3° Minimum Roof Pitch Required
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

If designed, installed and maintained in accordance with all Metalcraft Roofing requirements, the Metcom 965 Roofing and External Cladding system will comply with or contribute to compliance with the following provisions of the NZ Building Code:

  • B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b, c, d, g, i)
  • B2 Durability: B2.3.1 (b)
  • C3 Fire Affecting Areas Beyond the Fire Source: C3.4(a), C3.5, C3.7 (a)
  • E2 External Moisture: E2.3.1, E2.3.2, E2.3.7 (a-c)
  • F2 Hazardous Building Materials: F2.3.1

See product technical statement for full information.

Other Performance Attributes
  • Metcom 965 Roofing and External Cladding system will not contaminate potable water — AS/NZS 4020:2005
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
Product Technical Statement

02/2022

Loadspan Graph and Fixing Table
Fire Testing Document
Environmental Category Brochure
Colour Range
CAD/PDF Details
Commercial Horizontal Cladding Details
Commercial Horizontal Cladding Details DWG
Commercial Horizontal Cladding Details DXF

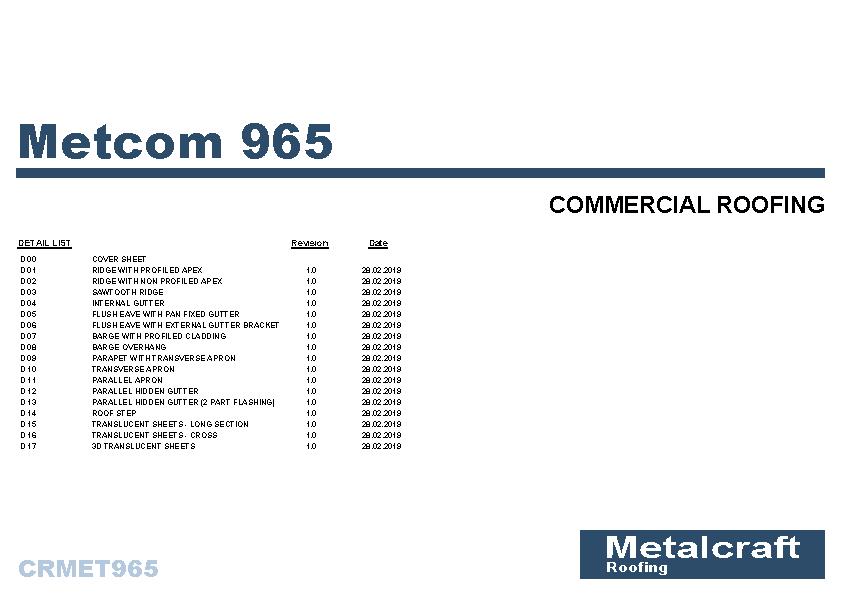

Commercial Roof Details
Commercial Roof Details DWG
Commercial Roof Details DXF
Commercial Vertical Cladding Details
Commercial Vertical Cladding Details DWG
Commercial Vertical Cladding Details DXF

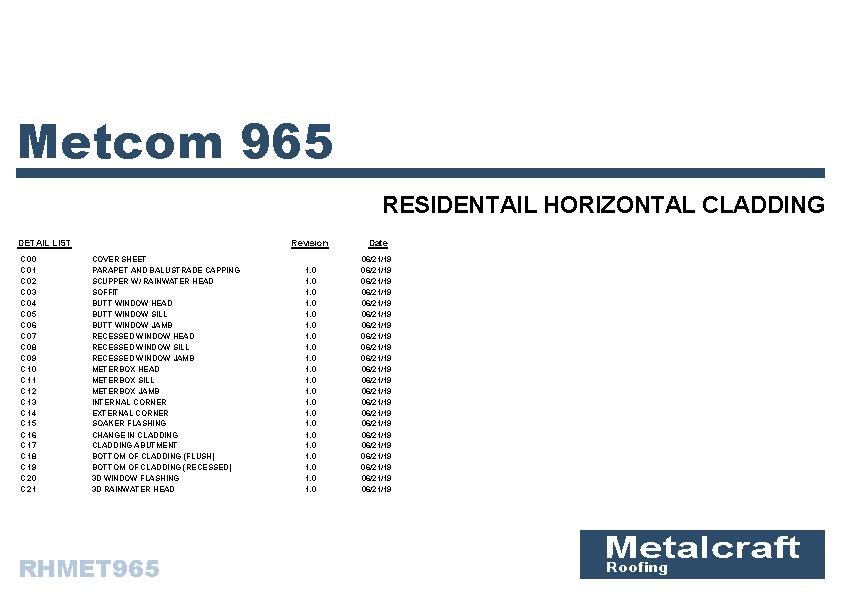

Residential Horizontal Cladding Details
Residential Horizontal Cladding Details DWG
Residential Horizontal Cladding Details DXF

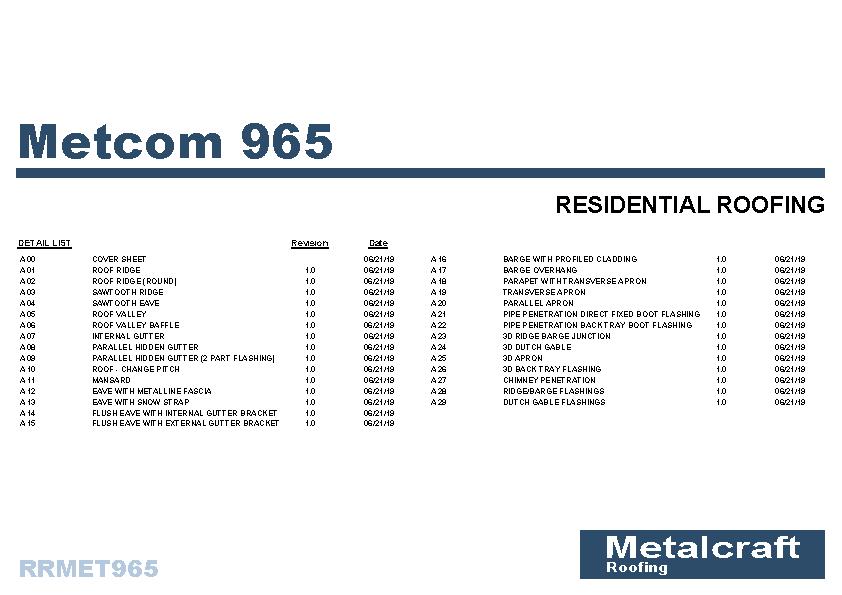

Residential Roof Details
Residential Roof Details DWG
Residential Roof Details DXF
Residential Vertical Cladding
Residential Vertical Cladding Details DWG
Residential Vertical Cladding Details DXF
BIM
Commercial Horizontal Cladding Details RVT
Commercial Roof Details RVT
Commercial Vertical Cladding Details RVT
Residential Horizontal Cladding Details RVT
Residential Roof Details RVT
Residential Vertical Cladding Details RVT
