165mm Hi-Span Balustrade Louvres (Australian Balustrade Compliant)
Louvretec
All products

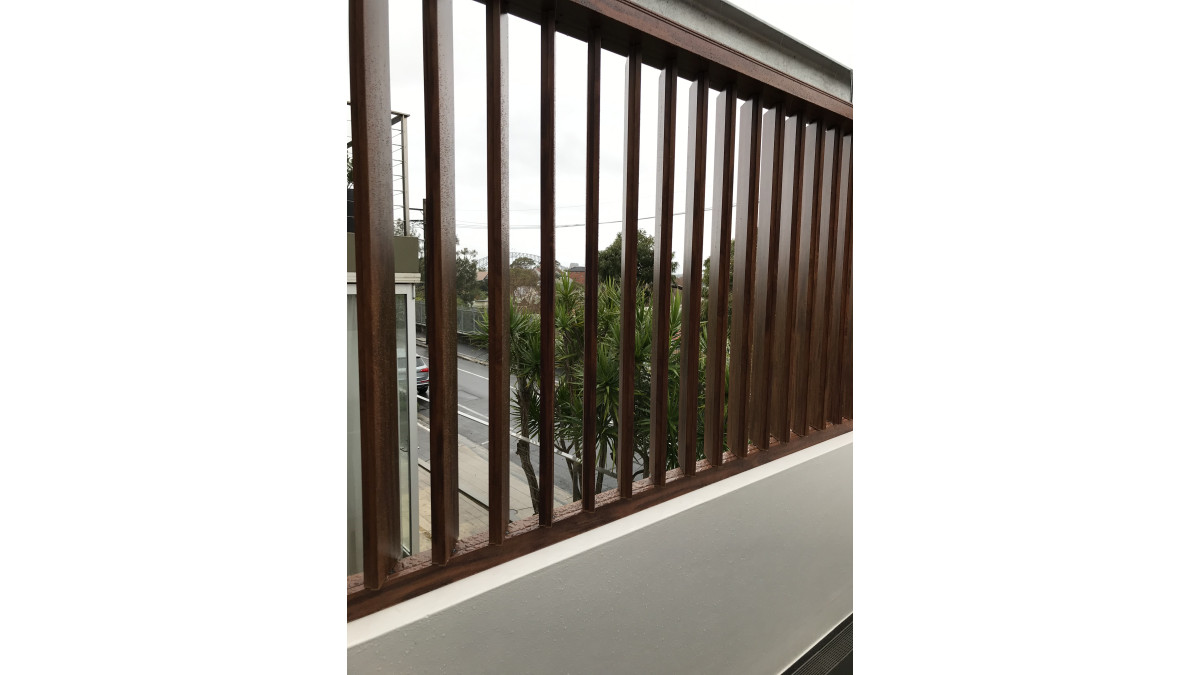

IMG 9796
165 Hi-Span

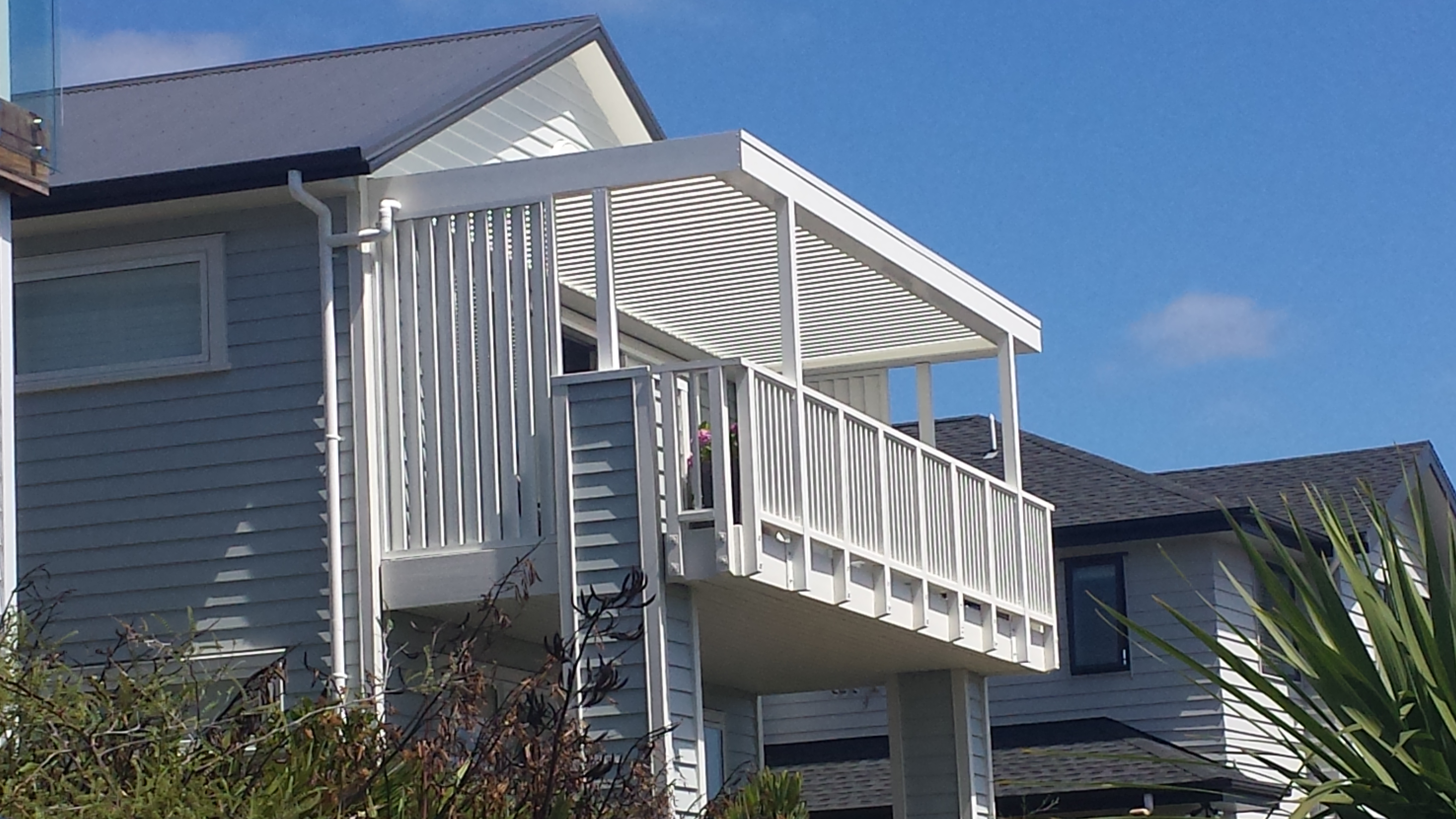

020
165 Hi-Span

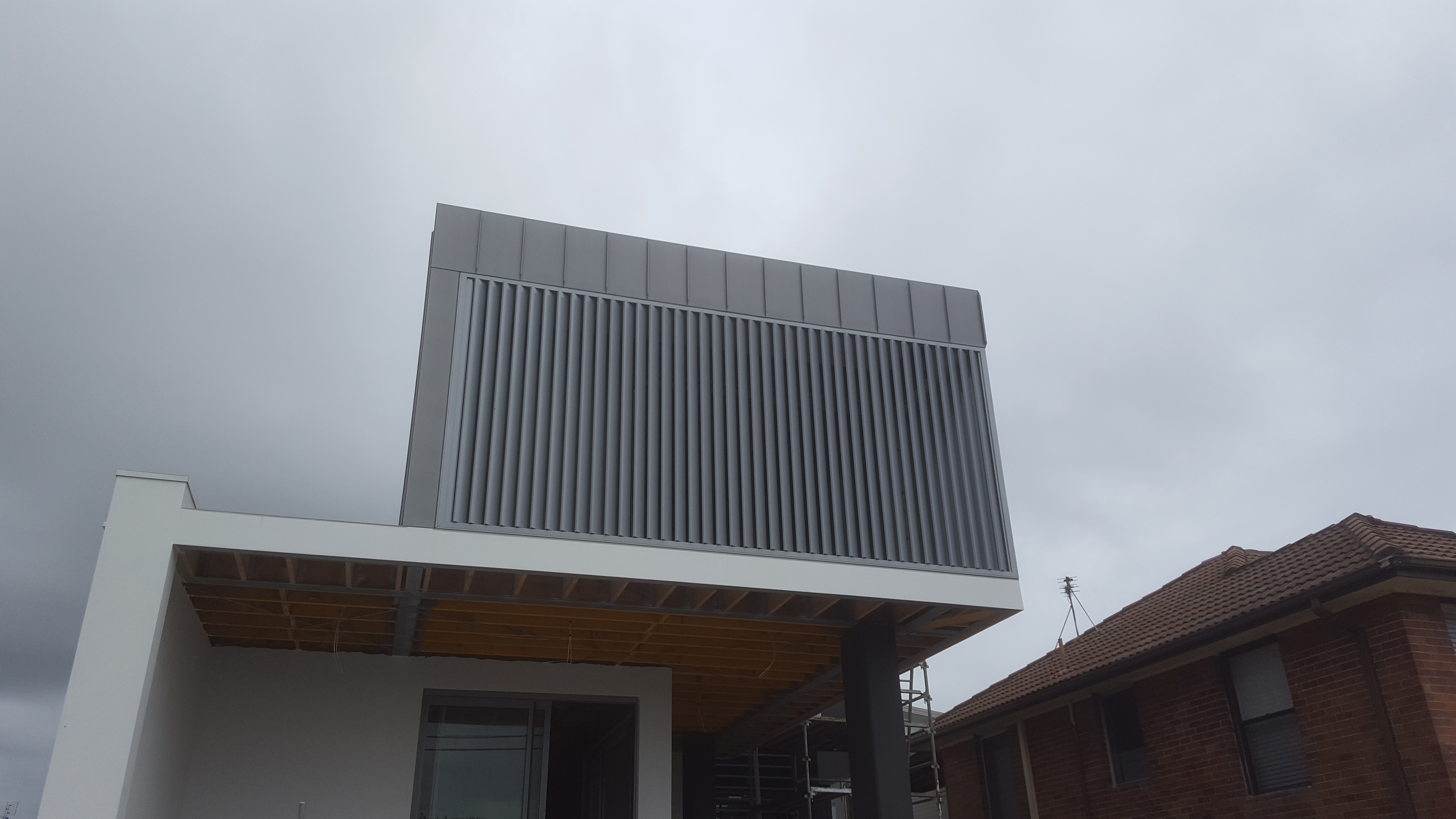

20181212 090738
165 Hi-Span

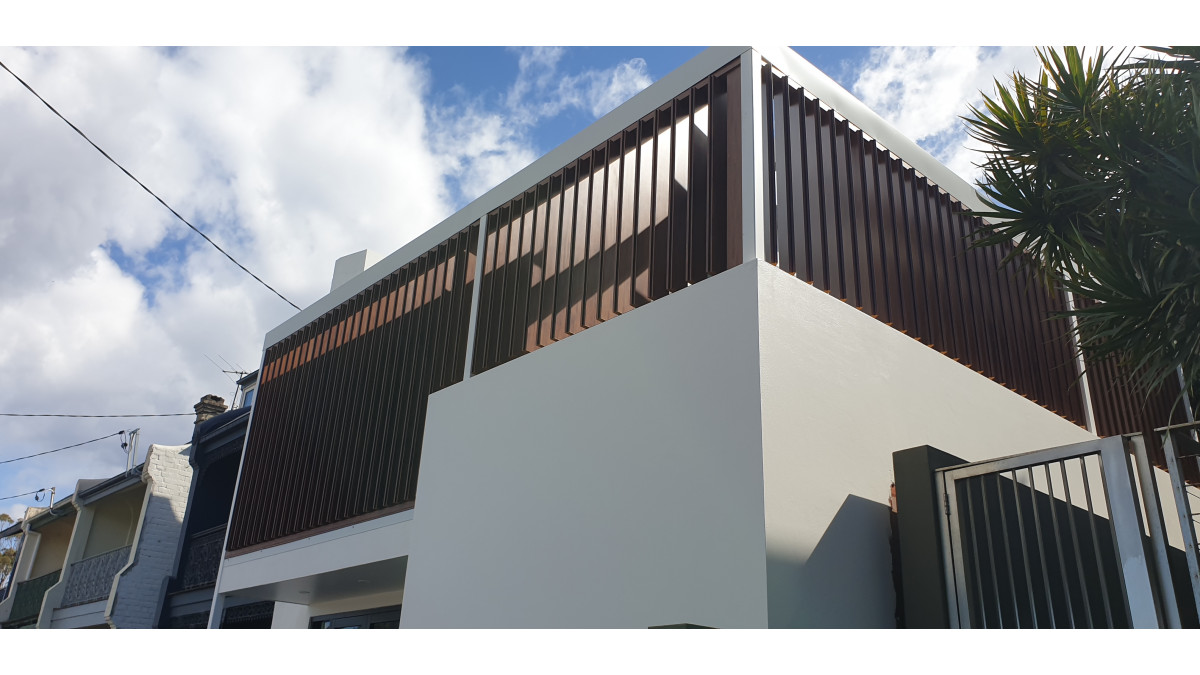

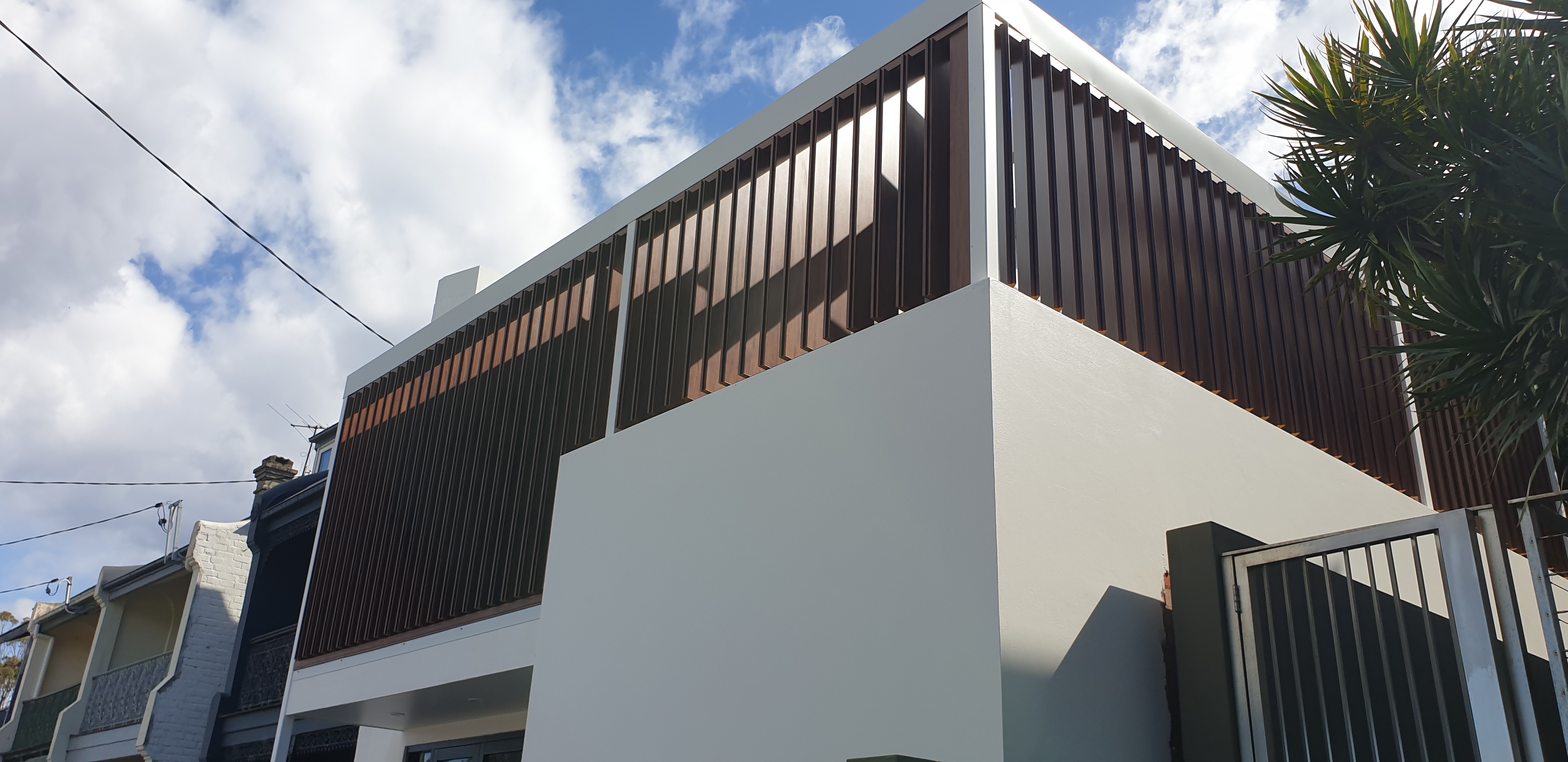

20200819 121402
165 Hi-Span

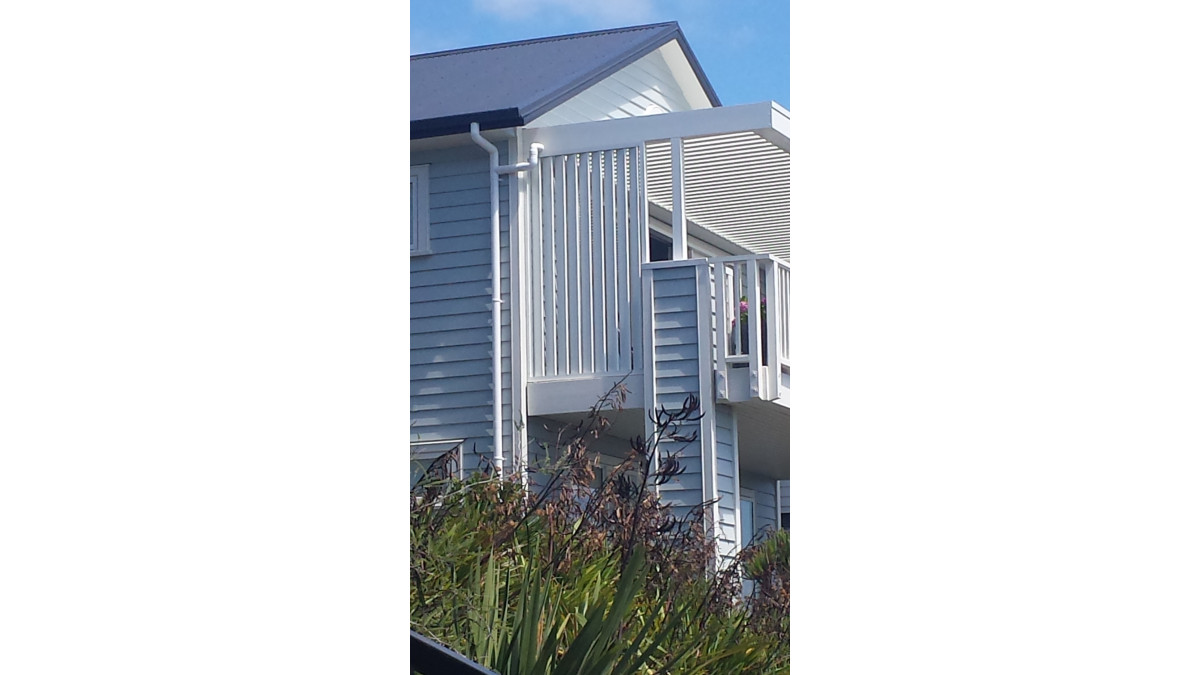

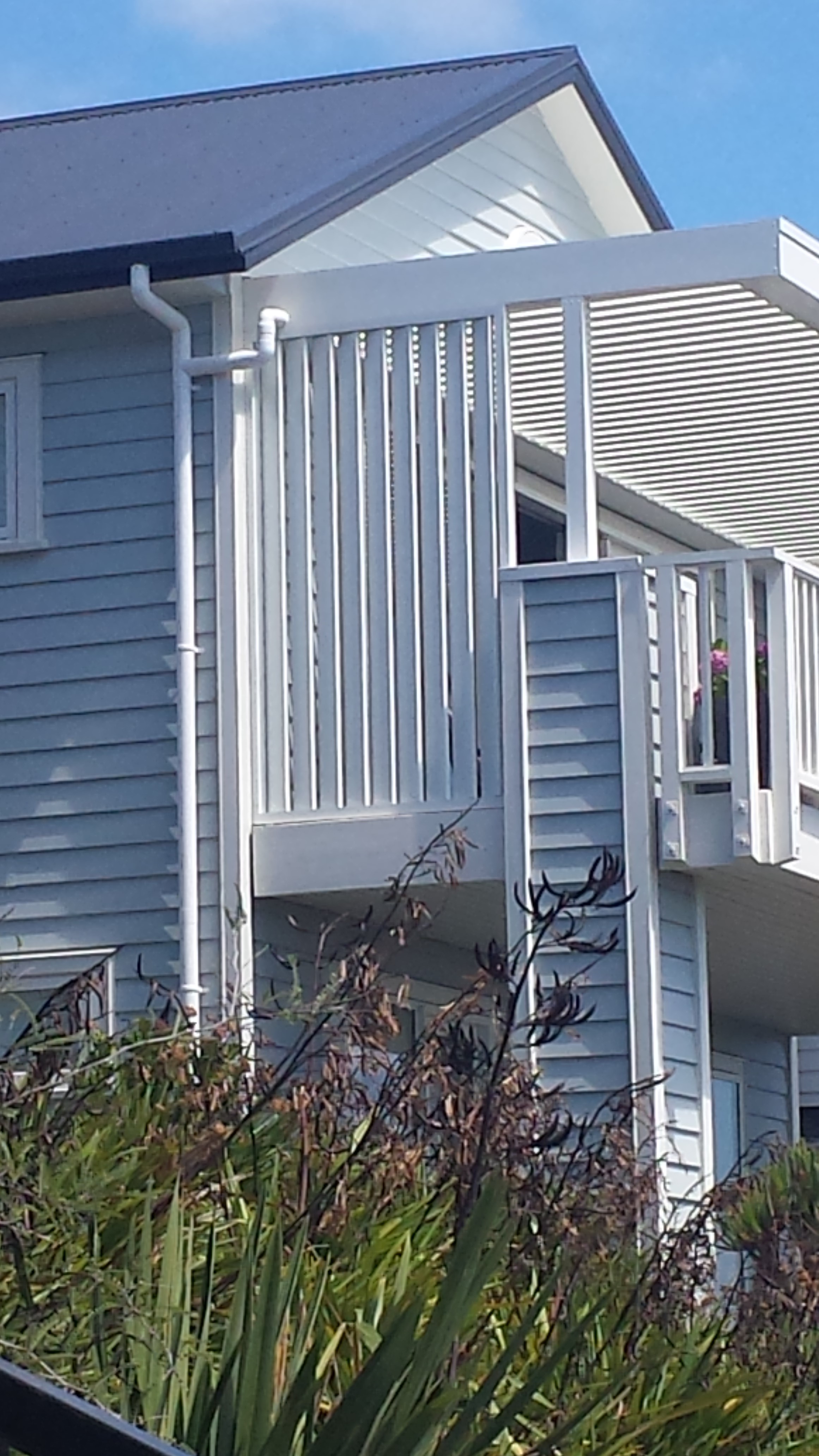

018
165 Hi-Span
Description

The 165mm Hi-Span Louvre has been designed to provide an operable Spiral Pivoting Louvre suitable to be used as a balustrade system in Australia only. NB: for the NZ compliant Balustrade Louvre please refer to Louvretec's 135mm Hi-Span Louvre.

The 165 Hi-Span Louvre is to be used as an infill panel only and does not include structural horizontal or vertical balustrade supports. Structural balustrade support by others.

165 Hi-Span Louvres can also be End Fixed.

Key Features
  • 165 Hi-Span Balustrade Louvres are compatible with AUSTRALIAN Balustrade Requirements only. For NZ please view the 135 Hi-Span Balustrade Louvre option
  • Spiral Pivot system is Louvretec's award winning drive system that rotates these Louvre blades open & close
  • Tucked away out of sight ensuring the Louvres are the highlight
  • Spiral Pivot system also powers Louvretec's Opening Roofs
  • Can be motorised
  • Can be hand operable
  • Quiet
  • Tried, tested, proven over decades
Categories
Louvres, Shutters, Screens, and Grilles
Ranges
Spiral Pivot Motorised and Hand Op. Louvres Balustrade Louvres End Fixed Louvres Sun Louvres Rectangular
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • 165 Hi-Span Balustrade Louvres are compatible with AUSTRALIAN Balustrade Requirements only. For NZ please view the 135 Hi-Span Balustrade Louvre option
  • For residential and commercial projects
  • Louvre spans in wind zones as set out in Louvretec Design Manual
Limitations on Use
  • 165 Hi-Span Balustrade Louvres are compatible with AUSTRALIAN Balustrade Requirements only. For NZ please view the 135 Hi-Span Balustrade Louvre option
  • Any use outside of Louvretec's nominated Louvre spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual
  • Any use outside of Louvretec's specifications for this Louvre Blade as set out in the Louvretec 2025 Design Manual
In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres are constructed of aluminium
  • Louvretec is in its 25th year of operation
Documents
Louvretec 2025 Design Manual Section 10.4

2025

pdf
Louvretec 2025 Design Manual Section 10.5

2025

pdf
Louvretec Design Manual - Balustrade Louvres Bundle from Spiral Pivot Section 10.2

2025

pdf
Louvretec 2025 Sun Louvres Warranty

2025

pdf
Louvretec 2025 Sun Louvres Brochure

2025

pdf
CAD/PDF Details
View full

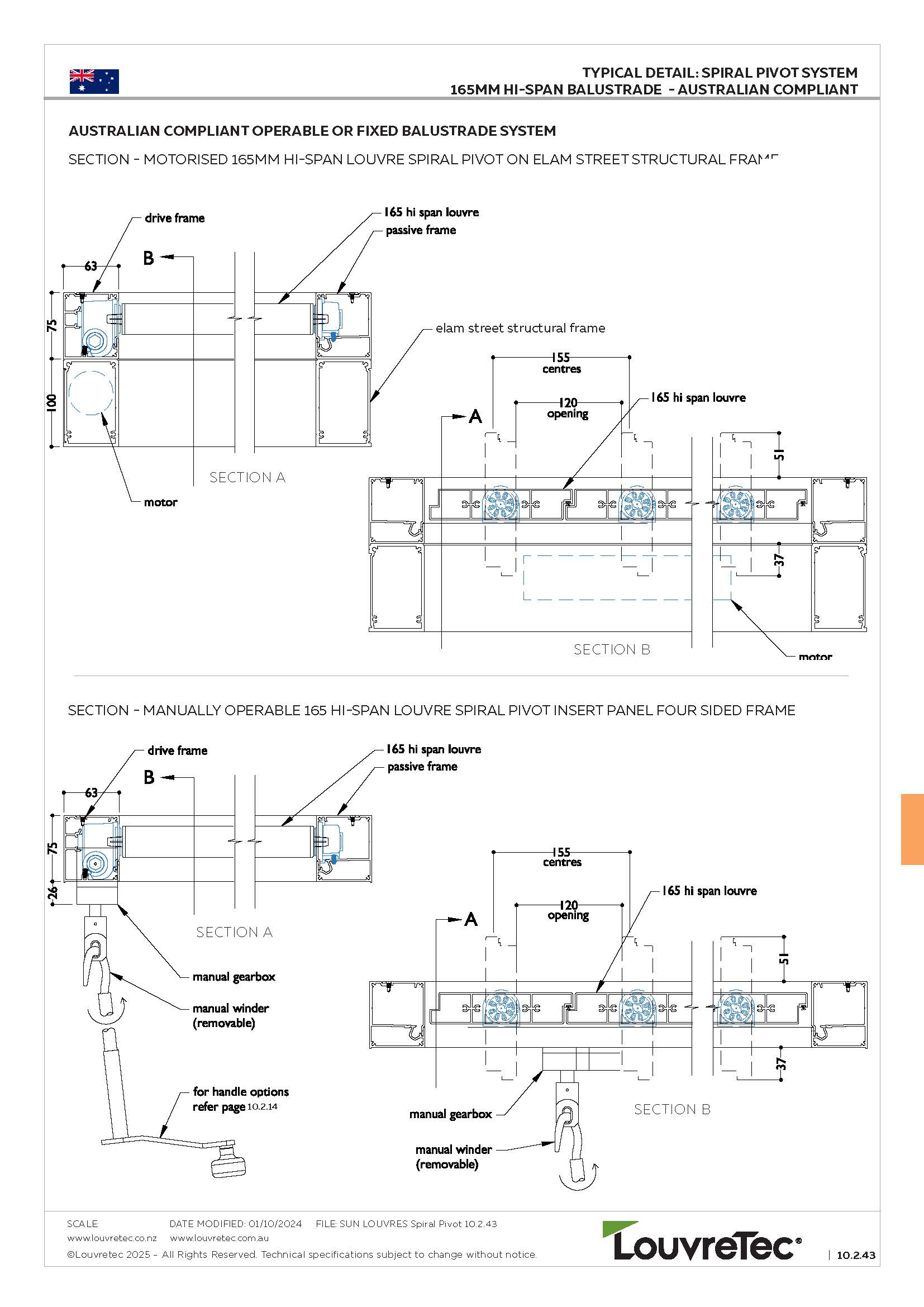

Section 10c Sun Louvres SPIRAL Louvretec DM 2025 FINAL Page 44
8.48 165mm Hi-Span Balustrade Louvre - Typical Detail

8.48

dwg
BIM
View full
165 HI SPAN SPIRAL PIVOT DOUNDER DRIVE FRAME AND PASSIVE FRAMES WRAP AROUND TO ALL FOUR SIDES
3D Model | 165 Hi-Span Balustrade Louvre - Motorised
rfa
