JESANI Slimline Channel — Wall Mounted
Description

The JESANI Slimline Channel was designed to sit against a perimeter wall behind a freestanding bath or at the base of a shower over bath scenario.

This channel will ensure the pick up of any accidental overflow from the shower over the side of the bath and cover any critical joins where water can slowly ingress over a period of time. This slow ingress has the ability to cause extensive damage.

Key Features
  • BRANZ Appraised
  • LIFEMARK product approved
  • Prevention of in-house flooding
  • Eliminates flooding between wet to dry areas of the home
  • Option to be classed as emergency overflow for plumbing system
  • Easy installation method
  • Custom designed lengths available
    • 50mm width trough
    • 38mm threaded outlet
    • 3 bar grill
    • To suit various floor coverings
Lifemark Product Partner
Lifemark Product Partner
NZ Made
NZ Made
Scope of Use

The JESANI Slimline Channel is versatile for its use, however it has been initially designed to sit against a perimeter wall behind a freestanding bath or at the base of a shower over bath scenario.

 The length will be custom made to suit any bathroom design/requirements:

  • 50mm width trough
  • 38mm threaded outlet
  • Timber or concrete substrate
  • To suit various floor coverings and to accommodate underfloor heating



Limitations on Use
  • Designed for interior use only
Statement of Building Code Compliance

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
  • Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
  • Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

In-Service History
  • BRANZ Appraisal 934
  • LIFEMARK product approved
  • Grade 304, 1.5mm thick stainless steel
Other Performance Attributes

The serviceable life of JESANI Shower and Door Channels, when subjected to normal conditions of environment and use, is expected to be compatible with the waterproofing membrane and floor finishes to which they are fitted.

Maintenance

Cleaning care of the stainless steel channel:

  • Avoid carbon steel brushes or steel wool and abrasive detergents; the brushes and wool may leave particles embedded on the surface which can lead to rusting, and abrasive cleaners could introduce the possibility of scratching the surface
  • Clean warm water and wipe are the simplest and safest method, followed by a clean water rinse and dry wipe. Stainless steels thrive with frequent cleaning
  • Periodically allow a cup of clean water to flow down the drain to keep it clear of dust/lint buildup
BRANZ Appraised
BRANZ Appraised
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Documents
BRANZ Appraisal 934

934 [2021]

Installation and Operation
Video Demonstrations
CAD/PDF Details

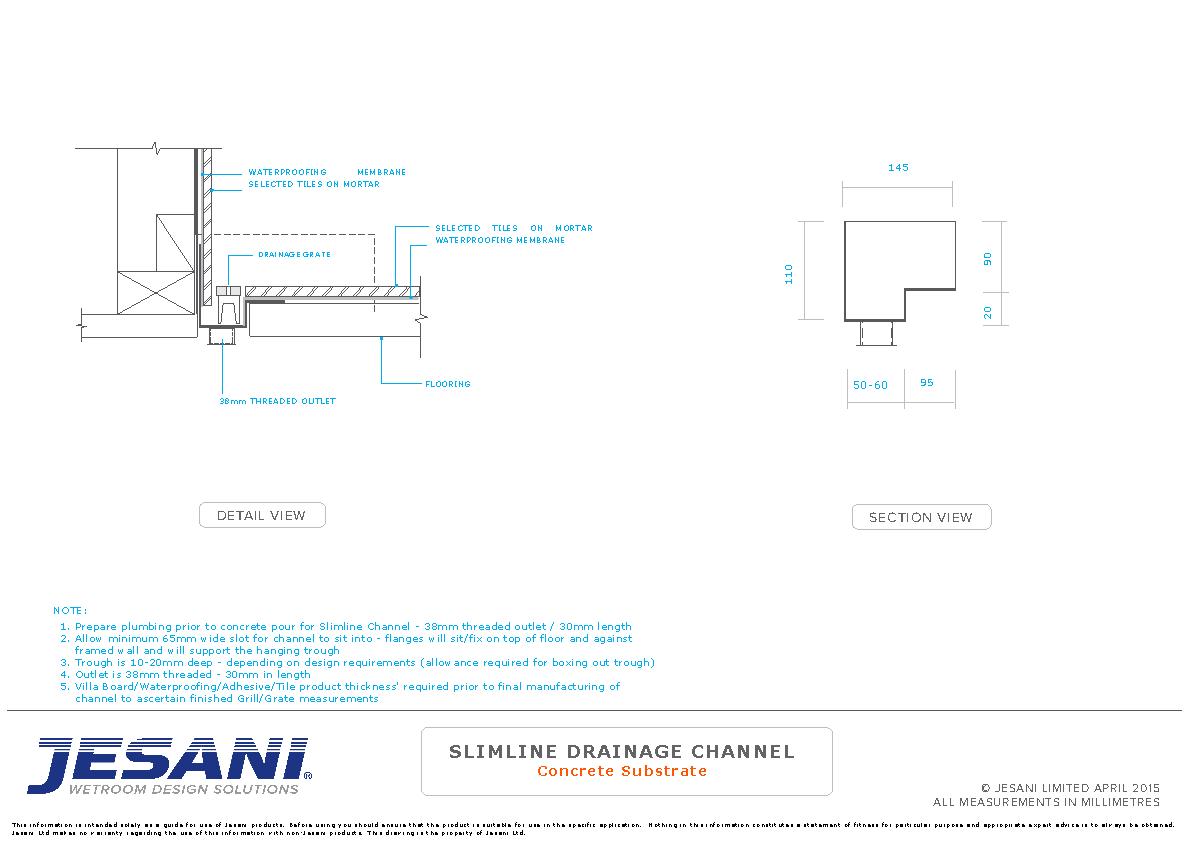

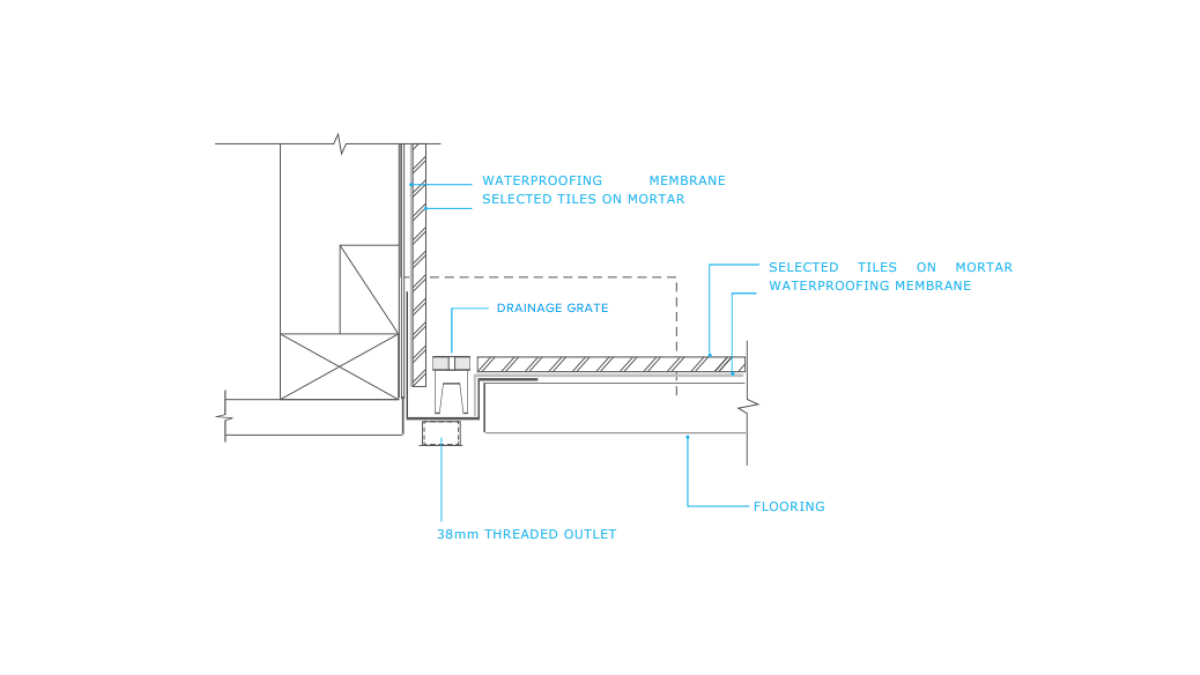

Slimline Channel Wall Mounted — Concrete Substrate

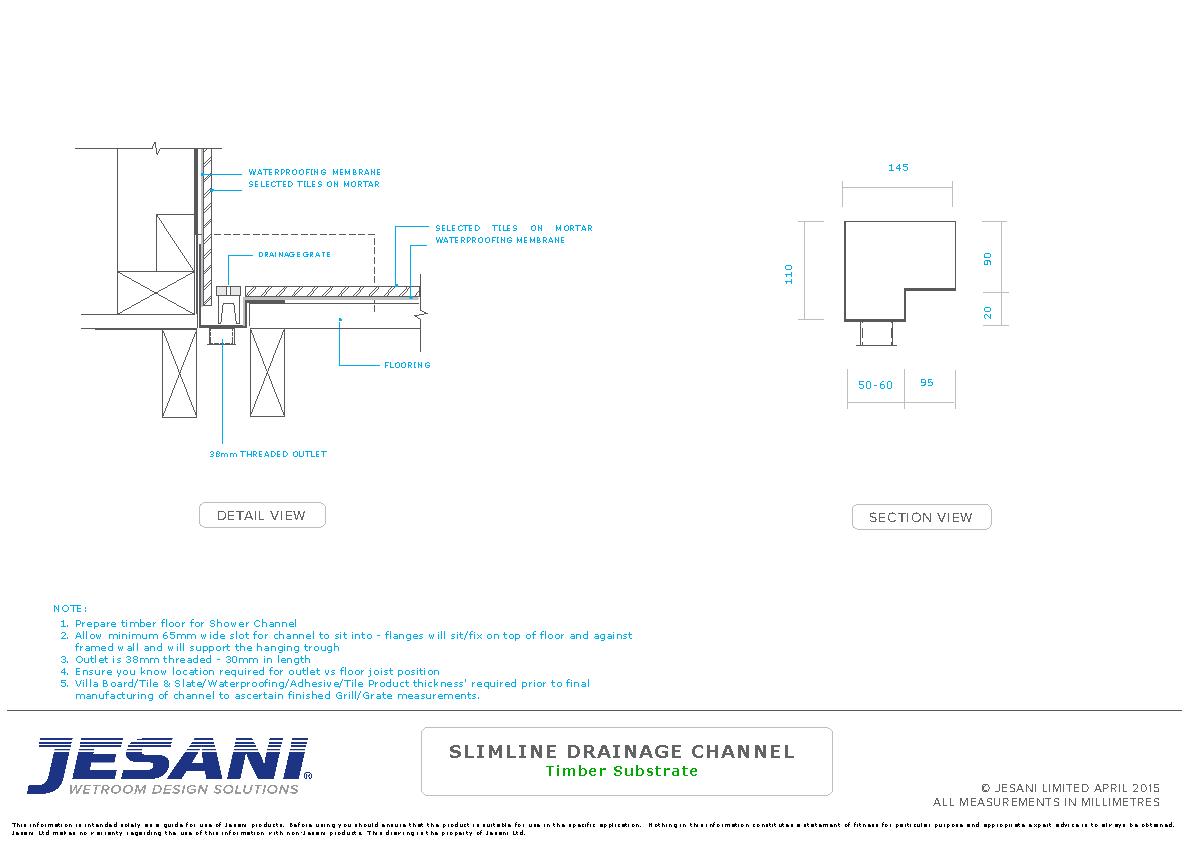

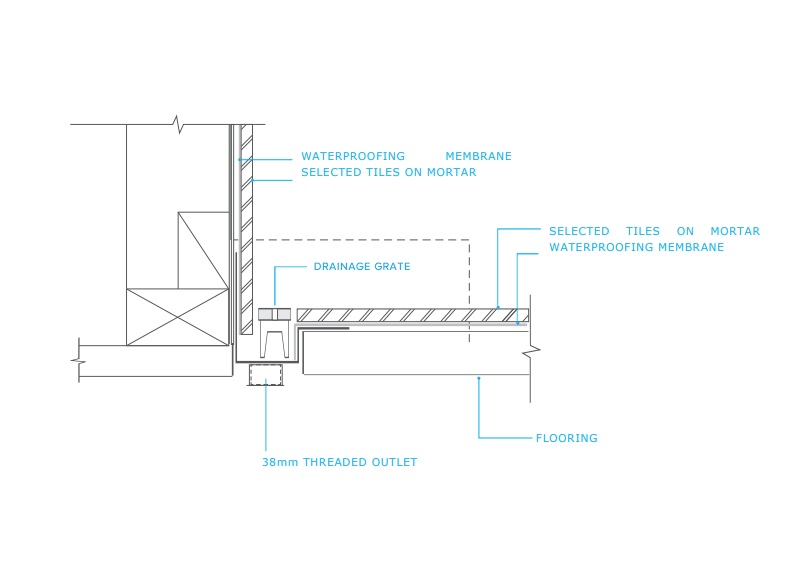

Slimline Channel Wall Mounted — Timber Substrate

JESANI deliver New Zealand made custom made linear shower and door channels for residential and commercial use

Product Enquiries

News from JESANI

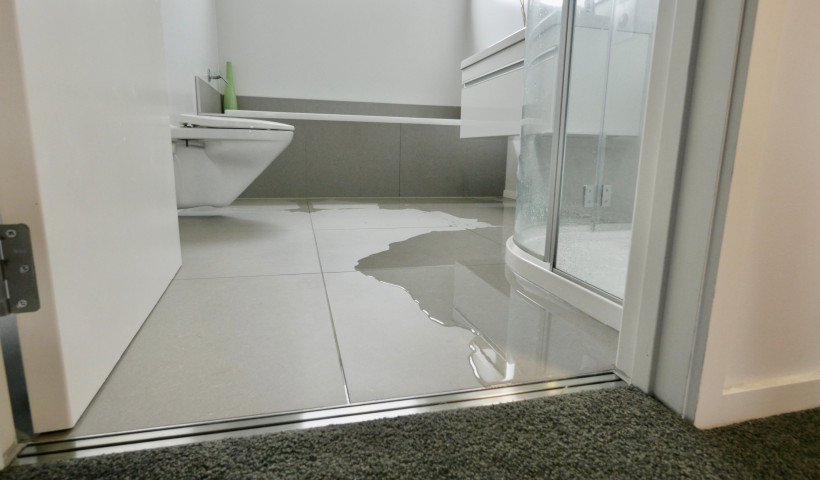

Innovative Flood Prevention with the Jesani Door Channel
