Equus Soprema Soprasolar Pedestals
Description

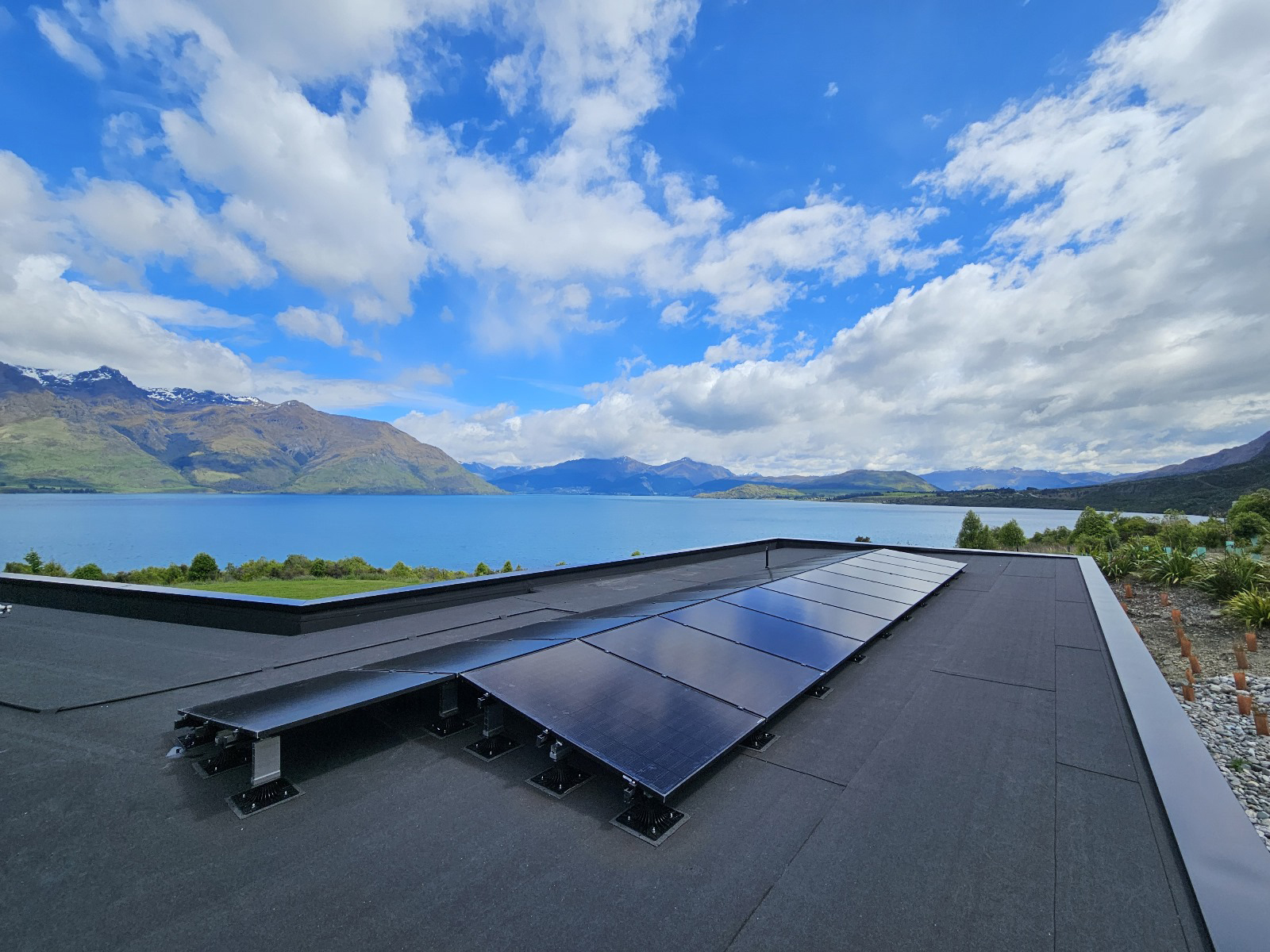

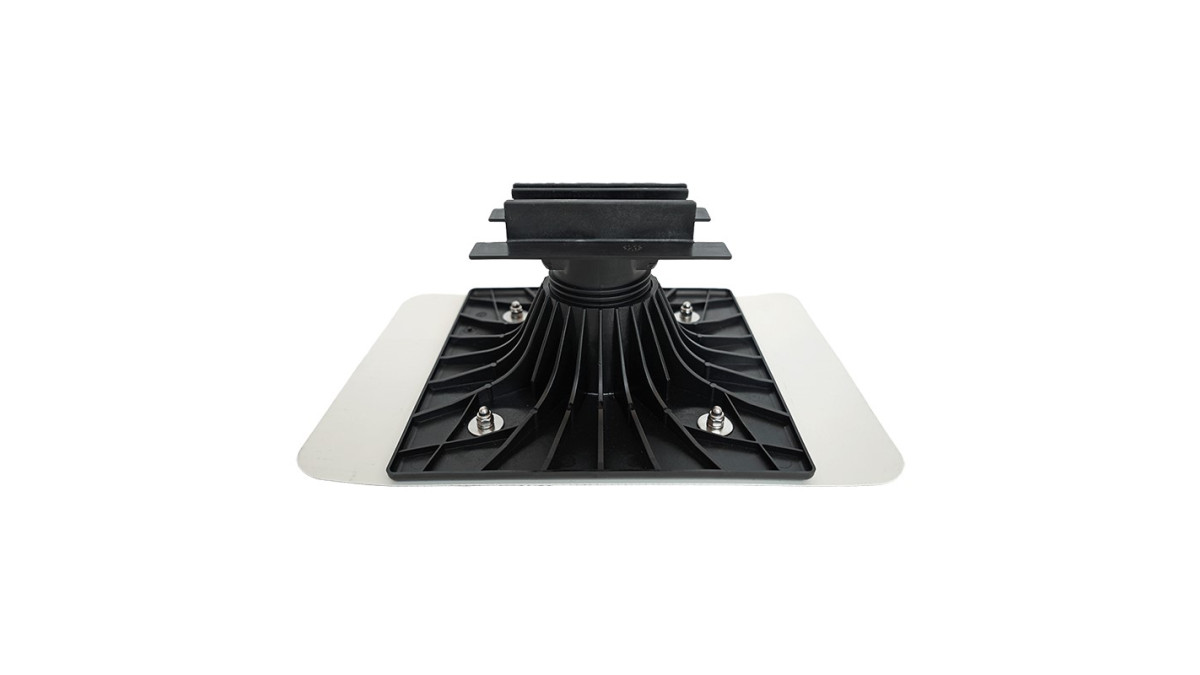

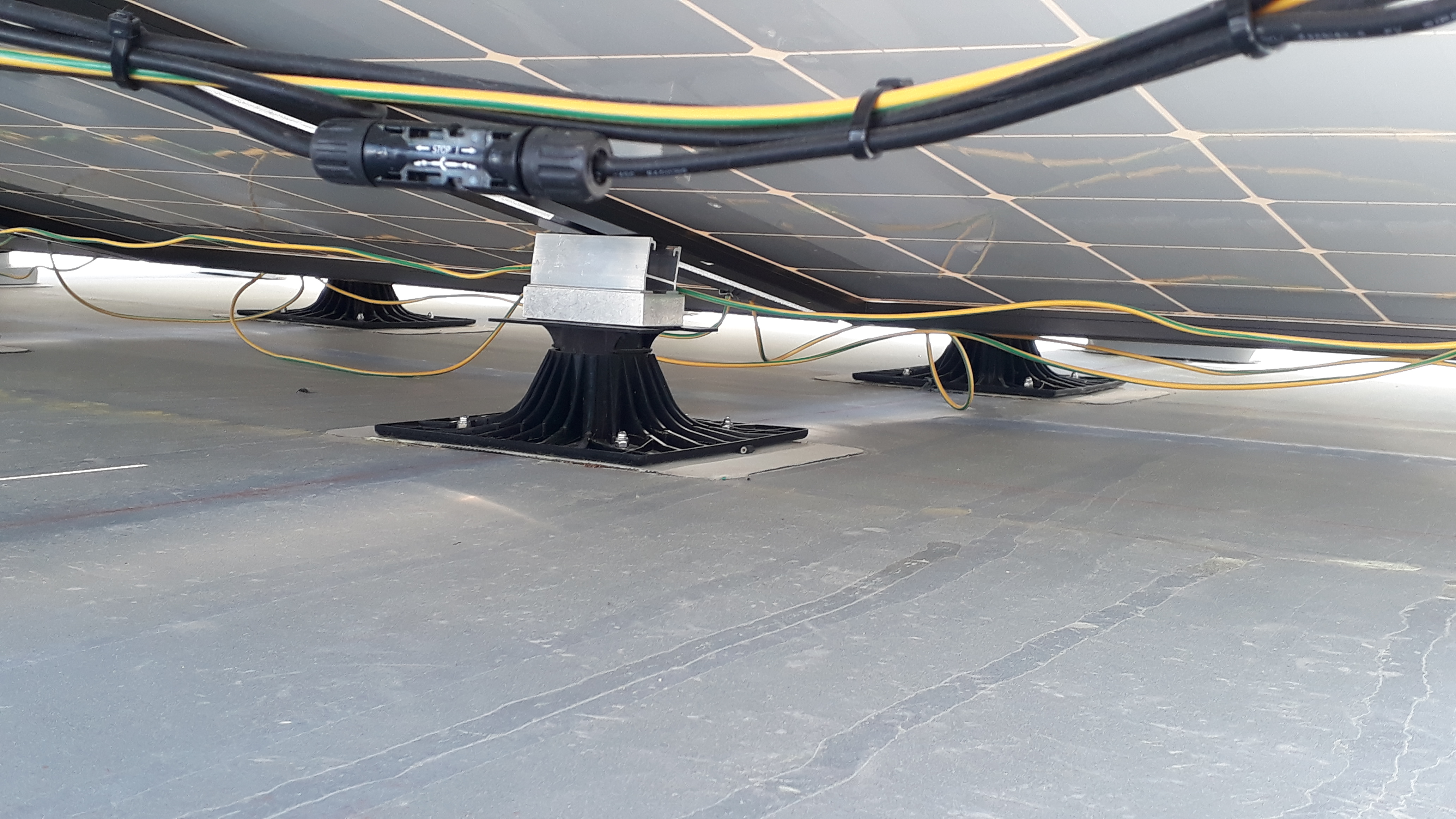

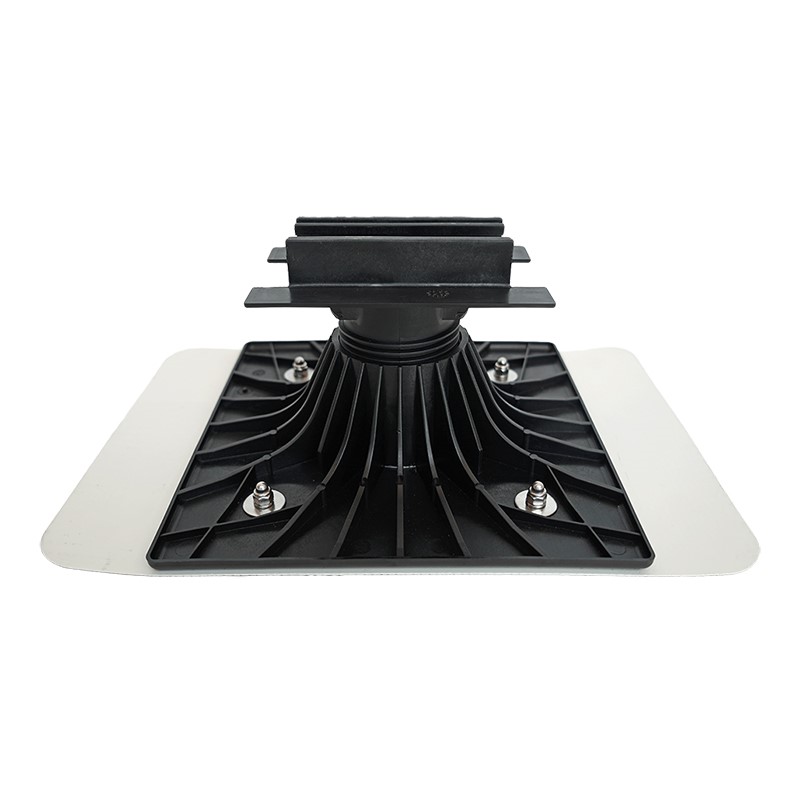

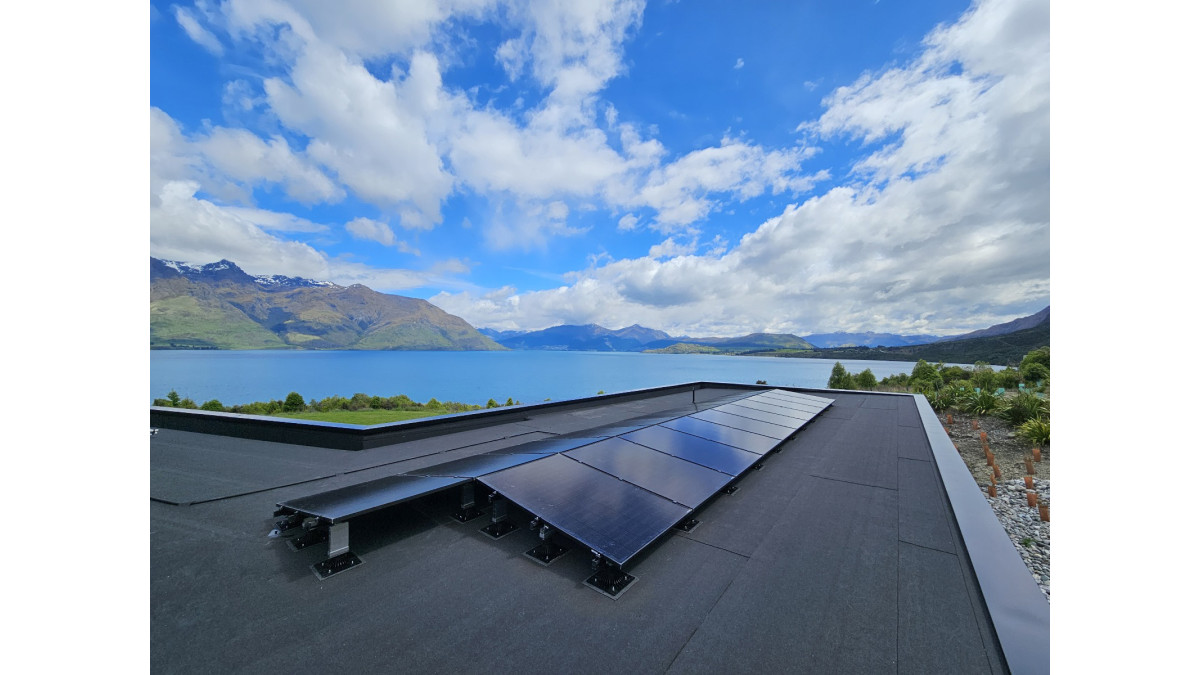

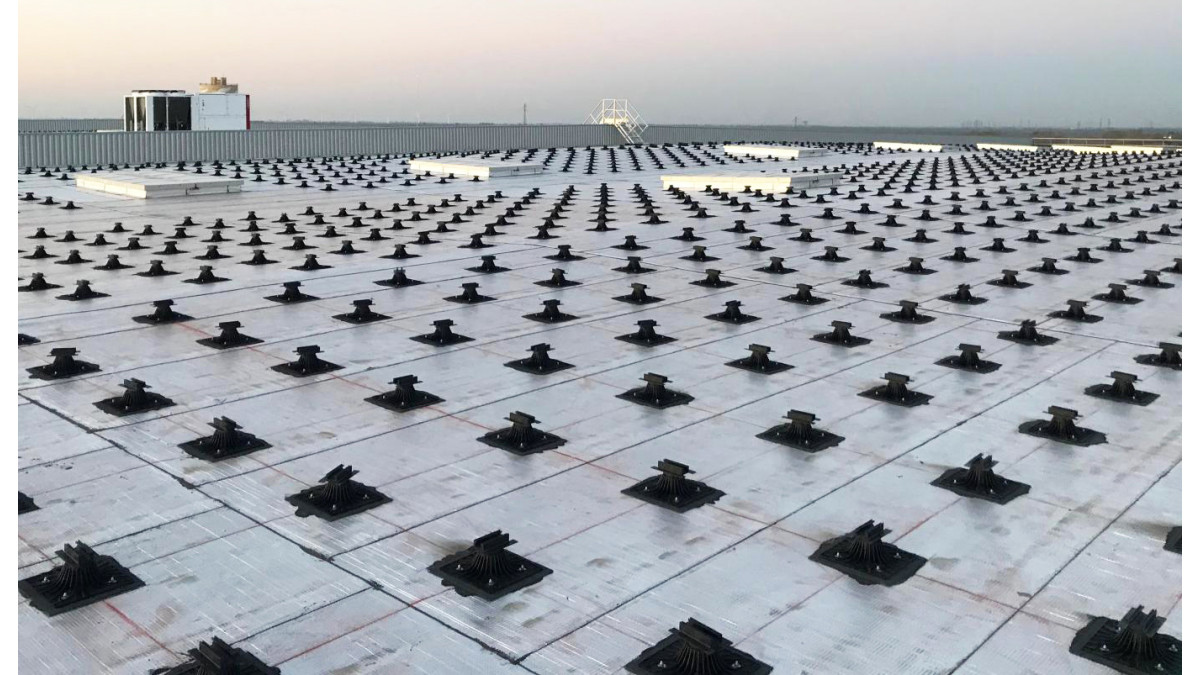

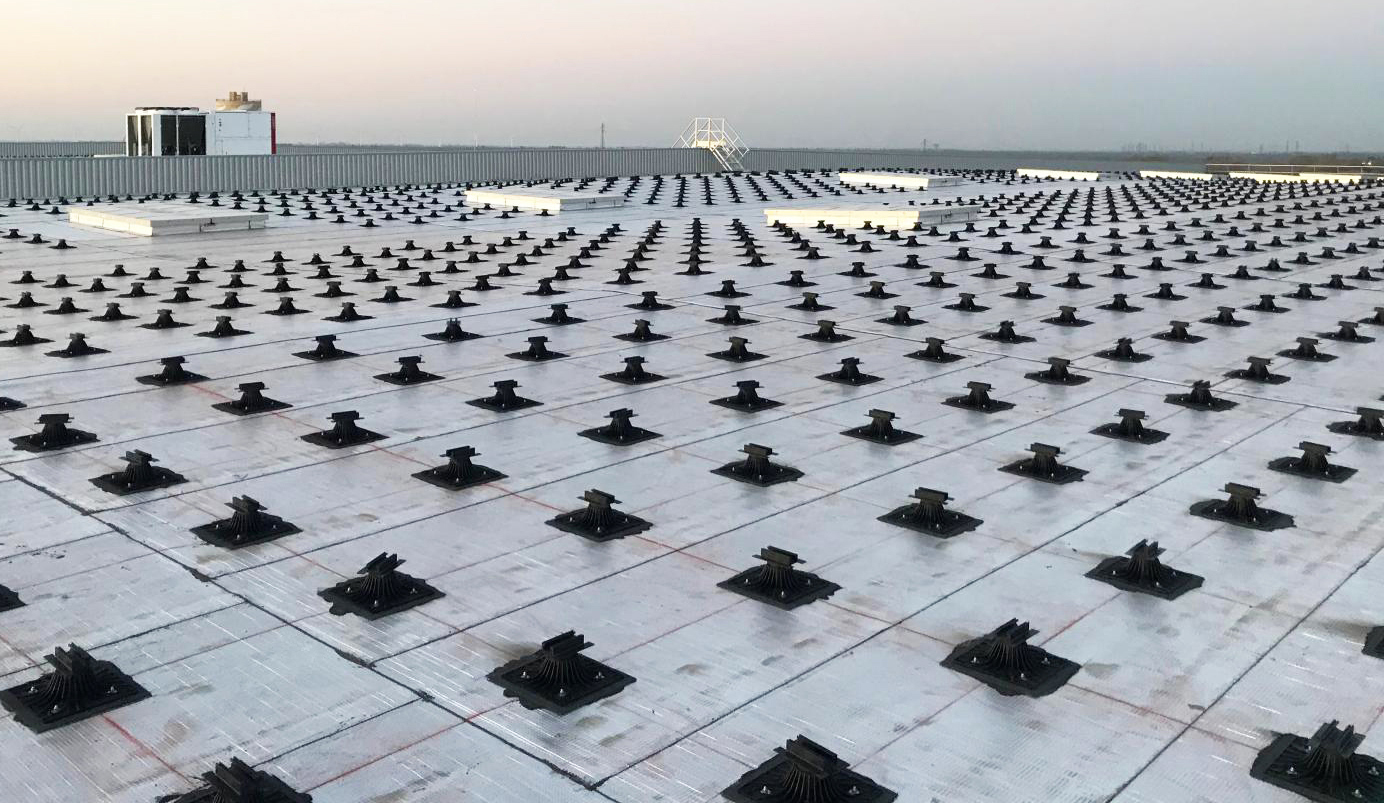

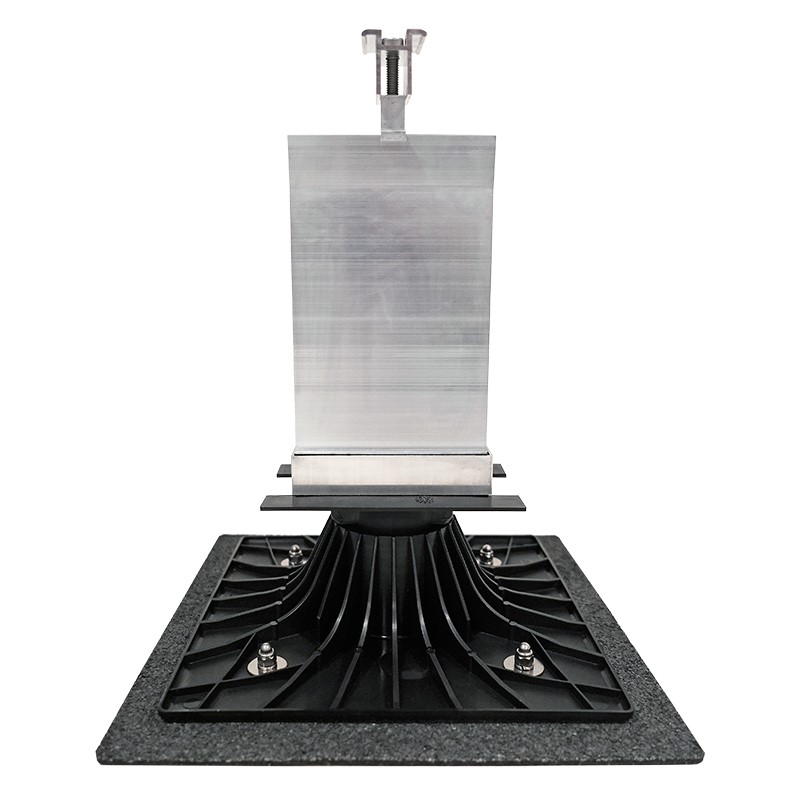

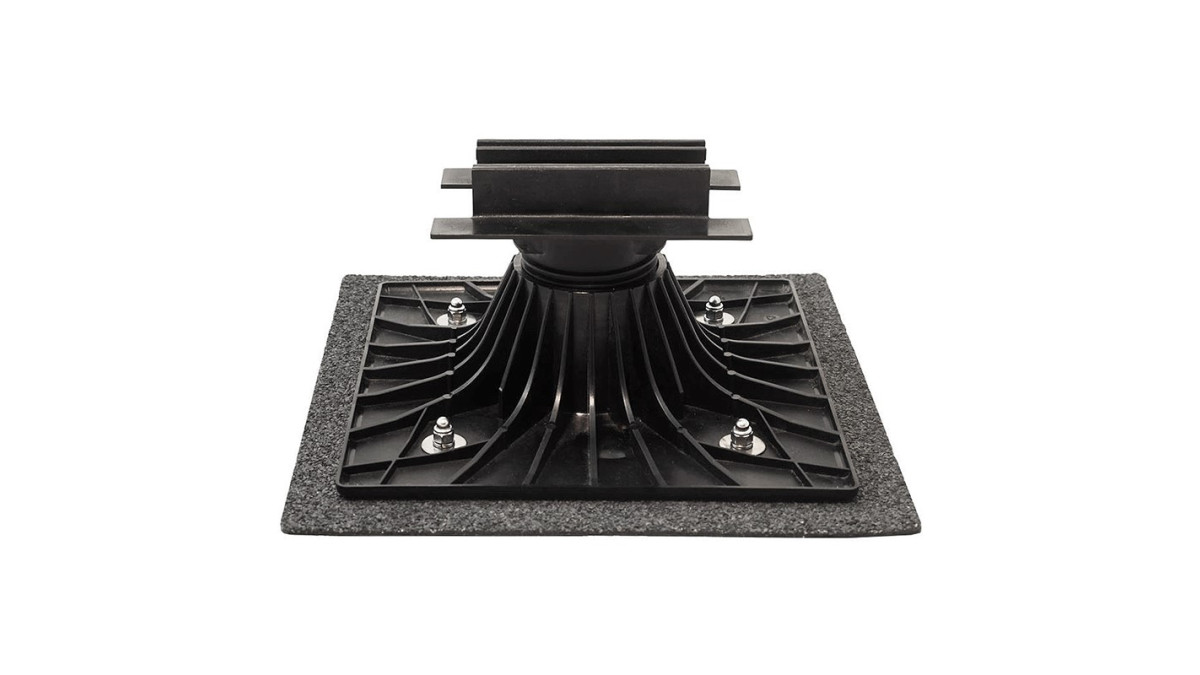

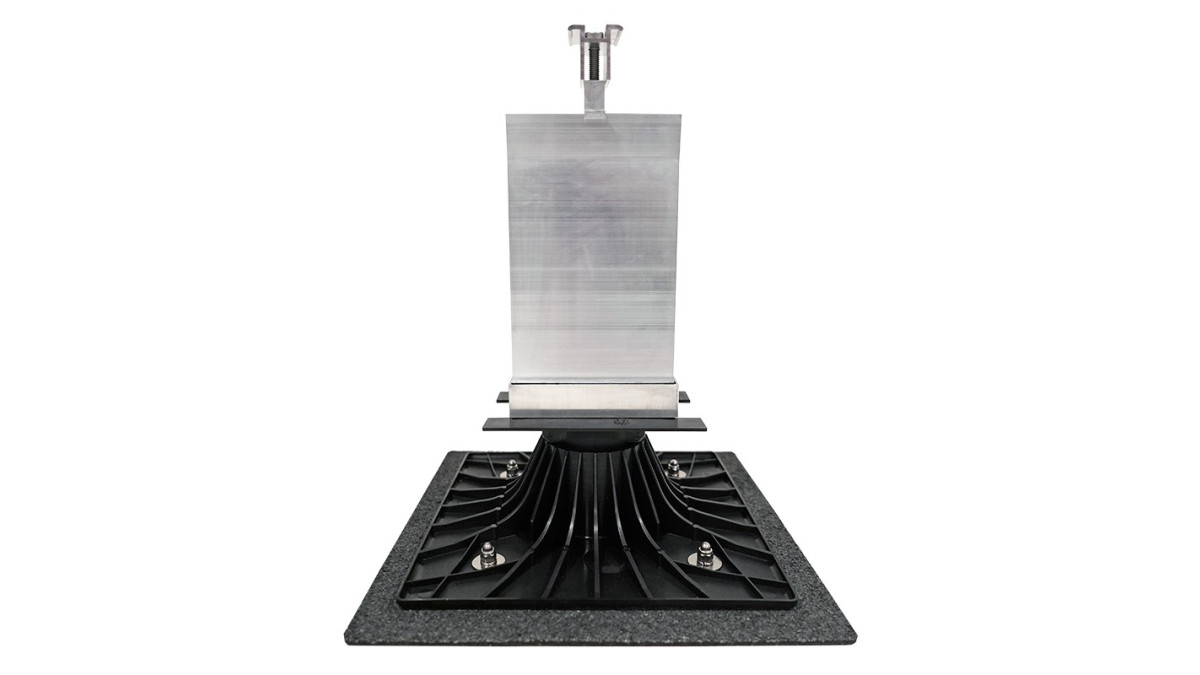

Equus Soprema Soprasolar Fix Evo Tilt pedestal system is a solution for supporting photovoltaic panels over flat membrane roofs without compromising the waterproofing properties of the roof. The Soprasolar is fitted with a piece of roofing membrane which can be torched or heat-welded directly on top of the finished membrane, negating the need for puncture holes.

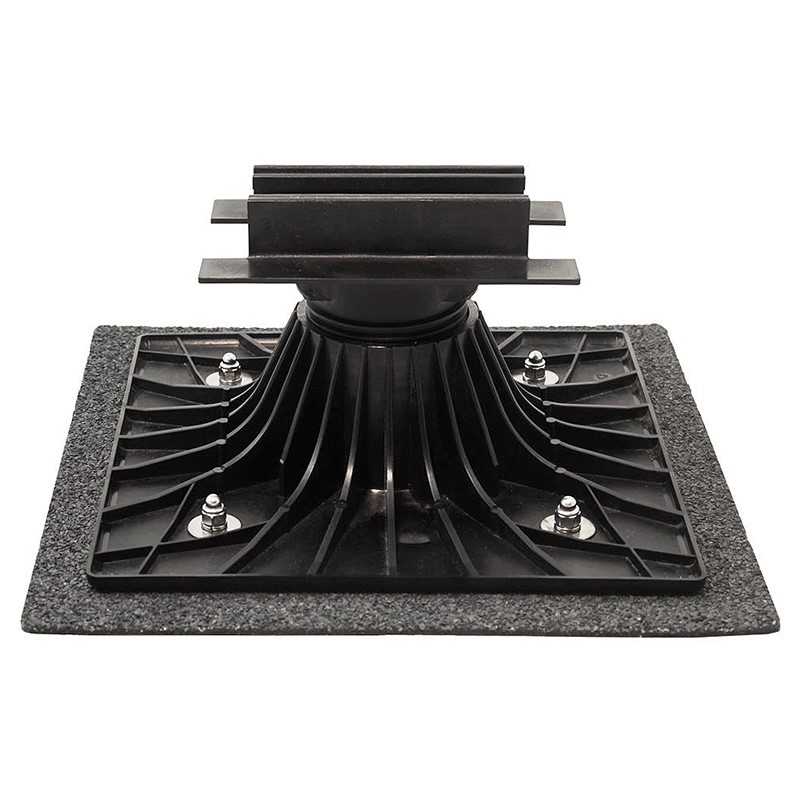

Compatible with bitumen or TPO roofing membranes.

Key Features
  • No punctures in the waterproofing membrane
  • Tested in wind conditions up to 200km/h
  • Easy to install and maintain
  • Available for bitumen and TPO roofing
  • 20 year system warranty available
Scope of Use

Suitable over bitumen or TPO membranes, new builds and refurbishments, residential and commercial construction, in any location and wind zone in New Zealand.

Statement of Building Code Compliance
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1
In-Service History

Launched in New Zealand in 2023, with over 15 years experience worldwide.

Other Performance Attributes
  • Warranty 20 years with the correct specification and installed by an Equus Certified Applicator
Documents
Technical Data Sheet: SOPRASOLAR FIX EVO TILT Bitumen

2024

Equus Document Library
Technical Data Sheet: SOPRASOLAR FIX EVO TILT TPO
Brochure

2025

Equus Industries Ltd provide technical waterproofing, tanking, coating and flooring solutions for architects, engineers, property managers and contractors in the building industry.
