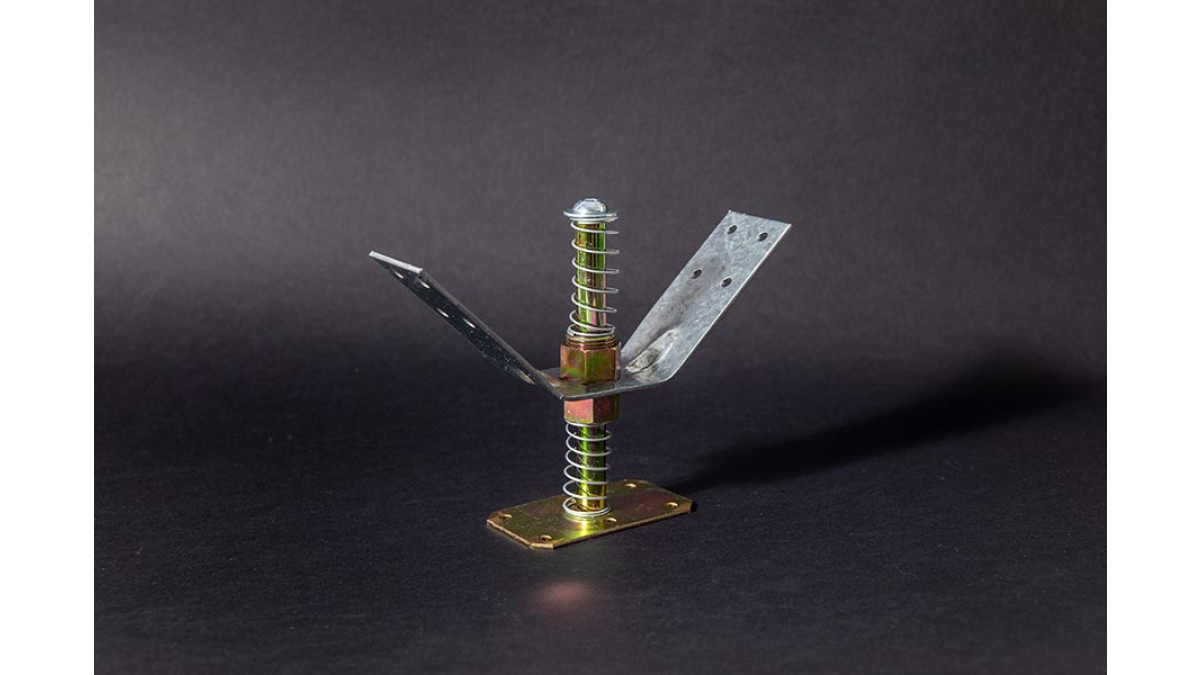

Deflok
Description

Designed and tested to provide a consistent maximum 280kg/f of bracing capacity to two-way grid ceiling systems and drywall grid systems. A simple click fit and screw off process dramatically reduces time required to complete back bracing.

Plenum height chart provides guidance on steel stud BMT required for bracing arms. Features the ability to rotate the unit though 360° minimising service clashes.

Key Features
  • Provides maximum 280kg/f of capacity for every brace, every time
  • Dramatically reduces install time from up to 1.5 hrs to 25 minutes per brace
  • Provides consistency of installation and eliminates installer error
  • Ensures validity of seismic ceiling design and ceiling installers PS3
  • Tested under ULS and SLS loads to ensure longevity of performance
  • Patented connection saddle applicable to all ceiling main runners
  • Allows for 64mm and 92mm steel stud to be used as bracing material
  • Minimises plenum footprint to reduce service clashes
  • Allows rotation of bracing footprint to minimise service clashes
  • Employs .64 BMT, .75 BMT or 1.15 BMT stud to minimise waste on site
Scope of Use
  • Importance Level 2, 3 and 4 Buildings
  • Hospitals
  • Commercial interiors
  • Schools
Statement of Building Code Compliance

Complies with NZ Building Code:

  • Clause B1 — Structure
  • Clause B2 — Durability

Contributes to compliance with NZ Building Code:

  • Clause F6 — Visibility in Escape Routes
  • Clause D1 — Access Routes
