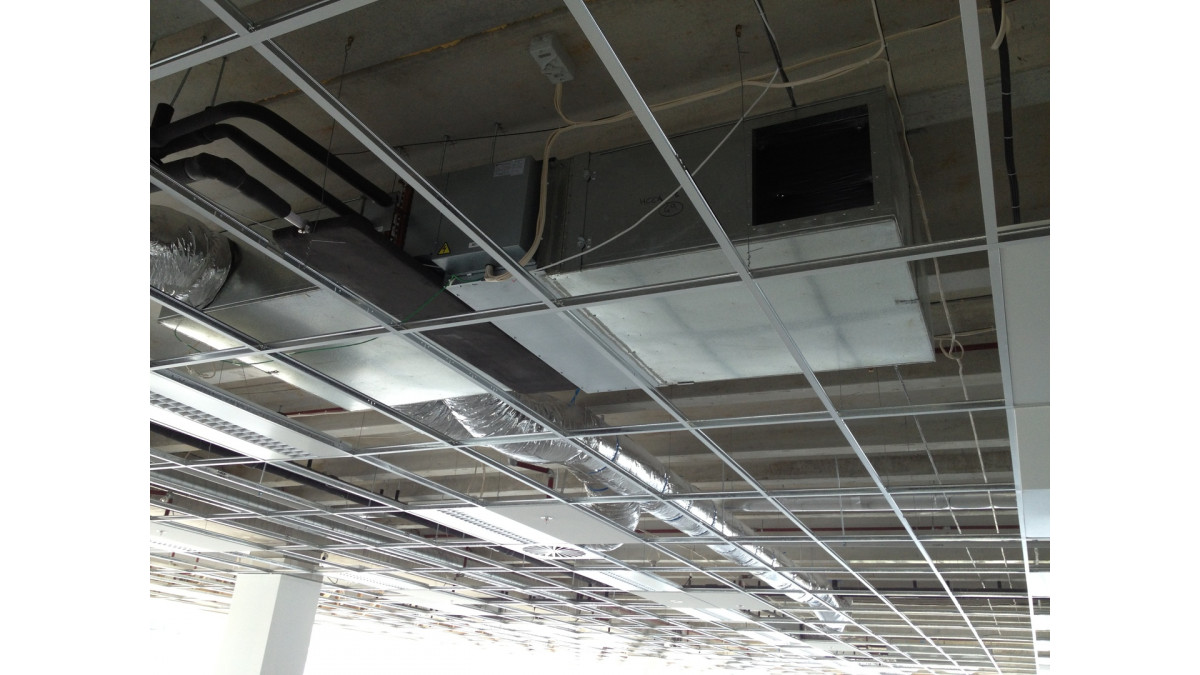

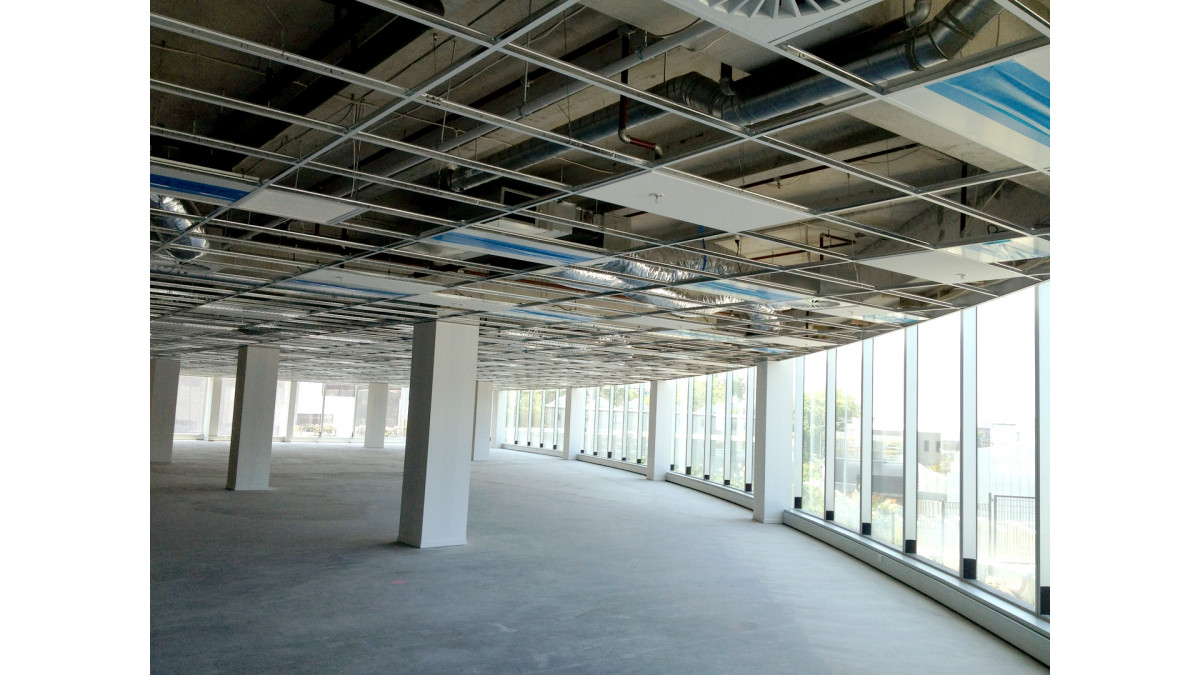

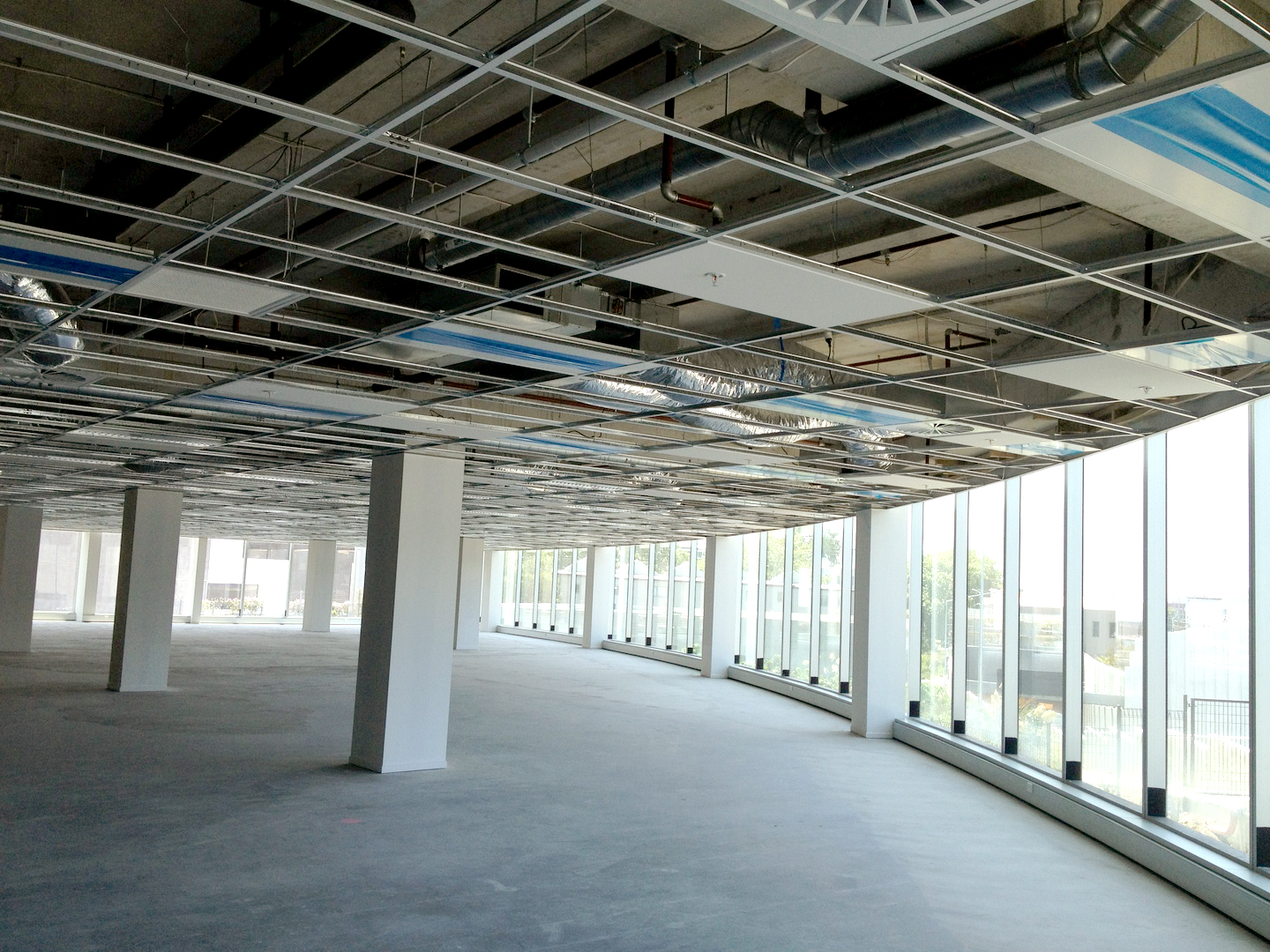

FasTLock Suspended Ceiling Grid
Description

FasTLock Suspended Ceiling Grid is an innovative range of seismically rated components engineered to provide a stronger more durable suspended ceiling system, designed to accommodate a wide variety of ceiling tiles by Ecoplus Systems.

FasTLock features Seismic Perimeter and Seismic Expansion Clips which allow the grid system to expand and contract during Seismic activity coupled with integrated connection flukes on all main runner and cross tee components. These important safety features provide a high level of connection strength and shear load capability, creating a stronger more durable grid system, particularly when subjected to abnormal stress or loading.

Pont Consultants Ltd has been engaged by Ecoplus Systems to provide assistance with the preparation of a seismic design manual to ensure that installation of FasTLock Suspended Ceiling Grid will meet the requirements of clause B1 of the New Zealand Building Code with respect to Seismic design.

Ecoplus Systems provide project specific seismic ceiling design calculations which will provide building projects with a high quality, versatile and performance tested suspended ceiling system.

Key Features
  • High level of connection strength and shear load capability — stronger more durable grid system
  • FasTLock Suspended Ceiling Grid is available in two standard widths:
    • 24mm for general applications
    • 15mm a minimalist option providing a less dominant appearance
  • FasTLock Suspended Ceiling Grid is manufactured from double web hot dipped galvanised steel pre finished with a hard wearing polyester paint finish
  • FasTLock is modular, can be disassembled, relocated and reused
  • FasTLock components can be fully recycled at the end of life
Scope of Use

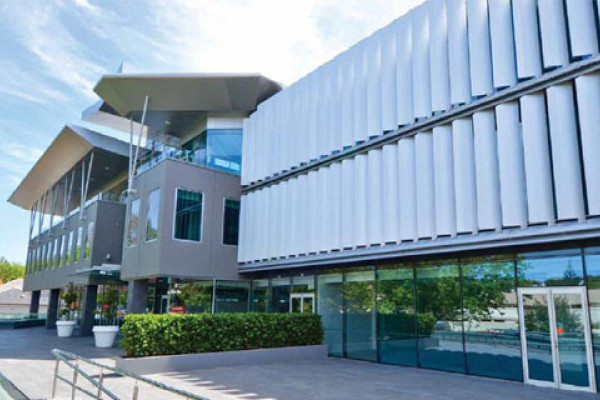

  • Offices
  • Retail Spaces

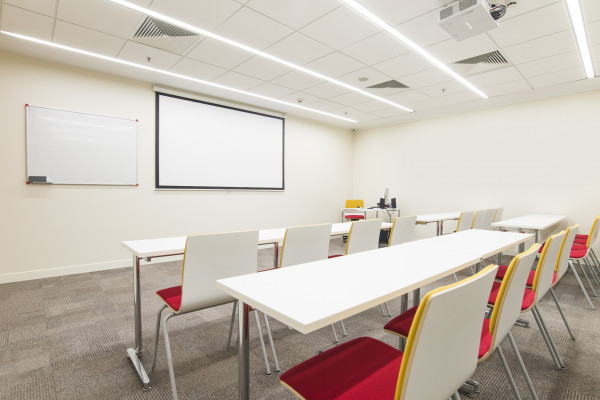

  • Education

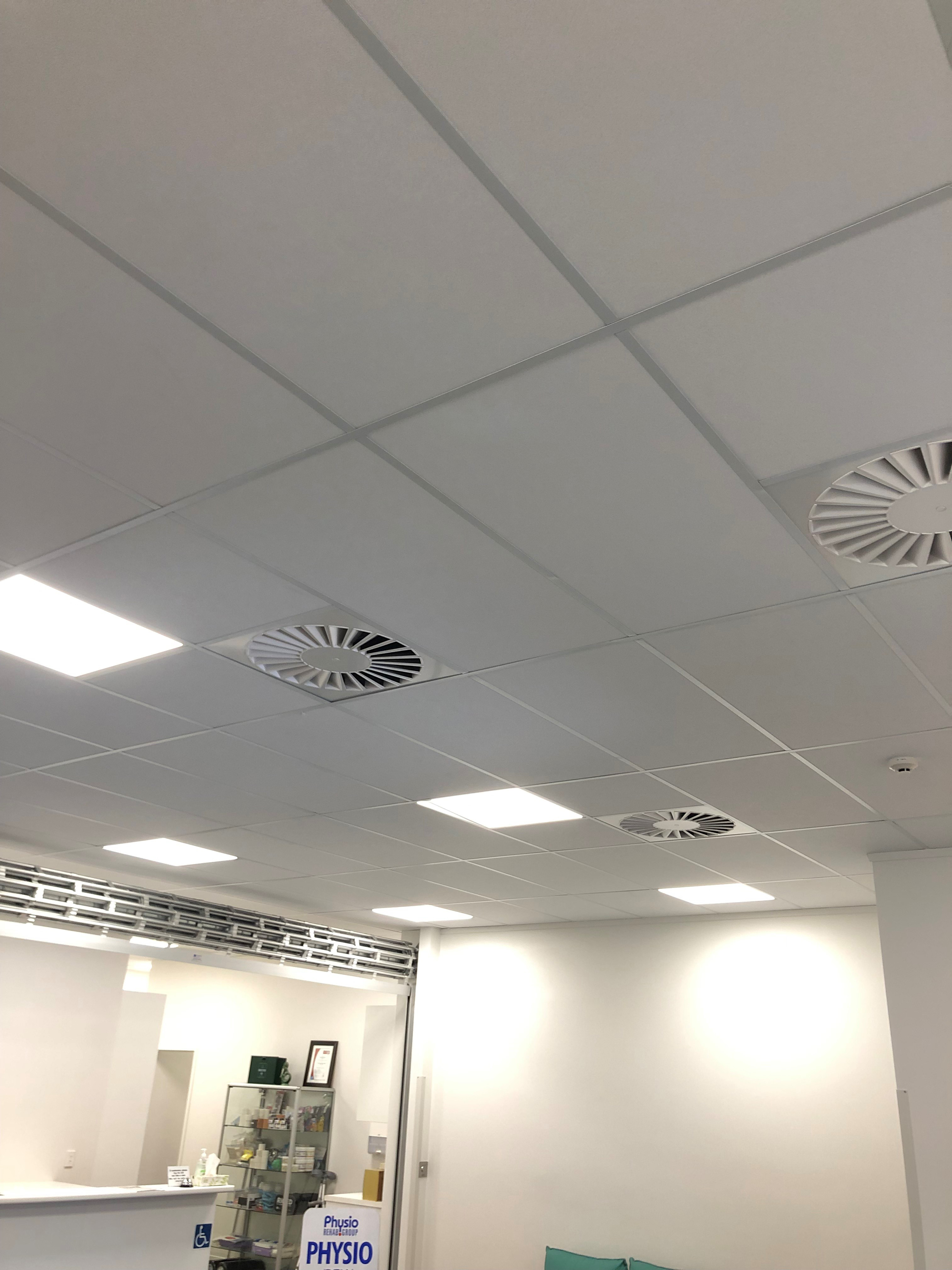

  • Healthcare
  • Sport Facilities
Statement of Building Code Compliance

Pont Consultants Ltd has been engaged by Ecoplus Systems to provide assistance with the preparation of a seismic design manual to ensure that installation of FasTLock Suspended Ceiling Grid will meet the requirements of clause B1 of the New Zealand Building Code with respect to Seismic design.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
Documents
FasTLock Seismic Design Manual
FasTLock Technical Manual
Appraisal, Accreditation, Certification and Testing
Specification Clause (Masterspec)
Order Samples
Project Case Study: Seismic Design for Lion NZ

Ecoplus Systems supply innovative and performance tested suspended ceiling systems, acoustical ceiling solutions and decorative wall treatments.

Product Enquiries

News from Ecoplus Systems

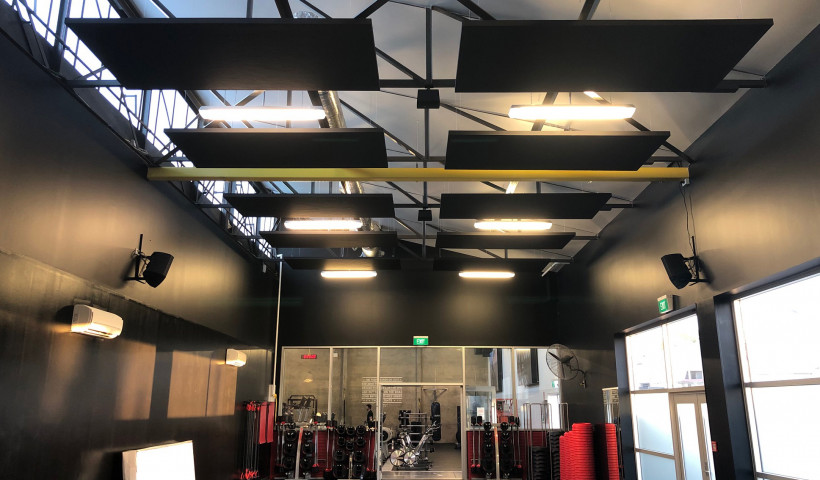

Eye-catching Ceiling Panels Improve Acoustics for Les Mills Hamilton

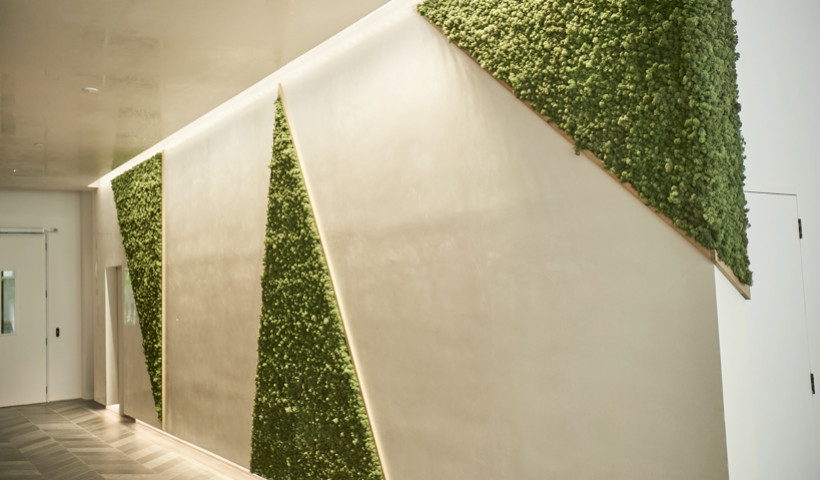

Acoustic Moss Panels: Naturally Sound Absorbing and Versatile NEW
