Kilargo IS7195si Perimeter Seal
Description

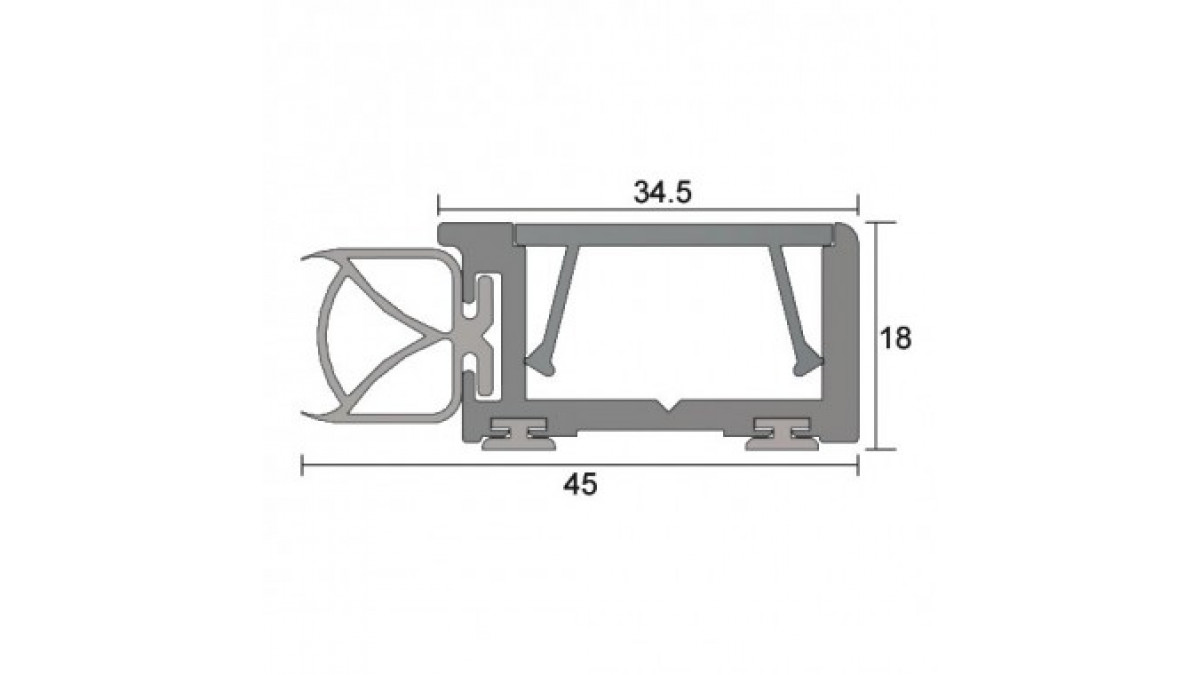

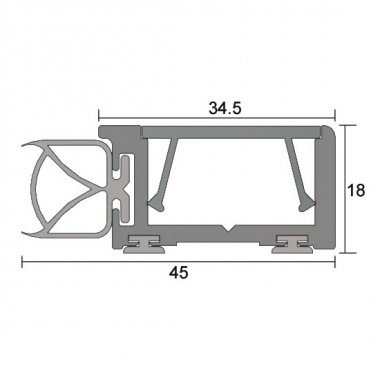

The IS7195si perimeter seal is also designed for high performance acoustic applications and is fitted to the head and jambs of door perimeters (with or without door stops) on steel or timber frames. It’s an ideal seal for heavy traffic areas such as hospitals, prisons, schools and universities.

An anodised aluminium cover ‘strip’ simply ‘presses’ onto the main carrier to conceal fixings. Once fitted, the space behind this cover plate can be utilised for low voltage cable management.

The IS7195si has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey silicone gasket
  • Black silicone gasket also available upon request
Key Features

• Easy to install, anodised aluminium cover ‘strip’ simply ‘presses’ onto the main carrier to conceal fixings. It is not necessary to remove the door from its hinges.

• The space behind this cover plate can be utilised for low voltage cable management.

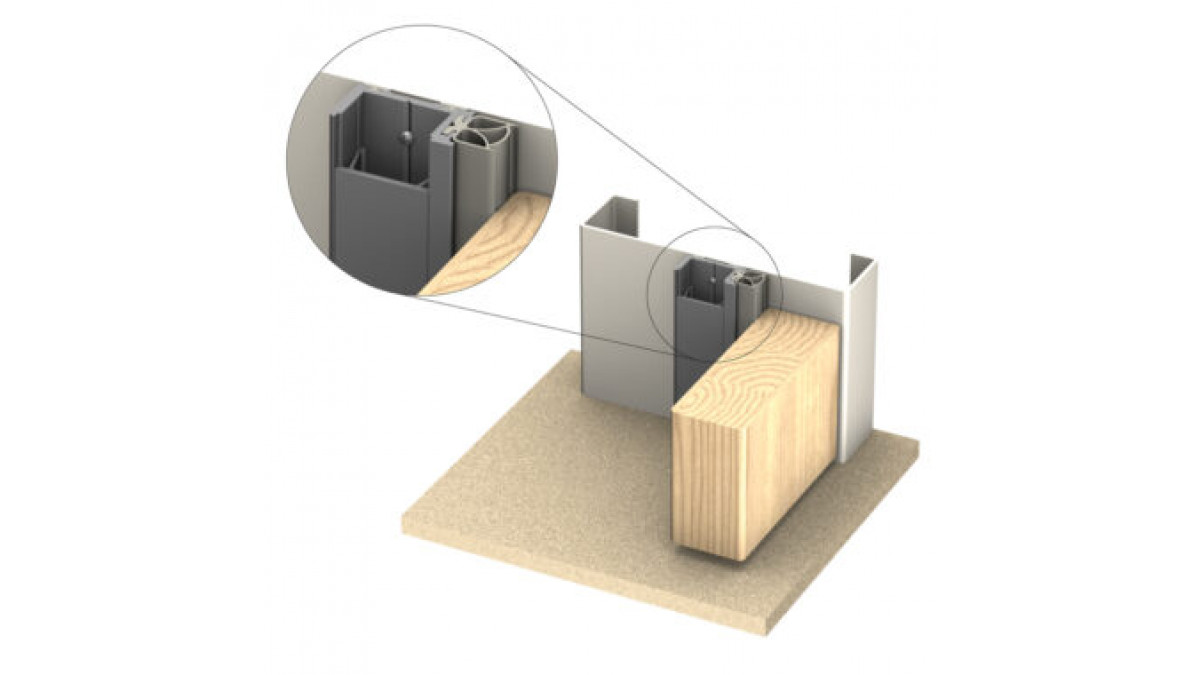

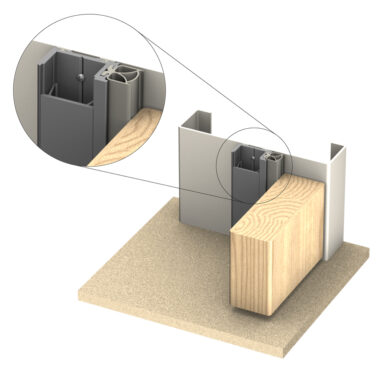

• Can be used on door frames with or without door stops.





Scope of Use
  • High performance acoustic applications
  • Also available with antimicrobial silicone gasket(s)
  • Fitted to the head and jambs of door perimeters (with or without door stops)
  • Steel or timber frames
  • Ideal for heavy traffic areas such as hospitals, prisons, schools and universities

Gap size:

  • Min. 0mm / max. 15mm

Door set standard lengths:

  • Single: 1 x 1000mm, 2 x 2100mm
  • Long Single: 1 x 1000mm, 2 x 2750mm
  • Double: 3 x 2100mm
  • Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths:

  • 1000mm
  • 2250mm
  • Also available in: 250mm increments from 1000mm to 5000mm
Limitations on Use

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
Other Performance Attributes
  • All seals manufactured in Australia
  • Durability tests demonstrating over 100,000 open and close cycles
  • The IS7195si has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop)
Documents
Data Sheet

IS7195si 10/04/2018

Kilargo Antimicrobial Seals Factsheet

Jan 2020

Kilargo Care and Maintenance
Installation and Operation

IS7195si 05/12

Kilargo Door Sealing Systems Product Catalogue

Feb 2018

Kilargo Healthcare & Hygenic Environments Door Sealing Solutions

20200318

CAD/PDF Details
