Dorma TS 97 Door Closer
Description

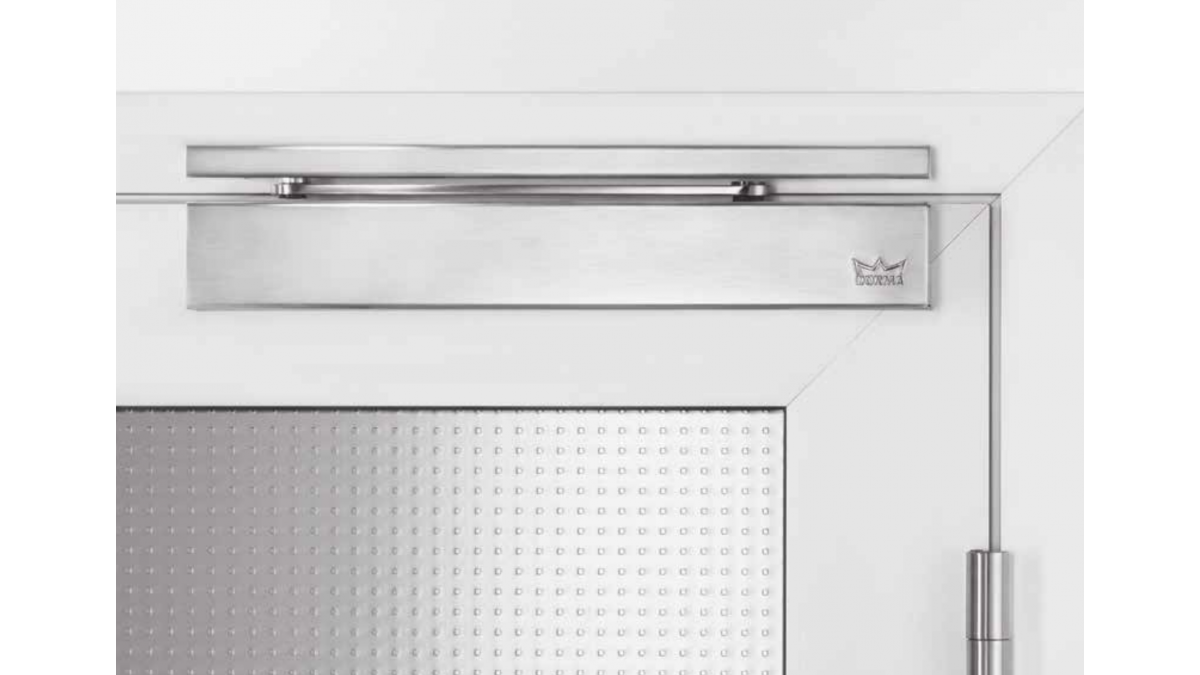

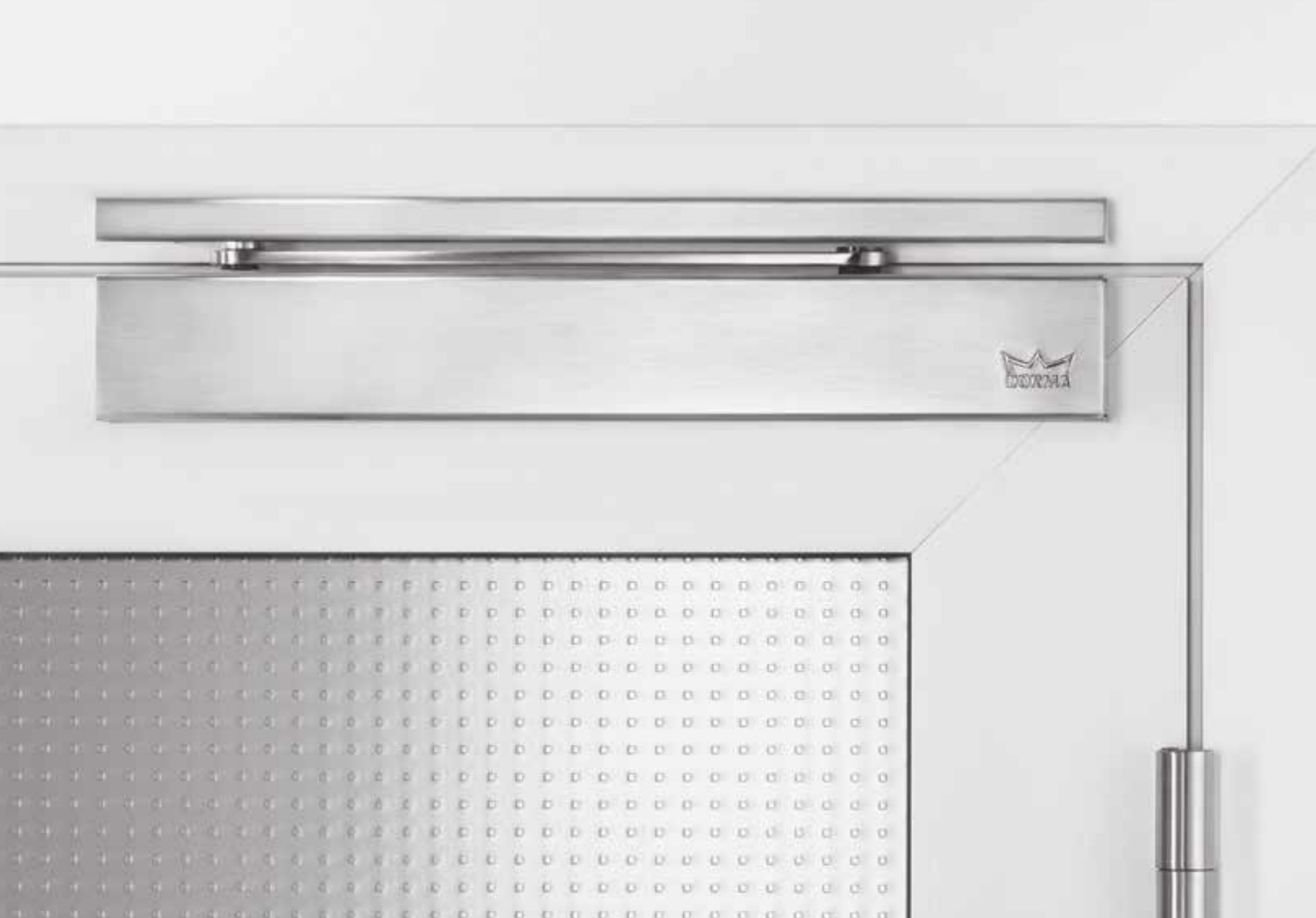

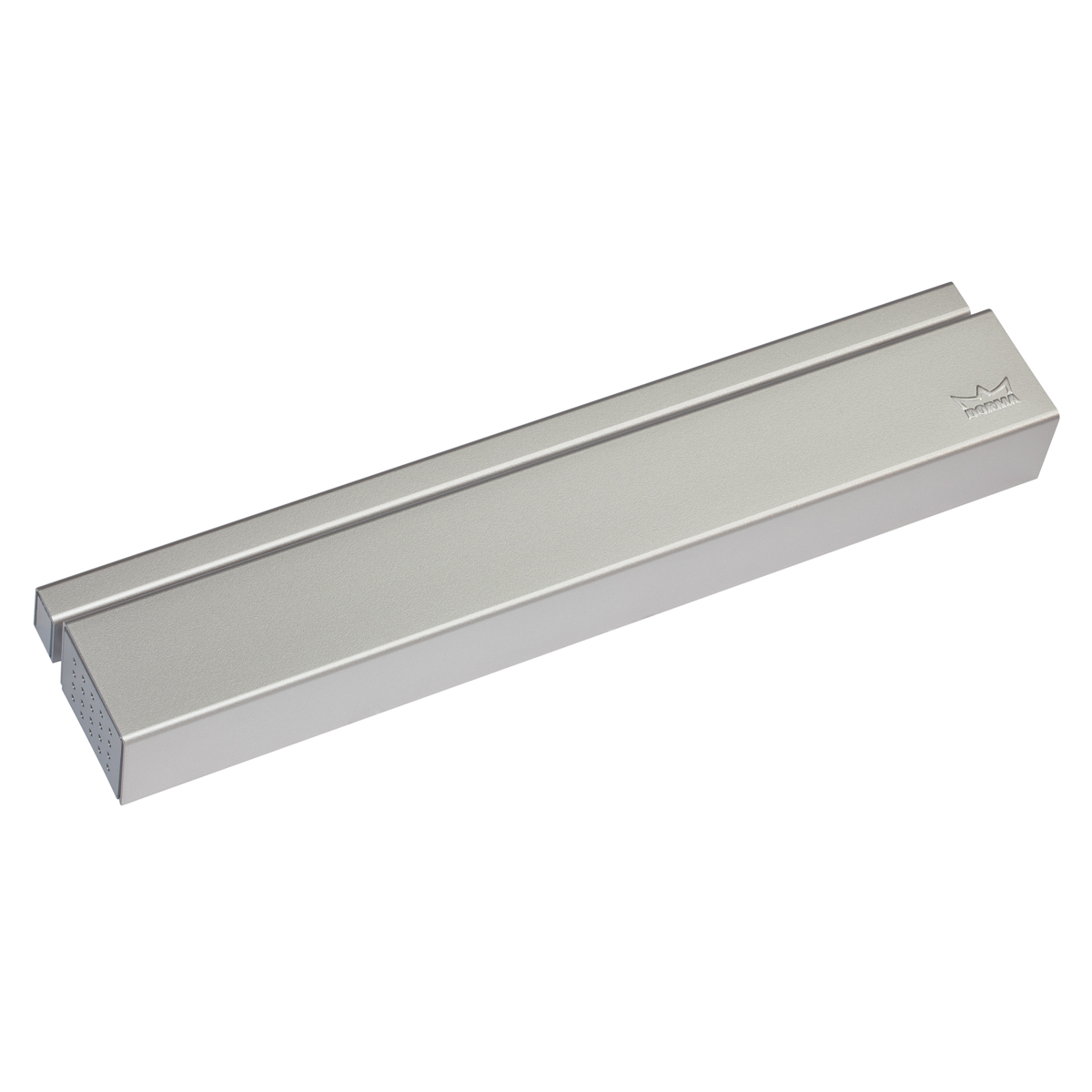

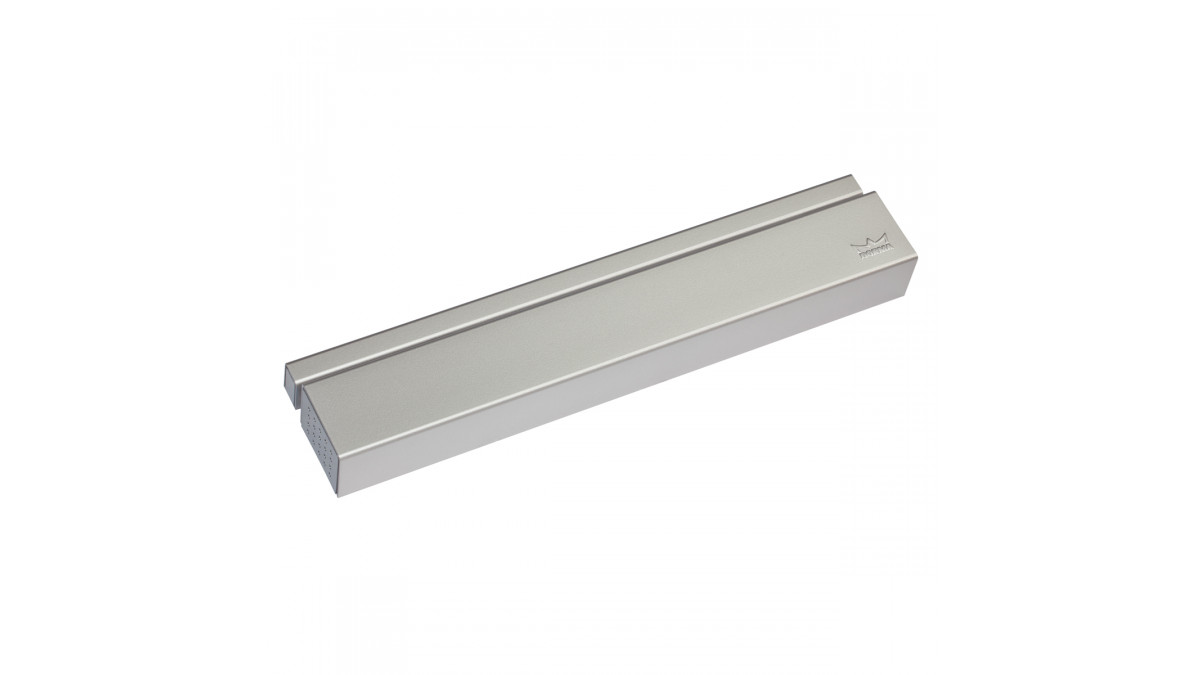

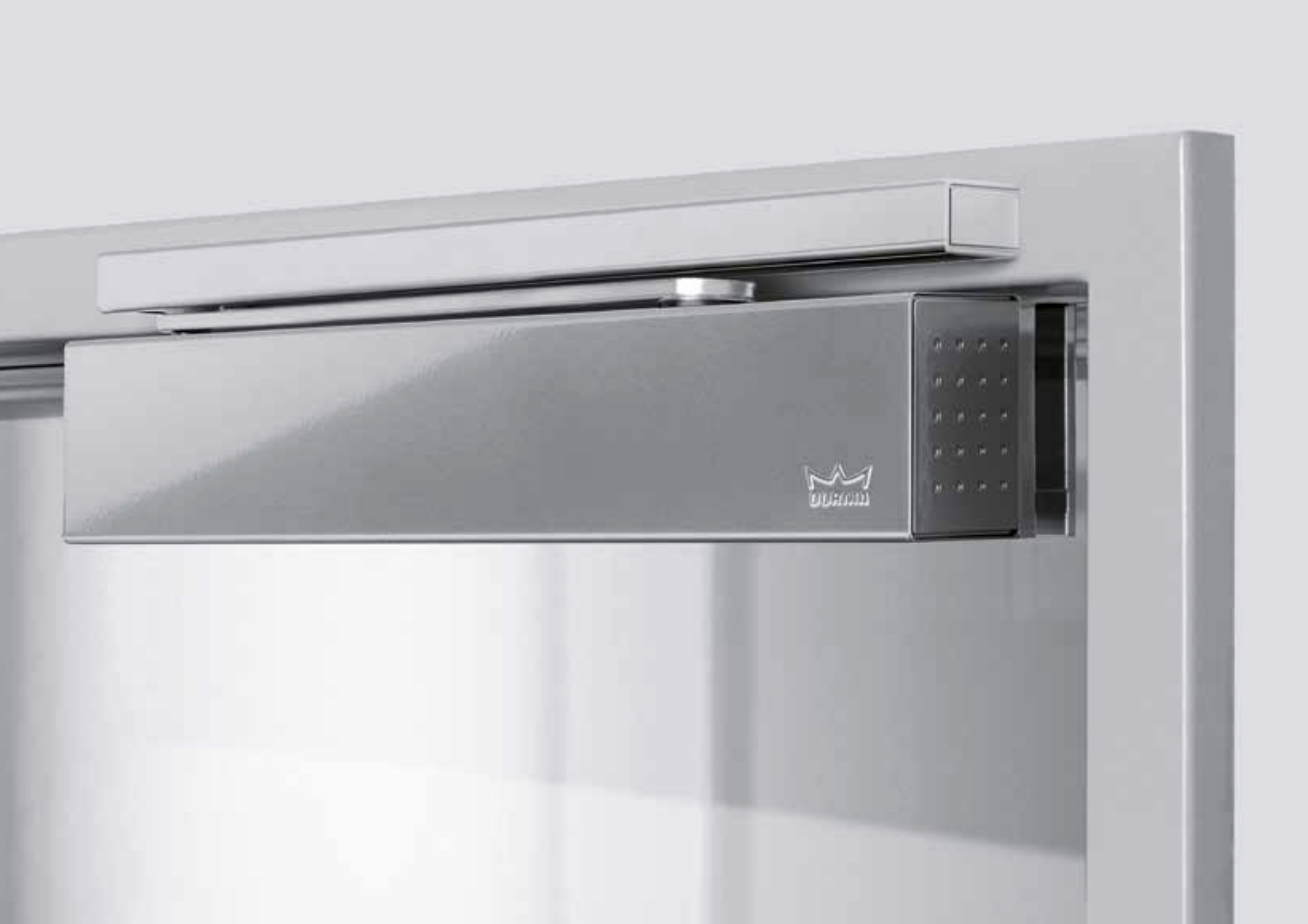

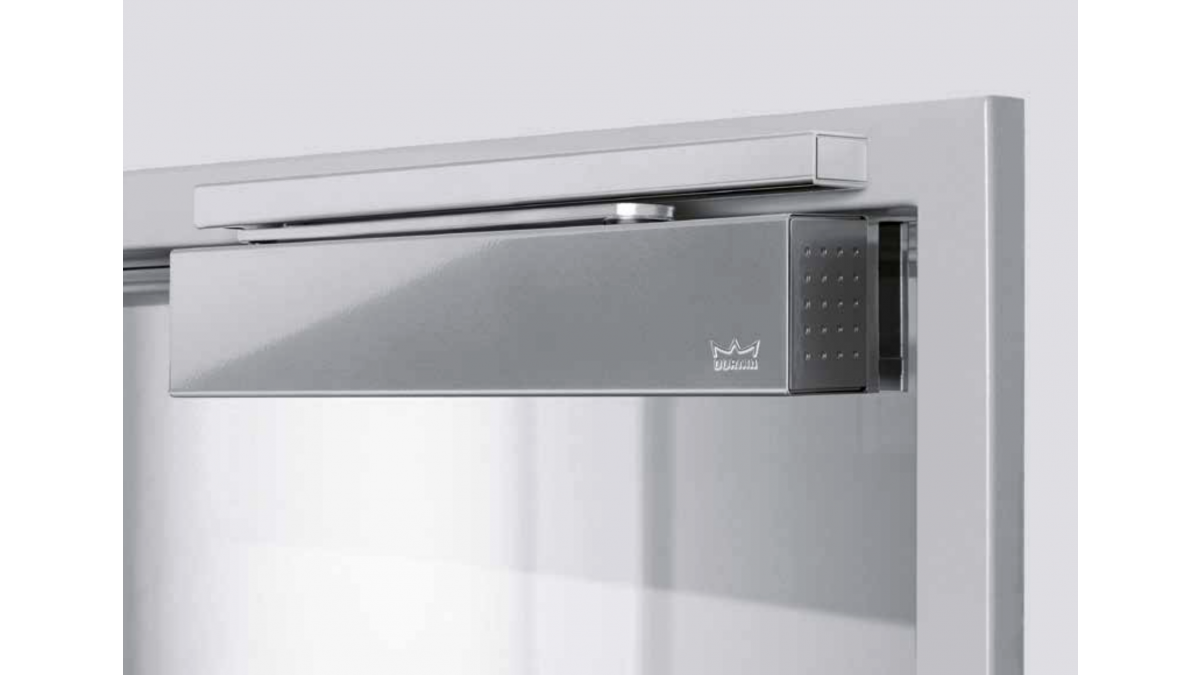

The Dorma TS 97 is a very compact surface-mounted cam-action door closer, combining ease of use with sleek design.

The TS 97 utilitses the proven heart-shaped cam for maximum user convenience based on minimum opening effort. Featuring single-piece face plates with internal end caps and uniform lengths of the door closer body and slide channel. With its compact dimensions, the TS 97 complements the overall appearance of any door.

Key Features
  • High ease of use and fully controlled, reliable closing with adjustable latching action
  • Uniform lengths of body and slide channel for enhanced harmony of appearance
  • Optional Hold Open unit
  • Adjustable closing speed and force
  • Dead stop unit as standard to protect the wall and door
  • Single-piece faceplate without slots or fixing points
  • Universally applicable on both LH and RH doors
  • Quick and easy to fix with mounting bracket
  • Certified to ISO 9001
Categories / Ranges
Door Closers Door Closers
Scope of Use
  • Interior use
  • Suitable for standard doors up to 1100mm
  • Suitable for smoke stop doors
  • Suitable for Left or Right hand opening

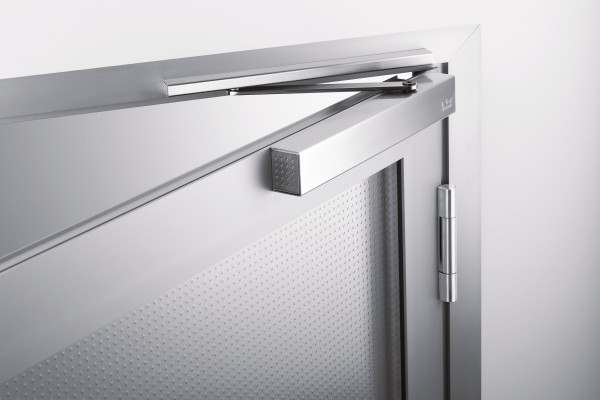

  • Door leaf or transom fixing
  • Glass Door Shoe available for fitting to glass doors
Limitations on Use
  • Not suitable for exterior use
  • Not suitable for use on external doors, opening outward
  • Hold open option not suitable for smoke stop doors
Statement of Building Code Compliance
  • Certified to ISO 9001
  • Compliant with EN 1154
Other Performance Attributes
  • Closing force adjustable: EN 2 – 4
Documents
Technical Brochure
Installation and Operation
Installation Instructions: With Hold-Open Unit
Brochure
CAD/PDF Details
Standard Pull Side

TS 97: 01

Transom Fixing Pull Side

TS 97: 02
