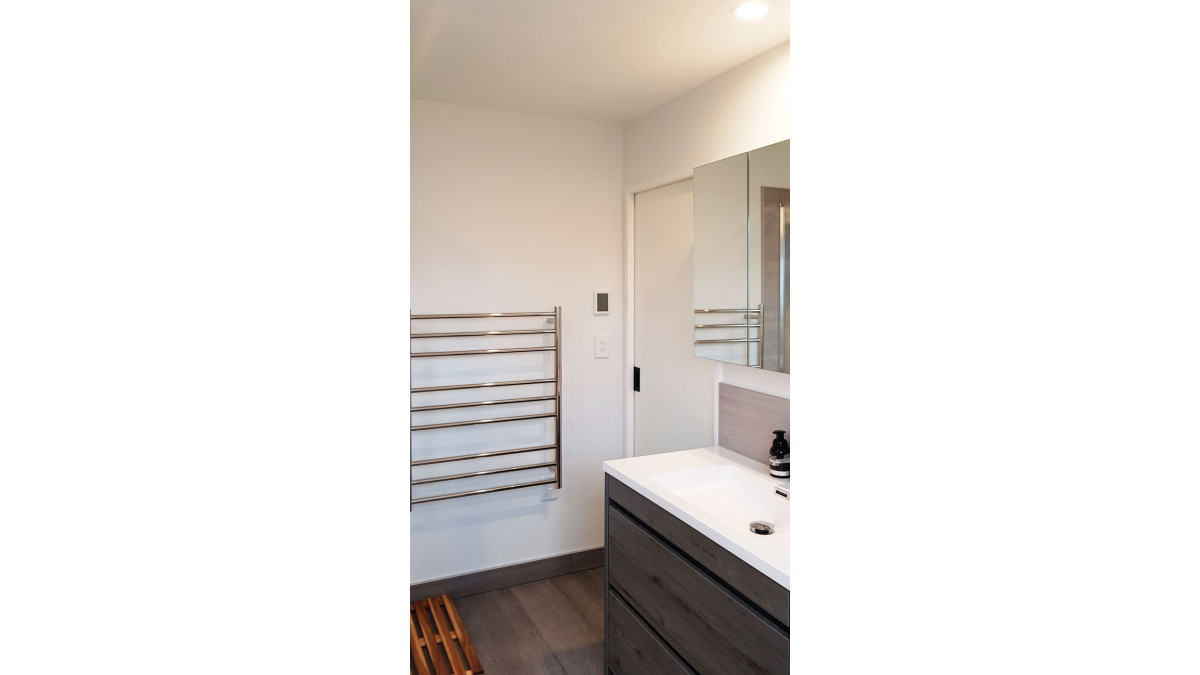

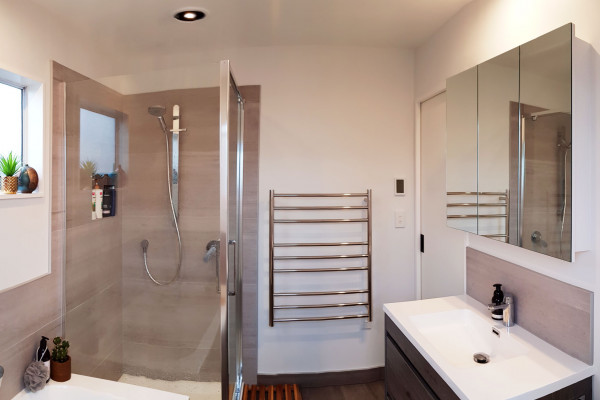

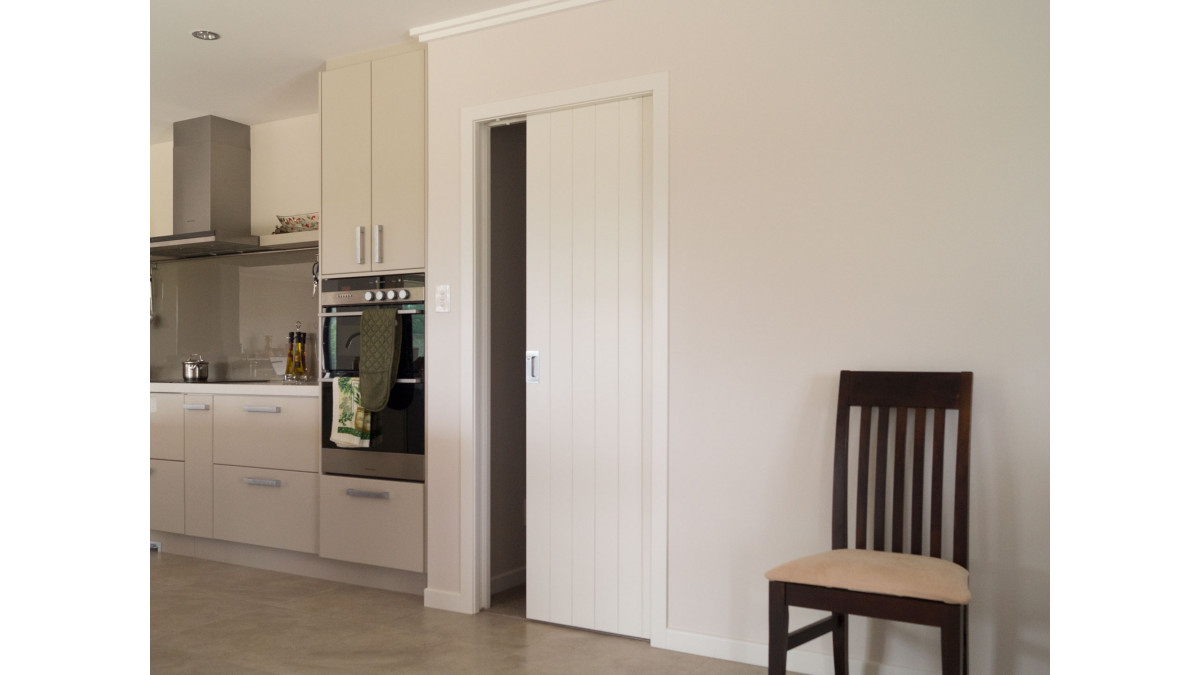

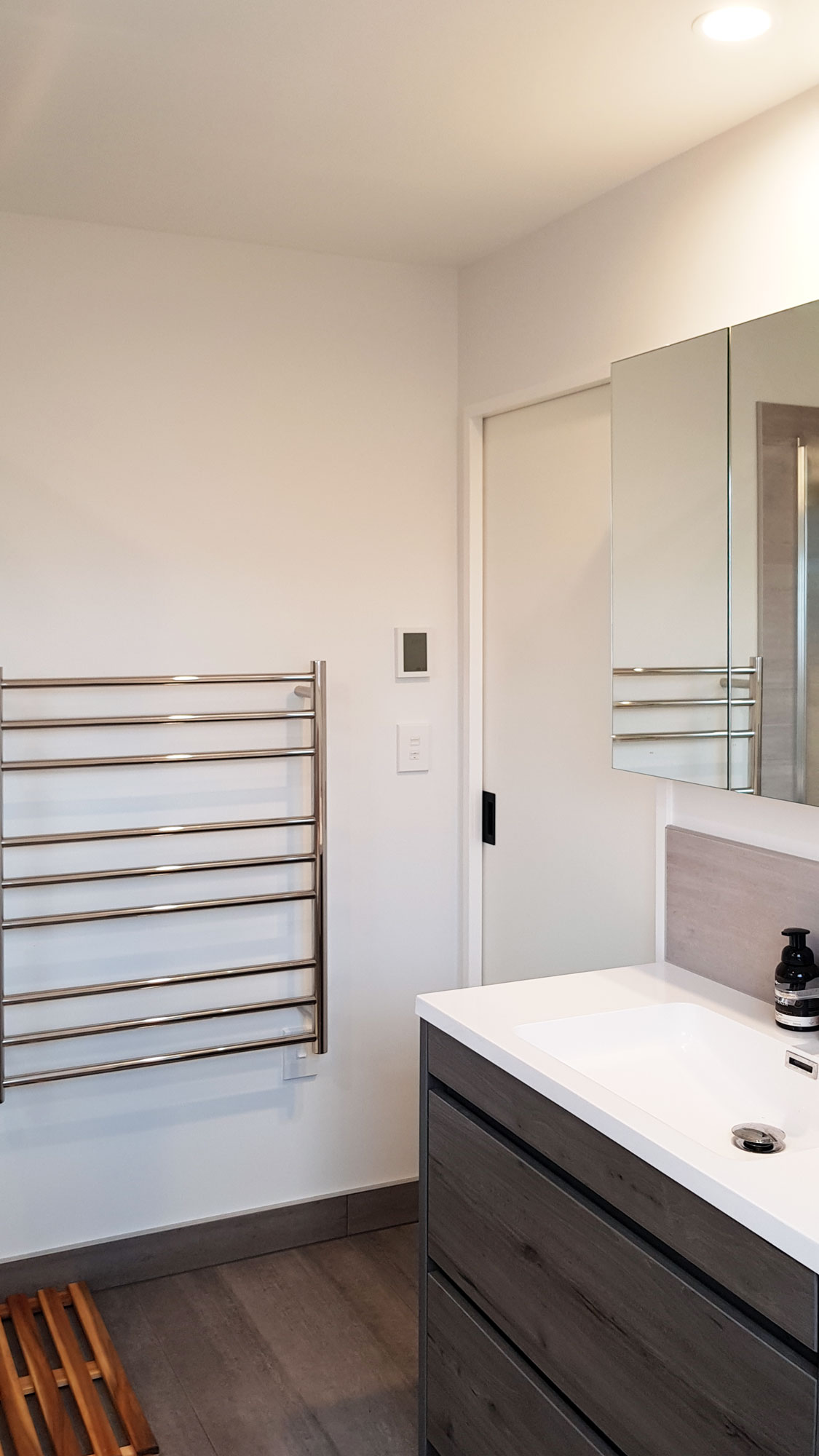

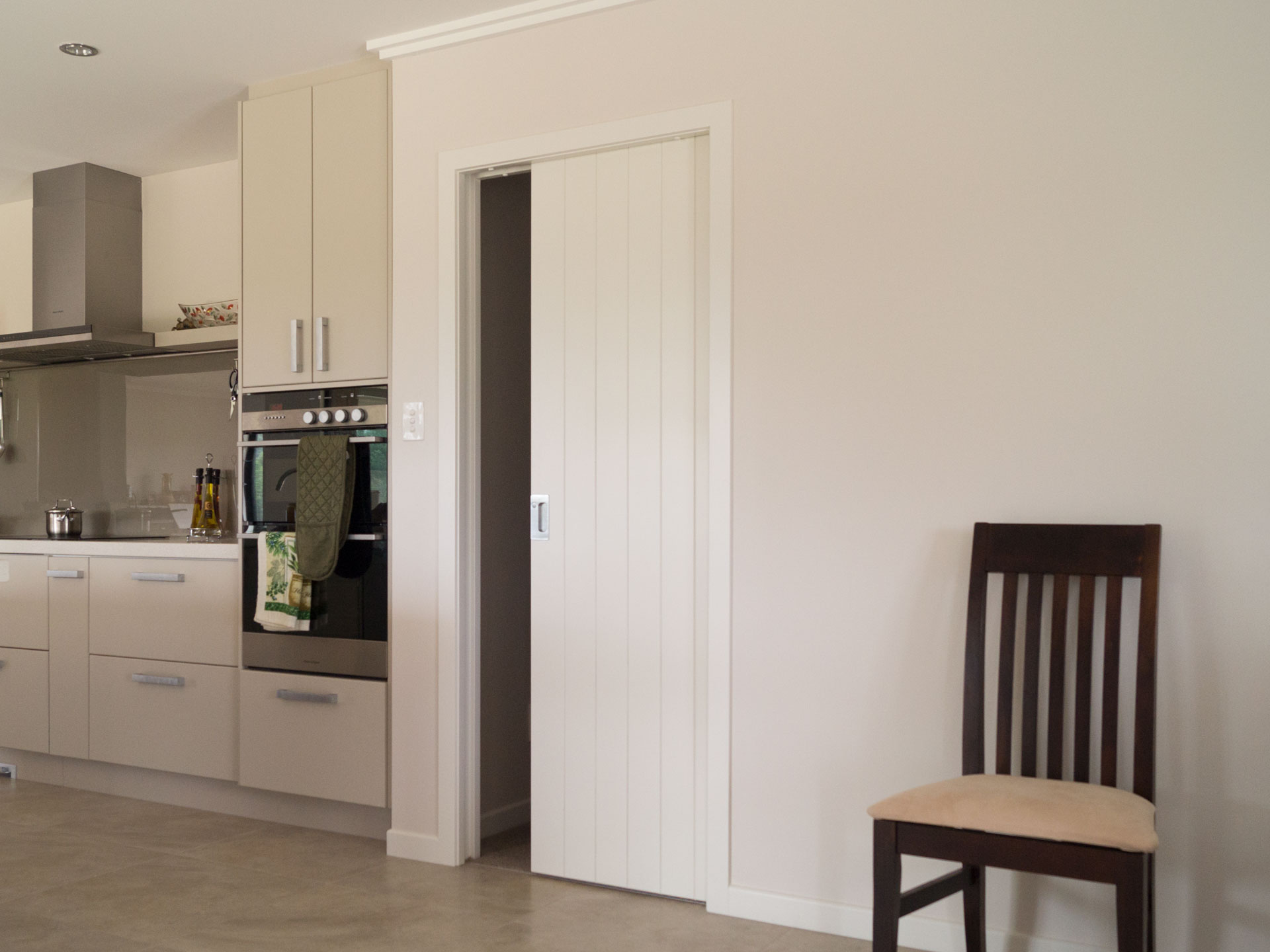

CS SlimSlider Cavity Slider
Description

The CS SlimSlider is designed to fit into 3 inch or 70mm framing, making it 'slimmer' than other CS cavity sliders. Standard jambs are supplied in paint finish only, either flat for architraves or grooved for plaster board. The split jambs are pre-primed aluminium for strength.

The CS SlimSlider is available in standard sizes (1980mm high x 610-910mm wide) or can be made to specification up to 2100mm high x 1000mm wide.

Operation: Choose from standard M6 (120kg) carriages, SofStop Single soft close (100kg) or SofStop Twin soft open and close (50kg)

Key Features
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • Available as Single or Bi-Parting (double) units
  • Door cannot jump off the track
  • Fits into 70mm wall framing. Suits 10mm linings only
  • Supplied fully assembled for on-site installation
  • No visible floor guides
Categories
Cavity Sliders
NZ Made
NZ Made
Scope of Use
  • CS Cavity Sliders units are suitable for use with sliding doors in internal locations in residential, commercial and light industrial buildings
  • Designed to fit into 3 inch or 70mm framing — Ideal for renovations where the existing framework is of an earlier vintage
  • The CS SlimSlider is available in standard sizes (1980mm high x 610-910mm wide) or can be made to specification up to 2100mm high x 1000mm wide
Limitations on Use
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exitways
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Door cannot jump off the track
  • CS Cavity Sliders are backed by a 10 year written guarantee
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
BRANZ Appraisal

900 [2020]

Maintenance Instructions
Warranty
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
