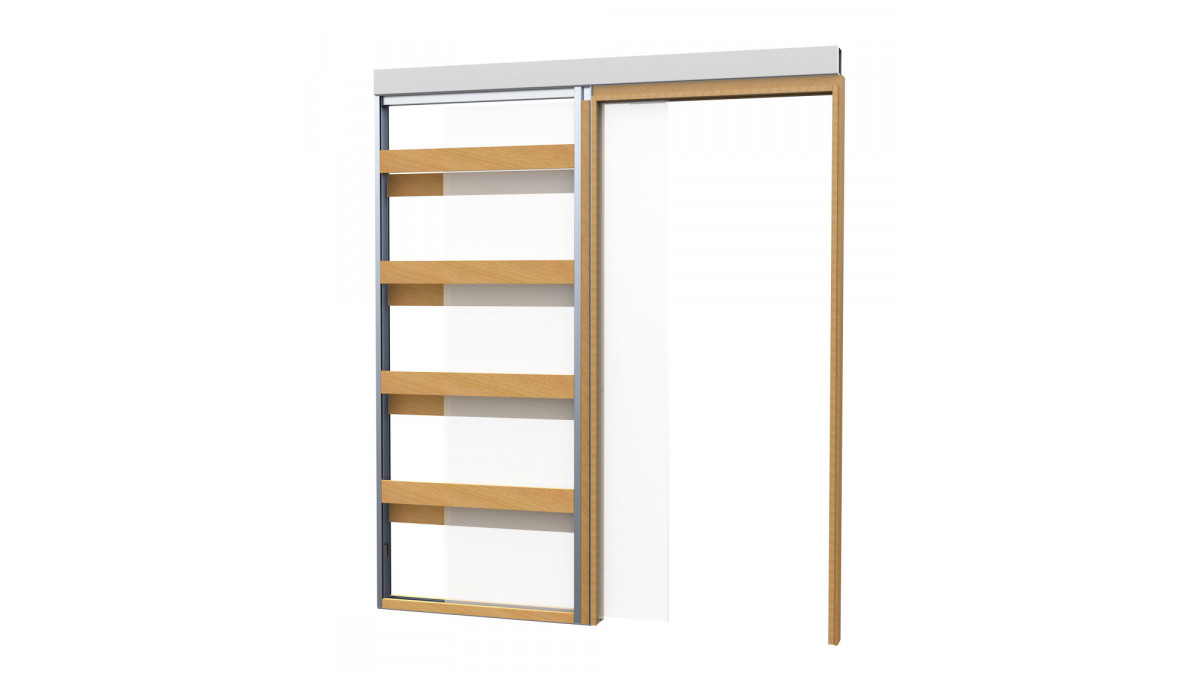

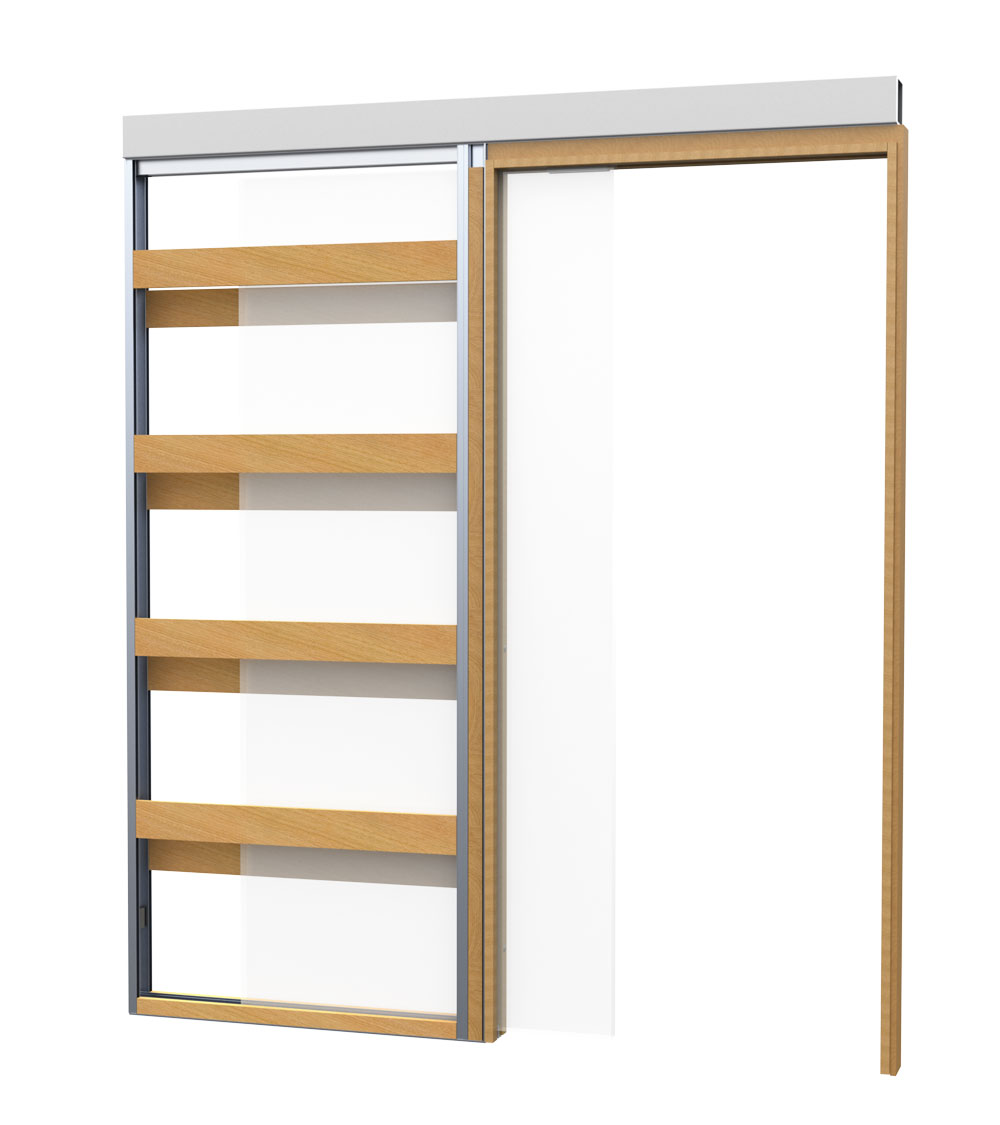

CS AutoCav Residential Cavity Slider

The CS AutoCav Residential is a completely automated cavity slider system featuring a 'plug & play' design that is easy to install and use. It can be designed with a variety of jamb options and is suitable for numerous different door styles.

Competitive pricing makes this a cost effective solution for residential projects where automatic sliding doors are required.

Key Features
  • Easy setup with simple plug and play design
  • Removable access panel ensures access to the track section is always possible
  • Safety beam sensors (optional) provide obstacle detection through the opening if required
  • No visible floor track
  • Locking device (optional) where low security lock is required
  • Quality components have been designed for all parts of the system, ensuring reduced servicing intervals and product longevity

Detail Options

Incorporate any of the following architectural detail options with the CS AutoCav cavity slider to create a specific look or to provide a unique solution:

  • Full-Height
  • NoClosingJamb
  • ShadowLine
  • SquareStop
  • Extra-WideJambs
NZ Made
NZ Made
Scope of Use

CS AutoCav Residential units are suitable for use with sliding doors in internal locations in residential buildings.

Limitations on Use
  • Minimum door width: 760mm
  • Maximum door weight: Single Door 100kg, Bi-Parting doors 60kg per door
  • Maximum door size: 2400 x 1100mm
  • Wall Framing: 90mm
  • Wall Linings: 10mm, 13mm, other
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

CS Automatic Units have been successfully used in commercial and residential projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Heavy duty, one piece extruded aluminium track
  • Carriages with nylon wheels and enclosed bearing races for smooth, maintenance-free operation
  • Quality components have been designed for all parts of the system, ensuring reduced servicing intervals and product longevity
  • CS Automatic Units are backed by a 5 year written guarantee (12 months on electrical components)
Data Sheet
Maintenance Instructions
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
