Spouting Archie 120mm Spouting
Description

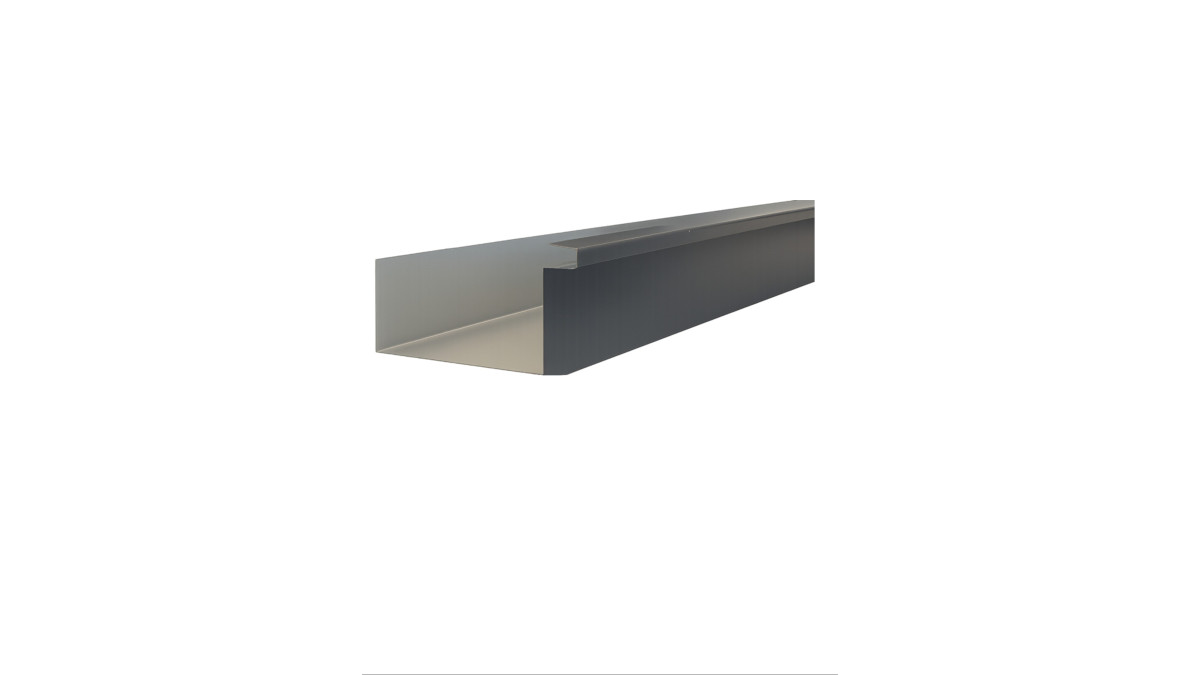

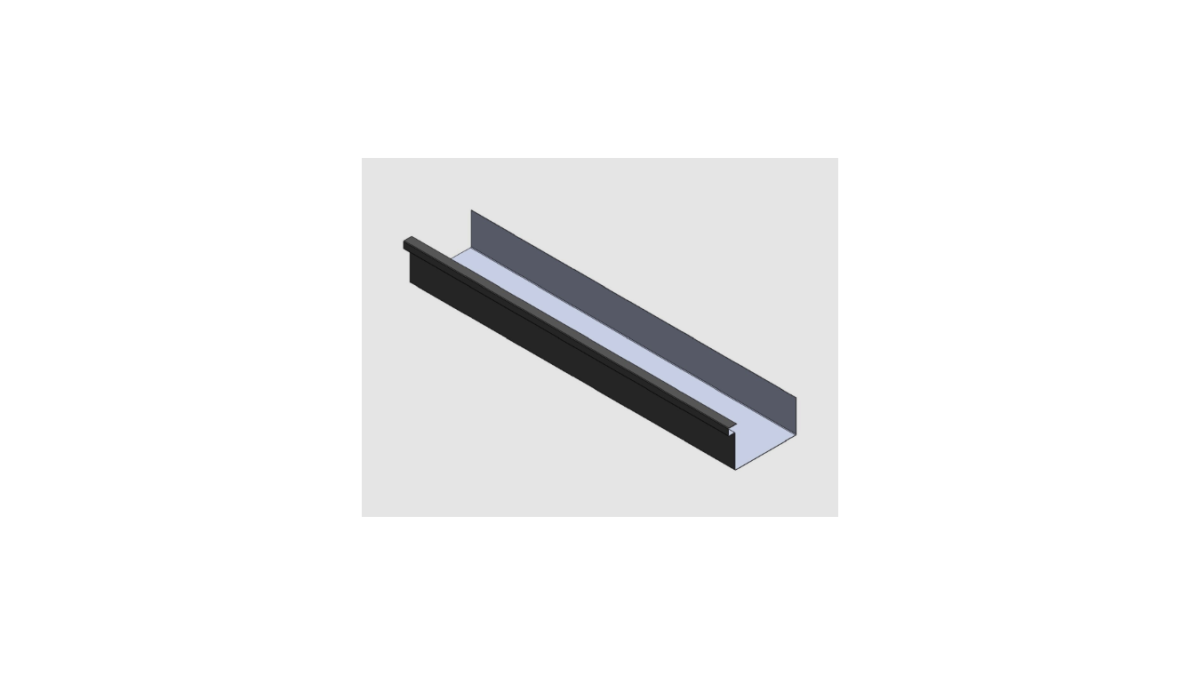

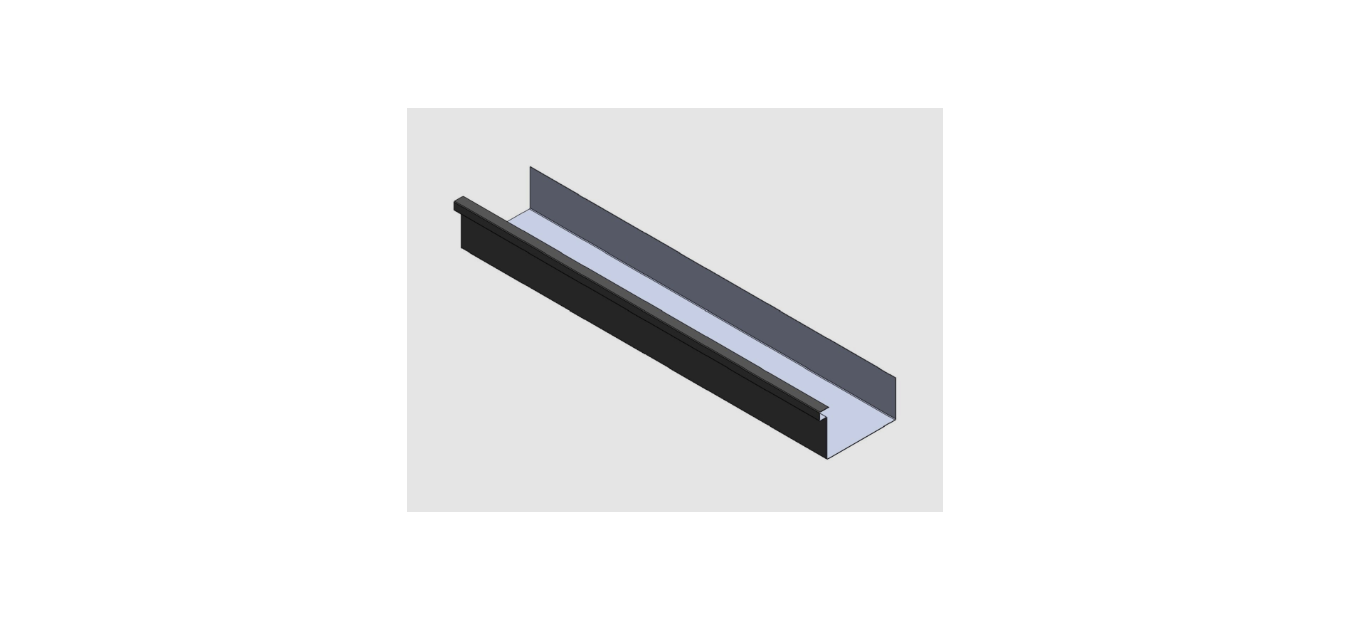

Archie 120 can be custom sized to suit a variety of applications. The standard 120mm size with square architectural bead provides clean lines free from swaging. Use the standard design or contact Continuous Group with a design or application to provide the perfect finish to a residential project.

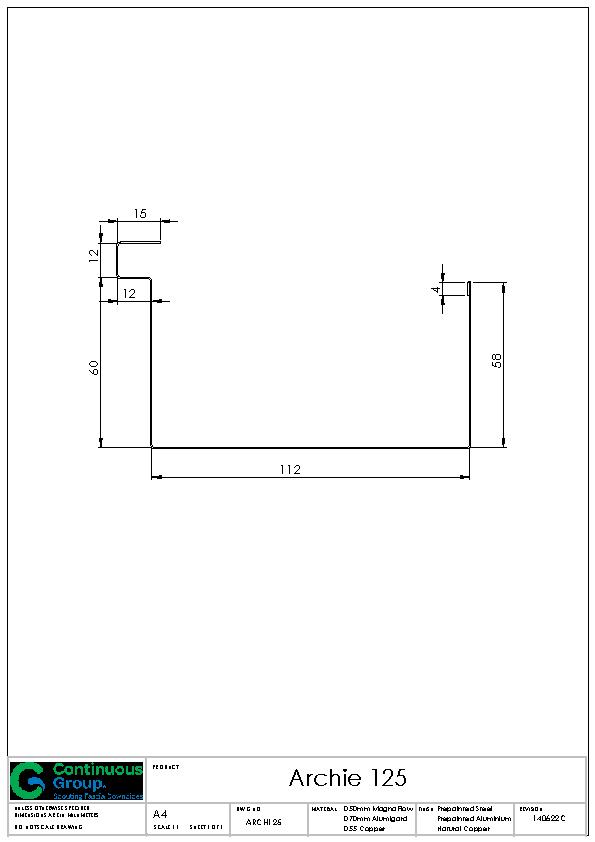

Drawings and spec shown are for the standard Archie 120 profile. Custom sizes can be manufactured within limitations of material chosen, NZBC minimum size requirements for gutters and 'Canning' tolerances.

Key Features
  • On larger builds consider specifying Continuous Group's Archie 120 profile
  • External brackets for both colorcote or copper spouting.  Internal brackets can be specified with a custom Archie 125 profile without a bead
  • When installing internal or external brackets on Magnaflow, Alumigard or Euramax spouting, all brackets are manufactured in aluminium and powdercoated
  • Customer can pick having the profile with or without a top bead
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group rainwater systems are intended to collect and channel water that runs off a roof.  It is intended that the metal spouting be placed at the perimeter of the building (positioned outside the building envelope).

  • Perfect for hiding unsightly large roof edge details like old terracotta or concrete roof types
  • Profile can be folded without the bead for a cleaner straightline finish for those architectural designed builds
  • Available throughout New Zealand
  • Maximum cross sectional area 6664mm2
  • Effective cross section with 10mm freeboard 5544mm2
  • Flow capacity 96 Litres/minute
  • Minimum downpipe cross section 3215mm2

Note: Internal bracket options are only available with specific size gutters. External brackets can be customised for all sizes.

Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
