CLIP top — Hinge System
Description

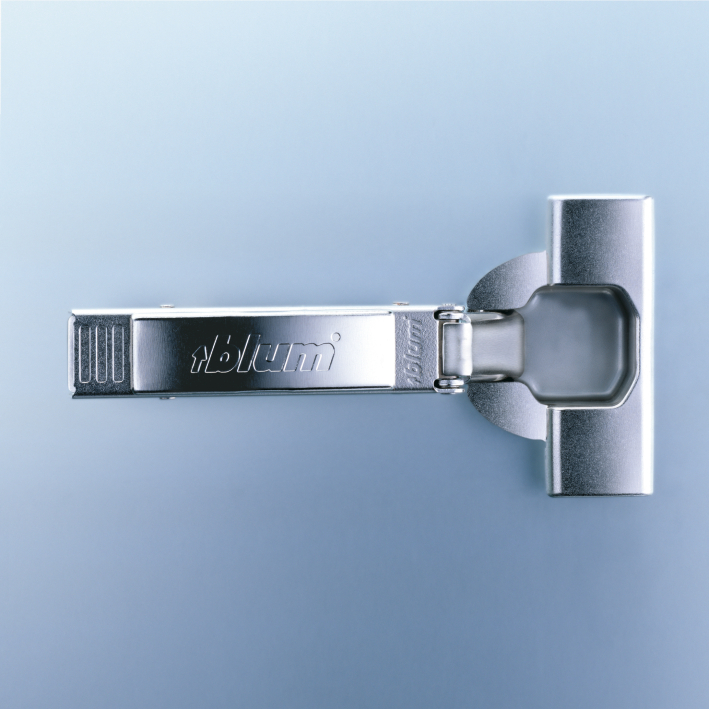

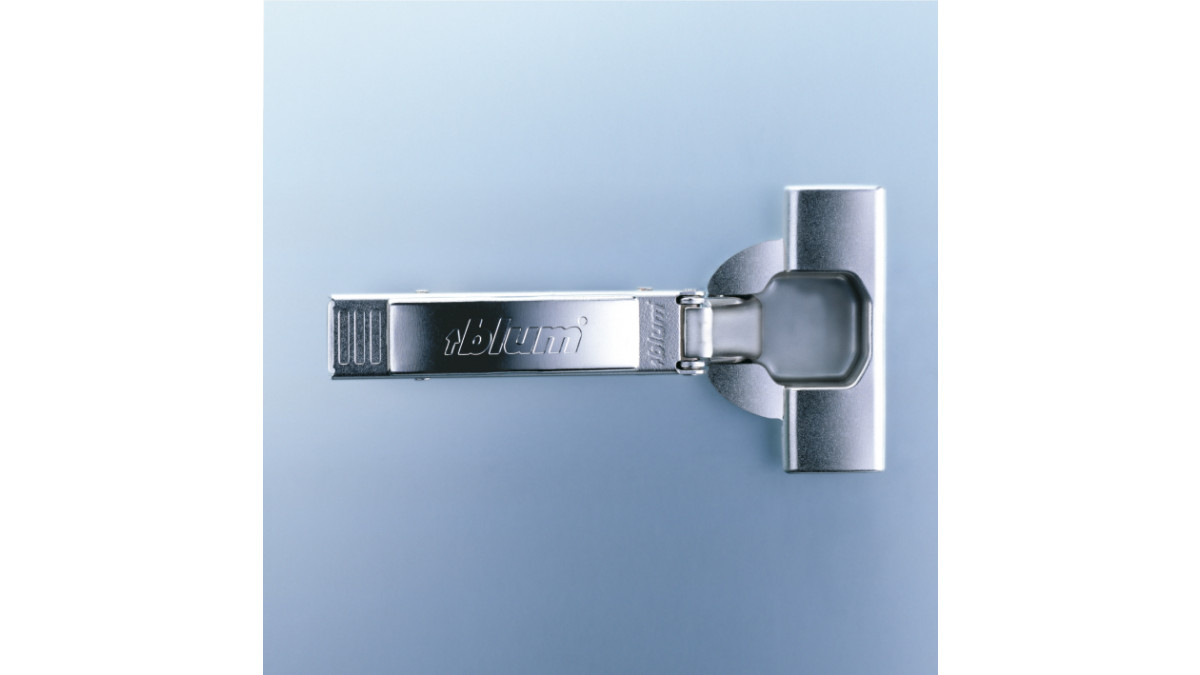

CLIP top, sleek sophisticated engineering providing ease of motion. CLIP top unsprung hinges can be combined with TIP-ON for a handle-less solution.

Key Features
  • Zero protrusion hinges allow door to pivot out and around — ideal for inner drawers applications such as in a SPACE TOWER pantry
  • Above compatible with 0mm mount
  • Special application hinges available

Options

  • 110° Unsprung CLIP top INSERTA hinge
  • 86° Opening angle stop for 110° CLIP top INSERTA hinge

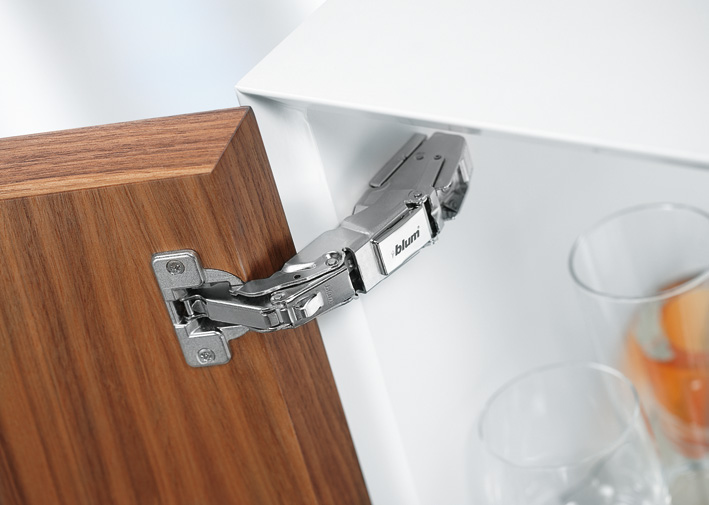

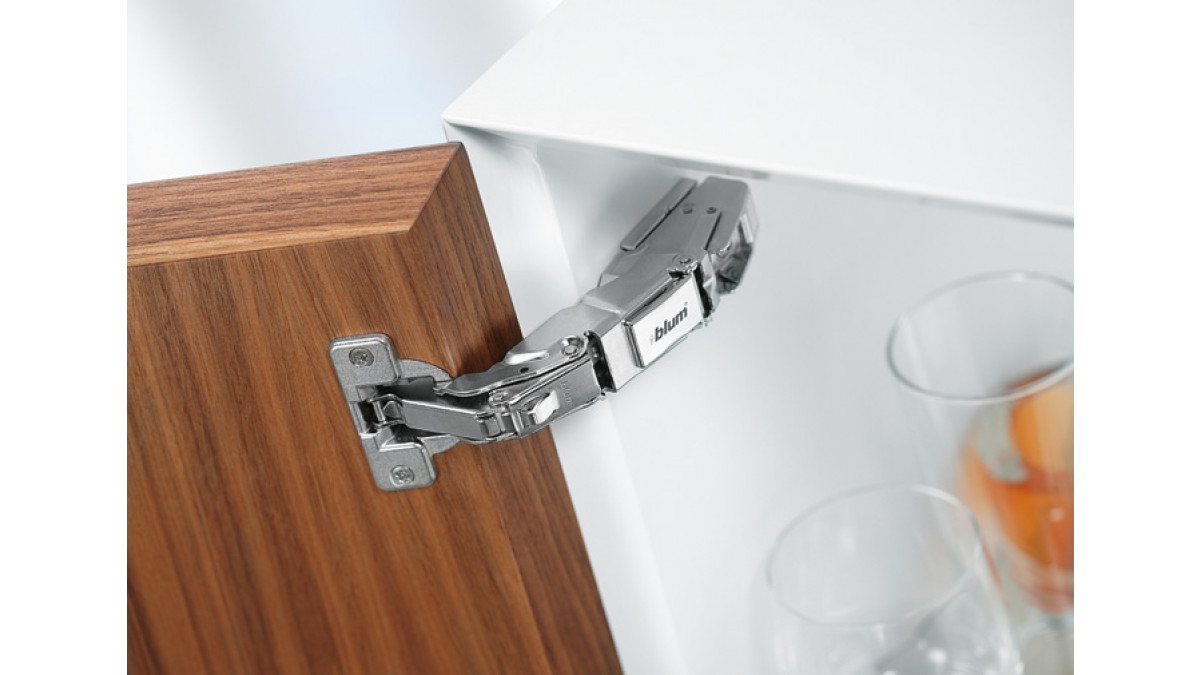

  • 155° Unsprung zero protrusion CLIP top INSERTA hinge
  • 92° Opening angle stop for 155° CLIP top INSERTA hinge
  • 110° Opening angle stop for 155° CLIP top INSERTA hinge
  • 155° Zero protrusion CLIP top INSERTA hinge (Add BLUMOTION)
  • 155° ½ overlay zero protrusion CLIP top INSERTA hinge (Add BLUMOTION)

TIP-ON Options

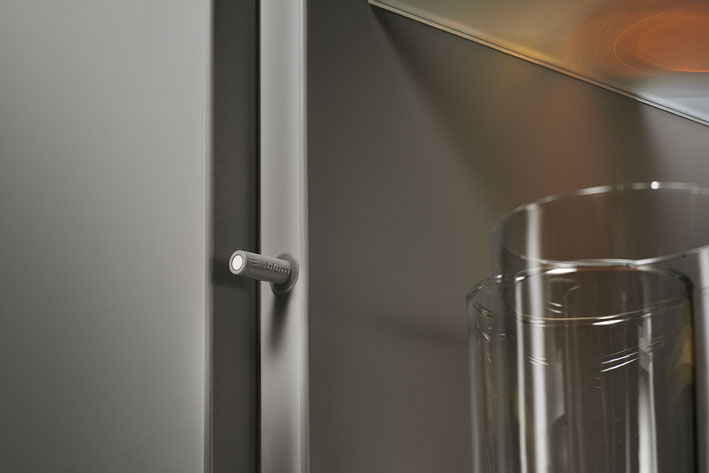

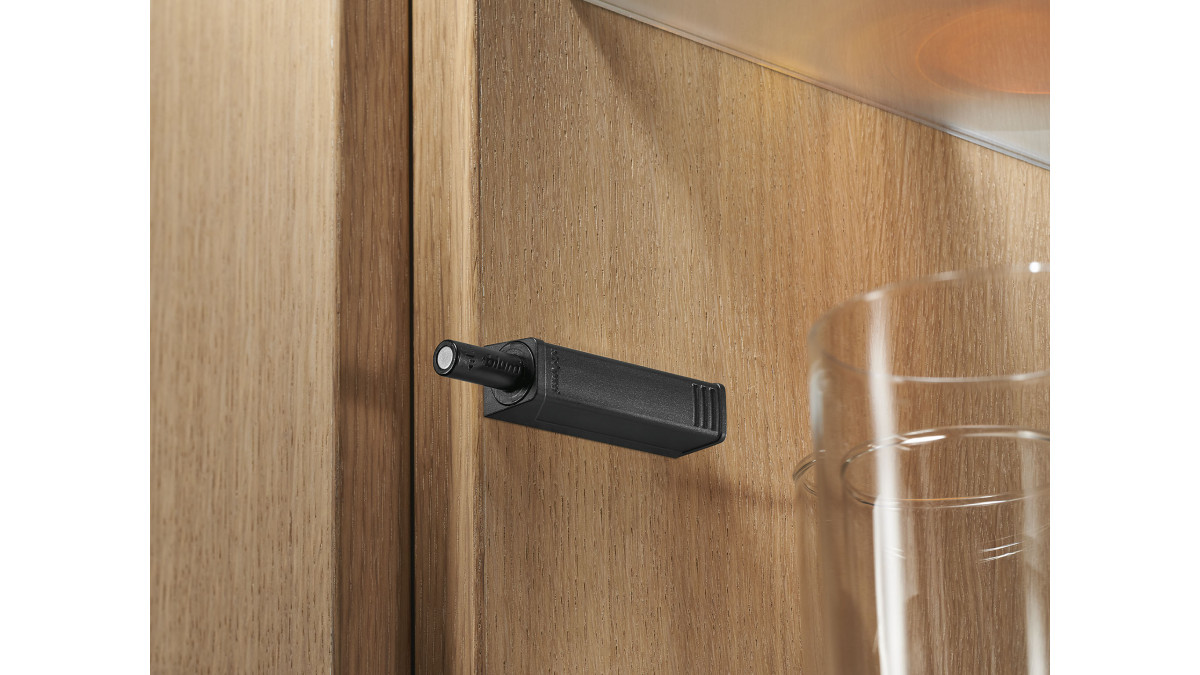

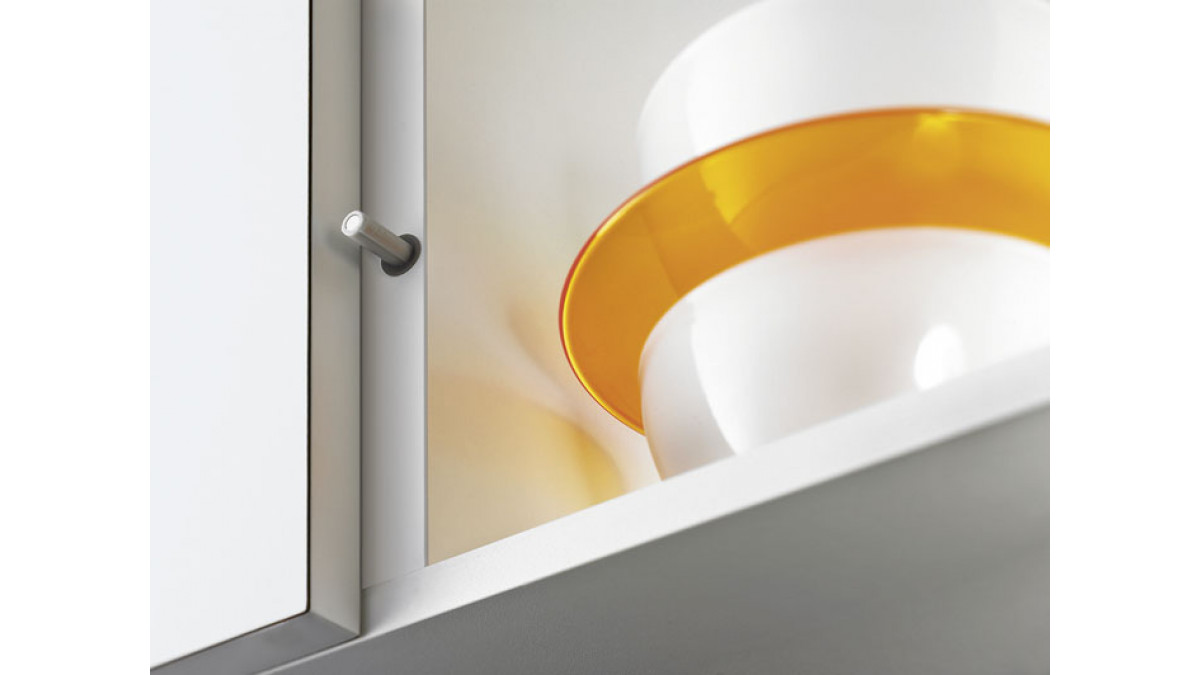

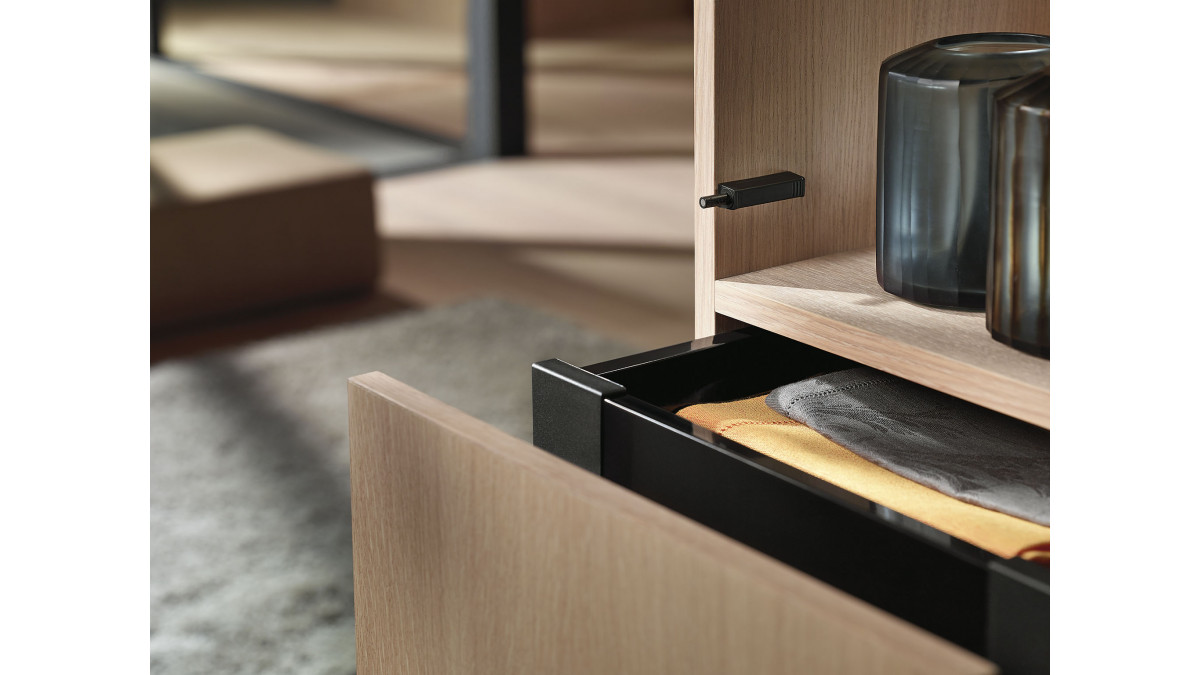

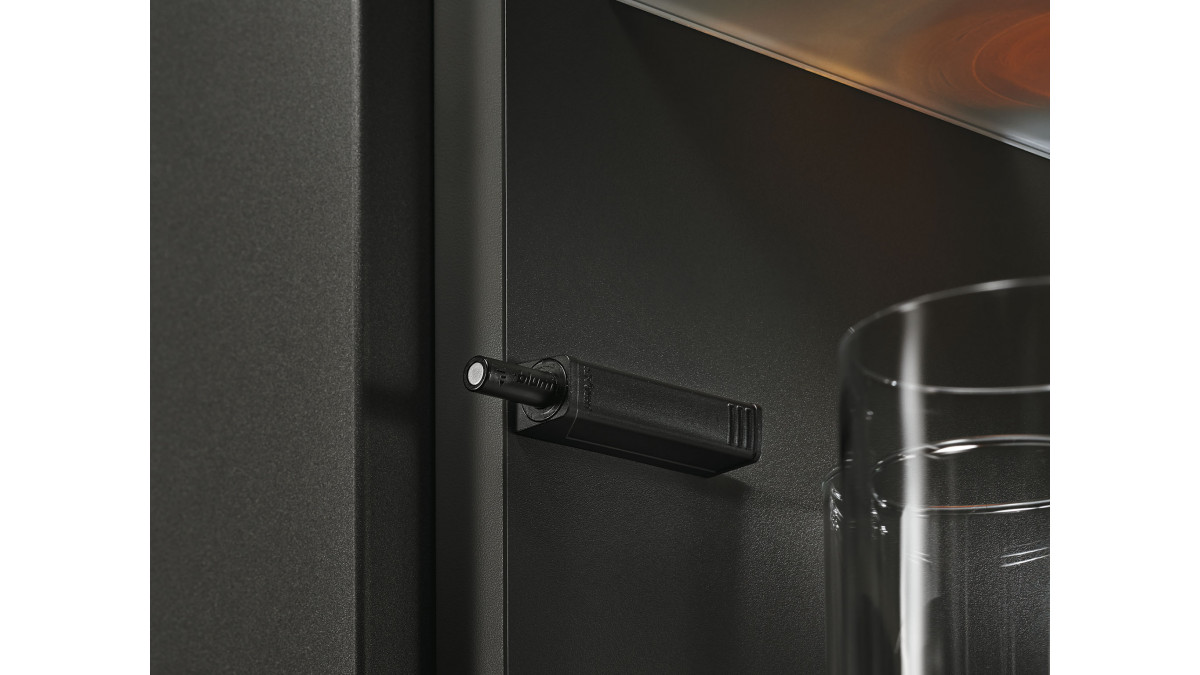

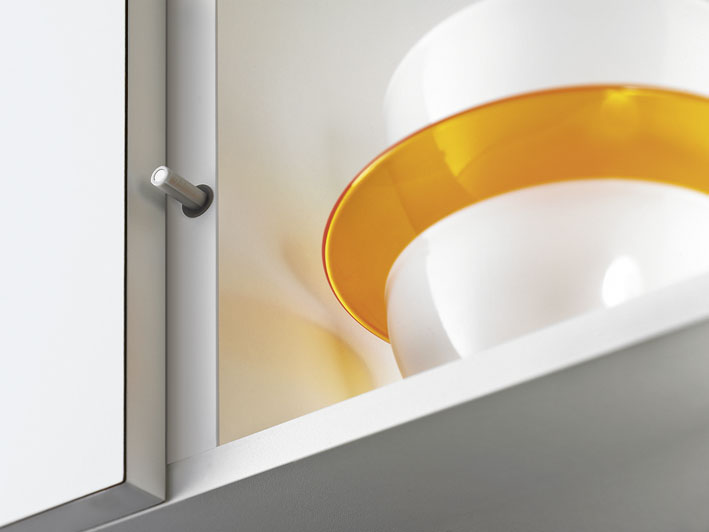

  • Add TIP-ON for doors to unsprung CLIP top hinges for handle-less applications
  • TIP-ON available in standard or extended lengths

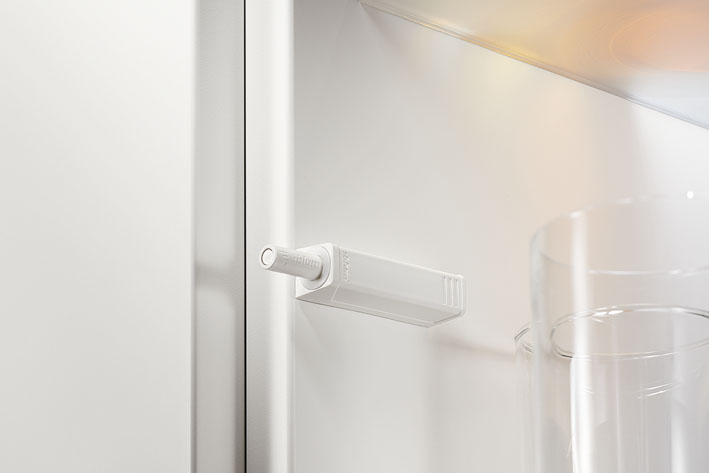

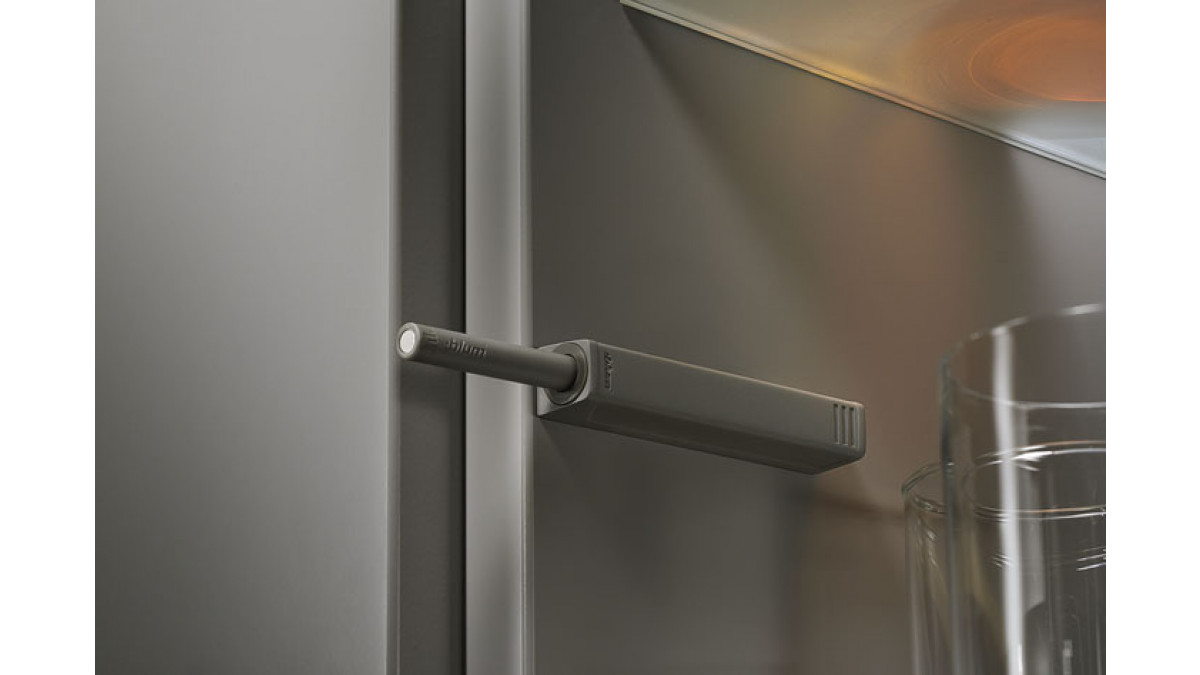

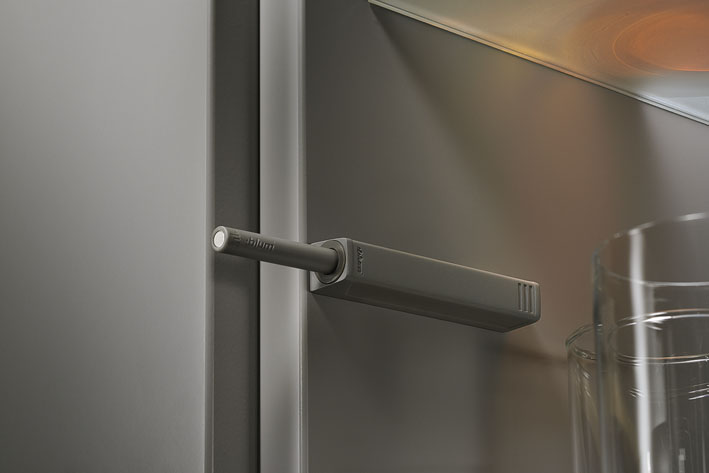

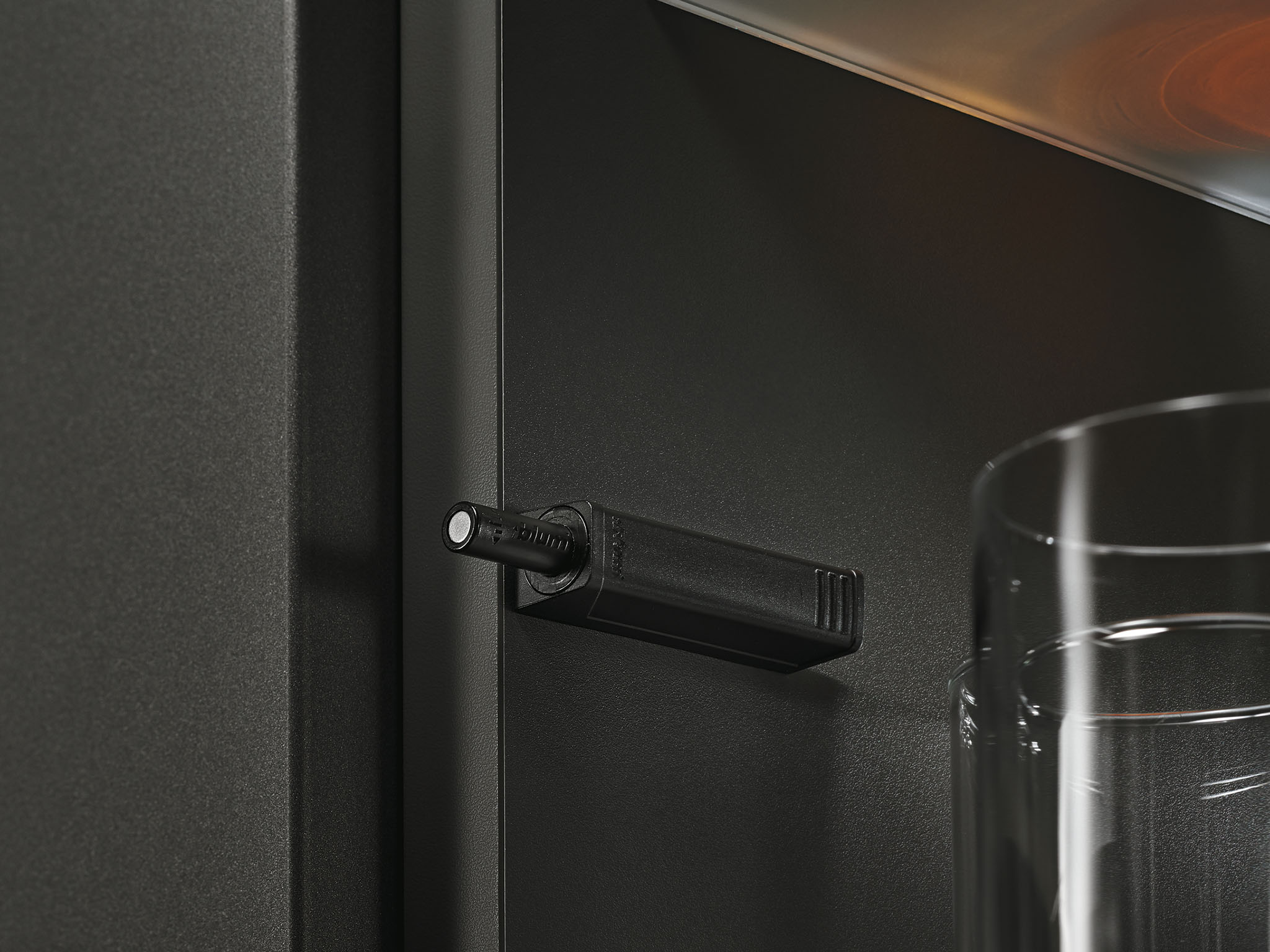

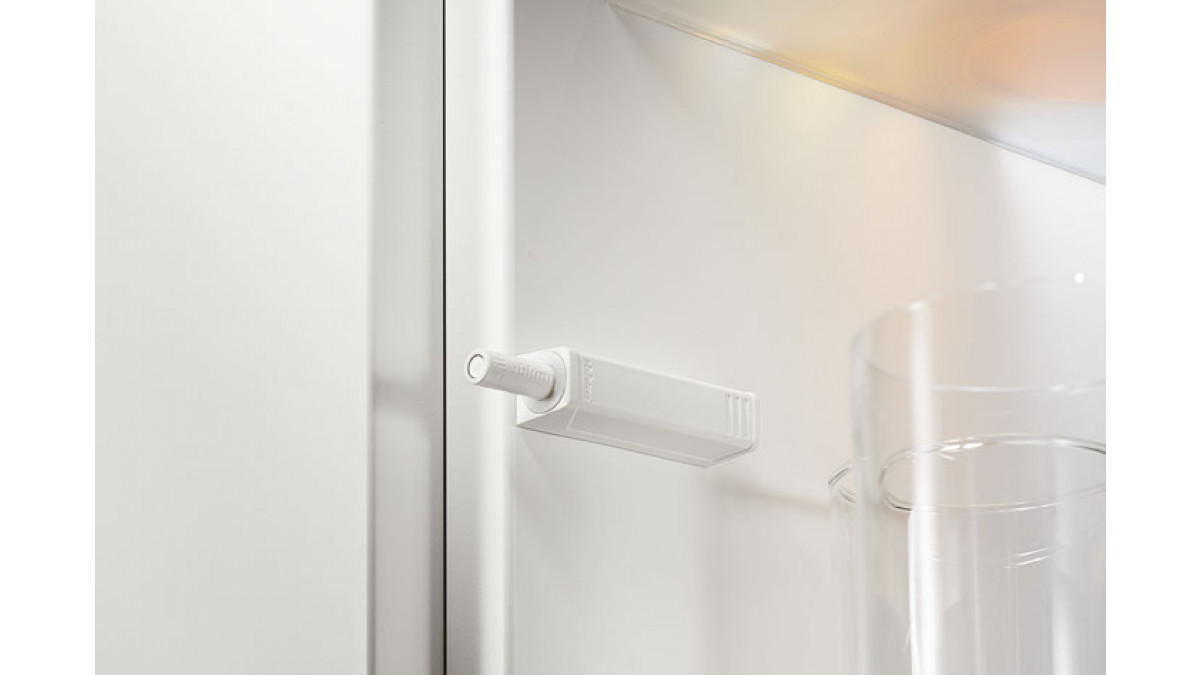

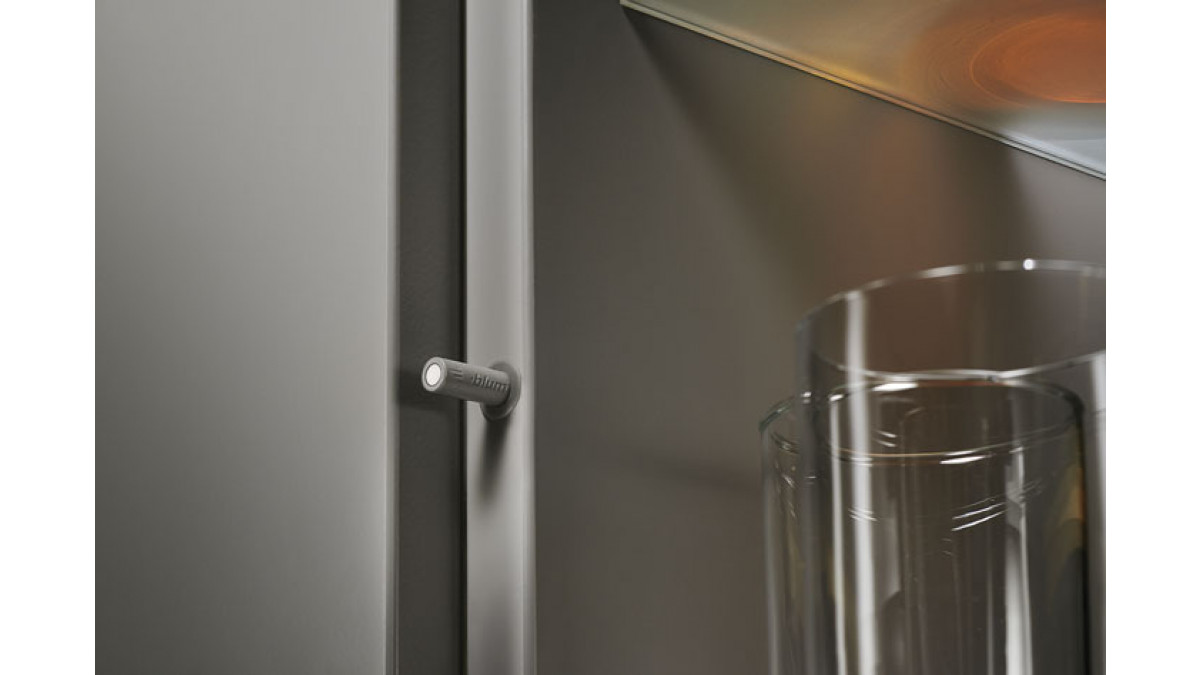

  • TIP-ON available in silk white, platinum grey or terra black
  • TIP-ON inline adaptor plate optional
Scope of Use

Kitchens, laundries, bathroom vanities, entertainment units, wardrobes, offices, commercial, schools, university, hospitality, shop fit-outs and other interior cabinetry.

Limitations on Use
  • Not suitable for exterior applications
Other Performance Attributes
  • ISO 14001, 50001, 9001

Motion technologies

  • BLUMOTION: Soft-close. Technology for silent and effortless closing
  • SERVO-DRIVE: Electronic opening support system for lift systems, box systems and integrated appliances
  • TIP-ON: Push-to-open and push-to-close. Mechanical opening support system for handle-less AVENTOS HK, AVENTOS HK-XS and doors

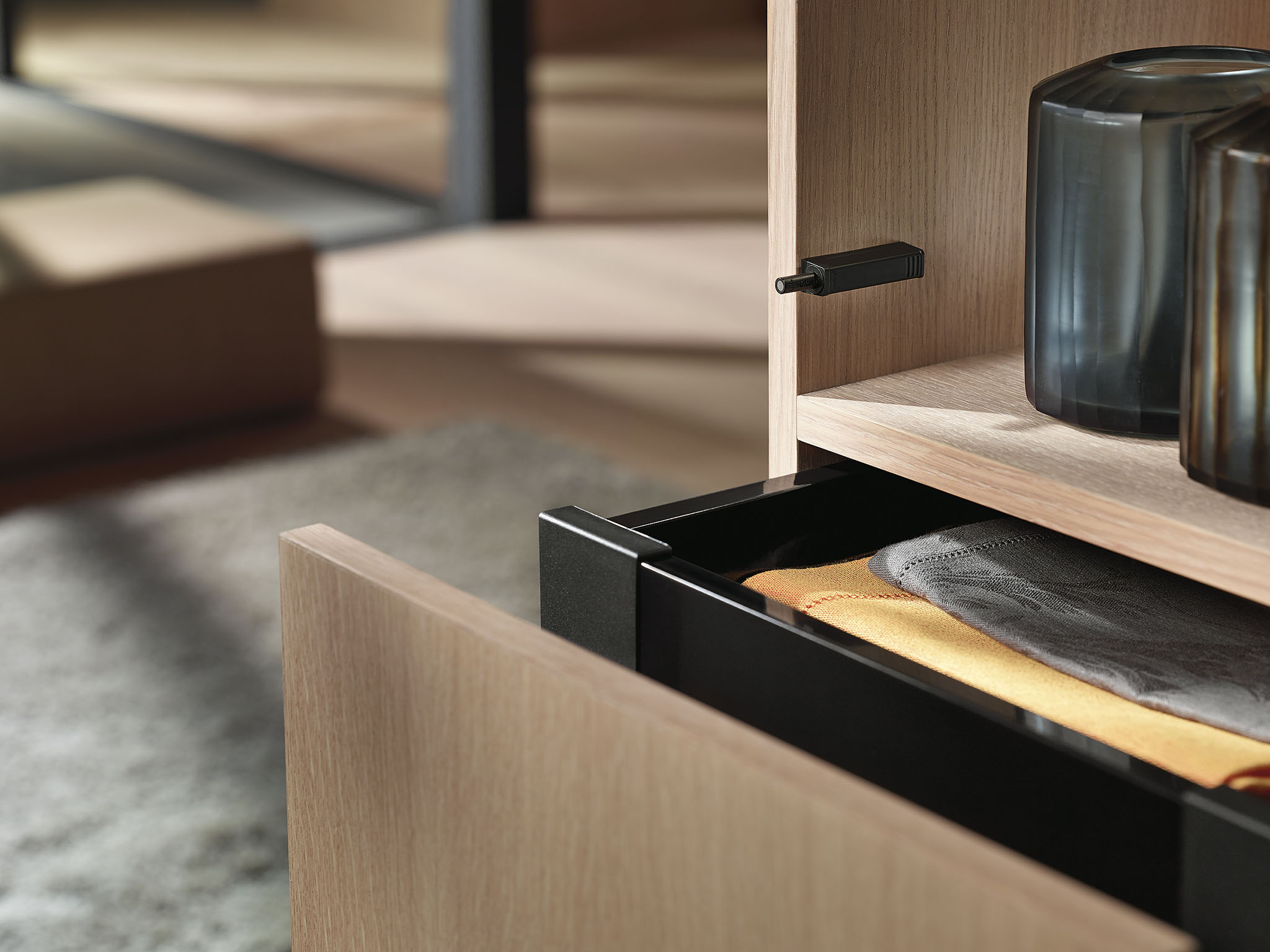

  • TIP-ON BLUMOTION: Push-to-open and soft-close. Mechanical opening support system with silent and effortless closing for handle-less drawers and pull-outs
