Gerflor GTI EL5 Connect Conductive Interlocking Vinyl Tiles by Belgotex

Gerflor GTI EL5 Connect Conductive Interlocking Vinyl Tiles

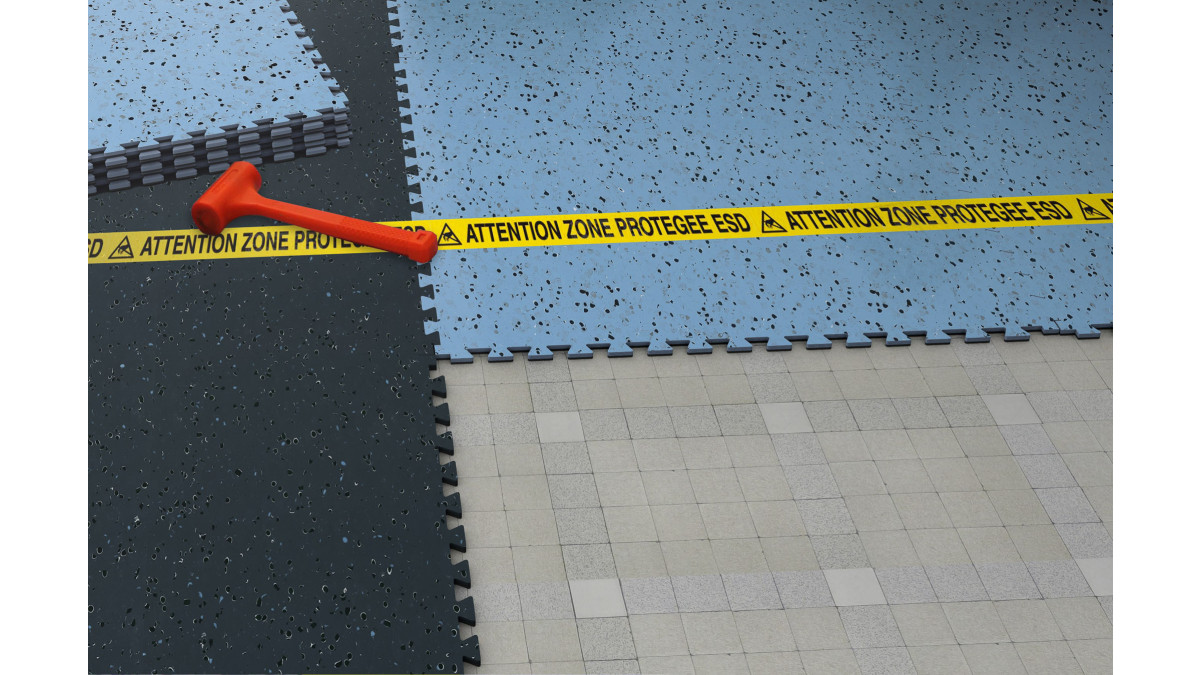

RS38772 GTI EL5 USINE DALLE MARTEAU 2 hpr b

Description

GTI EL5 Connect is a unique, patented conductive flooring solution by Gerflor in an interlocking tile format. It incorporates carbon encapsulated granules throughout its full thickness with a conductive backing to ensure optimal and consistent conductive properties over its lifespan. The tiles come with dovetail joints for easy installation and can be loose-laid without the need for adhesives.

Key Features

Conductive flooring: complies with IEC 61340-5-1 & ANSI/ESD S20.20
Low charge potential
High electrical resistance
Interlocking tile format for fast and easy installation
Comes with Evercare surface treatment for ease of maintenance

Ranges

Gerflor Vinyl Sheet & Tiles

Scope of Use

Suitable in heavy traffic commercial and industrial areas where electrostatic discharge (ESD) protection is required
Suitable in accessways

Limitations on Use

Interior use only
Not suitable for use within 1.5m of a sanitary fixture or appliance
Must be installed according to the Installation Instructions and NZS AS 1884:2013
Must be maintained in line with Belgotex care and maintenance guidelines

Statement of Building Code Compliance

B2.3.1(c): GTI EL5 Connect is manufactured under an ISO 9001 certified Quality Management System and meets the minimum durability requirement of 5 years
C3.4(b): GTI EL5 Connect has been tested against ISO 9239-1 standard achieving a CRF of 9.6kW/m²
D1.3.3(d): GTI EL5 Connect provides acceptable slip resistance for level access routes, slopes, and stairs expected to remain dry under normal use as per D1/AS1 Table 2
F2.3.1: GTI EL5 Connect is FloorScore certified for low VOC emissions

In-Service History

Gerflor, founded in 1937 and inventor of homogeneous vinyl flooring, have been providing market leading quality products for over 85 years.

Other Performance Attributes

Electrical resistance: 5x10^4 < Rt ≤ 10^6 Ω (EN 1081)
Static electrical propensity: <100V (IEC 61340-4-5, ESD shoes)
Slip Resistance — Wet Pendulum: P2 (AS 4586-2013, Appendix A)
Slip Resistance — Oil Wet Ramp: R9 (EN 16165:2021, Annex B / DIN 51130)
Class 34 Commercial Very Heavy / Class 43 Industrial Heavy
12 Year Commercial Warranty
May contribute points toward Green Star or Homestar certification
Green Star Responsible Product Value (RPV): 10 — achieved through Product-Specific EPD and Science-Based Targets initiative (SBTi) - Targets Set
