• Suitable for general and specific structural design applications in residential and commercial timber-framed buildings
• Suitable for use as structural wall bracing panels in accordance with NZS 3604:2011 and BRANZ P21 test evaluation
• Suitable as a rigid underlay / rigid air barrier substrate
• Suitable as a structural substrate for flooring, overlays (carpet, vinyl, tiles, timber), roofing, and flexible or rigid waterproof membranes
• Suitable for exterior cladding systems when H3.2 treated and installed with clearances compliant with NZBC E2/AS1 Clause 9.1.3 and NZS 3604 Figure 6.21

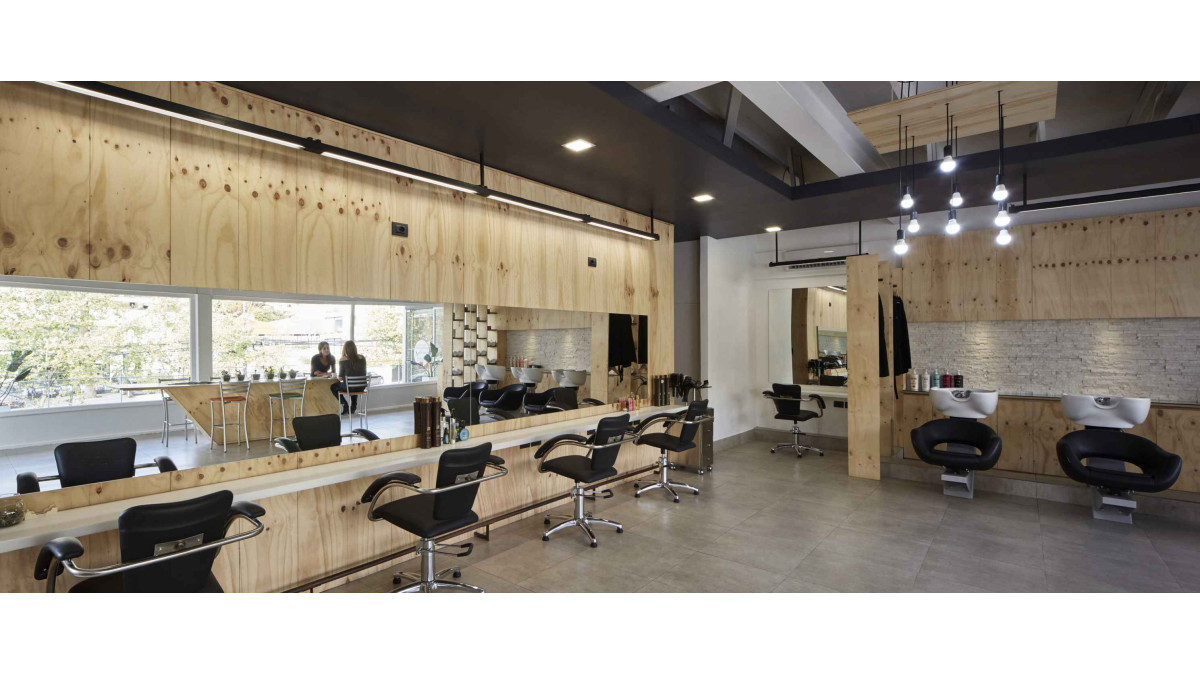

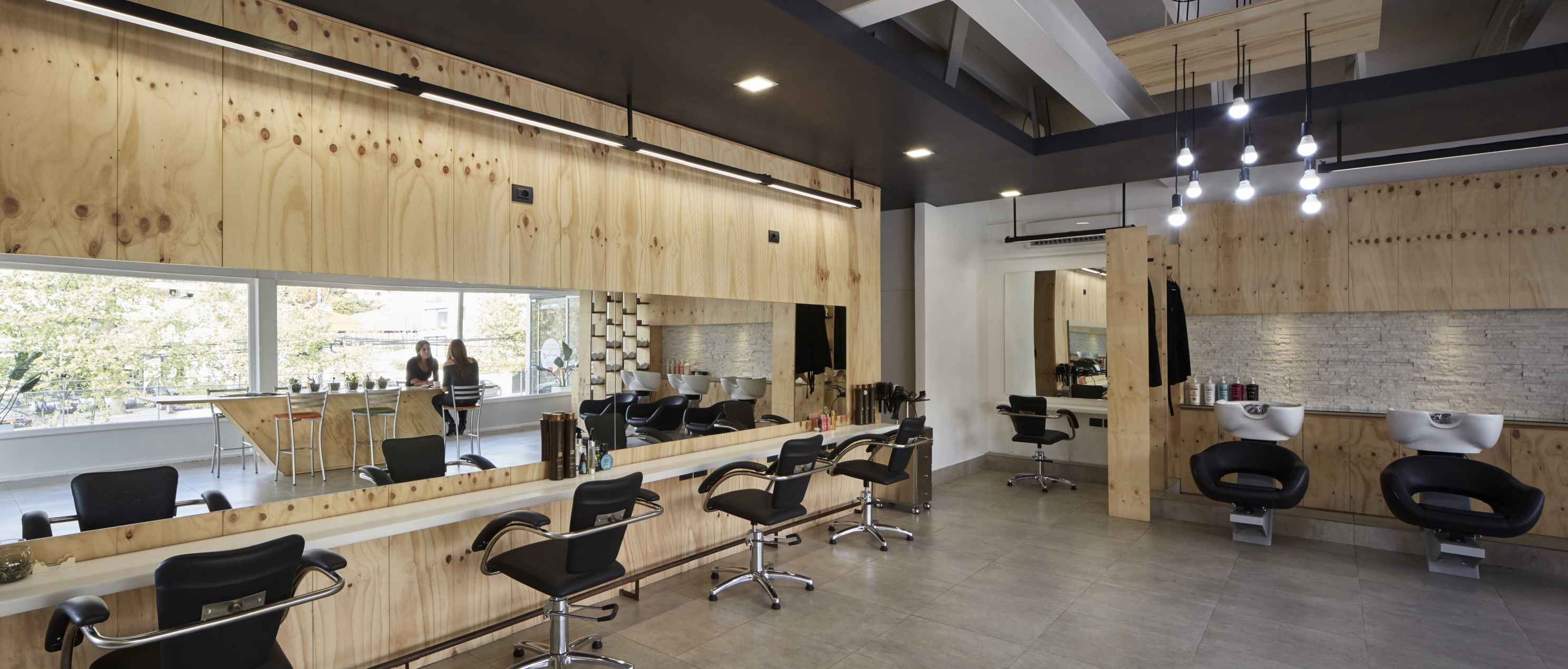

• Suitable for internal structural linings, hoardings, box beams, industrial applications, and agricultural sheds

• H3.2 CCA or MCA treated panels must not be installed in direct contact with steel framing or steel structural elements
• Must be installed with appropriate ground clearances to meet durability requirements under NZBC Clause E2 and NZS 3604
• For exterior cladding applications using CD grade smooth-sanded panels, regular recoating and maintenance are required; a band-sawn surface finish is recommended to minimize face checking
• Preservative-treated sheets are envelope treated; all cut edges, drilled holes, or machined faces must be retreated on site with a suitable brush-on wood preservative to reinstate the envelope
• Untreated panels are restricted to dry internal protected applications where the moisture content of the supporting timber framing does not exceed 18%

AraucoPly Structural Plywood, if designed, specified, installed, and maintained in accordance with bbi Wood Products technical literature, will comply with or contribute to compliance with the following provisions of the NZ Building Code:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.3 (a, b, c, f, h, i, j, q), B1.3.4 (d)
• Clause B2 DURABILITY: Performance B2.3.1 (a), B2.3.2
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.3, E2.3.4, E2.3.5
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

Contribution to compliance

• Clause B1 Structure: Manufactured and certified by SAI Global to AS/NZS 2269. Suitable for structural design in accordance with B1/VM1 or B1/AS1. Wall bracing performance verified through Scion P21 racking tests
• Clause B2 Durability: Meets B2.3.1 Acceptable Solution B2/AS1 requirements when specified and treated to NZS 3602. When specified and maintained per technical documents, H3.2 treated panels achieve a 50-year structural durability performance in exterior applications, and untreated panels achieve at least 50 years in dry interior environments.
• Clause E2 External Moisture: When preservative treated and detailed with ground and exterior clearances in accordance with E2/AS1 Clause 9.1.3 and NZS 3604 Figure 6.21, panels satisfy E2.3.3, E2.3.4, and E2.3.5 performance requirements.
• Clause F2 Hazardous Building Materials: Manufactured to formaldehyde emission class Super E0 (< 0.3 mg/L) in accordance with AS/NZS 2098.11, ensuring panels do not pose a health hazard.

AraucoPly Structural Plywood has been widely specified and installed across New Zealand since 2011 in residential and commercial construction projects for wall bracing, flooring substrates, rigid underlays, and exterior cladding applications.

• Wall Bracing Ratings (bbi PlyBrace): Tested by Scion Research to P21:2010. Bracing values reach up to 138 BU/m (Wind) and 141 BU/m (Earthquake) for 7mm F8 panels on LVL8 framing, and up to 122 BU/m (Wind) / 127 BU/m (Earthquake) for 9mm F8 panels on SG8 framing.
• Formaldehyde Emission Rating: Super E0 rating (< 0.3 mg/L) in accordance with AS/NZS 2098.11
• Environmental & Sustainable Forestry: Veneers sourced from FSC certified Radiata Pine plantations.
• Warranty: Supported by a 12-month manufacturer's limited product warranty from the date of purchase or dispatch when handled, stored, installed, and maintained per official technical guidelines.
