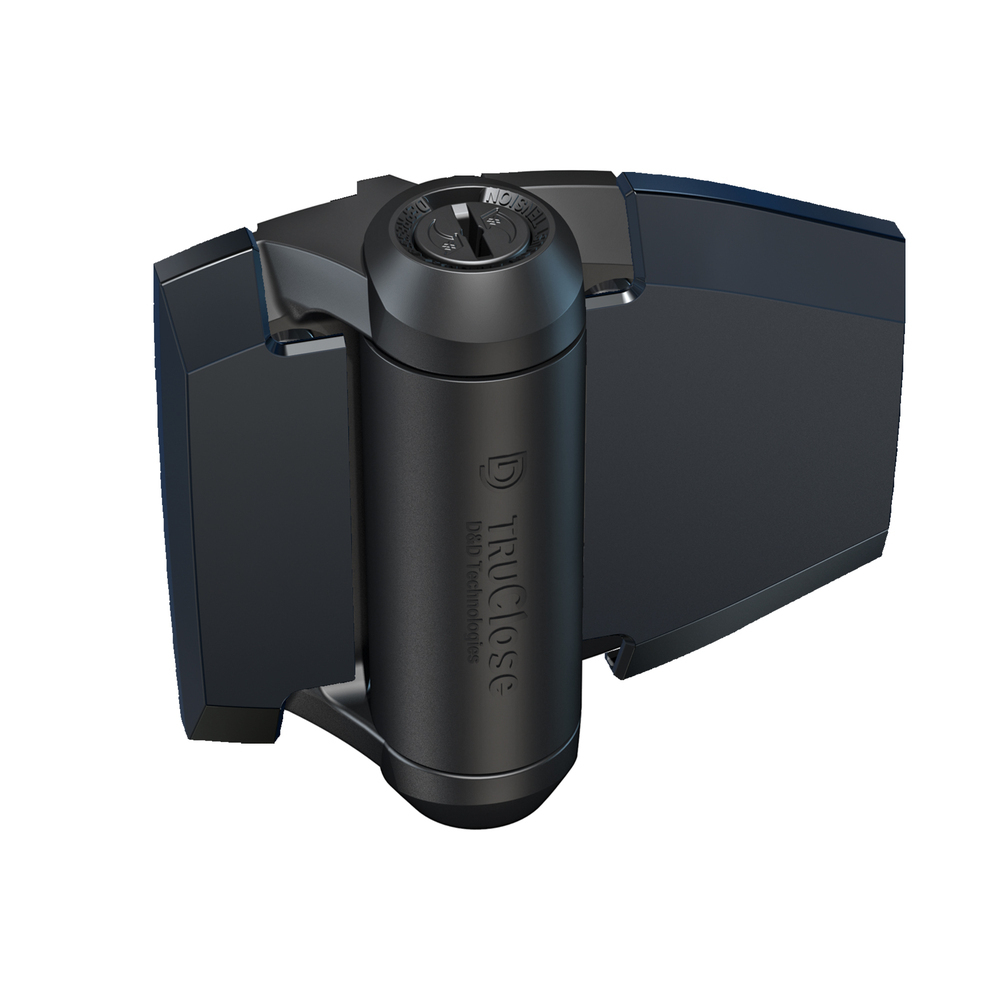

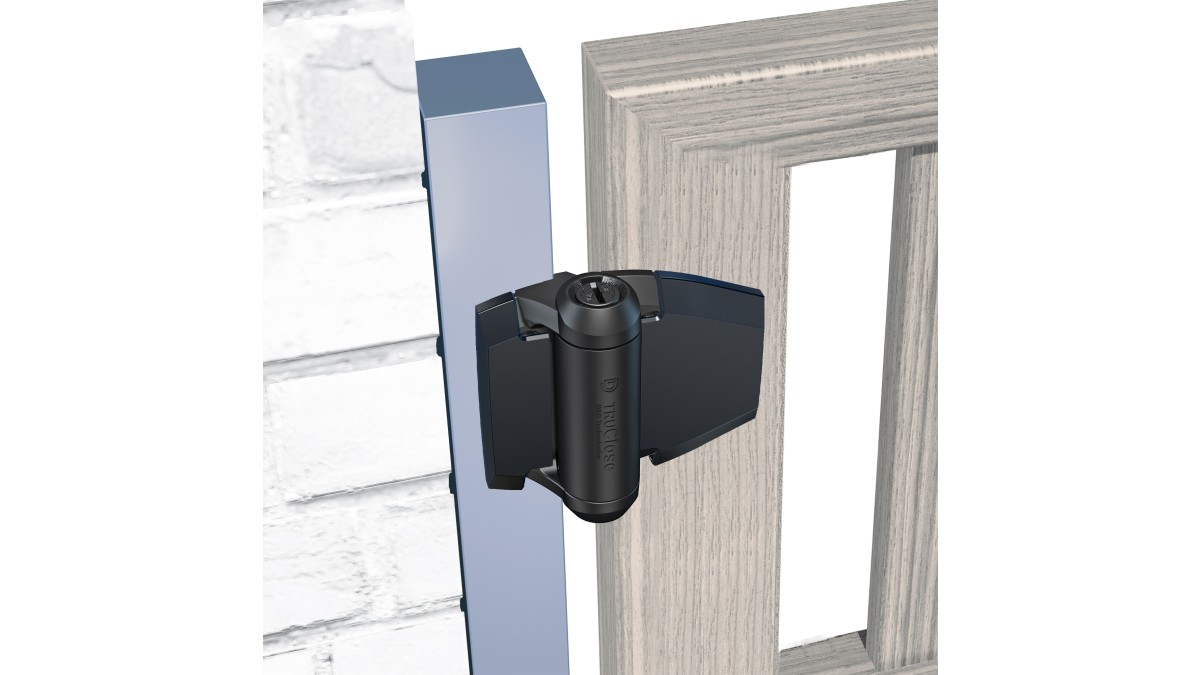

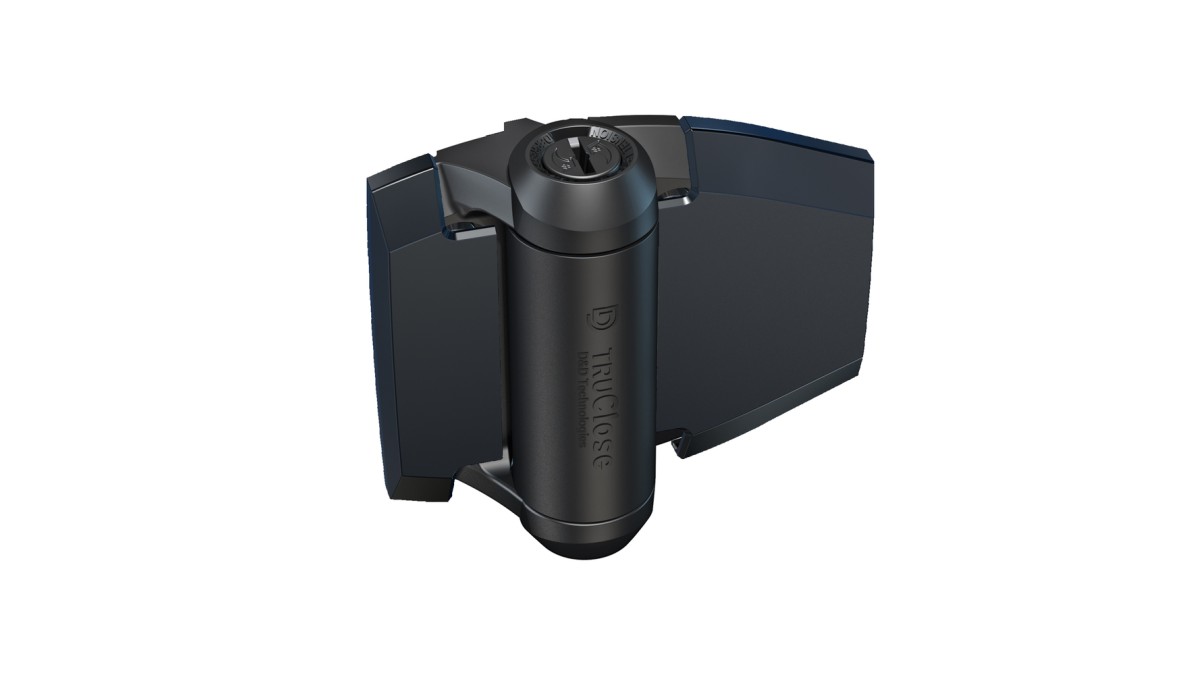

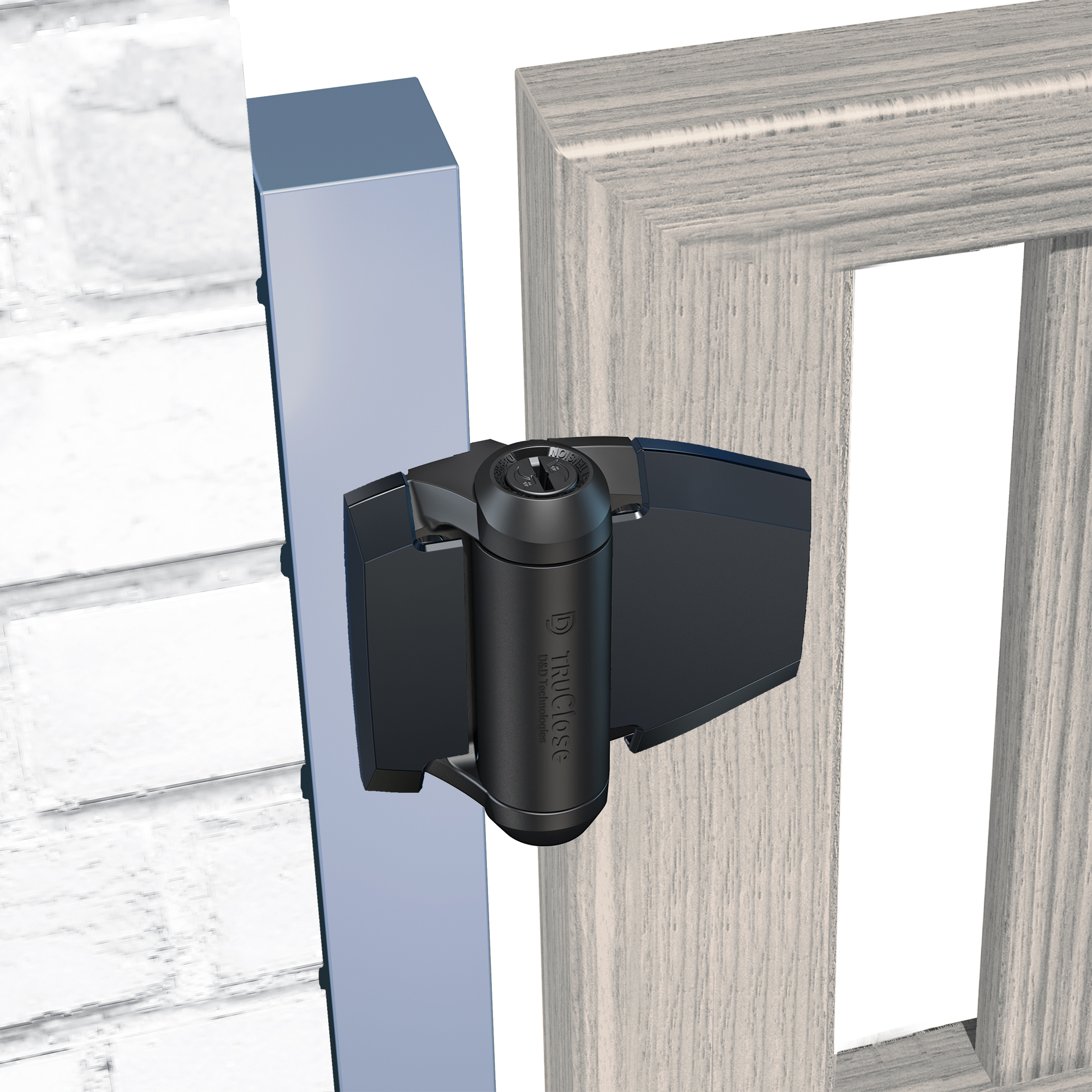

D&D Technologies Truclose® Regular Hinge For Metal-To-Wood Gates
Description
TruClose® Safety Gate Hinges are the world's most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The engineering-grade polymers and a stainless-steel closing springs deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools, childcare centres, schools, homes, playgrounds and hotels/resorts. TruClose REGULAR hinge models are ideal for most square-posted gates weighing up to 30kg. TruClose hinges are quick and easy to install and to adjust for self-closing speed. They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available. The TruClose® REGULAR hinges come in a range of other options, including models with side-fixing legs (to assist speedy installation and extra fixing strength) and a MiniMulti version offering 3-way adjustment (vertical, horizontal and tension adjustment) in square- and round-post versions. D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide.
*
TCA2S3BT, TCA2L2S3BT
Key Features
  • For safety gates install a hinge safety cap (optional)
  • Quick and easy to install
  • Self-closes gates up 30kg (66 lbs)
  • Won’t rust, bind, sag or stain
  • Simple, adjustable closing tension (from either end of hinge)
  • Super-strong polymer and stainless steel construction
  • UV-stabilised and self-lubricating durability
  • Gloss black, decorative trim covers (no visible fasteners)
  • Optional 2 side-fixing legs for faster alignment & added strength
  • Australian Made and Owned
  • Lifetime Warranty
Scope of Use

Adjustable, self closing hinges for Metal to Wood gates

  • Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Security Gate, Privacy Gate, Safety Gate
Limitations on Use

When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with local Council or safety authorities to ensure compliance.

Other Performance Attributes
  • Product Code: TCA2S3BT, TCA2L2S3BT
  • Gate Type: Self-Closing
  • Gate Material: Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
  • Self-Closing Gate Weight: Up to 30kg (66lbs)
  • Approx Gate Size: 90cm W x 1.5m H (3ft x 5ft)
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 25mm+
  • Ideal Gate Gap: 19mm
  • Fixing Method: Screw-On
  • Colour/Finish: Black, Brushed Metallic, Polished Metallic
