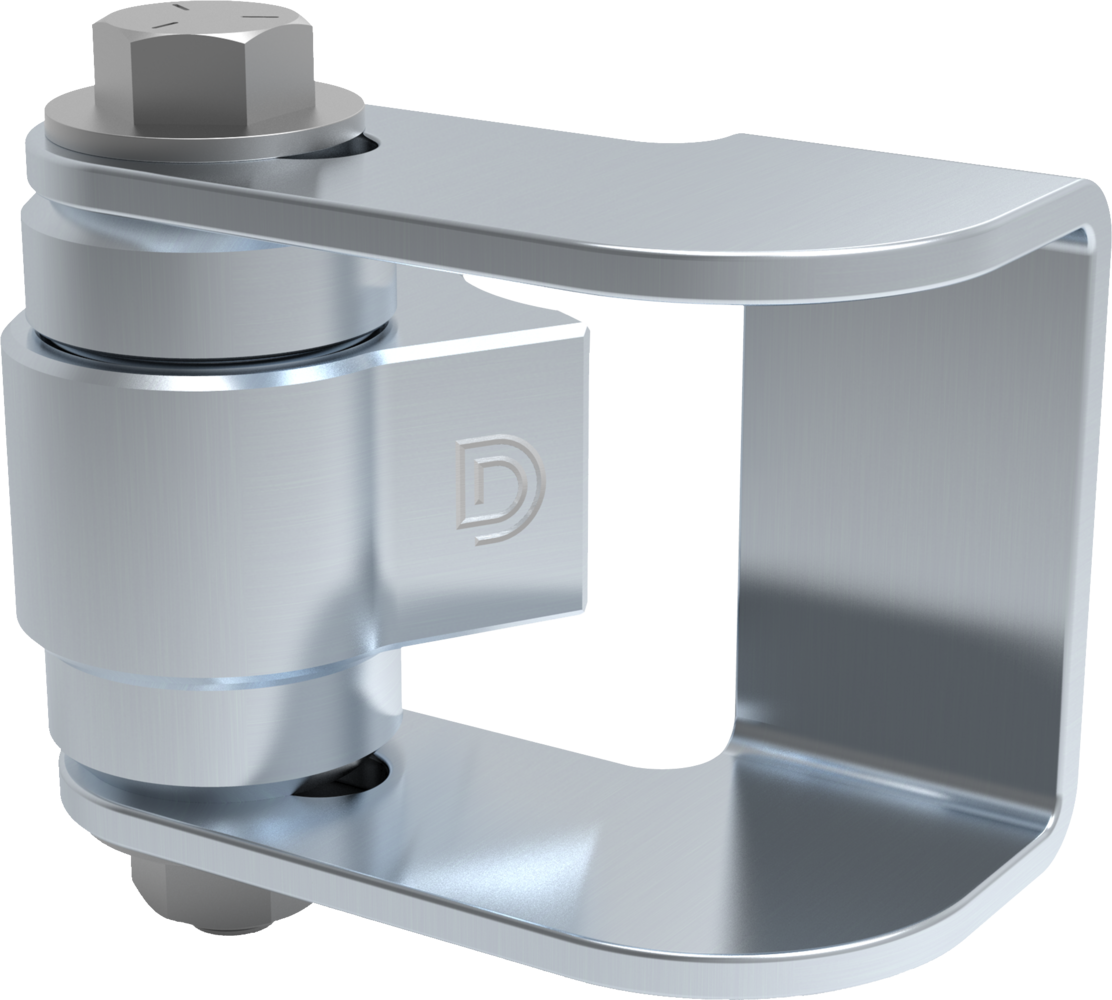

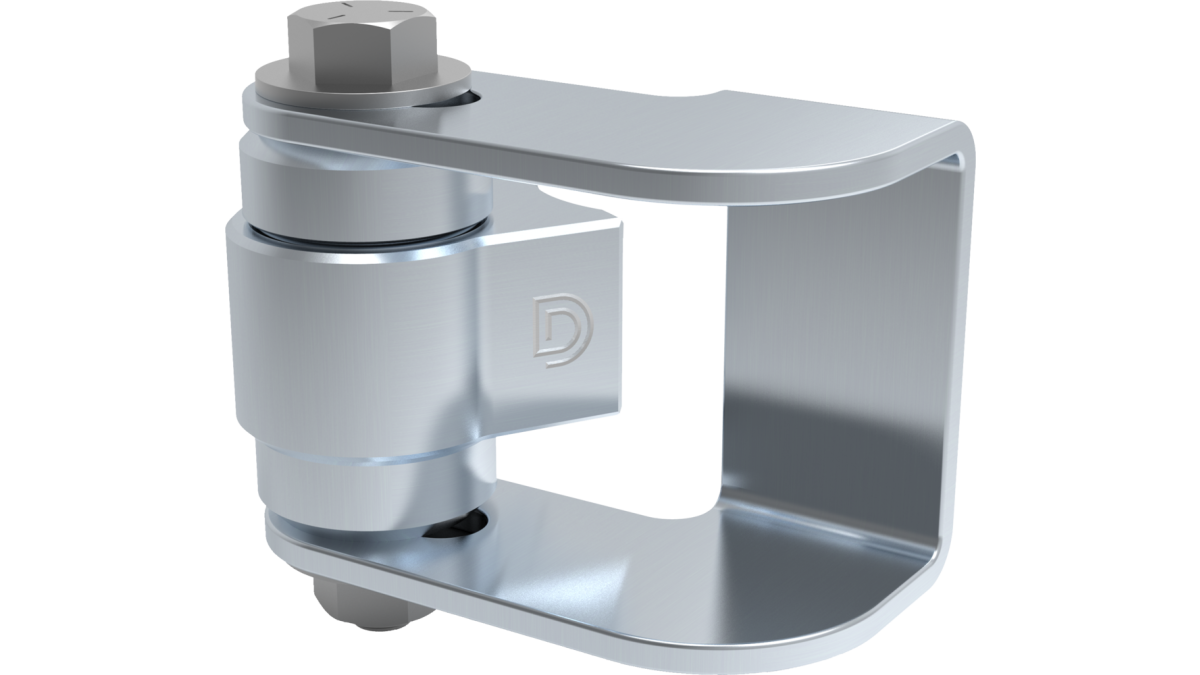

D&D Technologies Shut it® Face Mount Gate Weld-On Badass
ASSA ABLOY
All products
shutit badass face mount weld on ci3050 etch ddtech
Description

The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to SHUT ITs unique bushing design The Bolt-On BadAsses, like all other Shut It gate hinges, produces near frictionless movement with maintenance free usage.

Key Features
  • Opens to 180°
  • Achieve gate gaps as small as  13mm
  • Horizontally adjustable to 13mm
  • Both weld-on and bolt-on models available
  • High-temp bearings, safe to powder-coat
  • Load rating per gate: 2,000 lb
  • Maximum gate weight: 1,100 lb
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code - CI3050
  • Gate Type - Non-Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/Post Shape - Square-to-Square
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 74-86mm
  • Fixing Method - Bolt-On
  • Colour/Finish - Zinc

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
