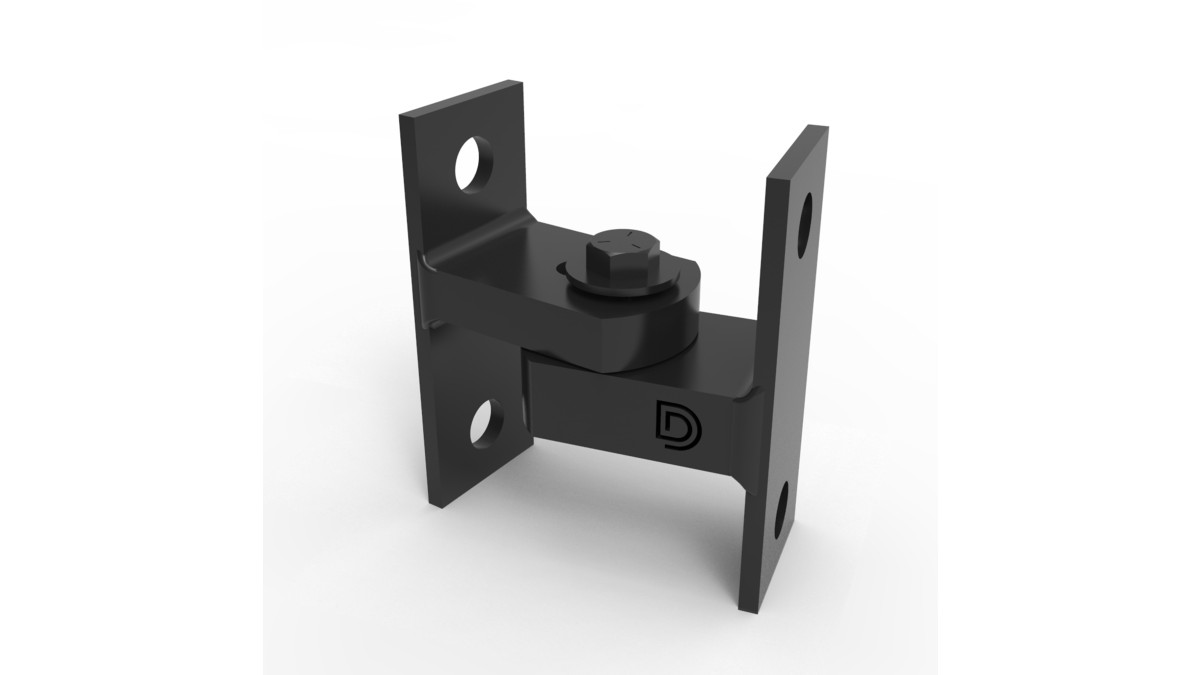

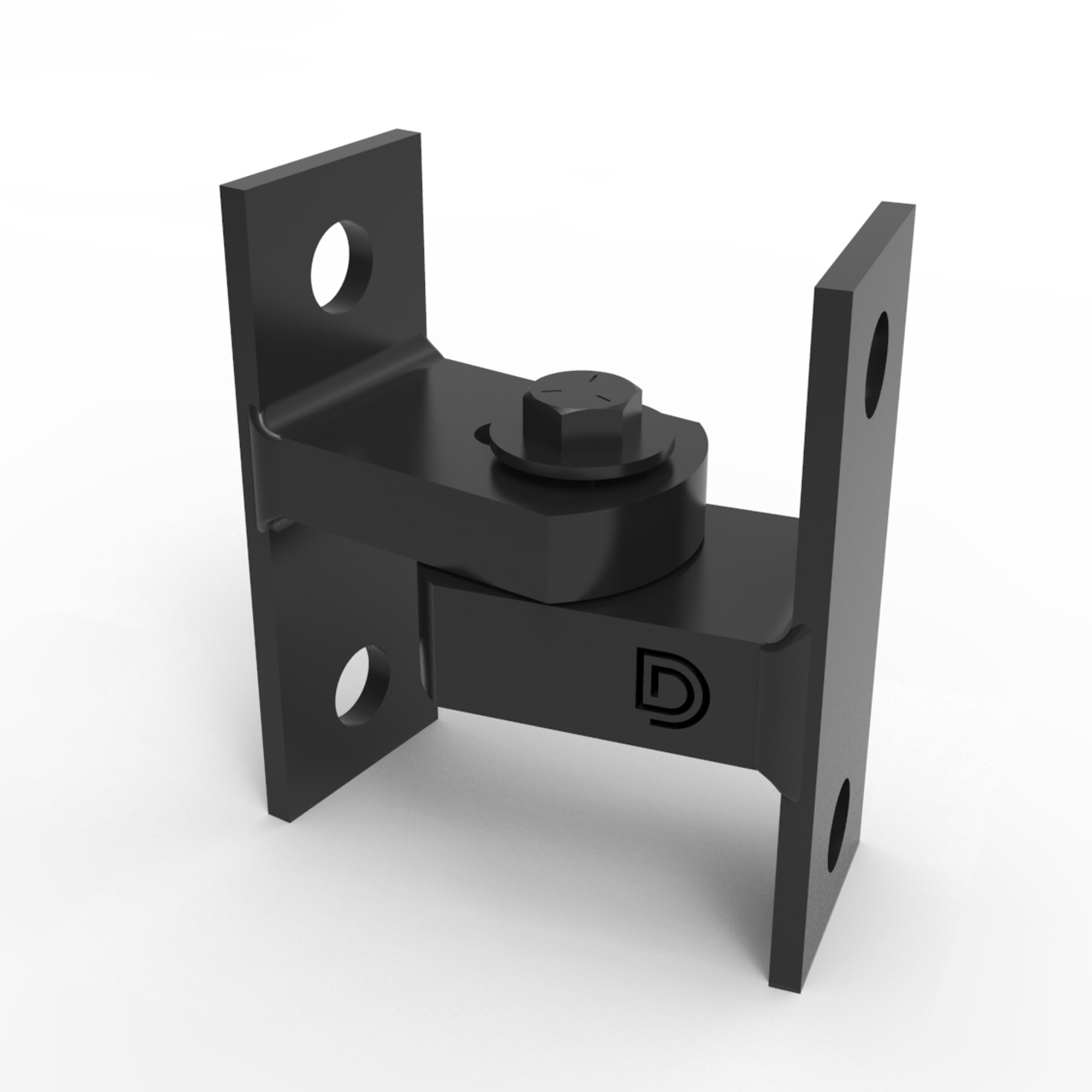

D&D Technologies Shut it® Baby Bolt-On Badass — Adjustable Bracket
Description

Like the Baby BadAss, this hinge Bolt-on Gate Hinge by Shut It is CNC machined to the tightest tolerances in the industry. Unlike The Baby BadAss, The Bolt-On Baby BadAss was designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option. The Bolt-On BadAsses produce near frictionless movement with maintenance free usage.

  • Product Code: CI3750
  • Gate Type: Non-Self-Closing
  • Gate Material: Steel/ Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 38mm+
  • Ideal Gate Gap: 76-89mm
  • Fixing Method: Bolt-On
  • Colour/ Finish: Zinc



Key Features
  • Designed for gates where welding is not an option
  • One sealed maintenance free bearing
  • Adjustable barrel for precise installations

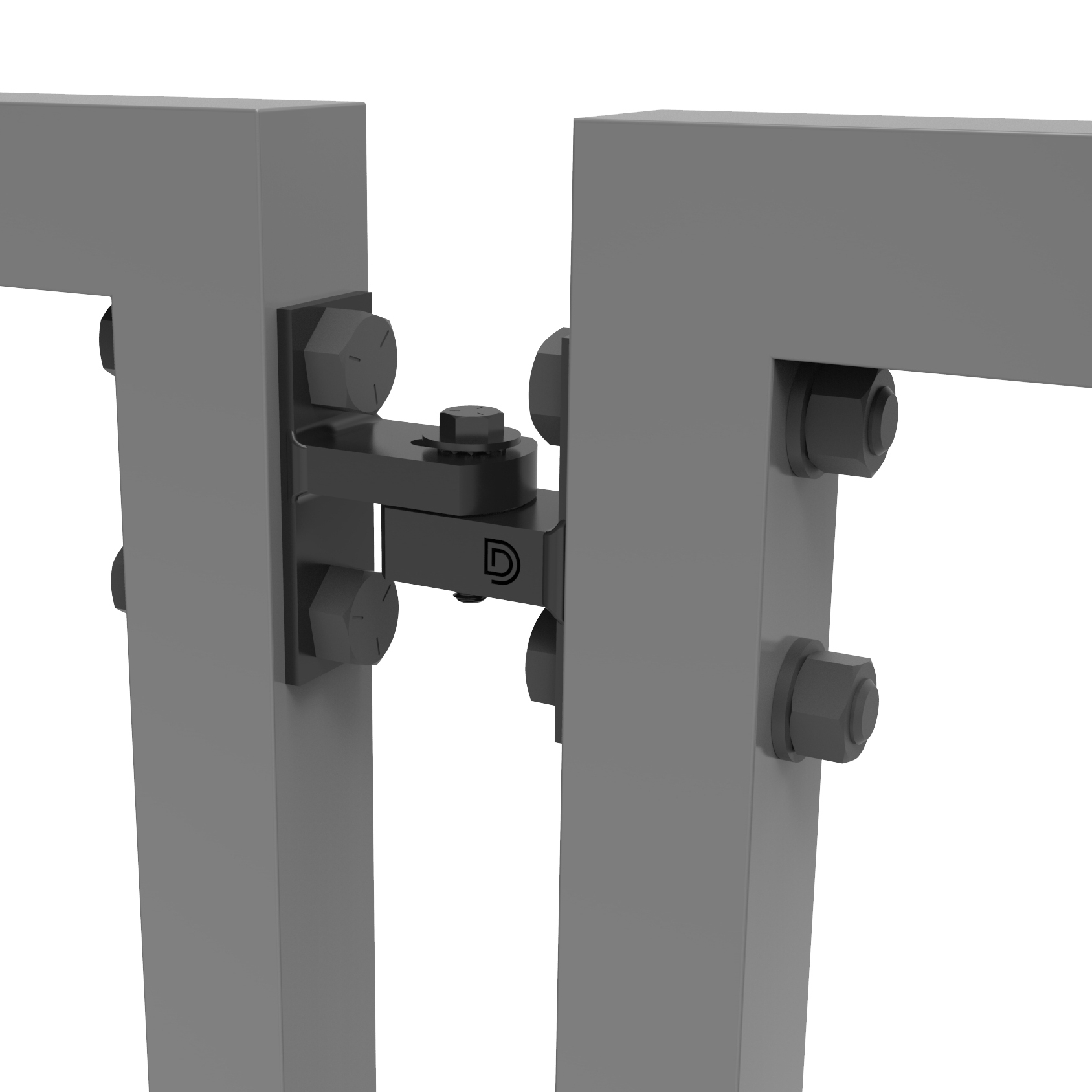

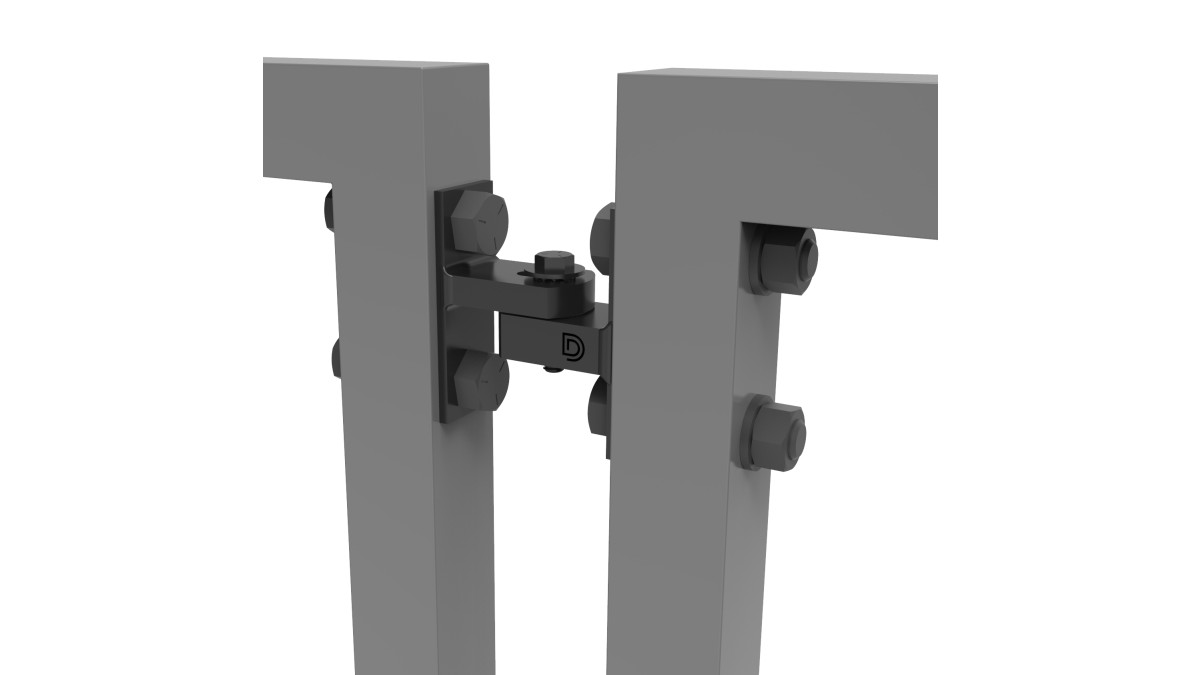

  • Flat, bolt-on brackets for through bolting
  • Zinc plated
  • Load rating per gate: 270kg
  • Maximum gate weight: 100kg
Scope of Use

Non self-closing gates. Designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate



Installation:

  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 38mm+
  • Ideal Gate Gap: 76-89mm
  • Fixing Method: Bolt-On
Limitations on Use
  • Load rating per gate: 270kg
  • Maximum gate weight: 100kg
Other Performance Attributes
  • Near frictionless movement with maintenance free usage
