Plasma Plus Entrance Door
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

Plasma Plus entrance doors deliver a sleek, architectural look with flat aluminium or full glass cladding, including options for edge-to-edge horizontal planks or negative detail lines. With a 74mm foam-filled core, flanged frame, and triple-glazed insert options, they offer excellent thermal and acoustic performance. Available in dual-colour finishes, hinged or pivot configurations, and compatible with flush sills and Eurogroove hardware for a seamless finish.

Key Features
  • High thermal performance with 74mm overall thickness

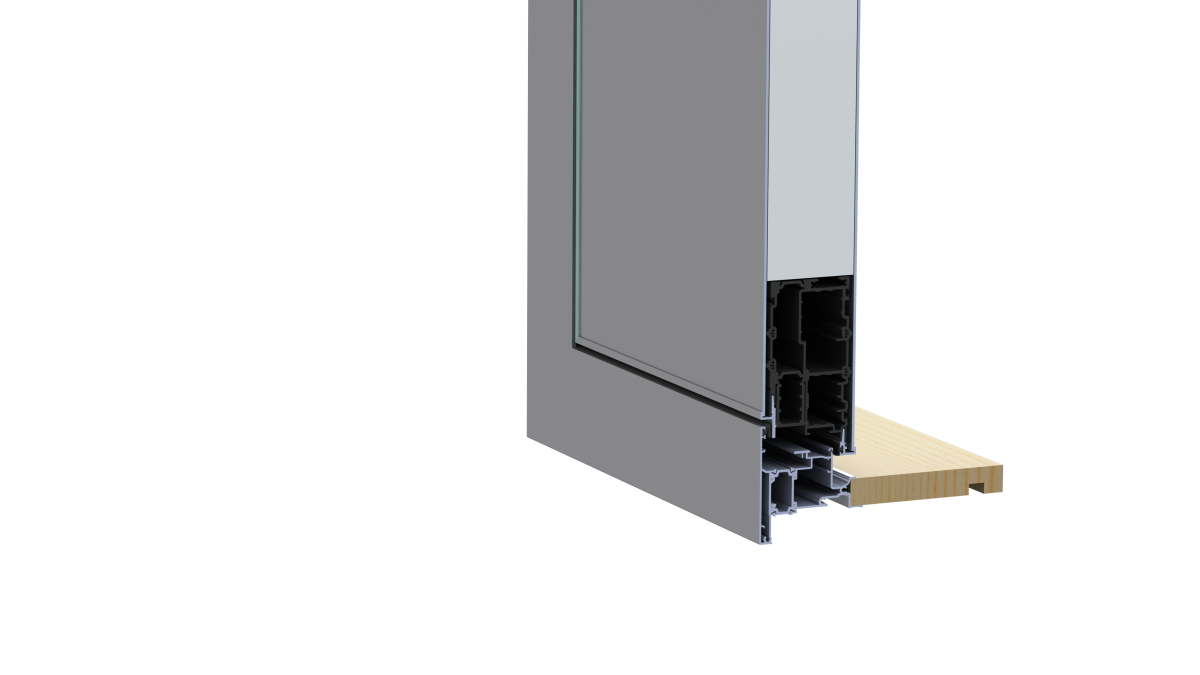

  • Flanged frame allows for dual sealing increasing thermal performance
  • Doors are filled with high density foam for thermal efficiency and sound dampening
  • Can be dual coloured to match interior and exterior colour schemes

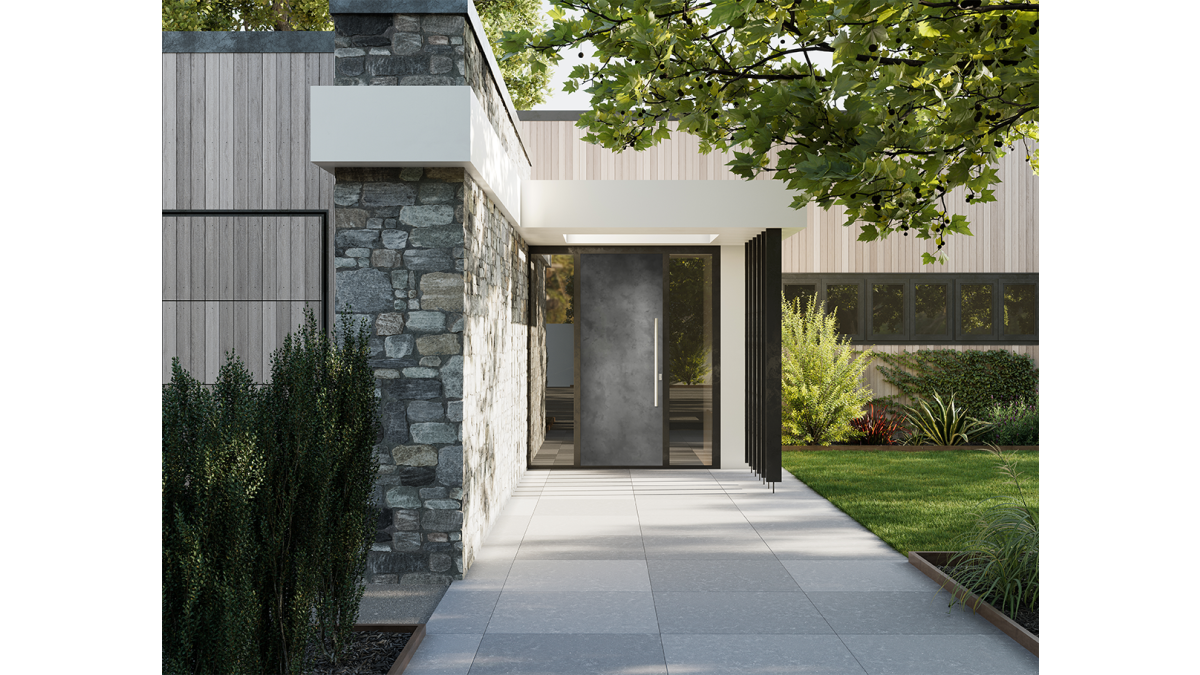

  • Available in unique liquid metal finish with Elemental Finishes
  • Glass inserts (50mm triple glazing only)
  • Fully glass clad Plasma panels also available with an opaque, vivid colour finish
  • Compatible with either hinges or pivot gear
  • A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available
  • Flush sill options available.
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments. Glass Plasma is the best choice for full sun exposure
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
  • Plasma Plus is compatible with all APL ThermalHeart+ ranges
  • Accepts either standard hinges or pivot gear
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Dark colours not recommended for doors exposed to prolonged direct sunlight
  • Hardware type must be advised at time of door order
  • Maximum panel size 3500mm x 1450mm (Slimline maximum size 2600 x 1060)
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Released in 2024
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
