Metro Series ThermalHEART® Sliding Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

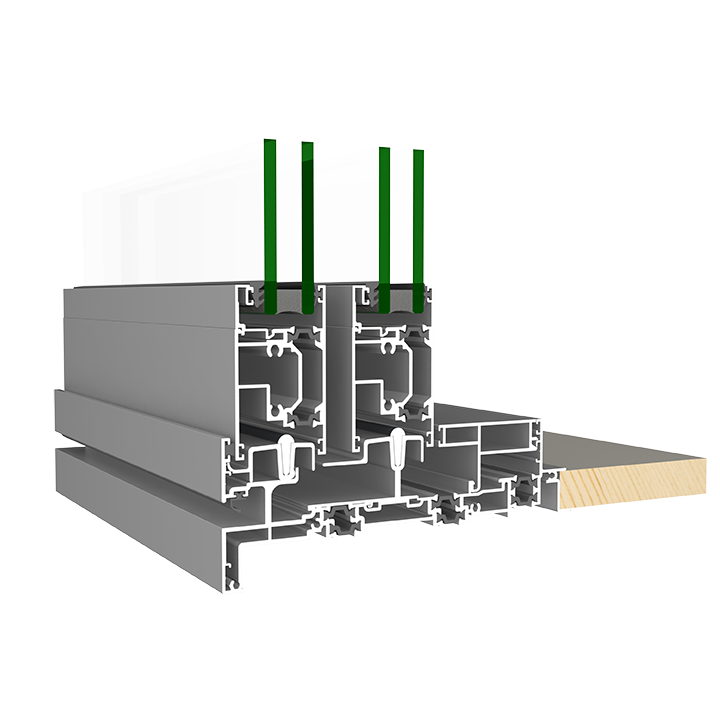

Metro Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track and are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Interlocker stiles and mullions are flush in the closed position.

Key Features
  • An exterior sliding track as standard

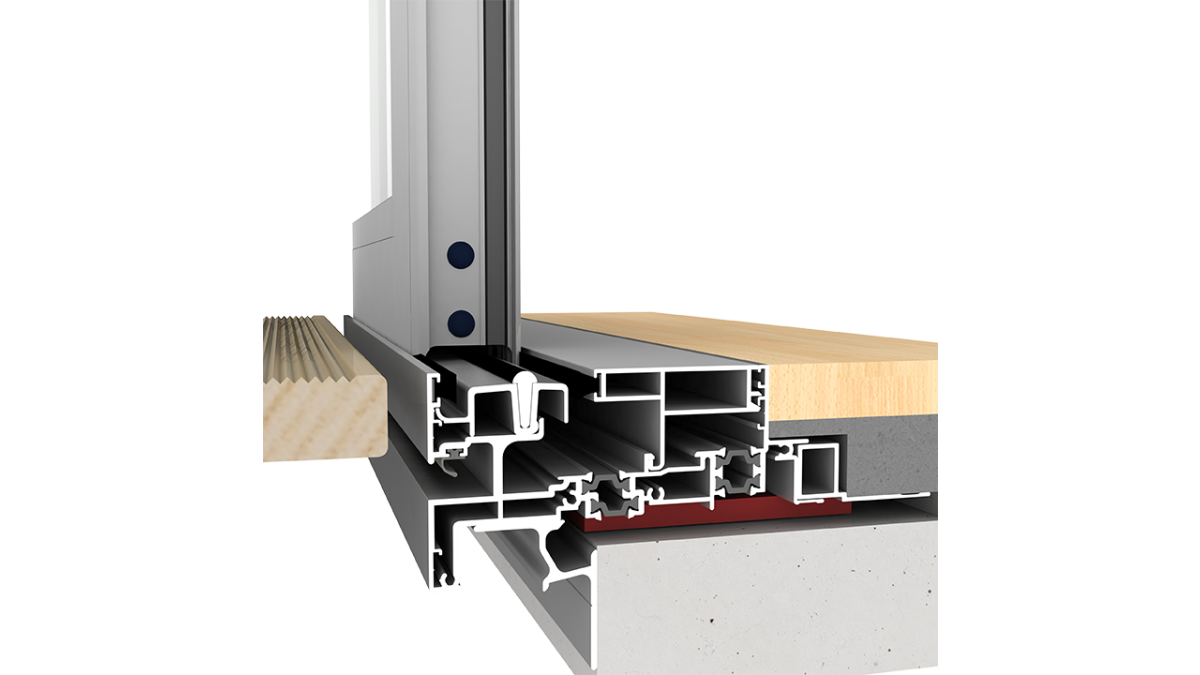

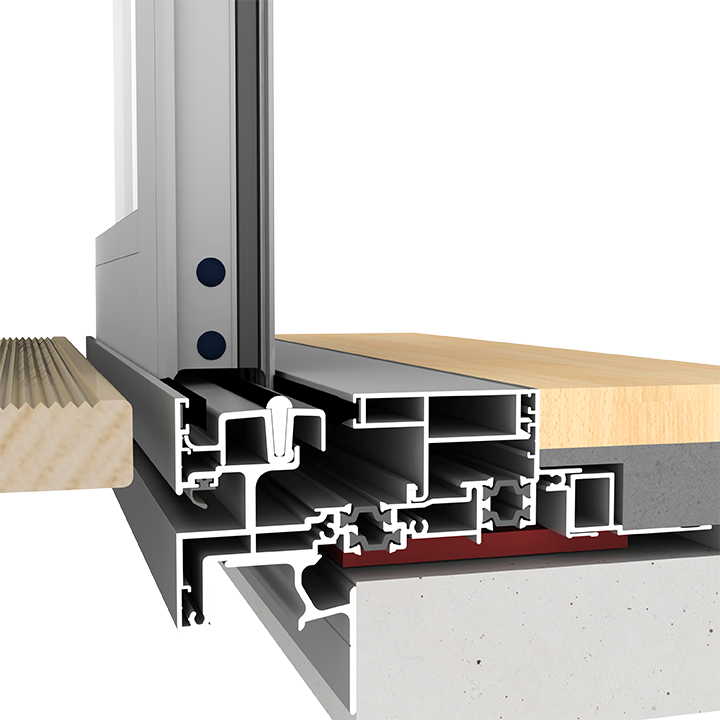

  • The sill frame has a flush track to optimise inside-to-outside plane

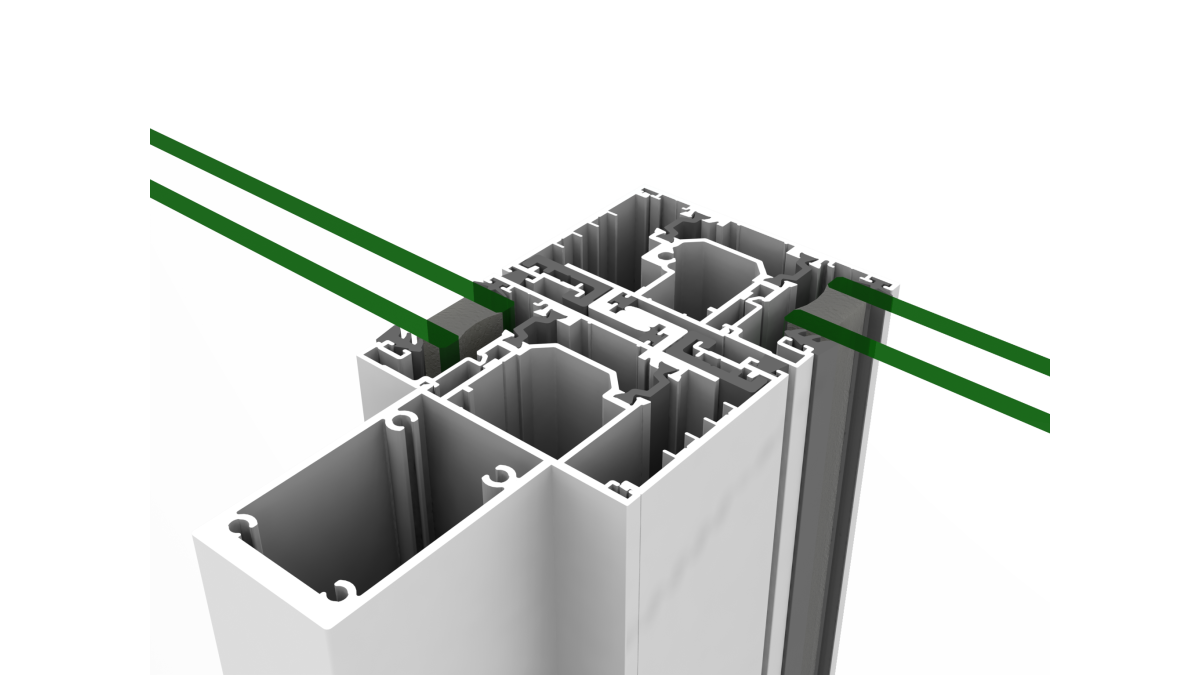

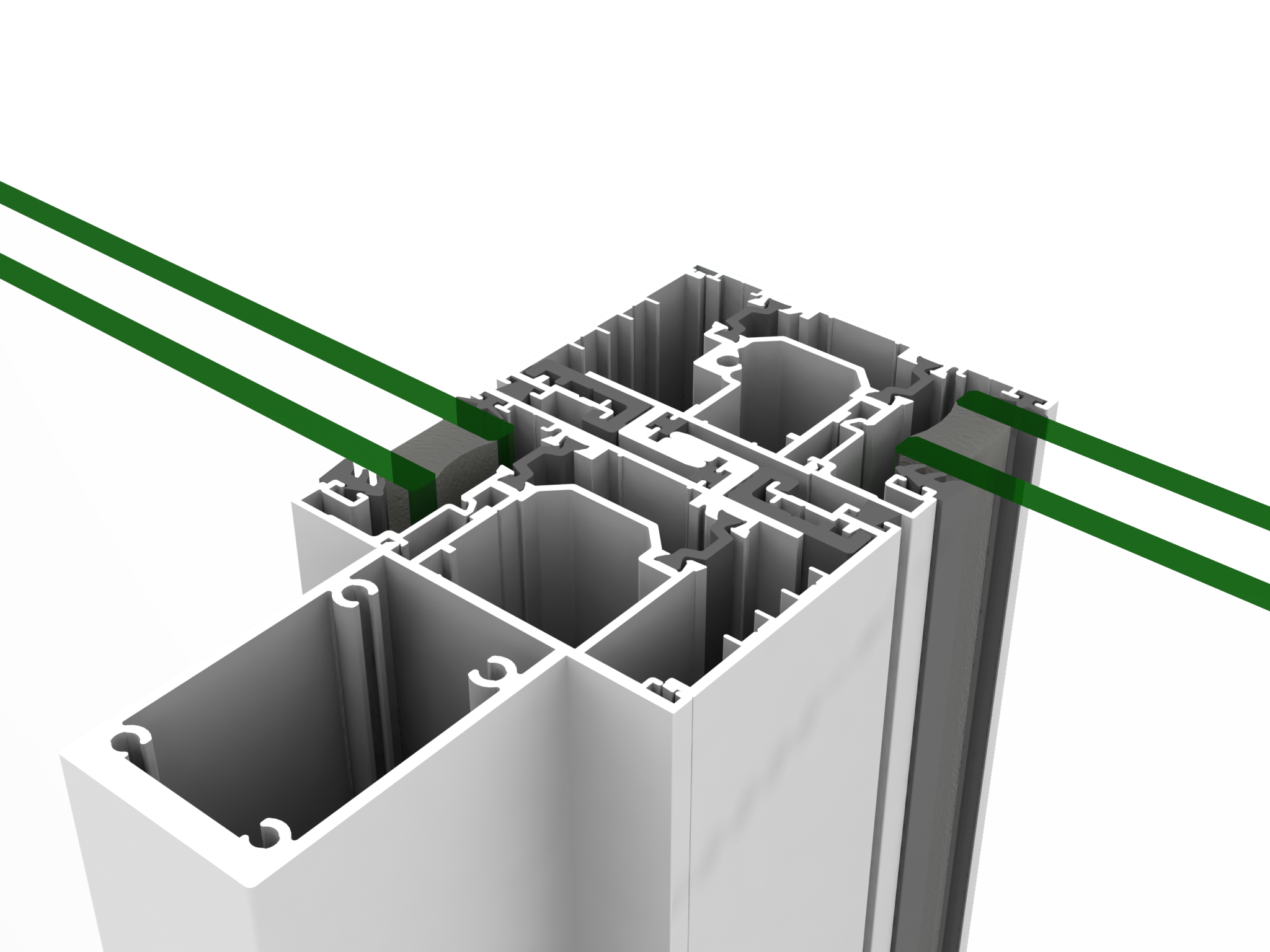

  • Interlocker stiles and mullions are flush in the closed position
  • Door stiles and rails feature slender sightlines
  • Interlockers vary in depth according to height, width and wind pressure requirements
  • Corner sliding doors (90°) are available with no corner post (exterior and interior corners)
  • Innovative sill frame design improves weather and water resistance — door height of 2700mm possible in demanding wind zones. For larger sizes consider using APL Architectural Series ThermalHEART®
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Sashes in sidelights need to be carefully considered and out of the travel path of the door panel
  • Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2023 (previous version 2012)
  • New range rolling out nationally; previous version in use in residential projects, including medium rise, throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet: Metro Series ThermalHEART® Doors
Span Tables: Metro Series ThermalHEART® Sliding Doors
Declare Label

2023

Environmental Product Declaration (EPD) Report

2023

Specifier Guide

2023

WGANZ Guide to E2/AS1

2022

Specifier Guide
Altherm on Masterspec
Full Specification Guide: Metro Series ThermalHEART®

2023

Specification Guide: Metro Series ThermalHEART® Sliding Doors

2023

Manufacturer Contact List
AGP Cleaning & Maintenance

2021

Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability
CAD/PDF Details
Filters
Frame type
Metro Series ThermalHEART® Sliding Doors

FULL SET

PDF and ZIP (contains all DWGs)

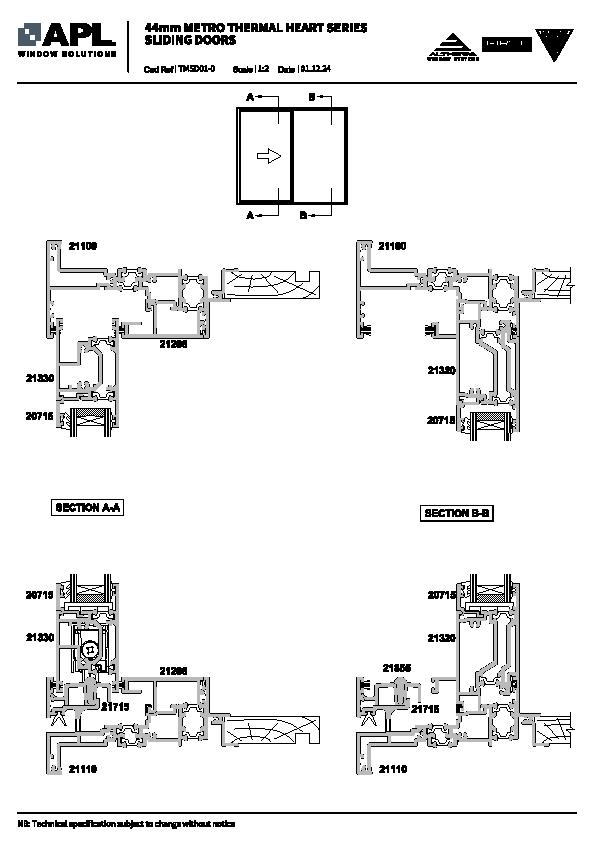

Metro Series ThermalHEART® Sliding Doors

TMSD01

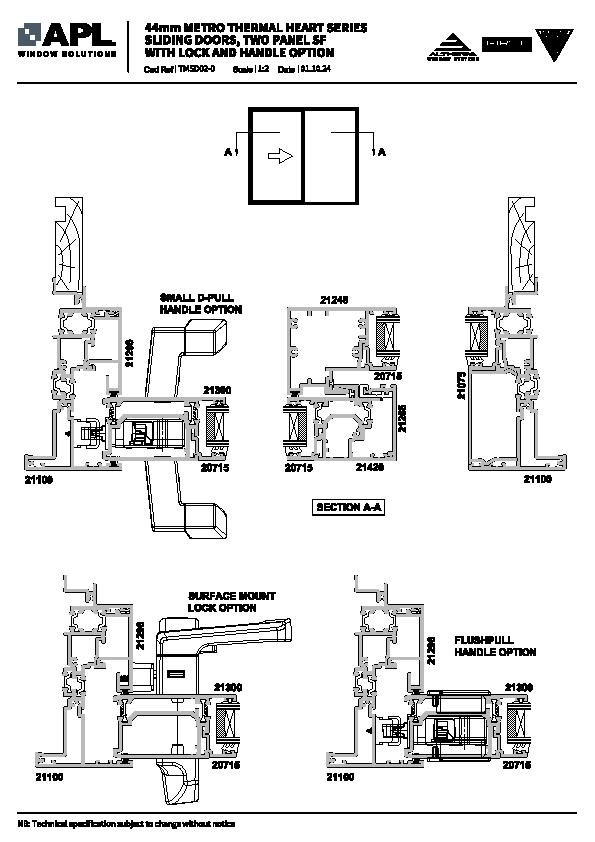

Metro Series ThermalHEART® Sliding Doors — Two Panel SF with Lock & Handle Option

TMSD02

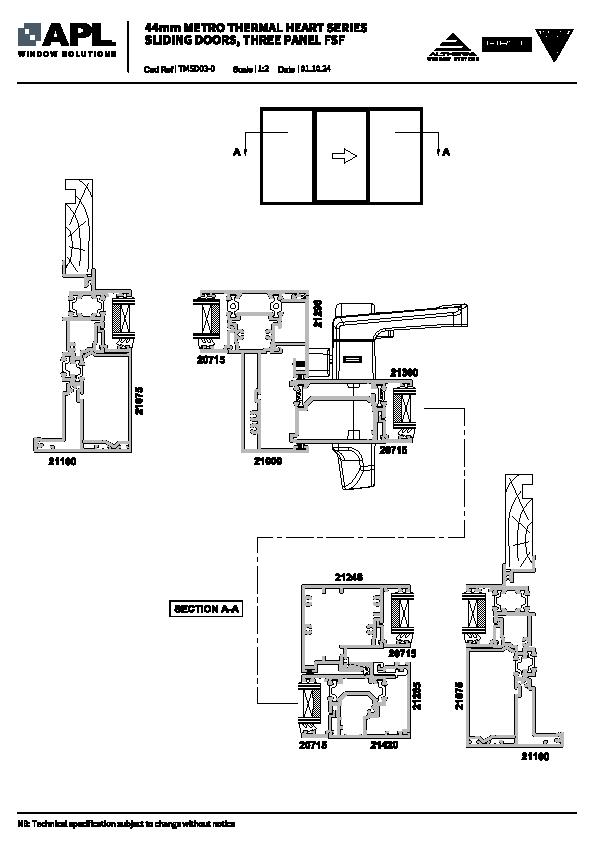

Metro Series ThermalHEART® Sliding Doors — Three Panel FSF

TMSD03

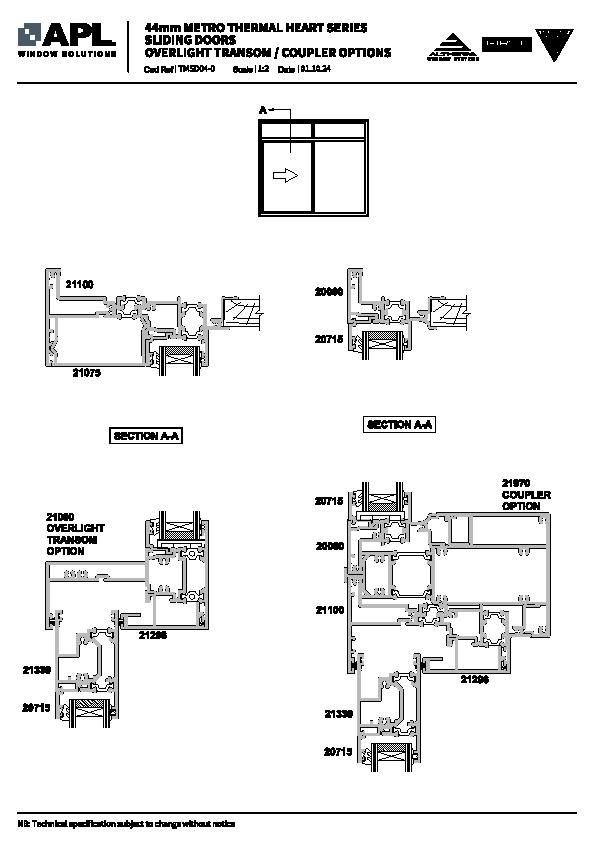

Metro Series ThermalHEART® Sliding Doors — Overlight Transom / Coupler options

TMSD04

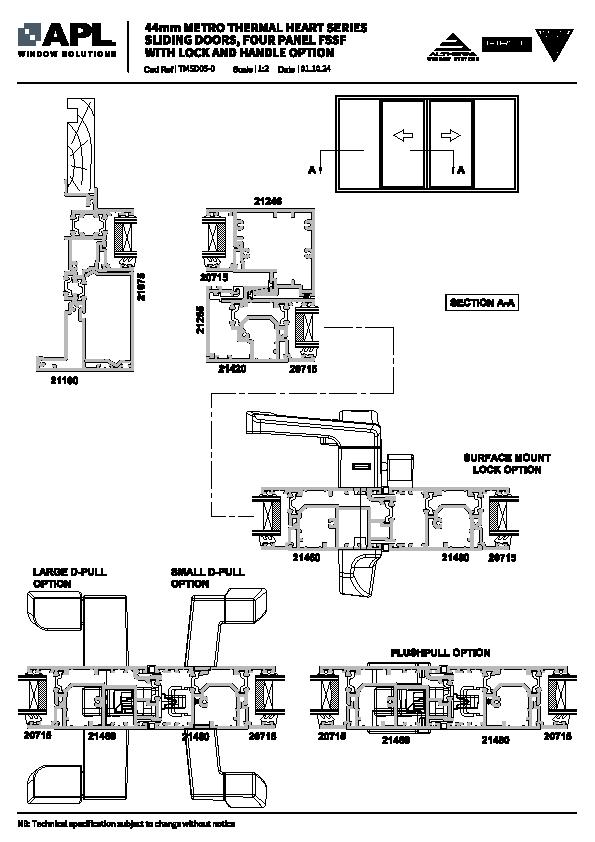

Metro Series ThermalHEART® Sliding Doors — Four Panel FSSF with Handle Options

TMSD05

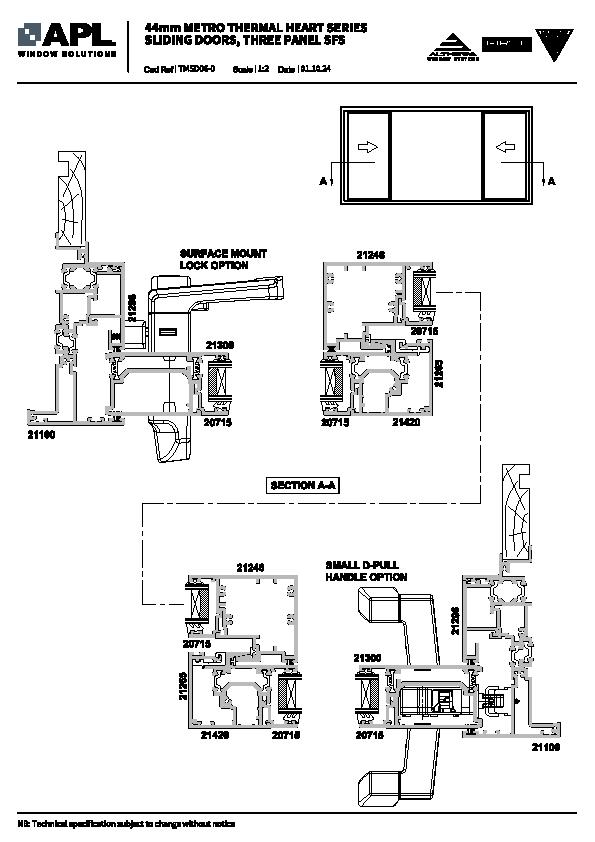

Metro Series ThermalHEART® Sliding Doors — Three Panel SFS

TMSD06

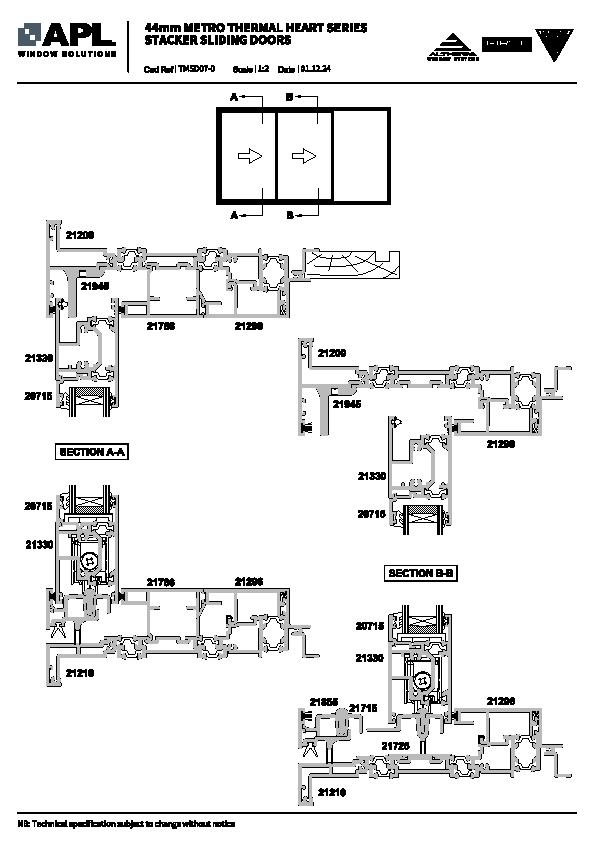

Metro Series ThermalHEART® Stacker Sliding Doors

TMSD07

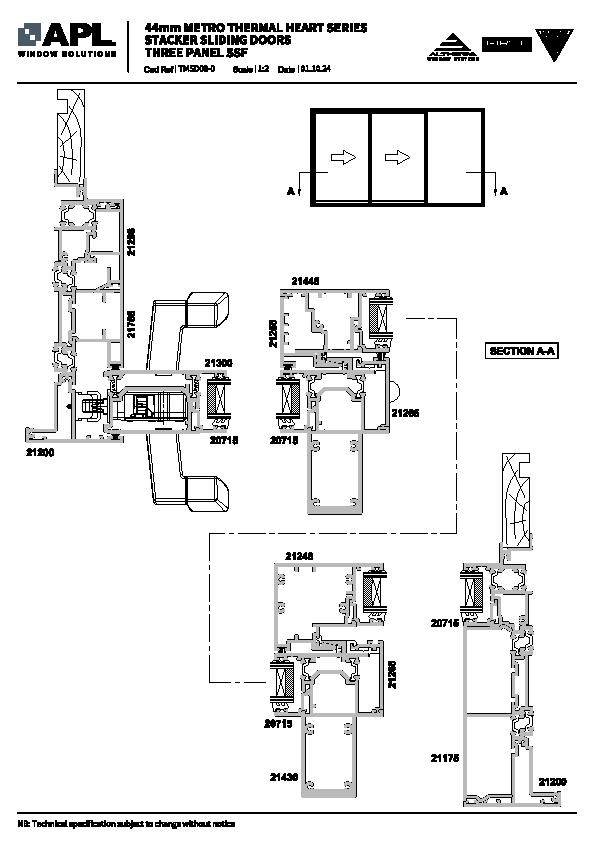

Metro Series ThermalHEART® Stacking Sliding Doors — Three Panel SSF

TMSD08

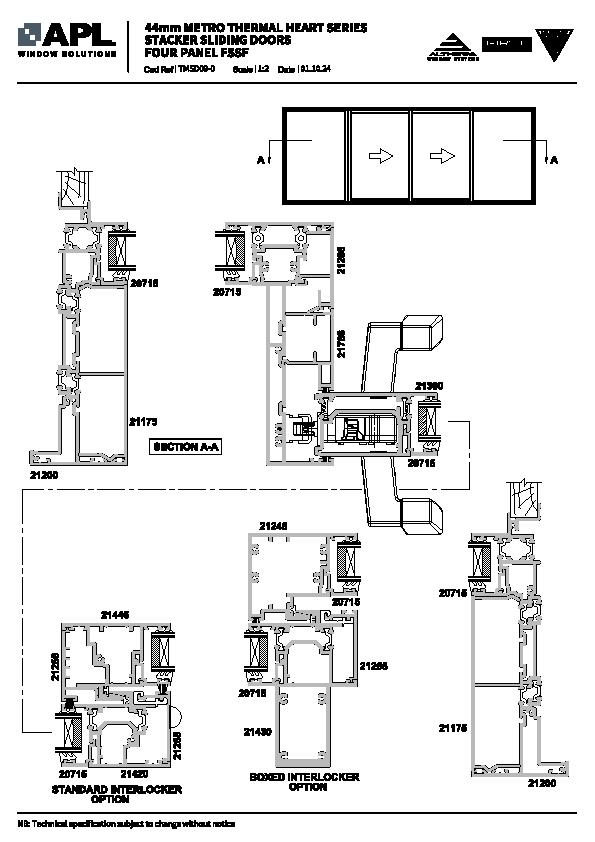

Metro Series ThermalHEART® Stacker Sliding Doors — Four Panel FSSF

TMSD09

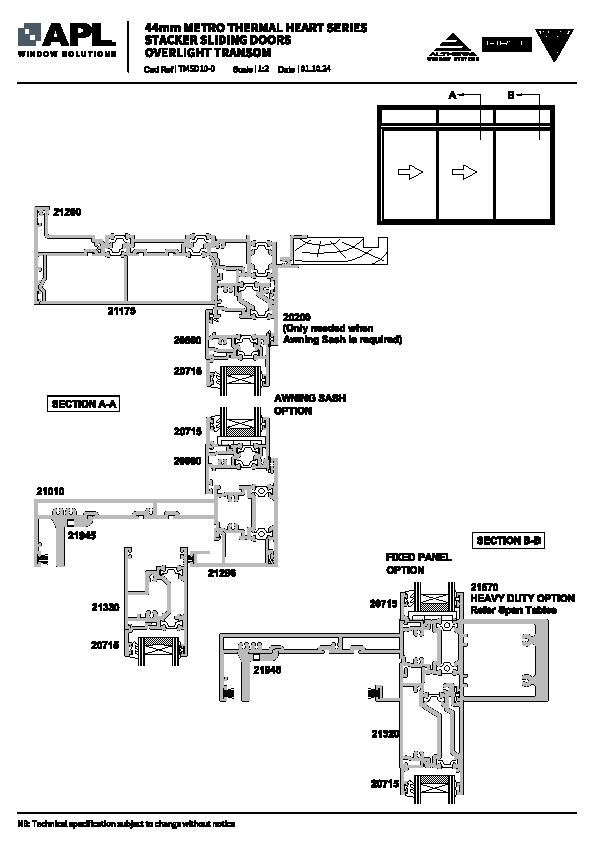

Metro Series ThermalHEART® Stacker Sliding Doors — Overlight Transom

TMSD10

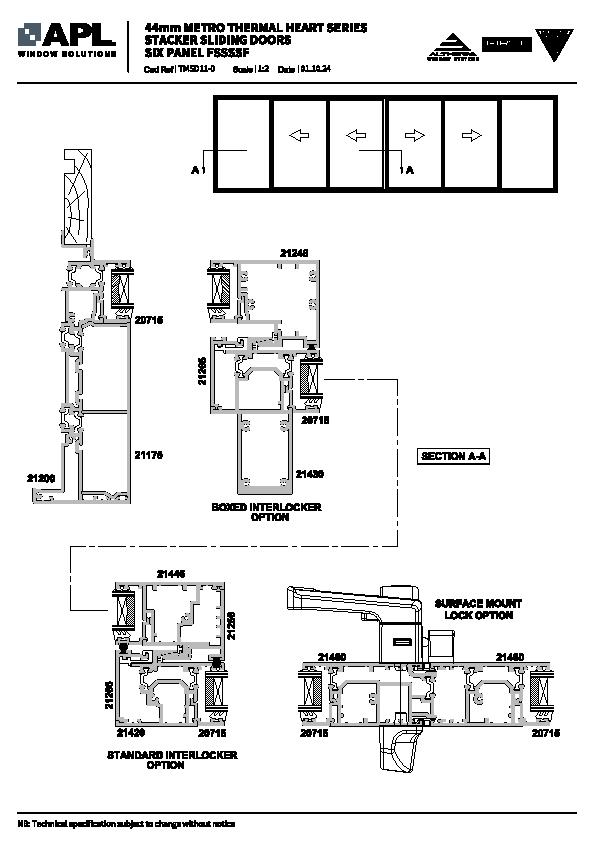

Metro Series ThermalHEART® Sliding Doors — Six Panel FSSSSF

TMSD11

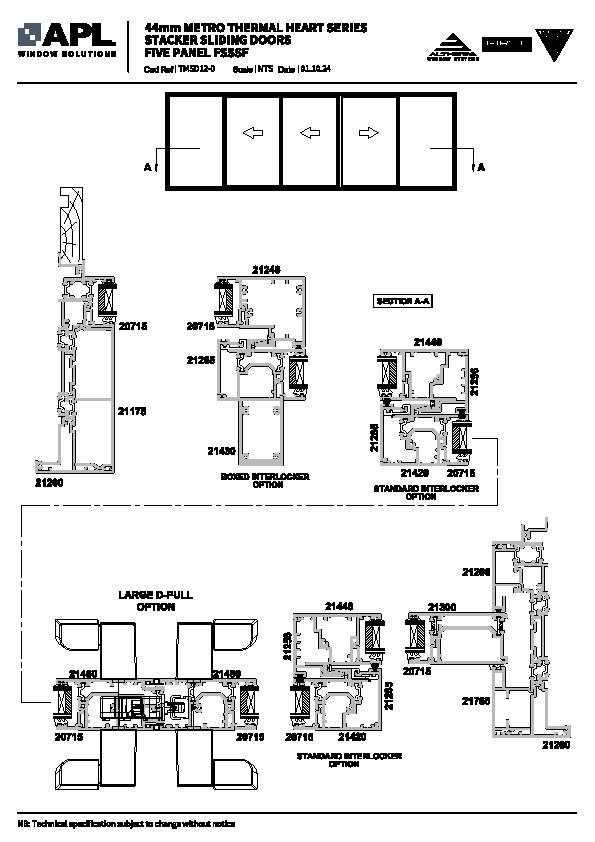

Metro Series ThermalHEART® Sliding Doors — Five Panel FSSSF

TMSD12

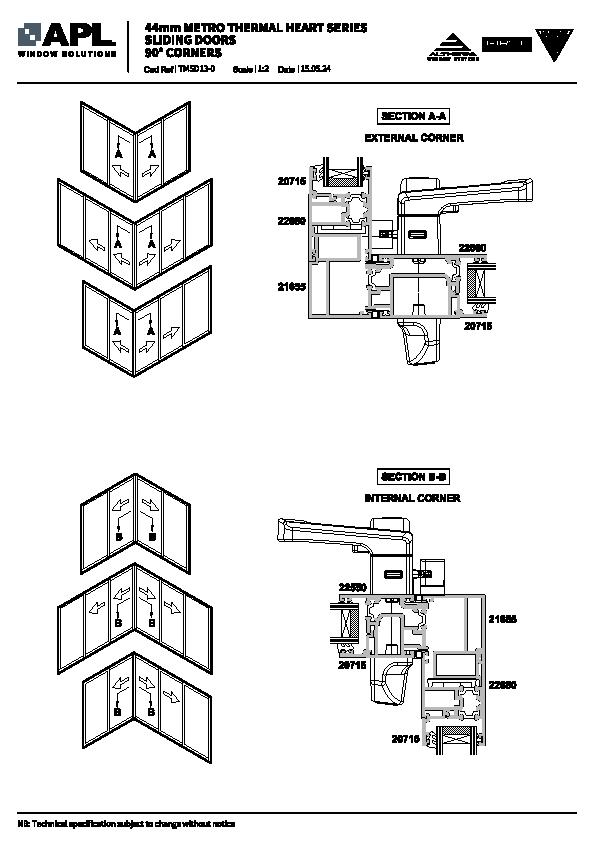

Metro Series ThermalHEART® Sliding Doors — 90° Corners

TMSD13

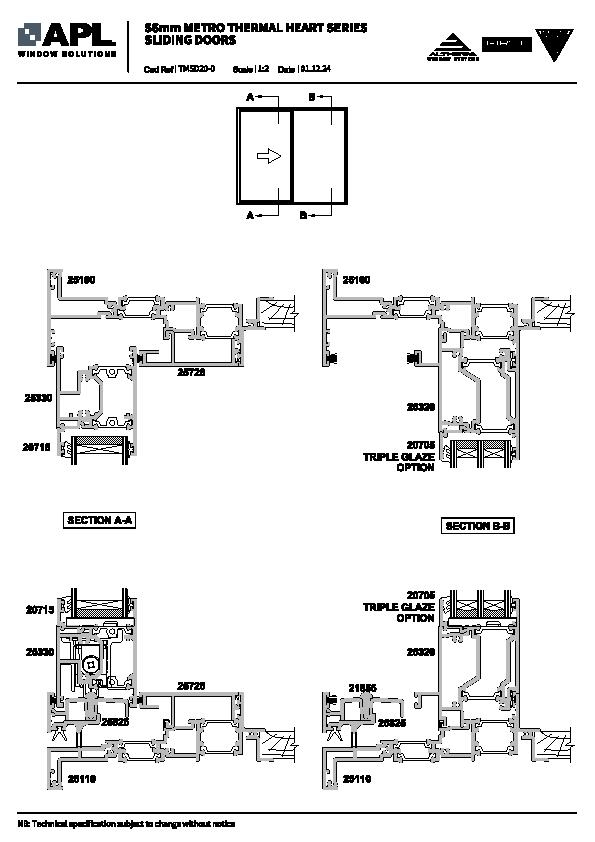

Metro Series ThermalHEART® Sliding Doors (56mm)

TMSD20

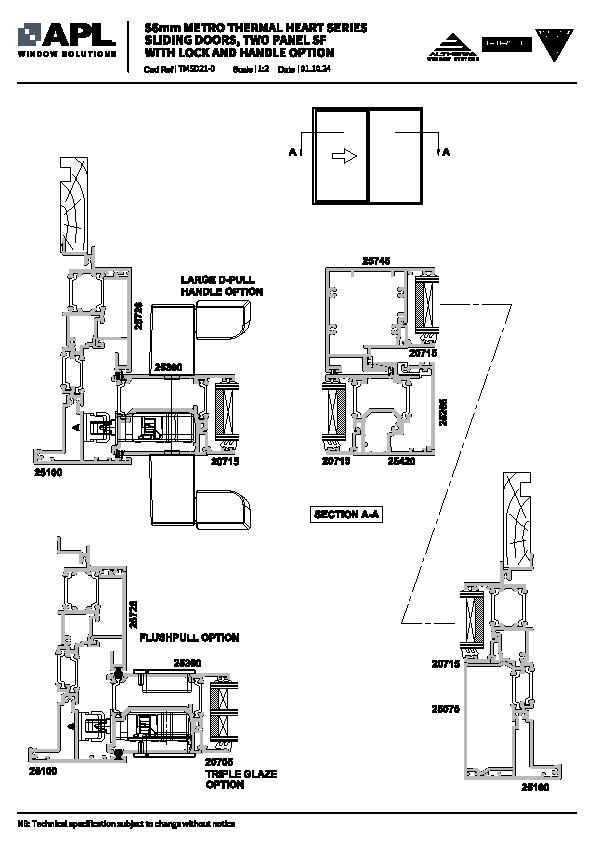

Metro Series ThermalHEART® Sliding Doors — Two Panel SF with Lock & Handle Option (56mm)

TMSD21

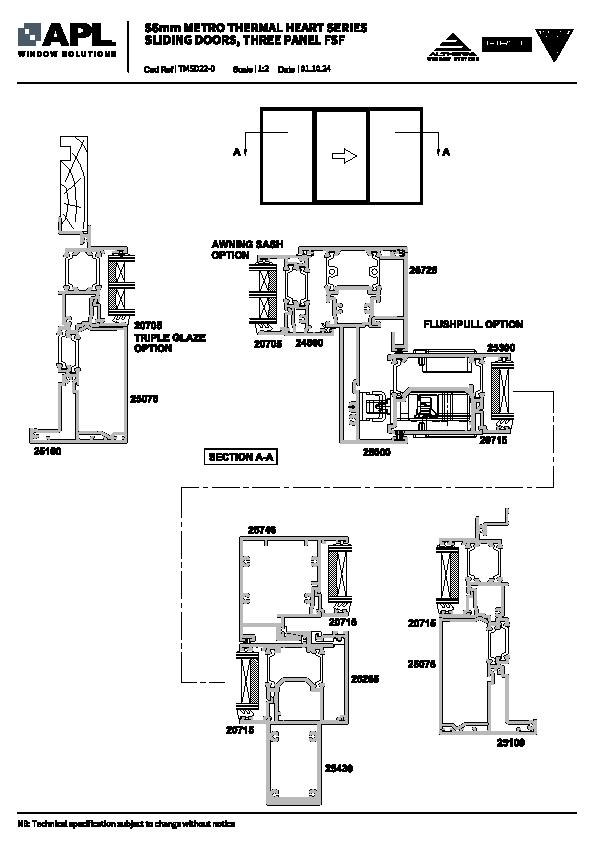

Metro Series ThermalHEART® Sliding Doors — Three Panel FSF (56mm)

TMSD22

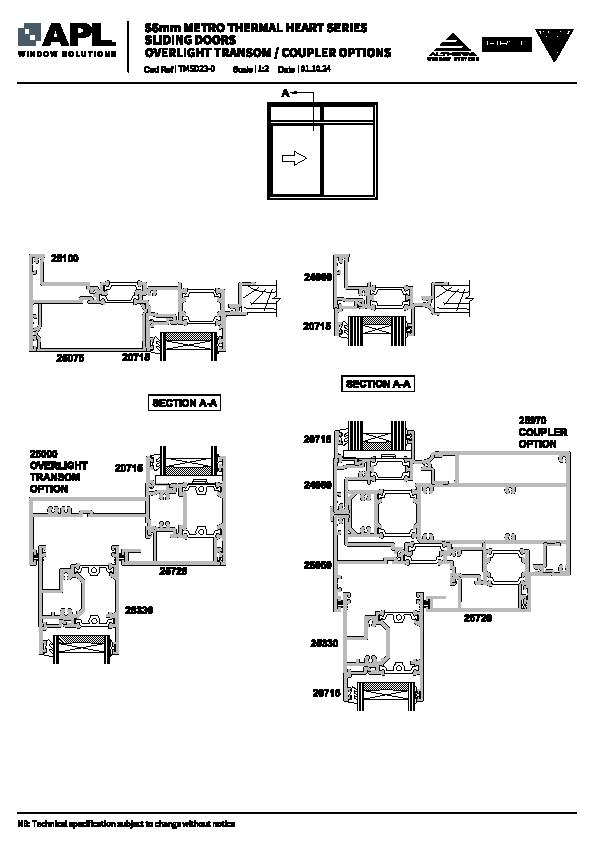

Metro Series ThermalHEART® Sliding Doors — Overlight Transom / Coupler (56mm)

TMSD23

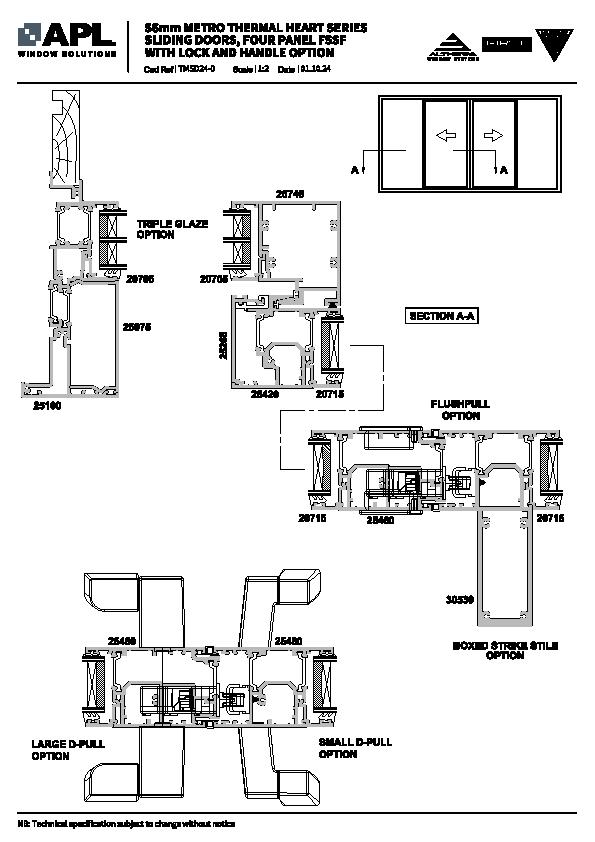

Metro Series ThermalHEART® Sliding Doors — Four Panel FSSF with Handle Options (56mm)

TMSD24

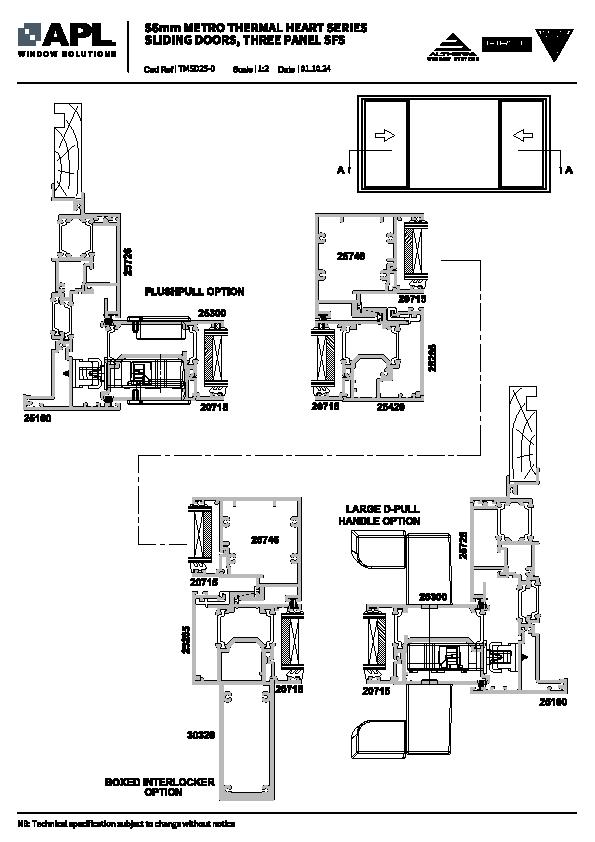

Metro Series ThermalHEART® Sliding Doors — Three Panel SFS (56mm)

TMSD25

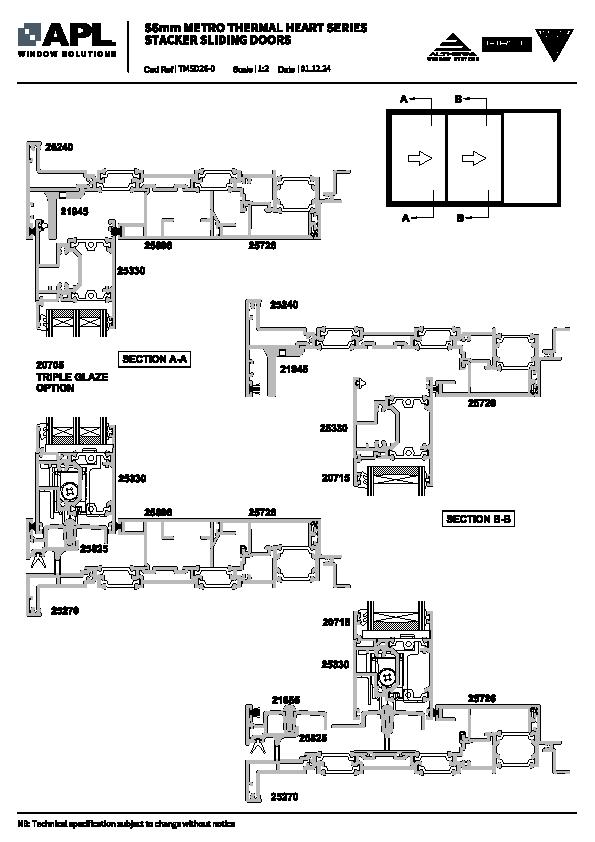

Metro Series ThermalHEART® Stacker Sliding Doors (56mm)

TMSD26

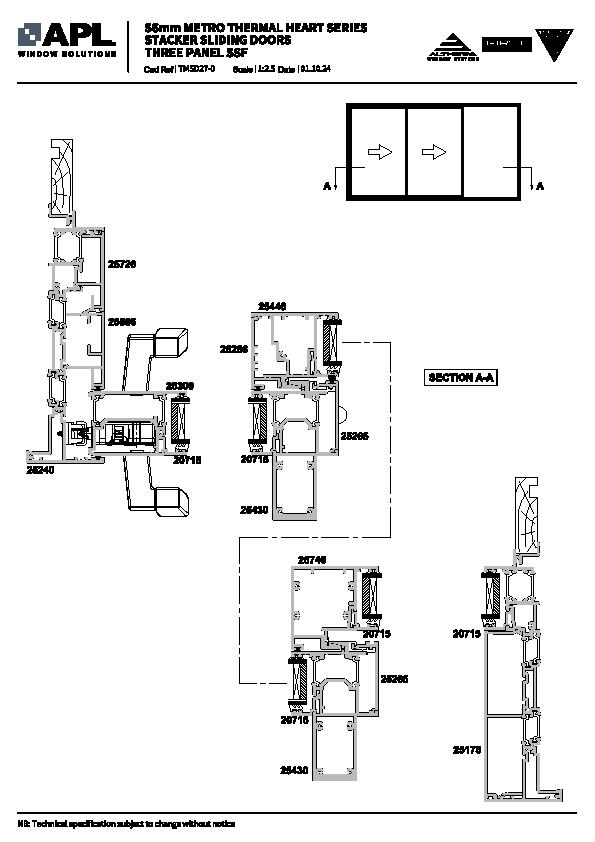

Metro Series ThermalHEART® Stacker Sliding Doors — Three Panel SSF (56mm)

TMSD27

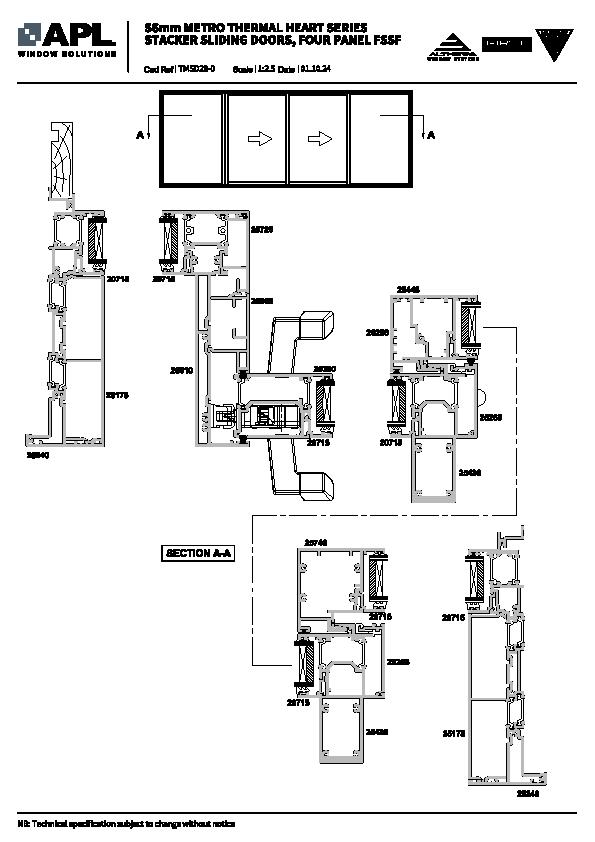

Metro Series ThermalHEART® Stacker Sliding Doors — Four Panel FSSF (56mm)

TMSD28

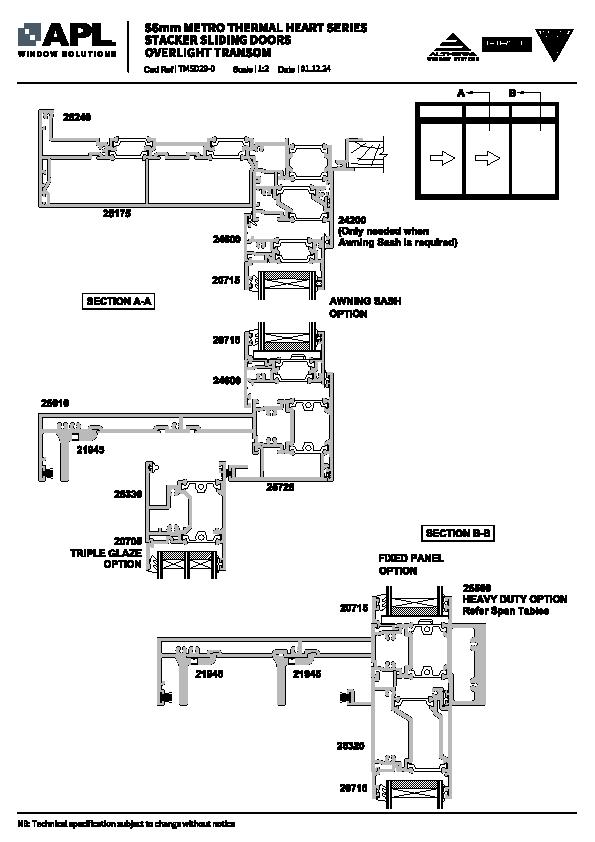

Metro Series ThermalHEART® Stacker Sliding Doors — Overlight Transom (56mm)

TMSD29

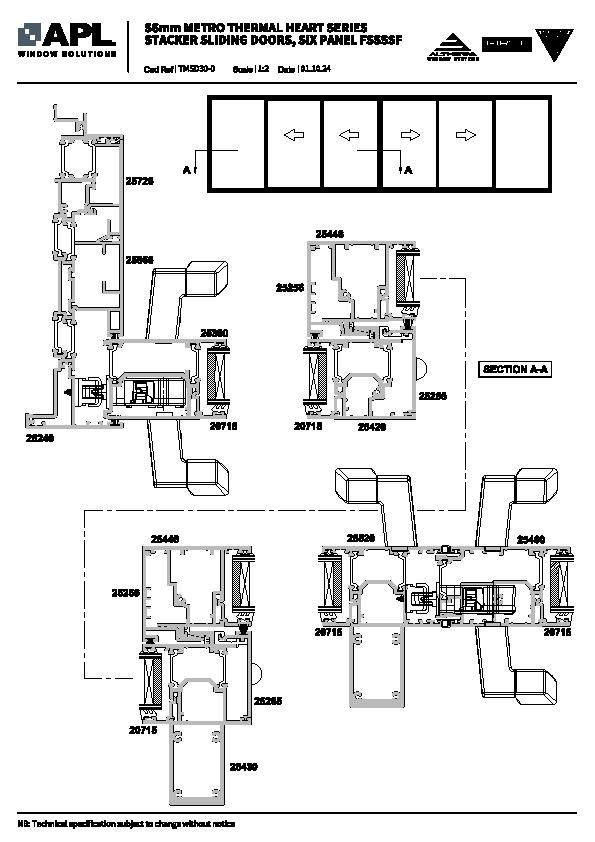

Metro Series ThermalHEART® Stacker Sliding Doors — Six Panel FSSSSF (56mm)

TMSD30

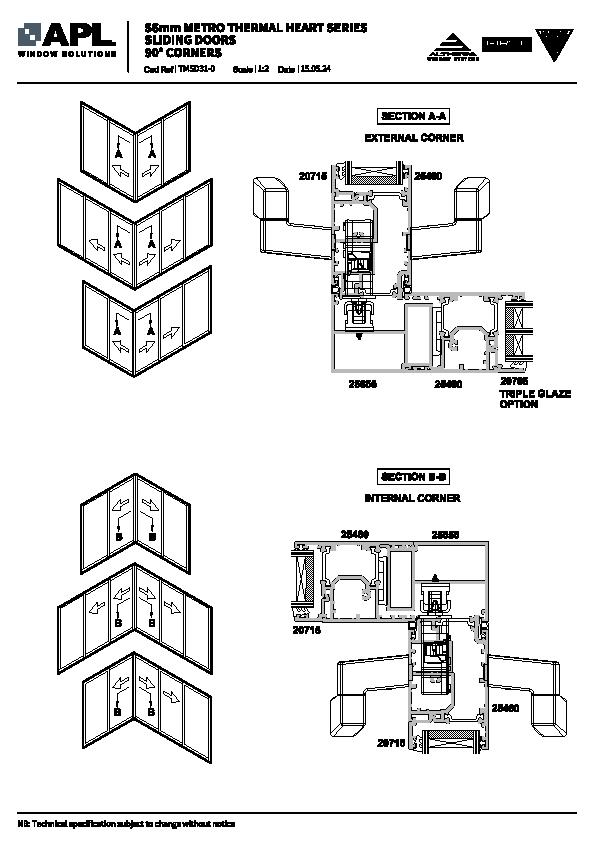

Metro Series ThermalHEART® Sliding Doors — 90° Corners (56mm)

TMSD31

Installation Details
Altherm Metro Series ThermalHEART® Multislider Door on Bevelback Weatherboard

TM44MDBW

Altherm Metro Series ThermalHEART® Multislider Door on Flat Sheet

TM44MDFS

Altherm Metro Series ThermalHEART® Multislider Door on Rusticated Weatherboard

TM44MDRW

Altherm Metro Series ThermalHEART® Multislider Door on Stucco

TM44MDST

Altherm Metro Series ThermalHEART® Sliding Door on Flat Sheet

TM44SDFS

Altherm Metro Series ThermalHEART® Sliding Door on Profile Metal

TM44SDPM

Altherm Metro Series ThermalHEART® Sliding Door on Rusticated Weatherboard

TM44SDRW

Altherm Metro Series ThermalHEART® Sliding Door on Stucco

TM44SDST

Altherm Metro Series ThermalHEART® Multislider Door on Board & Batten (56mm)

TM56MDBB

Altherm Metro Series ThermalHEART® Multislider Door on Brick Veneer (56mm)

TM56MDBV

Altherm Metro Series ThermalHEART® Multislider Door on Flat Sheet (56mm)

TM56MDFS

Altherm Metro Series ThermalHEART® Multislider Door on Stucco (56mm)

TM56MDST

Altherm Metro Series ThermalHEART® Sliding Door on Board & Batten (56mm)

TM56SDBB

Altherm Metro Series ThermalHEART® Sliding Door on Brick Veneer (56mm)

TM56SDBV

Altherm Metro Series ThermalHEART® Sliding Door on Flat Sheet (56mm)

TM56SDFS

Altherm Metro Series ThermalHEART® Sliding Door on Profile Metal (56mm)

TM56SDPM

Altherm Metro Series ThermalHEART® Sliding Door on Rusticated Weatherboard (56mm)

TM56SDRW

Altherm Metro Series ThermalHEART® Sliding Door on Stucco (56mm)

TM56SDST

Altherm Metro Series ThermalHEART® Multislider Door on Board & Batten

TM44MDBB

Altherm Metro Series ThermalHEART® Multislider Door on Profile Metal

TM44MDPM

Altherm Metro Series ThermalHEART® Sliding Door on Board & Batten

TM44SDBB

Altherm Metro Series ThermalHEART® Sliding Door on Brick Veneer

TM44SDBV

Altherm Metro Series ThermalHEART® Sliding Door on Bevelback Weatherboard

TM44SDBW

Altherm Metro Series ThermalHEART® Multislider Door on Bevelback Weatherboard (56m)

TM56MDBW

Altherm Metro Series ThermalHEART® Multislider Door on Profile Metal (56mm)

TM56MDPM

Altherm Metro Series ThermalHEART® Multislider Door on Rusticated Weatherboard (56mm)

TM56MDRW

Altherm Metro Series ThermalHEART® Sliding Door on Bevelback Weatherboard (56mm)

TM56SDBW
