Viking's CodeMarked Membranes Keep Risk Down

This month marks the one-year anniversary of Viking Roofspec achieving its first CodeMark certification. The acquisition of CodeMark for Viking Bituclad torch-on membrane, was followed up by Viking Enviroclad TPO membrane becoming the second CodeMark certified Viking system seven months later.

This time-lapse demonstrates the 'bruising' process a supplier must endure in order to achieve a CodeMark certification, but this is what makes CodeMark so reliable and trustworthy. At the end of this process, the market becomes aware that: (i) this is a pristine membrane system; (ii) made by a world-class manufacturer; (iii) represented by a professional local distributor, and; (iv) installed only by licensed applicators.

This is precisely why Viking Roofspec decided to pursue CodeMark certification for its systems — a desire to raise the standards of waterproofing in New Zealand. Only three roofing and decking membranes in New Zealand hold CodeMark certification — two of these belong to Viking Roofspec. The core, underlying drive to raise the standards of waterproofing results in an increased reassurance to the end-user that his/her building will remain watertight for the duration of the system's life-span and beyond.

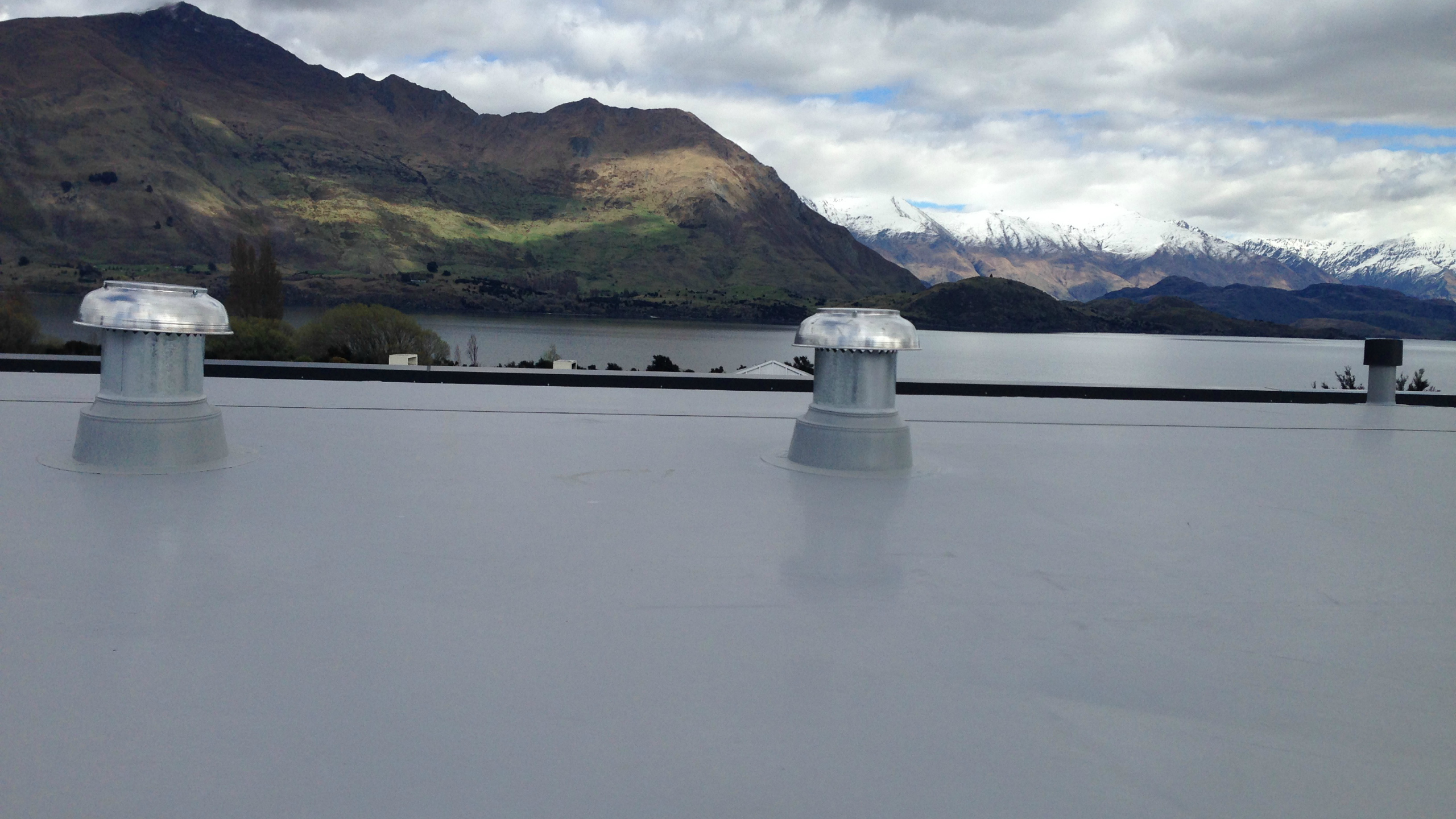

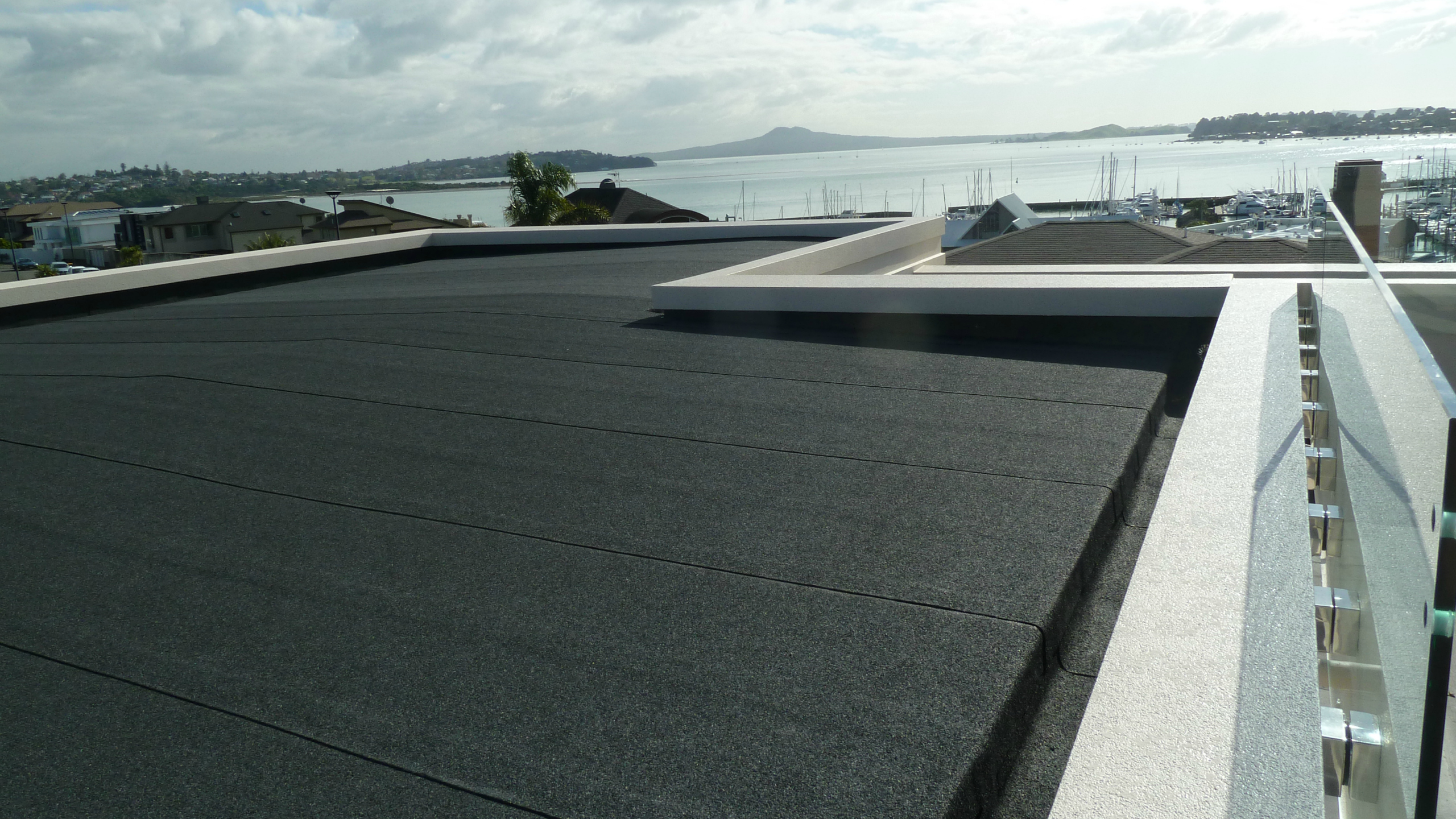

A couple of examples of recent projects whereby CodeMark certification was a key motivator behind Viking membranes being specified included several thousand square metres of Enviroclad being installed on a cold store at Fonterra in Te Rapa. The other was a very large, award-winning architectural home situated in Bendemeer, Central Otago, using Bituclad torch-on. In both cases, the decision makers demanded 'absolute risk minimisation' and with Viking's CodeMark certified membrane systems, that's what they received.

Note: Viking Bituclad has now been replaced with three fit for purpose solutions: Viking GM Lybra, Gemini and Phoenix Super.

Enviroclad (TPO) Waterproofing Membrane

Viking Roofspec

View Product

Viking Enviroclad offers absolute watertight integrity for low-slope roofs.

NZ-Owned Business

Viking Enviroclad Roofing and Deck Membrane System has been assessed as a roof and deck waterproofing membrane on buildings within the following scope:

the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
with substrates of plywood or suspended concrete slab

Viking Enviroclad Roofing and Deck Membrane System has also been assessed for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
with substrates of plywood or suspended concrete slab
with the weathertightness design of junctions for each specific structure being the responsibility of the building designer

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad Roofing and Deck Membrane System meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad Roofing and Deck Membrane System meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Gemini APP TorchOn Membrane

Viking Roofspec

View Product

Viking Gemini APP is a robust and versatile membrane system ideally suited to New Zealand's North Island (except the Central Volcanic Plateau) and the Pacific Islands.

NZ-Owned Business

Viking Gemini APP is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Gemini APP Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Viking Gemini APP Waterproofing Membrane has also been assessed for use as a roof waterproofing membrane on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Gemini A.P.P Waterproofing Membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Gemini A.P.P Waterproofing Membrane meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Gemini A.P.P Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Gemini A.P.P Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Lybra SBS TorchOn Membrane

Viking Roofspec

View Product

Viking Lybra SBS is a robust and versatile membrane system ideally suited to New Zealand's South Island and the North Island's Central Volcanic Plateau.

NZ-Owned Business

Viking Lybra SBS is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Lybra SBS Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Lybra S.B.S Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark
