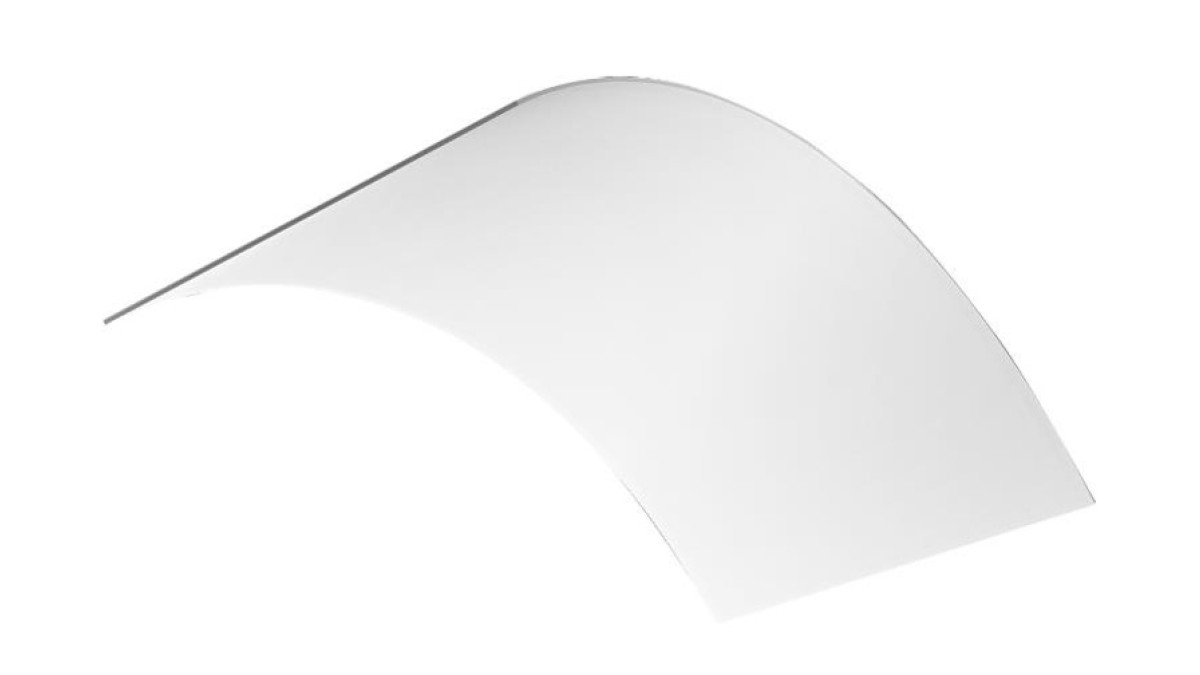

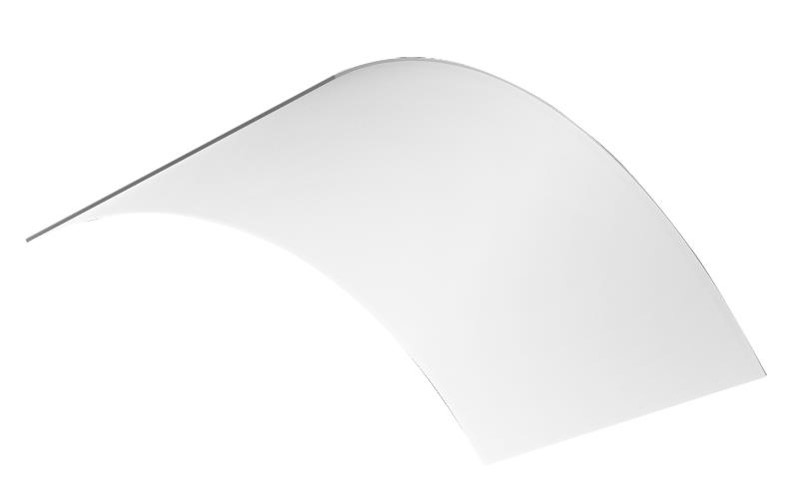

6.5mm GIB Curveline has been specifically formulated to allow the creation of tightly curved walls, to help add a unique and modern architectural look to any interior space.

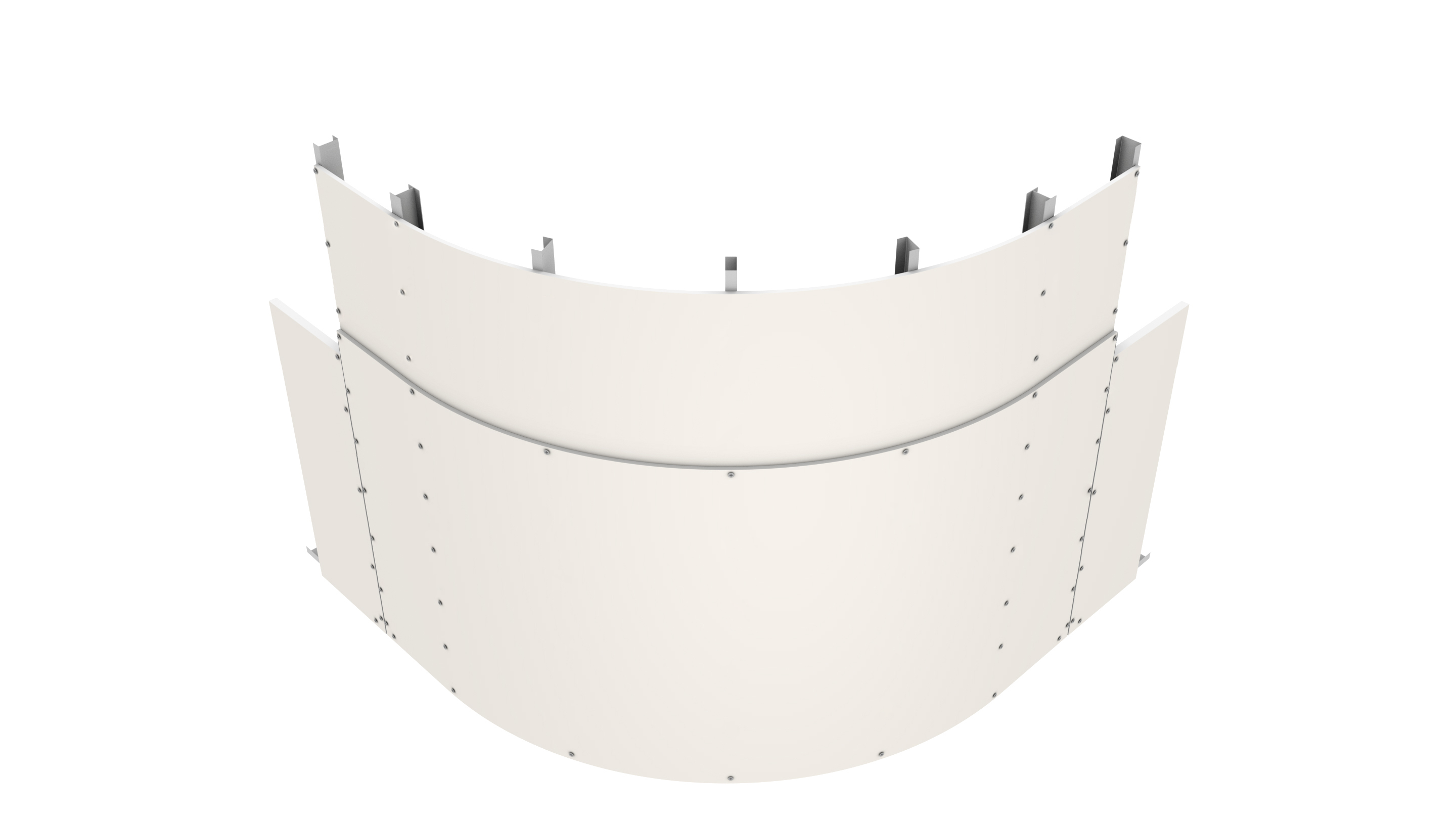

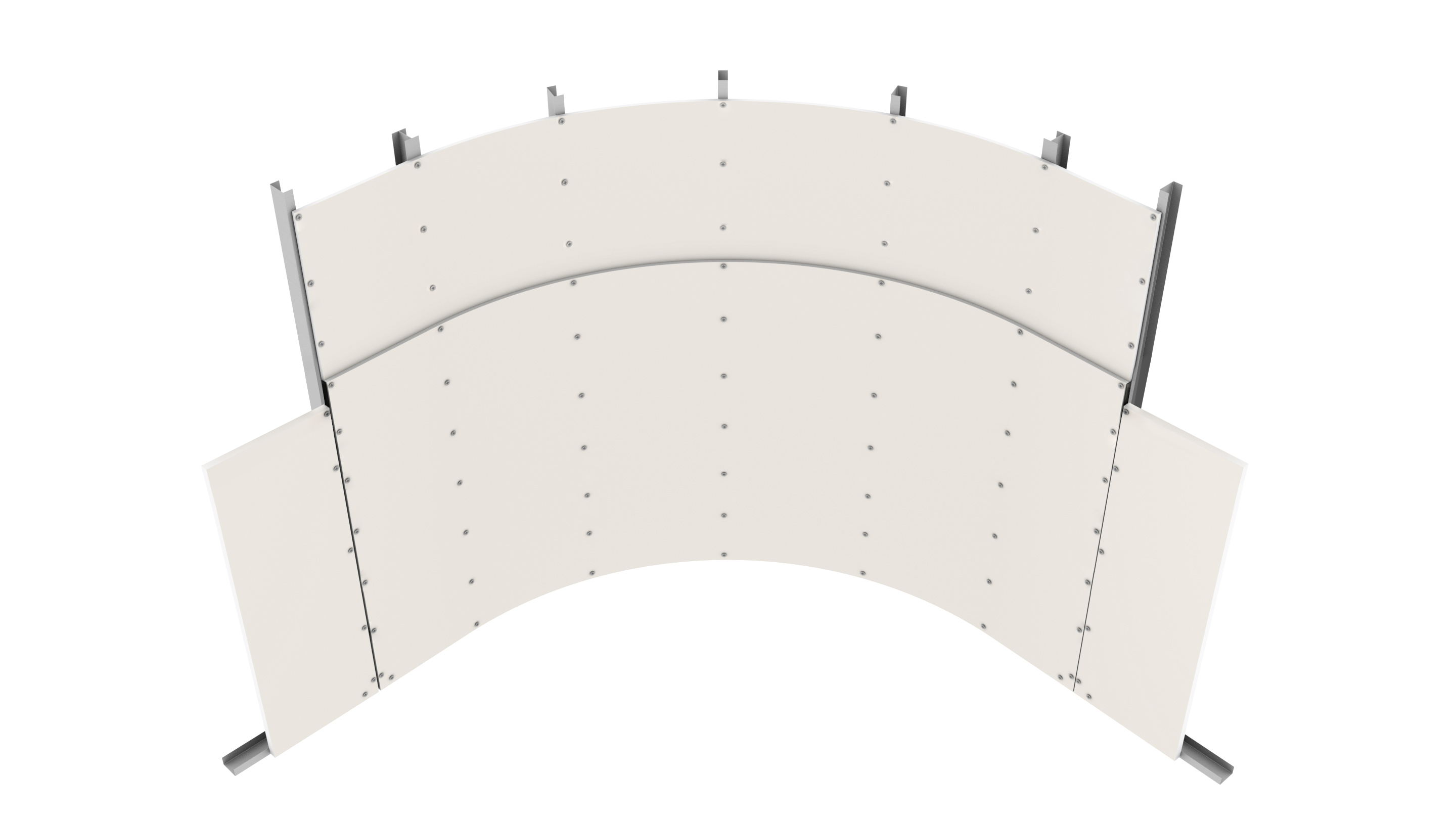

10mm and 13mm GIB plasterboard can also be used to form curved walls however GIB Curveline can accommodate a 250mm minimum radius for convex curves and 450mm minimum radius for concave curves.

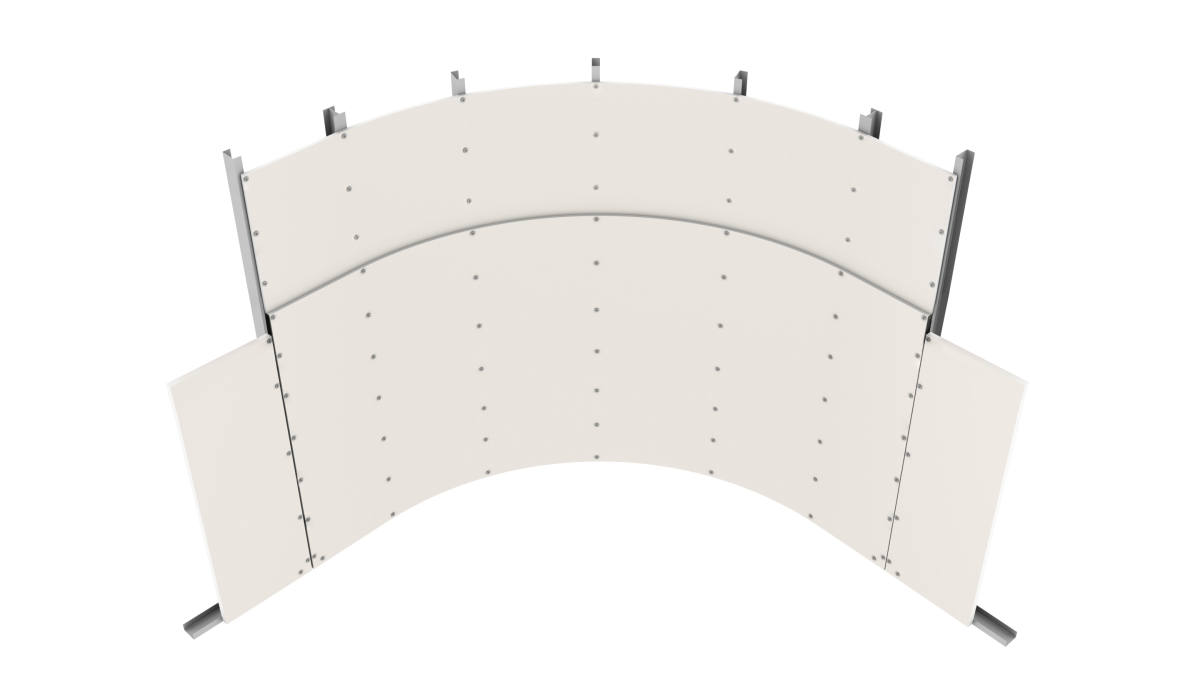

GIB Curveline sheets can be fixed horizontally or vertically and are typically installed as a two-layer system so it’s easy to then align with adjoining 13mm GIB plasterboard interior linings.

In additional to 6.5mm GIB Curveline, two new Rondo Flexible Track options are also available to help to make accurate formation of curved wall frames quicker and easier. Rondo Flexible Tracks run along the top and bottom of the curved wall area, with supporting studs then positioned into the tracks with GIB Curveline sheets then fastened to the wall framing.

GIB Curveline product range

For more information on GIB Curveline and general curved wall and ceiling guidance using other GIB plasterboards refer to the GIB Curveline Specification and Installation Manual, visit gib.co.nz or contact the GIB Helpline 0800 100 442
