Klima Series Hinged Door
APL 2019 Specifier Guide available Order now
Description

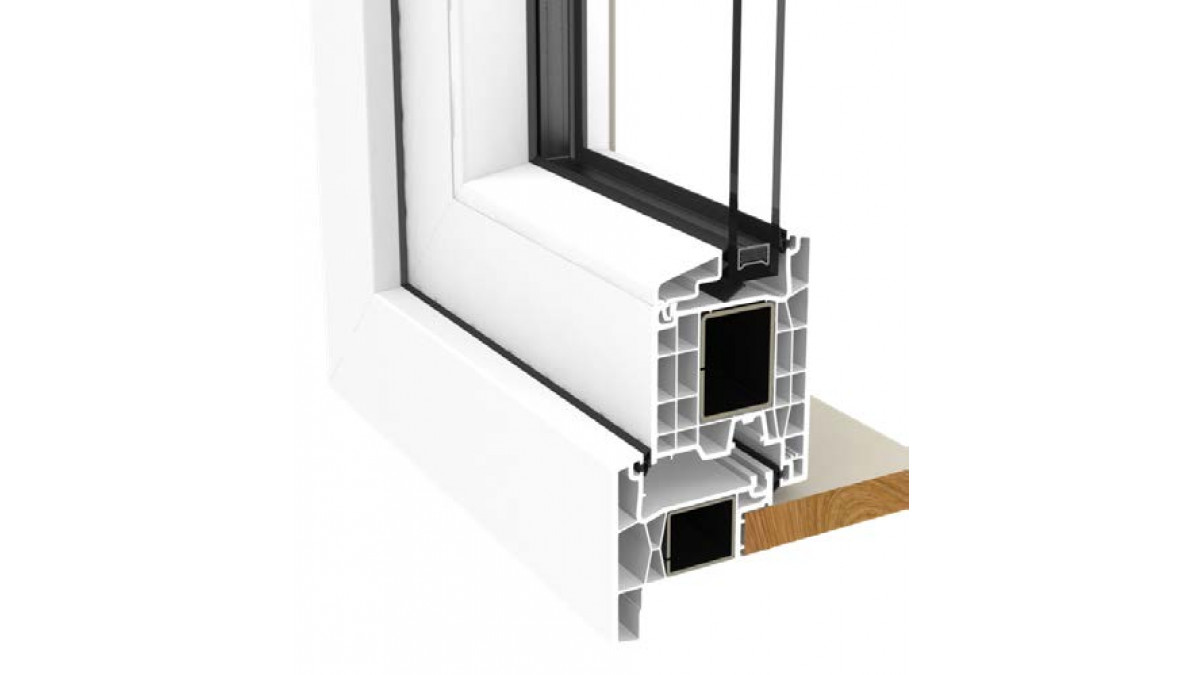

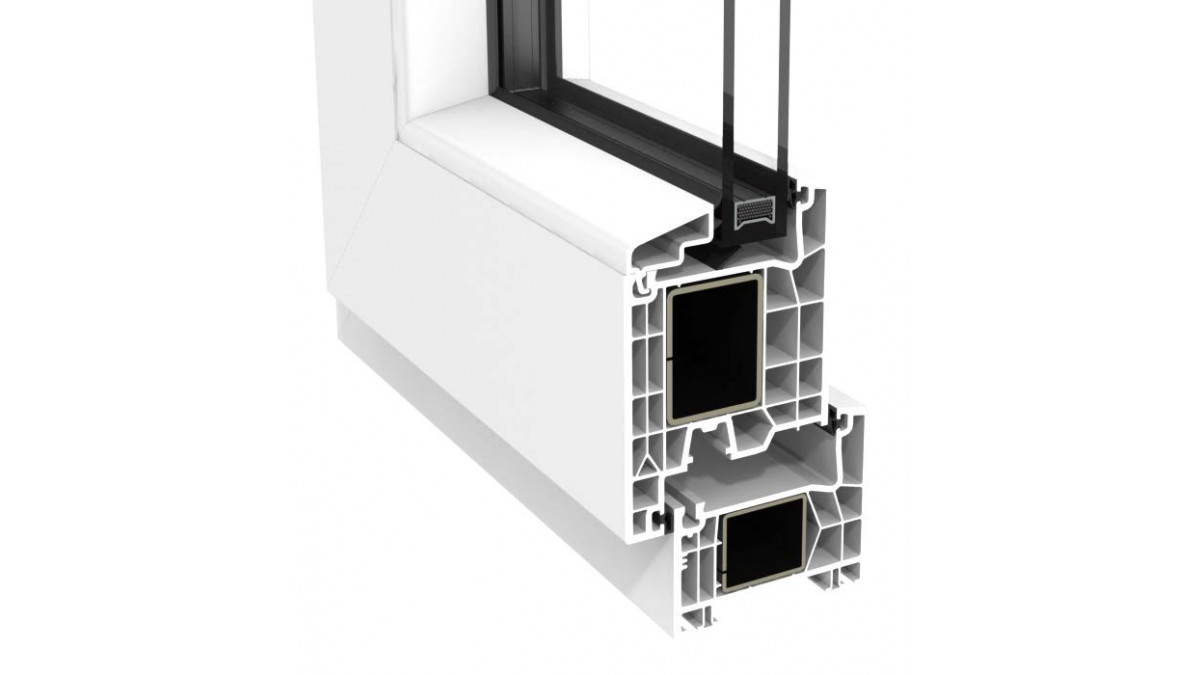

Klima is an innovative range of uPVC windows and doors optimised for New Zealand conditions. Based on the German Kommerling 76mm Series, Klima features thick profiles for thermal insulation and hidden steel reinforcing to ensure shape stability and structural excellence. Klima windows and doors are made from a highly durable, 'hot country' uPVC — an environmentally-friendly, lead-free formulation.

Klima's product range comprises sliding, hinged and French doors and awning, casement and sliding windows. A tilt-n-turn window with inward opening casement/hopper sash is also offered.

Klima is rated to the maximum 6 energy stars under WEERS when used with Low-E double glazing.

Key Features
  • Recommended maximum 2200mm high doors in Very High wind zones
  • Available in open-out and open-in formats
  • Open-in doors have a low threshold option

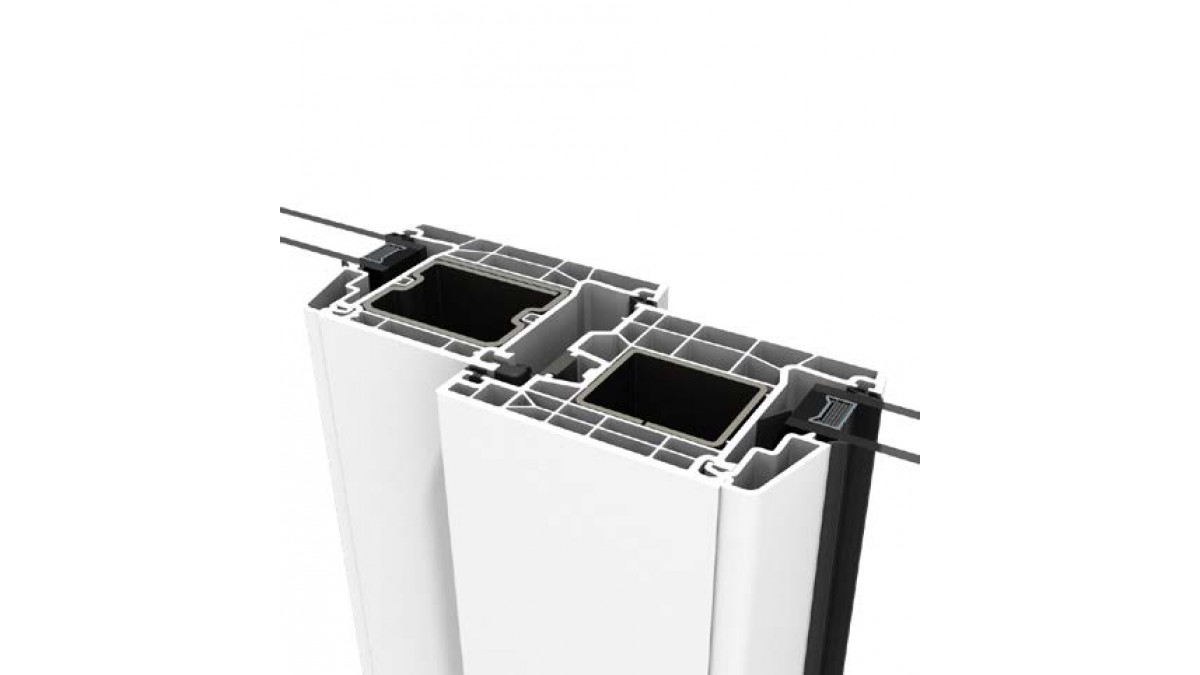

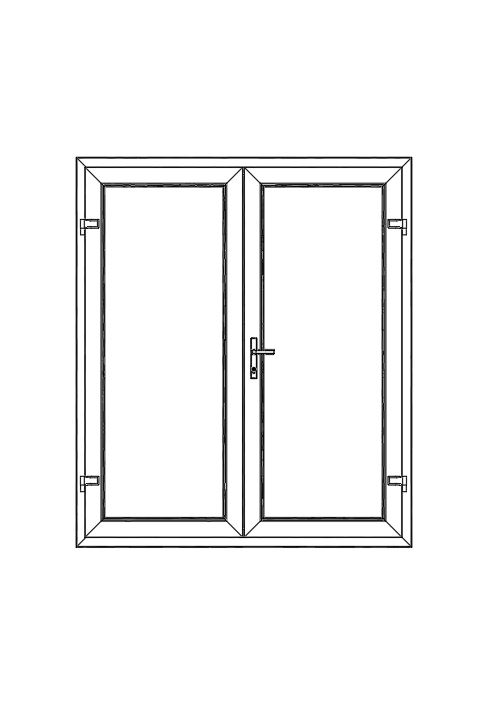

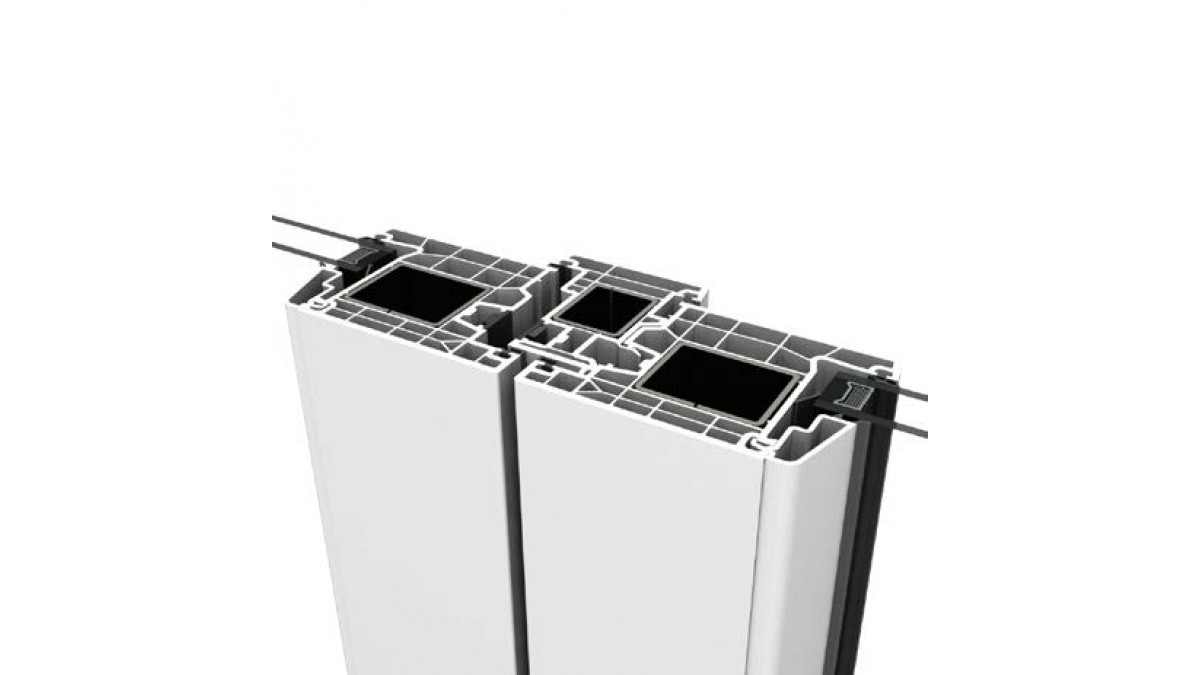

  • French doors can be open-in or open-out. The open-in version has meeting stiles that are flush on the interior while the open-out stiles are flush on the exterior
  • Available as standard in white but can also be supplied with other exterior colours using the ‘AluClip’ system where an exterior aluminium facing is used

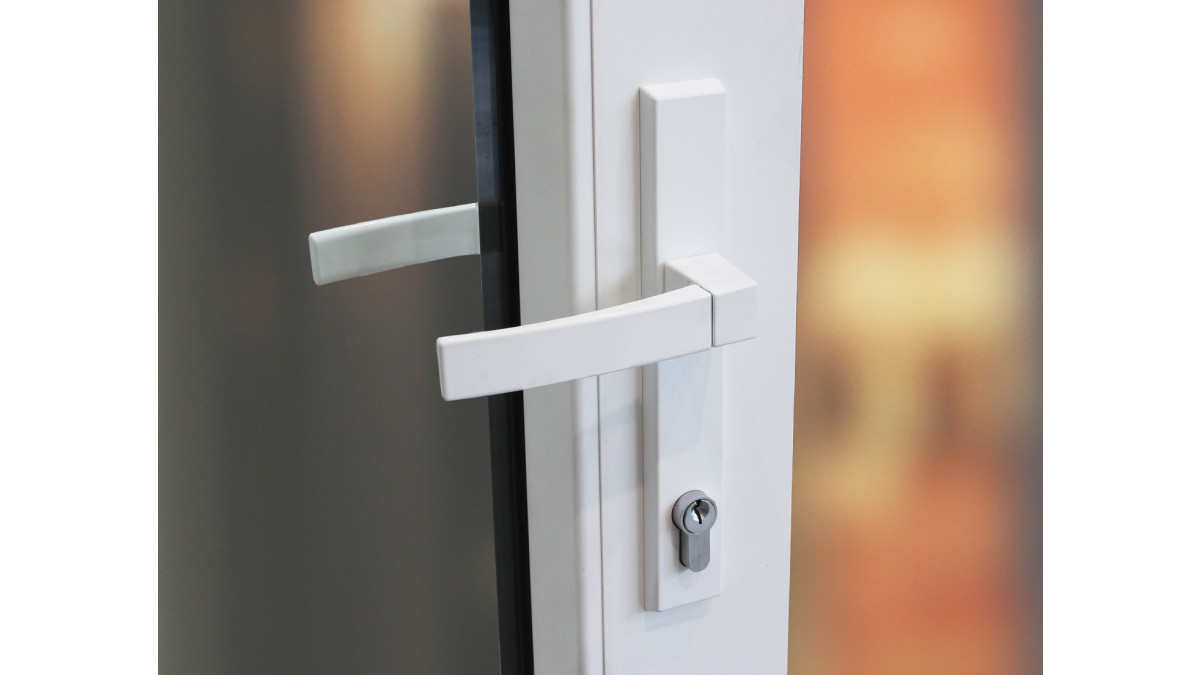

  • An Urbo style lever handle activates four points of locking in the jamb frame
Energy Star
Energy Star
Scope of Use
  • Suitable for most residential environments
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Sidelights are possible
Limitations on Use
  • Recommended maximum 2200mm high doors in Very High wind zones
Statement of Building Code Compliance
  • Klima doors comply with Clause B2 of the New Zealand Building Code and can be expected to have a trouble-free serviceable life of not less than 15 years. This pertains specifically to the structural elements of the joinery
  • Klima doors from Vantage have been tested for performance and comply with NZS4211:2008 Performance of Windows
In-Service History
  • Launched in 2017
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Klima product conforms to the NZ Building Code, including clause B2. The AluClip surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
B2 Durability compliant
Durability
Documents
Data Sheet
Data Specification
Span Tables
Producer Statement / Warranty

2017

Vantage Care & Maintenance Guide

2017

Specifier Guide
Manufacturer Contact List
WGANZ Guide to E2/AS1

1 August 2019

Vantage Brochure
Hardware
APL and Sustainability

2019

CAD/PDF Details
Full Set of Drawings

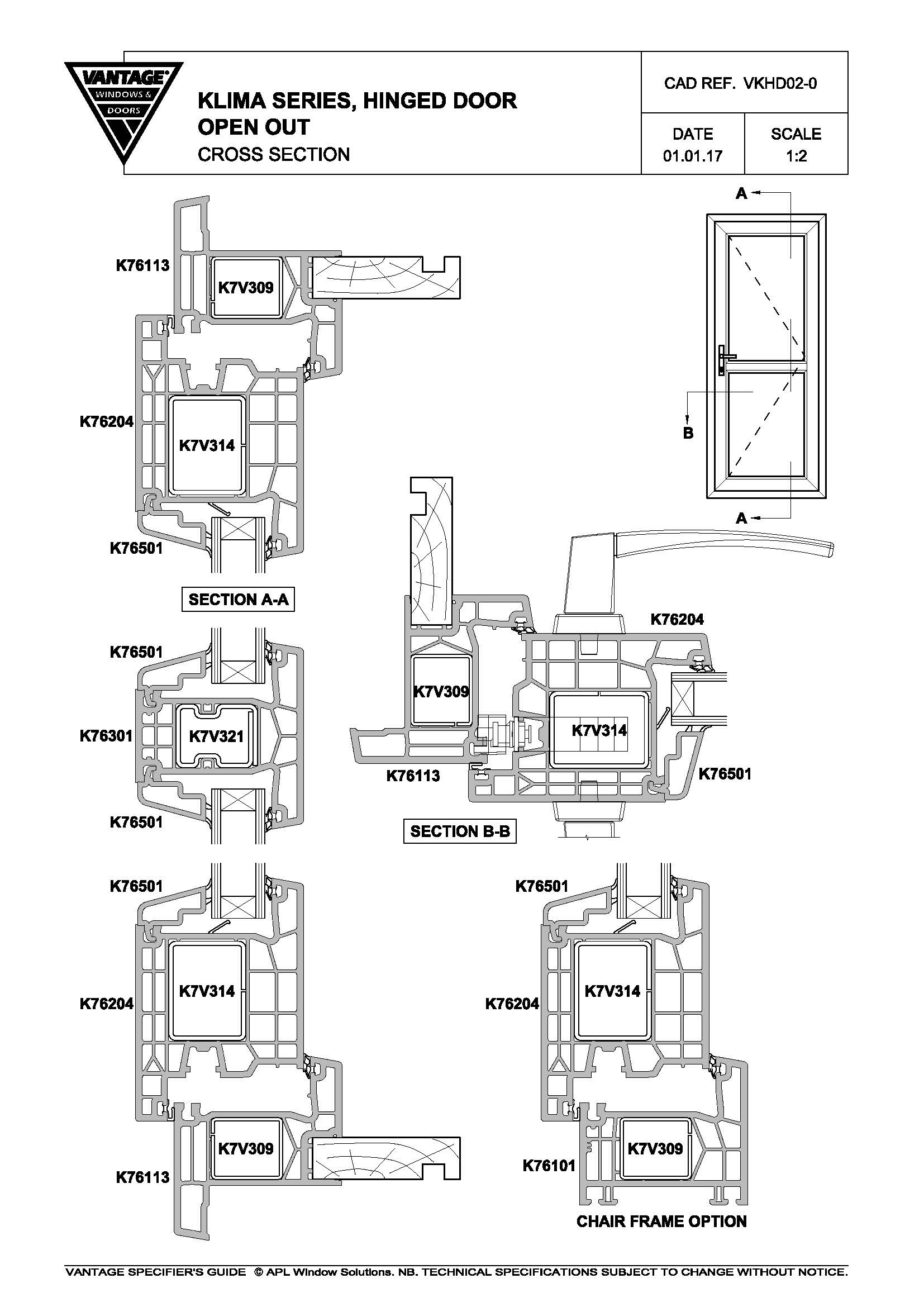

Vantage Klima Series Hinged Door, Open Out

VKHD02-0

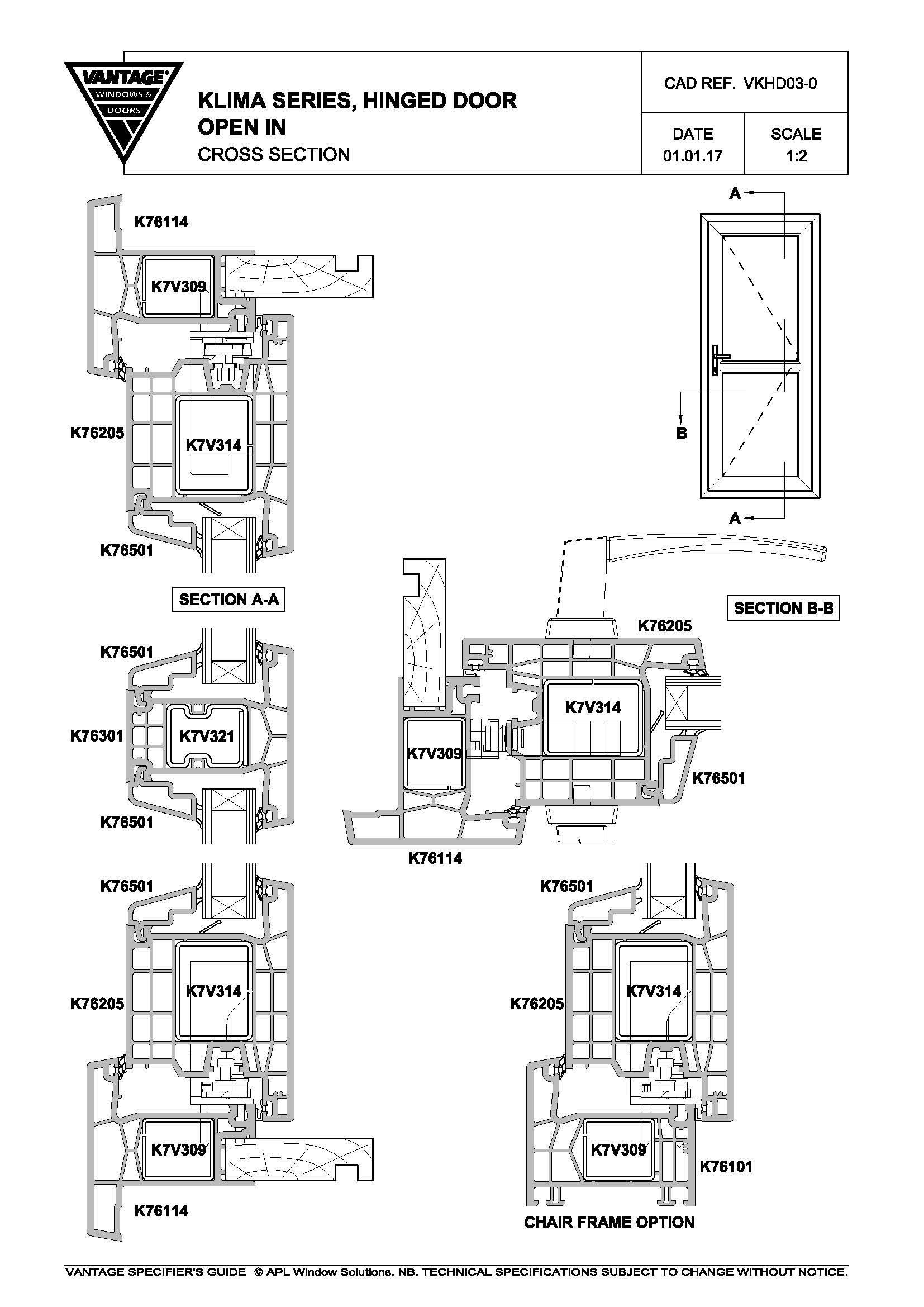

Vantage Klima Series Hinged Door, Open In

VKHD03-0

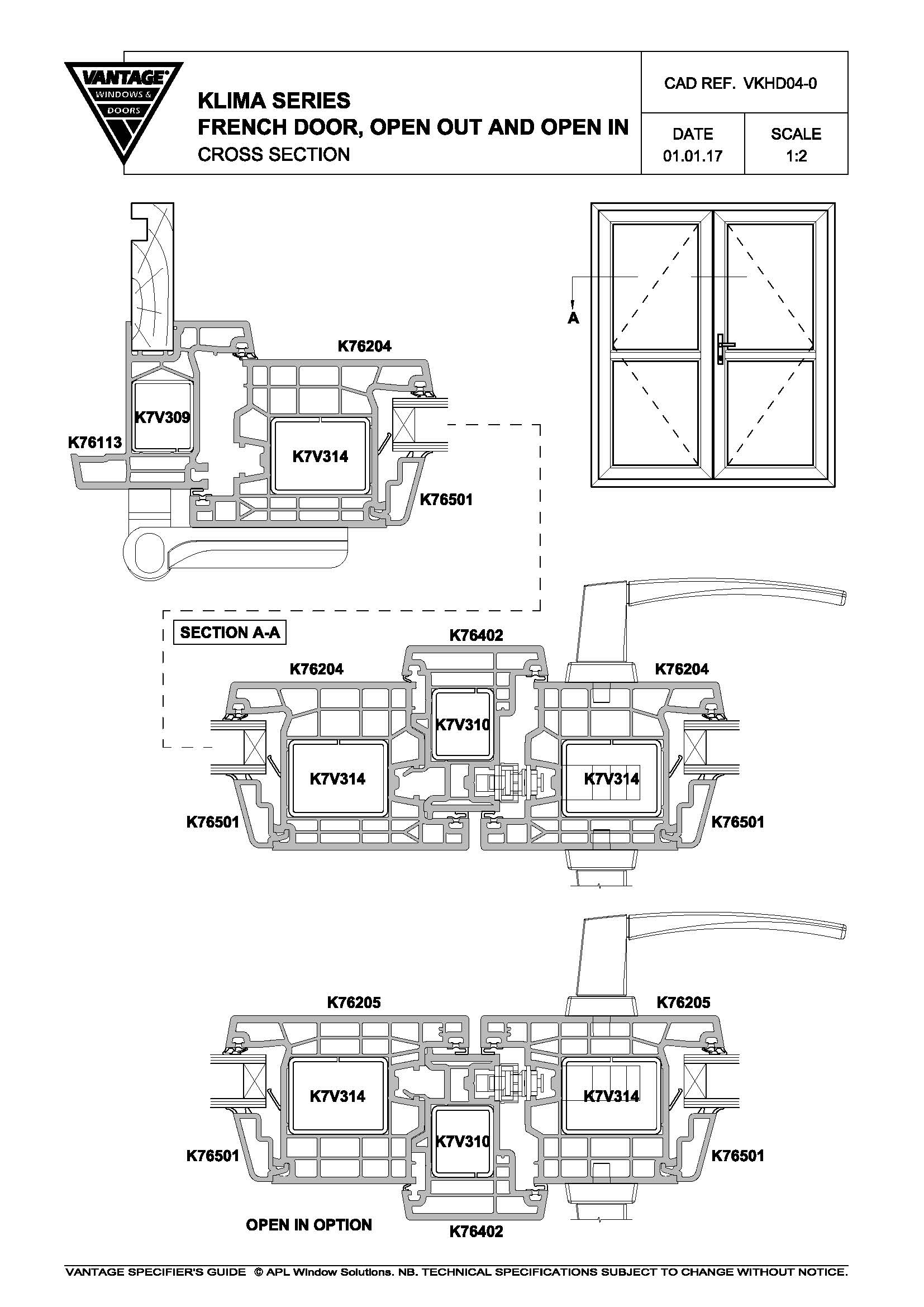

Vantage Klima Series Hinged Door, Open Out/In

VKHD04-0

Vantage Klima Series, Aluclip - Hinged Door Open Out

VKHD05-0

Vantage Klima Series, Aluclip - Hinged Door Open In

VKHD06-0

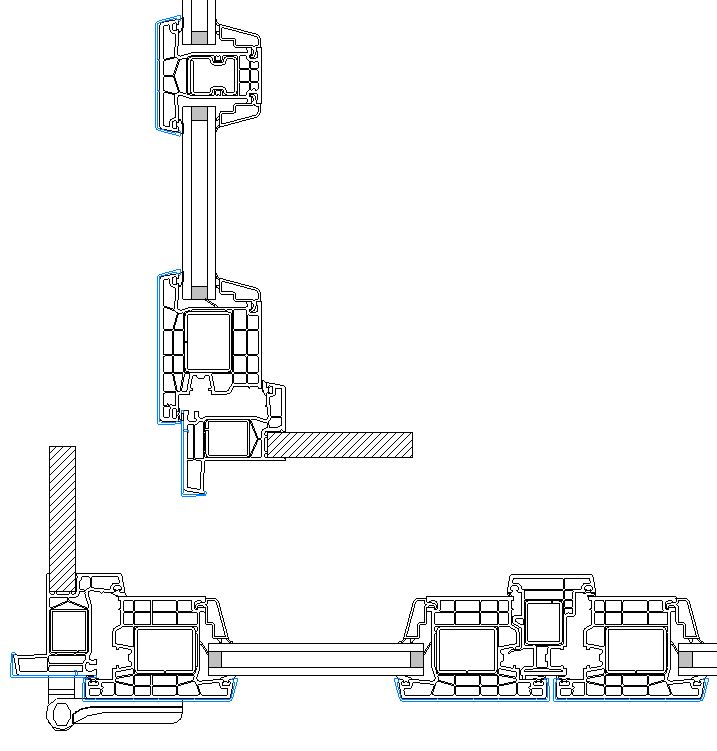

Vantage Klima Series, Aluclip - French Door Open Out/In Horizontal

VKHD07-0

Installation Details
Vantage Klima Series Hinged Door Open In on Board & Batten

KSHIBB

Vantage Klima Series Hinged Door Open In on Brick Veneer

KSHIBV

Vantage Klima Series Hinged Door Open In on Bevelback Weatherboard

KSHIBW

Vantage Klima Series Hinged Door Open In on Flat Sheet

KSHIFS

Vantage Klima Series Hinged Door Open In on No Cladding

KSHINC

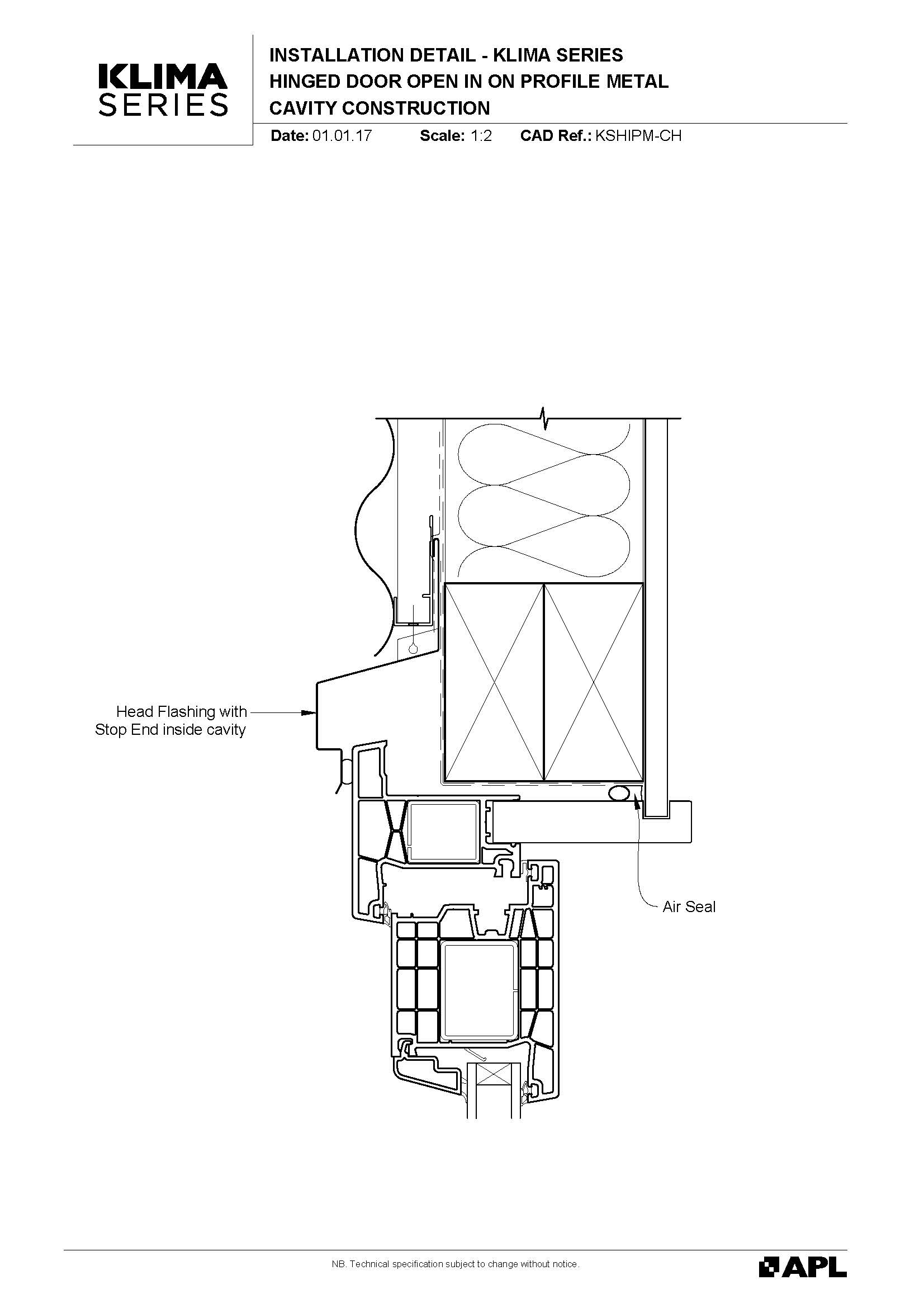

Vantage Klima Series Hinged Door Open In on Profile Metal

KSHIPM

Vantage Klima Series Hinged Door Open In on Rusticated Weatherboard

KSHIRW

Vantage Klima Series Hinged Door Open In on Stucco

KSHIST

Vantage Klima Series Hinged Door Open Out on Board & Batten

KSHOBB

Vantage Klima Series Hinged Door Open Out on Brick Veneer

KSHOBV

Vantage Klima Series Hinged Door Open Out on Bevelback Weatherboard

KSHOBW

Vantage Klima Series Hinged Door Open Out on Flat Sheet

KSHOFS

Vantage Klima Series Hinged Door Open Out on No Cladding

KSHONC

Vantage Klima Series Hinged Door Open Out on Profile Metal

KSHOPM

Vantage Klima Series Hinged Door Open Out on Rusticated Weatherboard

KSHORW

Vantage Klima Series Hinged Door Open Out on Stucco

KSHOST

BIM
Klima Series ALUCLIP French Door

Revit LT 2020

Klima Series ALUCLIP Hinged Door

Revit LT 2020

Klima Series French Door

Revit LT 2020

Klima Series Hinged Door

Revit LT 2020
