Metro Series ThermalHEART® with Centrafix™ Hinged and French Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

These are available in open-in and open-out formats. Doors are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Both open-in and open-out door systems are available with integrated or coupled sidelights and overlights, with or without opening sashes. French doors have flush meeting stiles for a clean look.

Key Features
  • Door panels lap over frame for superior aesthetics, weather tightness and thermal performance
  • Glazing is deeply set within the building wall, delivering a strong appearance
  • Lapped panels enhance security by hindering access to door latch

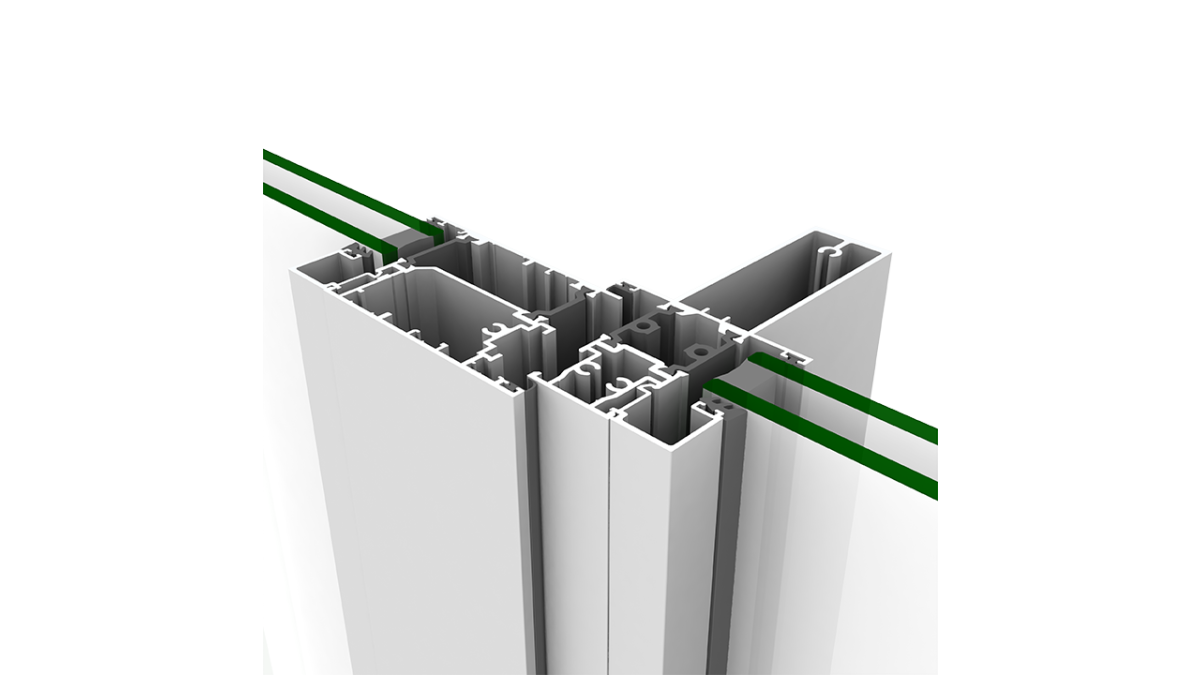

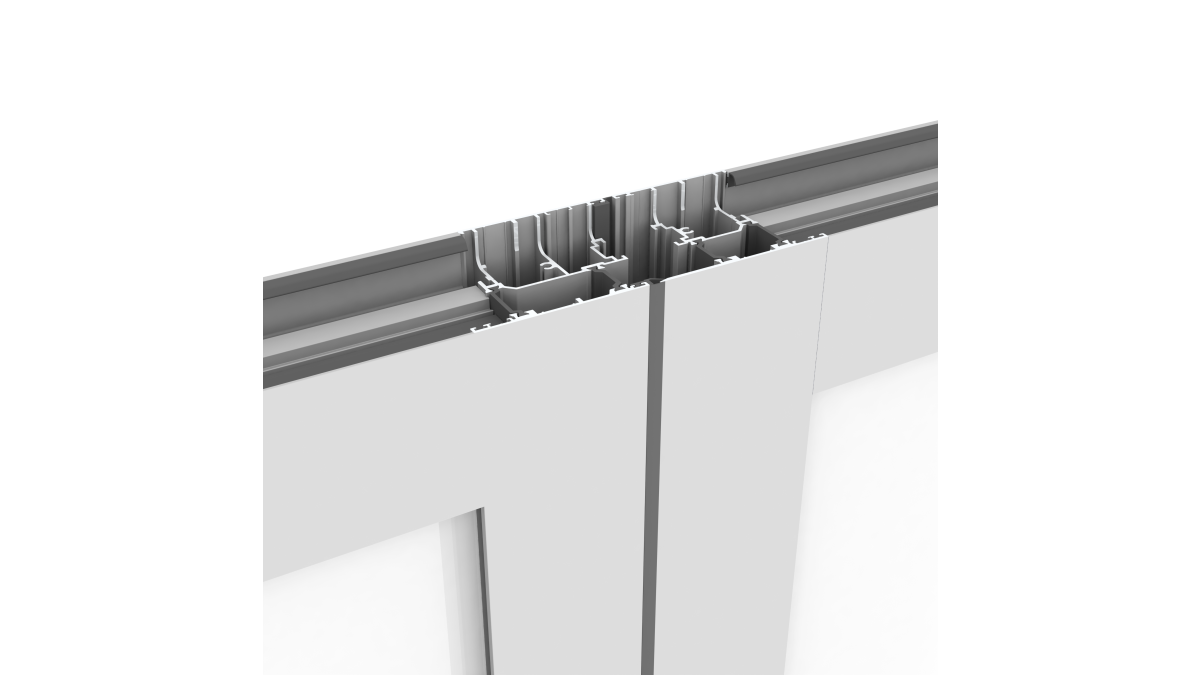

  • Flush meeting stiles give a clean appearance in French doors and provide superior weathering
  • Open-out and open-in frames available
  • Parliament hinges allow doors to open outwards a full 180° in brick veneer situations

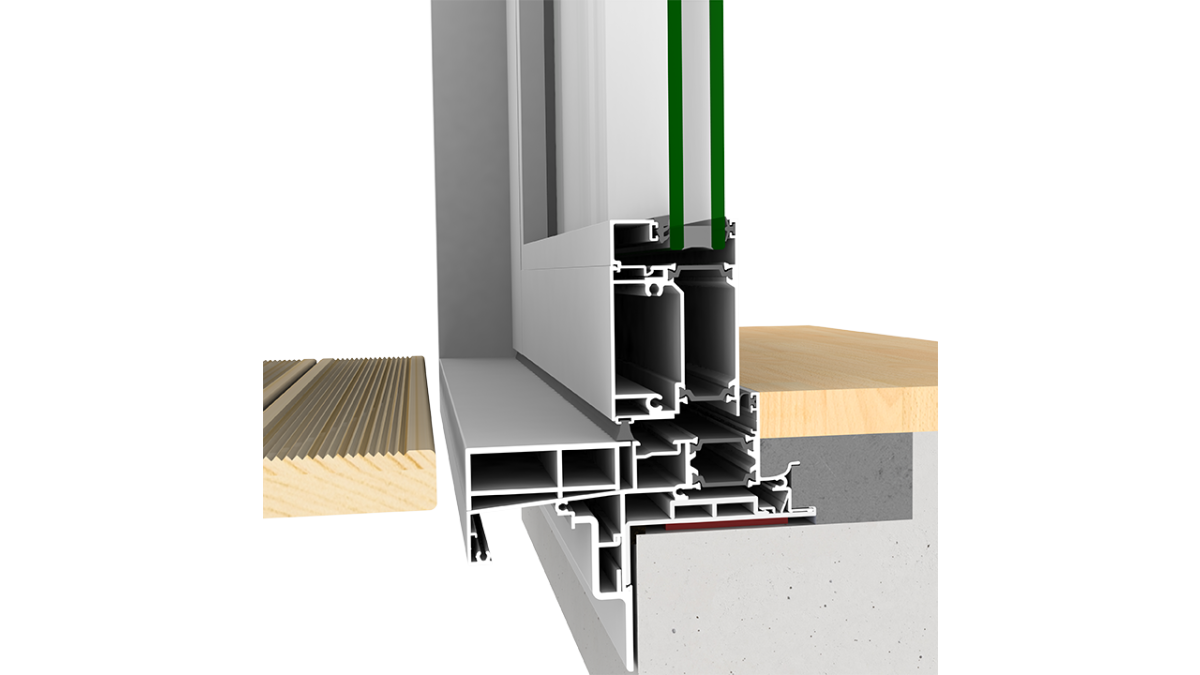

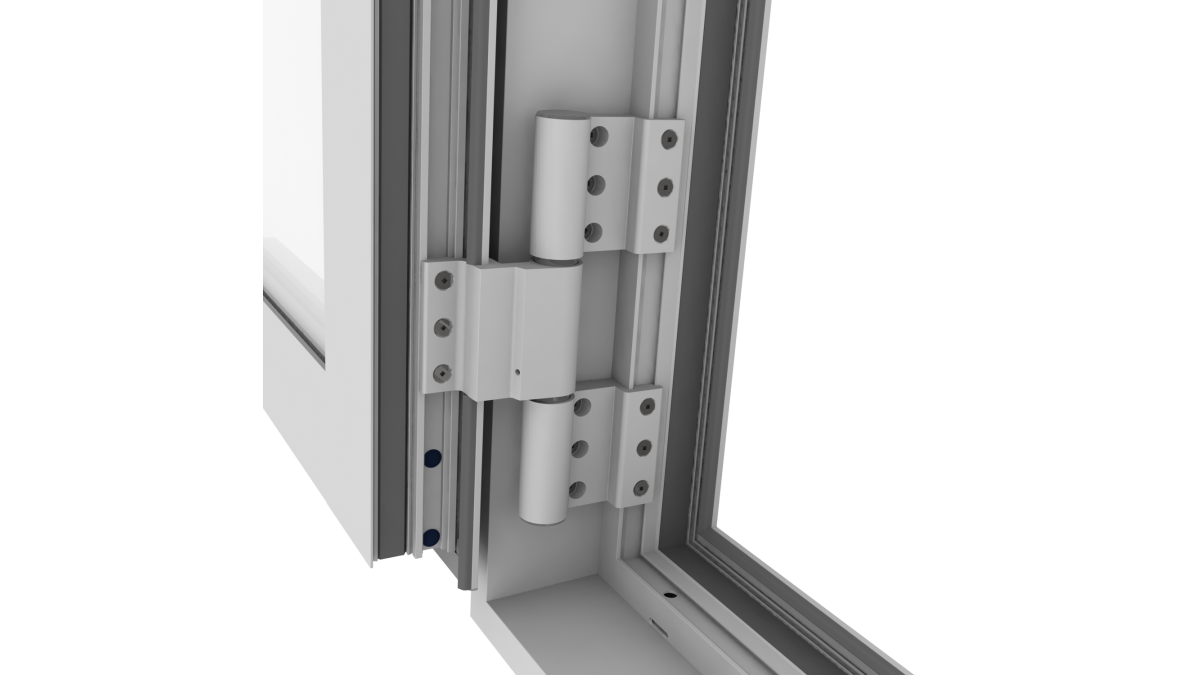

  • Three-way adjustable hinges for optimum installation and performance
  • Concealed hinge option available utilising the Eurogroove feature
  • Overlights and sidelights are possible
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
  • A range of door handle and lock options are available, including multi-point locking
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
QR Code: Centrafix™ on Working Spec
Centrafix™ System Guide

2023

Data Sheet: Metro Series ThermalHEART® with Centrafix™ Doors

2023

Span Tables: Metro Series ThermalHEART® with Centrafix™ Hinged & French Doors

2023

Specifier Guide
Full Specification Guide: Metro Series ThermalHEART® with Centrafix™
Specification Guide: Metro Series ThermalHEART® with Centrafix™ Hinged and French Doors
Vantage on Masterspec
Declare Label

2023

Manufacturer Contact List
AGP Cleaning & Maintenance
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

Vantage Brochure
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability
CAD/PDF Details
Metro Series ThermalHEART® with Centrafix™ Hinged Doors

FULL SET

PDF and ZIP (contains all DWGs)

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out with Rail Option

CFXHD01

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out Overlight Options

CFXHD02

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out Hinge Options

CFXHD03

Metro Series ThermalHEART® with Centrafix™ French Doors — Open Out Meeting Stile

CFXHD04

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open Out Sidelight Mullion Option

CFXHD05

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open In with Rail Option

CFXHD10

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open In Overlight Option

CFXHD11

Metro Series ThermalHEART® with Centrafix™ French Doors — Open In Meeting Stiles

CFXHD12

Metro Series ThermalHEART® with Centrafix™ Hinged Doors — Open In Sidelight Mullion

CFXHD13

Installation Details
The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Board & Batten

CFXHIBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Brick Veneer

CFXHIBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Bevelback Weatherboard

CFXHIBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Flat Sheet

CFXHIFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Profile Metal

CFXHIPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Rusticated Weatherboard

CFXHIRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open In on Stucco

CFXHIST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

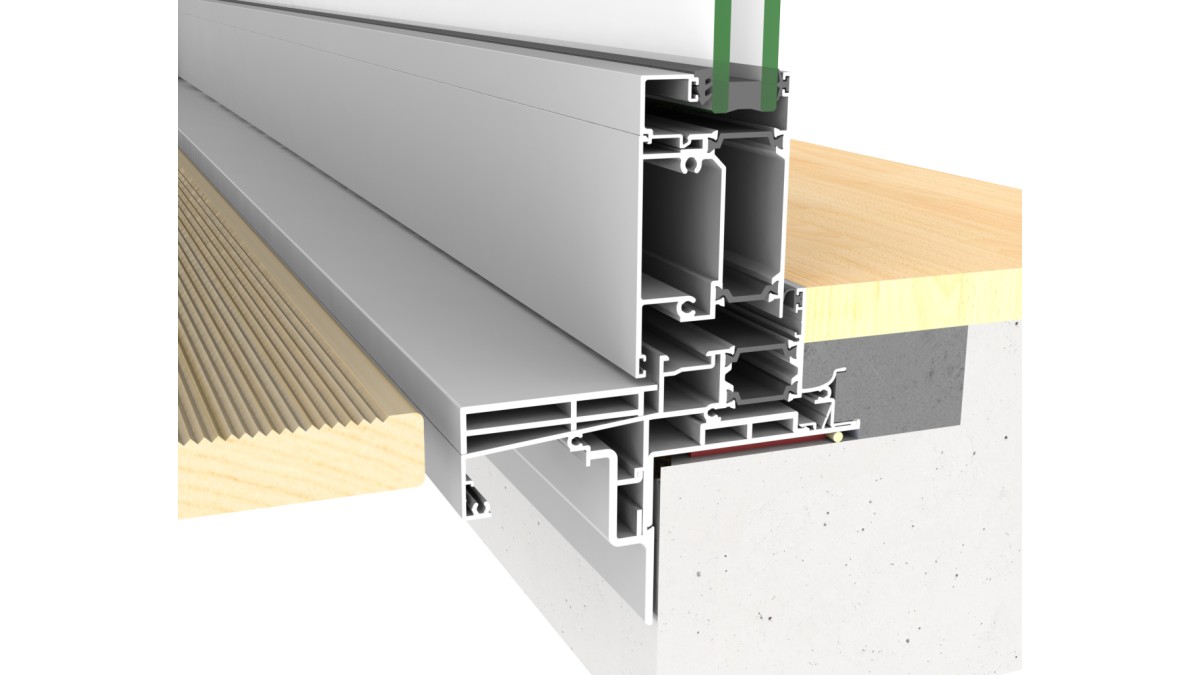

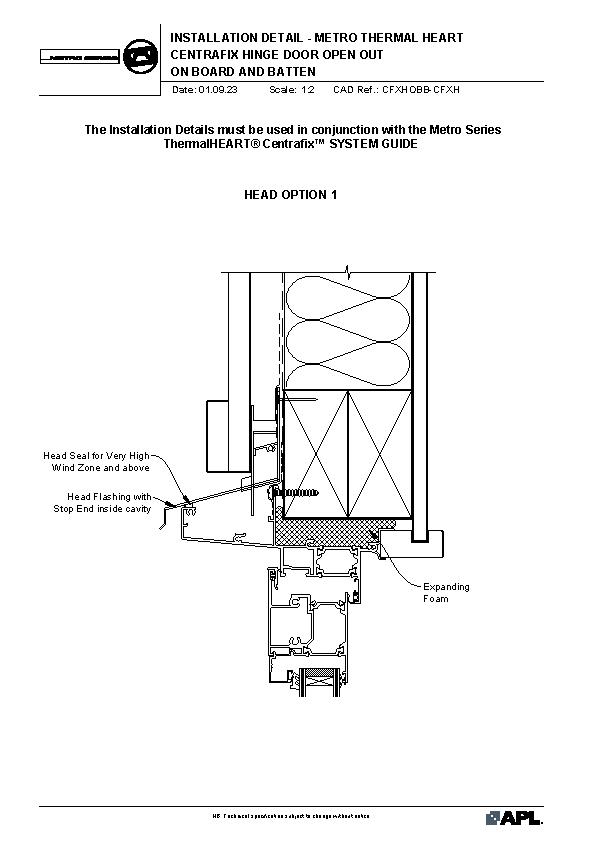

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Board & Batten

CFXHOBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Brick Veneer

CFXHOBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Bevelback Weatherboard

CFXHOBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Flat Sheet

CFXHOFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Profile Metal

CFXHOPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Rusticated Weatherboard

CFXHORW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Hinged Door Open Out on Stucco

CFXHOST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
