Description

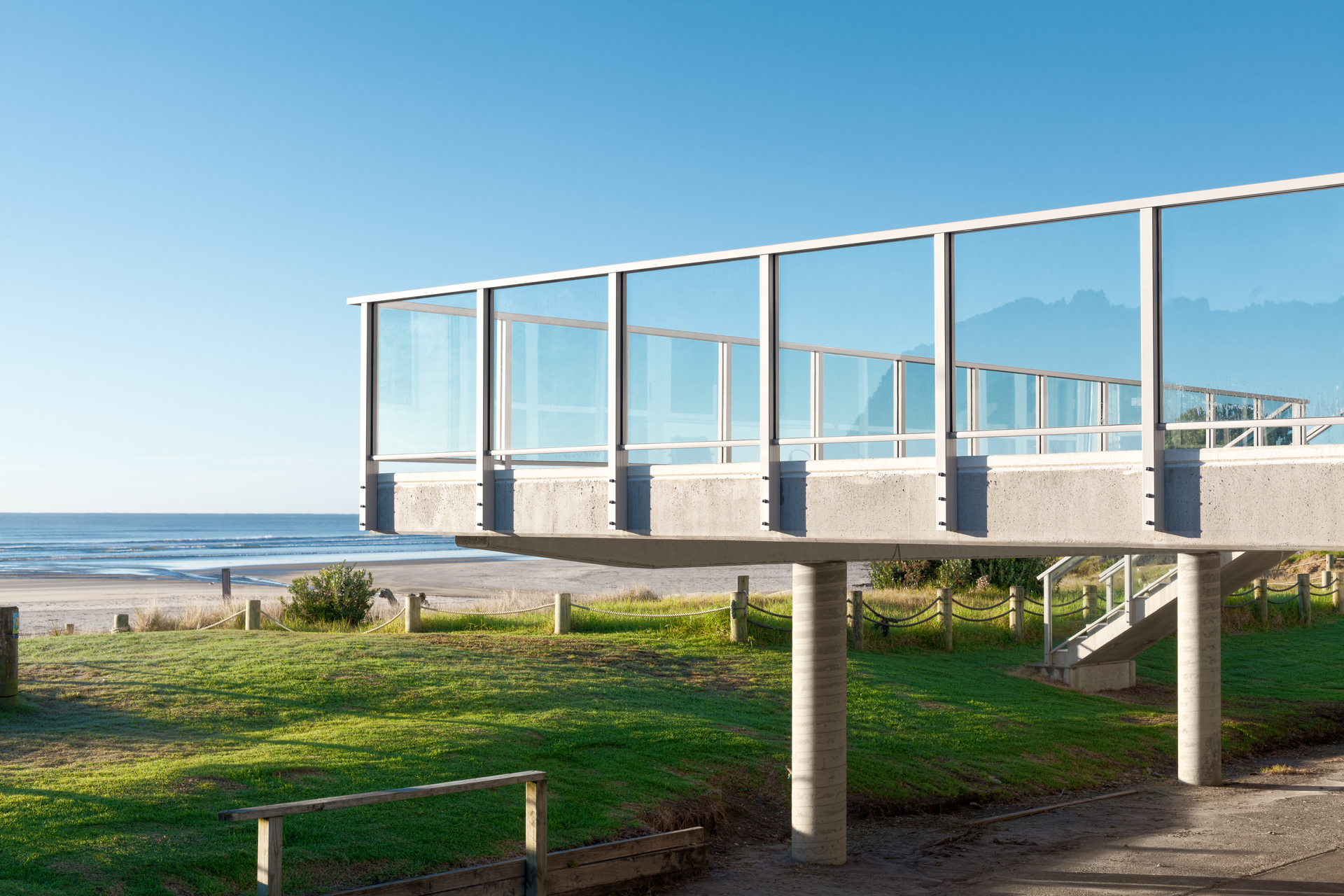

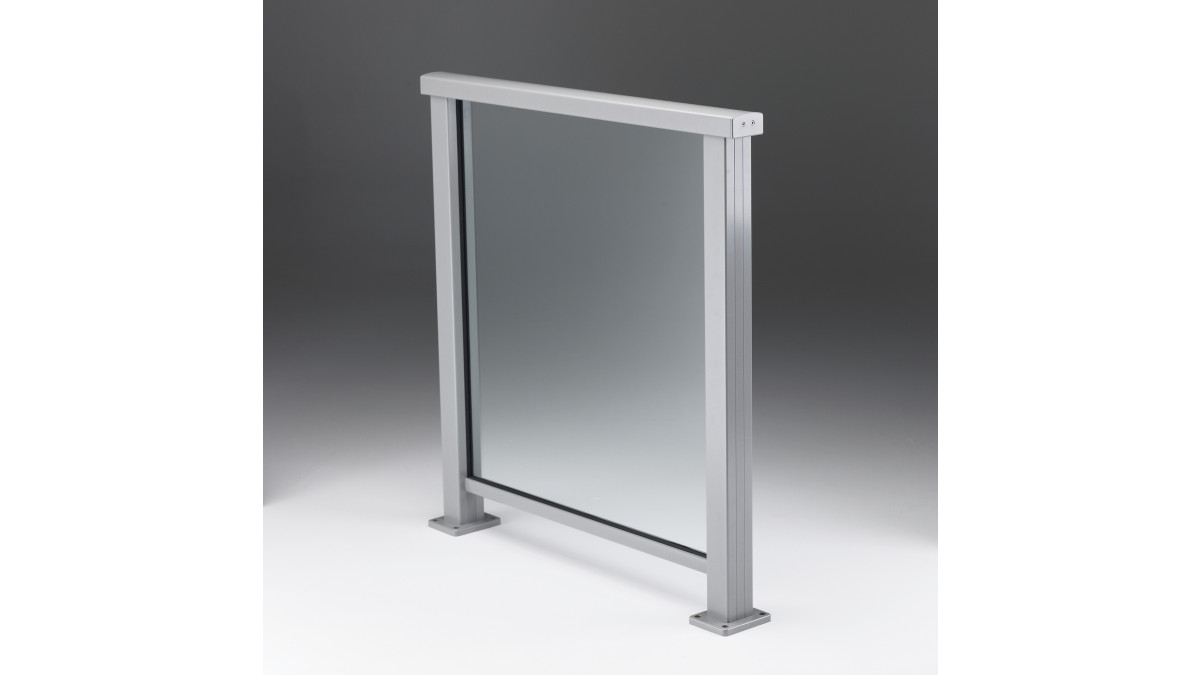

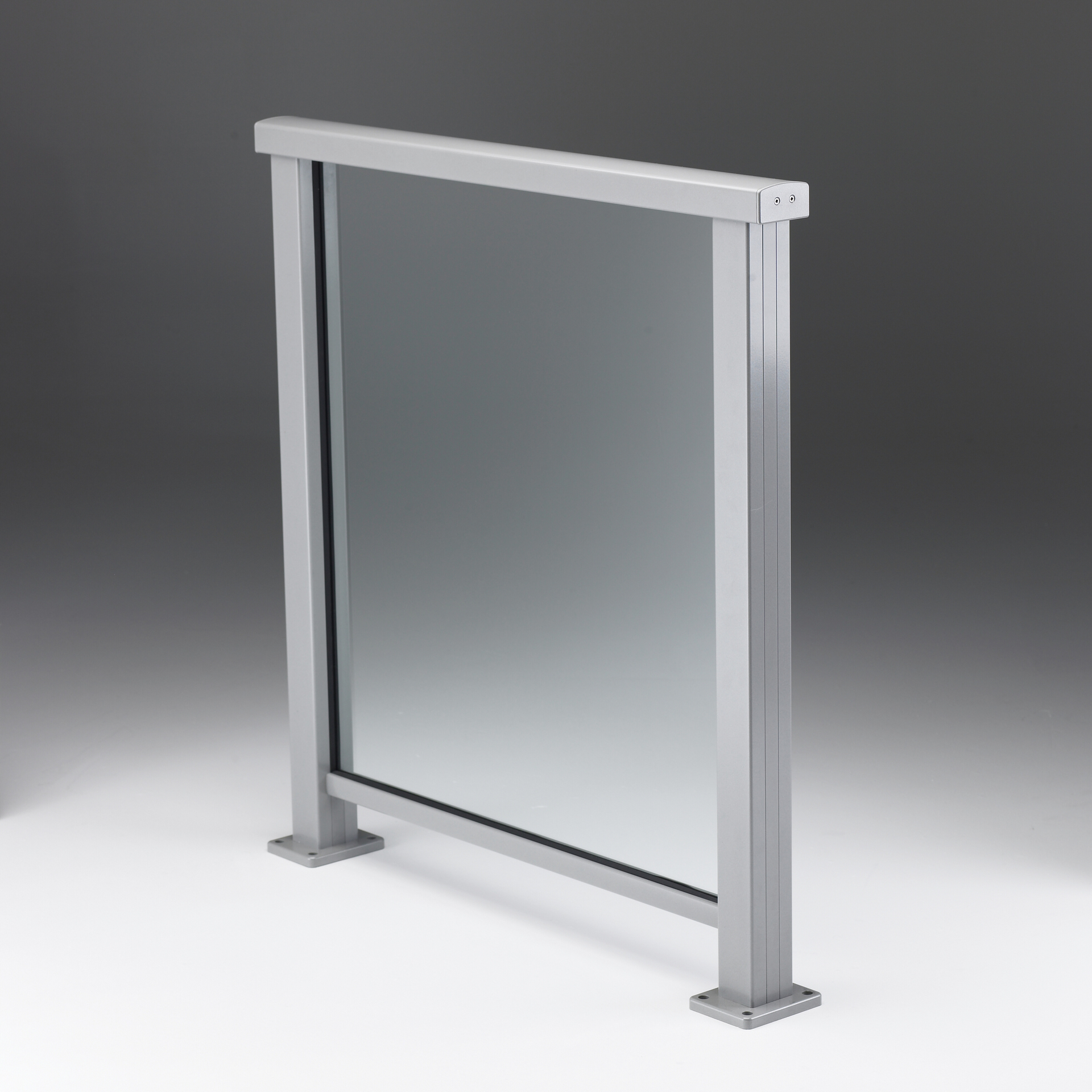

Unex’s Extreme Framed Glass styles are are an aluminium framed panel with glass infill spanning between the horizontal rails and designed for crowd and public loadings of C1/C2, C5 and D. This proprietary barrier system saves cost and time when designing a one-off barrier to meet these crowd loads and also can be finished in a range of colours.

Key Features
  • Standard specifications available for fixing to timber, steel and concrete
  • Specifications for non-standard situations may be provided by Unex Systems upon request
  • Two ranges available; X1500 Series based on a 70mm wide suite and X3000 Series based on a 90mm wide suite
  • Designed for standard heights of 1100mm and 1200mm from finished deck level
  • Wide range of finish options — can be powdercoated or anodised in all standard New Zealand colours
  • Screws together with minimal, if any, welds required
  • Made from 6000 series extruded aluminium alloys
  • Installed only by Authorised Fabricators, available nationwide
  • Wind speeds up to 50 m/s ULS
  • Glass infill shall be Grade A Safety Toughened with a minimum thickness of 8mm
NZ-Owned Business
NZ-Owned Business
Scope of Use

UNEX’s Extreme Barriers Style has two ranges — X1500 Series and X3000 Series

  • The X1500 Series is designed to meet classifications C1/C2 and D of AS/NZS 1170.1, which stipulates a 1.5kN/m load on the top edge — twice the load required on a typical residential application
  • The X3000 Series is designed to meet classifications C5 of AS/NZS 1170.1 which stipulates a 3.0kN/m load on the top edge — four times the load required on a typical residential application.

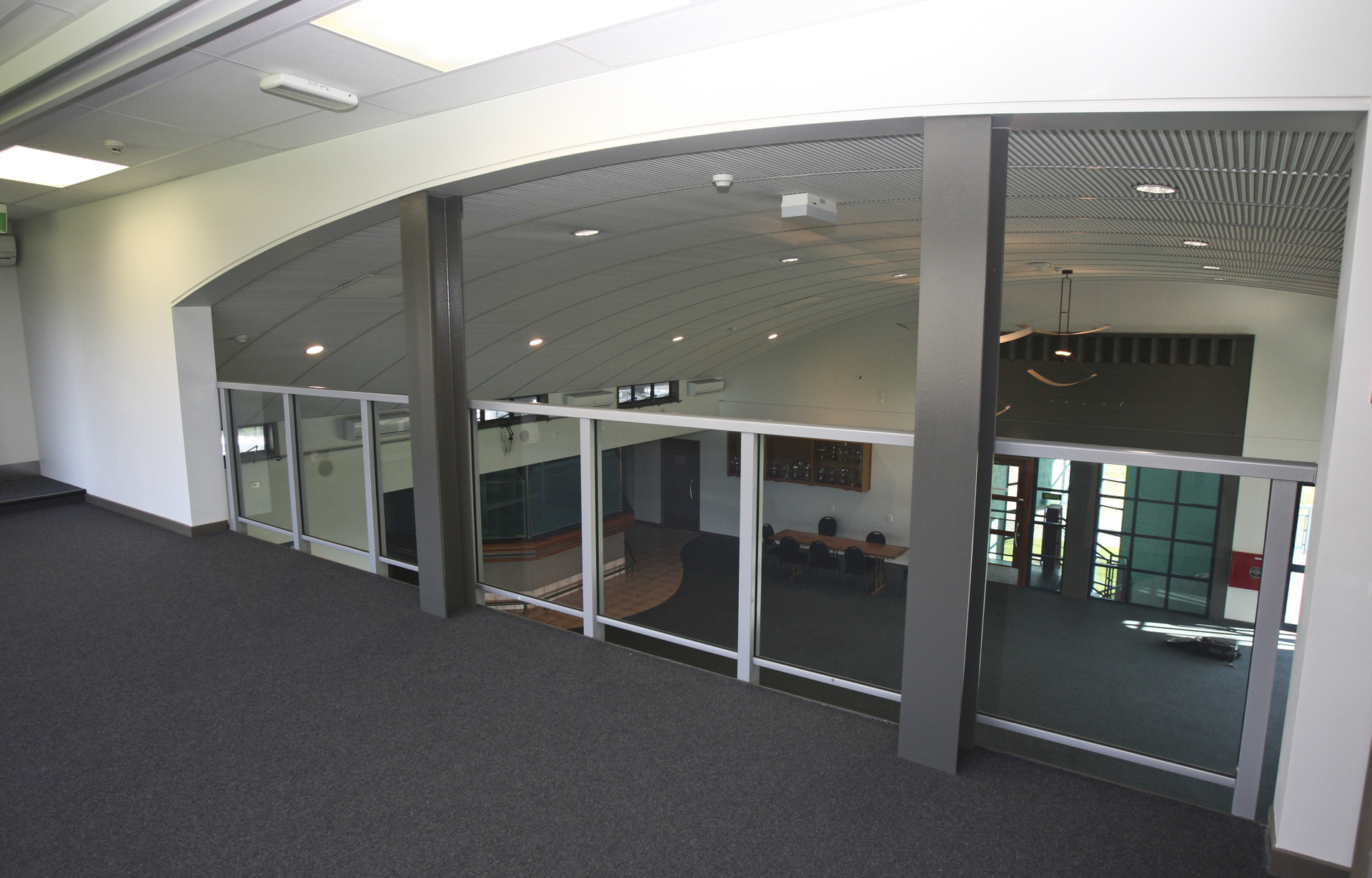

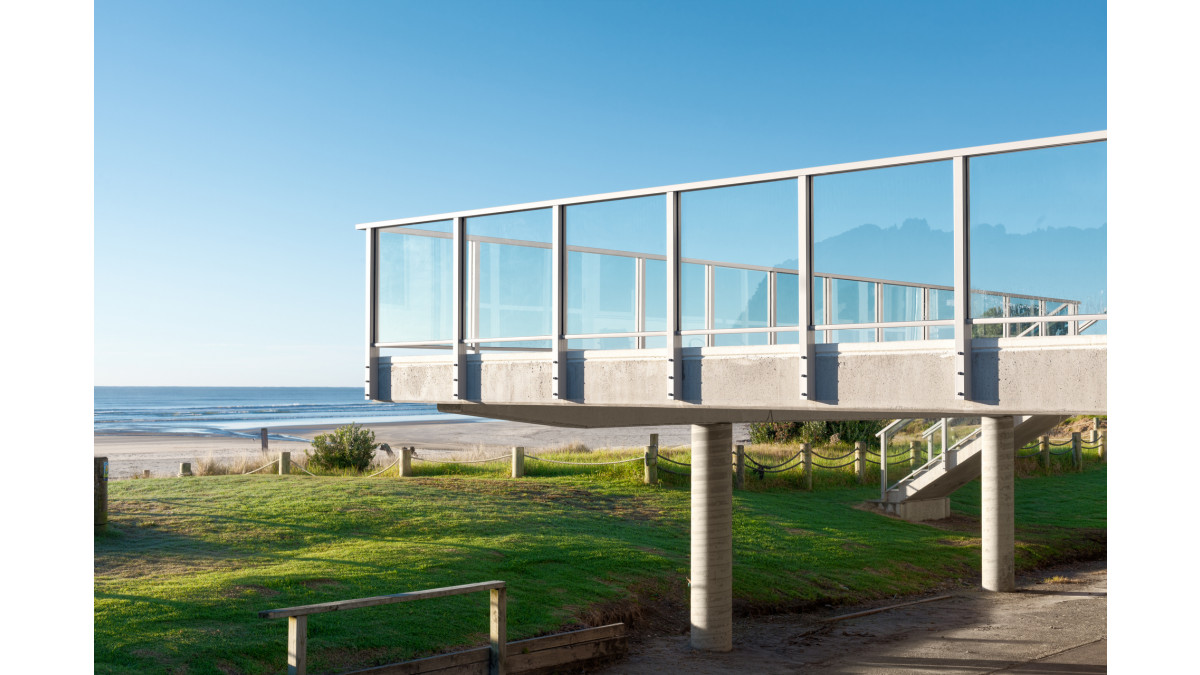

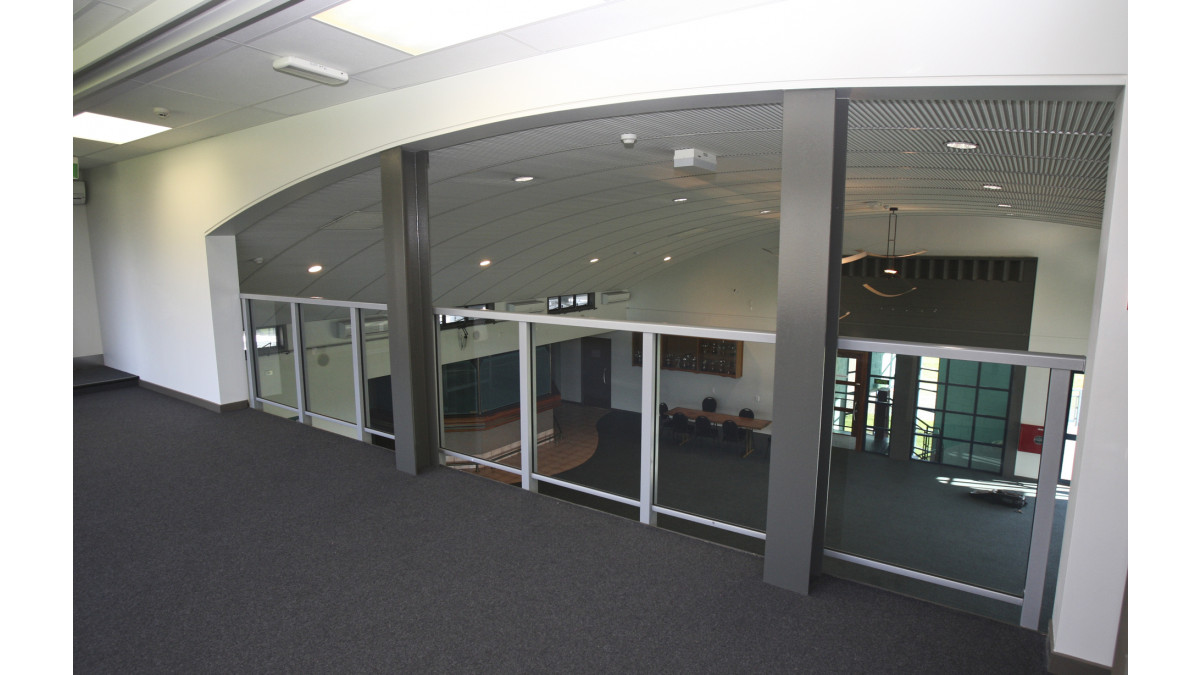

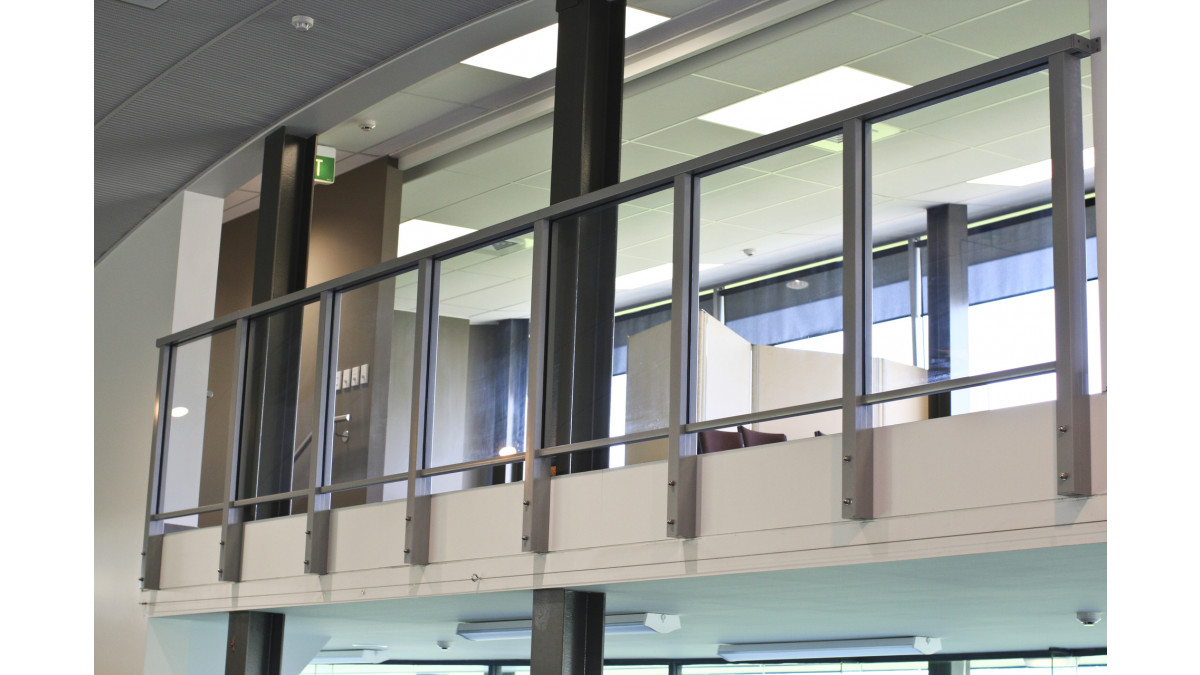

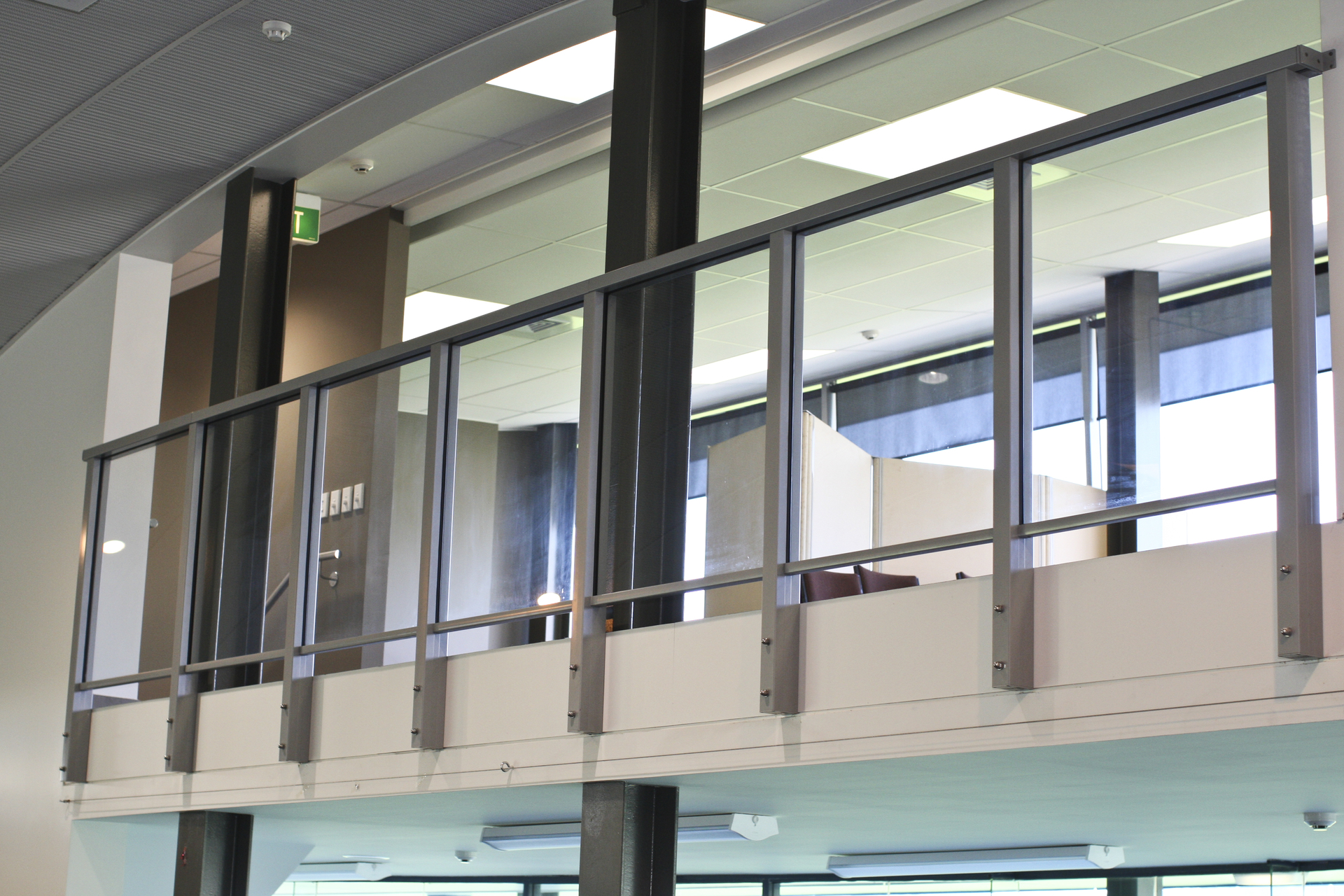

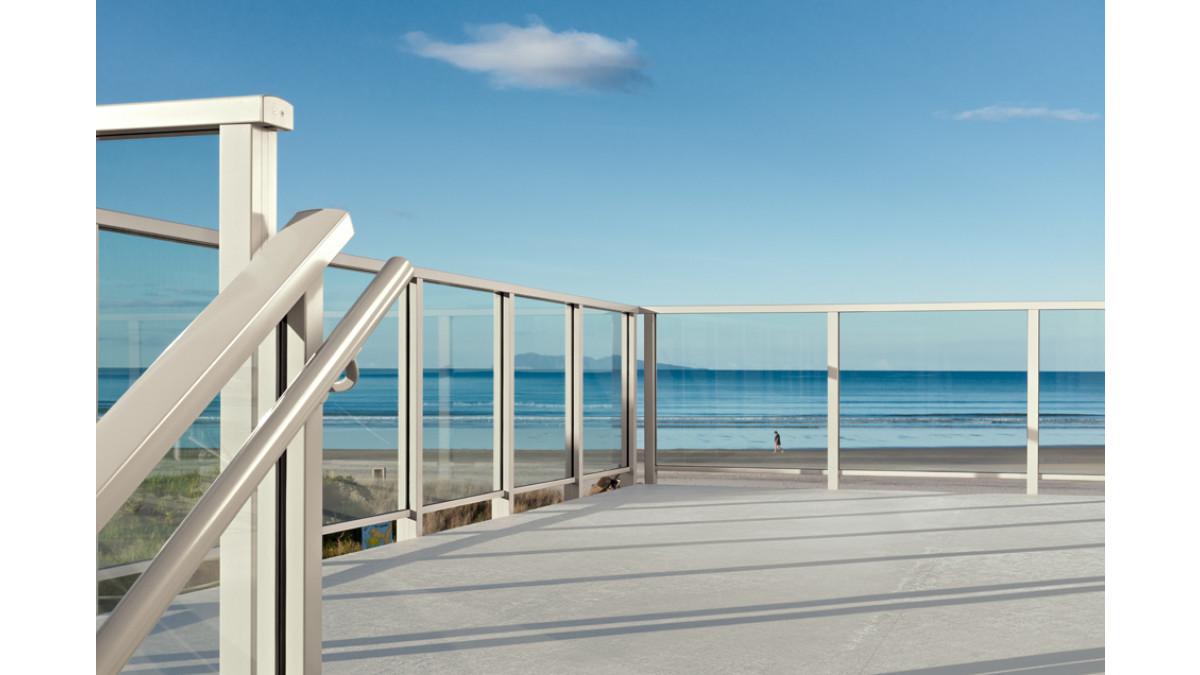

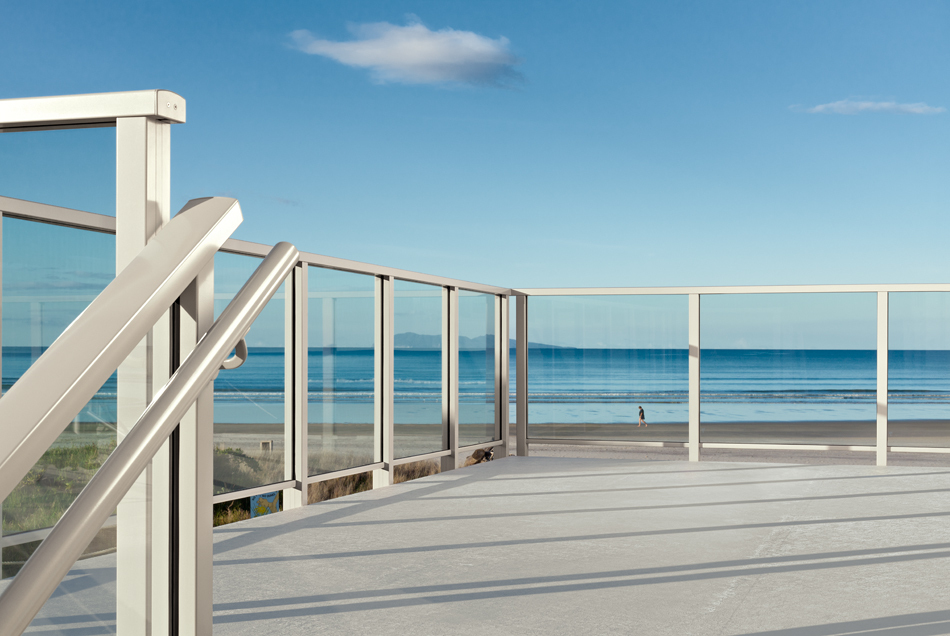

The Extreme Framed Glass Styles are typically used for, but not limited to:

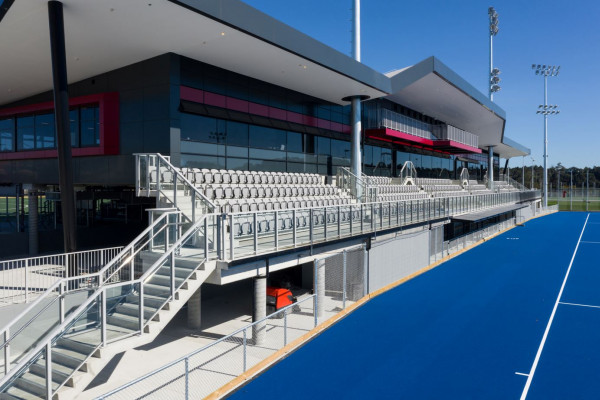

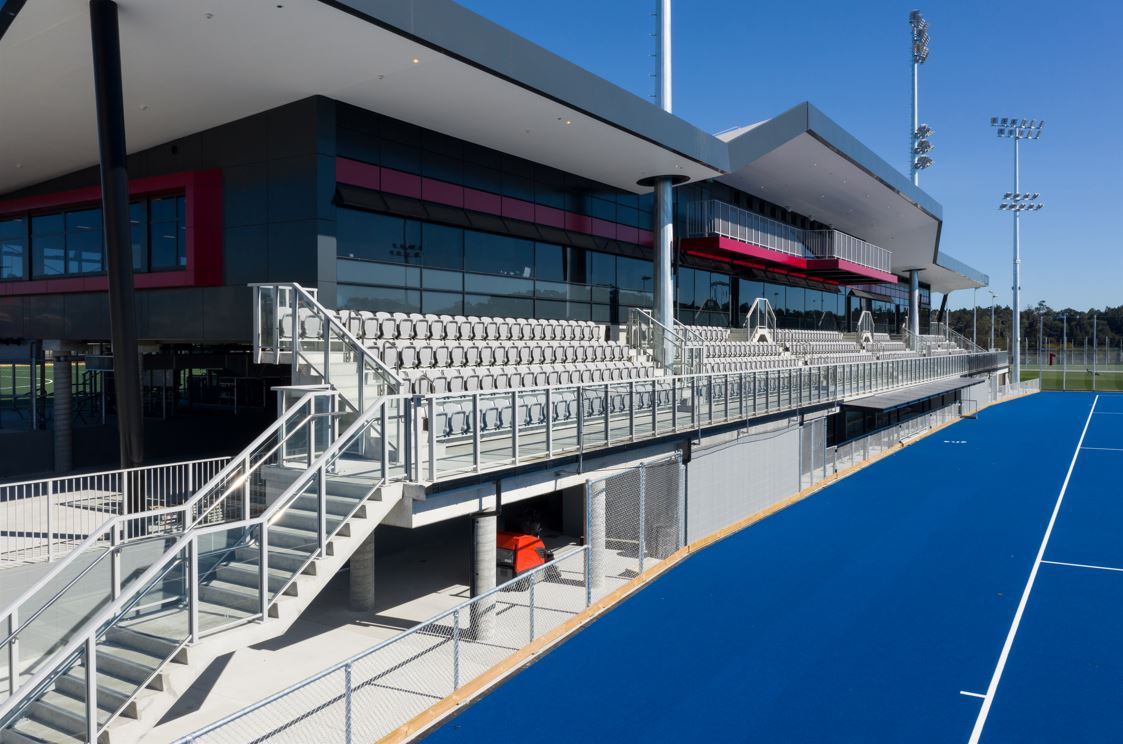

  • Grandstands
  • Gymnasiums
  • Sports and surf clubs
  • Shopping centres and retail areas
  • Restaurants, cafes, and bars
  • School halls, and public pavilions

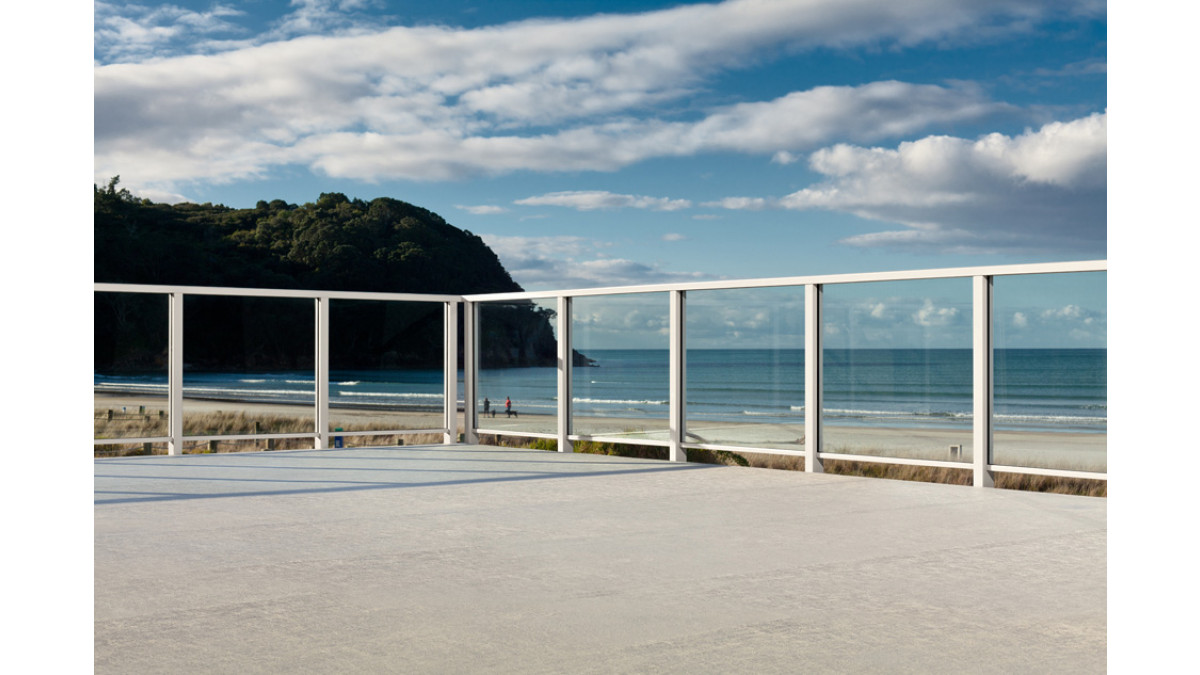

Extreme Barriers are also suited to other situations where large post spacings, a bulkier look or additional height is required.

There is a wide range of fixing options available for both suits to fix to steel, timber and concrete applications.  Site-specific specifications may also be provided upon request for those non-standard situations.

The standard powders used by Unex Systems (Interpon) can be used right down to sea level, provided the care and maintenance instructions are adhered to.

Limitations on Use

The UNEX Extreme Barriers Range is designed to meet the loading classifications of AS/NZS1170.1 of the New Zealand Building Code and is therefore not applicable to the requirements of the transport code. So this design is not applicable for applications, such as a vehicle barrier. Typically Extreme Barriers are not suitable for top-mounting to timber.

For certain buildings, such as some industrial situations, a higher grade powder coat powder must be specified.

NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
NZS 3604 Wind Zone Very High suitable
Very High Wind Zone
Statement of Building Code Compliance

UNEX has designed its Extreme Barriers range to comply with the B1, B2, F2 and F4 requirements of the NZ Building Code and are suitable for occupancy types 'C1/C2', 'C5' and 'D' in accordance with AS/NZS 1170.1: 2002.

For more information, please refer to Unex's NZ Building Code Compliance document (right).

Producer Statements for all standard specifications can be created online in the registered area of the UNEX website.

For non-standard situations not covered by their specifications, a site-specific PS1 and specification may be prepared by Unex upon request.



In-Service History

UNEX specialises in designing and manufacturing architectural balustrade systems throughout Australasia having done so since 1981.

These Extreme Barriers have been incorporated in Unex Systems’ range since 2012 — designed in response to the needs of the market place for pre-engineered barriers designed to meet the extremely heavy live load classes 'C1/C2', 'C5' and 'D' of AS/NZS1170.1:2002.  It has since been used in a number of jobs right throughout New Zealand.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
Documents
UNEX Promotional Catalogue

ZUPPB

Maintenance Instructions
Specification Notes
Producer Statement
Installation and Operation
Authorised Fabricators
UNEX Authorised Fabricators
Extreme Barriers Brochure
Colour Range
CAD/PDF Details

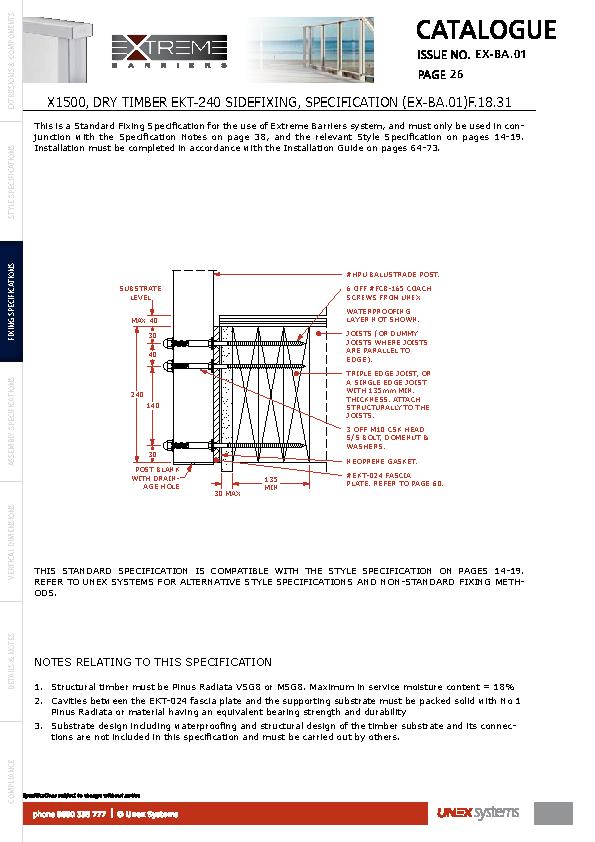

Dry Timber, Side Fixing - X1500

F.18.31

Dry Timber, Side Fixing - X3000

F.18.51

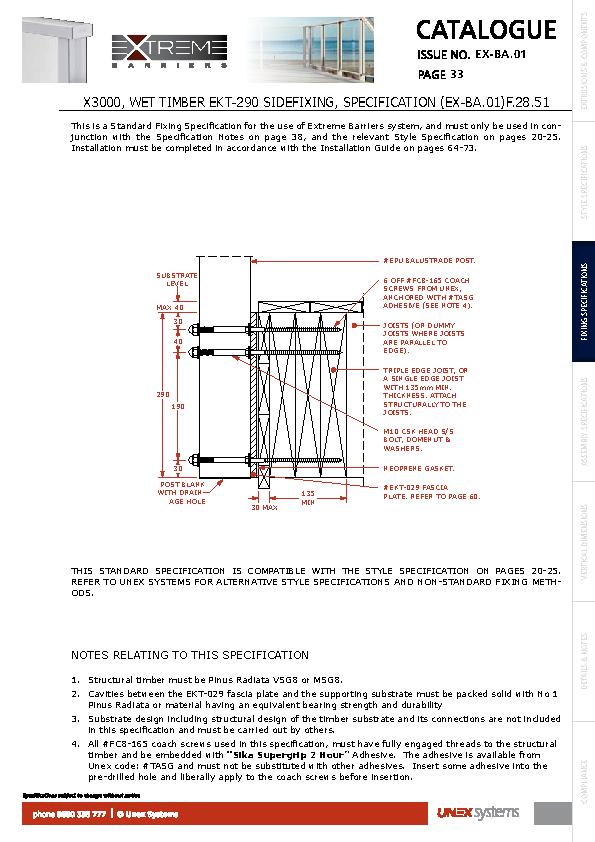

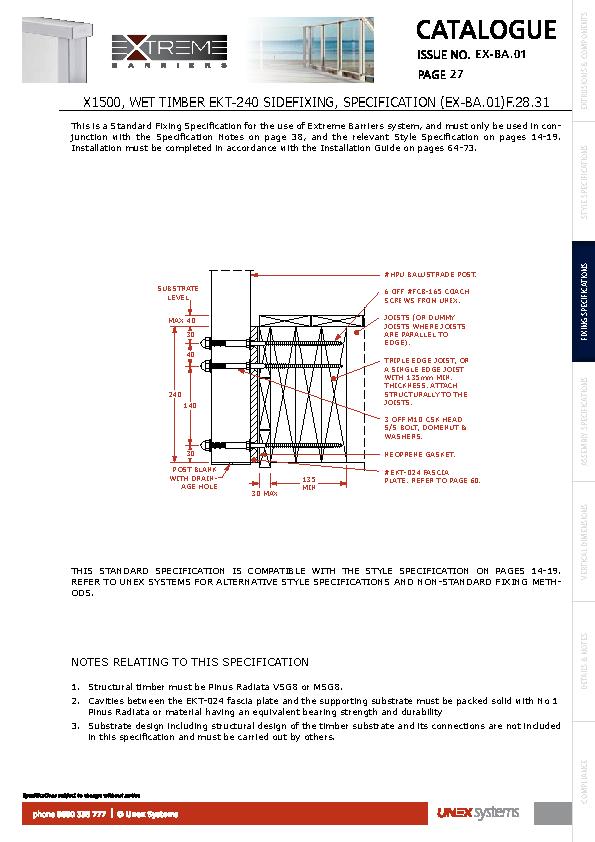

Wet Timber, Side Fixing - X1500

F.28.31

Wet Timber, Side Fixing - X3000

F.28.51

Concrete, Top Fixing - X1500

F.33.31

Concrete, Top Fixing - X3000

F.33.51

Concrete, Side Fixing - X1500

F.34.31

Concrete, Side Fixing - X3000

F.34.51

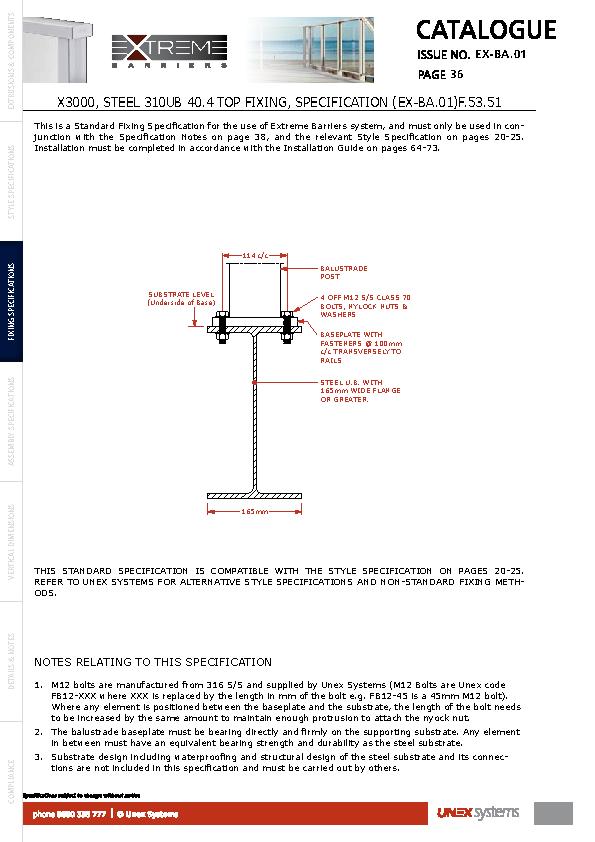

Steel 200UB, Top Fixing - X1500

F.53.31

Steel 310UB, Top Fixing - X3000

F.53.51

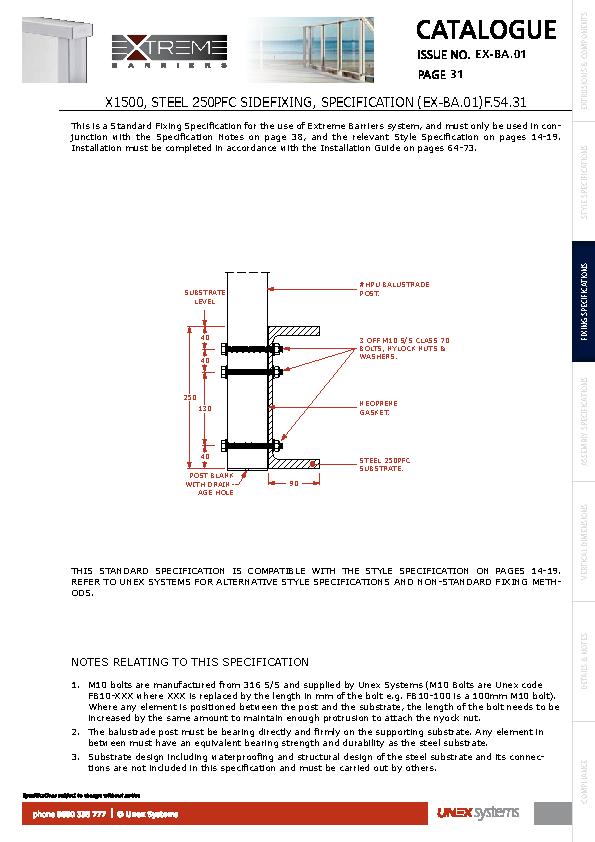

Steel 250 PFC, Side Fixing - X1500

F.54.31

Steel 300 PFC, Side Fixing - X3000

F.54.51

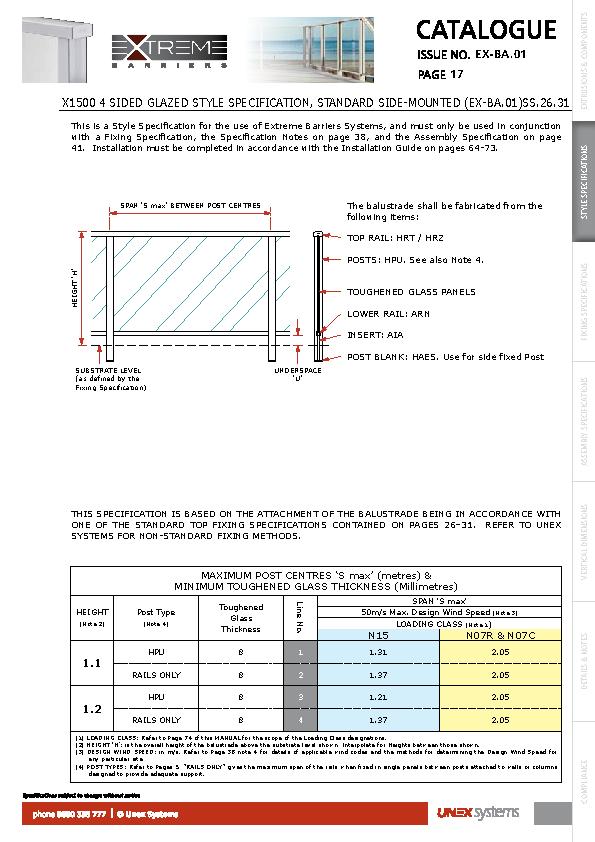

Framed Glass, Side Mounted - X1500 Series

SS.26.31

Framed Glass, Side Mounted - X3000 Series

SS.26.51

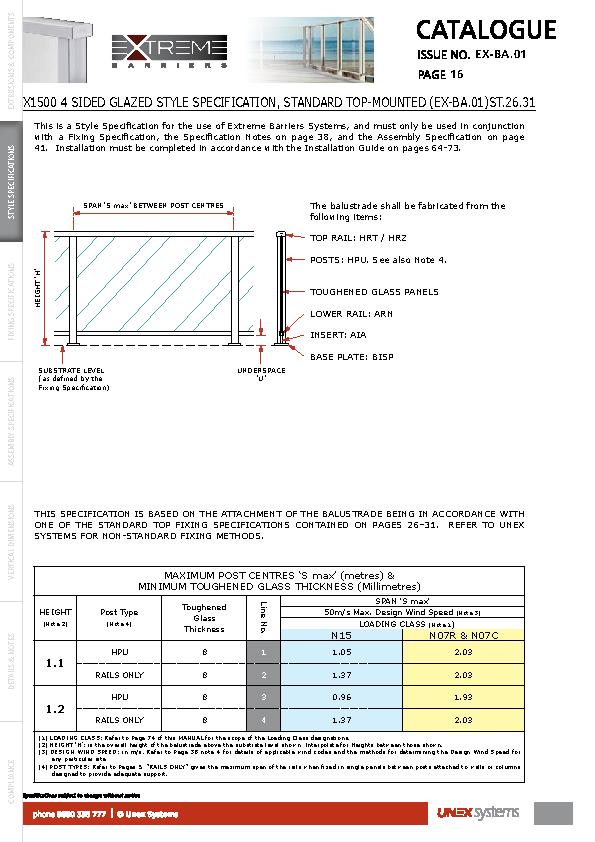

Framed Glass, Top Mounted - X1500 Series

ST.26.31

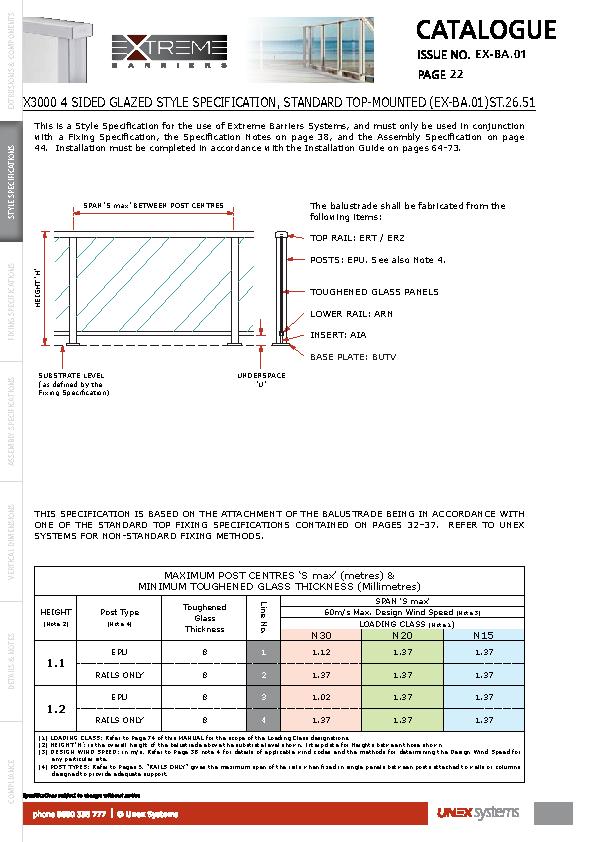

Framed Glass, Top Mounted - X3000 Series
