• Location:
  • Up to extra high wind as defined in NZS 3604:2011
  • In all corrosion zones where the fixings are selected in accordance with NZS 3604:2011
  • On buildings 1m or more from the relevant boundary
• Buildings:
  • On timber or lightweight steel framing that complies with the building code or where the designer and/or installer have established that the building is suitable for the intended building work

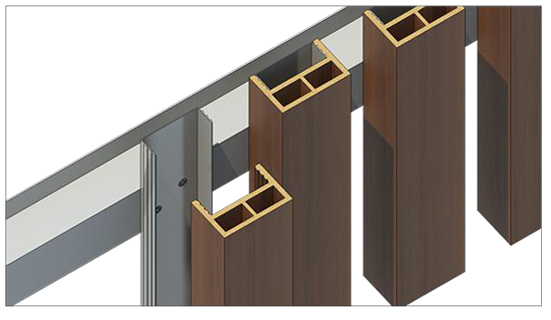

• Concealed Fixing System:

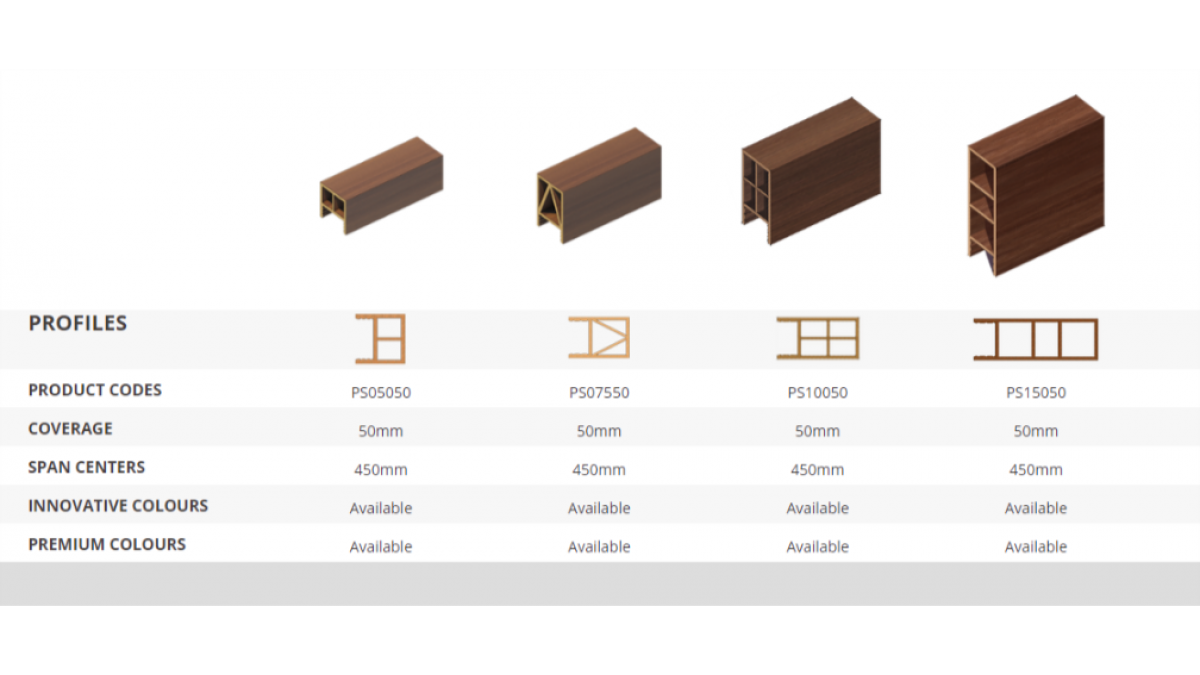

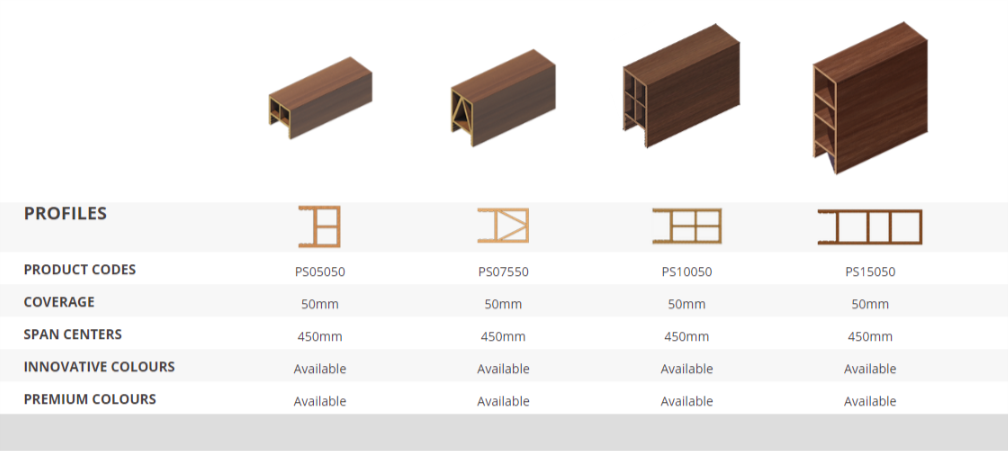

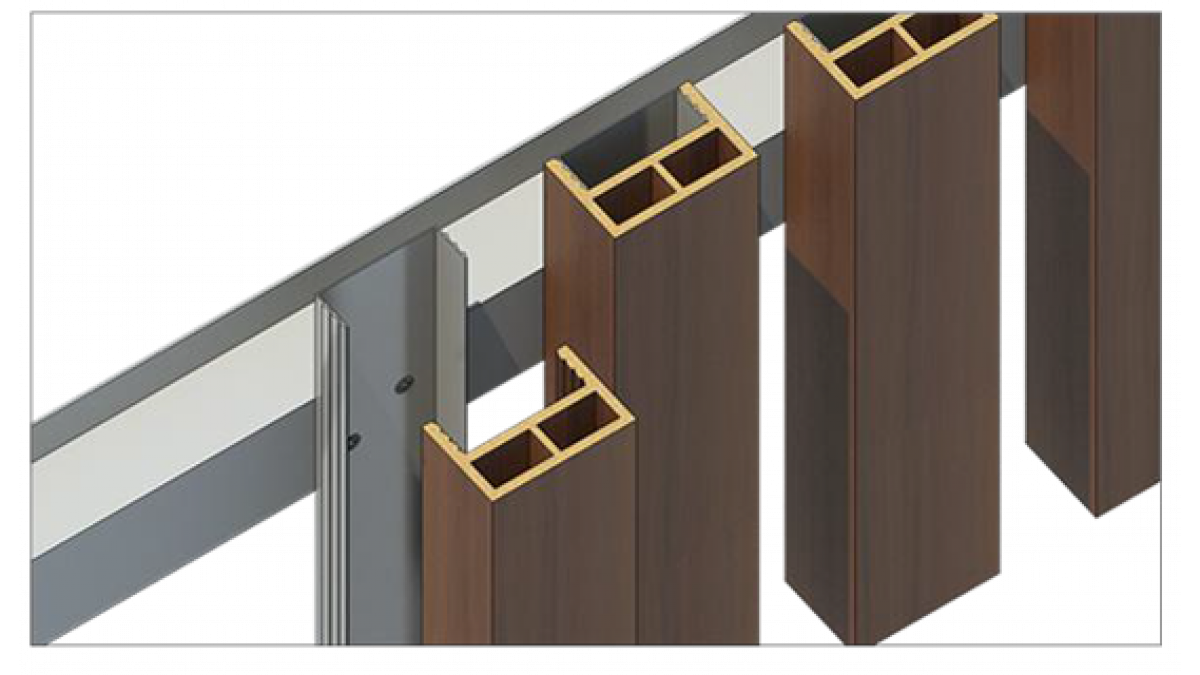

  • Innoscreen's Concealed Lock-in Fixing System creates a perfectly clean line with battens that simply lock into place, concealing the single-part rear clip that can be set out to any desired spacing

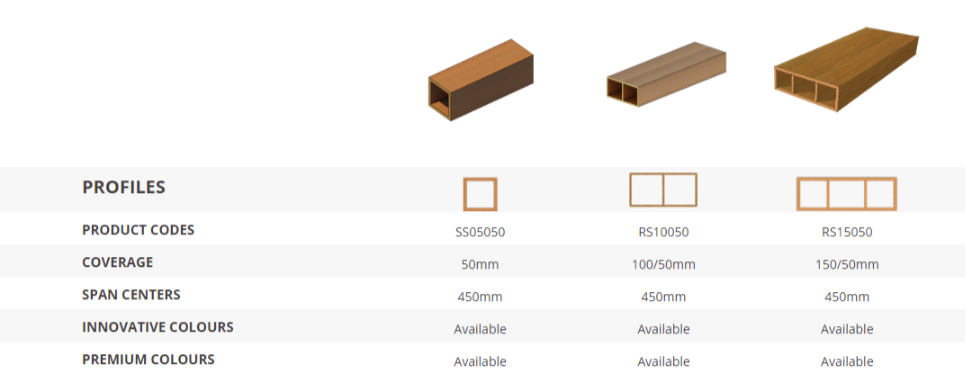

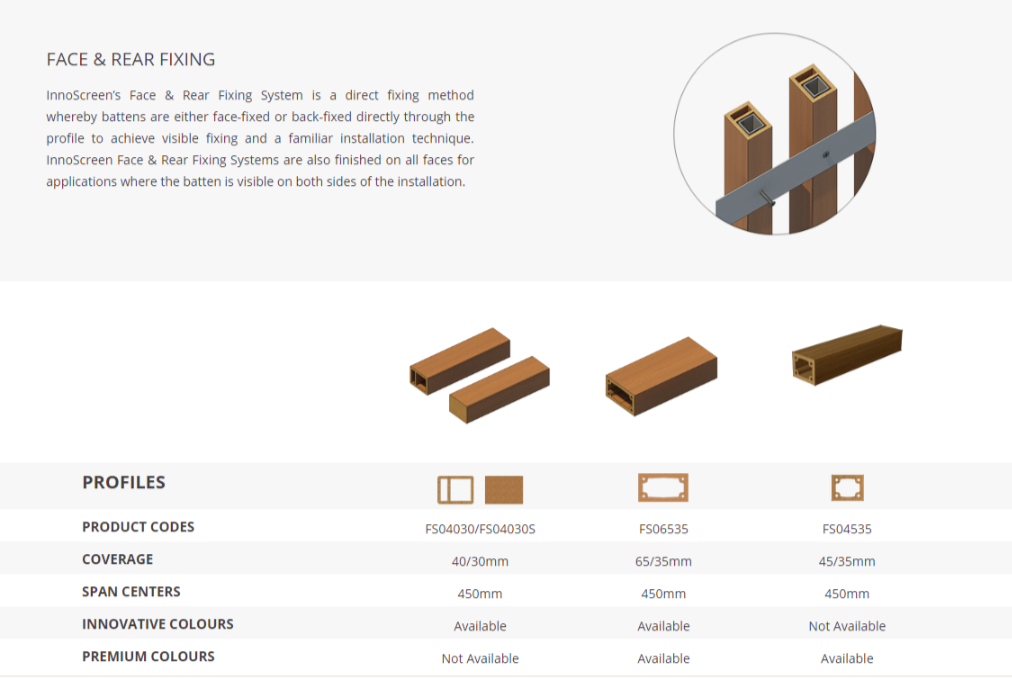

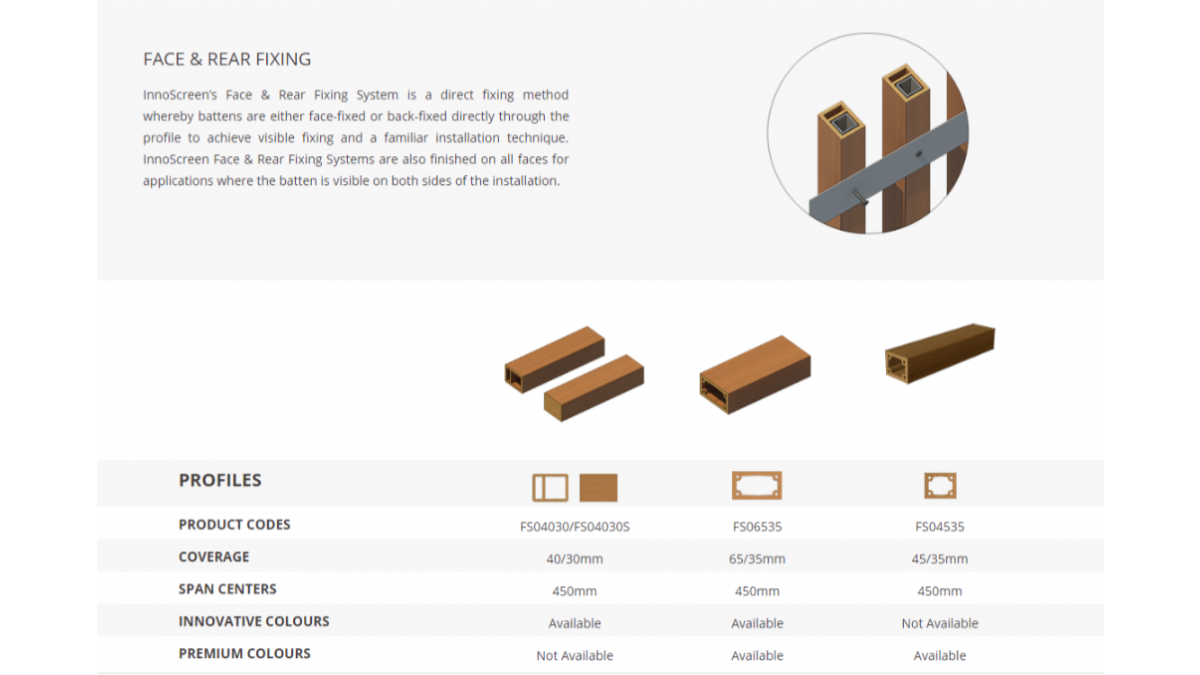

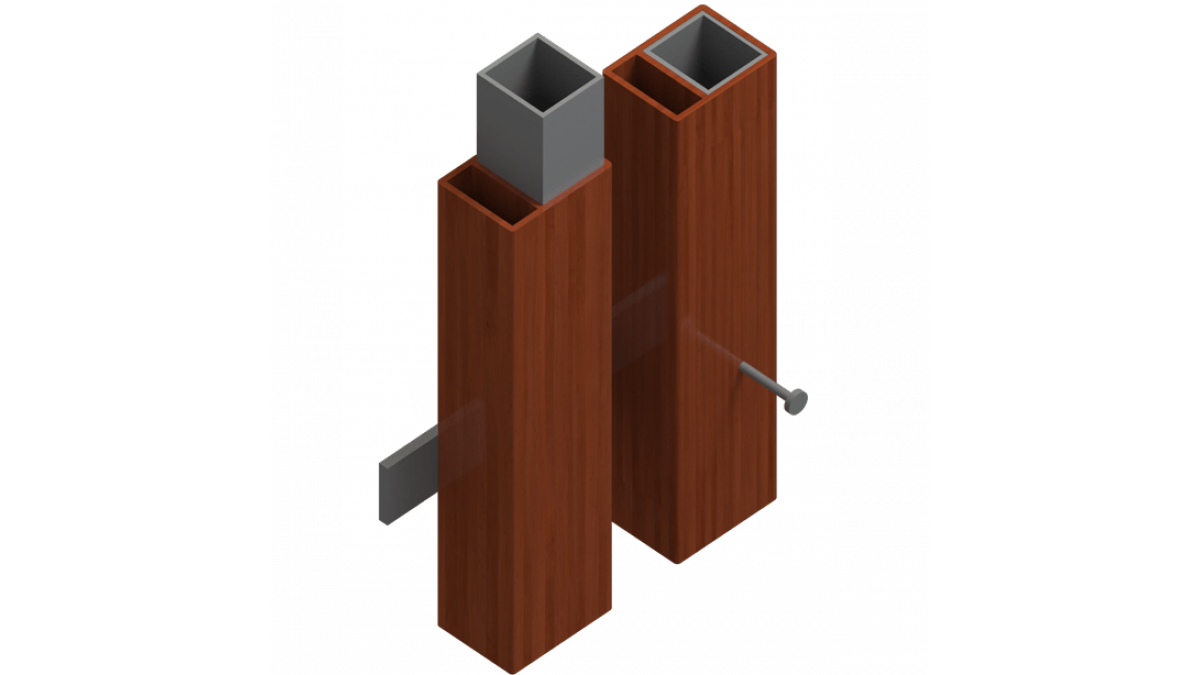

• Face and Rear Fixing:

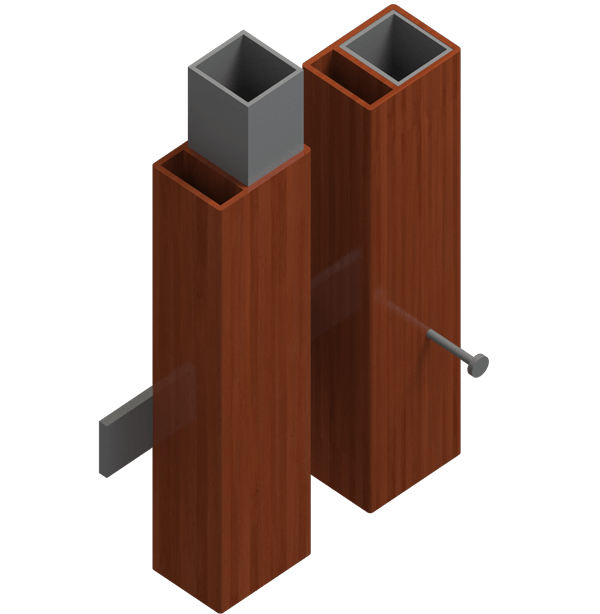

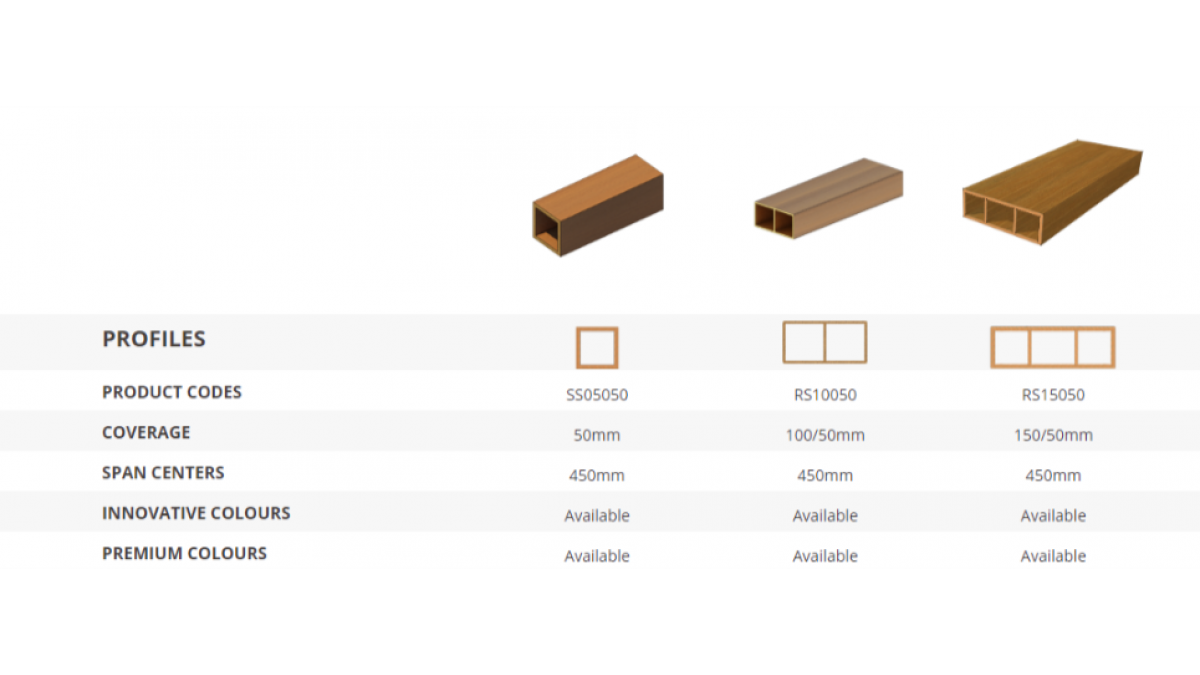

  • Innoscreen’s Face and Rear Fixing System is a direct fixing method whereby battens are either face-fixed or back-fixed directly through the profile and generally use an aluminium insert the length of the profile for strengthening and increasing spans

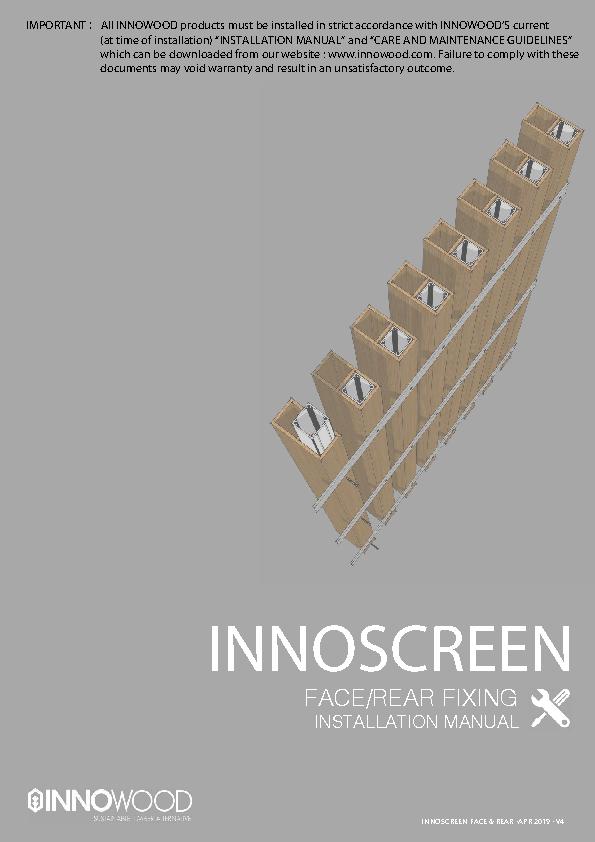

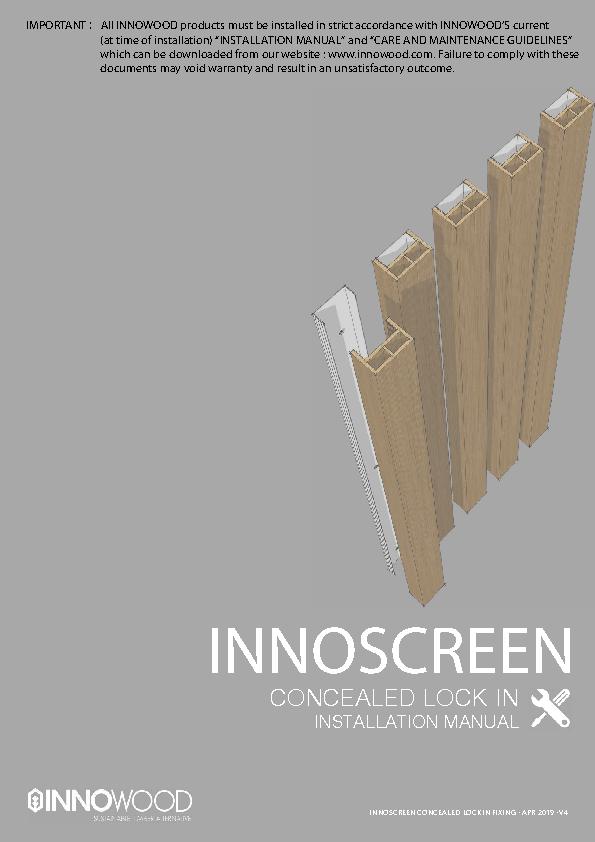

Installation must be in accordance with The Building Agency Installation Manuals.

• Refer to CodeMark Certificate CM70078 rev2

If designed, installed and maintained in accordance with The Building Agency requirements, the Innoscreen system will meet the following performance claims:

• B1 Structure: B1.3.1, B1.3.2, B1.3.3(a, f, h, j), B1.3.4
• B2 Durability: B2.3.1(b)
• F2 Hazardous Building Materials: F2.3.1

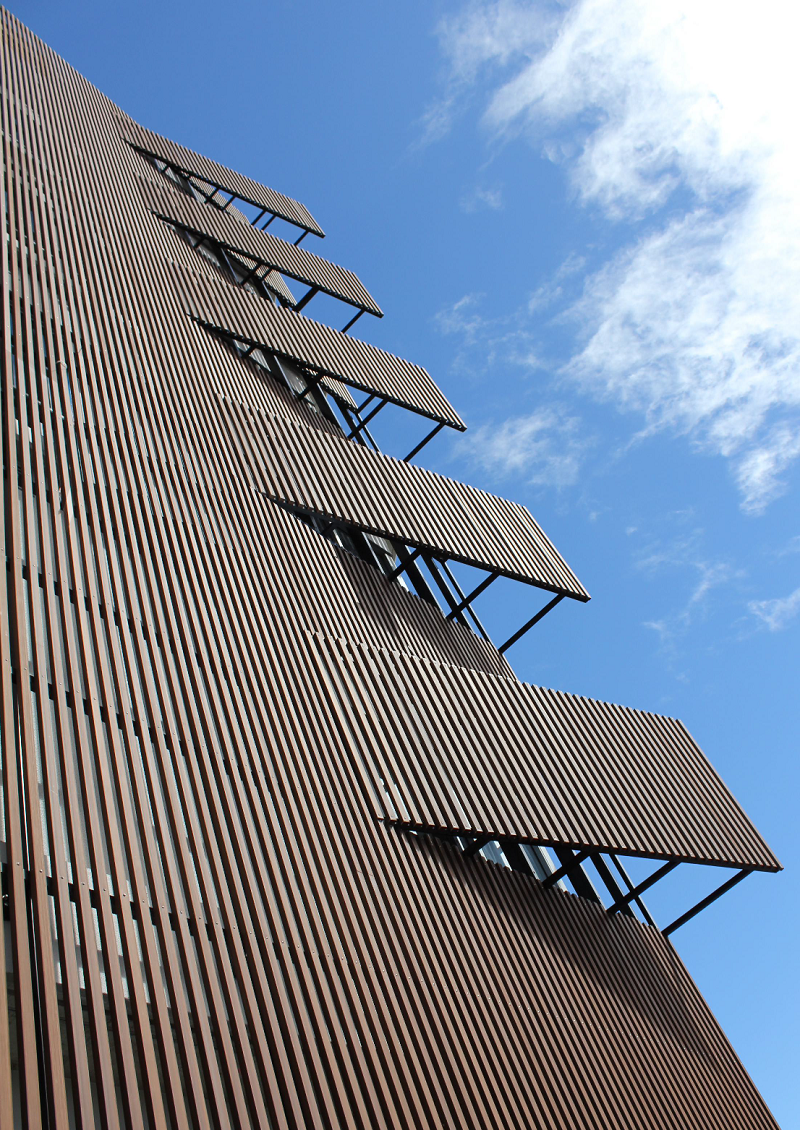

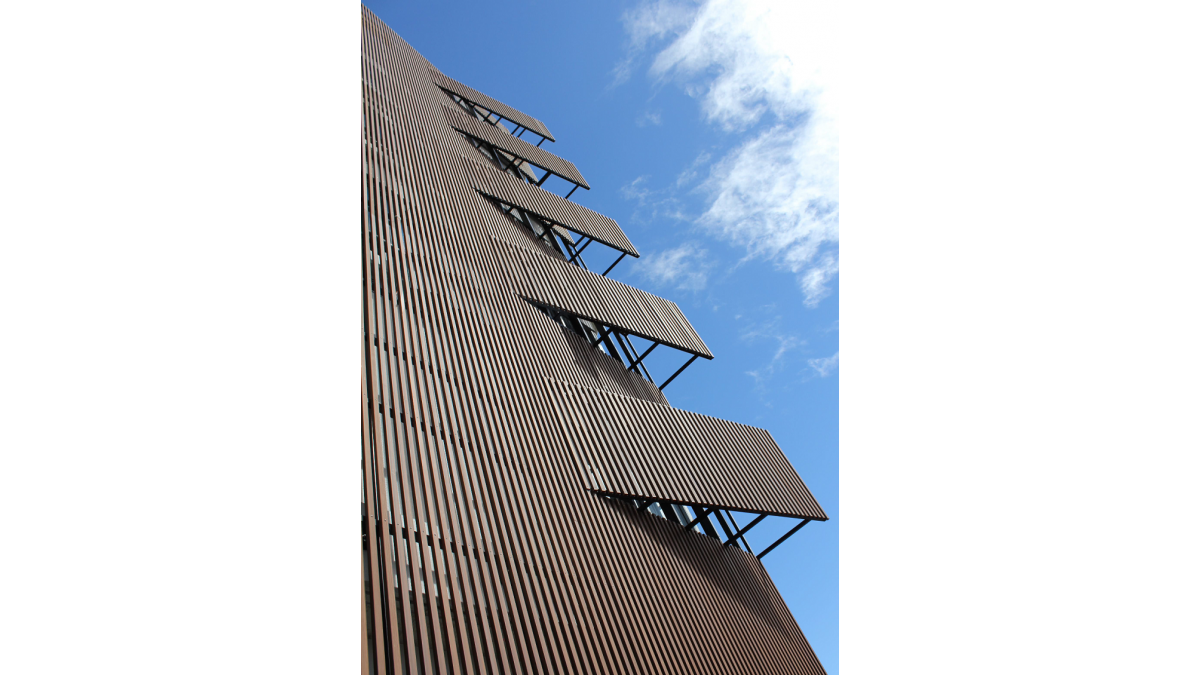

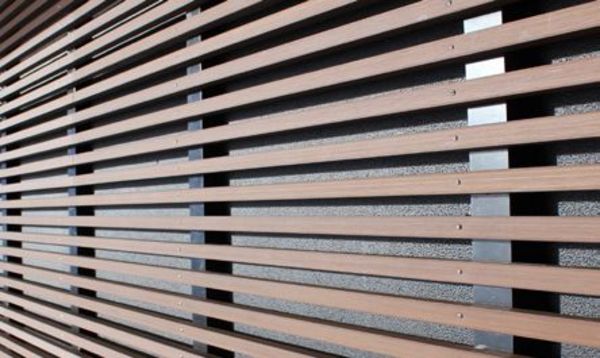

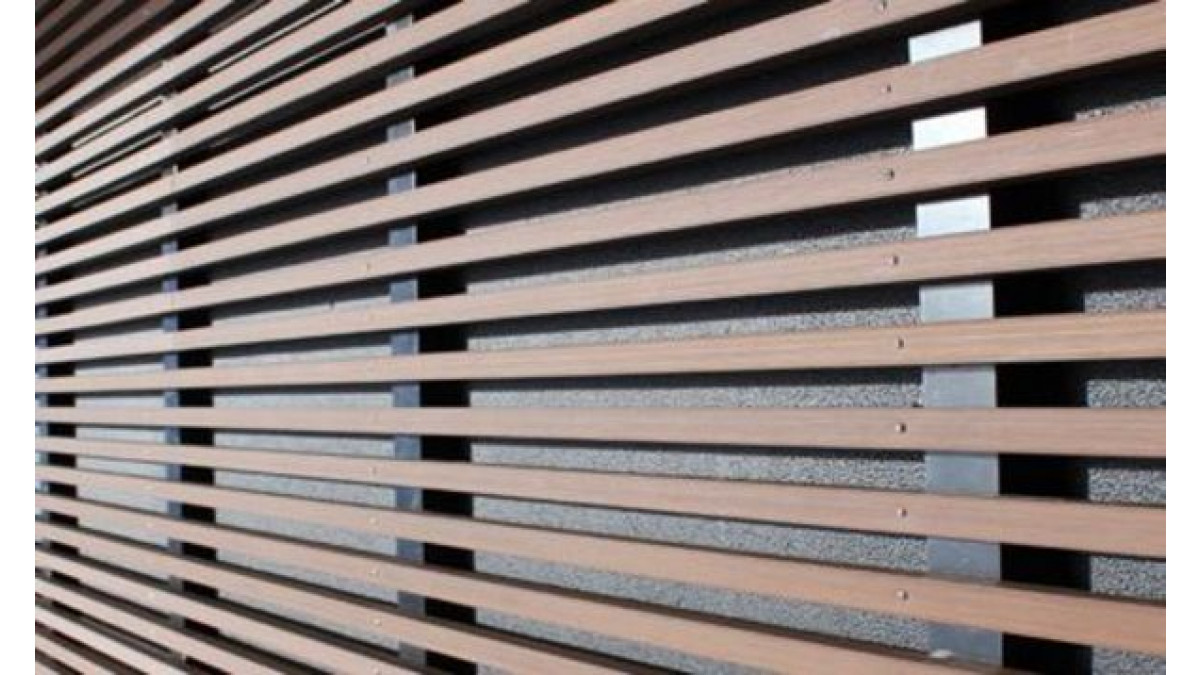

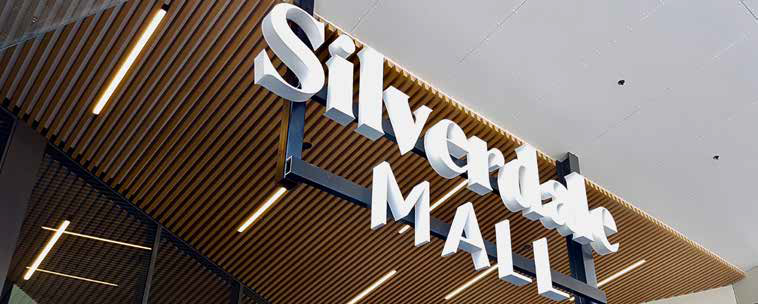

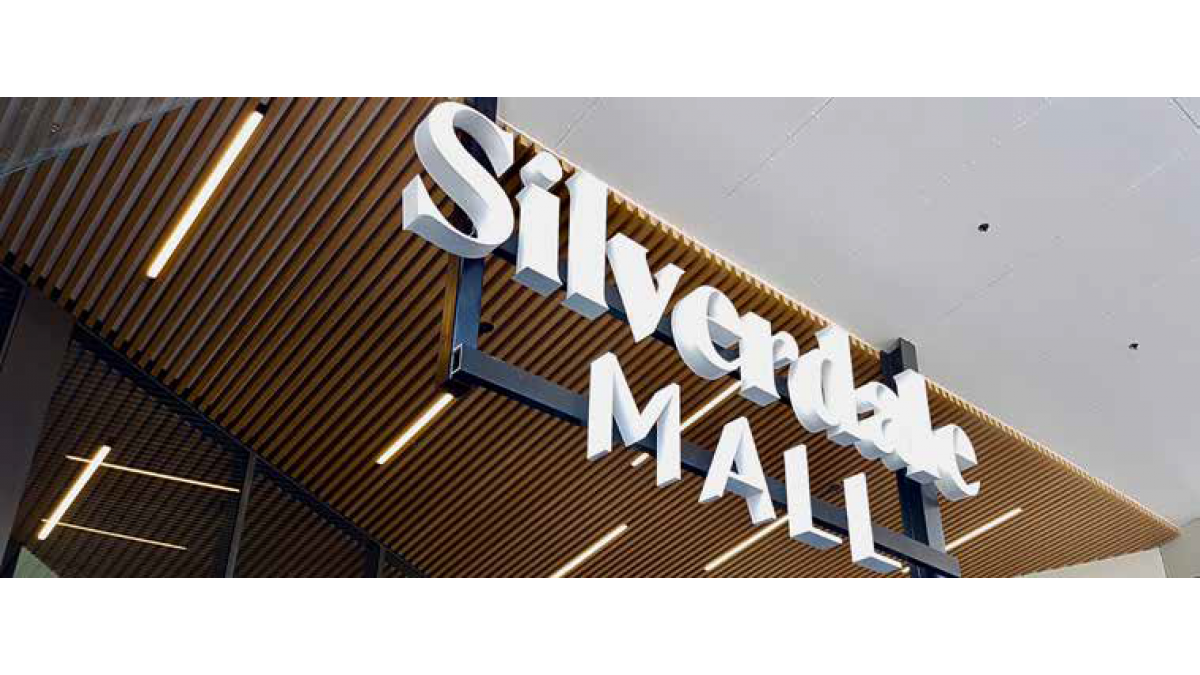

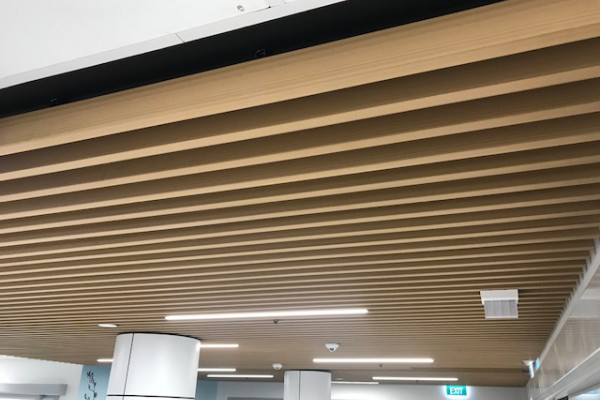

Visit www.thebuildingagency.co.nz/gallery

Innowood Australia, manufacturer of the Innoscreen system hold the following certifications and memberships:

• Environmental Product Declaration (EPD) Registered S-P-00853
• Member of Australia Green Building Council
