Alucobond Plus — Aluminium Composite Cladding System
Description

ALUCOBOND PLUS consists of two aluminium cover sheets and mineral-filled core. Alucobond has used over 50 years of experience to develop unsurpassed levels of paint finishes and flatness. ALUCOBOND PLUS, has a dynamic range of colours, excellent formability and weather resistance, allowing the designer complete freedom of creativity.  It has been developed as a rigid and, at the same time, flexible fascia material for architecture and design.

ALUCOBOND plus has been developed exclusively with the more stringent requirements of the façade market in architectural products. Thanks to its mineral-filled core ALUCOBOND PLUS meets the requirements of the fire-classifications for many applications. Where more stringent fire properties are required we also offer Alucobond A2 and Alucolux A1 Solid. ALUCOBOND PLUS is used in projects ranging from the construction of apartment buildings, high rise buildings, company offices, commercial and industrial buildings to the prestigious international landmarks of modern urban design and construction.

Key Features
  • Substructure and fasteners are inexpensive, easy to handle on construction sites, easy transportation
  • Planning and design freedom Uniform brand presence worldwide
  • Guaranteed durability; improved dirt resistance
  • No sound-absorbing layer (anti-drum coating) necessary
  • Easy processing with standard tools and procedures
  • Short installation time, fixed deadlines, low costs
  • Wide range of colours
  • Consistent colour quality and layer thickness
Scope of Use

The finish and flatness of Alucobond, its dynamic range of colours, formability and weather resistance allow a designer complete freedom of creativity.

Applications:

  • High and low-rise applications
  • Re-cladding or refurbishing
  • Public and health care buildings
  • Public offices and civic centres
  • Residential applications
Statement of Building Code Compliance

Alucobond will comply with the following New Zealand Building Code requirements:

  • B1 Structure: B1.3.1, B1.3.2.
  • B2 Durability: B2.3.1 (b).
  • E2 External Moisture: E2.3.2, E2.3.3 and E2.3.5.
  • F2 Hazardous Building Materials: F2.3.1.
  • C Protection from Fire: C3.4(a), C3.5.
In-Service History

Symonite Panels has been designing and installing ACP systems since 1998. New Zealand’s largest and most experienced ACP contractor, with over 70 full-time staff in four offices.

Other Performance Attributes

The face sheet of aluminium shall be finished in a factory applied fluoropolymer (PVDF or FEVE) high performance coil coating in accordance with EN13523, ECCA Quality Label and Voluntary Specification AAMA 2605-11.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
C3 Compliance Testing

CMA-CM40035 Rev 1

Maintenance Instructions
Warranty
Colour Range
CAD/PDF Details

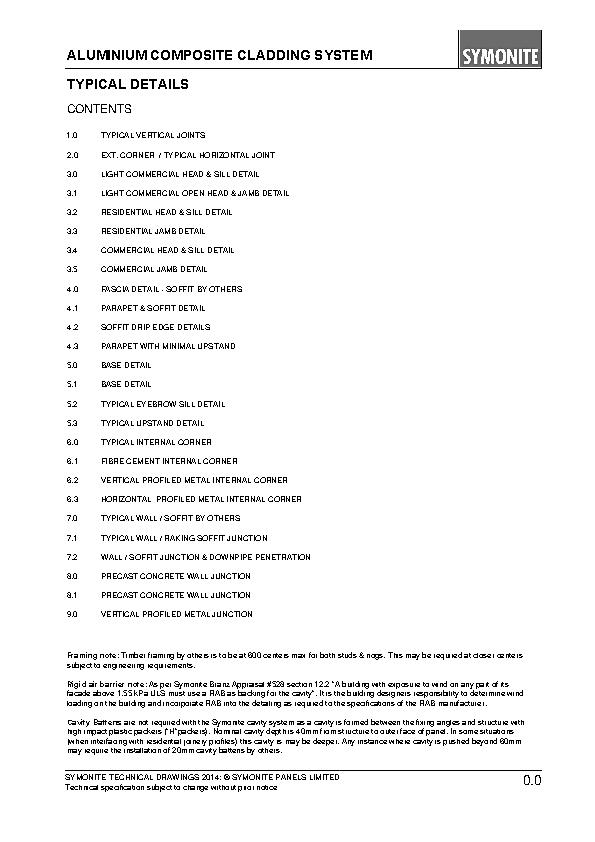

Typical Details - 2 Stories and Above

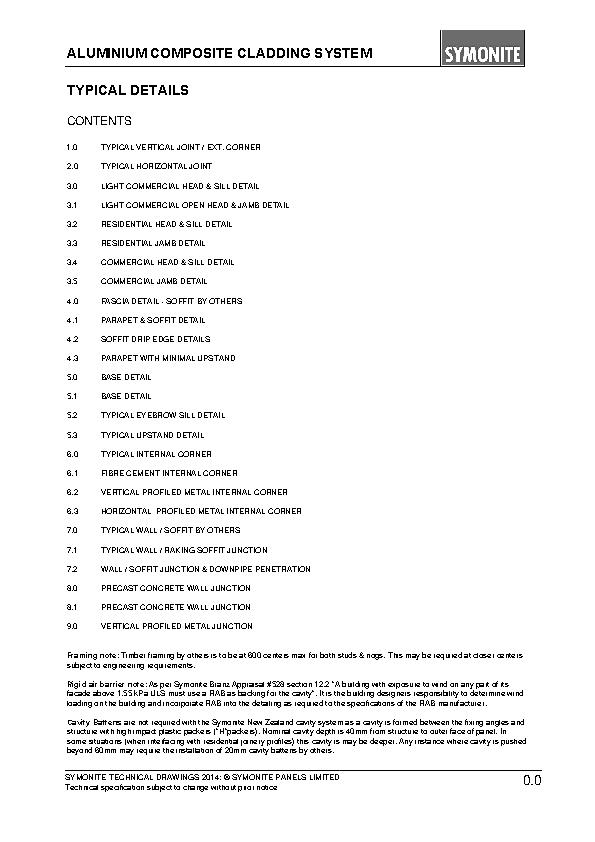

Typical Details - Buildings up to 2 Stories

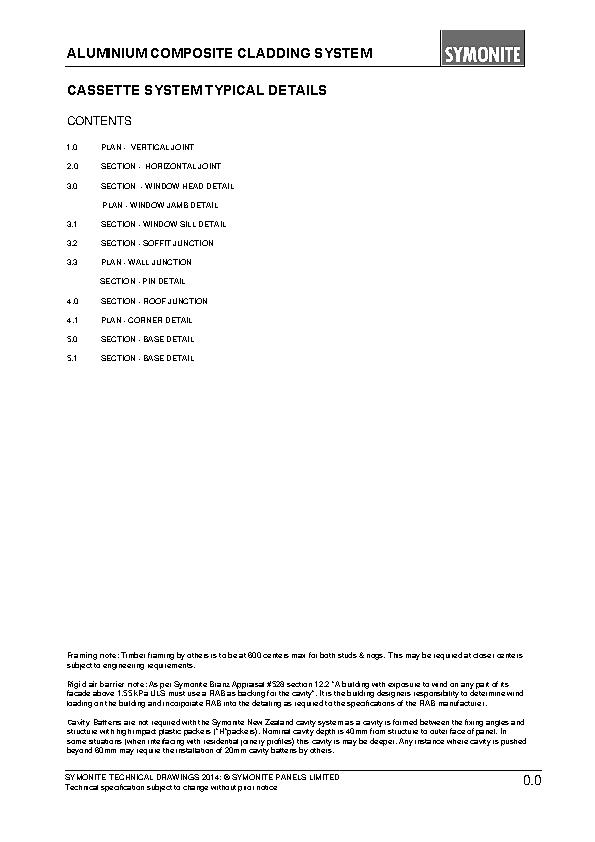

Typical Details - Cassette System

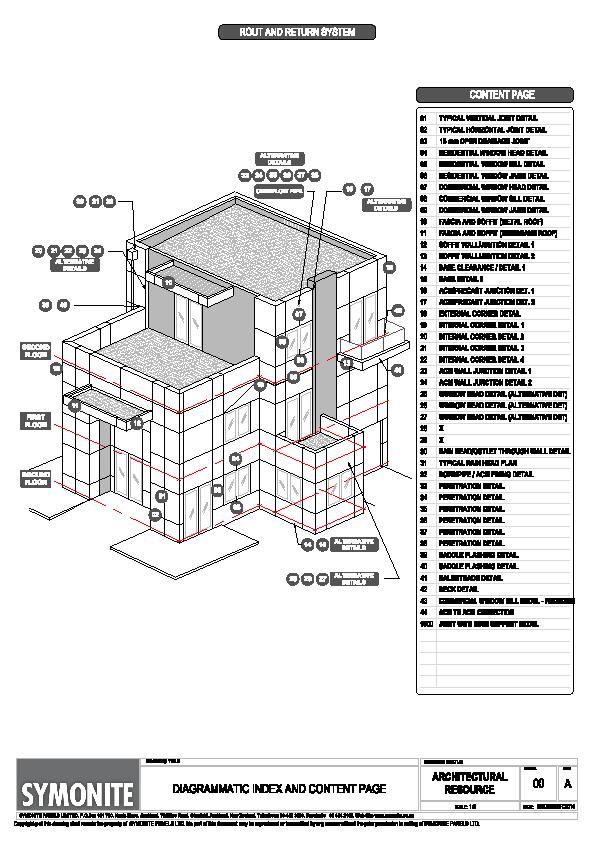

Typical Details - Rout and Return System

Symonite Panels Ltd are highly experienced specialist suppliers, fabricators, and installers of Facade Systems for the construction industry.

Product Enquiries

News from Symonite

Tackling Design Problems with Creative Solutions and Hands-On Technical Assistance

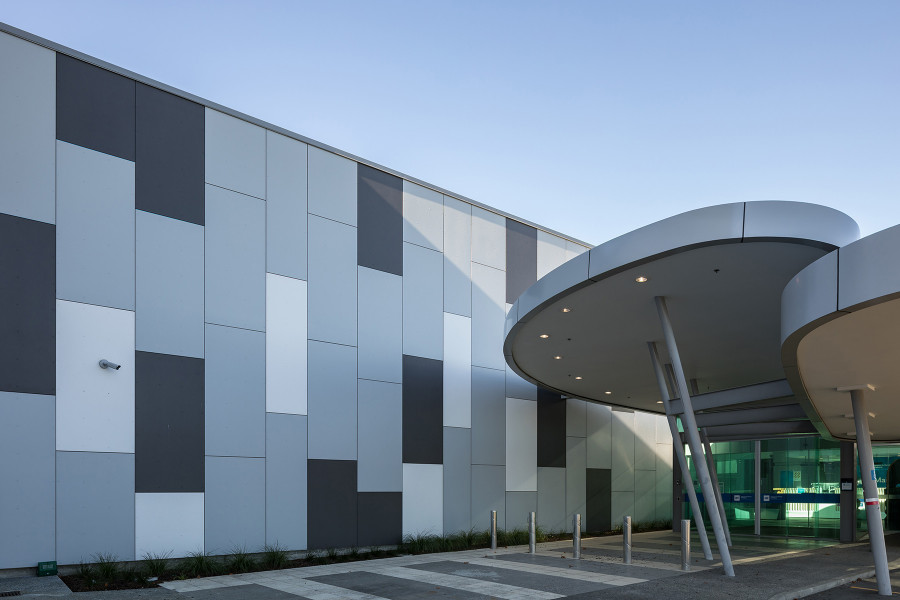

Equitone: HD Fibre Cement Cladding
