Legacy
Description

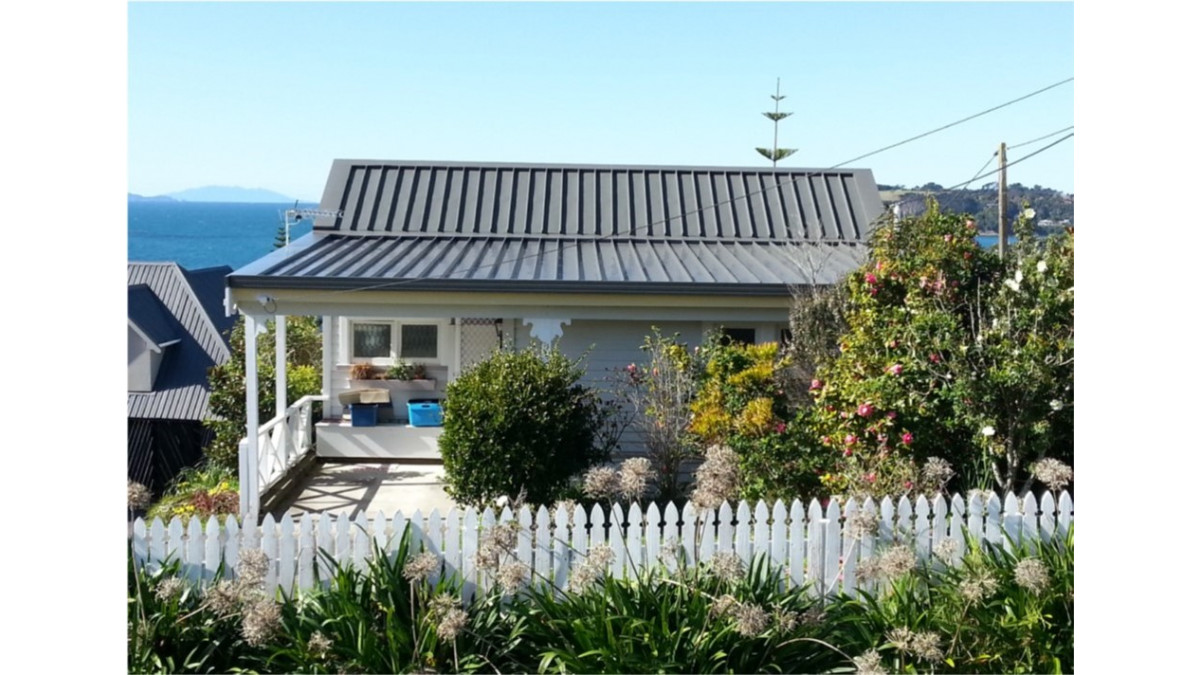

LEGACY has been specifically introduced to complement the Euroline range of roofing products, with their unmistakable eighteenth century standing seam roofing style. It incorporates modern high strength roll forming technology to eliminate the need for supporting plywood substrate and is available in continuous lengths.

An architectural feature of this profile are the undulations in the wide at pan, which can be expected in this type of roof profile. In some situations indentations caused by the fixing clips or purlins may be noticeable although this will become less apparent with weathering over time.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

Key Features

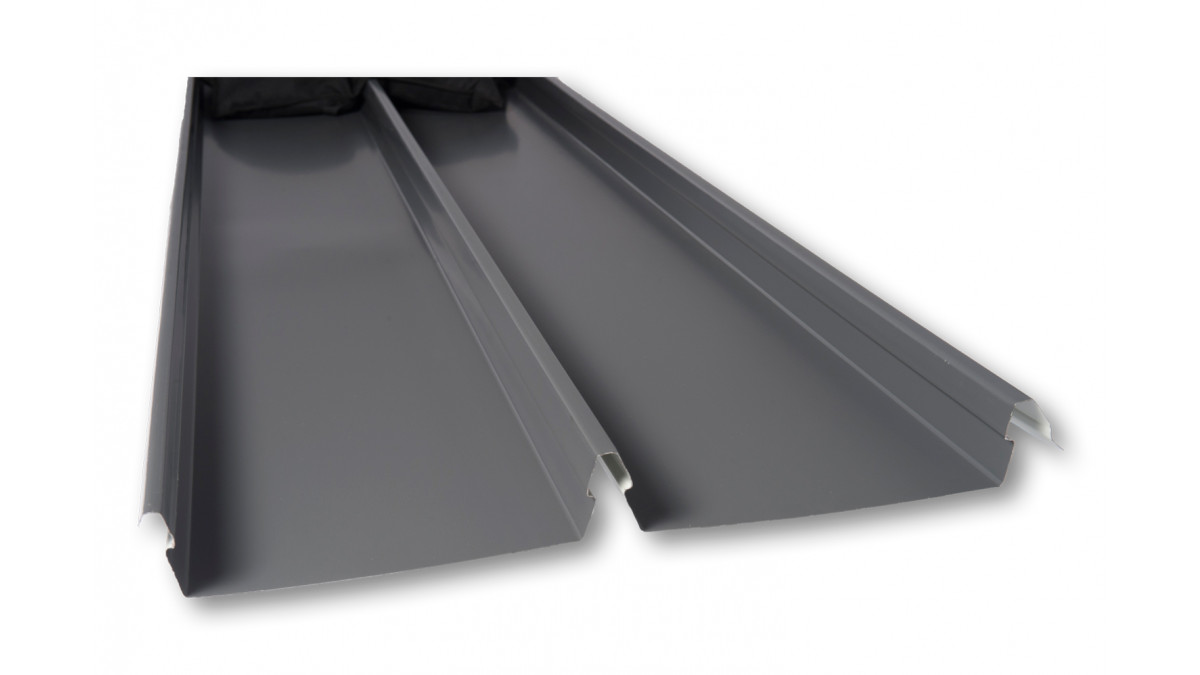

Legacy is a concealed clip fixed trough section roof and wall cladding:

  • Does not require a ply substrate
  • Fixed by means of a concealed clip for roof and wall applications
  • Roof cladding down to a minimum pitch of 3°

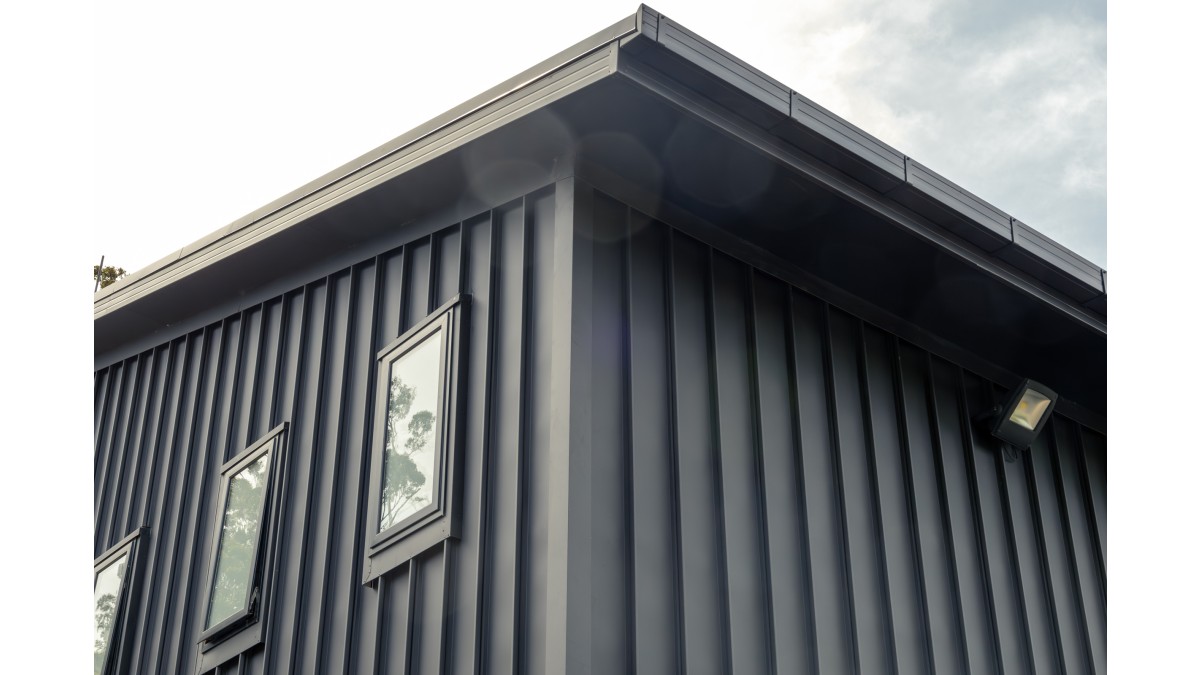

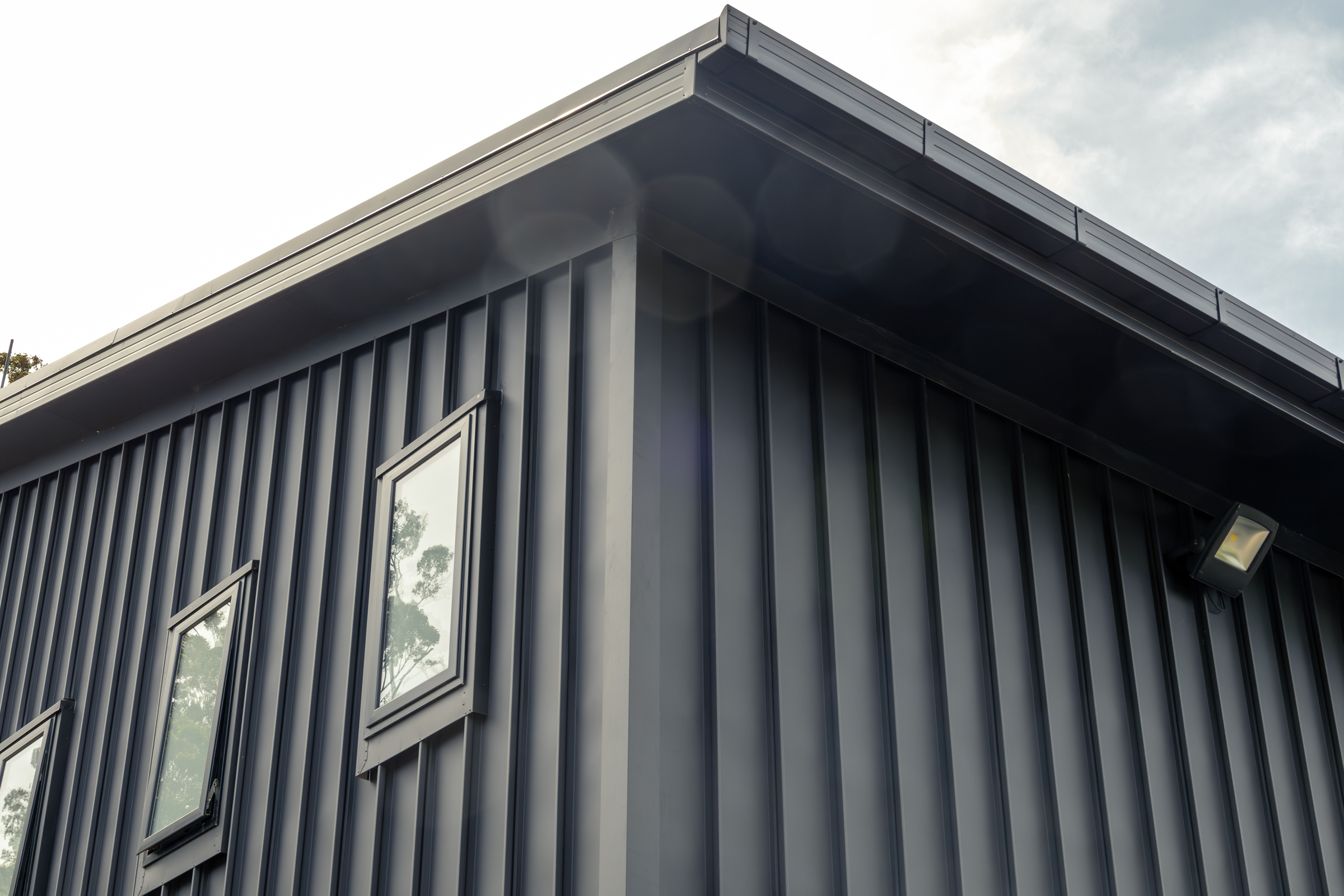

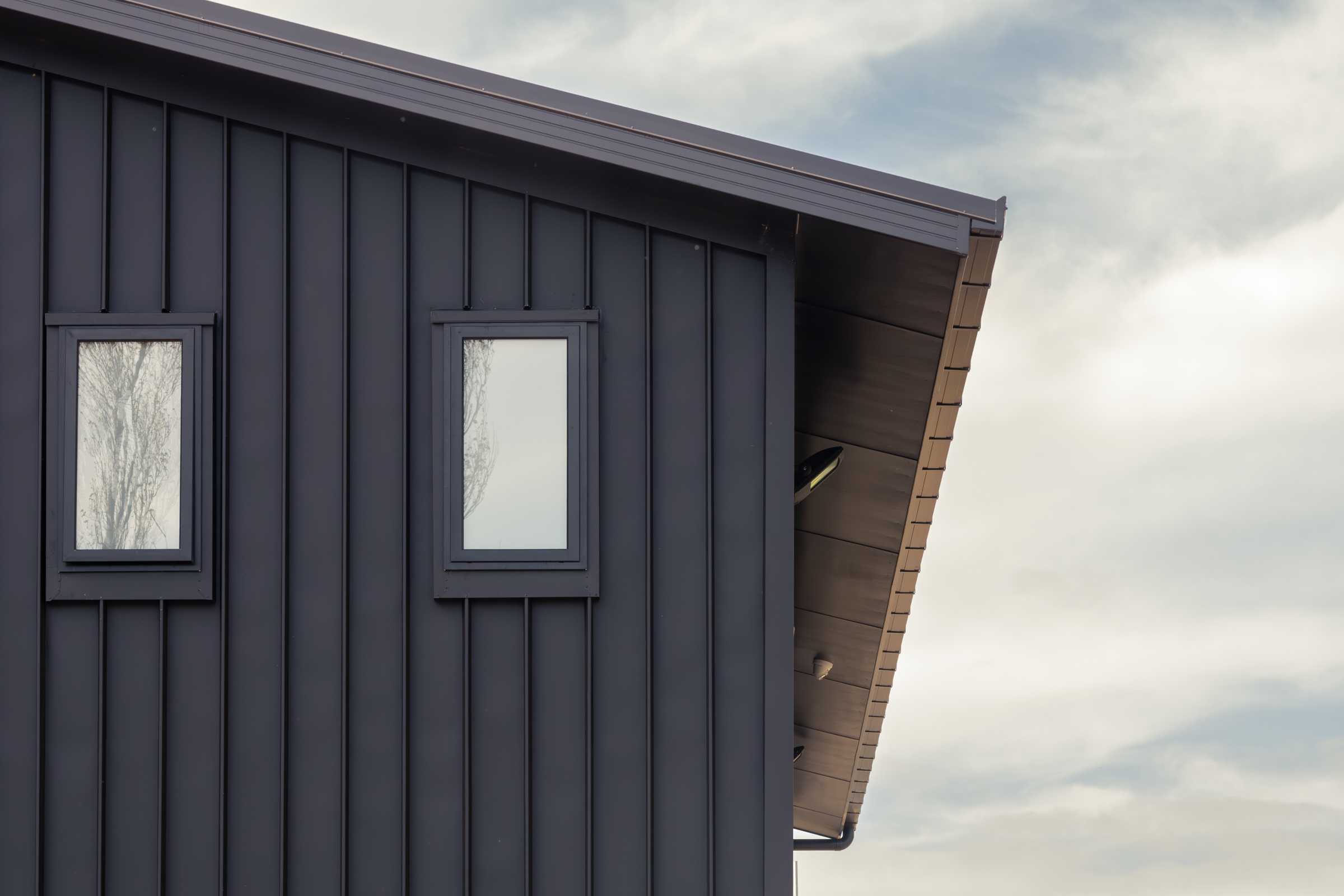

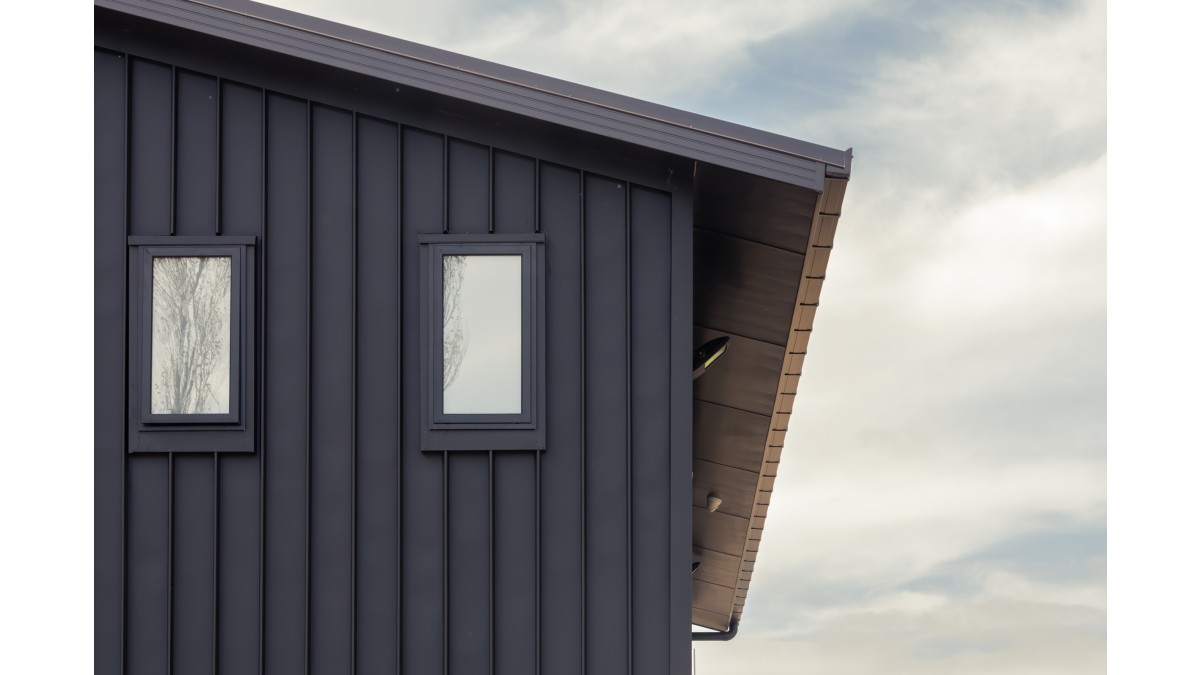

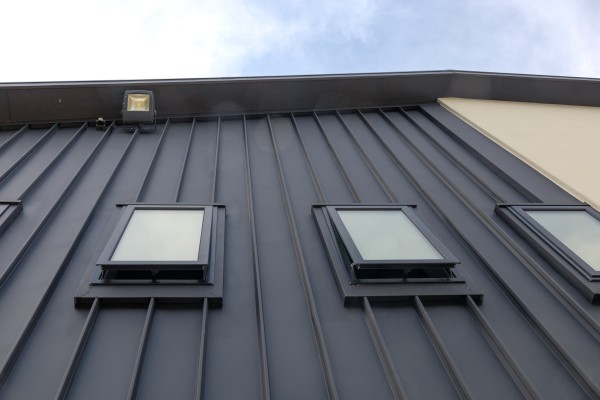

  • Vertical wall cladding installed over a drained cavity
  • Installation on supports at 600mm spans on buildings within the scope of NZS 3604
  • Manufactured in Auckland
  • Minimum pitch 3°

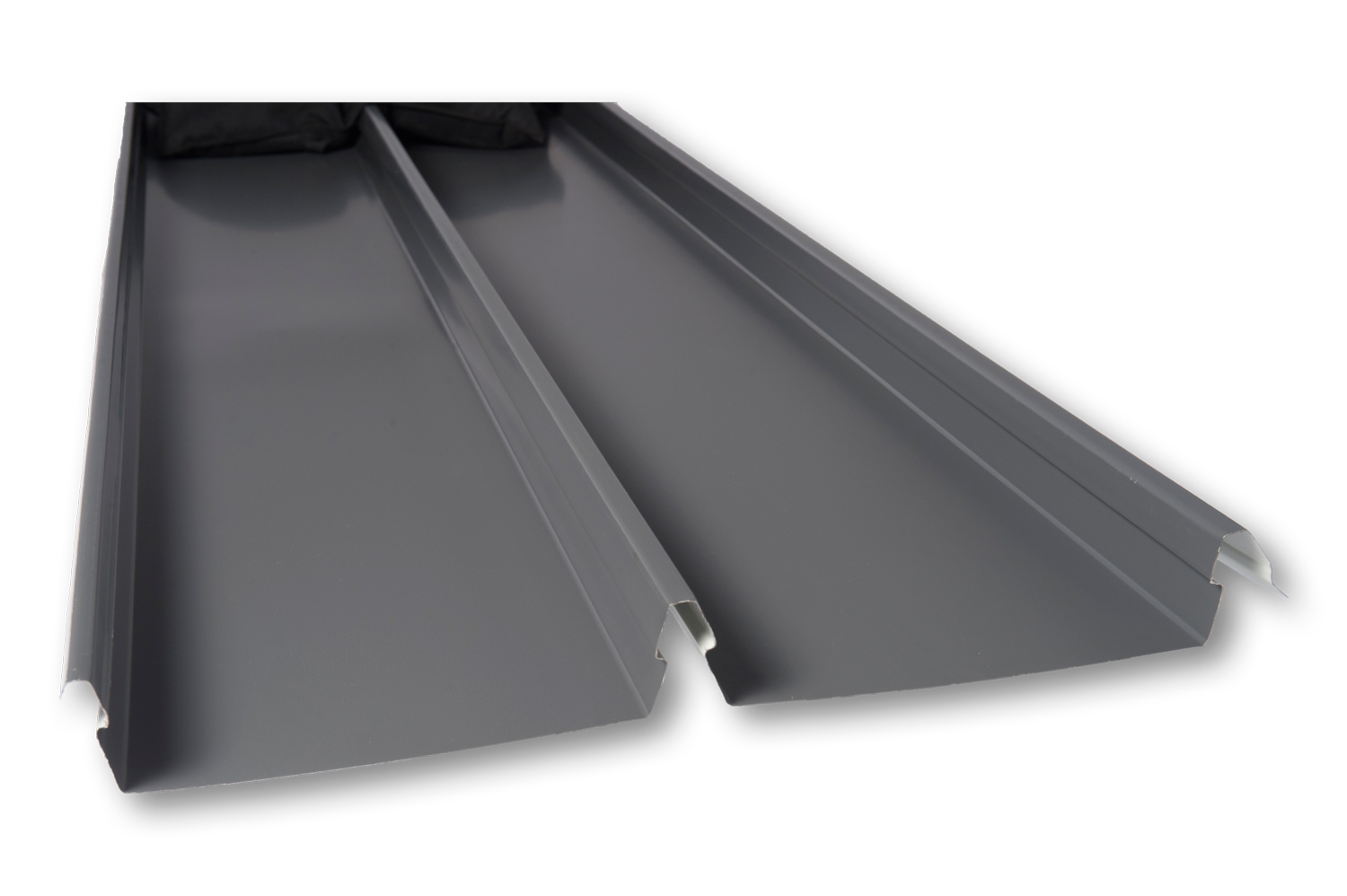

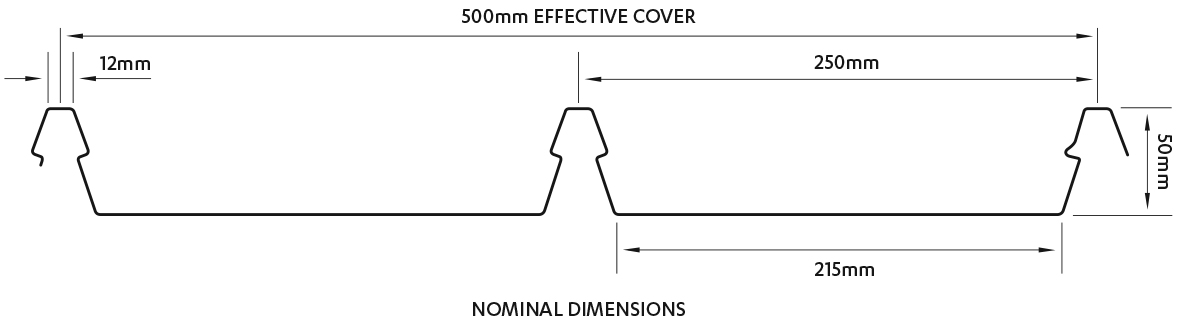

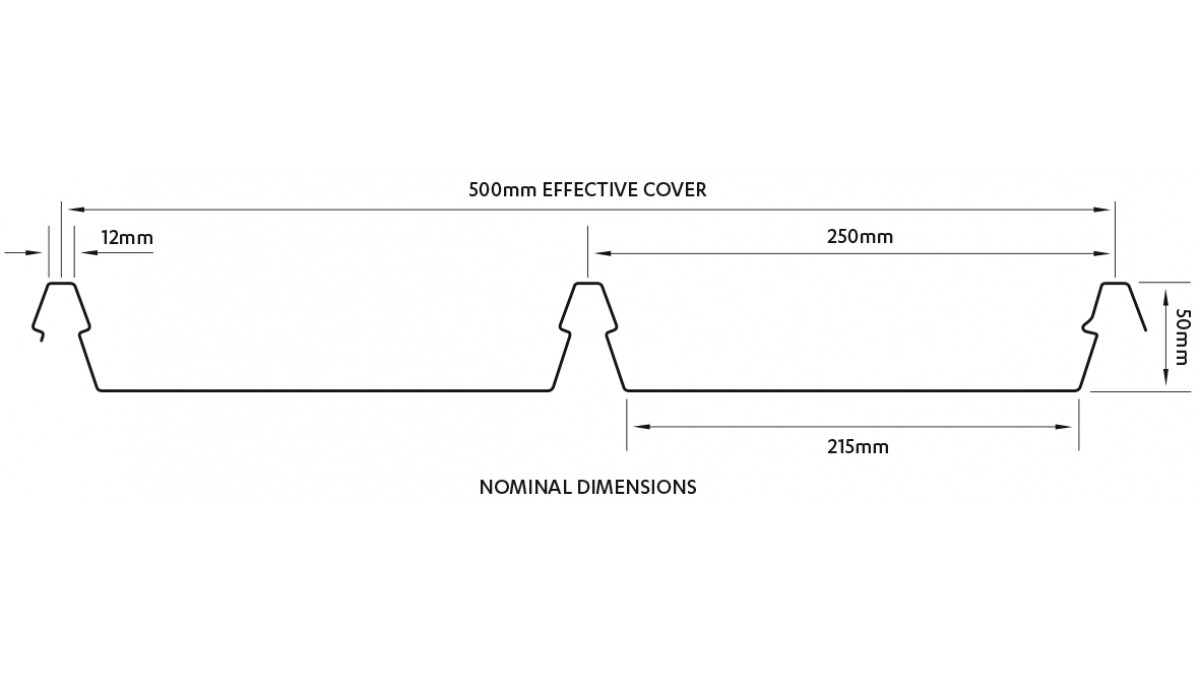

  • 215mm wide flat pan, 50mm rib and 500mm effective cover
  • High tensile steel for greater strength
  • Wider coverage for greater economy
  • Trapezoidal rib for greater stability
  • Can be end lapped
  • Translucent sheeting available to match
  • Available in a wide selection of materials
Environmental Choice (ECNZ) Licensed
ECNZ Licensed
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Roof cladding down to a minimum pitch of 3°
  • Vertical wall cladding installed over a drained cavity
  • Installation on supports at 600mm spans on buildings within the scope of NZS 3604
Limitations on Use
  • Use outside the stated scope of use is subject to special design in consultation with Steel & Tube
  • Foot traffic must take place over purlin lines

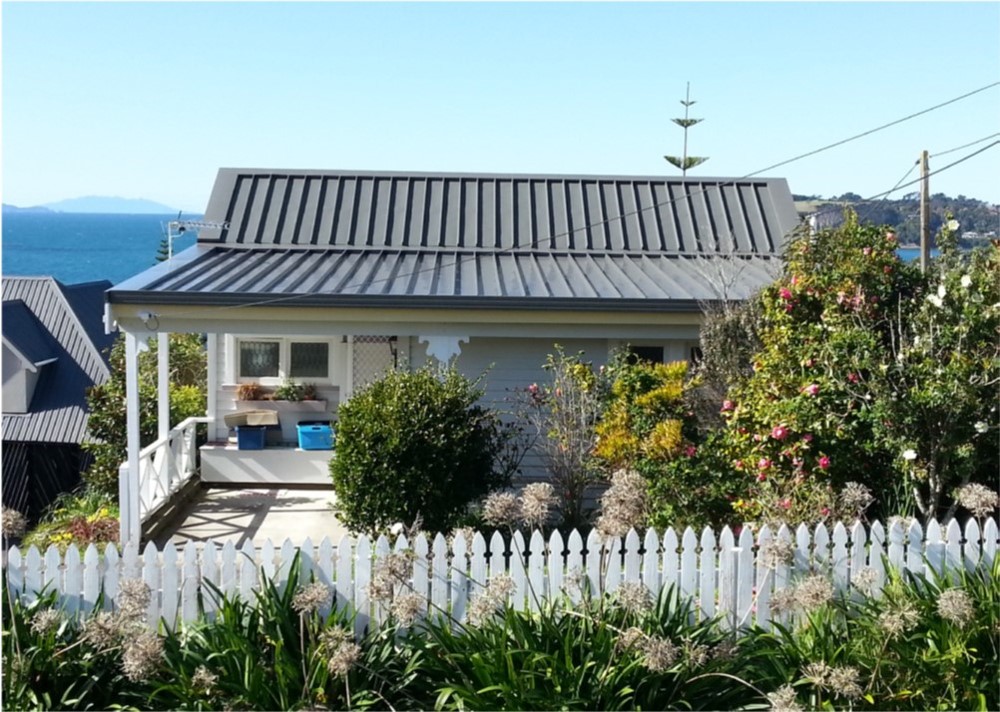

  • Residential roofing and cladding
  • Commercial and Industrial cladding
  • Steel & Tube Legacy is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
  • A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
3° Minimum Roof Pitch Required
NZS 3604 Corrosion Zone B suitable
Corrosion Exposure Zone B
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Statement of Building Code Compliance

Legacy if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B1 Structure — When fastened to supports at a maximum of 600mm centres with one Legacy clip per sheet with two screws per clip, Legacy will withstand wind loads of up to Extra High Wind Zone as determined by NZS 3604:2011.
  • Clause B2 Durability — When the base material is used in accordance with Table 20 of E2/AS1. In Severe Marine environments eaves clips to be Thermoplastic Powder Coated Galvanised or Stainless Steel 304 as appropriate for the cladding material.
  • Clause E2 External Moisture — When design principles contained in E2/AS1 for trough section cladding are applied. Steel & Tube recommend details which incorporate concealed fixing methods to minimise the use of exposed fasteners.
In-Service History

Numerous specifications for large residential and commercial applications have been written for this product so the acceptance is widespread amongst designers. The product's sister product HiRib has many years of in-service history across New Zealand in both commercial and residential sectors.

Other Performance Attributes

Legacy when manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
