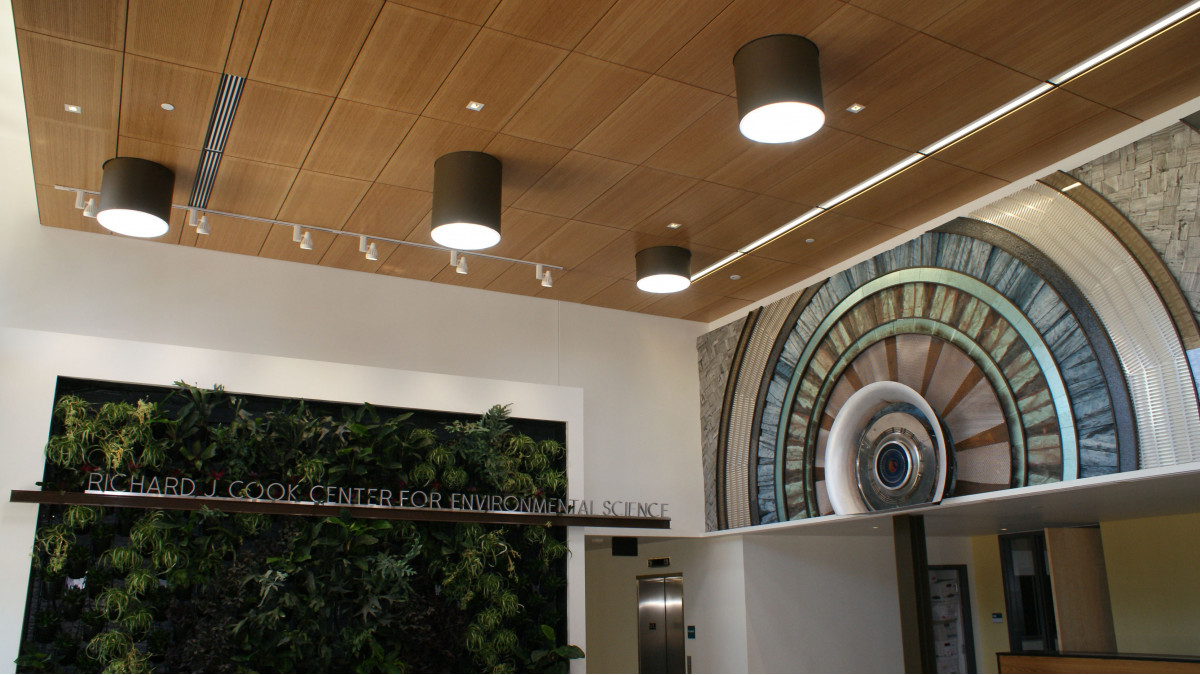

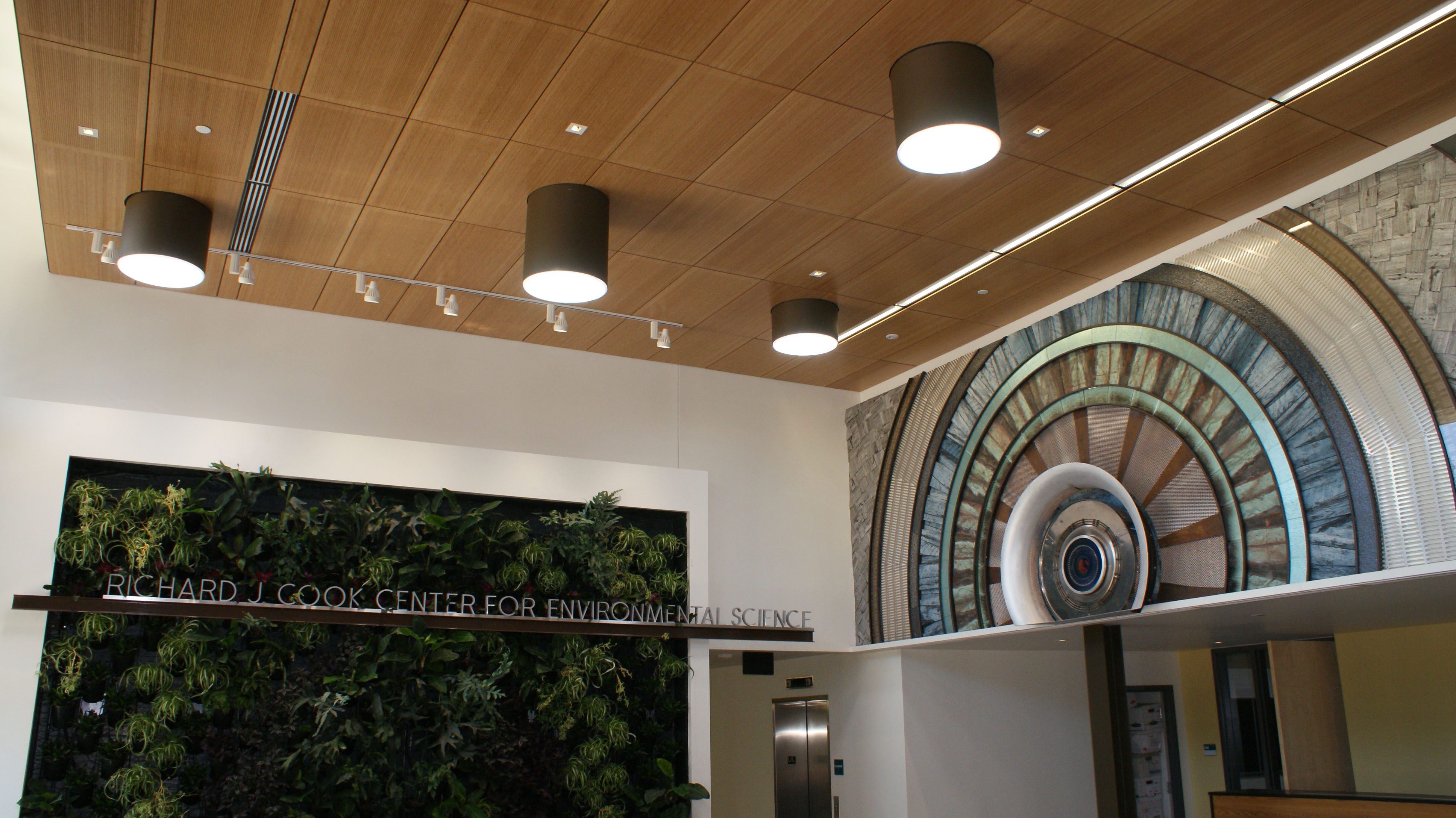

1 Allegheny College Richard J. Cook Center for Environmental Science Meadville PA Testimonial

Product Enquiries

Description

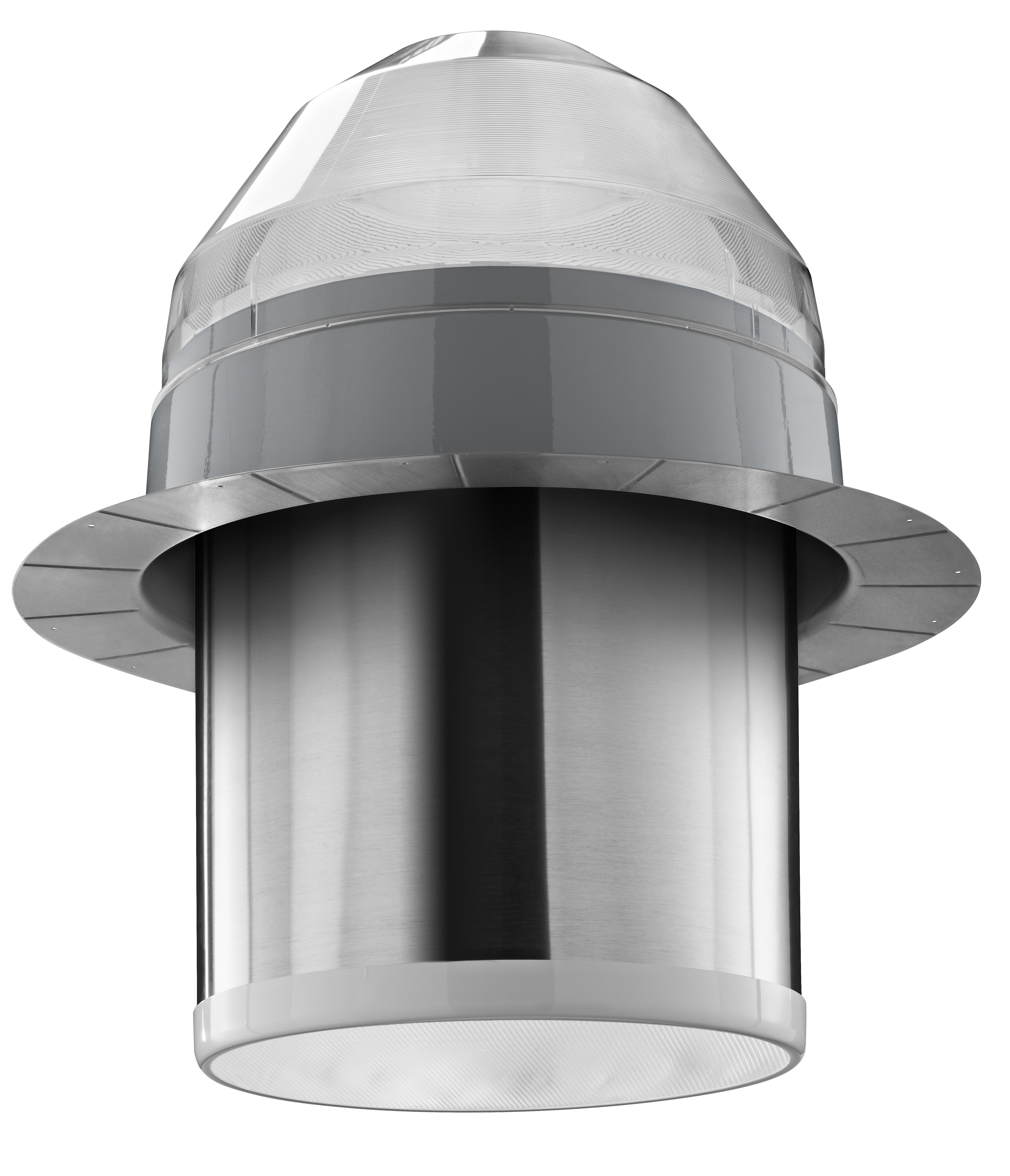

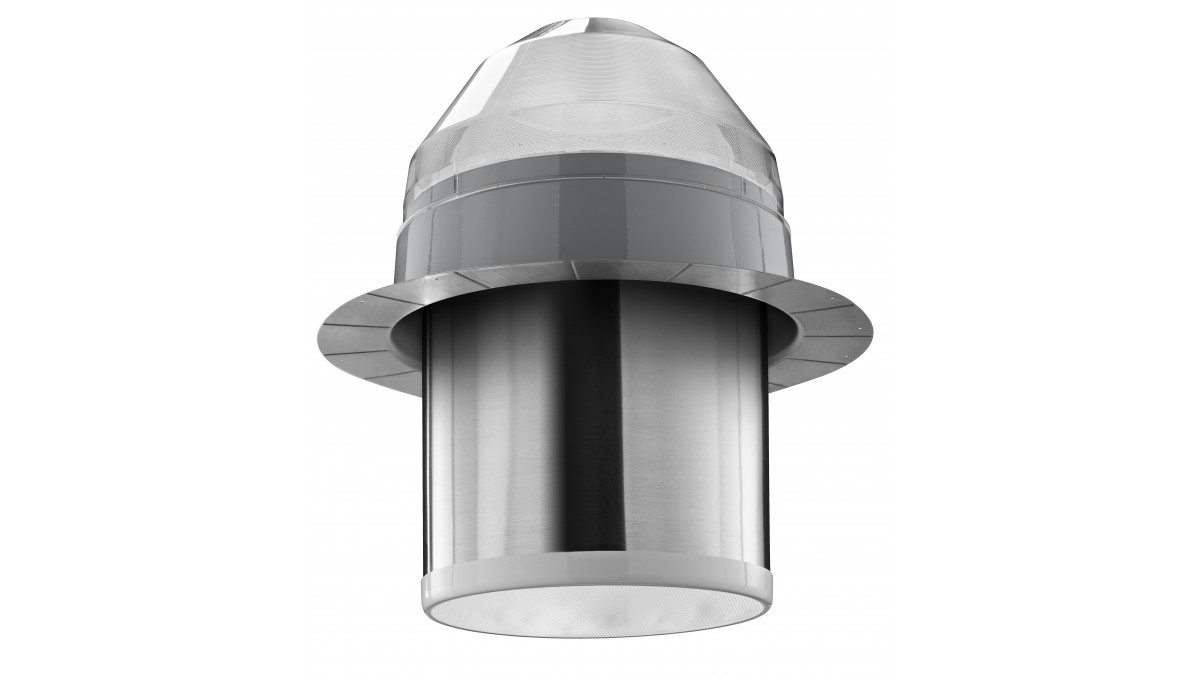

The Solatube 750 DS (530 mm /21 in. diameter) is designed to deliver consistent light output throughout the day. Featuring Raybender 3000 Technology, it effectively captures low-angle sun rays in the morning, late afternoon and winter months, but rejects high-angle rays at midday to prevent glare, over-lighting and overheating. It’s perfect for spaces where a uniform level of light is required during typical work hours.

The Solatube 750 DS-O model is intended for lighting spaces with open ceilings while the Solatube 750 DS-C model is designed for dropped ceiling applications

Key Features

Captures low-angle sun rays but rejects high-angle rays at midday to prevent glare, over-lighting and overheating
Delivers predictable light levels to small and large spaces
Prevents external heat infiltration to reduce daytime cooling loads for lower air conditioning costs
Intended for lighting spaces with open ceilings

Ranges

Solatube Daylighting Systems

Scope of Use

Suitable for wind zones up to and including Very High
For use on flat or nominally flat roofs making use of membrane roof systems
Intended for lighting spaces with open ceilings
Perfect for spaces where a uniform level of light is required during typical work hours

See BRANZ Appraisal for full scope information

Limitations on Use

Installation only to be carried out by installers registered by Hometech Ltd
The Solatube 750 DS-O model is intended for lighting spaces with open ceilings while the Solatube 750 DS-C model is designed for dropped ceiling applications
