SET-XP High-Strength Epoxy Anchoring Adhesive
Simpson Strong-Tie
All products

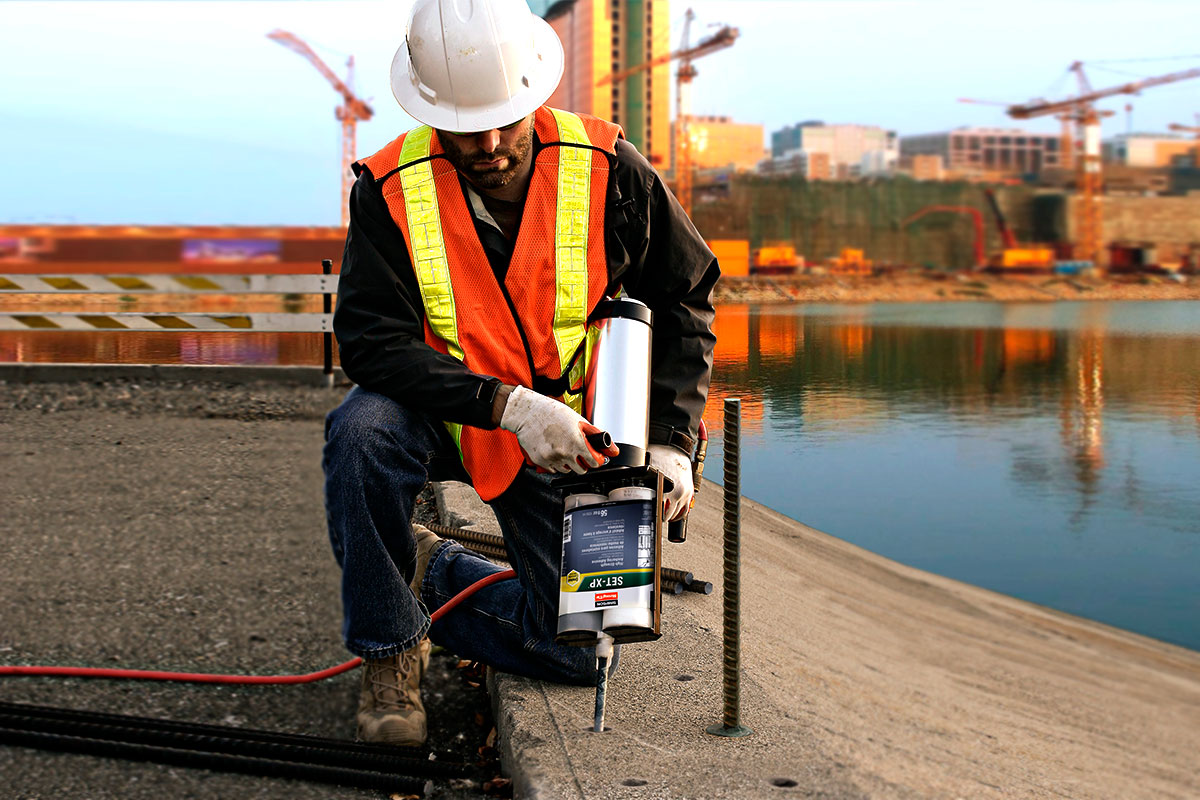

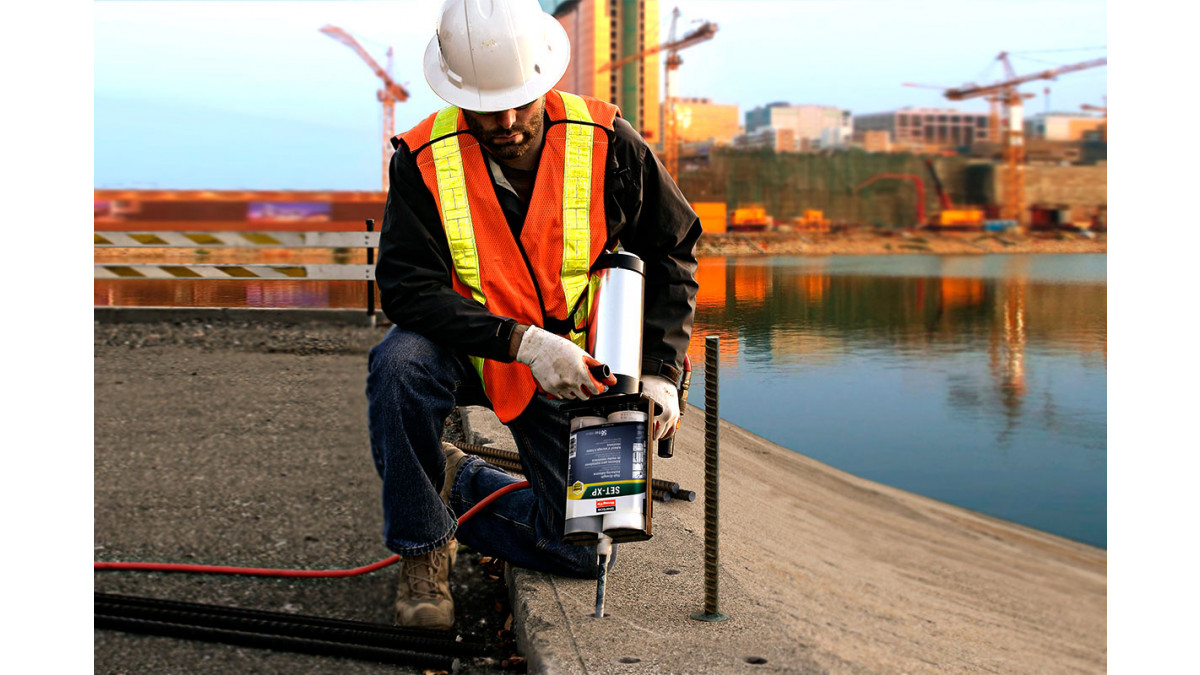

SET XP Application 01

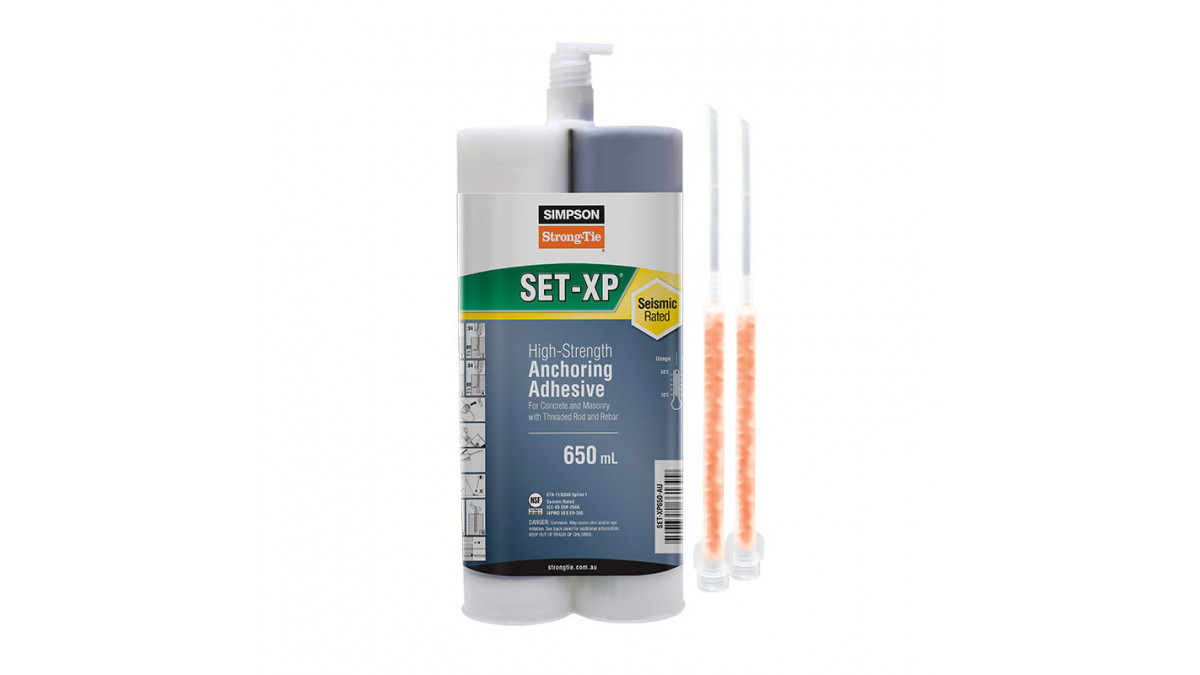

SET XP650

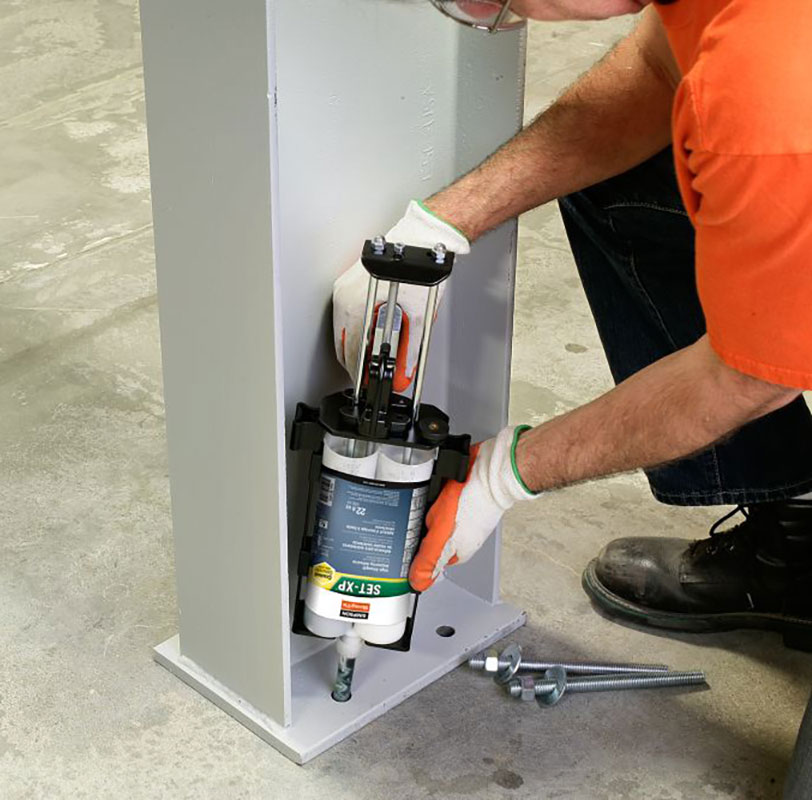

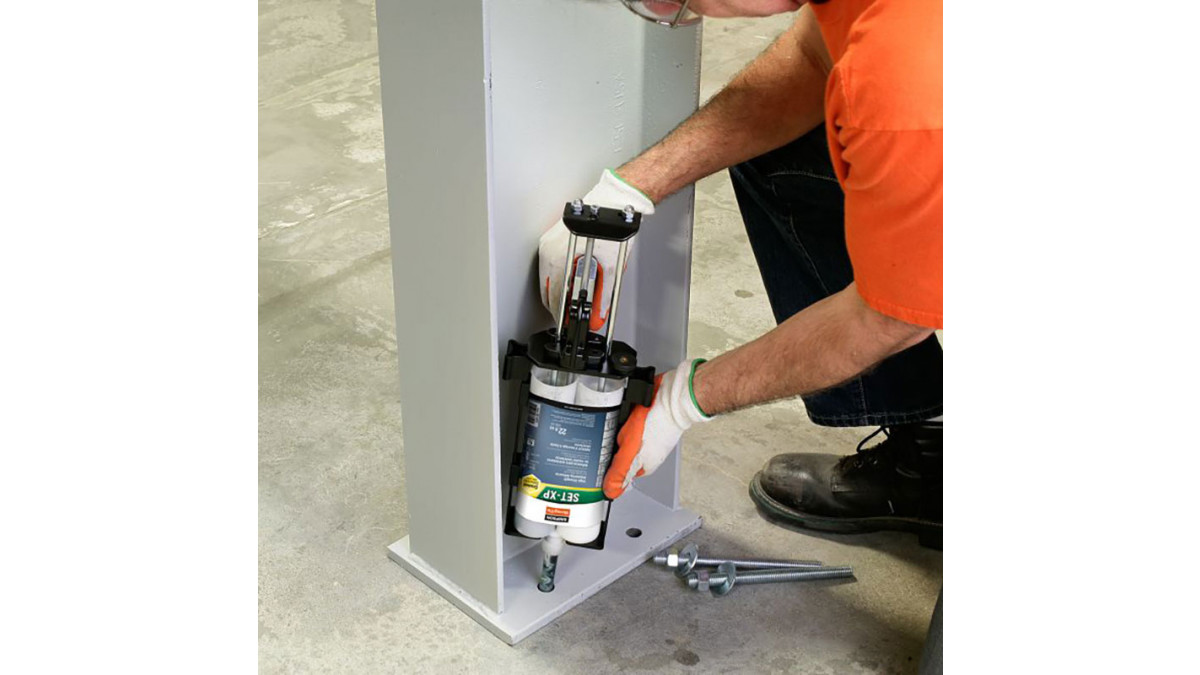

SET XP Application 02

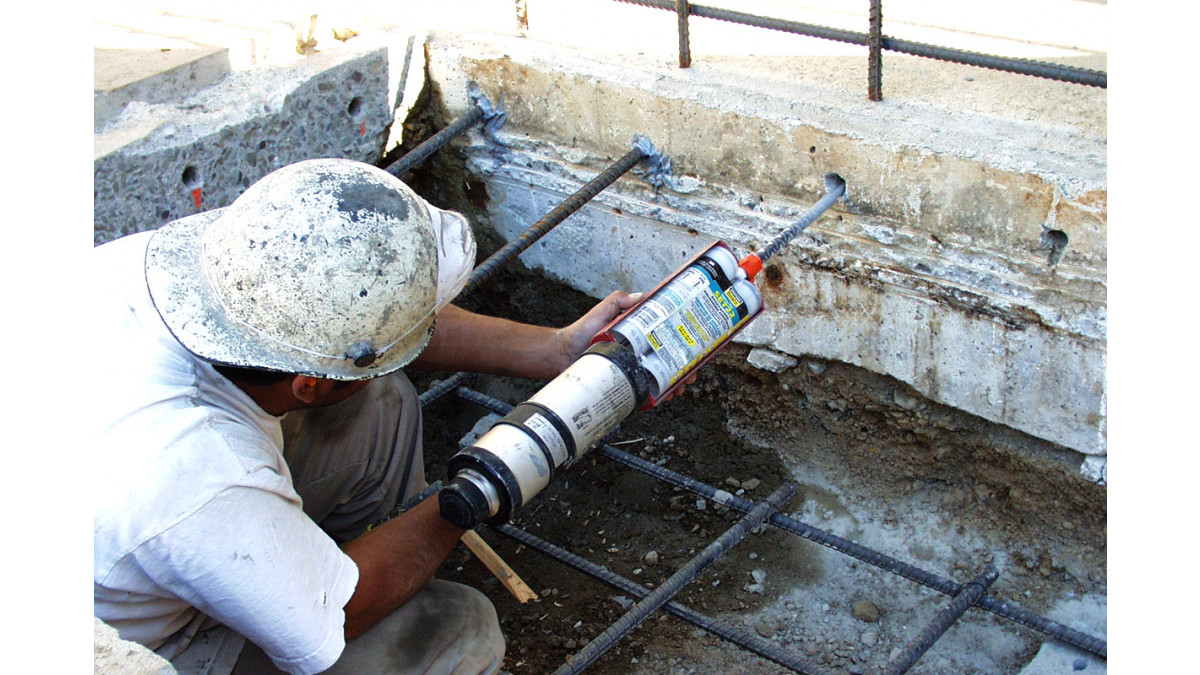

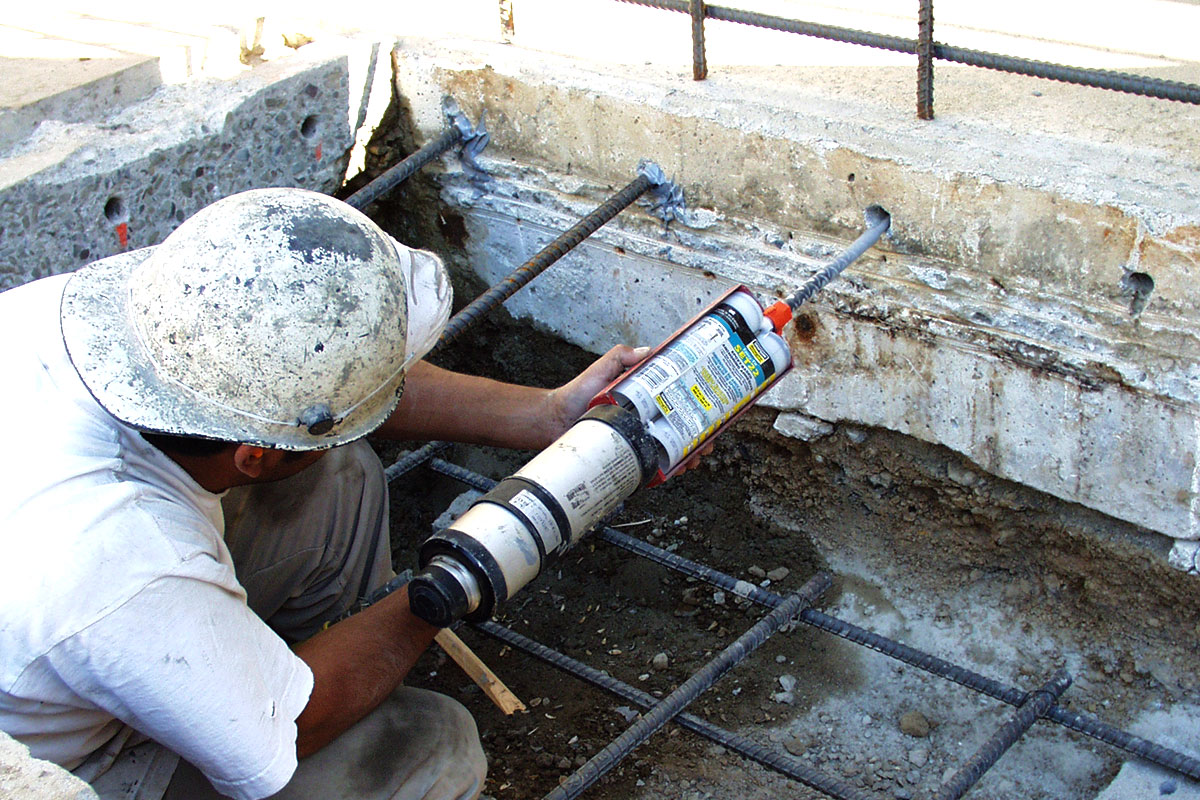

SET XP Application 03

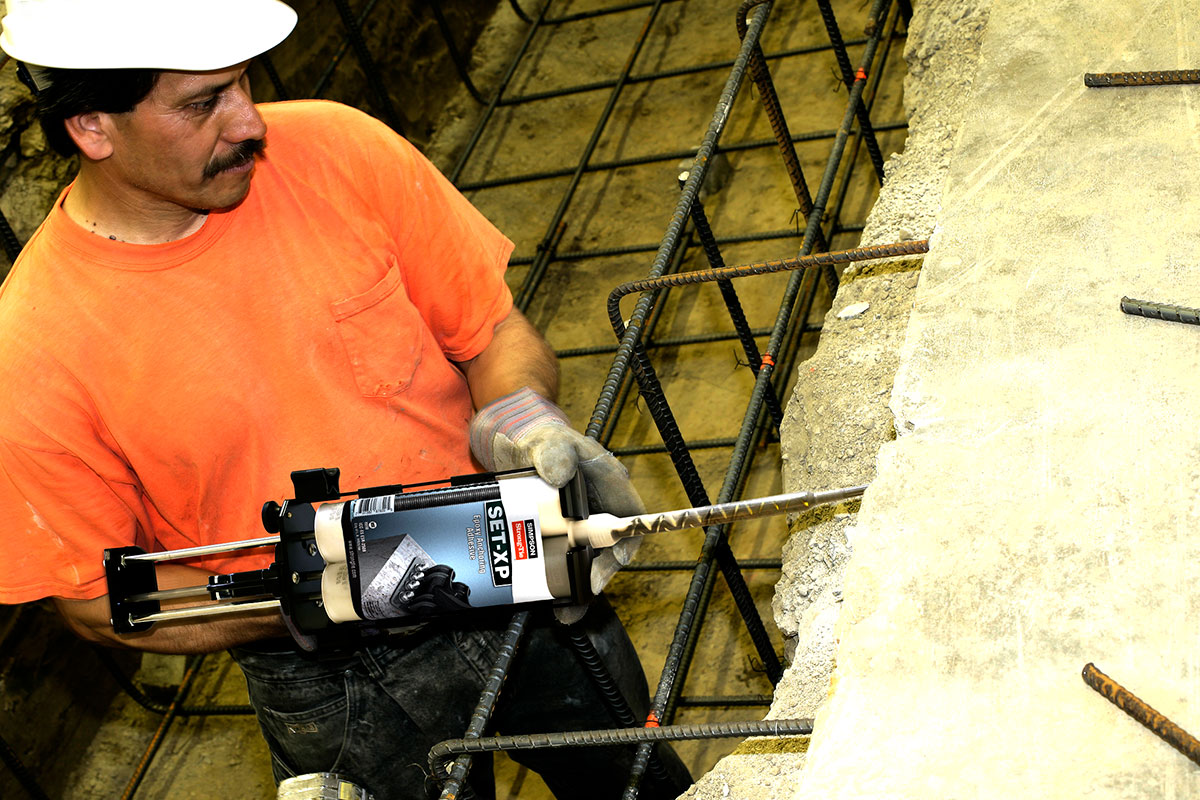

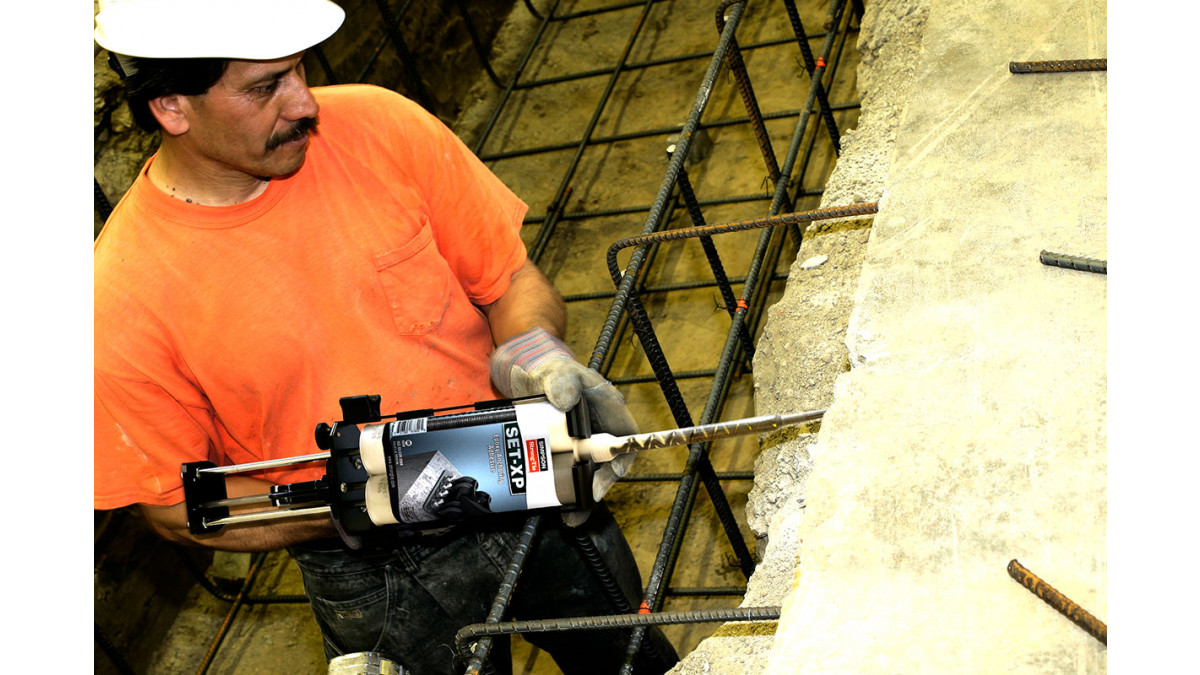

SET XP Application 04

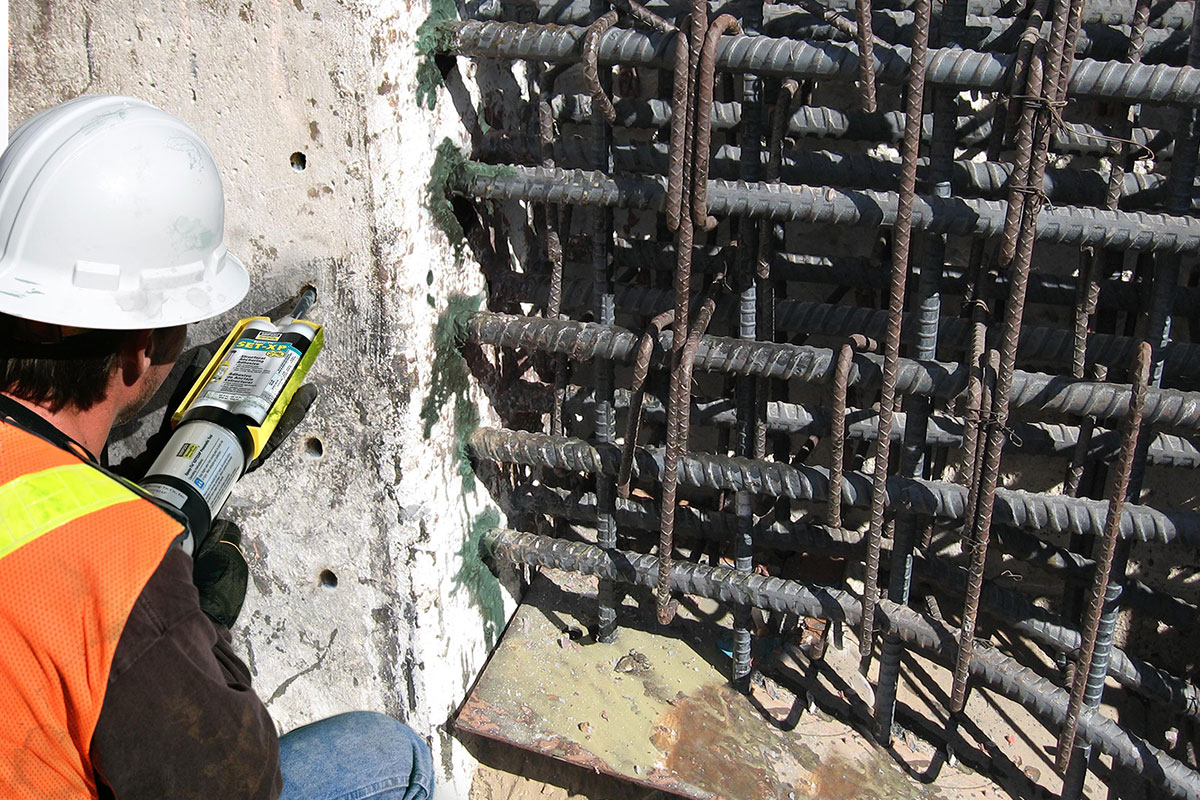

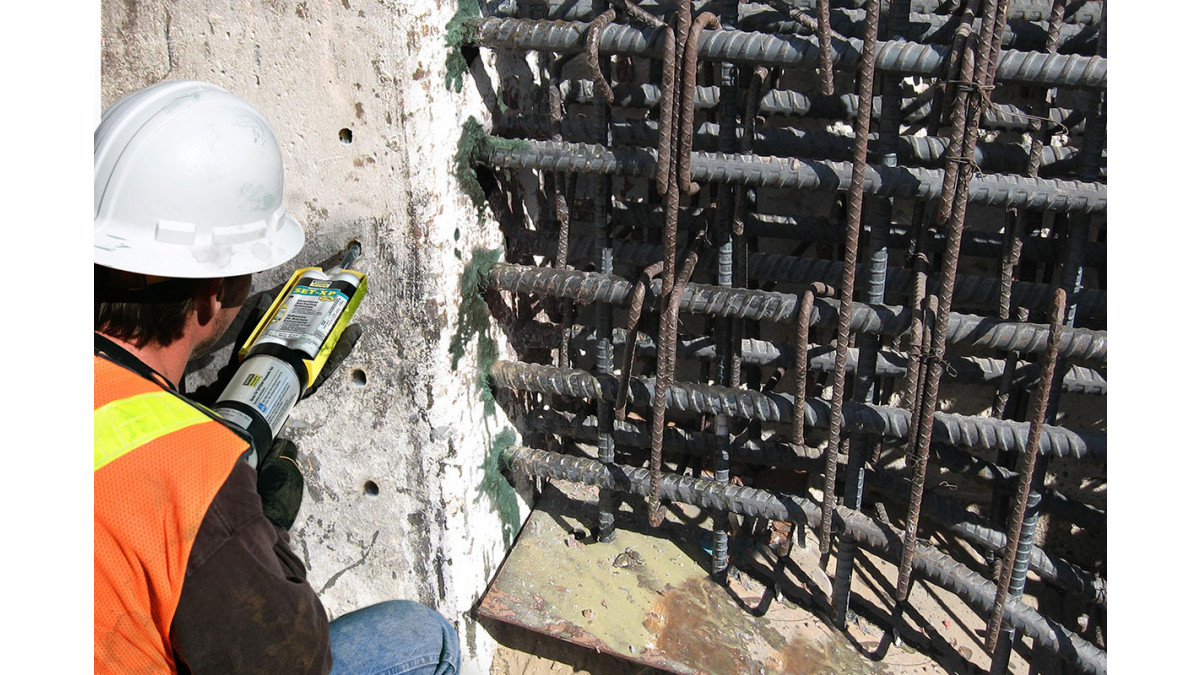

SET XP Application 05

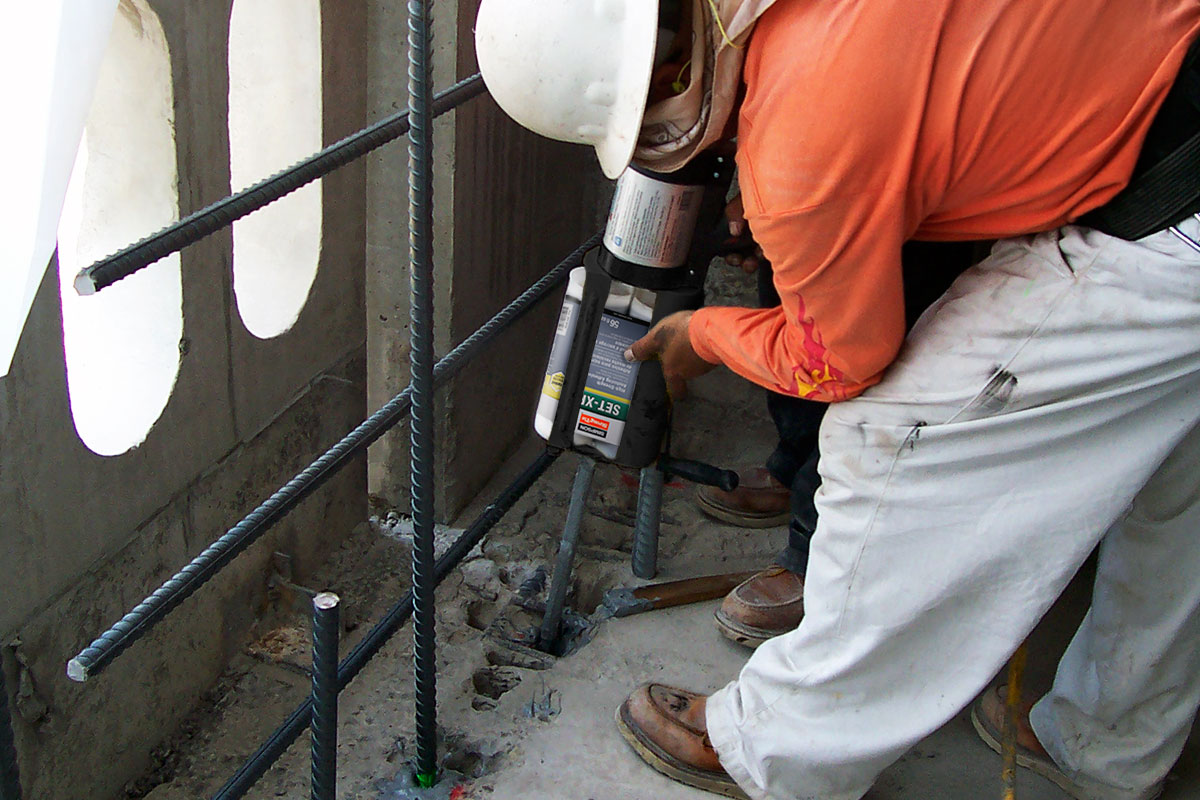

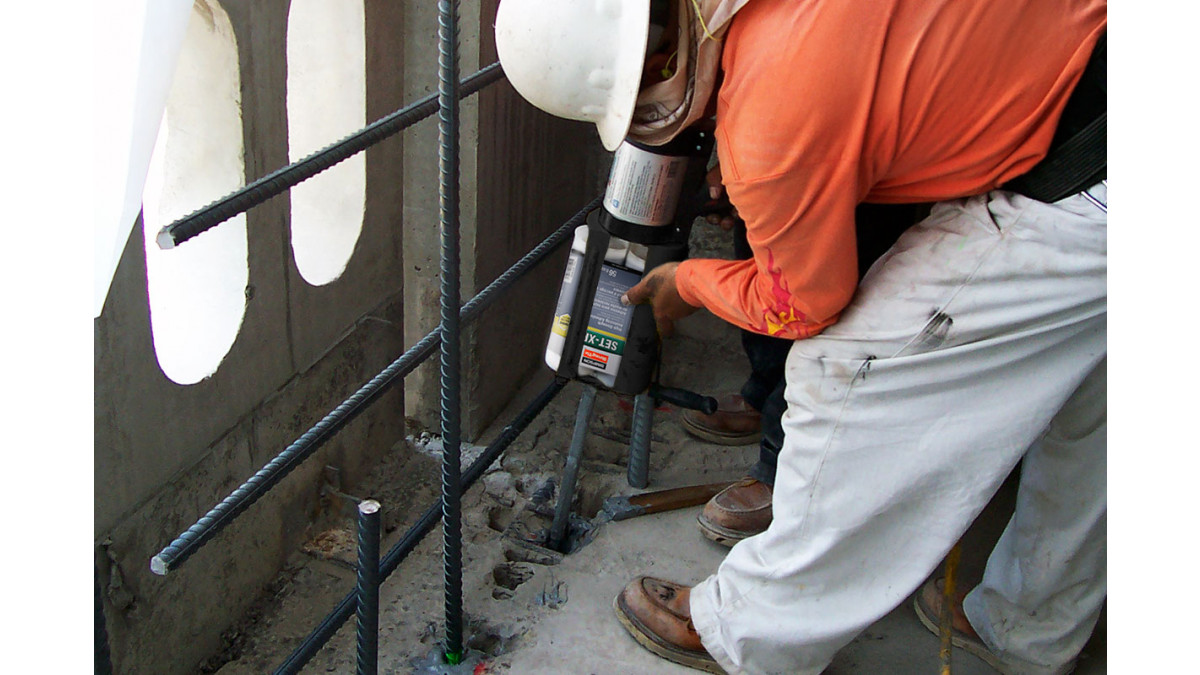

SET XP Application 06
Description

SET-XP Epoxy Anchoring Adhesive is a high-strength formula for anchoring and doweling in cracked and uncracked concrete and masonry applications. It is a two-part system (dual cartridge) with the resin and hardener being simultaneously dispensed and mixed through the mixing nozzle. When properly mixed, adhesive will be a uniform teal colour for easy post-installation identification.

Key Features
  • Seismic rated as per ACI 355.4
  • High strength
  • Non-shrink, high solids
  • Long-term loading (creep) applications
  • Non-sag formulation: good for vertical applications
  • Suitable for over sized and core-drilled holes
  • Suitable for use under static and seismic loading conditions in cracked and uncracked concrete and masonry
  • Cure times: 24 hours at 21°C, 72 hours at 10°C
  • Easy hole-cleaning — no power-brushing required
  • Suitable for use in dry or water-saturated concrete
  • For best results, store between 7°C and 32°C
Categories
Fasteners and Connectors Enclosure Adhesives, Sealants and Fasteners
Ranges
Anchoring Systems
Scope of Use
  • Suitable for over sized and core-drilled holes
  • Suitable for use under static and seismic loading conditions in cracked and uncracked concrete and masonry
  • Cure times: 24 hours at 21°C, 72 hours at 10°C
  • Suitable for use in dry or water-saturated concrete
  • Design Capacities are available on the website
  • For best results, store between 7°C and 32°C

Applications:

  • Rebar Dowelling
  • Tension Zones
  • Dry And Wet Concrete
  • Threaded Rod Anchoring
  • General Purpose Anchoring
  • Overhead Anchoring (Tension Zones)
  • Structural Steel
  • Seismic Retrofit
Statement of Building Code Compliance
  • BRANZ Appraisal No. 983 (2023)
  • Complies with AS5216
  • Seismic testing per ACI 355.4
  • ETA-11/ 0360 (OPTION 1)
  • ICC-ES ESR-2508 (Concrete)
  • IAPMO UES ER-265 (Masonry)
  • NSF/ANSI Standard 61 (313 cm2/ 1000 L)
  • Transport and Main Roads (QLD) product approval (Threaded rod and Reinforcing bar)
B1 Structure compliant
Structure
B2 Durability compliant
Durability
BRANZ Appraised
BRANZ Appraised
Independent Assessment
Independent Assessment
Test Results
Test Results
  • News
Documents
Material Safety Data Sheet
pdf
Technical Data Sheet
pdf
BRANZ Appraisal

983 [2023]

URL
European Technical Assessment

ETA-11-0360

pdf
IAPMO UES Evaluation Report

ER-265

URL
ICC-ES Evaluation Report
URL
Product Approval

FL16230

URL
Product Approval

FL17449

URL
Full Catalogue: Anchoring and Fastening Systems

2018

pdf
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20

pdf
Technical Brochure
pdf
