Mass Timber Construction Solutions
Description

Mass Timber Construction Solutions

For more than 65 years, Simpson Strong-Tie has focused on creating structural products that help people build safer and stronger homes and buildings. A leader in structural systems research and technology, Simpson Strong-Tie is one of the largest suppliers of structural building products in the world. The Simpson Strong-Tie commitment to product development, engineering, testing and training is evident in the consistent quality and delivery of its products and services.

Guaranteed Performance

The fact that we extensively test our connection solutions gives you the reassurance that they will perform in the toughest conditions. Our connector products comply with the AU/NZ timber connector requirements, and our fastener products comply with the European timber fastener requirements. They are suitable for use with AU and NZ sawn timbers, CLT, LVL, and other engineered timber products designed by specific engineering design using AS 1720, NZS AS 1720.1, or NZS 3603, or for prescriptive/conventional connector applications AS 1684 and NZS 3604.

The quality and variety of our product lines gives engineers and builders more freedom to design flexibly, while offering reliable and proven performance. In addition, customers can count on our technical support and a team of experienced field representatives.

The characteristic and design values published within this document have been determined from test and calculation values in accordance with AS 1649, AS 1720, and NZS 3603 for connectors and the fastener characteristic values from BS EN14358 for use with Limit State Design methods. Corresponding deflection limits are published, where appropriate, which indicate the amount of slip in the connection at the design capacity.

Cross-Laminated Timber (CLT)

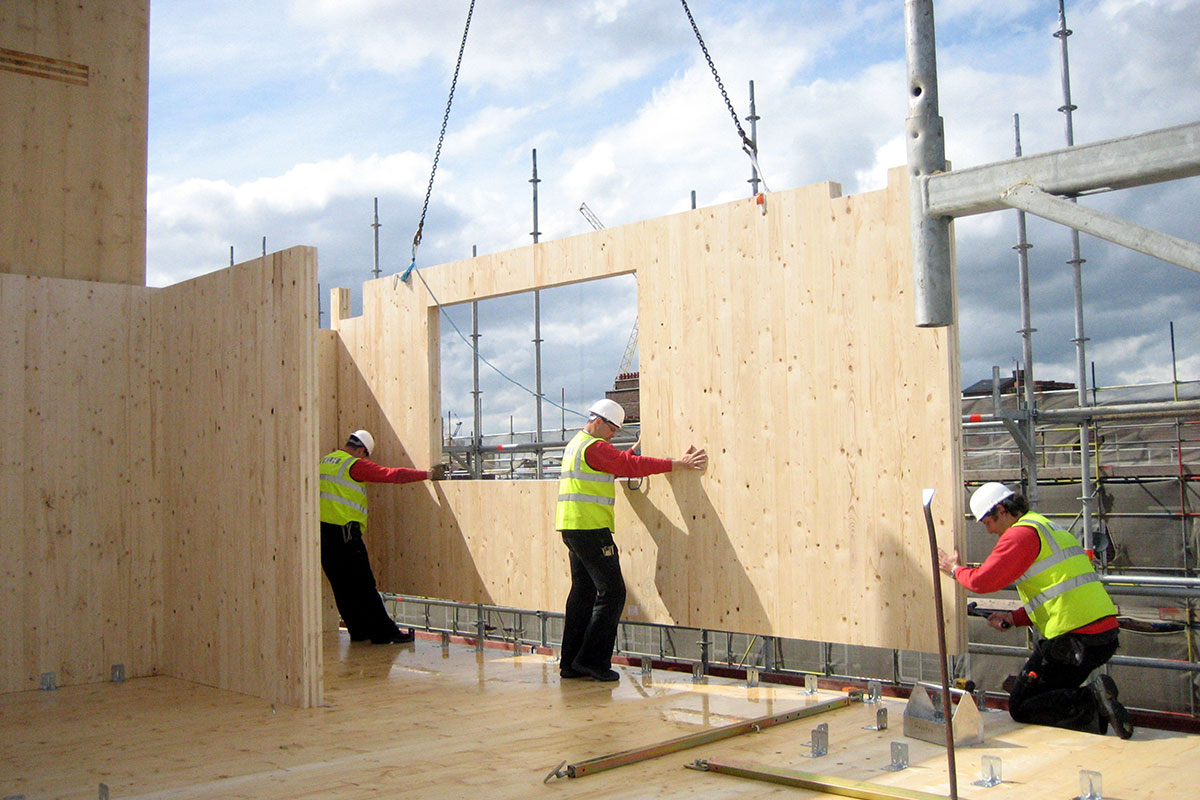

CLT is growing in popularity as a sustainable and beautiful construction material. Practical too, CLT can be used for walls, floors and ceilings and is well suited to offsite assembly.

CLT has various benefits making it an attractive building material. These benefits include:

  • Design flexibility - CLT has many applications. It can be used in walls, roofs or ceilings. The thickness of the panels can easily be increased by adding more layers and the length of the panels can be increased by joining panels together
  • Prefabrication - floors or walls made from CLT can be fully manufactured before reaching the construction site, which decreases lead times and could potentially lower overall construction costs

Engineers and Architects are now favouring CLT for its elegance, sustainability and its cosmetic appearance.

Key Features

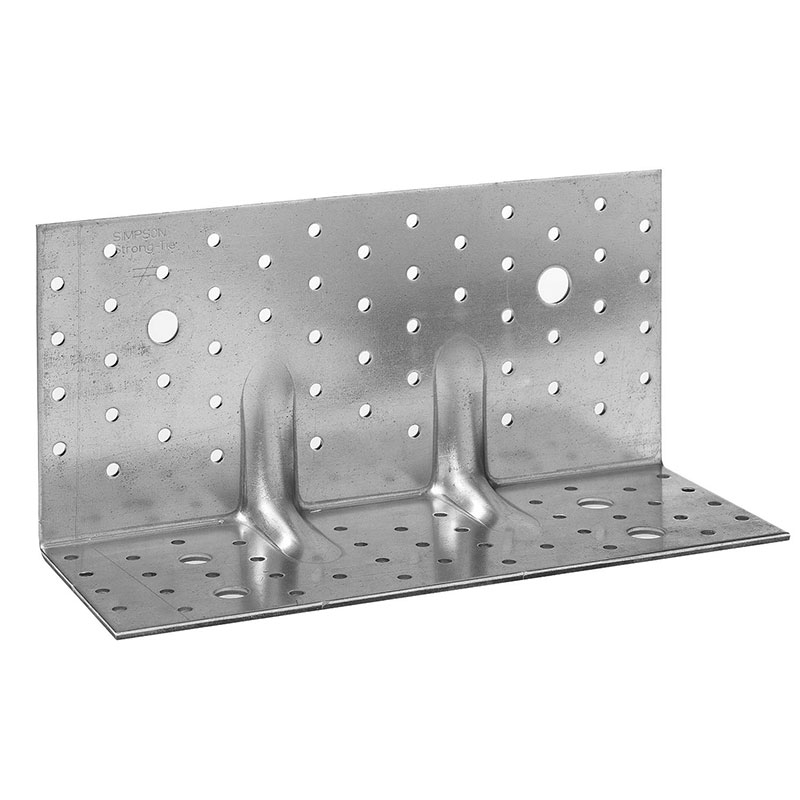

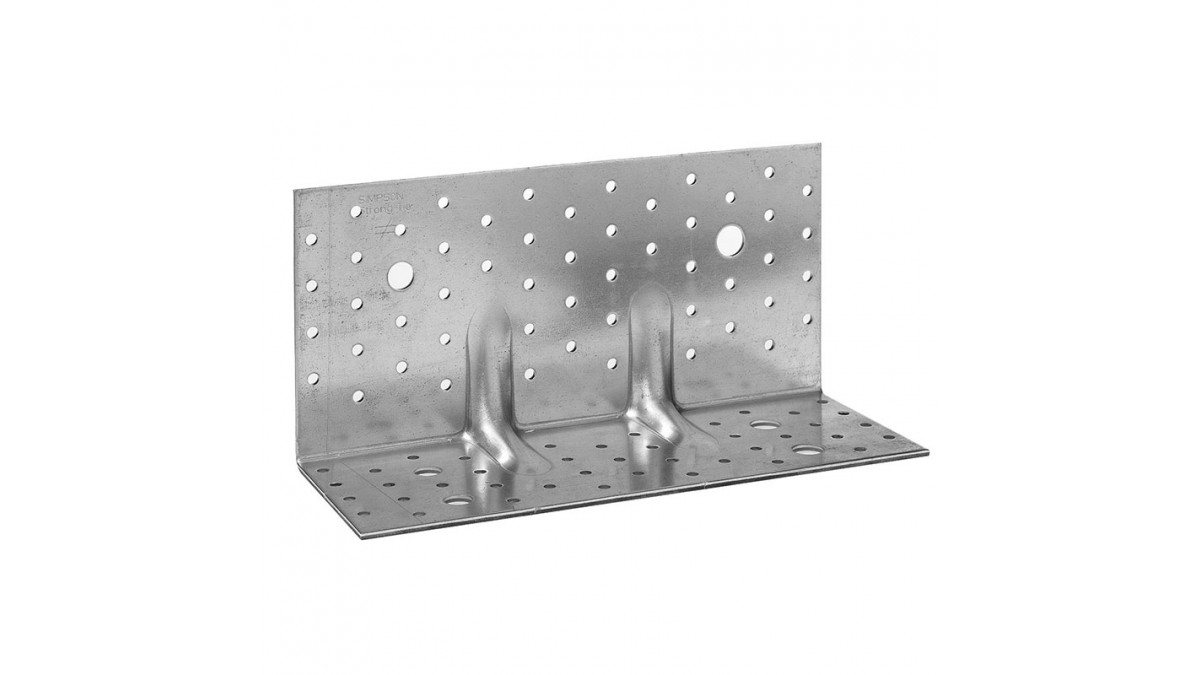

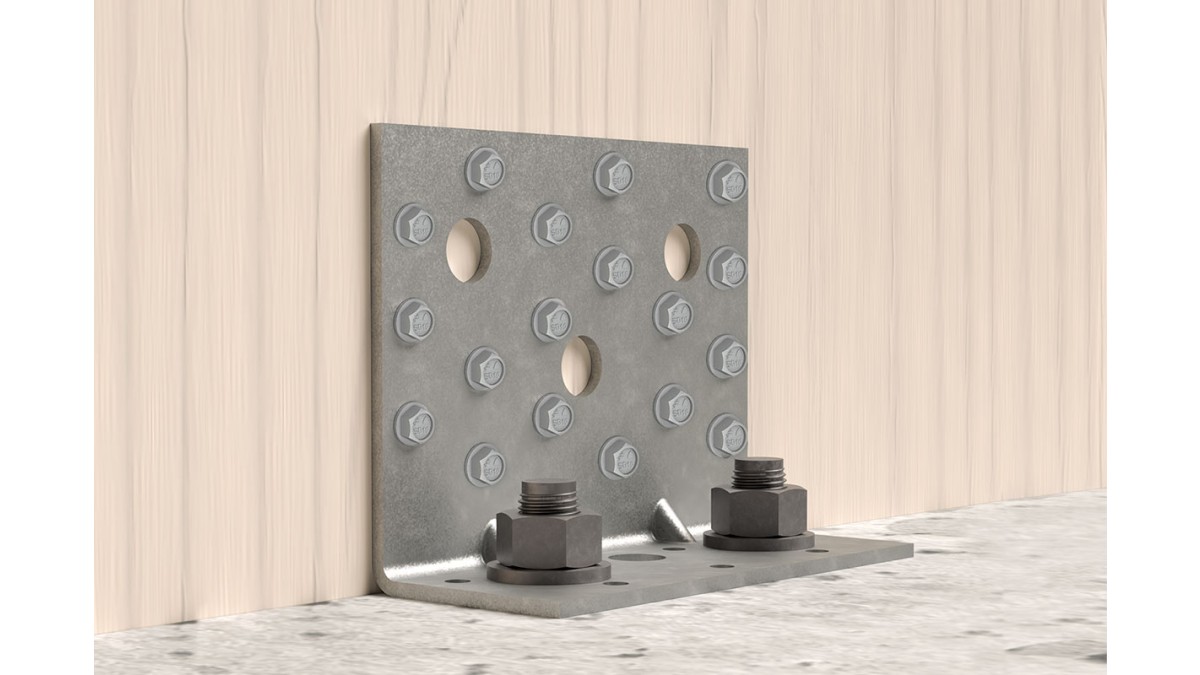

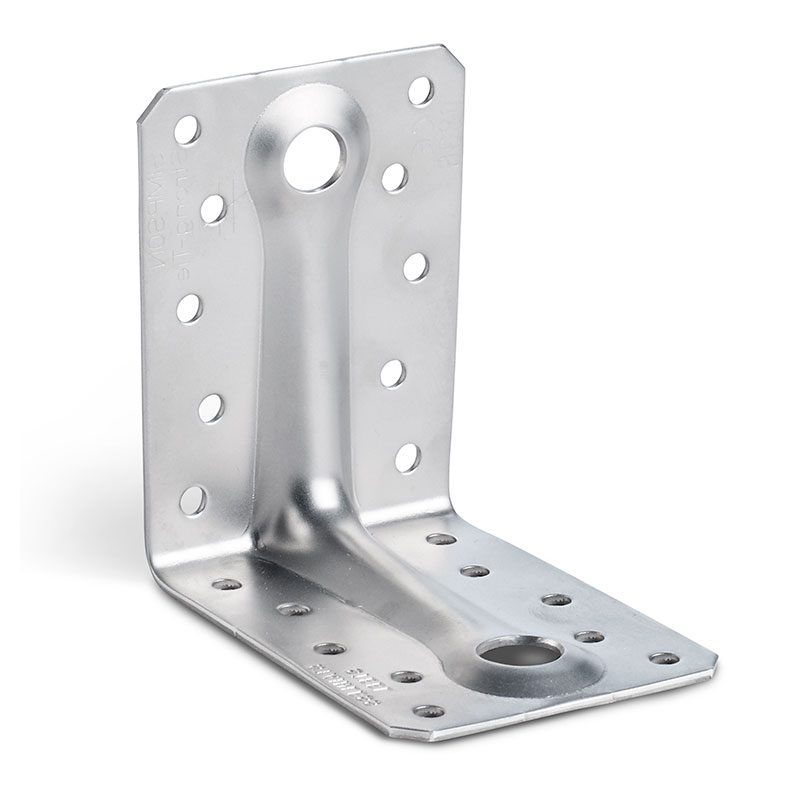

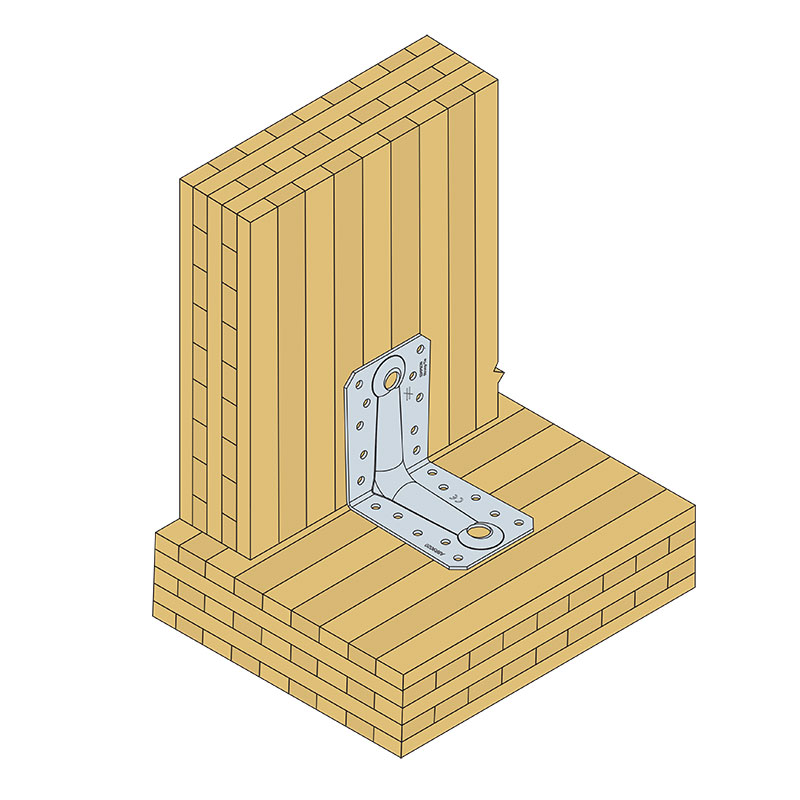

  • The ABR255 is a hold down bracket designed for fixing CLT panels to concrete / timber floors and parapet walls. Very versatile, it is particularly resistant to shear loads thanks to its optimised geometry

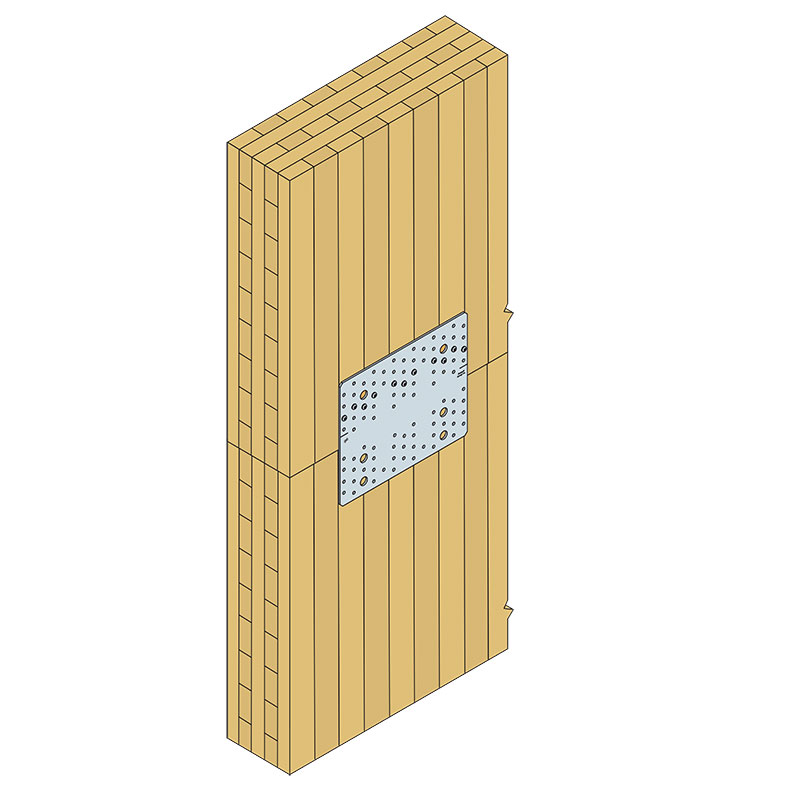

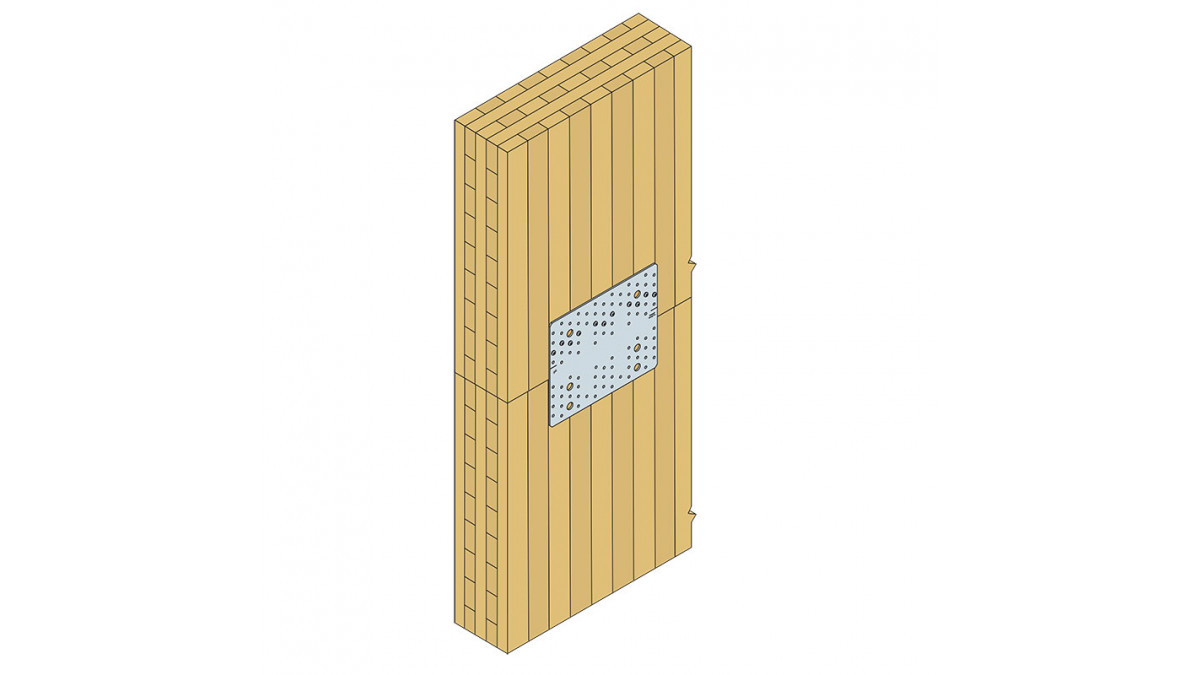

  • 3mm thick heavy duty nail plate NPB255 has been developed specifically to fix CLT panels to timber or concrete

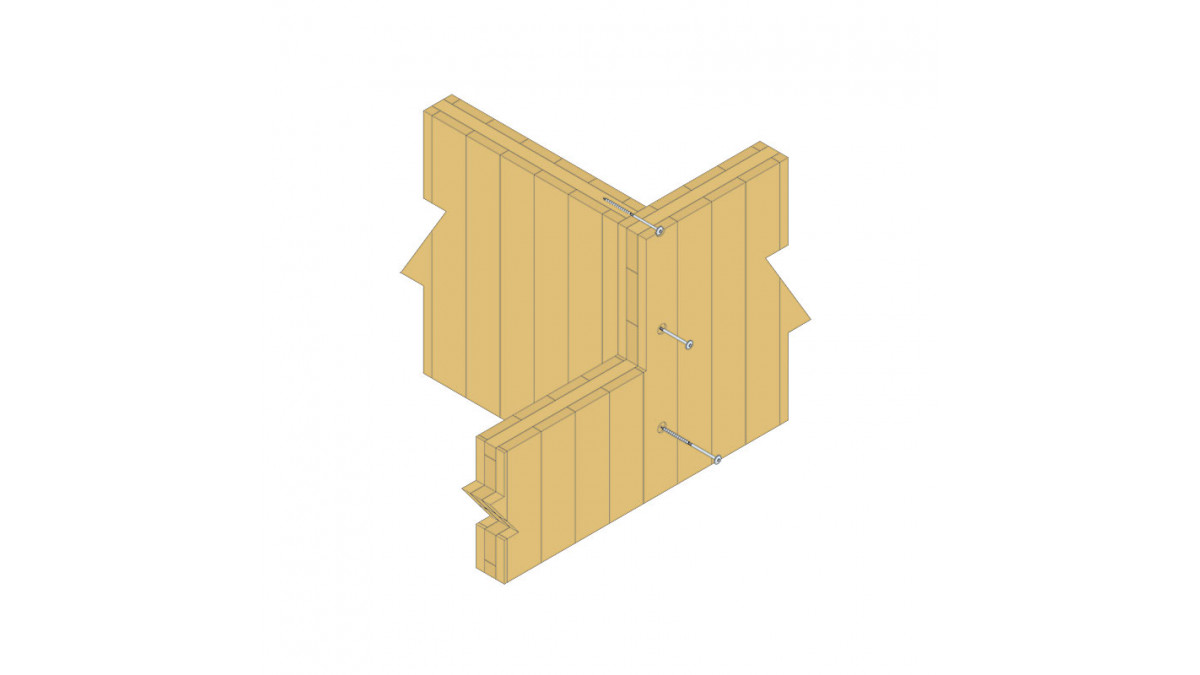

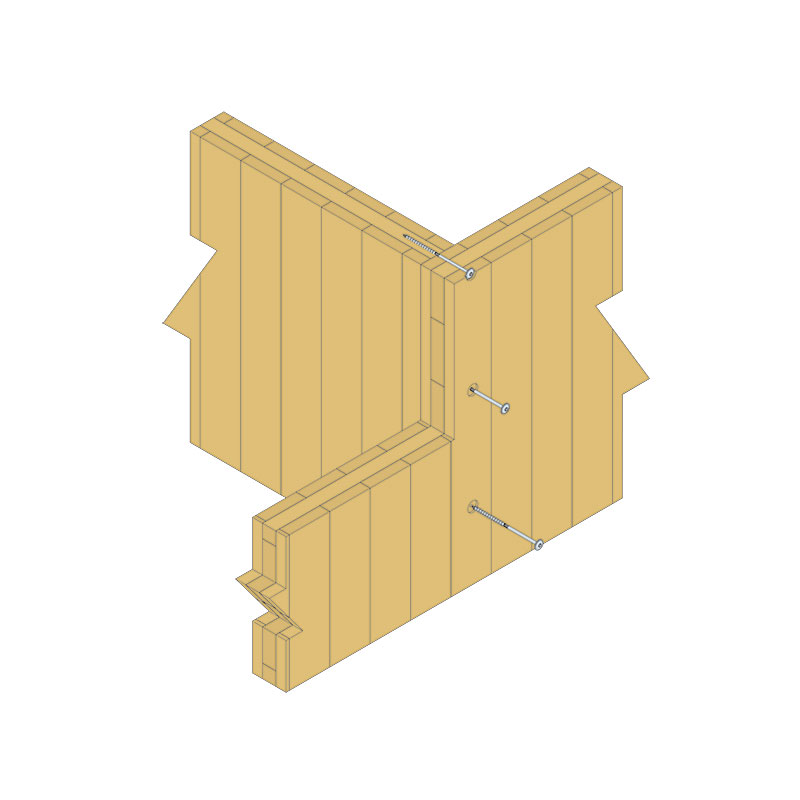

  • The ESCRC Countersunk Structural Timber Screw is designed to connect two or more timber members together. The countersunk head gives flush fitting while allowing the timber members to close up firmly

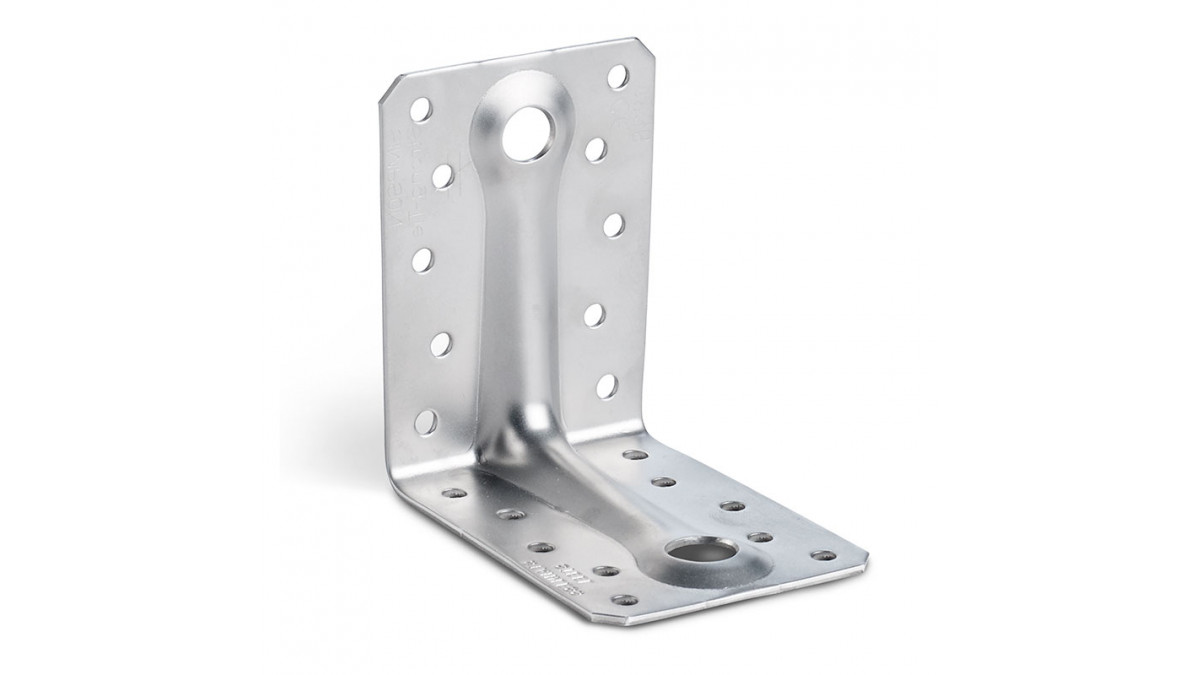

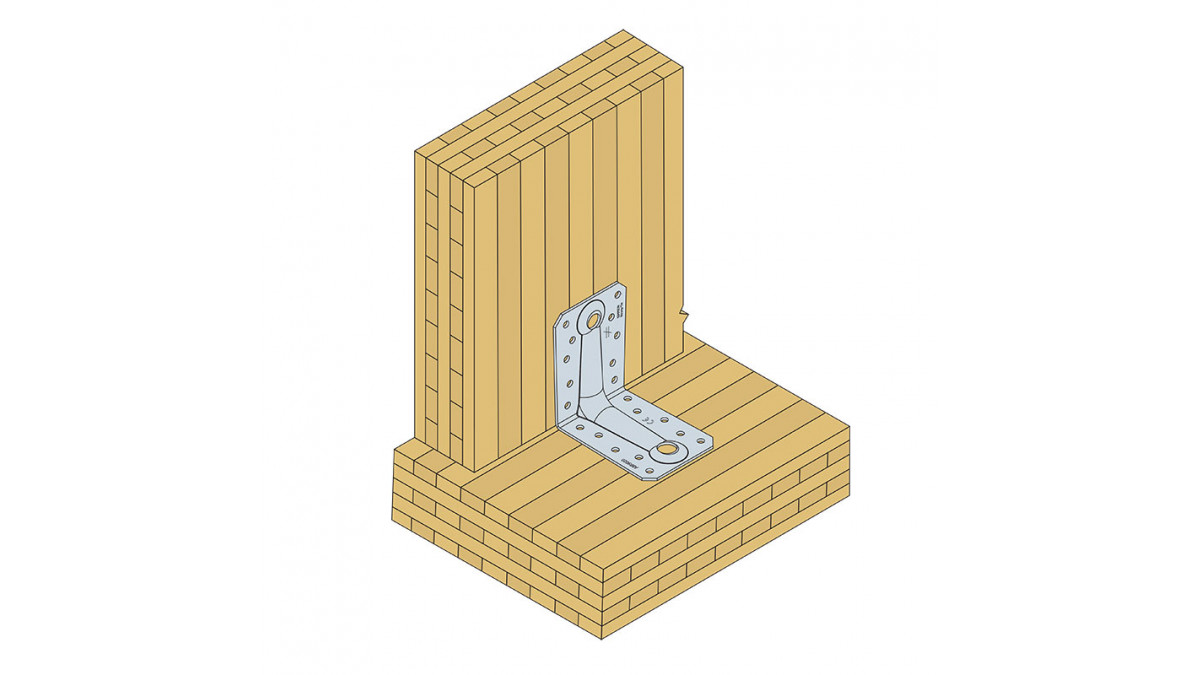

  • The ABR255 is a hold down bracket designed for fixing CLT panels to concrete / timber floors and parapet walls. Very versatile, it is particularly resistant to shear loads thanks to its optimized geometry

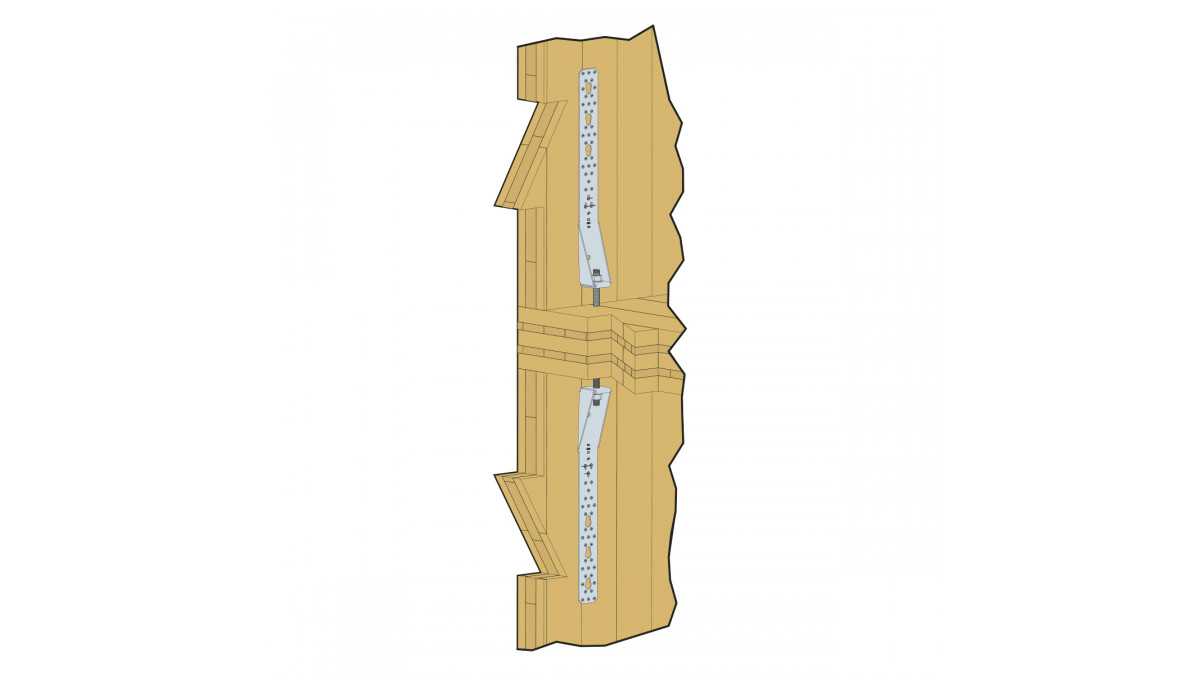

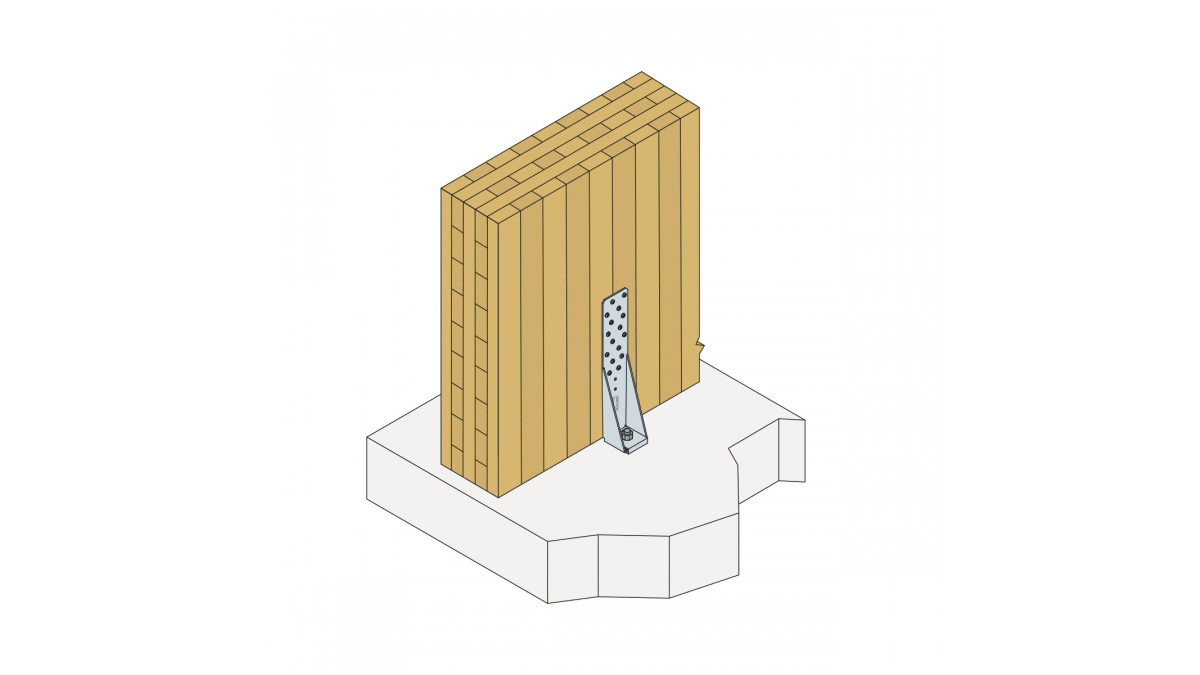

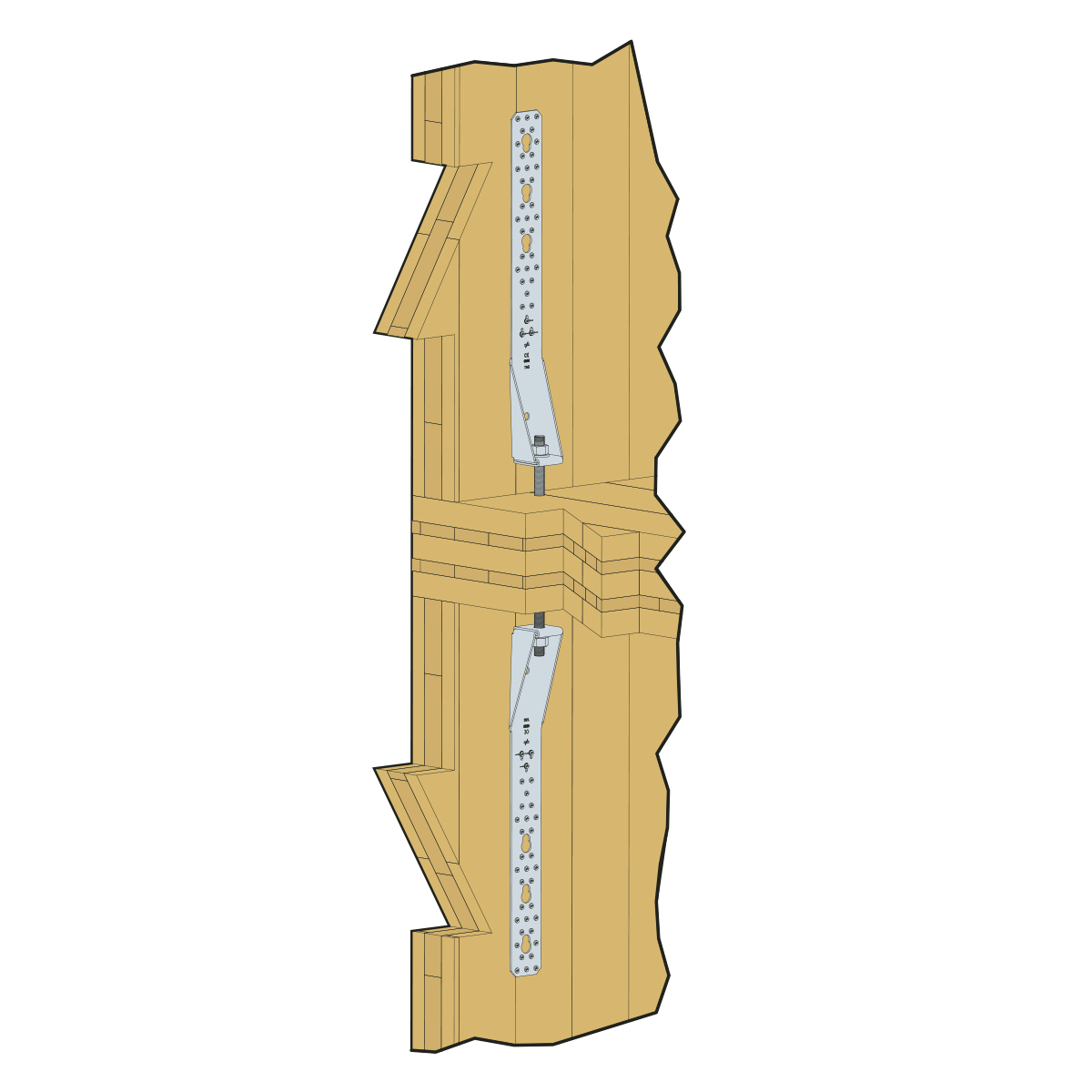

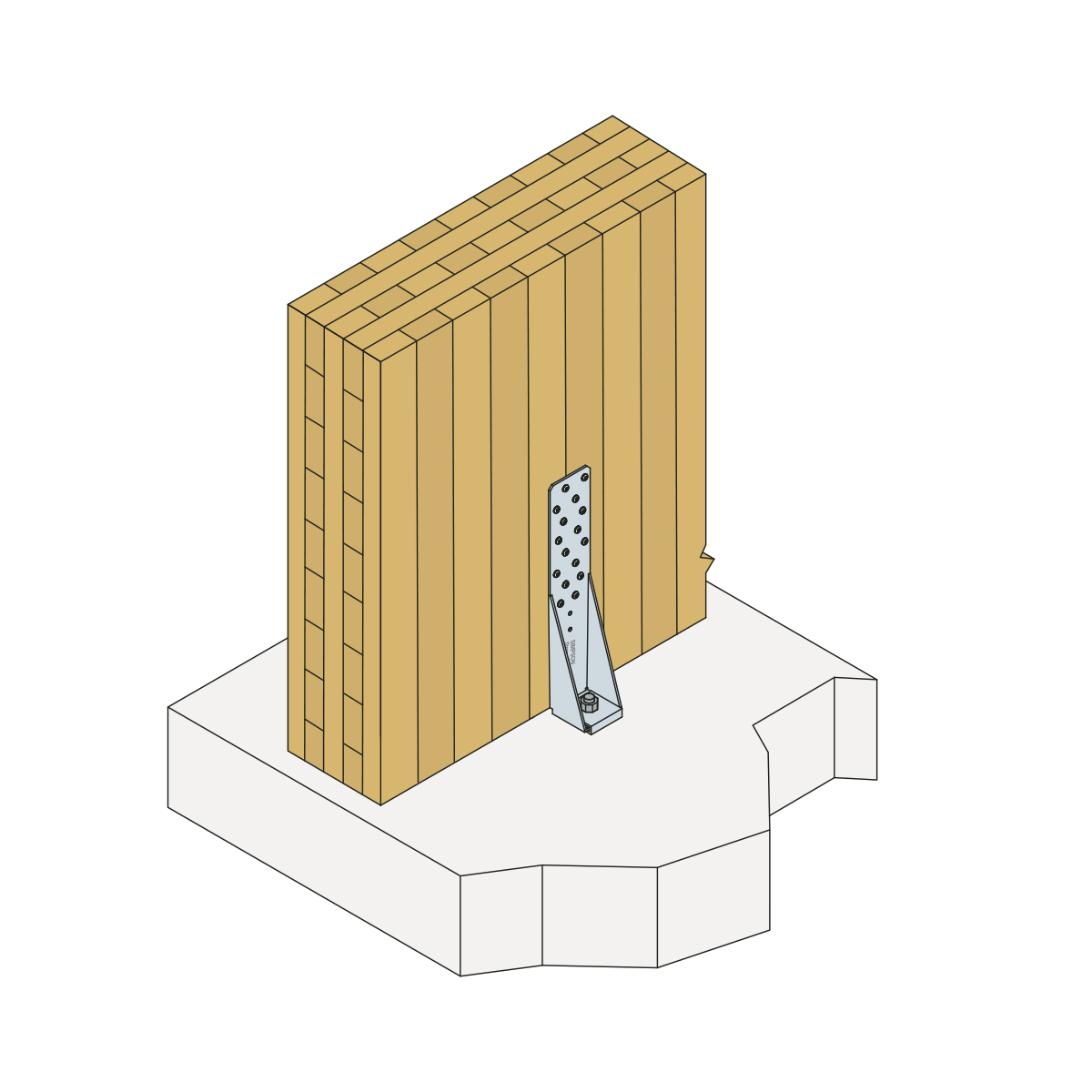

  • The unique design of the HTT — a multi-ply seat formed from a single piece of steel — gives the tension tie extra strength at the concrete anchorage point. Timber structures that are subjected to uplift forces can be connected to a concrete support with the HTT hold down

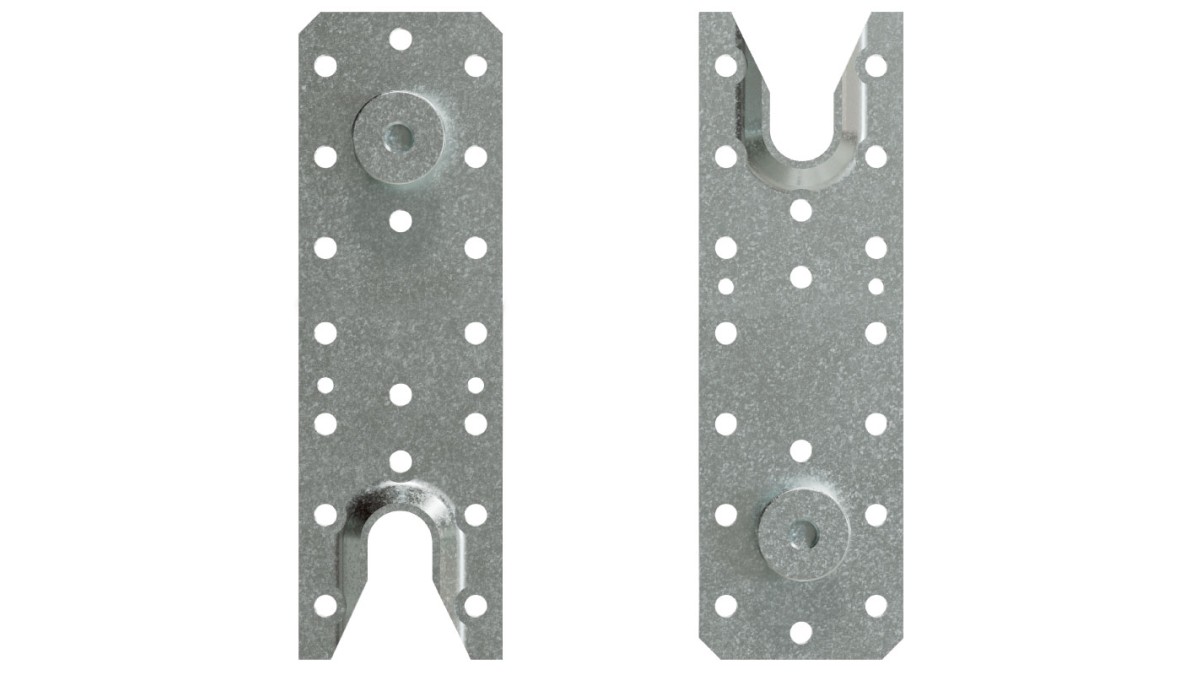

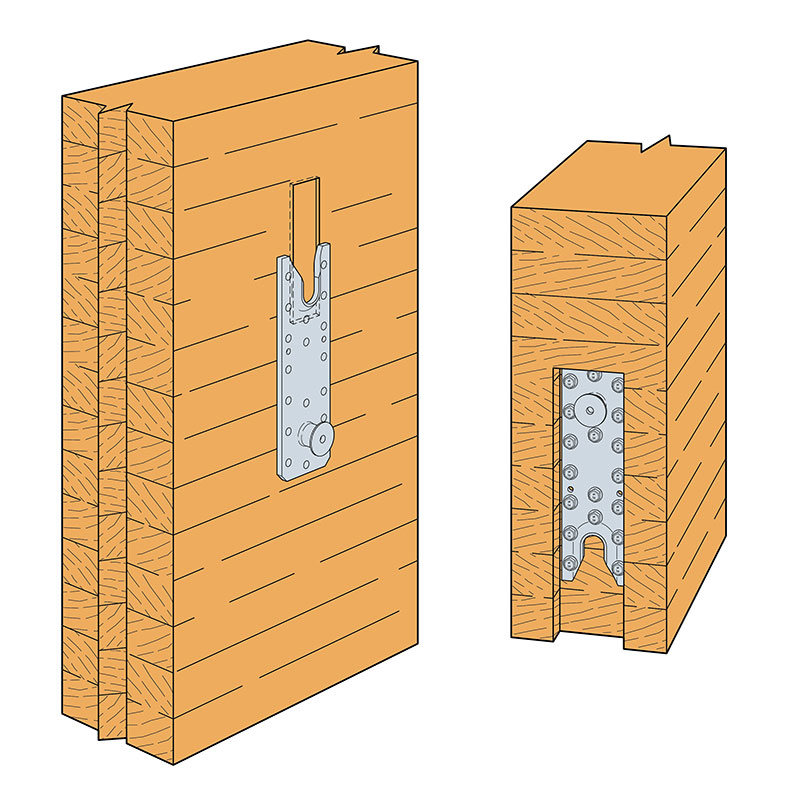

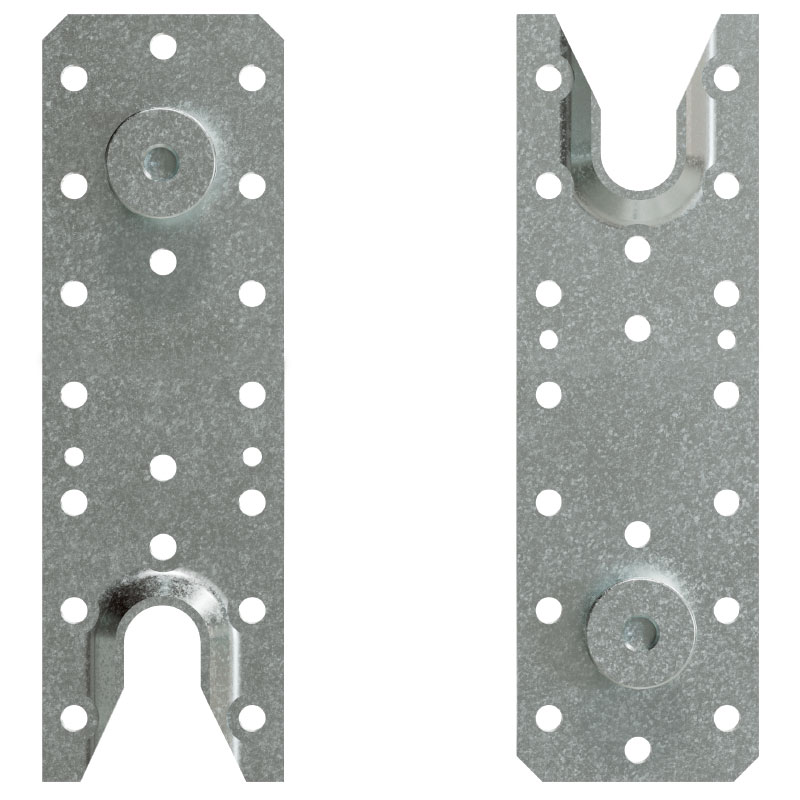

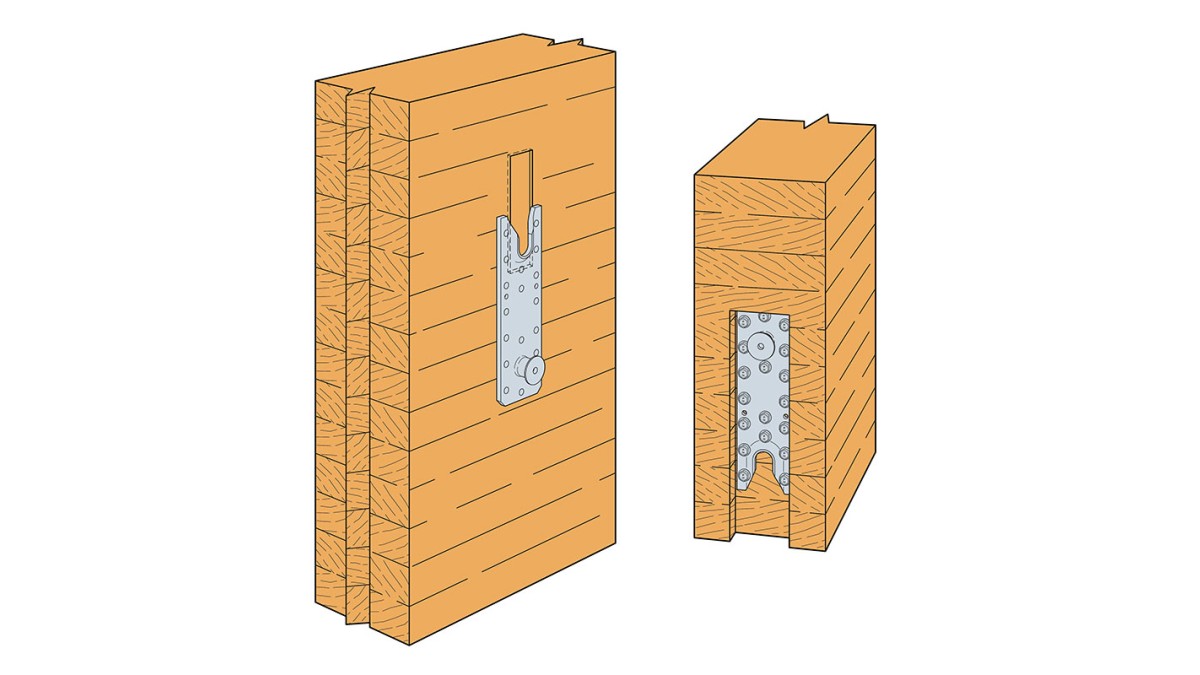

  • The CBH concealed beam hanger is specifically designed for such applications, and is installed with readily available Simpson Strong-Tie® SDS Heavy-Duty Connector screws

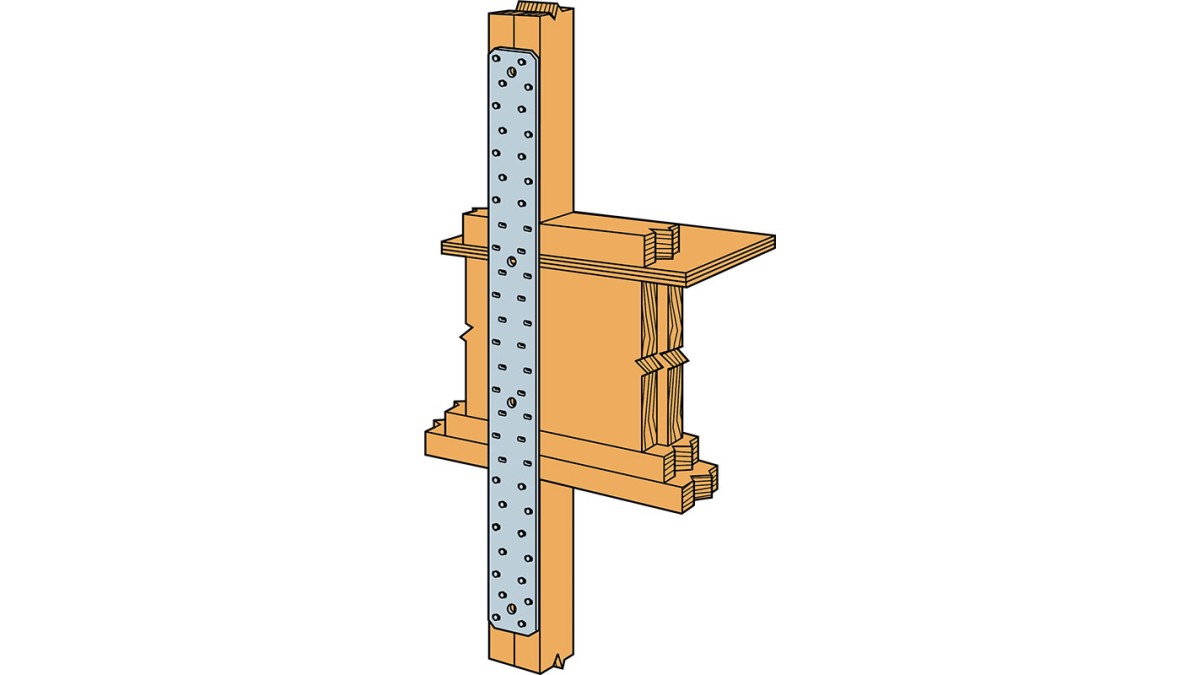

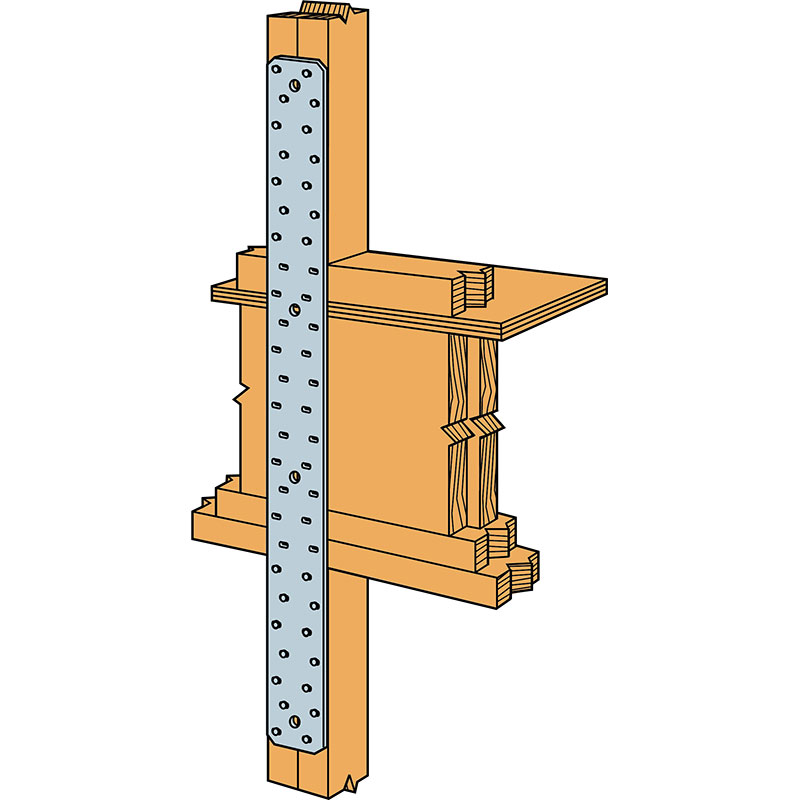

  • The MDCST48 is a 14-gauge high-capacity strap specifically designed to carry tension across a CLT floor or wall panel joint

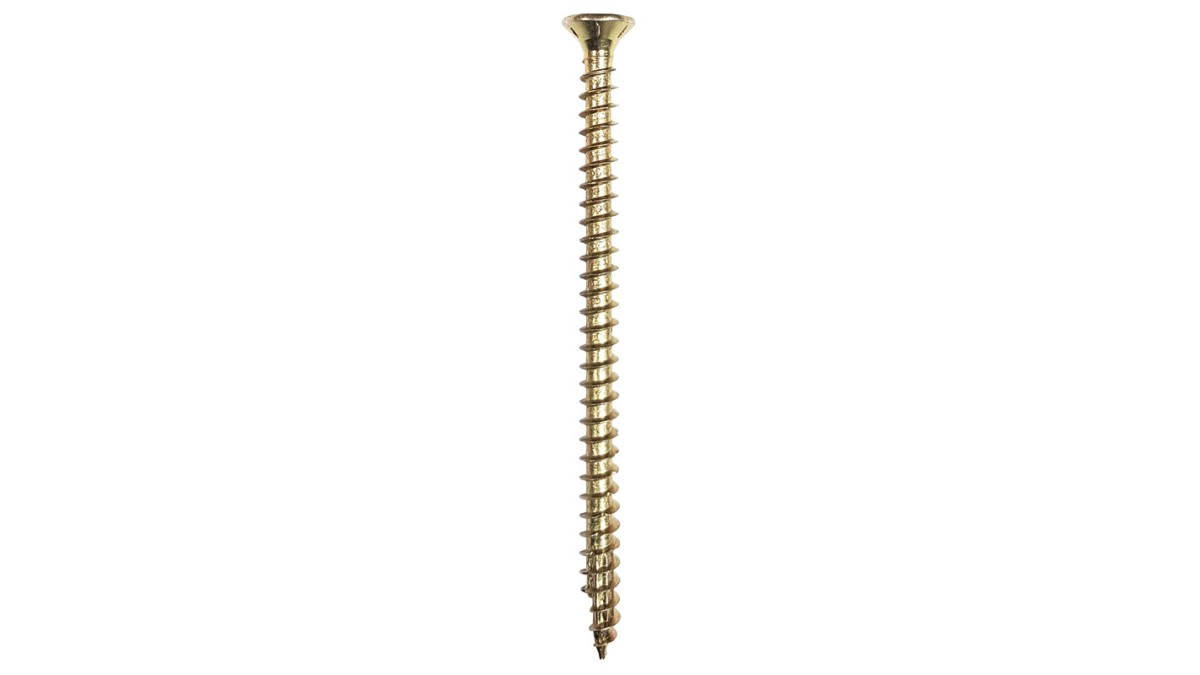

  • The ESCRFT is a cylinder head screw with a fully threaded design to connect two or more timber members together. The cylinder head reduces the chnace of timber splitting and makes the fixing invisible

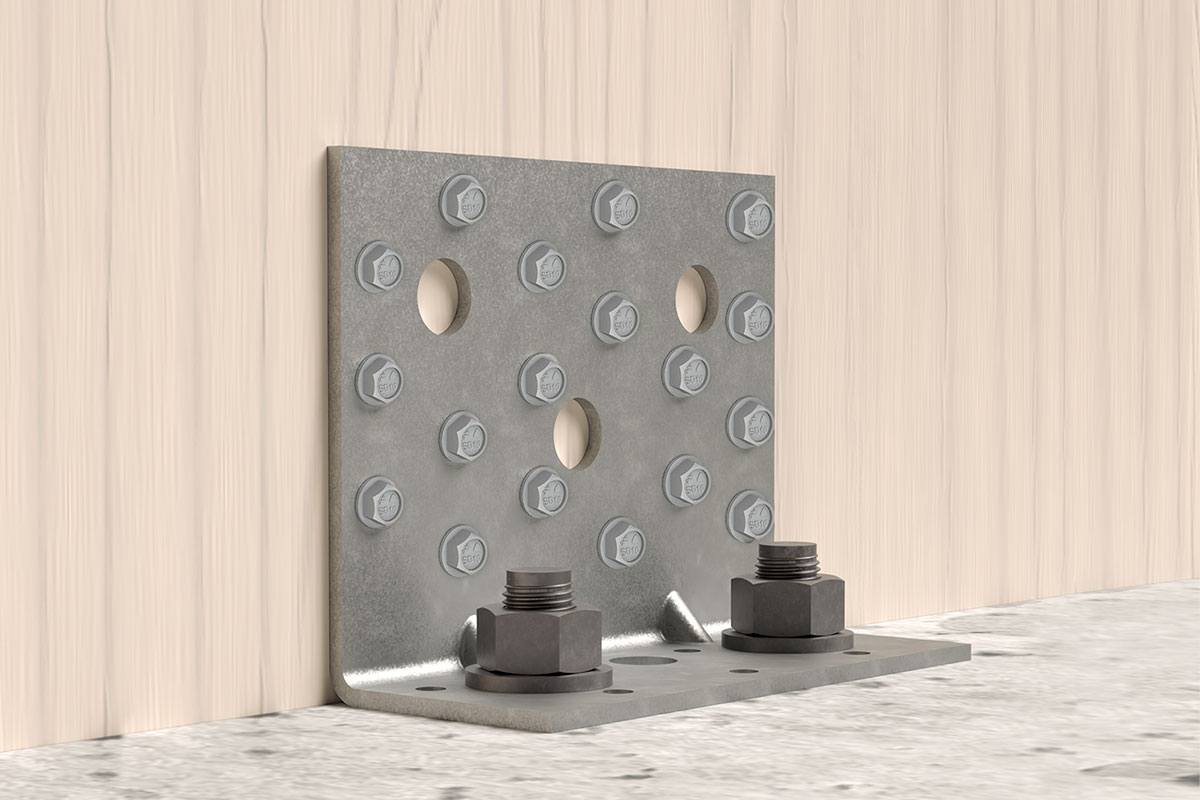

  • The AE116 s a hold down bracket designed for fixing CLT panels to concrete / timber floors and parapet walls
Scope of Use
  • Cross-Laminated Timber (CLT)
  • Laminated Veneer Lumber (LVL)
  • Glued Laminated Timber (Glulam)
  • Engineered Wood Products (EWP)
Statement of Building Code Compliance

The fact that we extensively test our connection solutions gives you the reassurance that they will perform in the toughest conditions. Our connector products comply with the AU/NZ timber connector requirements, and our fastener products comply with the European timber fastener requirements. They are suitable for use with AU and NZ sawn timbers, CLT, LVL, and other engineered timber products designed by specific engineering design using AS 1720, NZS AS 1720.1, or NZS 3603, or for prescriptive/conventional connector applications AS 1684 and NZS 3604.

The quality and variety of our product lines gives engineers and builders more freedom to design flexibly, while offering reliable and proven performance. In addition, customers can count on our technical support and a team of experienced field representatives.

The characteristic and design values published within this document have been determined from test and calculation values in accordance with AS 1649, AS 1720, and NZS 3603 for connectors and the fastener characteristic values from BS EN14358 for use with Limit State Design methods. Corresponding deflection limits are published, where appropriate, which indicate the amount of slip in the connection at the design capacity.

Documents
Full Catalogue: Mass Timber Construction Solutions
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-23

A leader in structural systems research, testing and innovation, Simpson Strong-Tie is among the world's largest suppliers of solutions and products, helping build safer, stronger structures.
