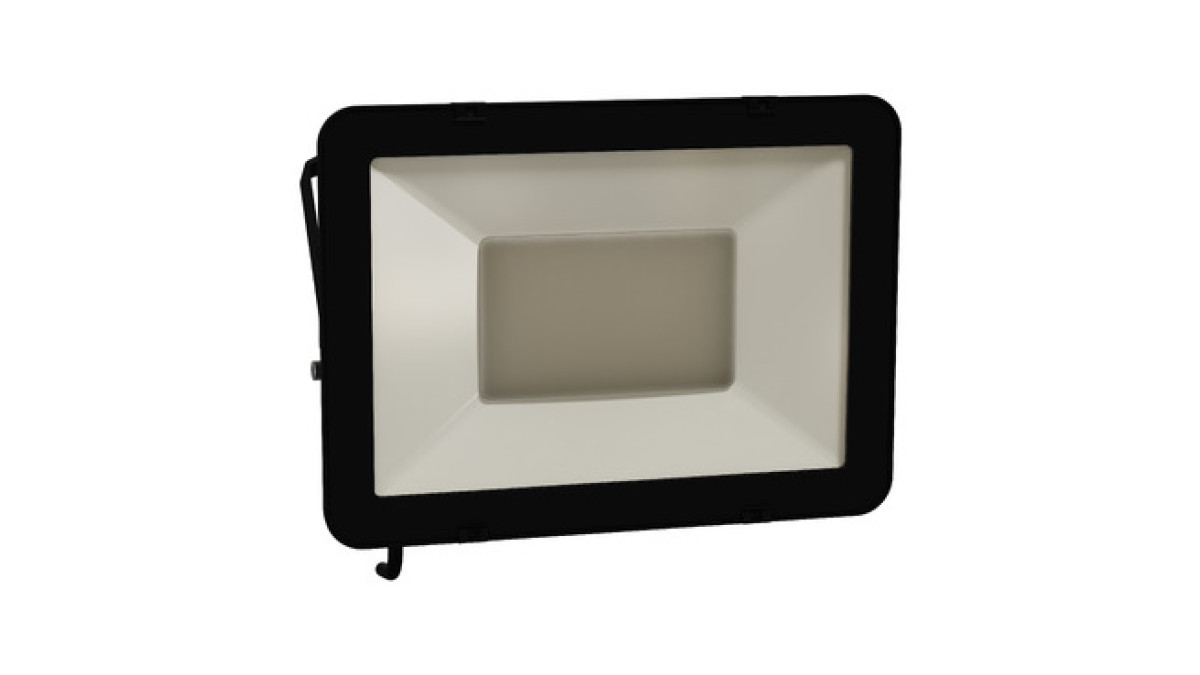

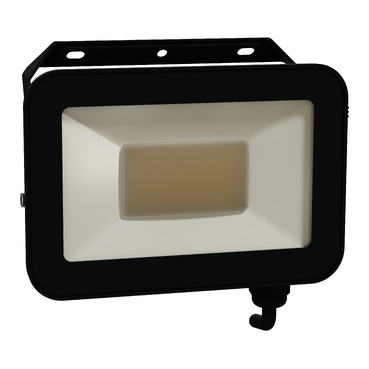

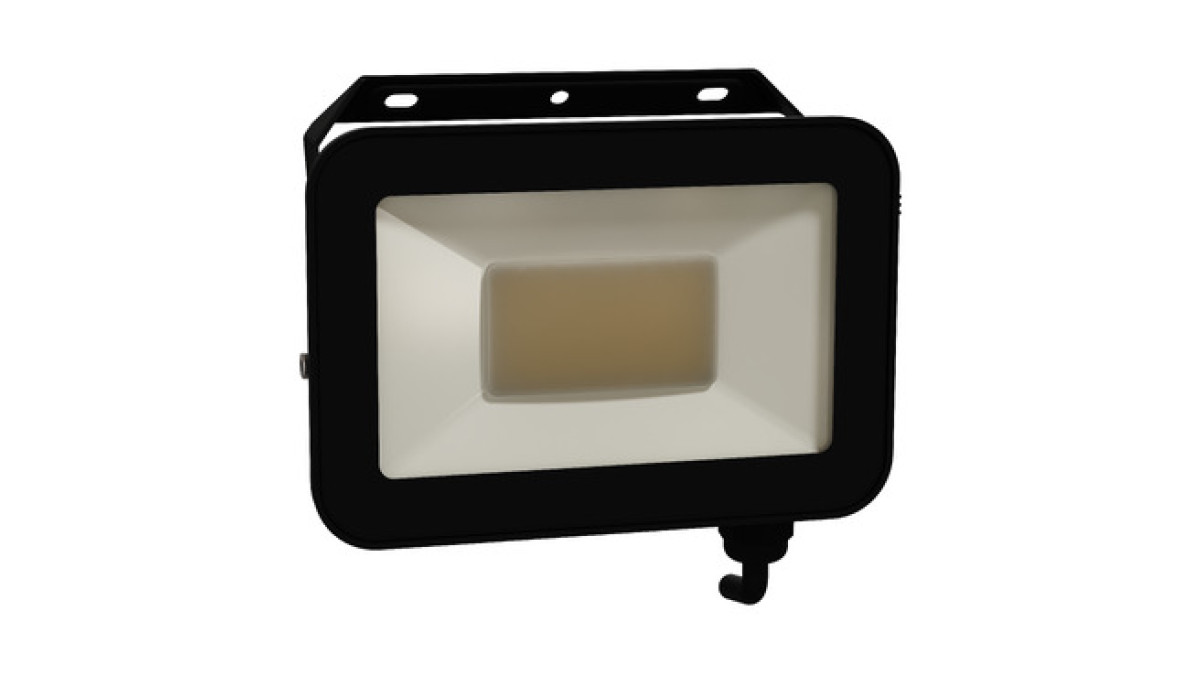

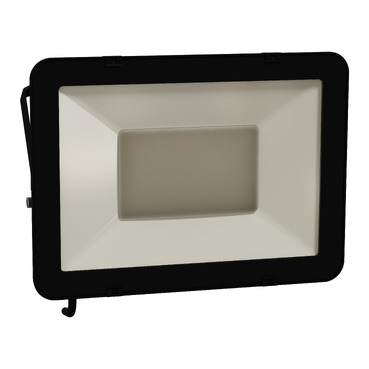

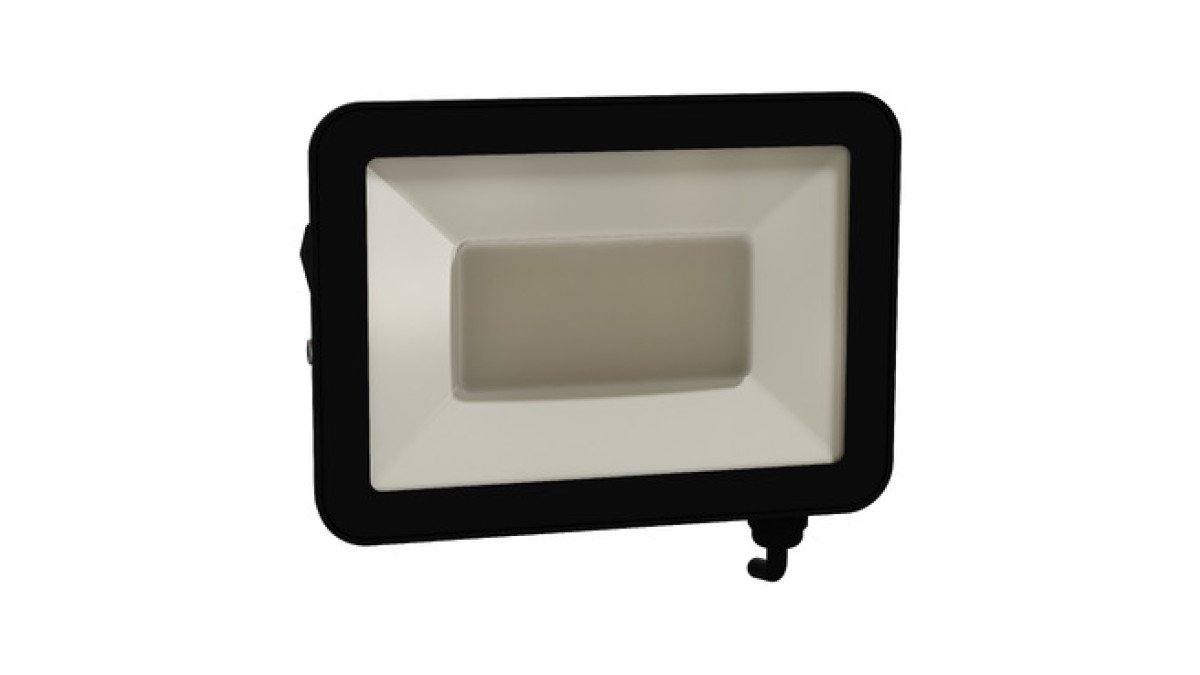

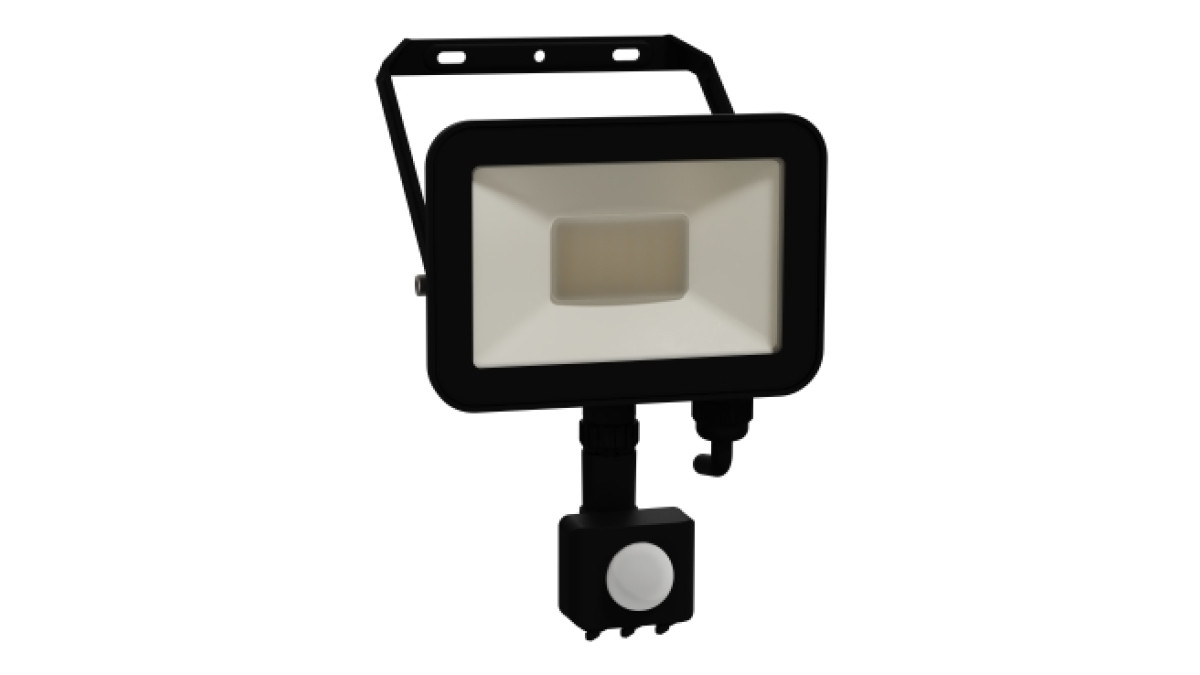

LED Outdoor Safety & Security Floodlight

LED Outdoor Safety & Security floodlights (optional sensor).

Key Features
  • Available in 10 W, 20 W, and 50 W

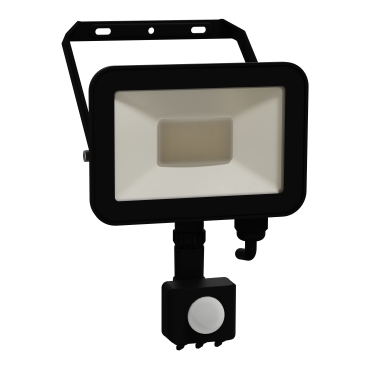

  • 20 W version available with sensor
  • Robust construction Powder-coated die-cast aluminium construction to maintain IP65-rated casing
  • Stylish, modern design
  • High-quality LED chip 36,000 hours lifespan
  • Adjustable trunnion arm and stainless steel locking screws - allows for easier and more accurate adjustment of the light throw
  • 4000 K colour light output - a more subtle, ambient lighting effect
  • Durable silicone gasket - allows the fixture to Maintain an IP65 rating after installation
  • Microwave sensor - sensitivity, time, and light level adjustment
Scope of Use

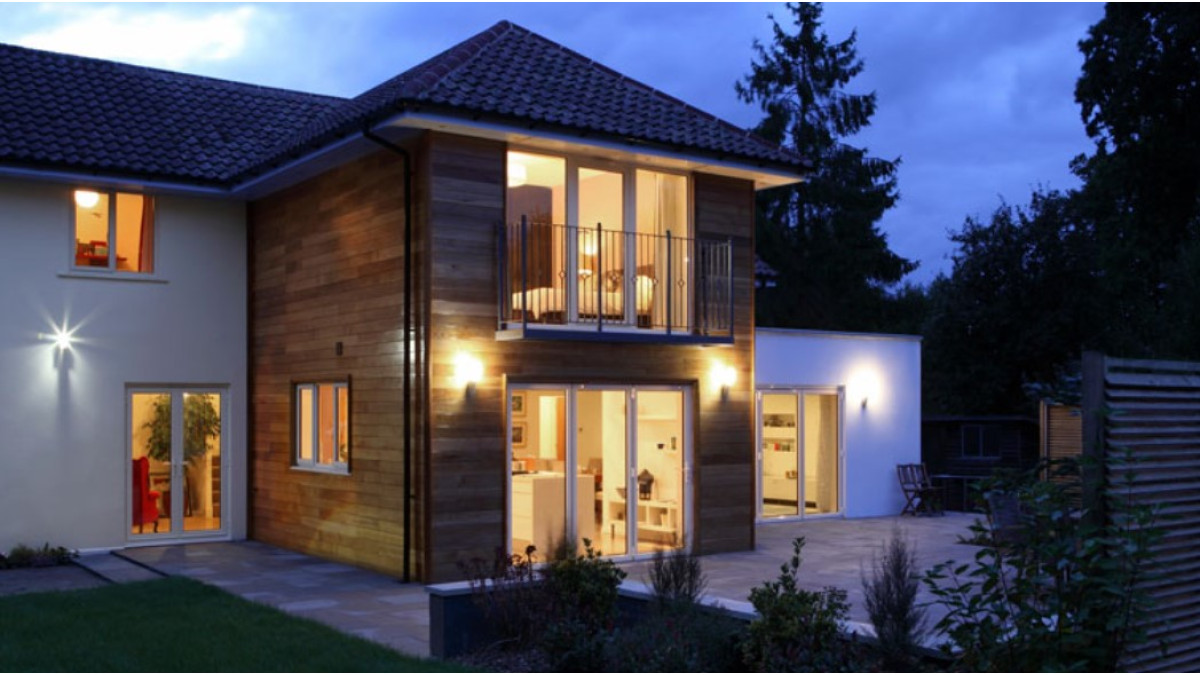

Suitable for residential and light commercial applications.

Other Performance Attributes
  • Lamp temperature 4000 K
  • Die-cast aluminium construction with toughened glass front visor
  • Integral driver
  • Operating voltage 240 VAC/50 Hz
  • Adjustable trunnion arm
  • IP65-rated housing
  • Lifespan 36,000 hrs
  • Beam angle of 105°
  • Dimensions:
  • 10W & 20W - 213mmW x 180mm H x 27.5mm D
  • 20W (with sensor) - 213mm W x 230mm H x 40mm D
  • 50W - 310mm W x 265mm H x 36mm D
