Multidek 500 Metal Roofing
Roofing Industries
All products

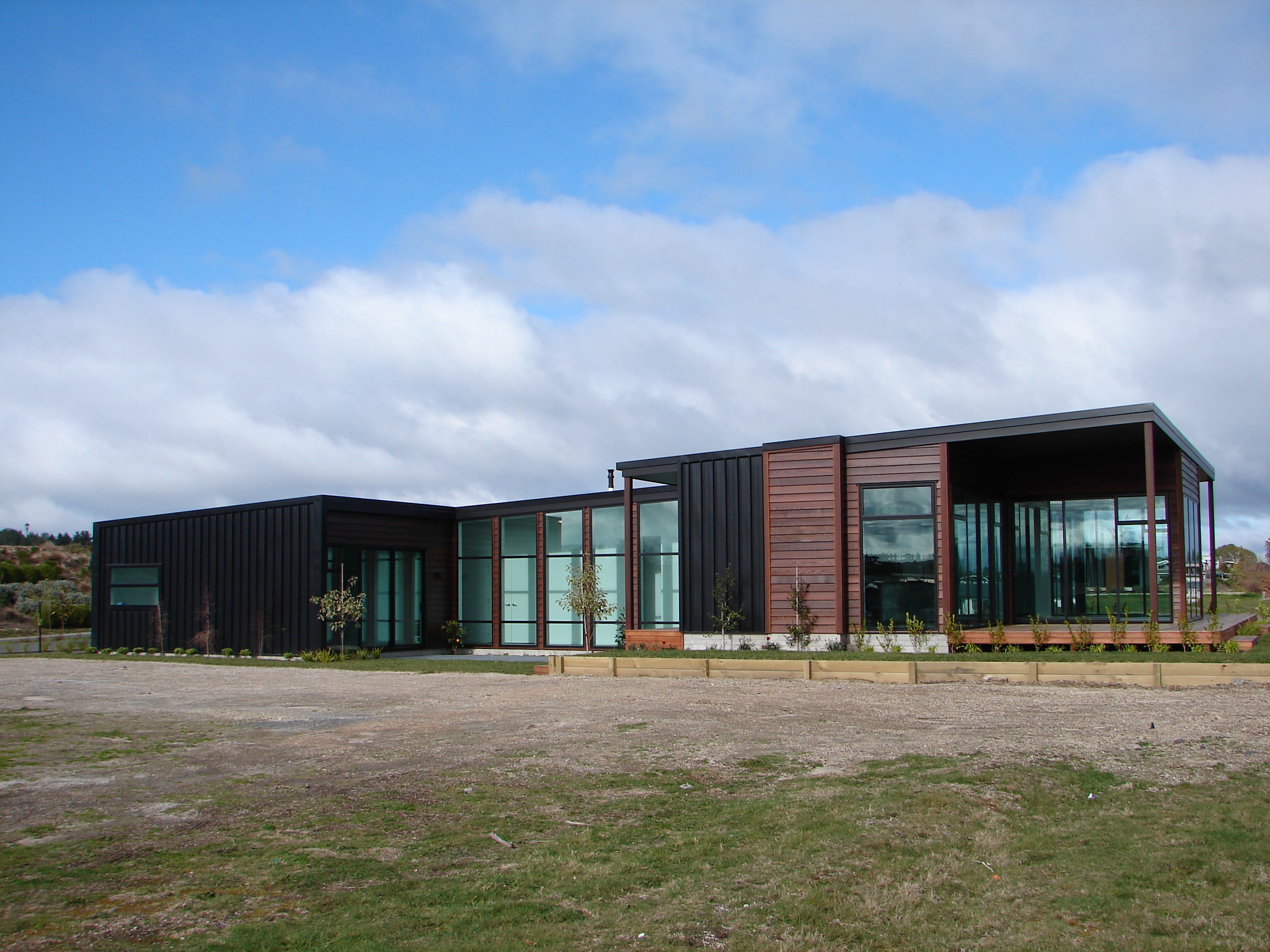

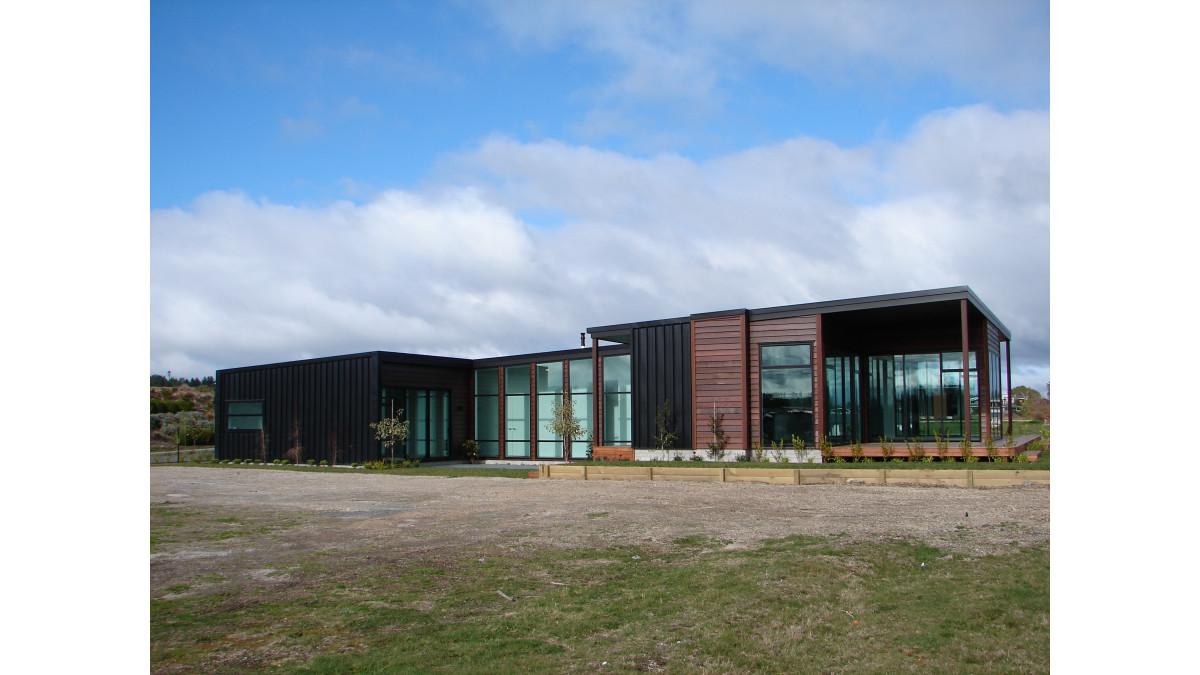

Black cladding Taupo
Description

Multidek 500 is a strong, bold roofing and wall cladding profile which is attached to roof supports using a concealed clip fastening system and with no need to penetrate the roofing material and ultimately eliminating water leakage concerns at fastening points.

Manufactured from high strength material and supplied in a wide range of substrates and surface finishes, Multidek lends itself to most types of projects whether commercial, industrial or residential.

Key Features
  • Roof supports use a concealed clip fastening system, eliminating water leakage concerns at fastening points
  • Incorporates a 50mm rib height with wide flutes which gives excellent water carrying capacity
  • 500mm profile, providing installation cost savings over other similar profiles
  • Manufactured from high strength material and supplied in a wide range of substrates and surface finishes
  • Roofing Industries Multidek is available in a wide range of metal substrates and surface finishes including galvanised, Zincalume, Aluminium-zinc-magnesium, aluminium, stainless steel, Colorcote and Colorsteel
  • Multidek is also available in glass reinforced translucent roofing
  • A full range of matching accessories is available including ridging, flashings, underlays, fasteners and rainwater systems
Categories
Metal Cladding Metal Roofing
Scope of Use
  • Incorporating a 50mm rib height with wide flutes, Multidek provides excellent water carrying capacity, and is particularly suited in areas where high density rainfall could be expected.
  • Multidek lends itself to most types of projects whether commercial, industrial or residential.

Common Applications:

  • Residential roofing and cladding
  • Rural and lifestyle roofing and cladding
  • Canopies
  • Carports and fencing

Metal cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice.
Limitations on Use
  • Minimum roof pitch 3°
3° Minimum Roof Pitch Required
3°
Statement of Building Code Compliance

Multidek will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Multidek performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
  • Case Studies
Documents
Product Brochure: Multidek

2014

pdf
Selection Guide: Multidek

2012

pdf
Brochure: Ezy-Flo Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
Brochure: Roofing with Style

2023

pdf
Profile Technical Summary

2012

pdf
Tekton Report — E2 Compliance: Multidek

2020

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
Brochure: Re-Roof
pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Commercial or Residential
Roofing Details
Wall Cladding Details
Clear filters
Com. Multidek Typical Roof (Uninsulated)

RI-CMD-R000A

dwg
pdf
Com. Multidek Typical Roof (Insulated)

RI-CMD-R000A-1

dwg
pdf

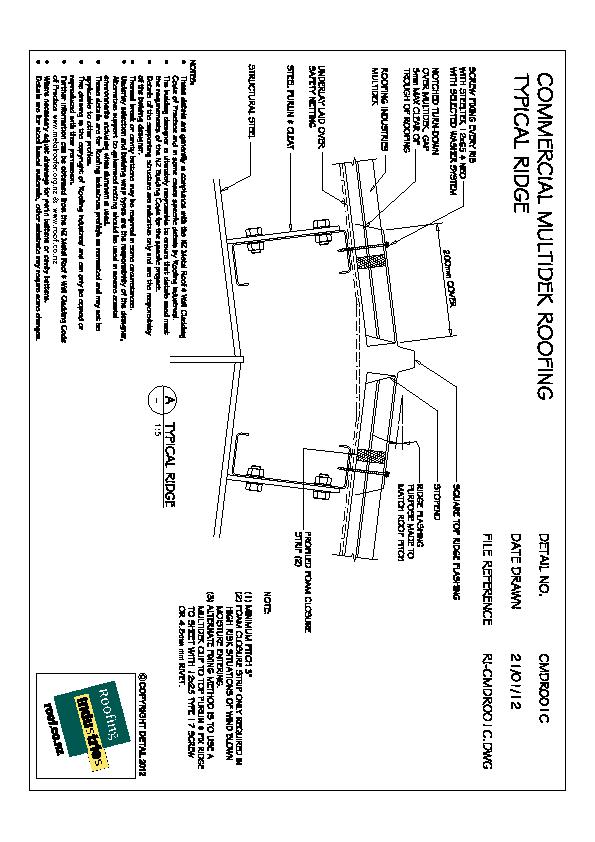

Com. Multidek Typical Ridge

RI-CMD-R001C

dwg
pdf

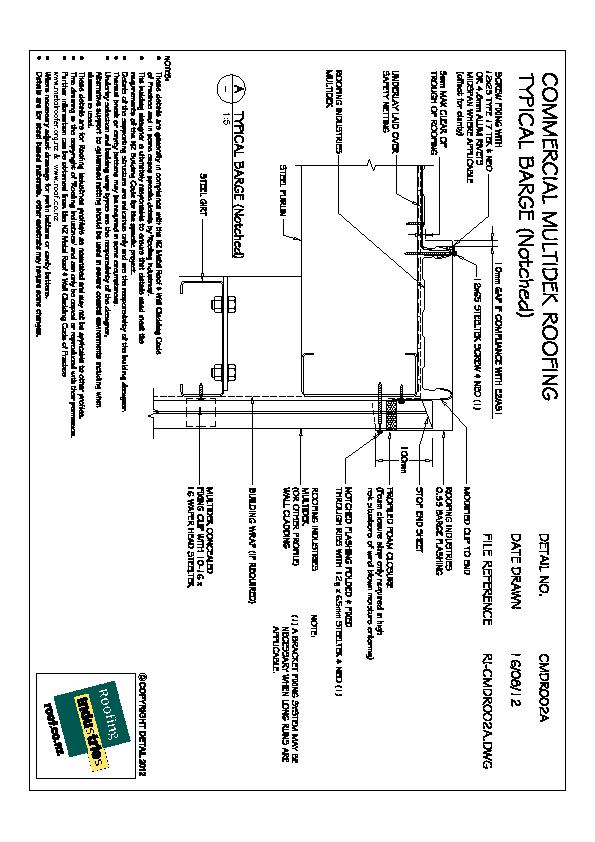

Com. Multidek Typical Barge (Notched)

RI-CMD-R002A

dwg
pdf

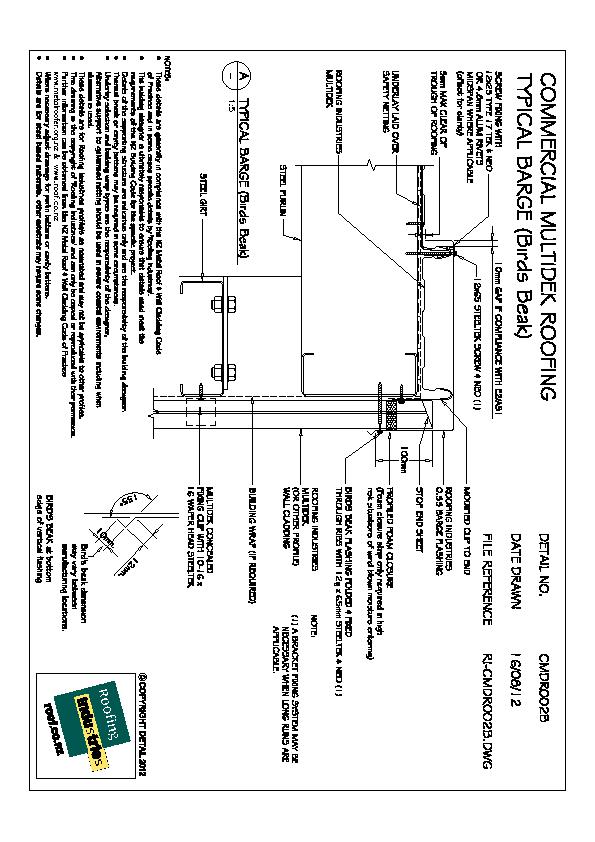

Com. Multidek Typical Barge (Bird's Beak)

RI-CMD-R002B

dwg
pdf

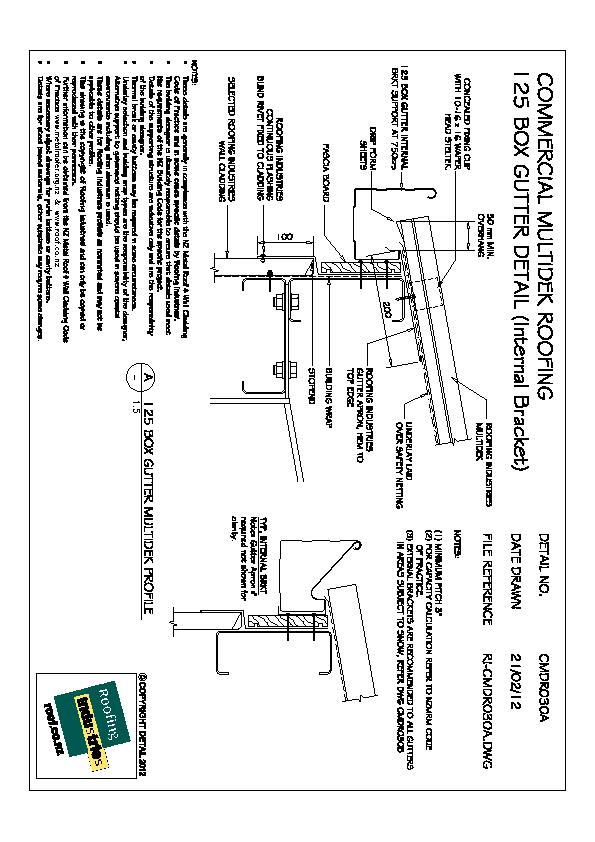

Com. Multidek 125 Box Gutter Detail (Internal Bracket)

RI-CMD-R0030A

dwg
pdf

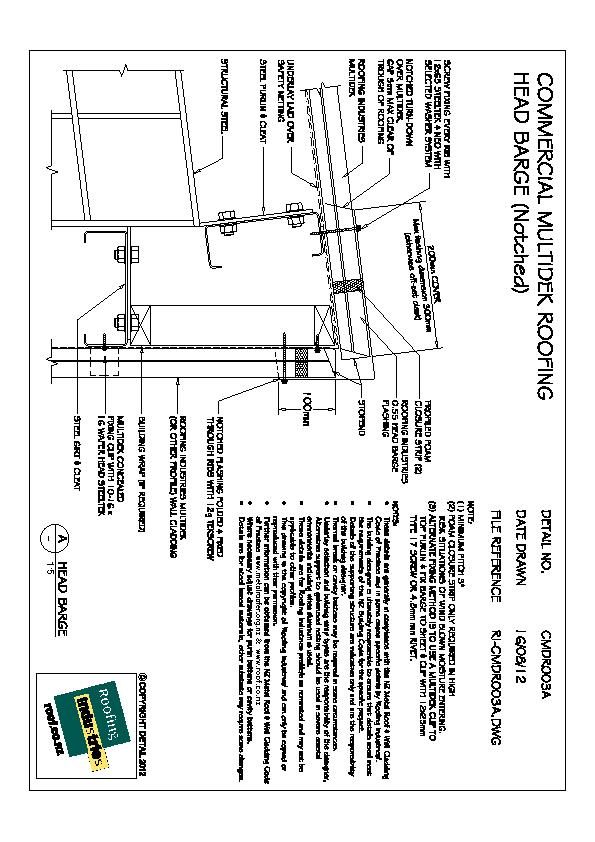

Com. Multidek Head Barge (Notched)

RI-CMD-R003A

dwg
pdf

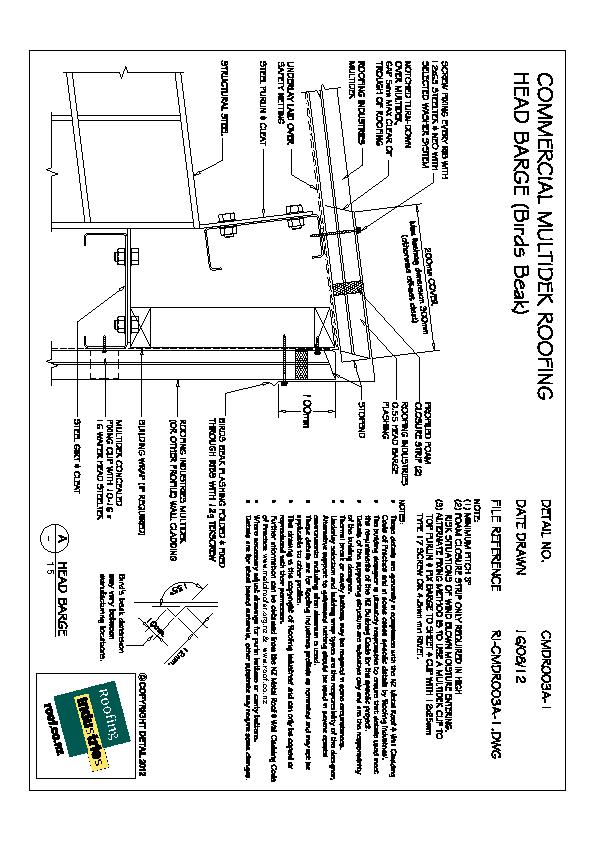

Com. Multidek Head Barge (Bird's Beak)

RI-CMD-R003A-1

dwg
pdf

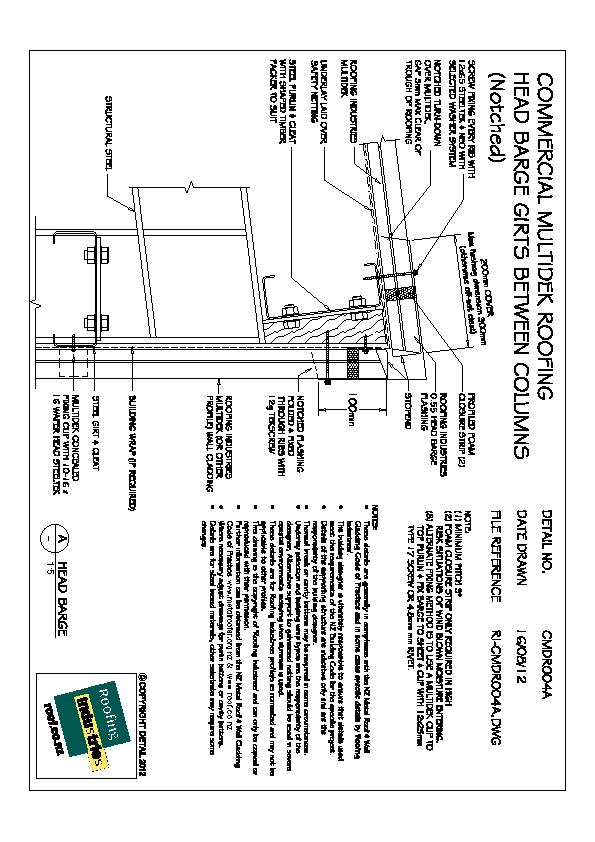

Com. Multidek Head Barge Girts Between Columns (Notched)

RI-CMD-R004A

dwg
pdf

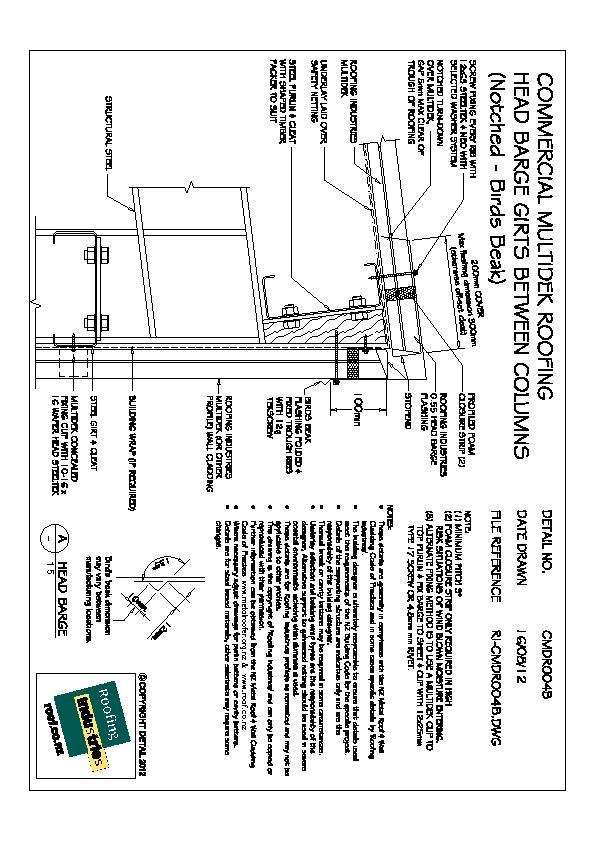

Com. Multidek Head Barge Girts Between Columns (Notched — Bird's Beak)

RI-CMD-R004B

dwg
pdf

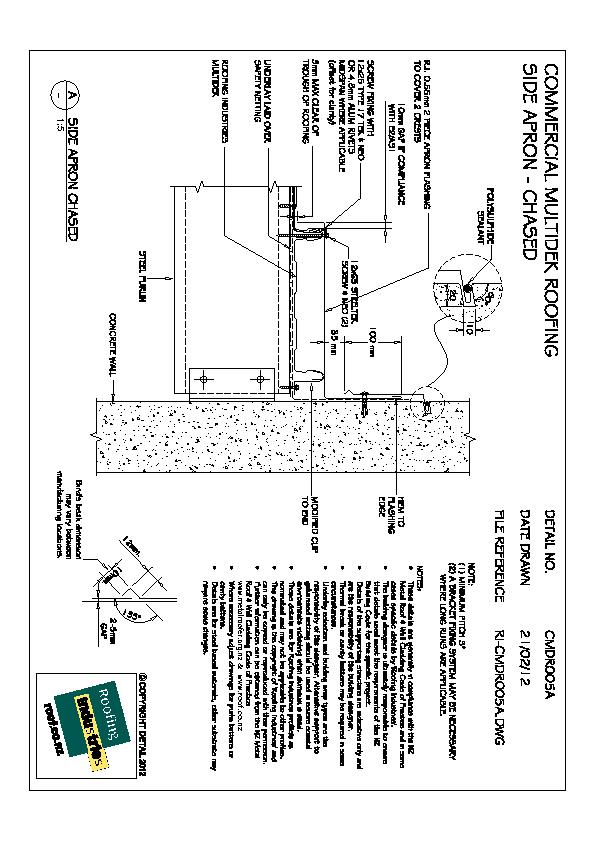

Com. Multidek Side Apron — Chased

RI-CMD-R005A

dwg
pdf

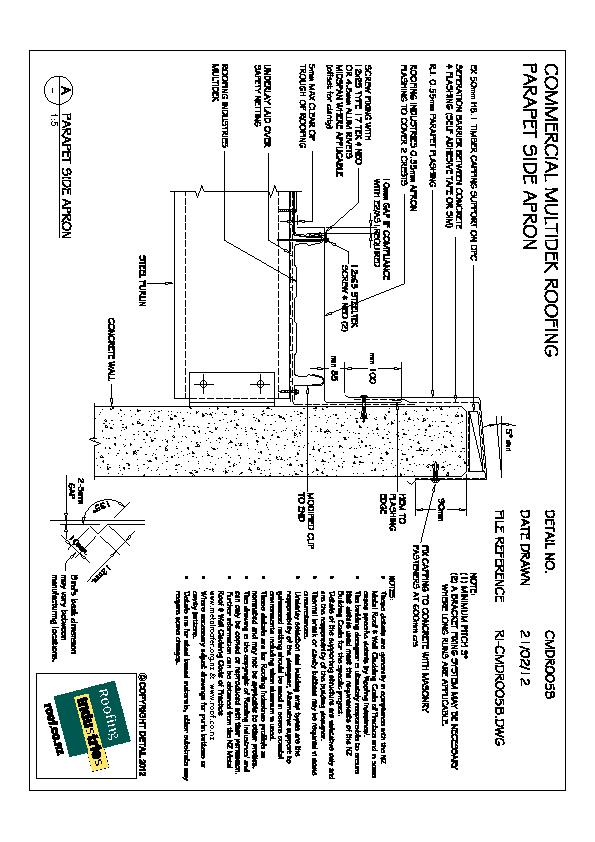

Com. Multidek Parapet Side Apron

RI-CMD-R005B

dwg
pdf

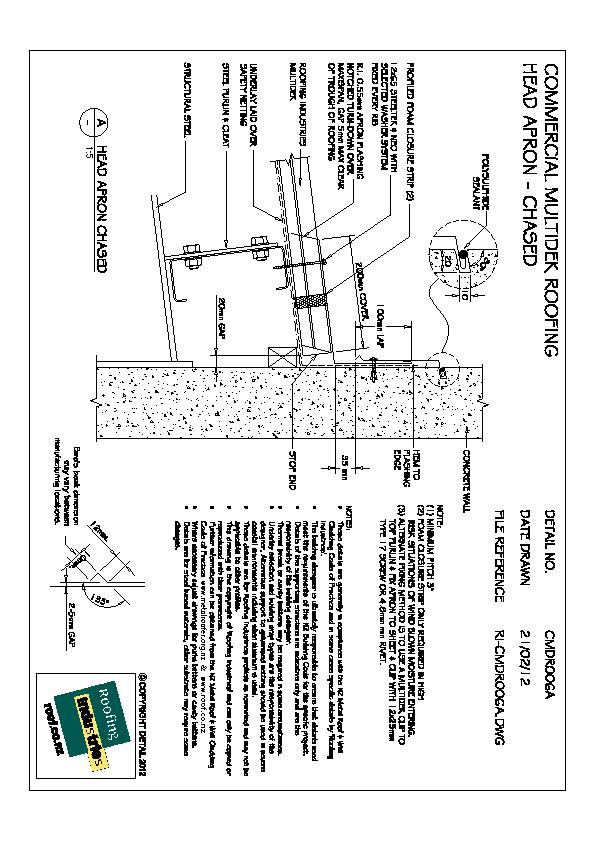

Com. Multidek Head Apron — Chased

RI-CMD-R006A

dwg
pdf

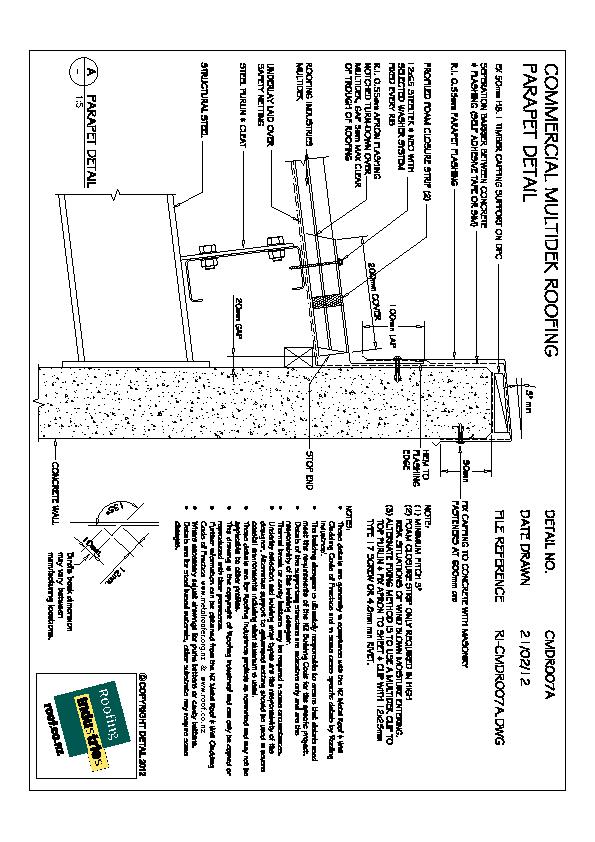

Com. Multidek Parapet Detail

RI-CMD-R007A

dwg
pdf

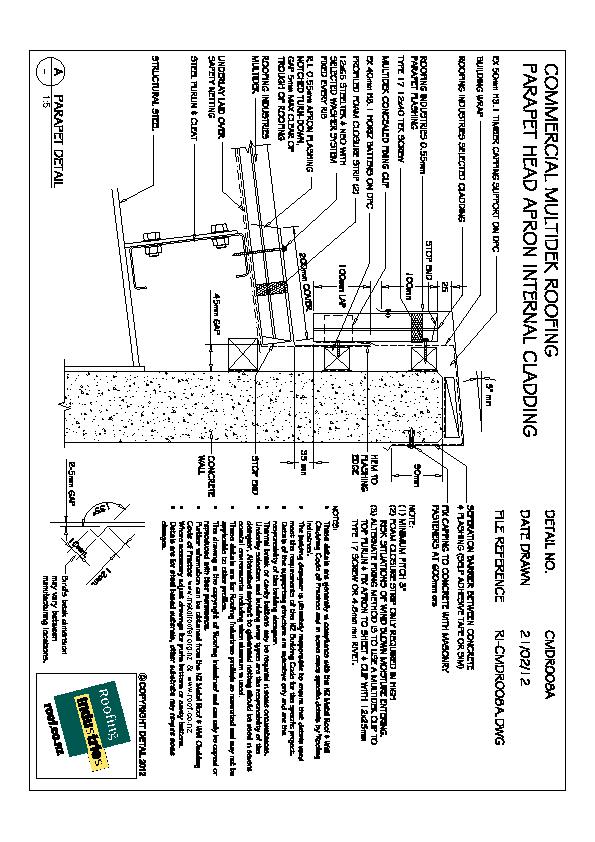

Com. Multidek Parapet Head Apron Internal Cladding

RI-CMD-R008A

dwg
pdf

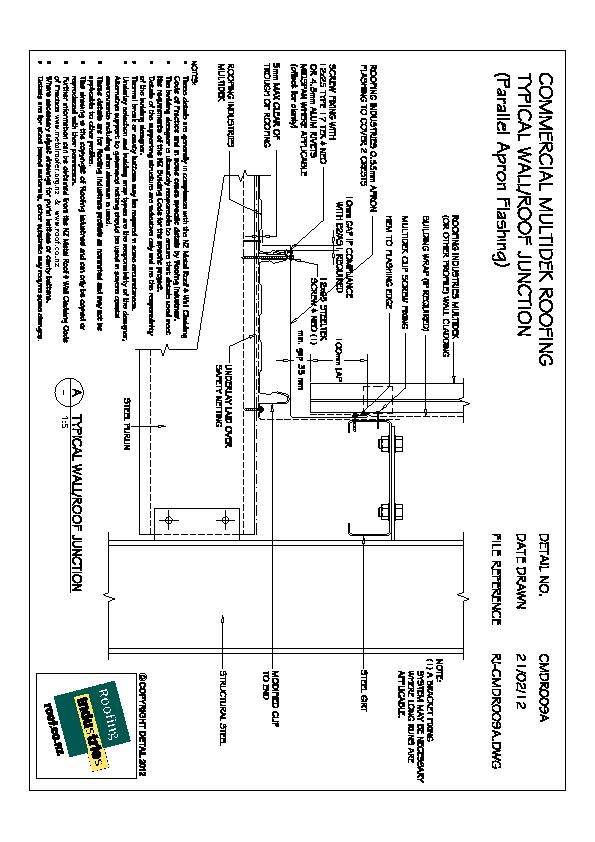

Com. Multidek Typical Wall/Roof Junction (Parallel Apron Flashing)

RI-CMD-R009A

dwg
pdf

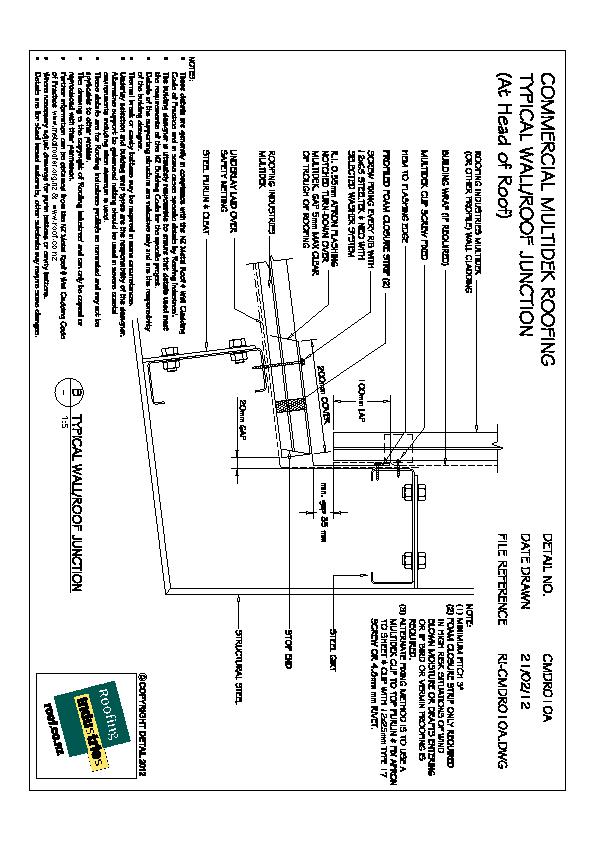

Com. Multidek Typical Wall/Roof Junction (At Head of Roof)

RI-CMD-R010A

dwg
pdf

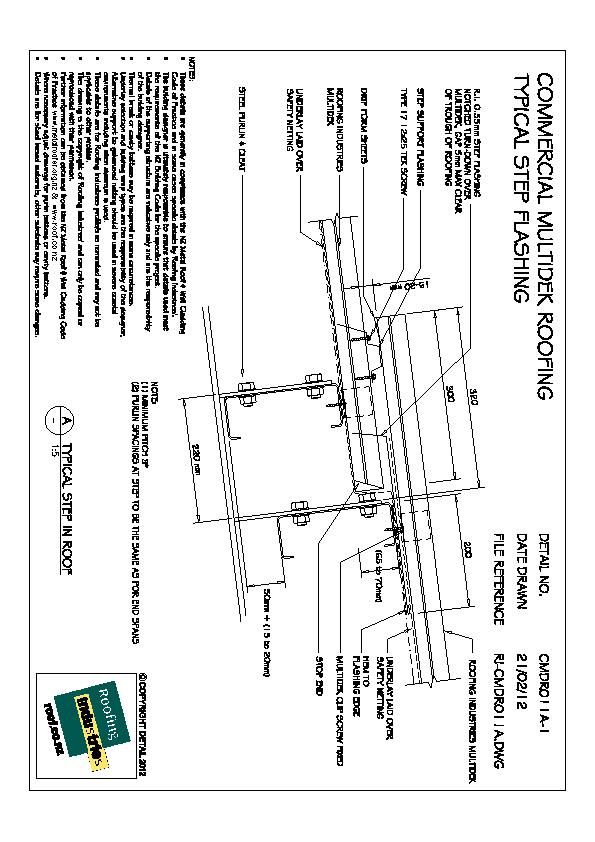

Com. Multidek Typical Step Flashing

RI-CMD-R011A-1

dwg
pdf

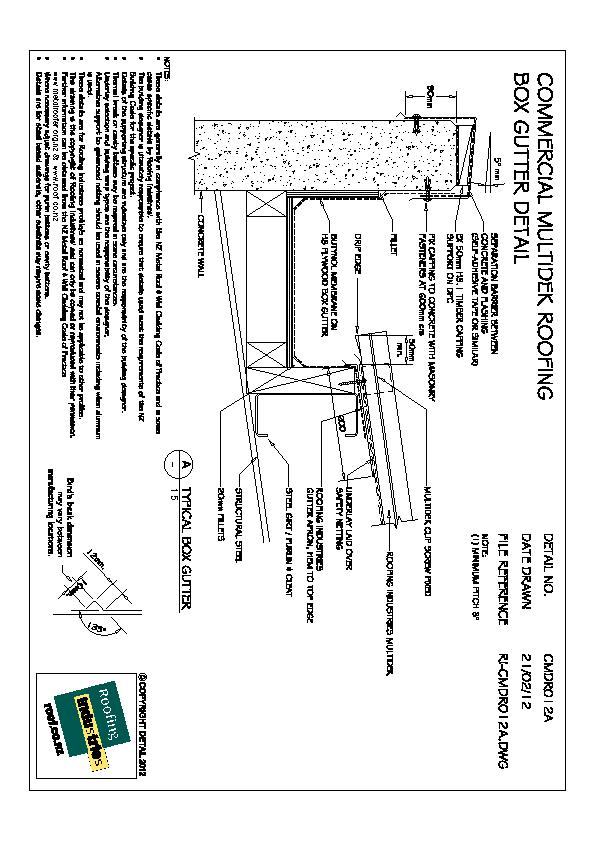

Com. Multidek Box Gutter Detail

RI-CMD-R012A

dwg
pdf

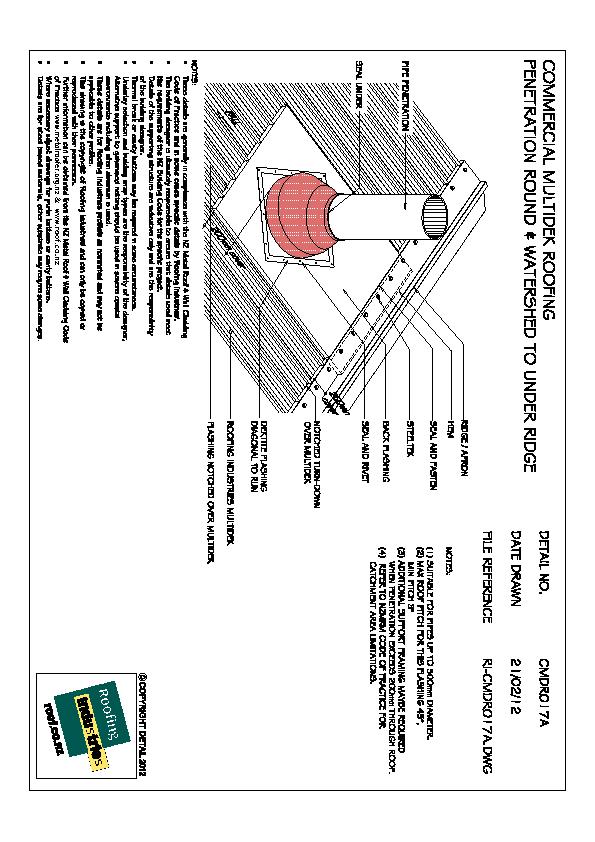

Com. Multidek Penetration Round & Watershed to Under Ridge

RI-CMD-R017A

dwg
pdf

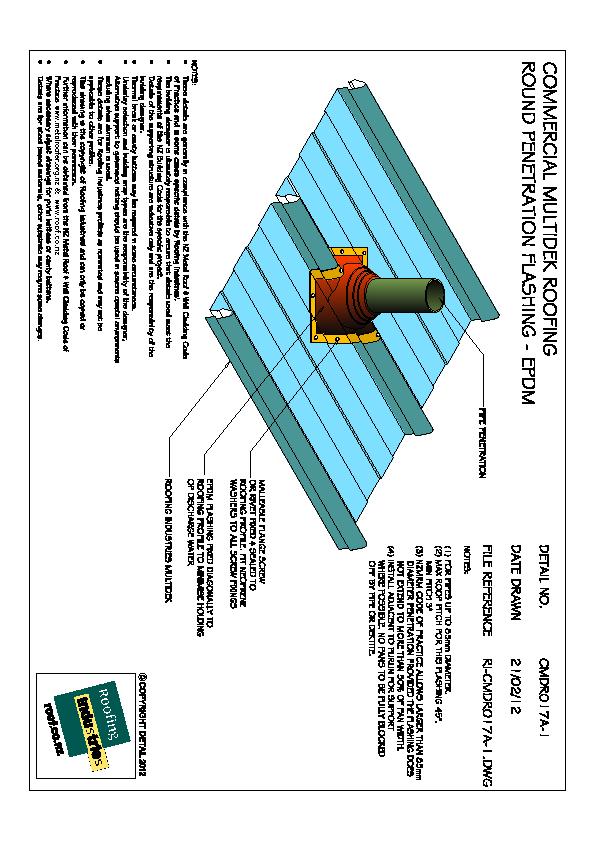

Com. Multidek Round Penetration Flashing —EPDM

RI-CMD-R017A-1

dwg
pdf

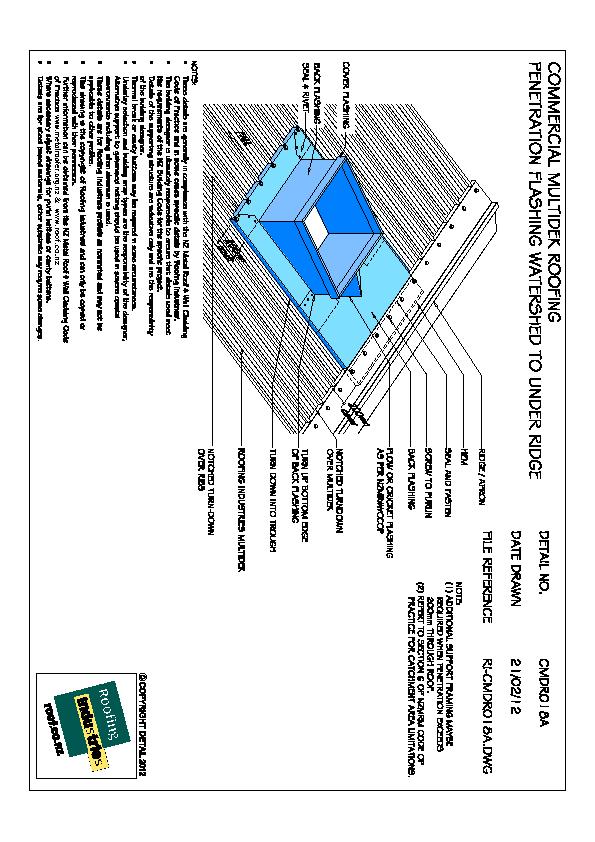

Com. Multidek Penetration Flashing Watershed to Under Ridge

RI-CMD-R018A

dwg
pdf

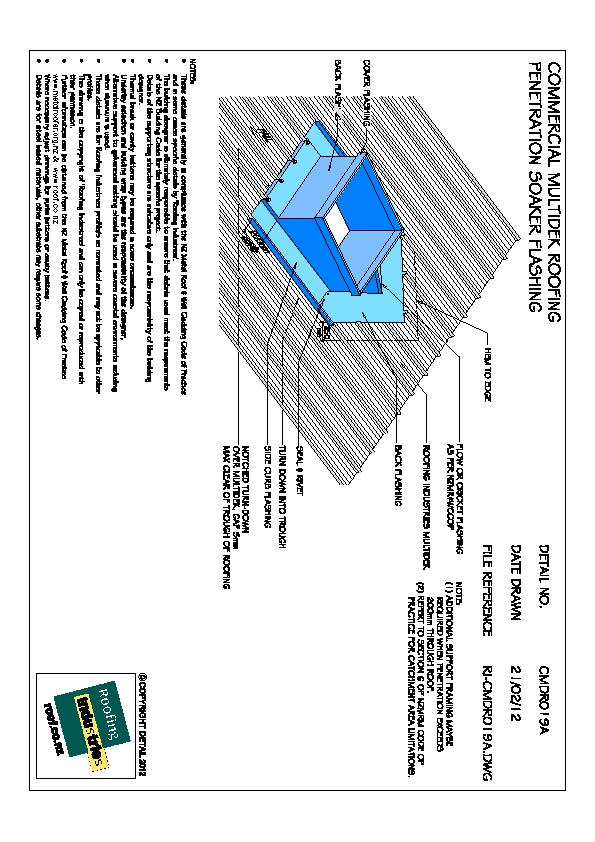

Com. Multidek Penetration Soaker Flashing

RI-CMD-R019A

dwg
pdf

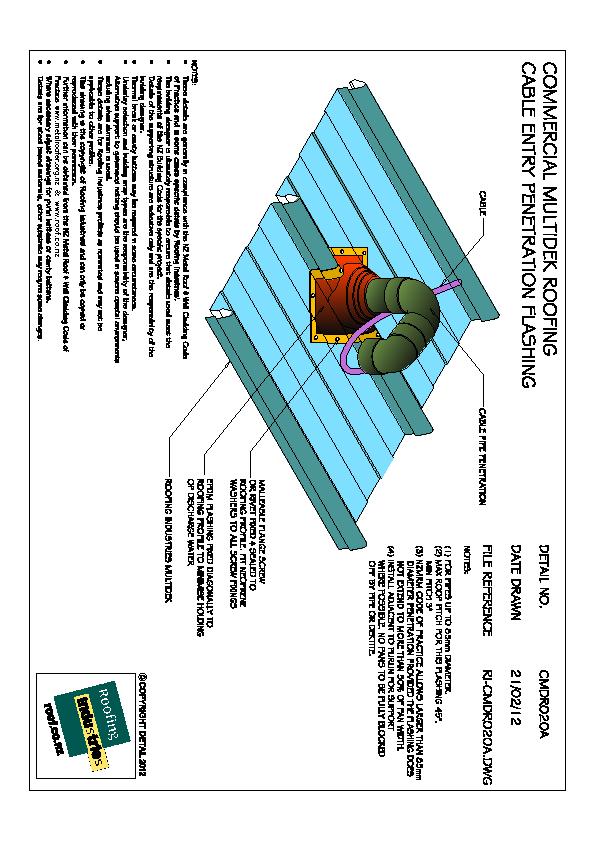

Com. Multidek Cable Entry Penetration Flashing

RI-CMD-R020A

dwg
pdf

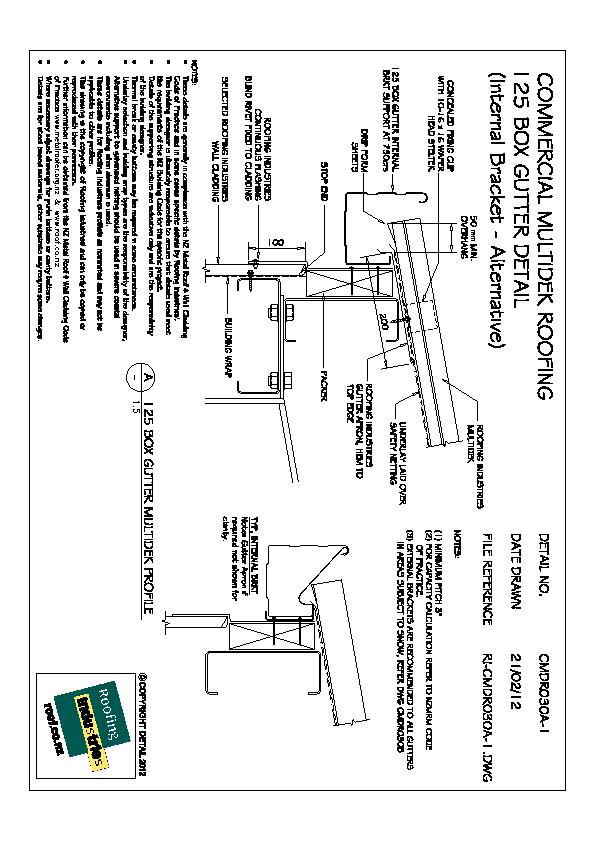

Com. Multidek 125 Box Gutter Detail (Internal Bracket — Alternative)

RI-CMD-R030A-1

dwg
pdf

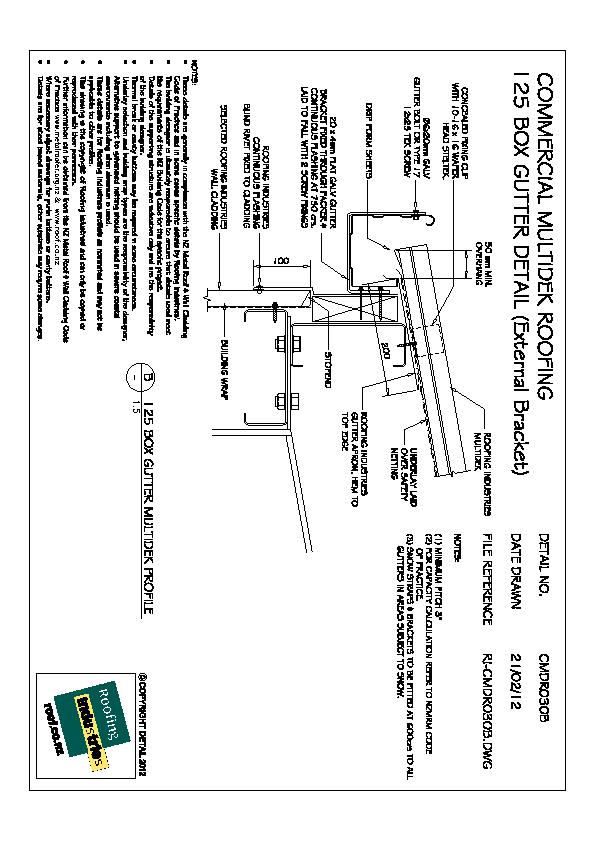

Com. Multidek 125 Box Gutter Detail (External Bracket)

RI-CMD-R030B

dwg
pdf

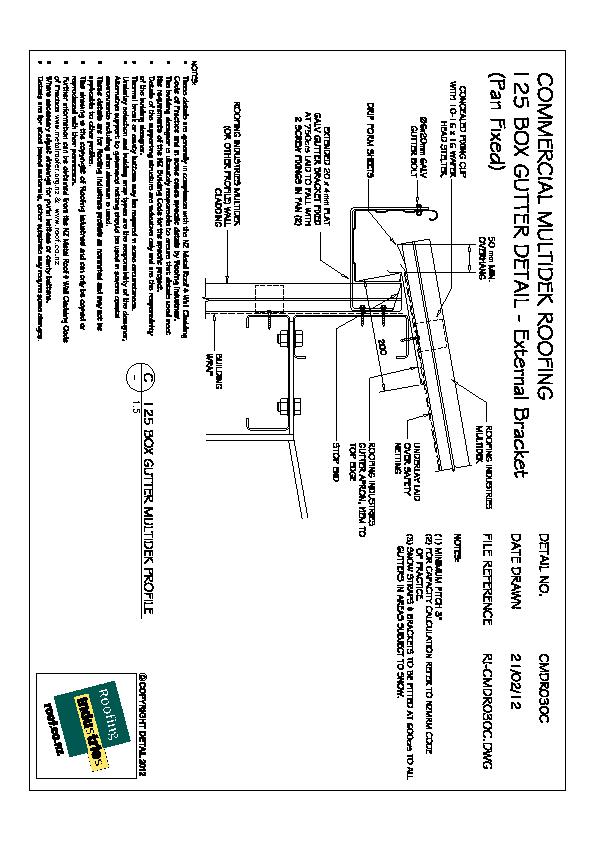

Com. Multidek 125 Box Gutter Detail — External Bracket (Pan Fixed)

RI-CMD-R030C

dwg
pdf

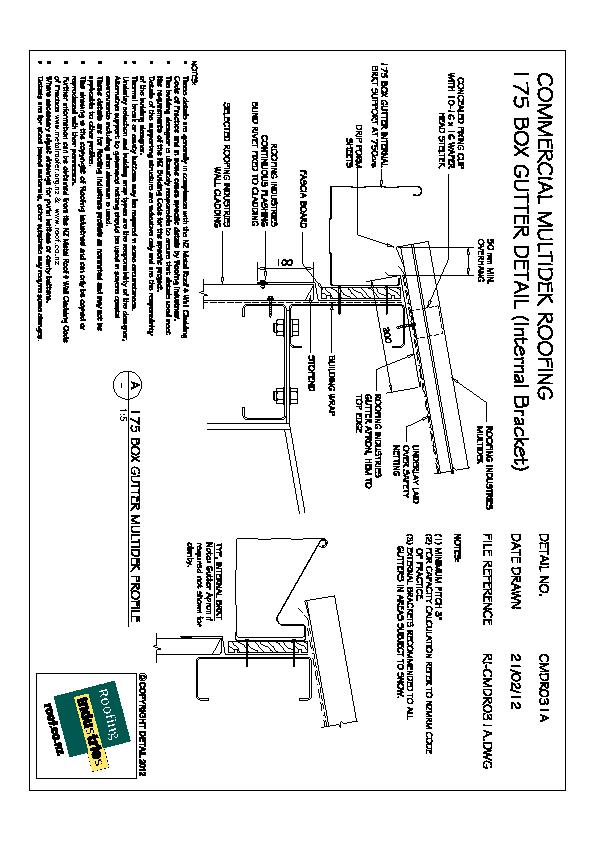

Com. Multidek 175 Box Gutter Detail (Internal Bracket)

RI-CMD-R031A

dwg
pdf

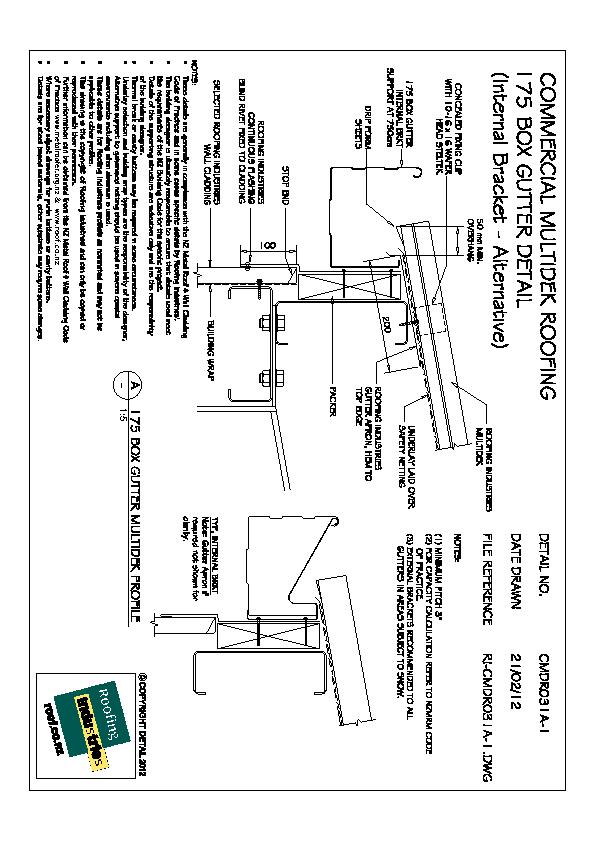

Com. Multidek 175 Box Gutter Detail — (Internal Bracket — Alternative)

RI-CMD-R031A-1

dwg
pdf

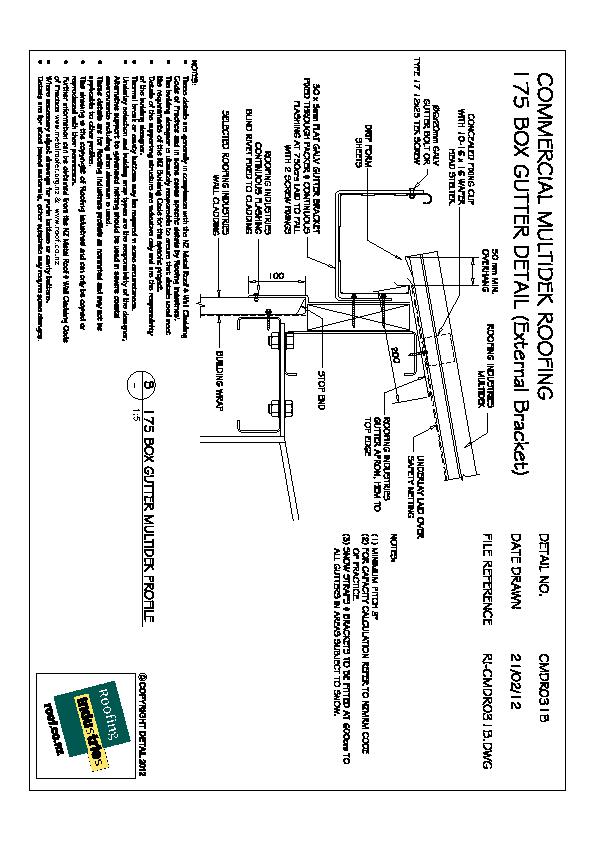

Com. Multidek 175 Box Gutter Detail (External Bracket)

RI-CMD-R031B

dwg
pdf

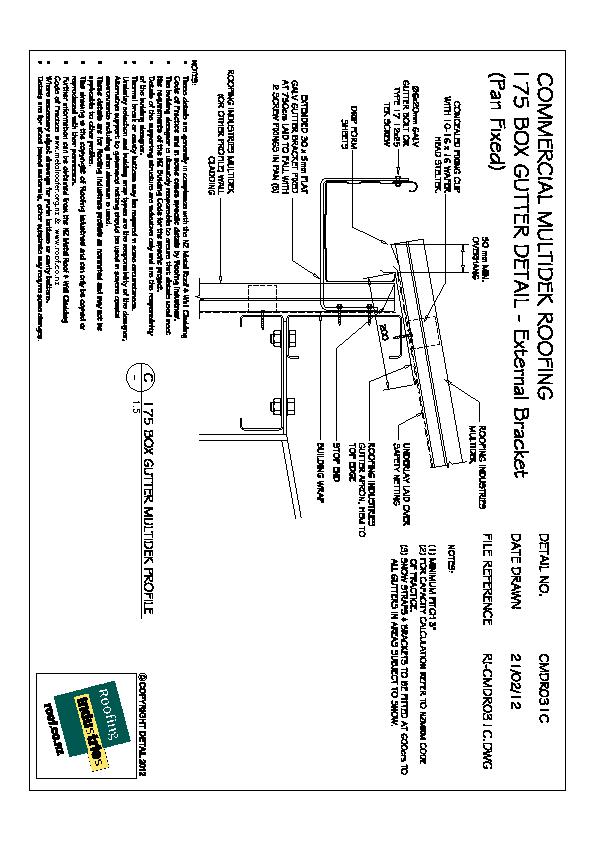

Com. Multidek 175 Box Gutter Detail — External Bracket (Pan Fixed)

RI-CMD-R031C

dwg
pdf

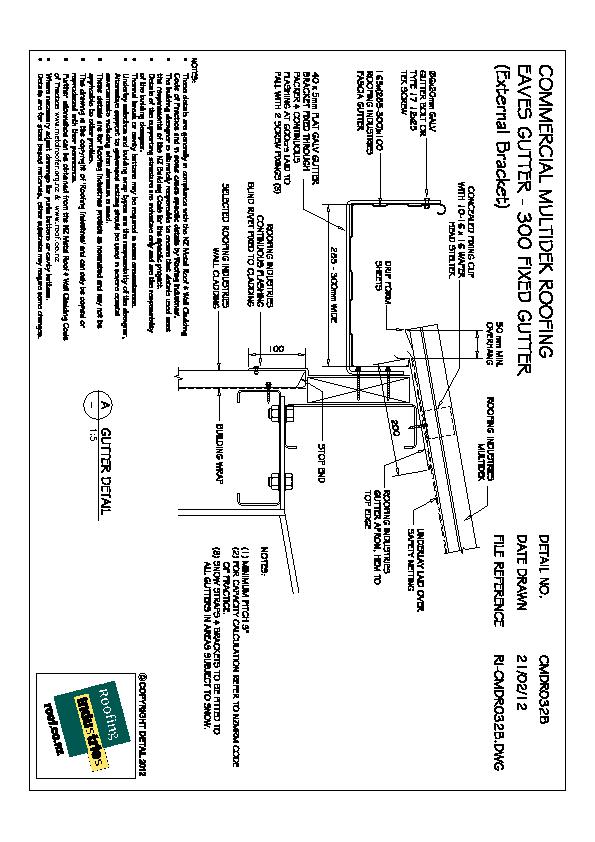

Com. Multidek Eaves Gutter — 300 Fixed Gutter (External Bracket)

RI-CMD-R032B

dwg
pdf

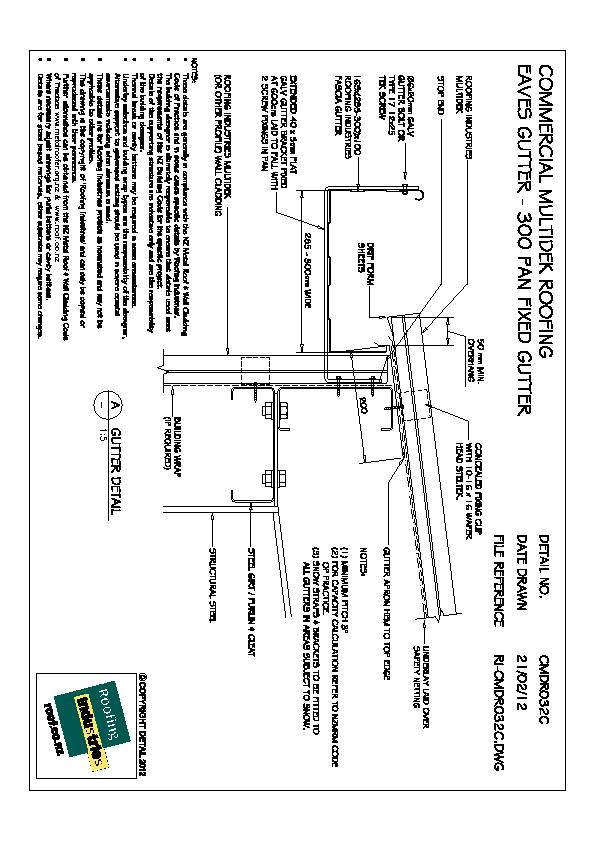

Com. Multidek Eaves Gutter — 300 Pan Fixed Gutter

RI-CMD-R032C

dwg
pdf

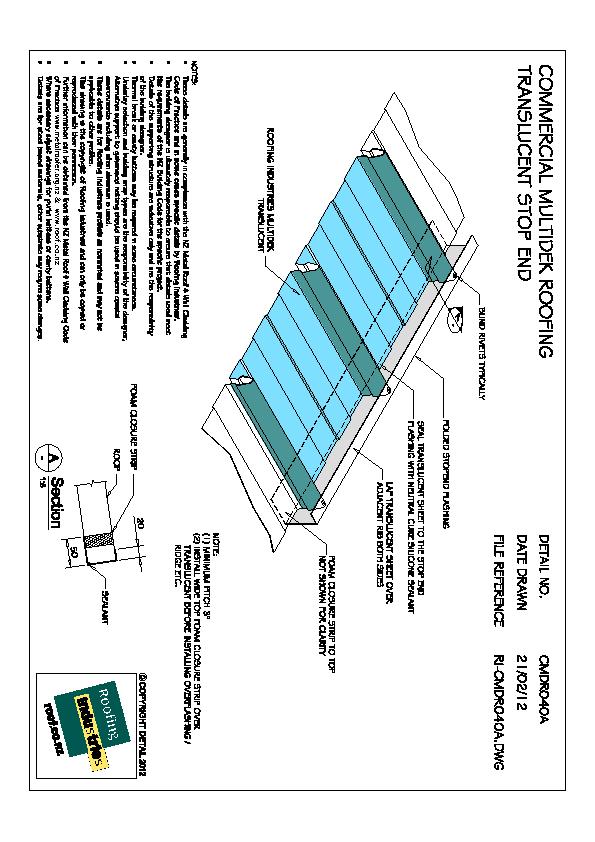

Com. Multidek Translucent Stop End

RI-CMD-R040A

dwg
pdf

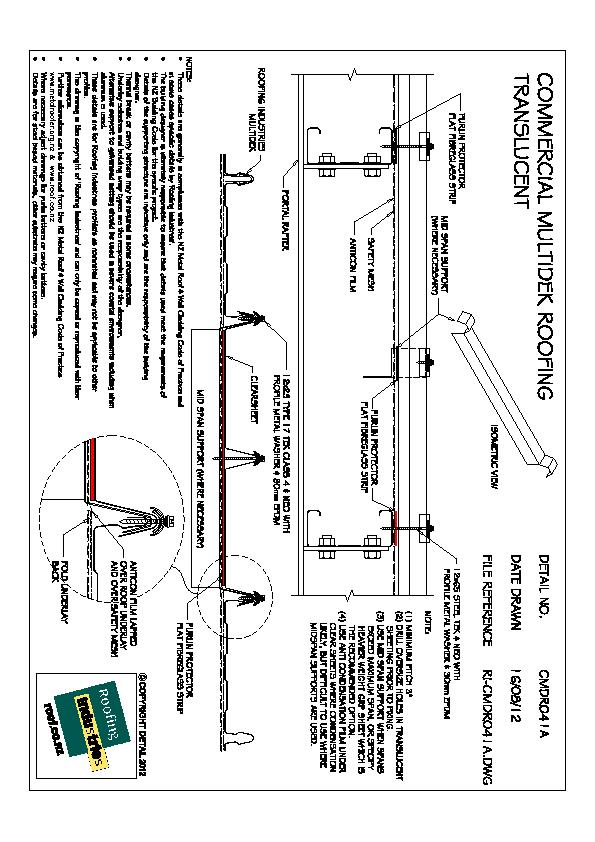

Com. Multidek Translucent

RI-CMD-R041A

dwg
pdf

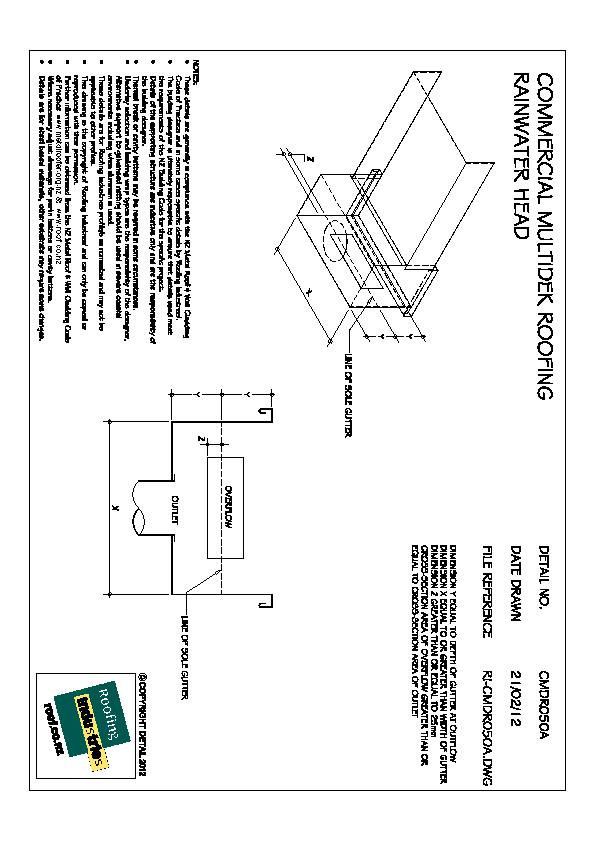

Com. Multidek Rainwater Head

RI-CMD-R050A

dwg
pdf

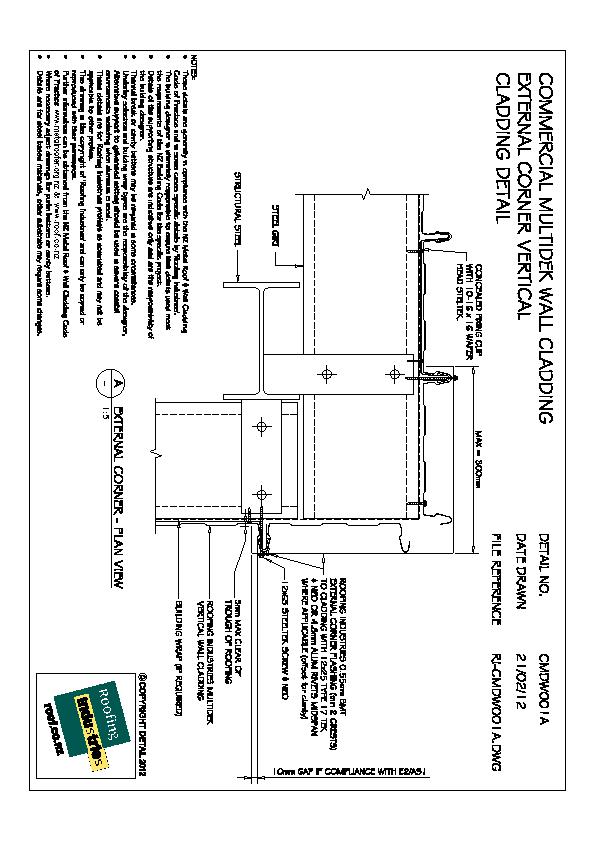

Com. Multidek External Corner Vertical Cladding Detail

RI-CMD-W001A

dwg
pdf

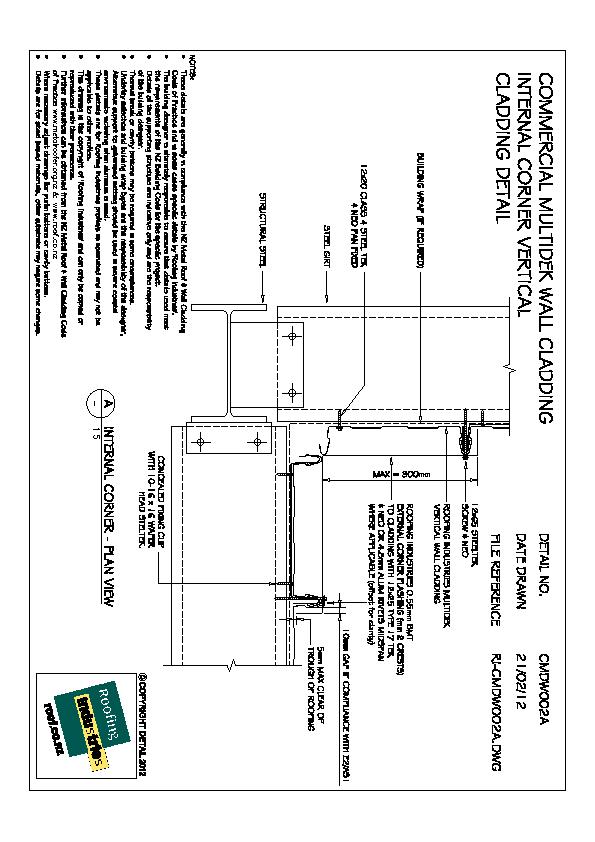

Com. Multidek Internal Corner Vertical Cladding Detail

RI-CMD-W002A

dwg
pdf

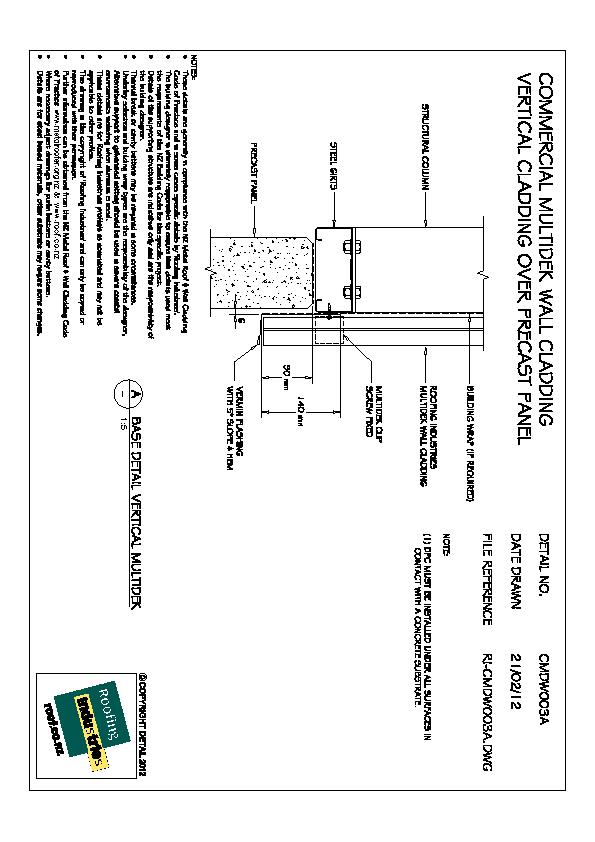

Com. Multidek Vertical Cladding over Precast Panel

RI-CMD-W003A

dwg
pdf

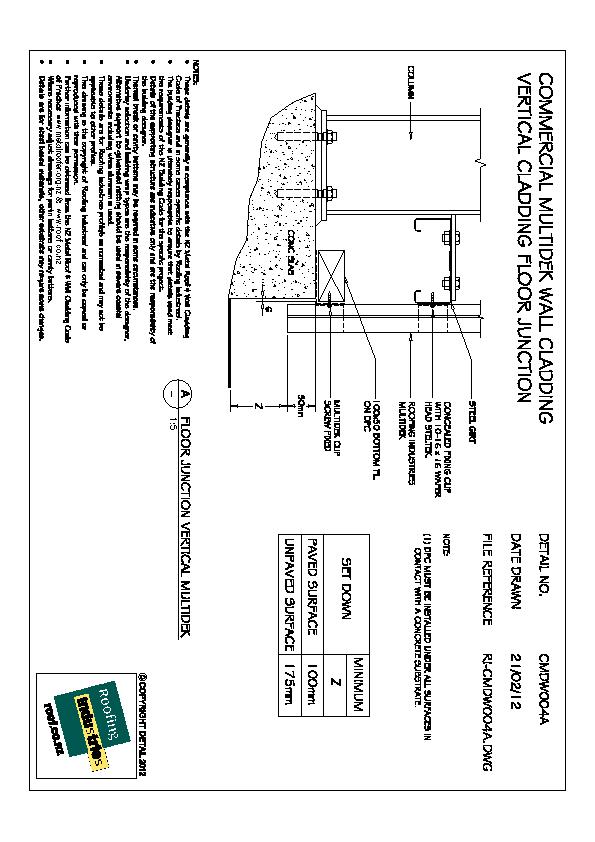

Com. Multidek Vertical Cladding Floor Junction

RI-CMD-W004A

dwg
pdf

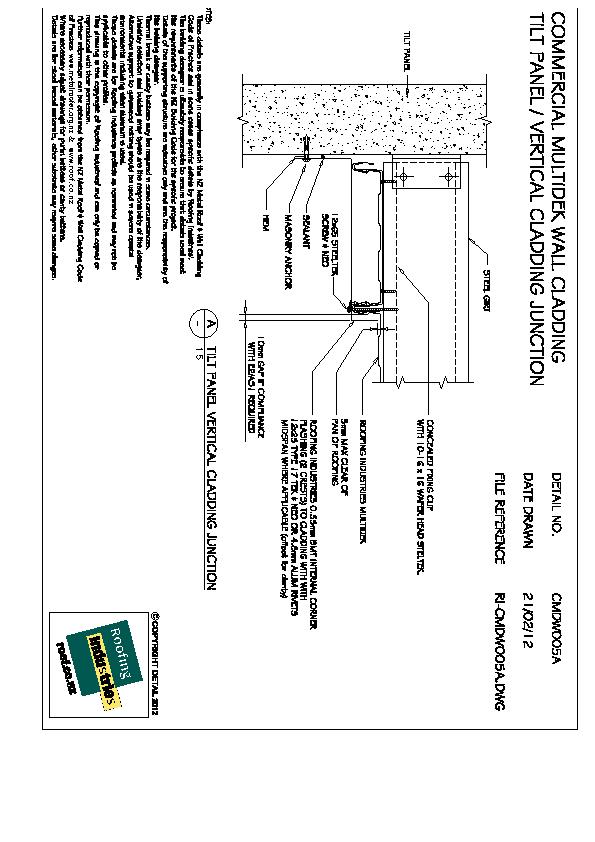

Com. Multidek Tilt Panel / Vertical Cladding Junction

RI-CMD-W005A

dwg
pdf

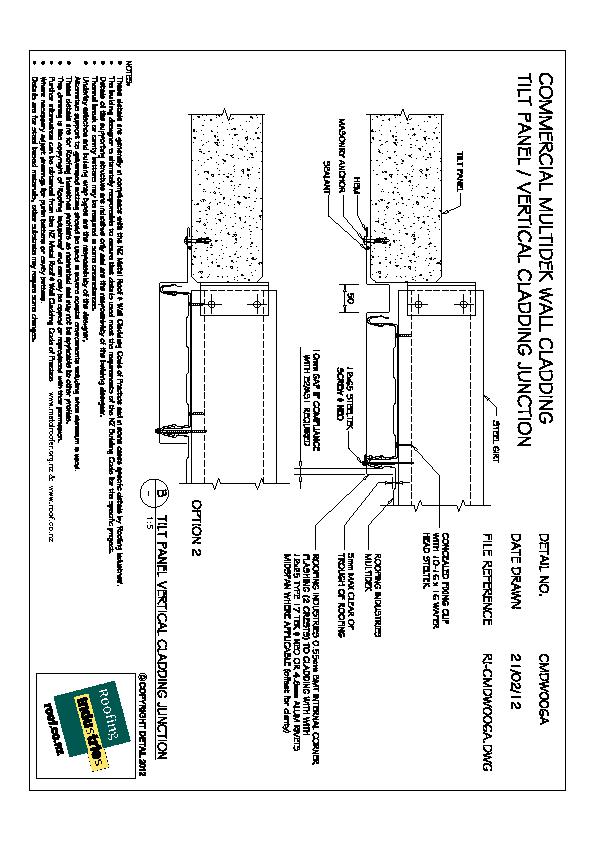

Com. Multidek Tilt Panel / Vertical Cladding Junction (2)

RI-CMD-W006A

dwg
pdf

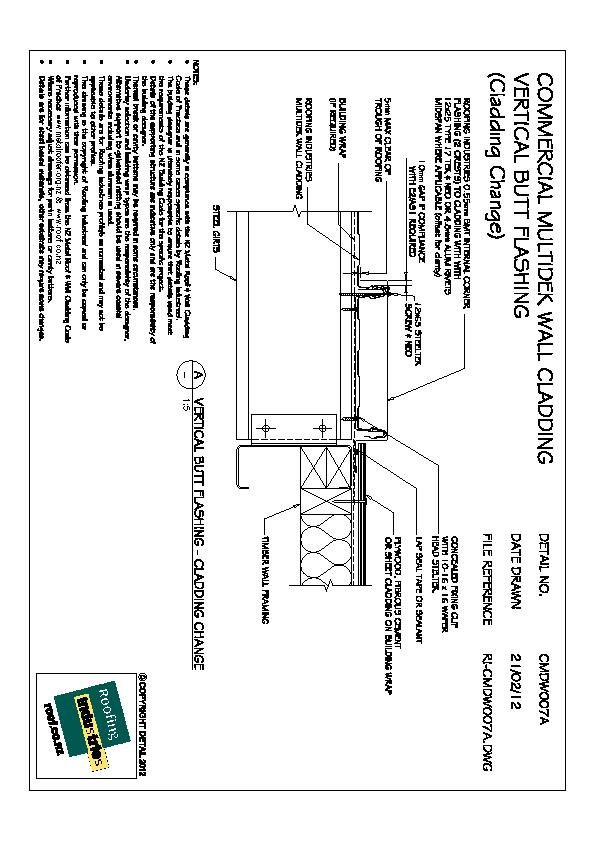

Com. Multidek Vertical Butt Flashing (Cladding Change)

RI-CMD-W007A

dwg
pdf

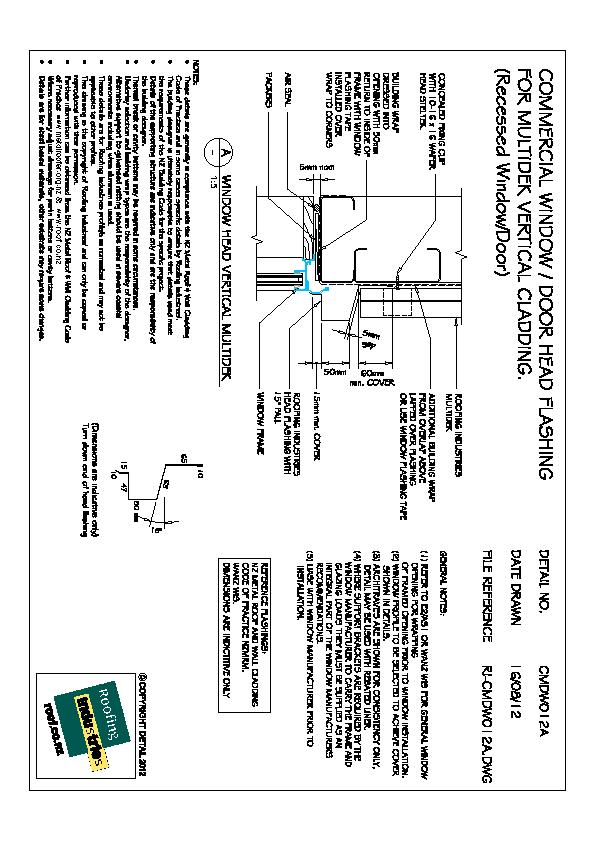

Com. Multidek Window/Door Head Flashing Vertical Cladding (Recessed Window/Door)

RI-CMD-W012A

dwg
pdf

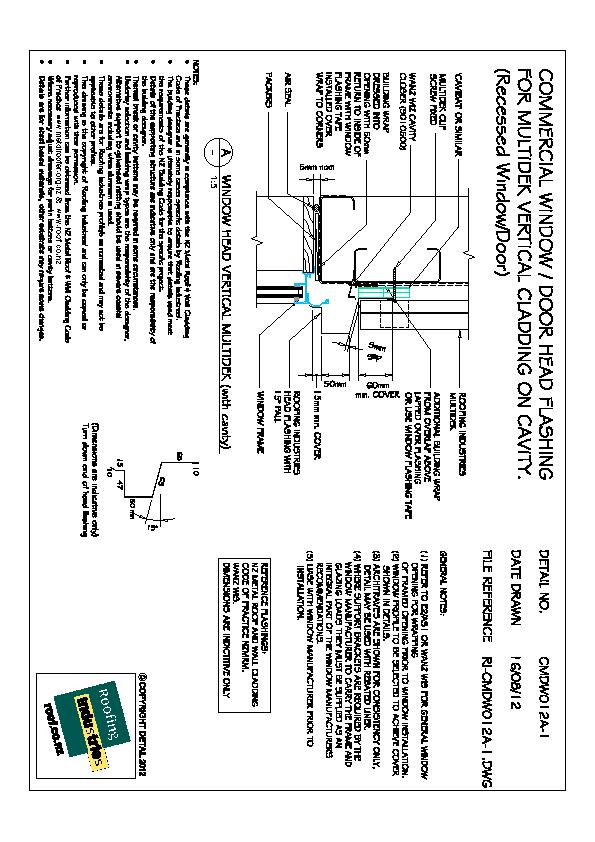

Com. Multidek Window/Door Head Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMD-W012A-1

dwg
pdf

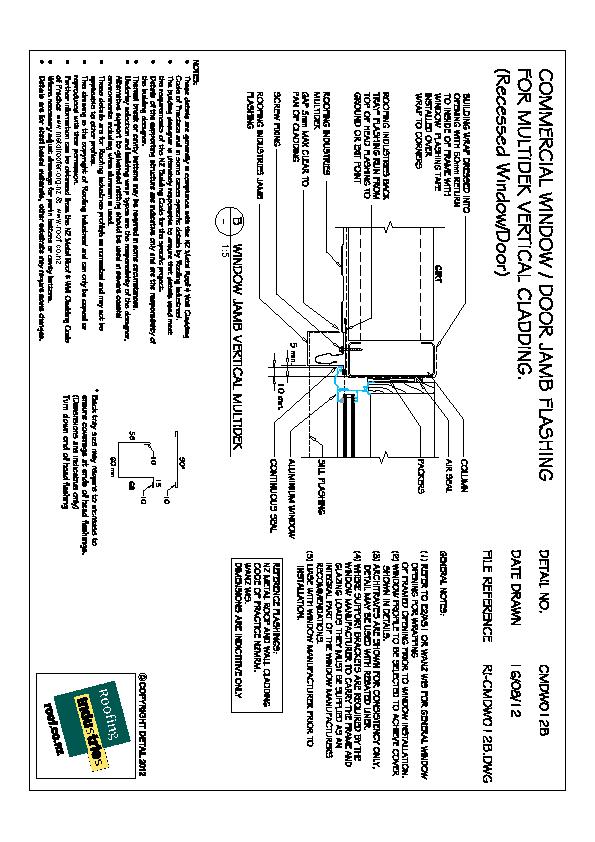

Com. Multidek Window/Door Jamb Flashing Vertical Cladding (Recessed Window/Door)

RI-CMD-W012B

dwg
pdf
Com. Multidek Window/Door Jamb Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMD-W012B-1

dwg
pdf

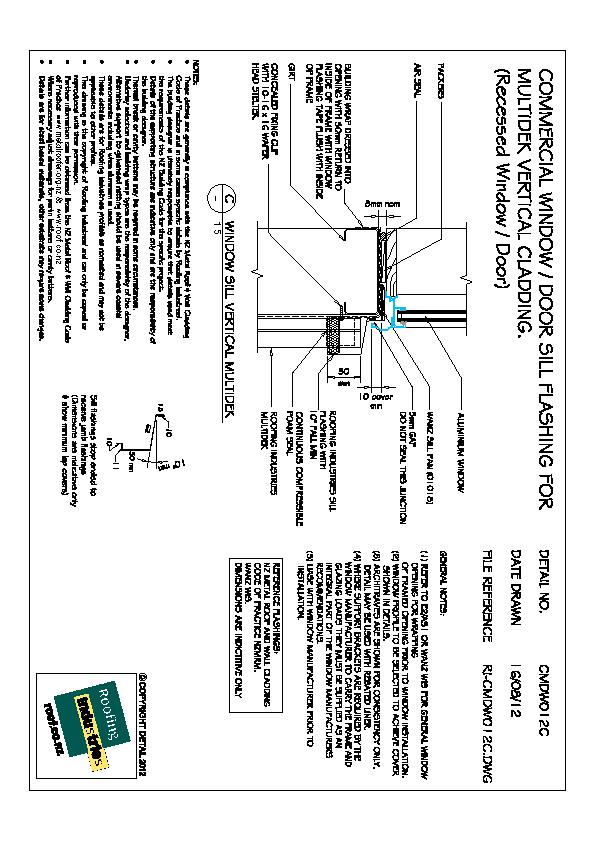

Com. Multidek Window/Door Sill Flashing Vertical Cladding (Recessed Window/Door)

RI-CMD-W012C

dwg
pdf

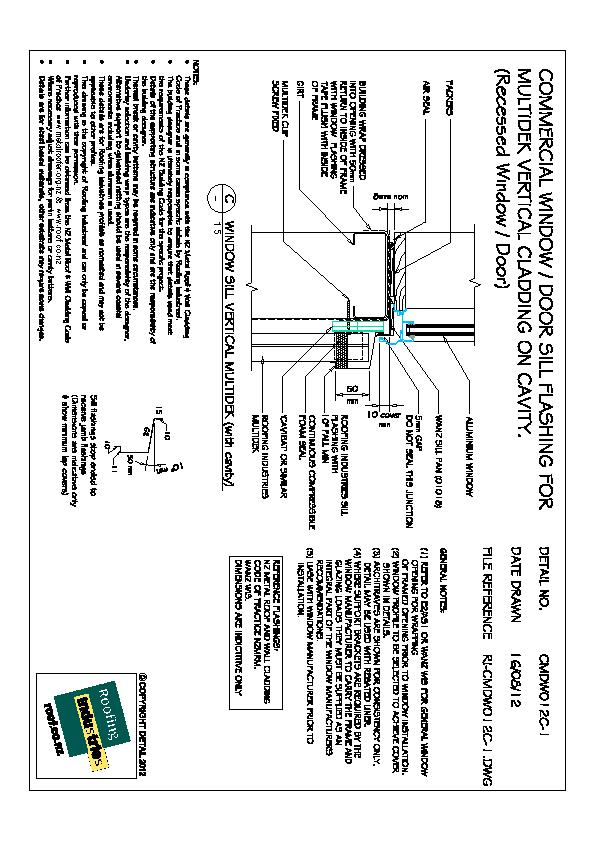

Com. Multidek Window/Door Sill Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMD-W012C-1

dwg
pdf

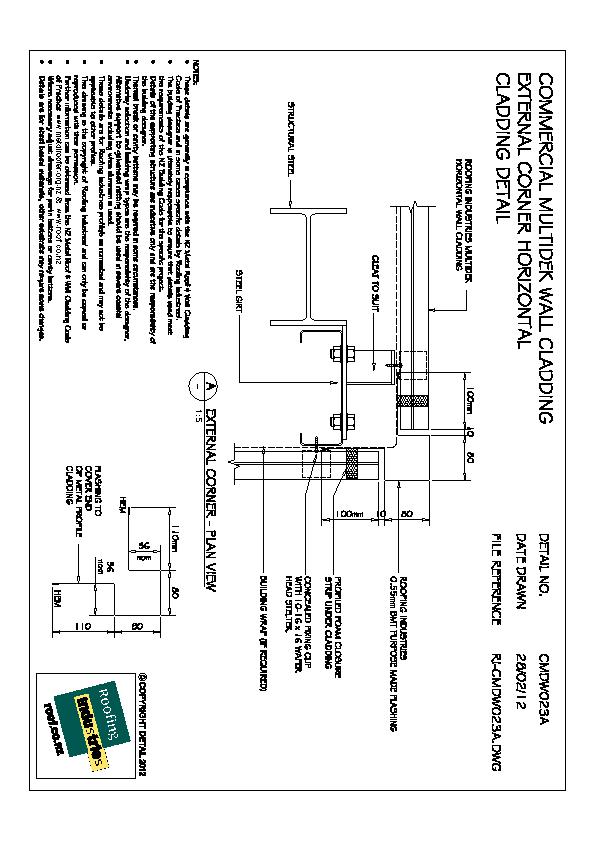

Com. Multidek External Corner Horizontal Cladding Detail

RI-CMD-W023A

dwg
pdf

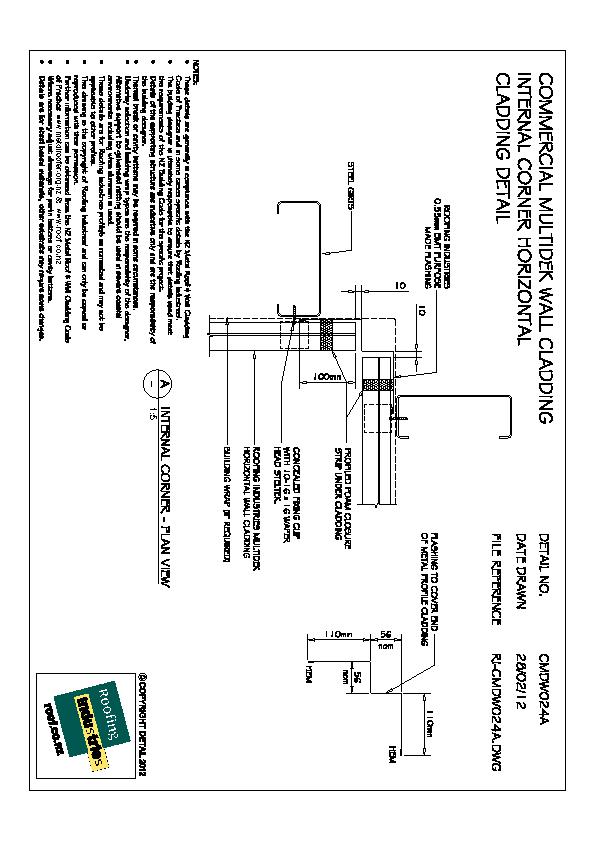

Com. Multidek Internal Corner Horizontal Cladding Detail

RI-CMD-W024A

dwg
pdf

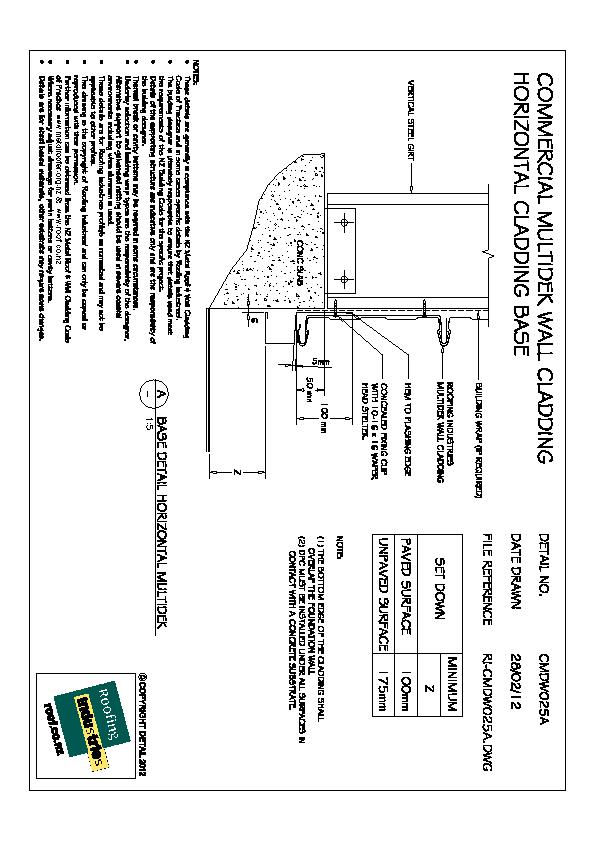

Com. Multidek Horizontal Cladding Base

RI-CMD-W025A

dwg
pdf

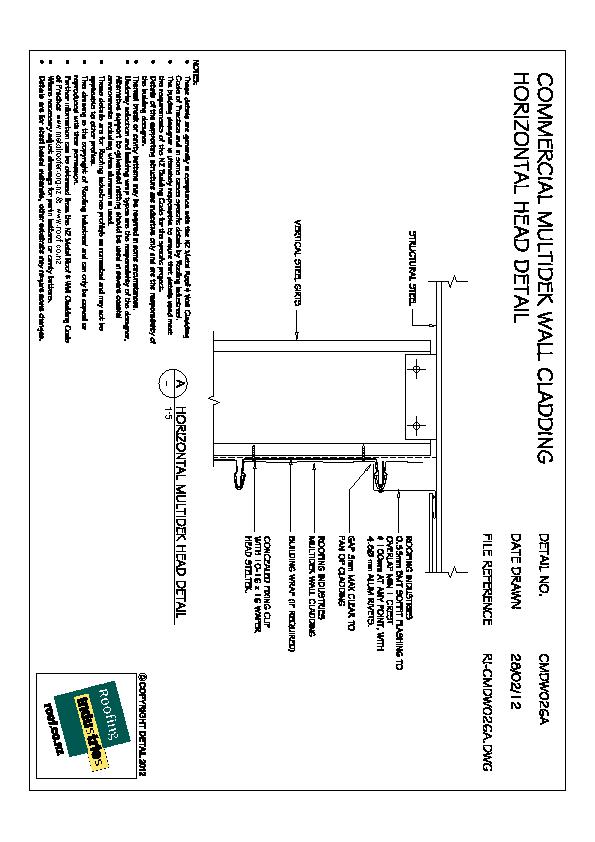

Com. Multidek Horizontal Head Detail

RI-CMD-W026A

dwg
pdf

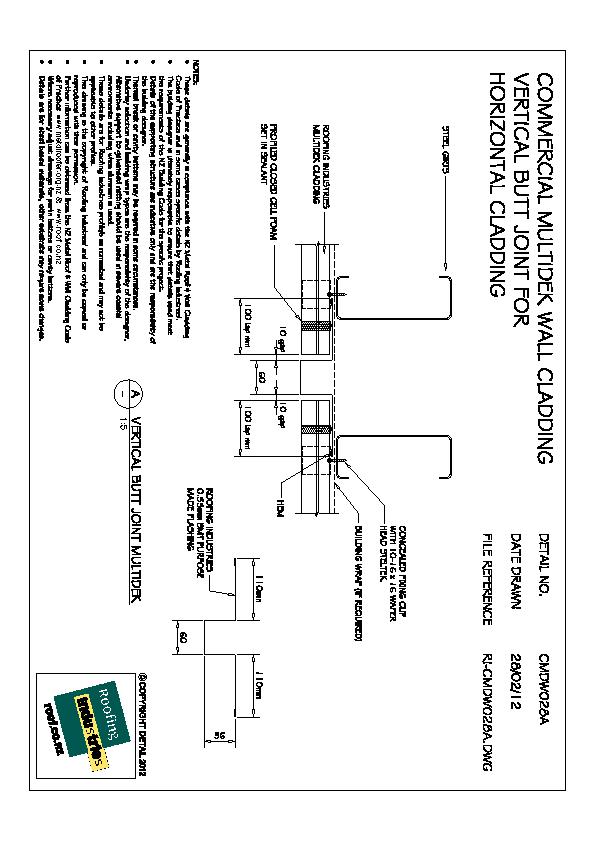

Com. Multidek Vertical Butt Joint for Horizontal Cladding

RI-CMD-W028A

dwg
pdf

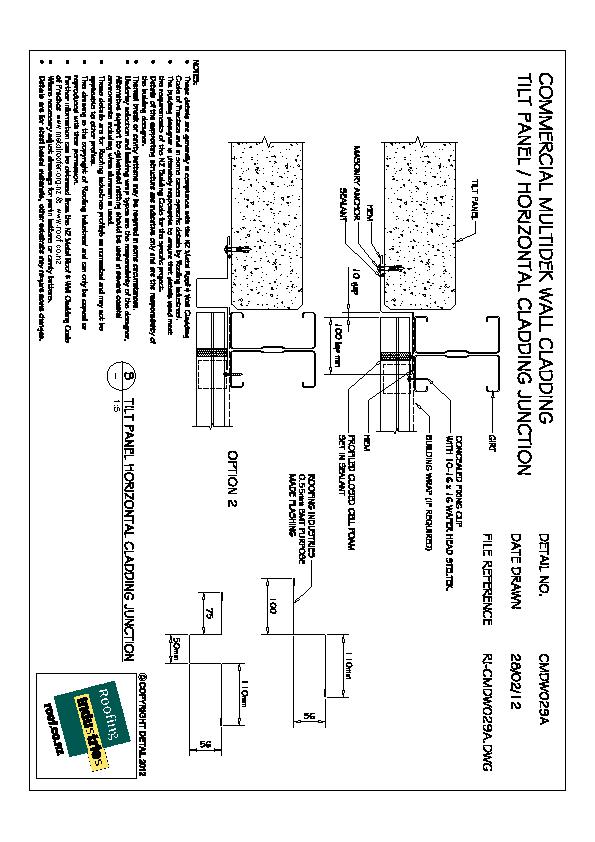

Com. Multidek Tilt Panel / Horizontal Cladding Junction

RI-CMD-W029A

dwg
pdf

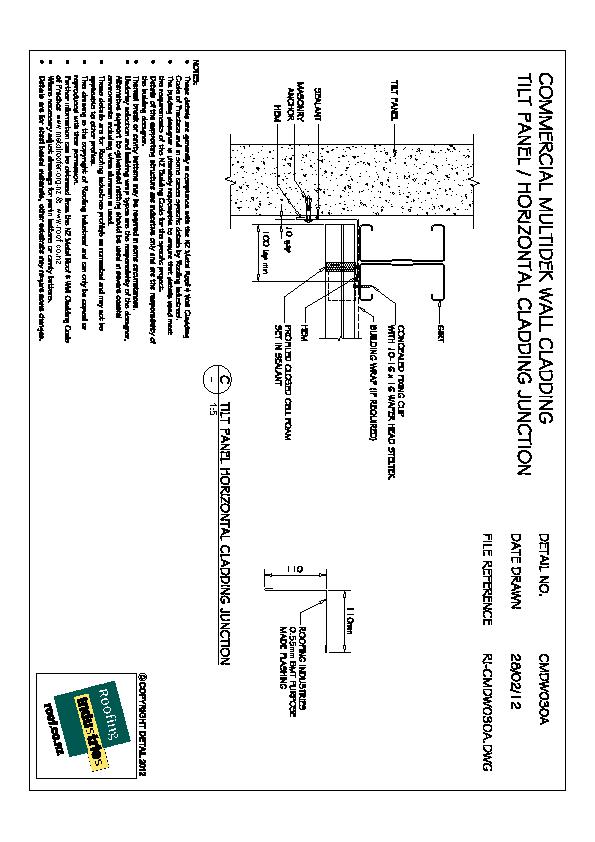

Com. Multidek Tilt Panel / Horizontal Cladding Junction (2)

RI-CMD-W030A

dwg
pdf

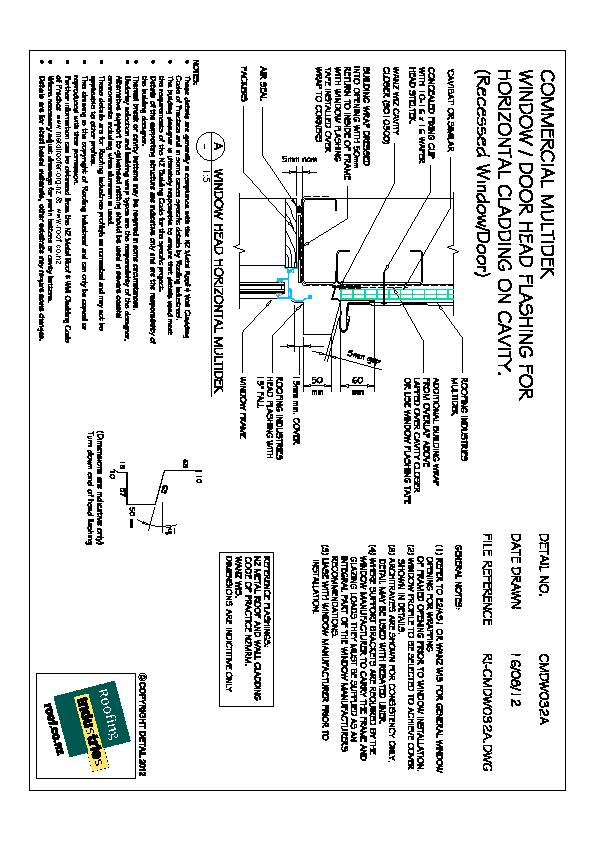

Com. Multidek Window/Door Head Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMD-W032A

dwg
pdf

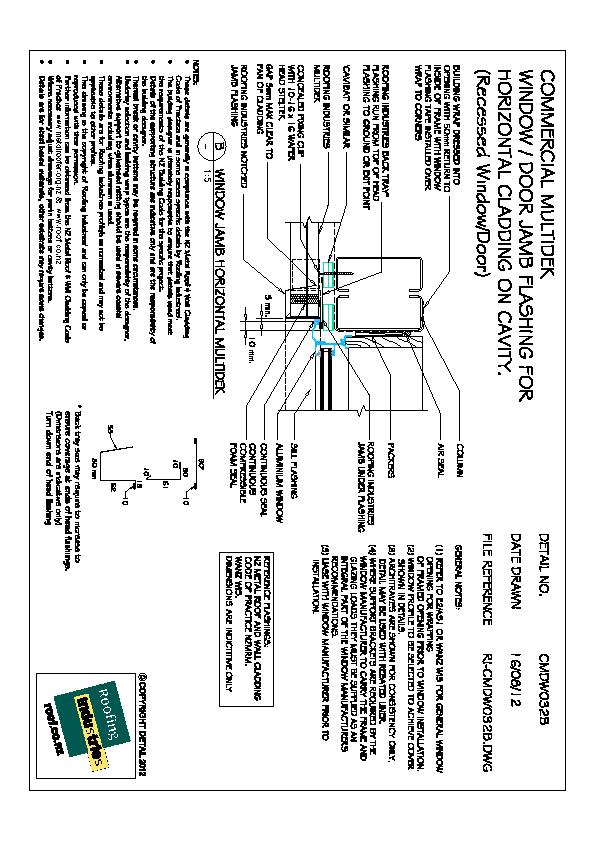

Com. Multidek Window/Door Jamb Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMD-W032B

dwg
pdf
Com. Multidek Window/Door Sill Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMD-W032C

dwg
pdf
Com. Multidek Roller Door Head for Vertical Cladding

RI-CMD-W090A

dwg
pdf
Com. Multidek Roller Door Head for Horizontal Cladding

RI-CMD-W090A-1

dwg
pdf
Com. Multidek Roller Door Jamb for Vertical Cladding

RI-CMD-W090B

dwg
pdf
Com. Multidek Roller Door Jamb for Horizontal Cladding

RI-CMD-W090B-1

dwg
pdf
Roofing Industries Gutter Profiles

RI-F01

2020

dwg
pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf
Multidek Residential Full Set of Drawings

RI-RMD

pdf

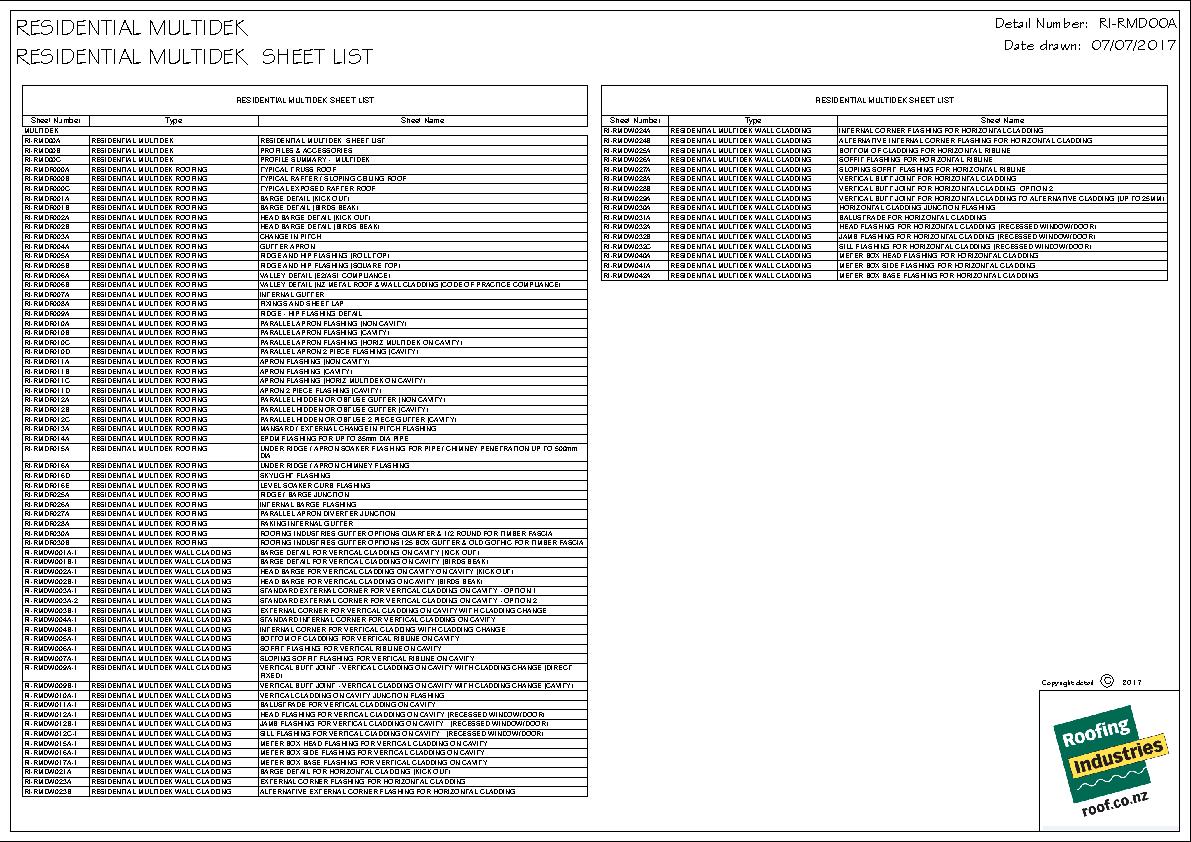

Multidek Residential Sheet List

RI-RMD-00A

dwg
pdf

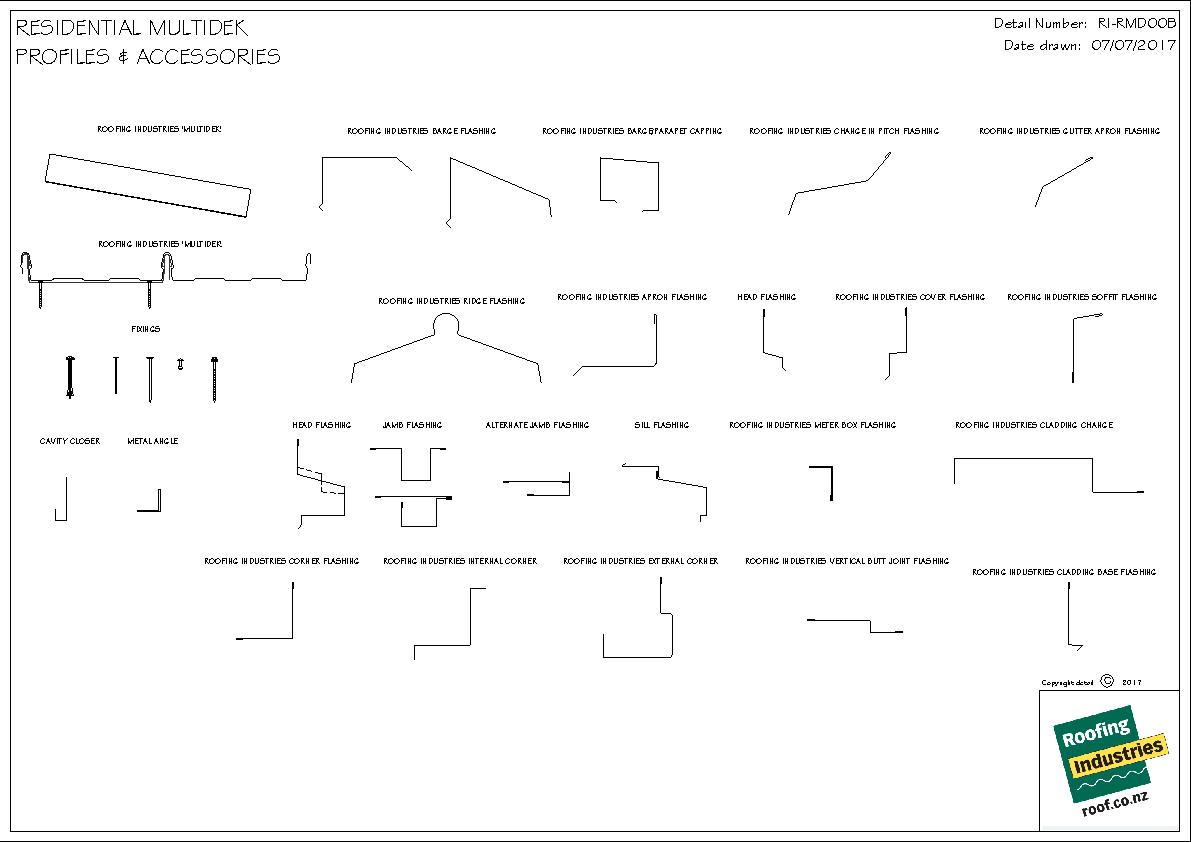

Multidek Profiles and Accessories

RI-RMD-00B

dwg
pdf

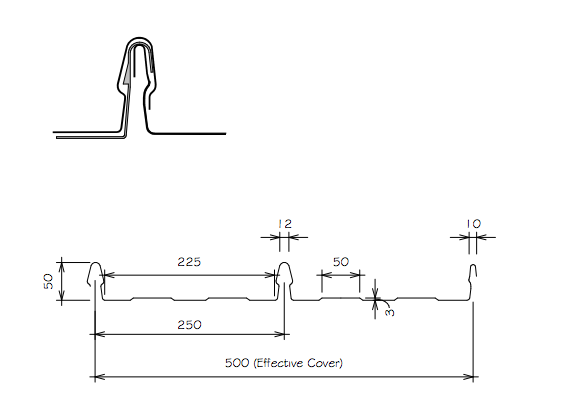

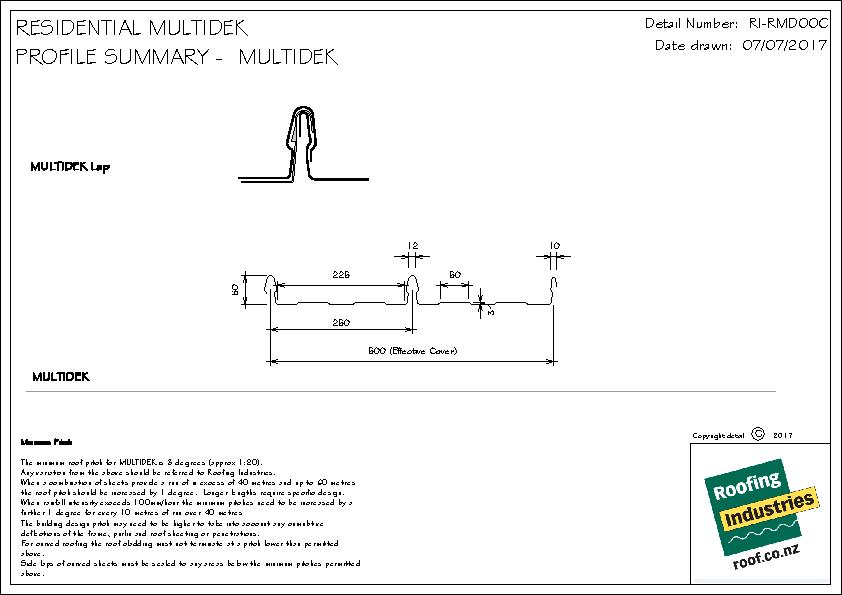

Multidek Profile Summary

RI-RMD-00C

dwg
pdf

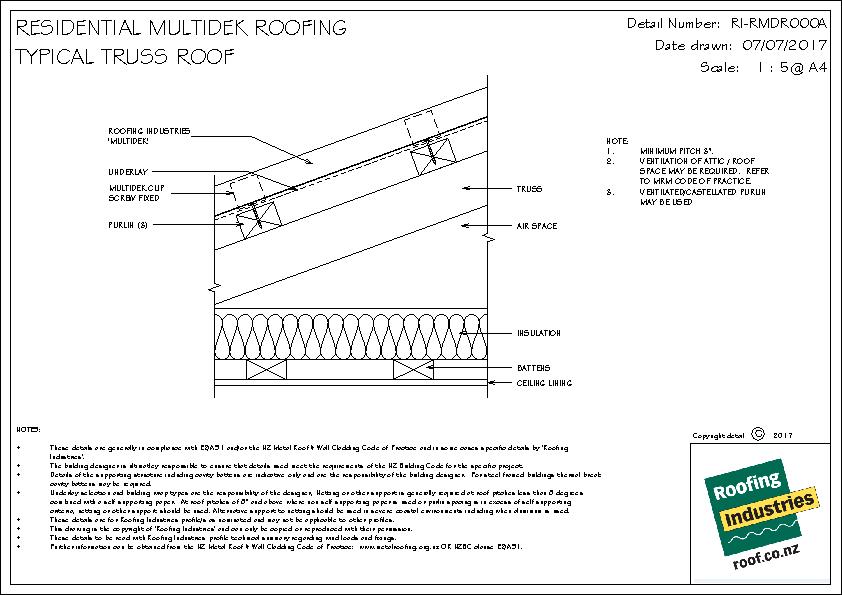

Multidek Typical Truss Roof

RI-RMD-R000A

dwg
pdf

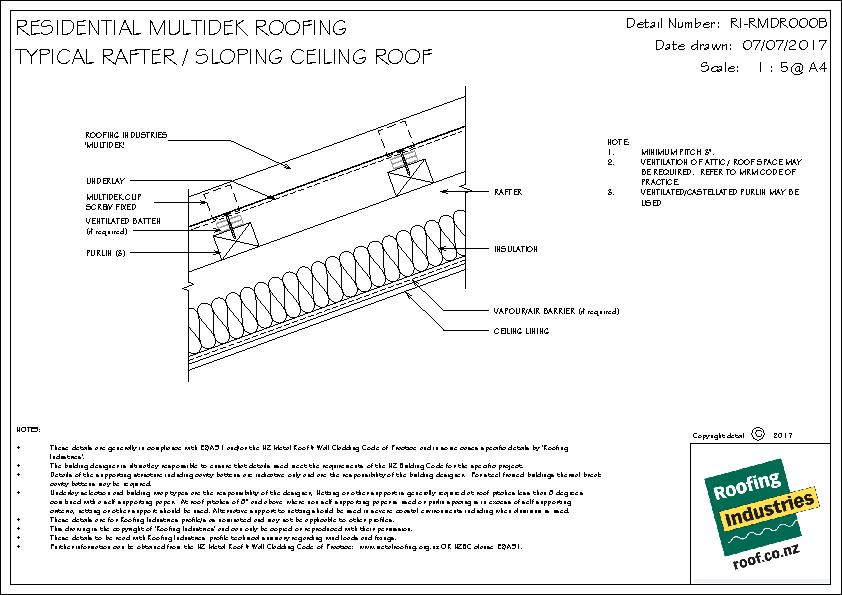

Multidek Typical Rafter / Sloping Ceiling Roof

RI-RMD-R000B

dwg
pdf

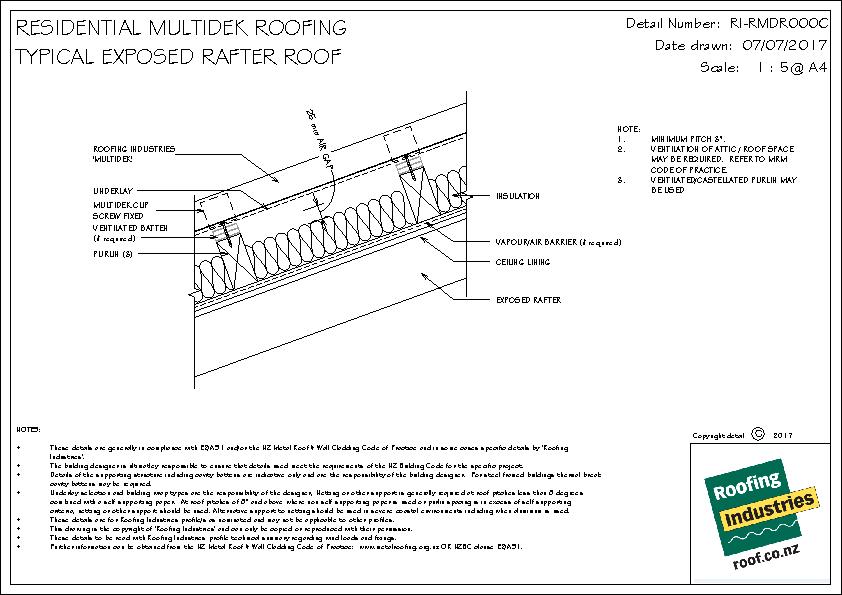

Multidek Typical Exposed Rafter Roof

RI-RMD-R000C

dwg
pdf

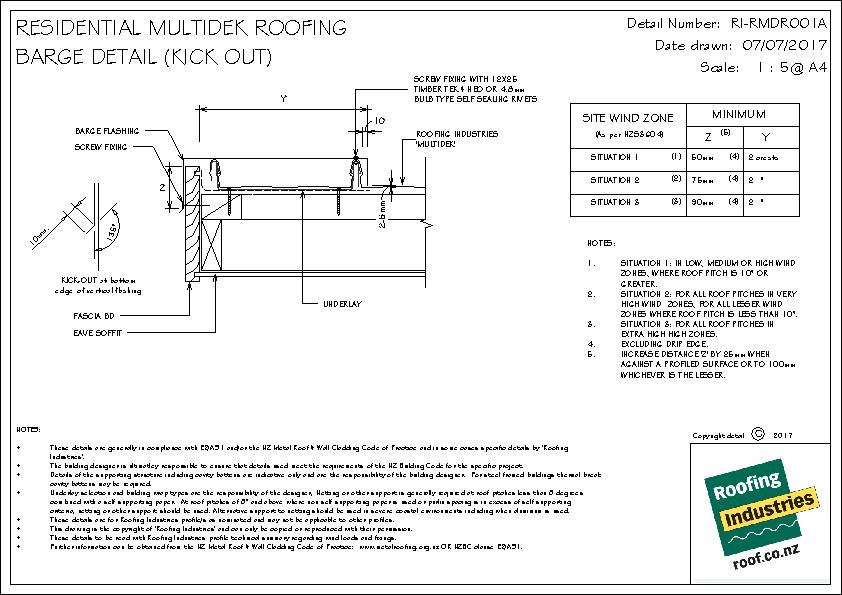

Multidek Barge Detail (Kick Out)

RI-RMD-R001A

dwg
pdf

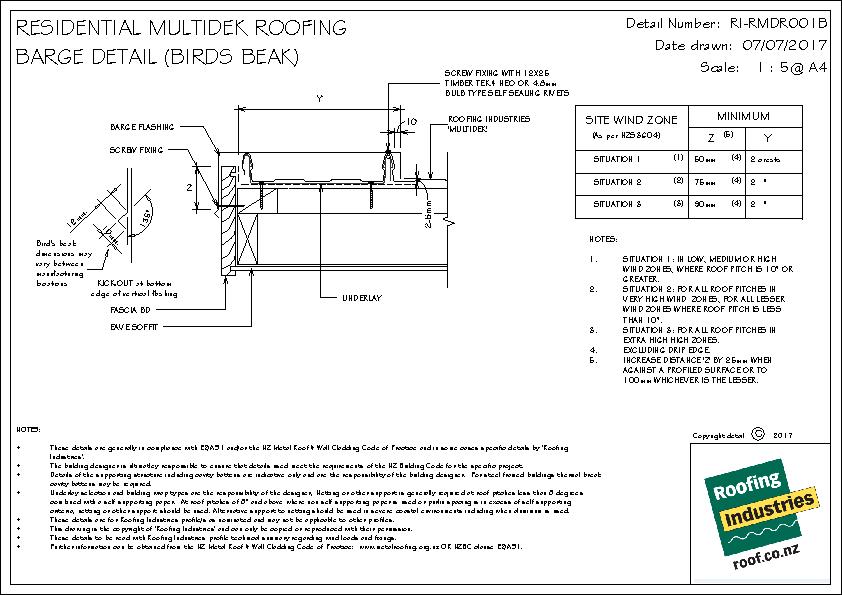

Multidek Barge Detail (Bird's Beak)

RI-RMD-R001B

dwg
pdf

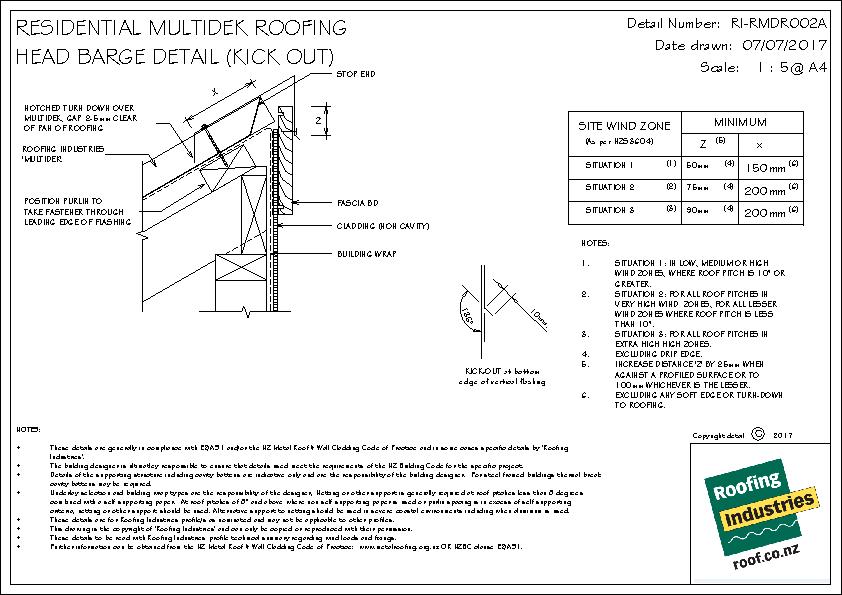

Multidek Head Barge Detail (Kick Out)

RI-RMD-R002A

dwg
pdf

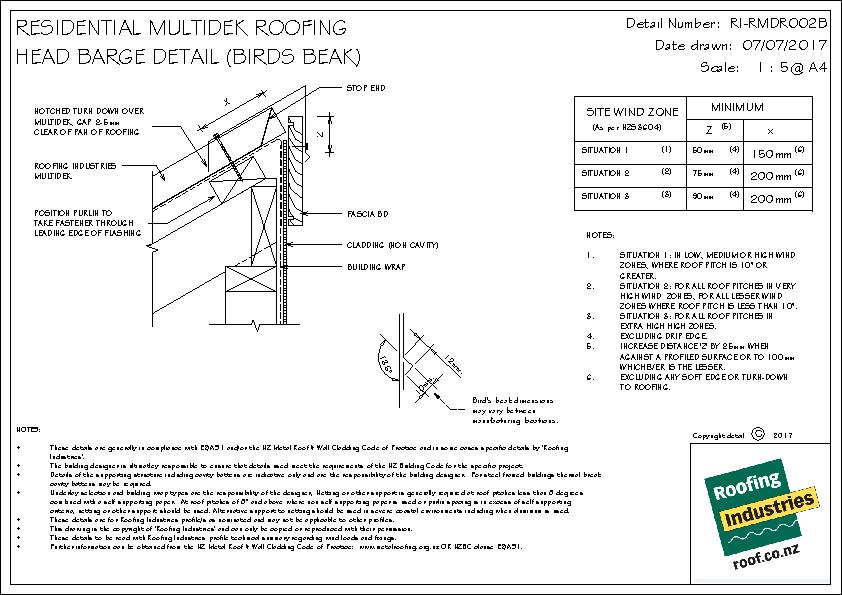

Multidek Head Barge Detail (Bird's Beak)

RI-RMD-R002B

dwg
pdf

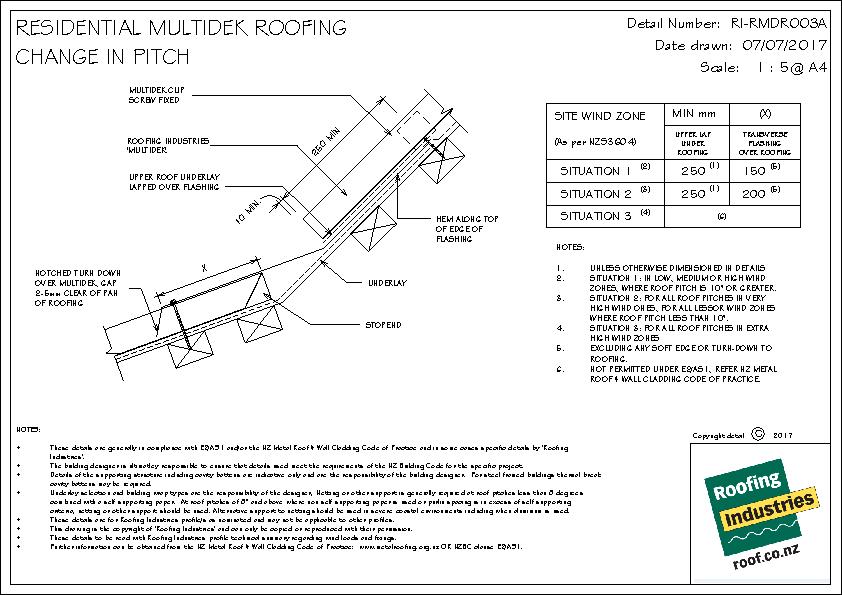

Multirib Change in Pitch

RI-RMD-R003A

dwg
pdf

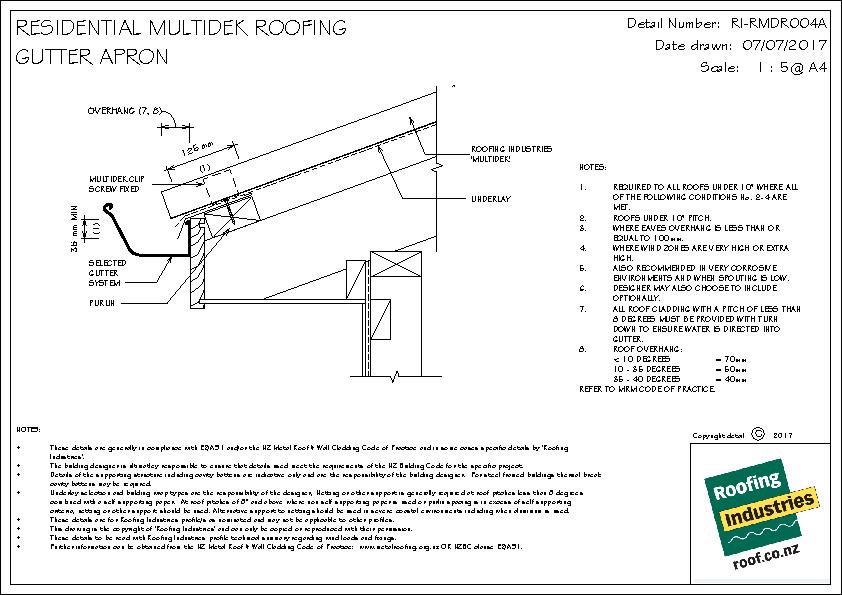

Multidek Gutter Apron

RI-RMD-R004A

dwg
pdf

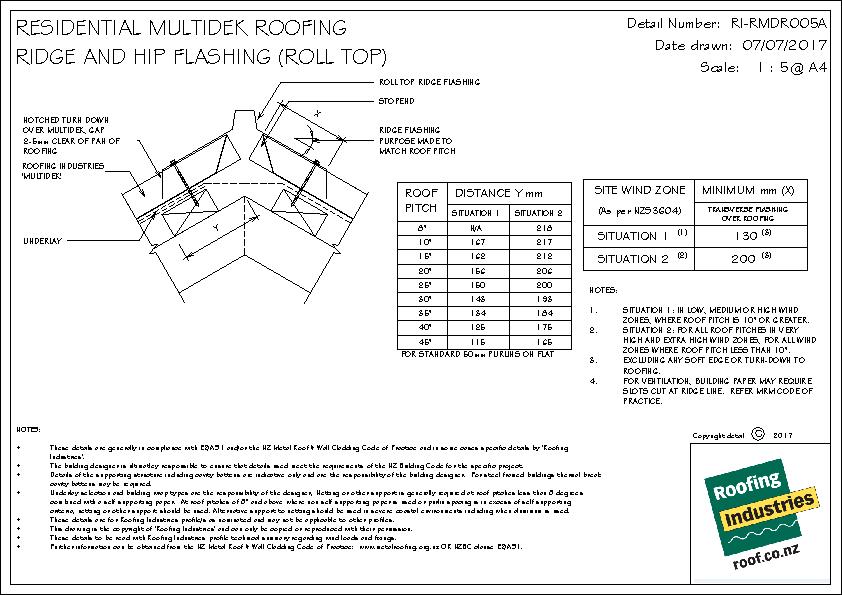

Multidek Ridge and Hip Flashing (Roll Top)

RI-RMD-R005A

dwg
pdf

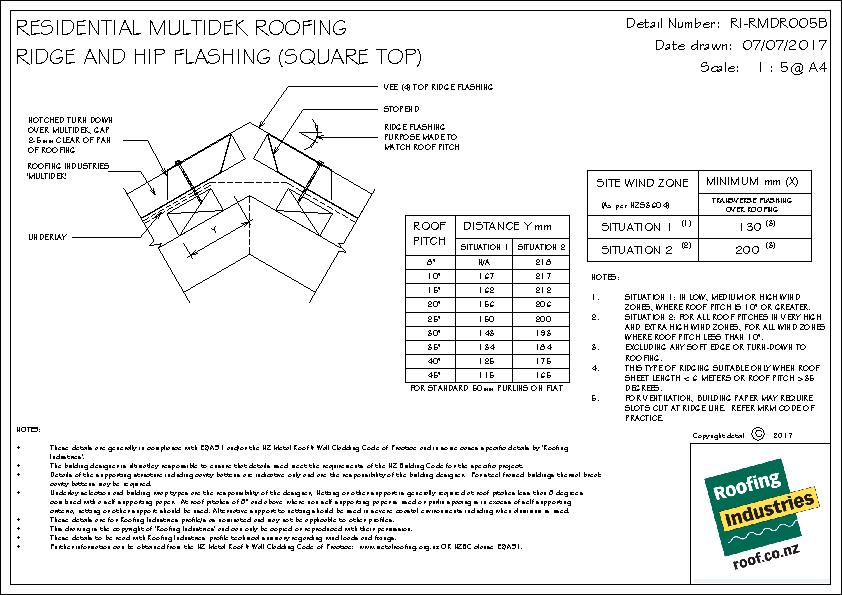

Multidek Ridge and Hip Flashing (Square Top)

RI-RMD-R005B

dwg
pdf

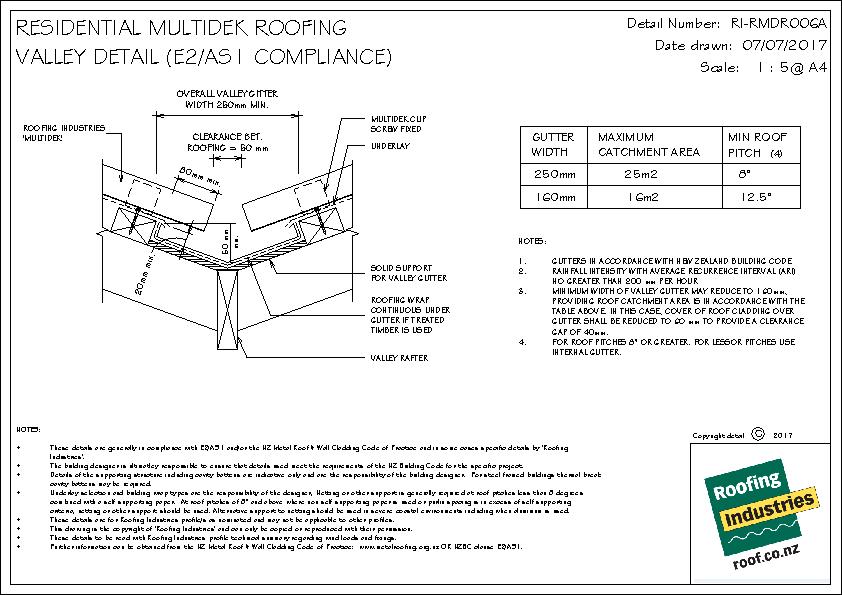

Multidek Valley Detail (E2-AS1 Compliance)

RI-RMD-R006A

dwg
pdf

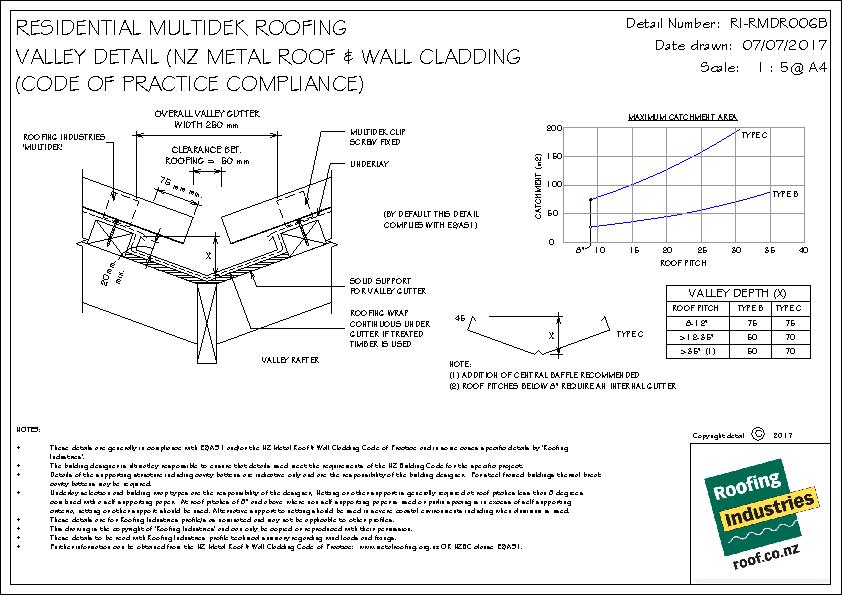

RI-RMDR006B-VALLEY-DETAIL-NZ-METAL-ROOF-WALL-CLADDING-CODE-OF-PRACTICE-COMPLIANCE-pdf.jpg
Multidek Valley Detail (Code of Compliance)

RI-RMD-R006B

dwg
pdf

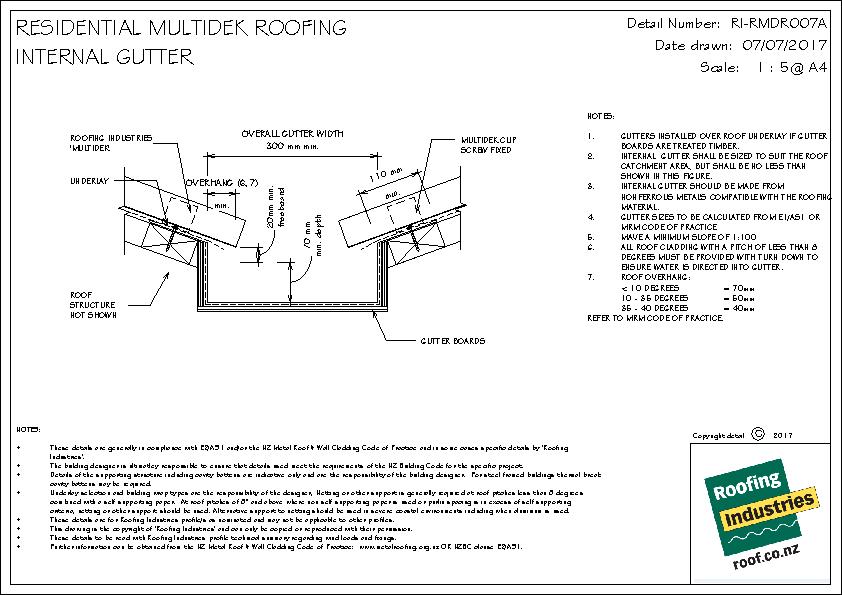

Multidek Internal Gutter

RI-RMD-R007A

dwg
pdf

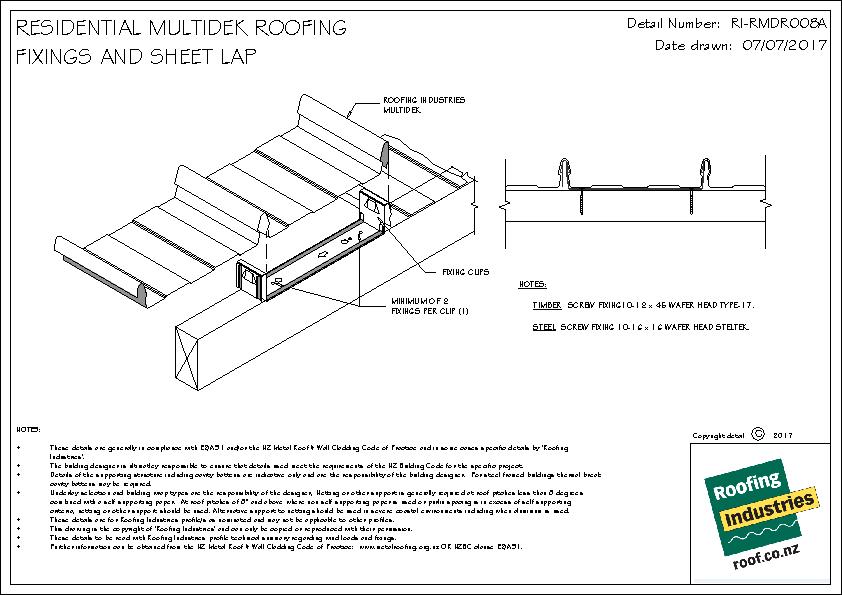

Multidek Fixings and Sheet Lap

RI-RMD-R008A

dwg
pdf

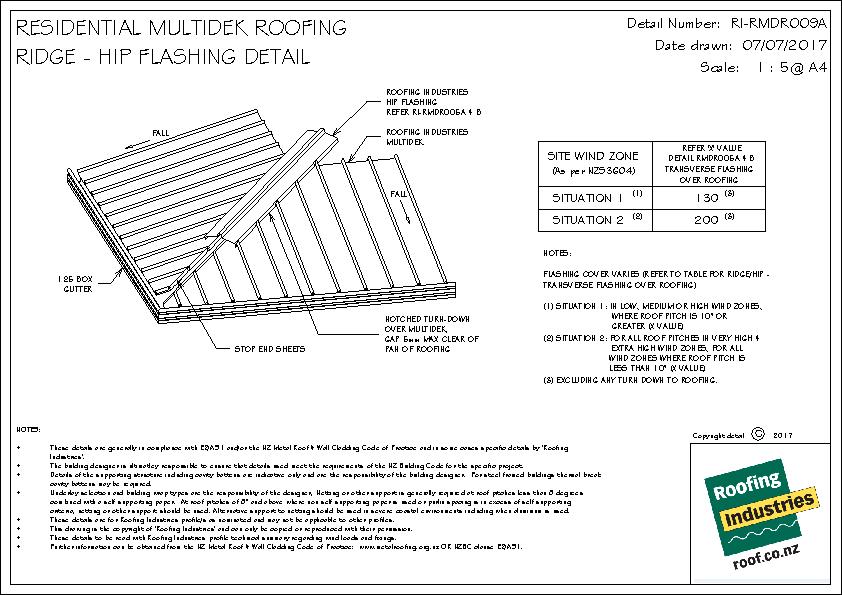

Multidek Ridge / Hip Flashing Detail

RI-RMD-R009A

dwg
pdf

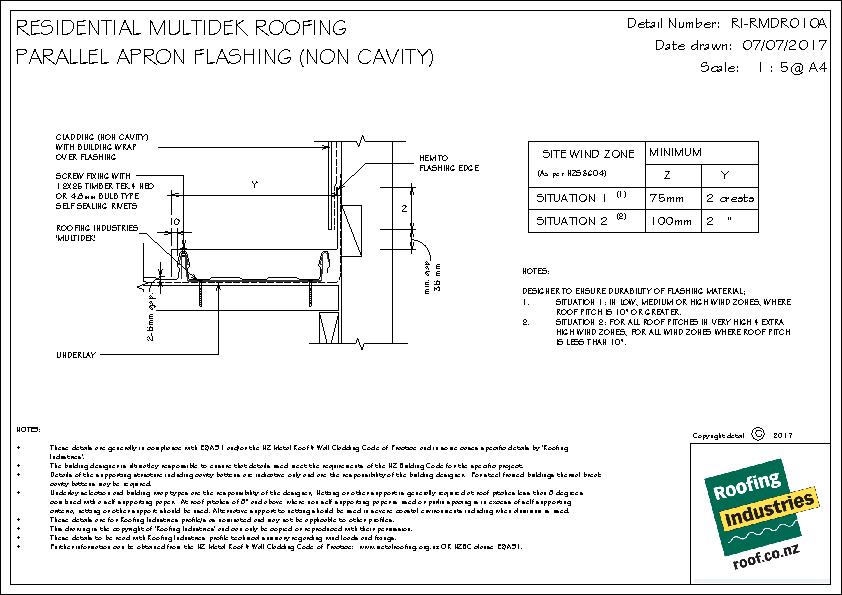

Multidek Parallel Apron Flashing (Non-Cavity)

RI-RMD-R010A

dwg
pdf

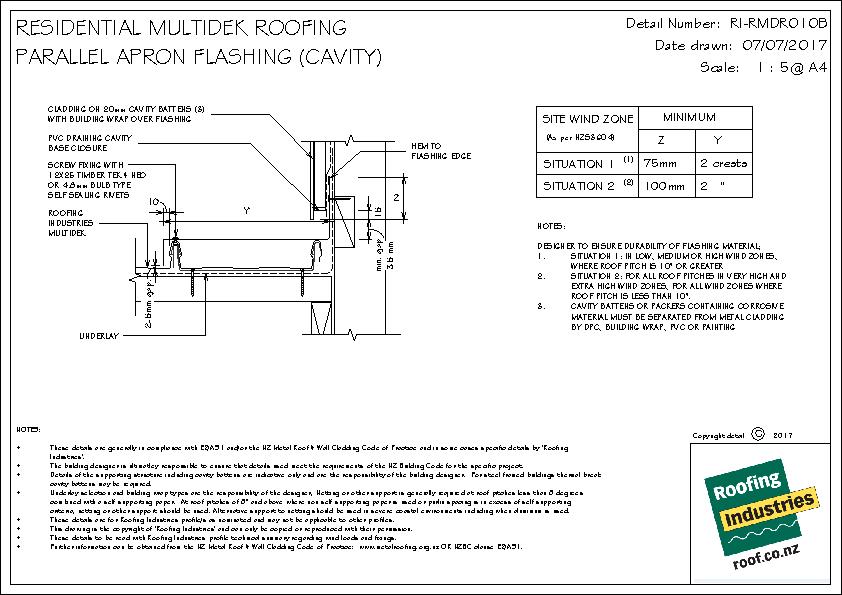

Multidek Parallel Apron Flashing (Cavity)

RI-RMD-R010B

dwg
pdf

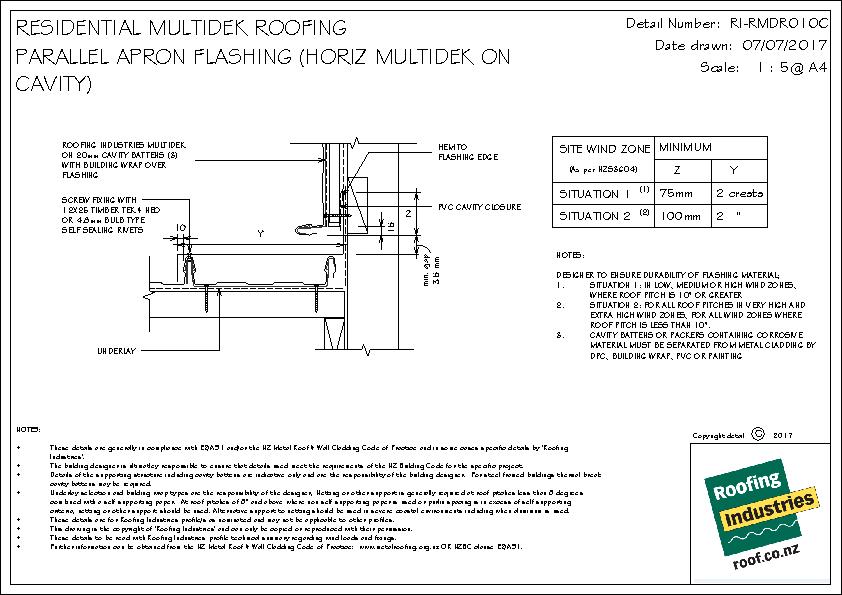

Multidek Parallel Apron Flashing (Horizontal on Cavity)

RI-RMD-R010C

dwg
pdf

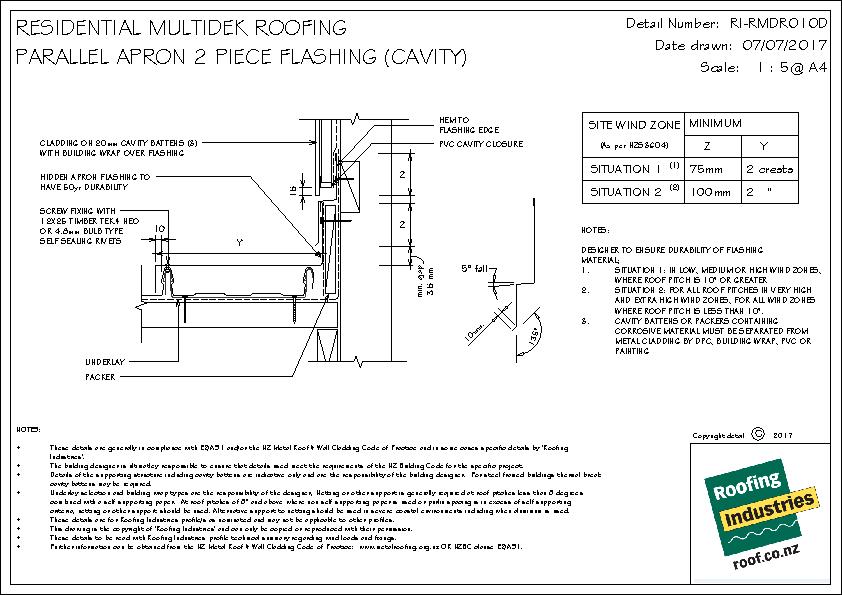

Multidek Parallel Apron 2 Piece Flashing (Cavity)

RI-RMD-R010D

dwg
pdf

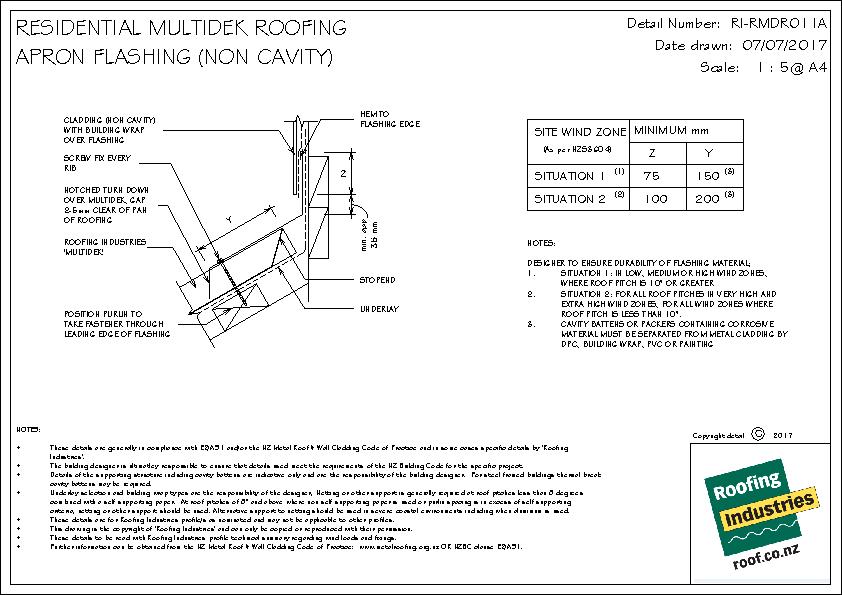

Multidek Apron Flashing (Non-Cavity)

RI-RMD-R011A

dwg
pdf

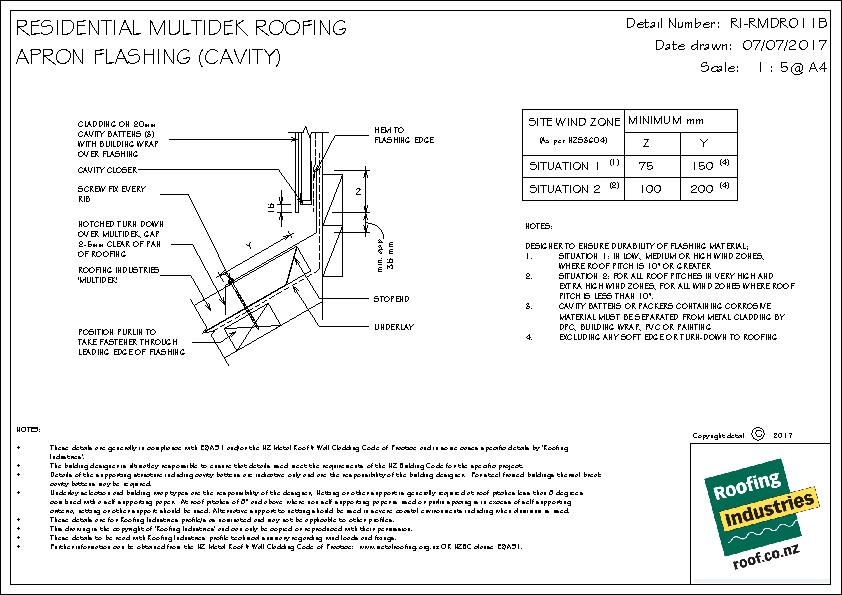

Multidek Apron Flashing (Cavity)

RI-RMD-R011B

dwg
pdf

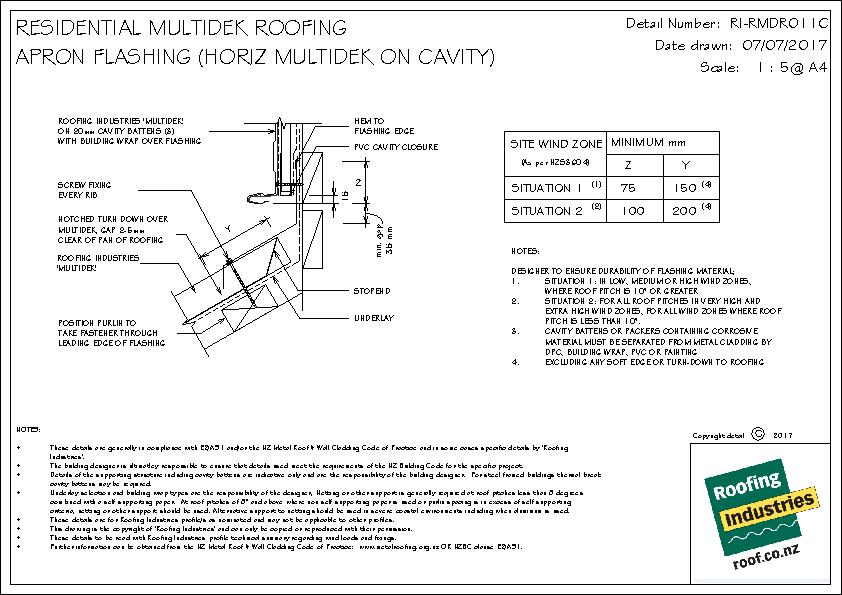

Multidek Apron Flashing (Horizontal on Cavity)

RI-RMD-R011C

dwg
pdf

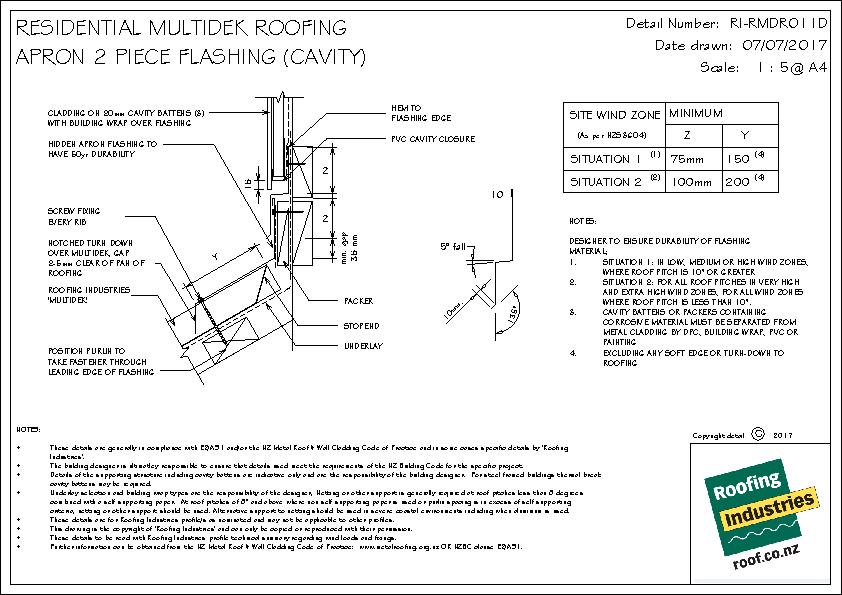

Multidek Apron 2 Piece Flashing (Cavity)

RI-RMD-R011D

dwg
pdf

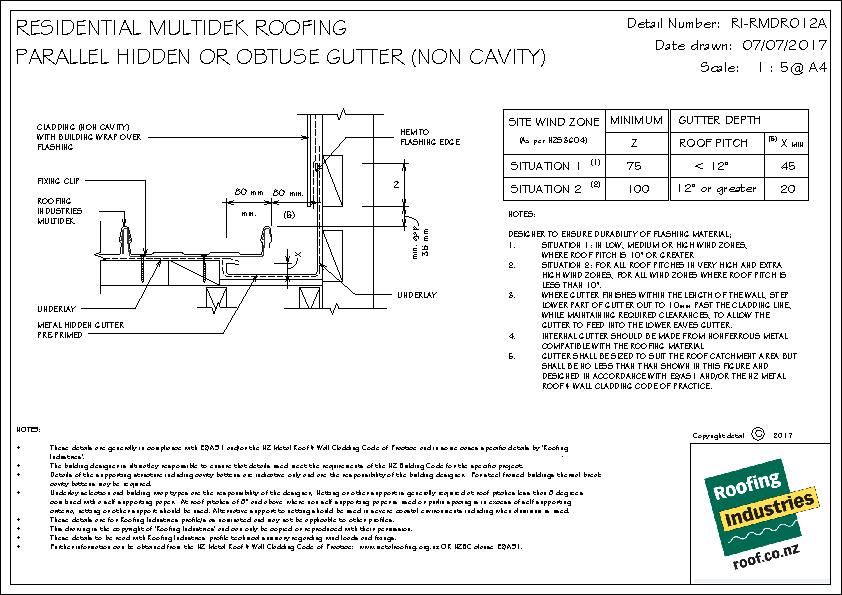

Multidek Parallel Hidden or Obtuse Gutter (Non-Cavity)

RI-RMD-R012A

dwg
pdf

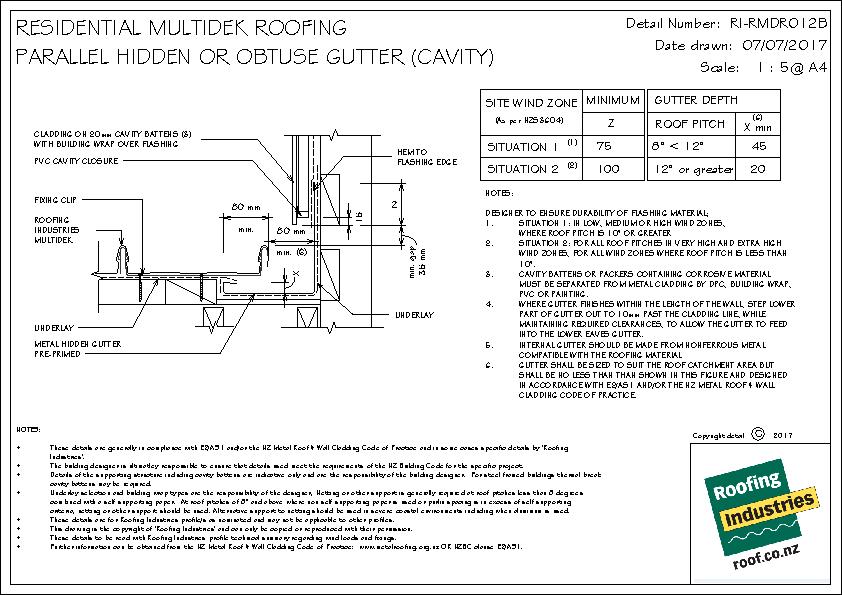

Multidek Parallel Hidden or Obtuse Gutter (Cavity)

RI-RMD-R012B

dwg
pdf

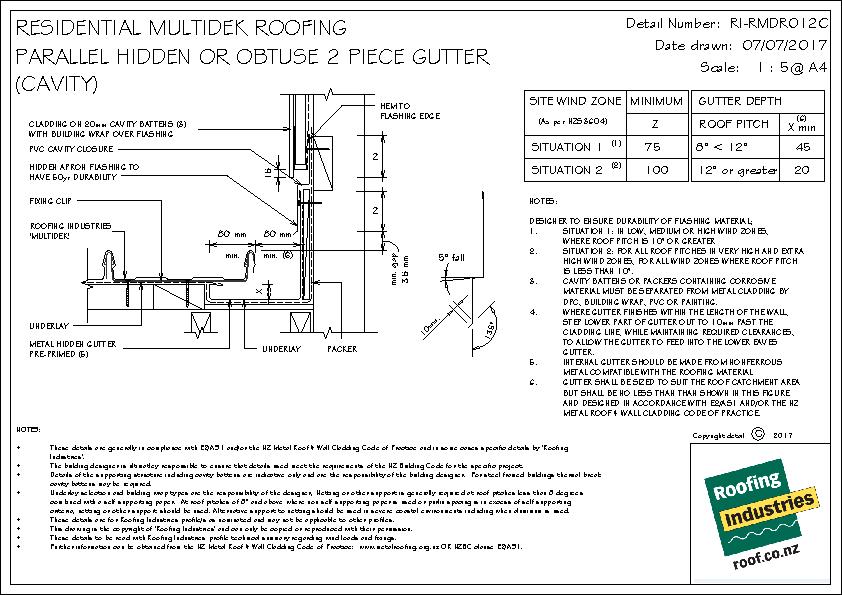

Multidek Parallel Hidden or Obtuse 2 Piece Gutter (Cavity)

RI-RMD-R012C

dwg
pdf

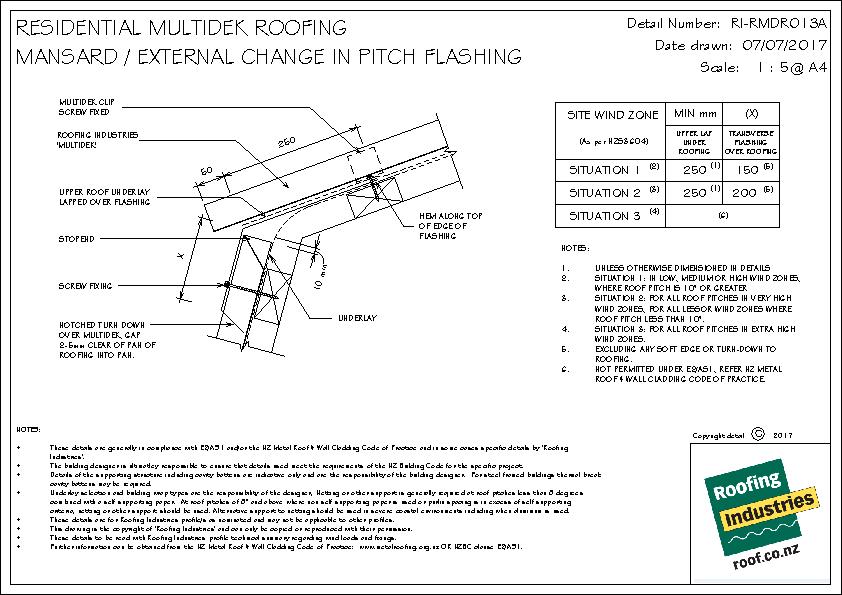

Multidek Mansard External Change in Pitch Flashing

RI-RMD-R013A

dwg
pdf

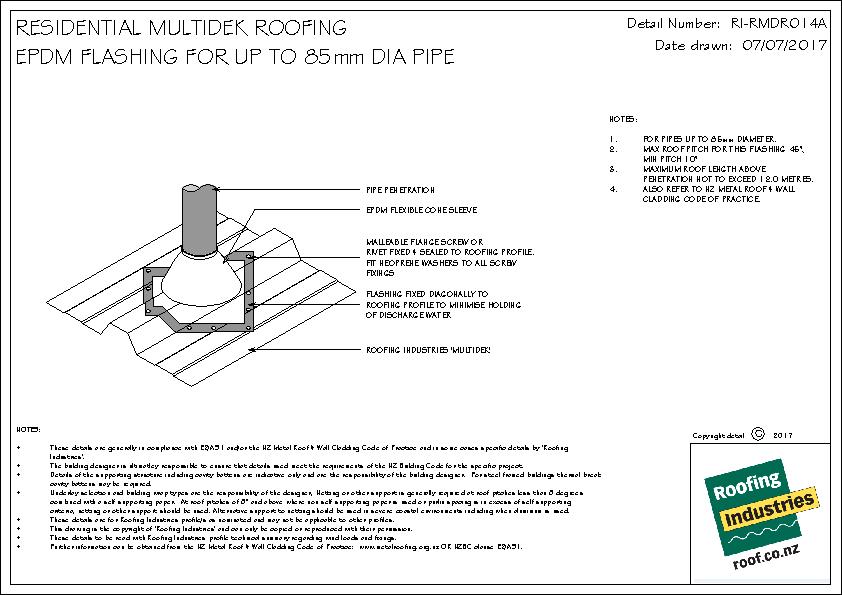

Multidek EPDM Flashing for up to 85mm Pipe

RI-RMD-R014A

dwg
pdf

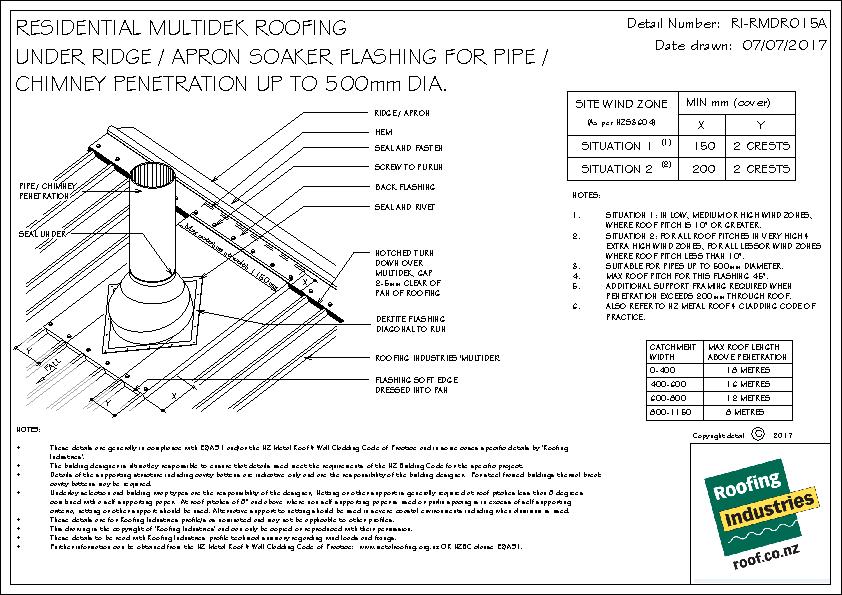

RI-RMDR015A-UNDER-RIDGE-APRON-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-UP-TO-500mm-DIA--pdf.jpg
Multidek Under Ridge Apron Soaker Flashing for Pipe/Chimney up to 500mm

RI-RMD-R015A

dwg
pdf

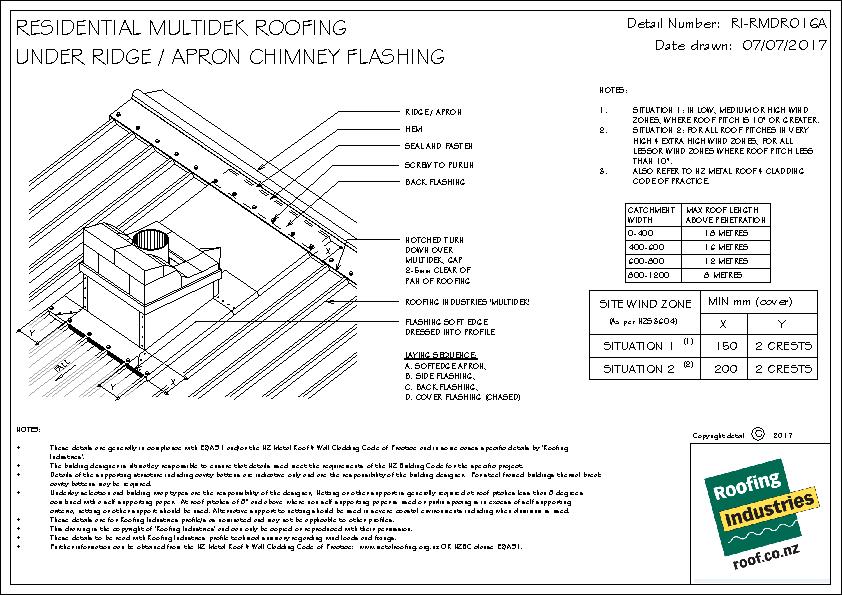

Multidek Under Ridge Apron Chimney Flashing

RI-RMD-R016A

dwg
pdf

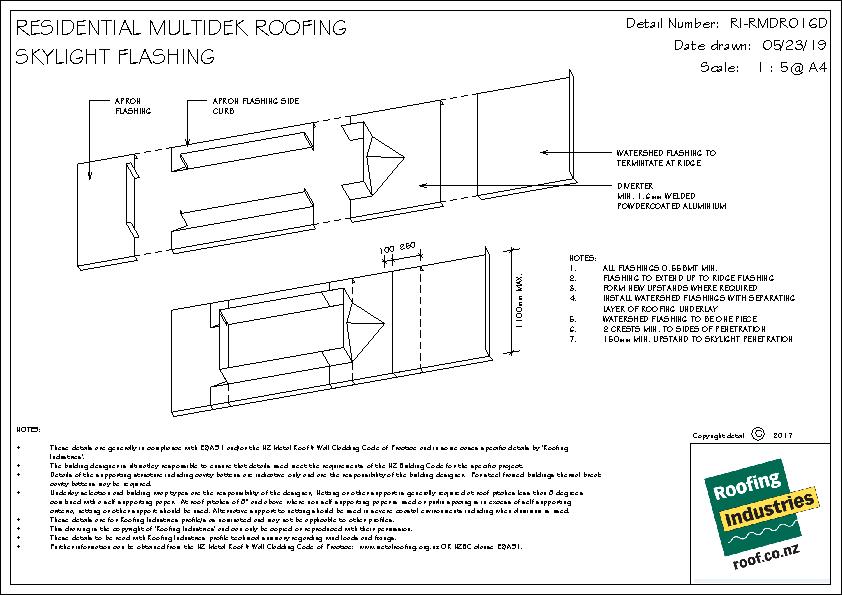

Multidek Skylight Flashing

RI-RMD-R016D

dwg
pdf

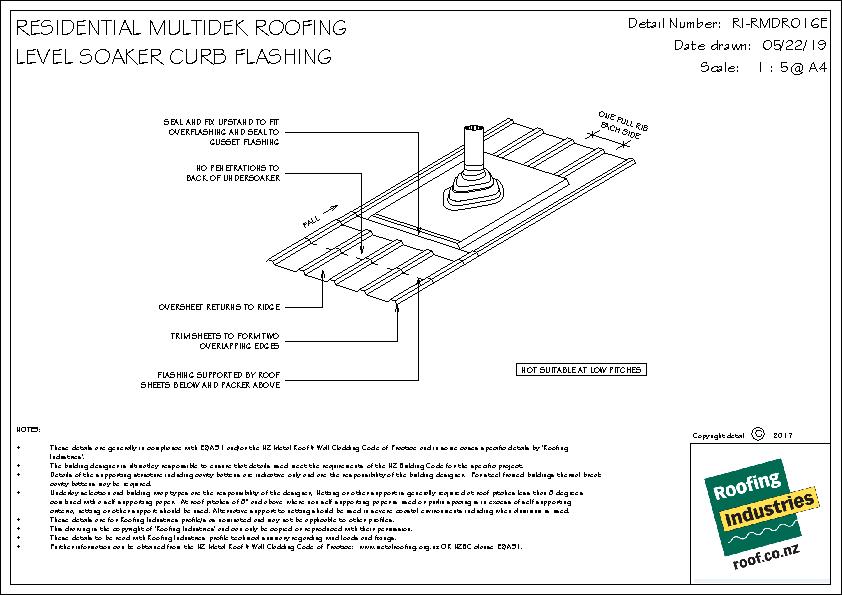

Multidek Level Soaker Curb Flashing

RI-RMD-R016E

dwg
pdf

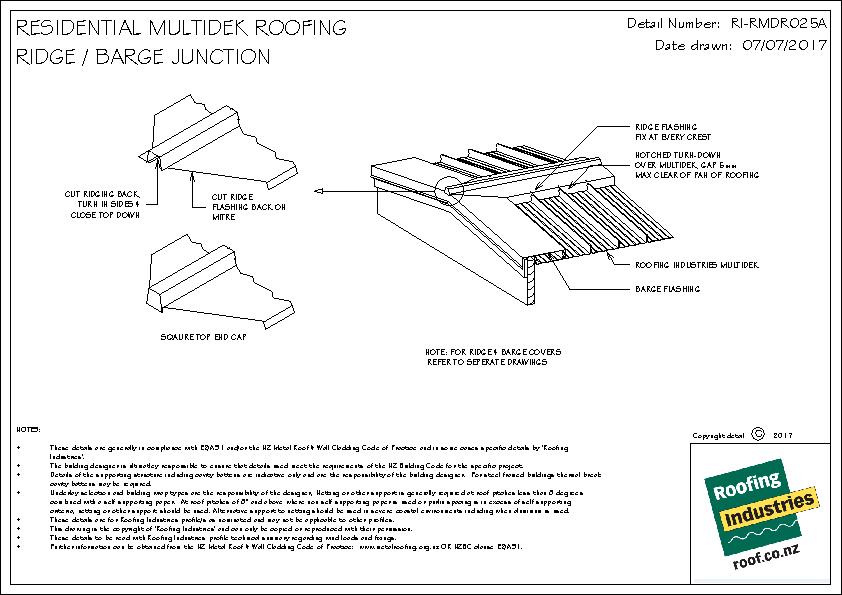

Multidek Ridge / Barge Junction

RI-RMD-R025A

dwg
pdf

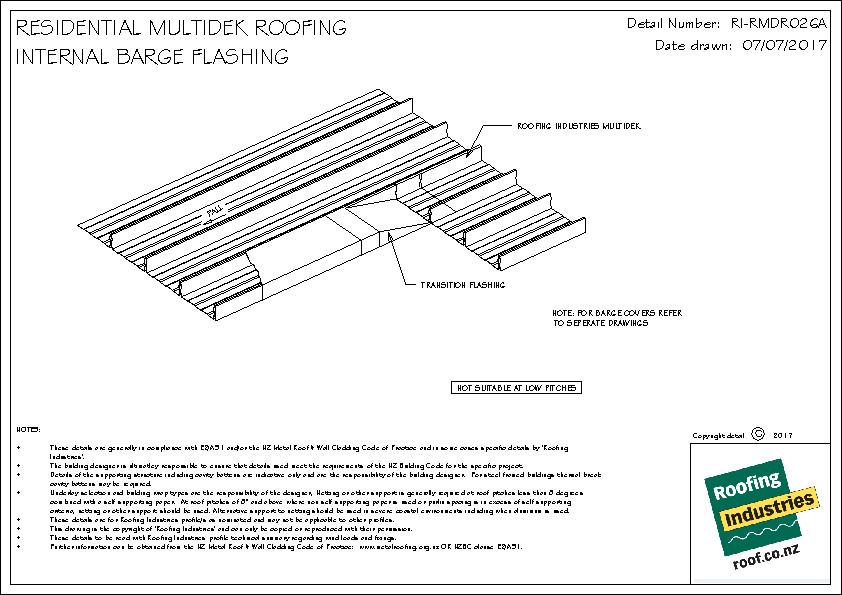

Multidek Internal Barge Flashing

RI-RMD-R026A

dwg
pdf

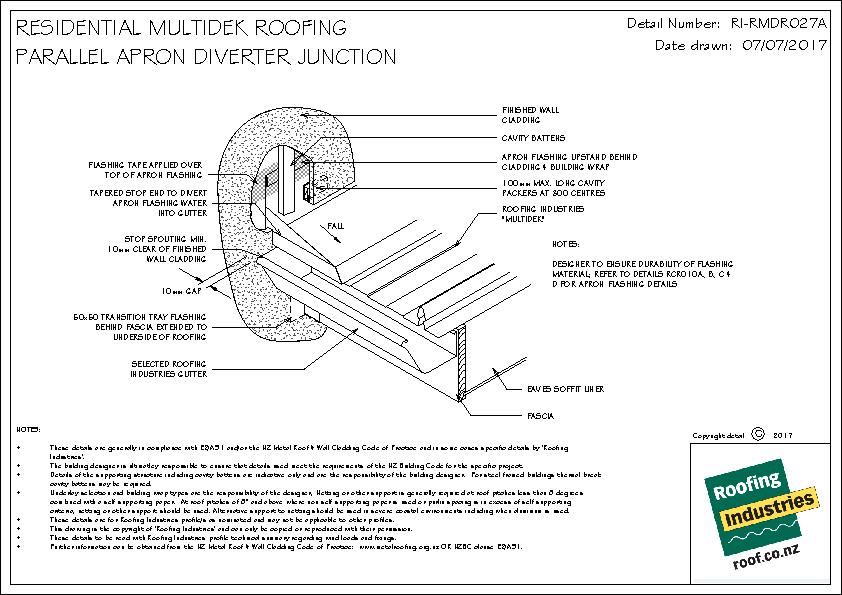

Multidek Parallel Apron Diverter Junction

RI-RMD-R027A

dwg
pdf

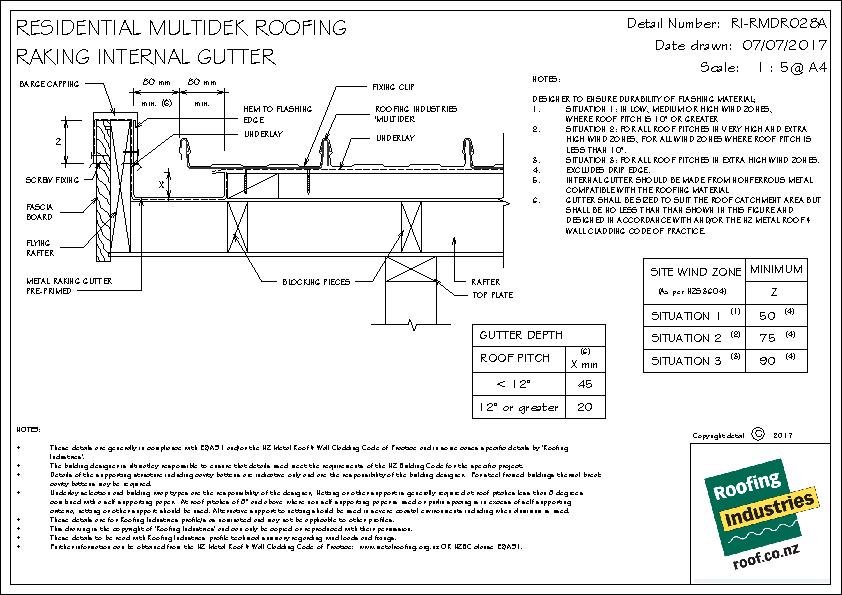

Multidek Raking Internal Gutter

RI-RMD-R028A

dwg
pdf
RI-RMDR030A-ROOFING-INDUSTRIES-GUTTER-OPTIONS-QUARTER-1-2-ROUND-FOR-TIMBER-FASCIA-pdf.jpg

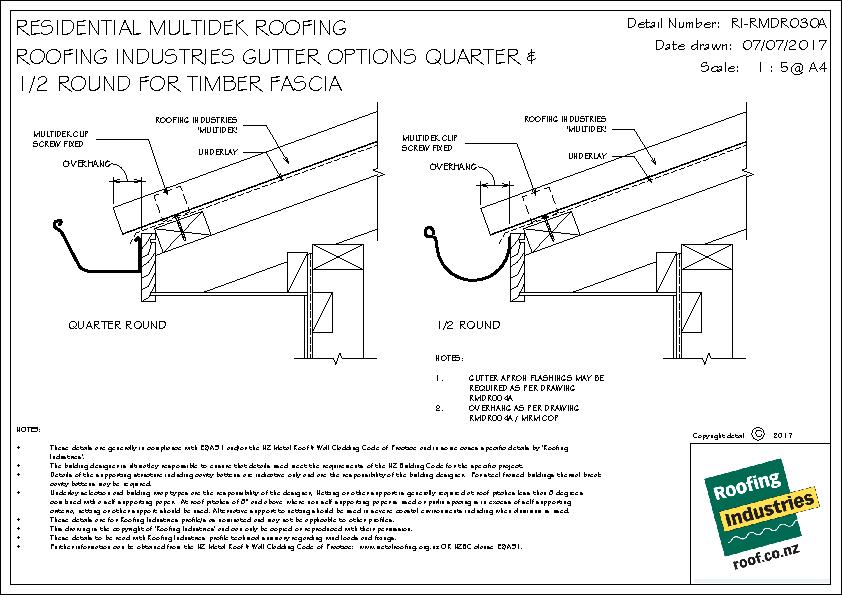

Multidek Gutter Options (Quarter & Half Round for Timber Fascia)

RI-RMD-R030A

dwg
pdf
RI-RMDR030B-ROOFING-INDUSTRIES-GUTTER-OPTIONS-125-BOX-GUTTER-OLD-GOTHIC-FOR-TIMBER-FASCIA-pdf.jpg
Multidek Gutter Options (125 Box & Old Gothic for Timber Fascia)

RI-RMD-R030B

dwg
pdf

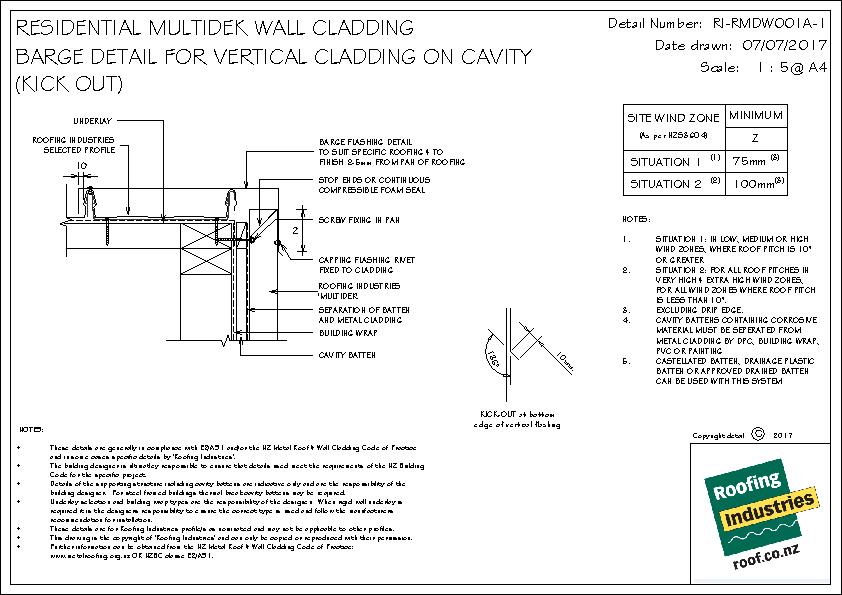

Multidek Barge Detail for Vertical Cladding on Cavity (Kick Out)

RI-RMD-W001A-1

dwg
pdf

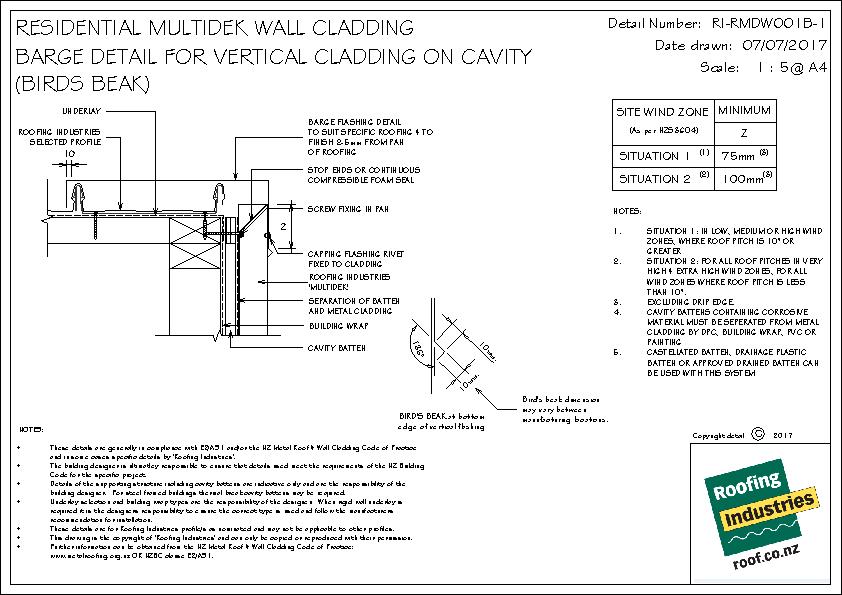

Multidek Barge Detail for Vertical Cladding on Cavity (Bird's Beak)

RI-RMD-W001B-1

dwg
pdf

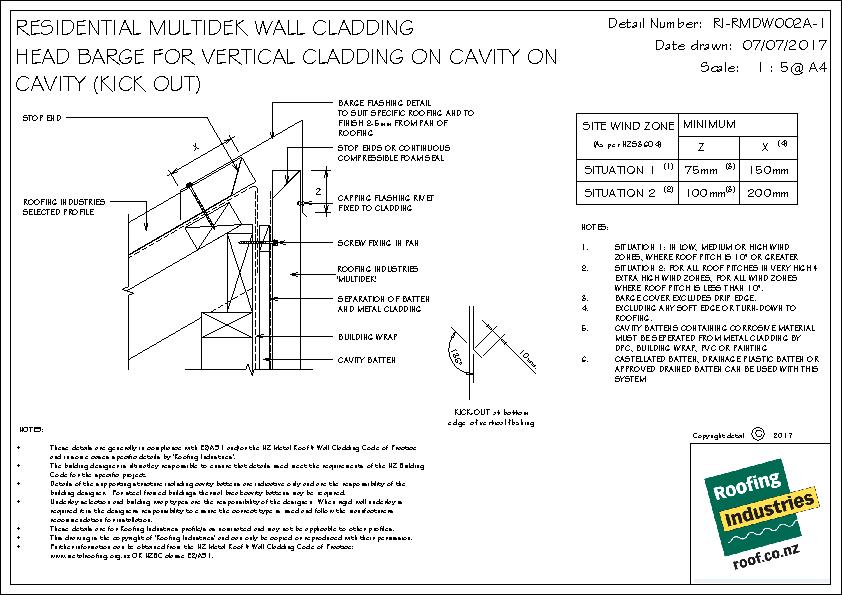

Multidek Head Barge for Vertical Cladding on Cavity (Kick Out)

RI-RMD-W002A-1

dwg
pdf

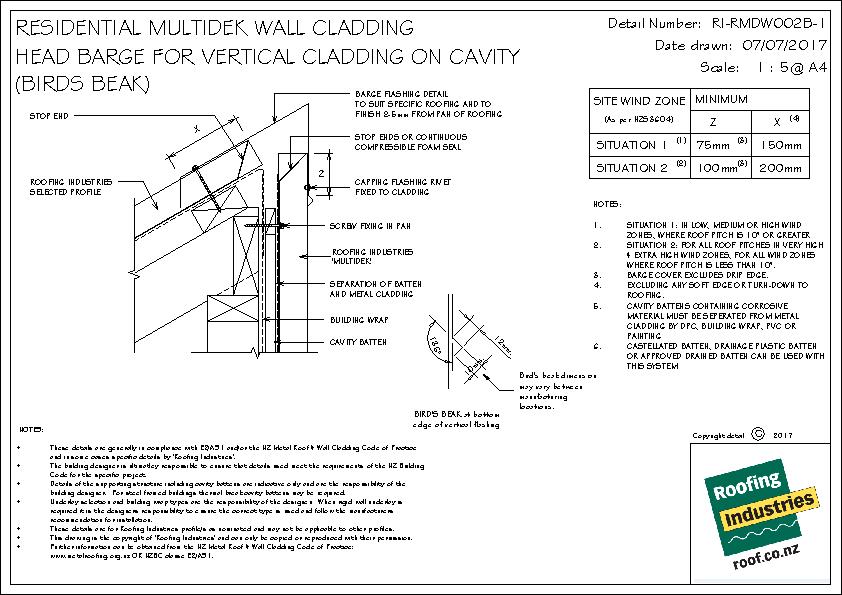

Multidek Head Barge for Vertical Cladding on Cavity (Bird's Beak)

RI-RMD-W002B-1

dwg
pdf
RI-RMDW003A-1-STANDARD-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-OPTION-1-pdf.jpg

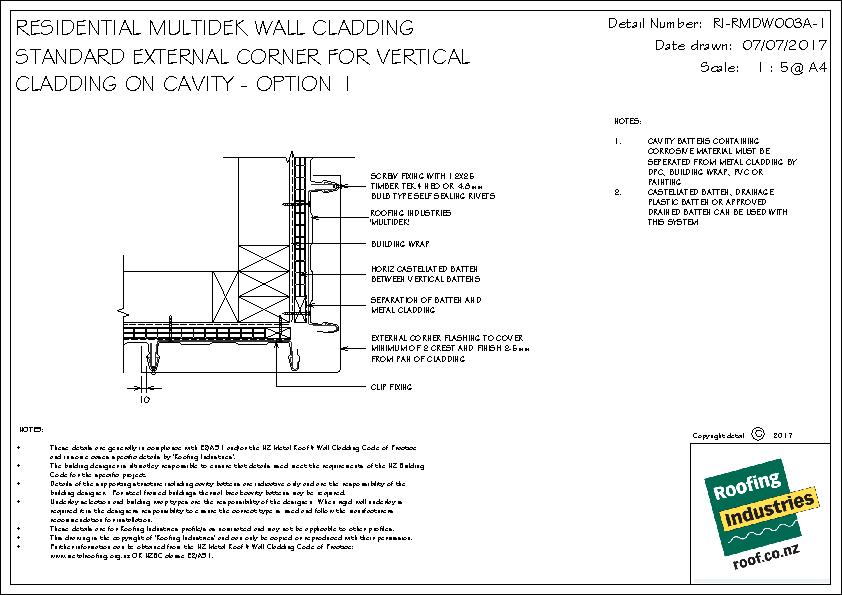

Multidek Standard External Corner for Vertical Cladding on Cavity

RI-RMD-W003A-1

dwg
pdf

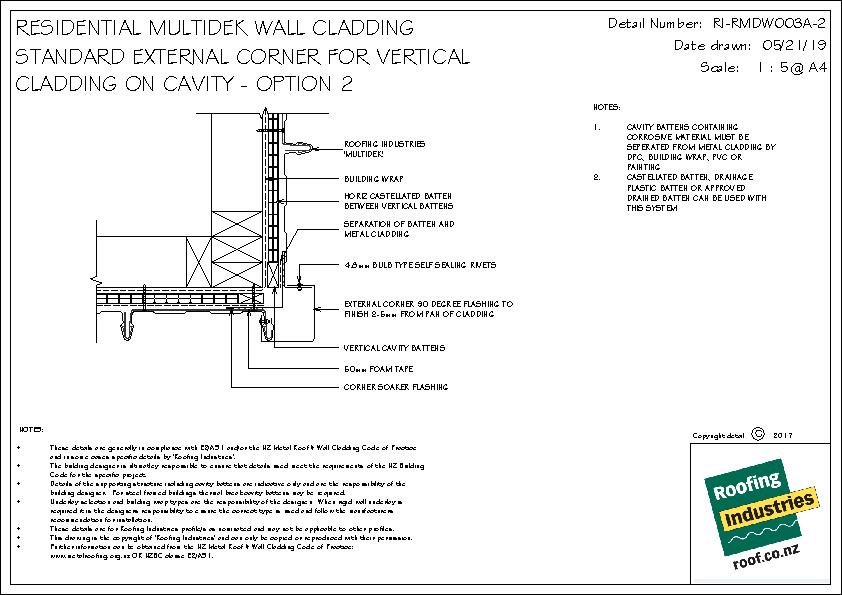

RI-RMDW003A-2-STANDARD-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-OPTION-2-pdf.jpg
Multidek Standard External Corner for Vertical Cladding on Cavity (Option 2)

RI-RMD-W003A-2

dwg
pdf

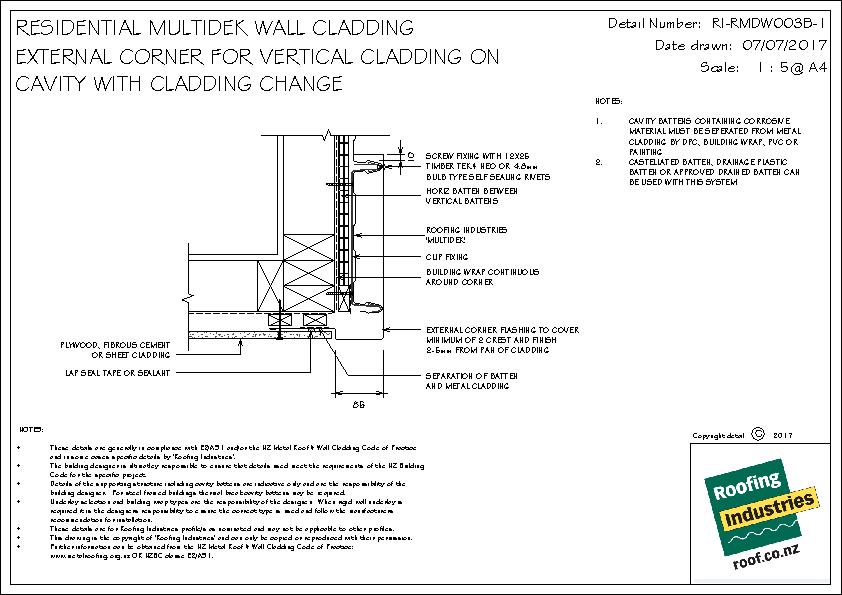

RI-RMDW003B-1-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-pdf.jpg
Multidek External Corner for Vertical Cladding with Cladding Change

RI-RMD-W003B-1

dwg
pdf

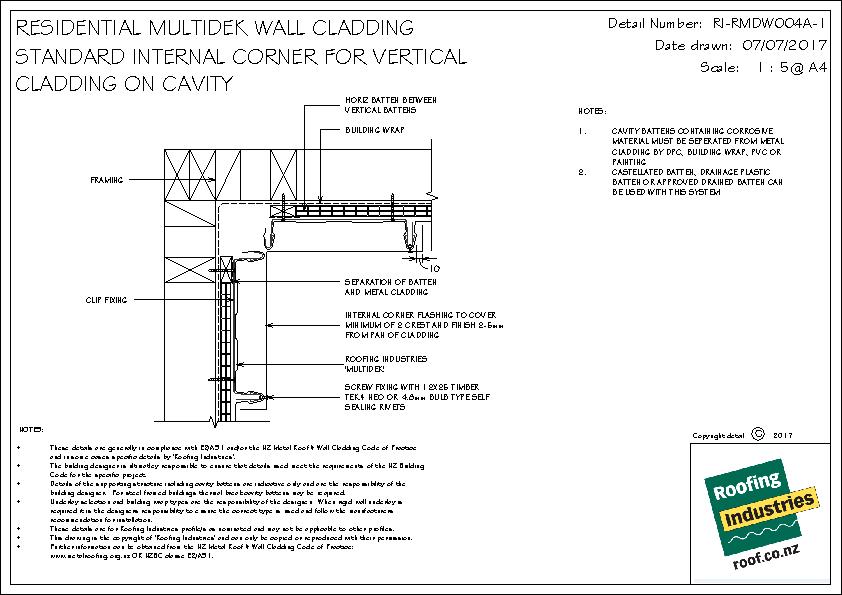

Multidek Standard Internal Corner for Vertical Cladding on Cavity

RI-RMD-W004A-1

dwg
pdf

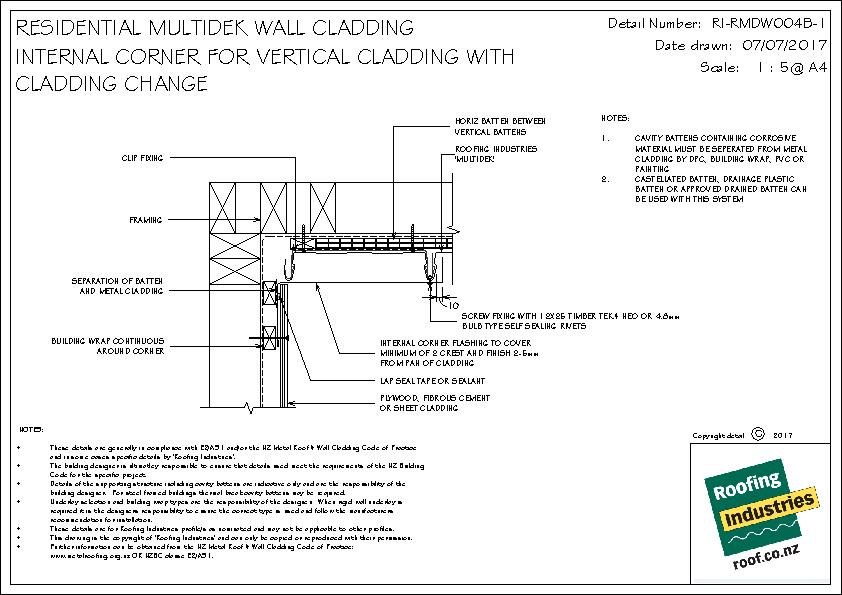

Multidek Internal Corner for Vertical Cladding with Cladding Change

RI-RMD-W004B-1

dwg
pdf

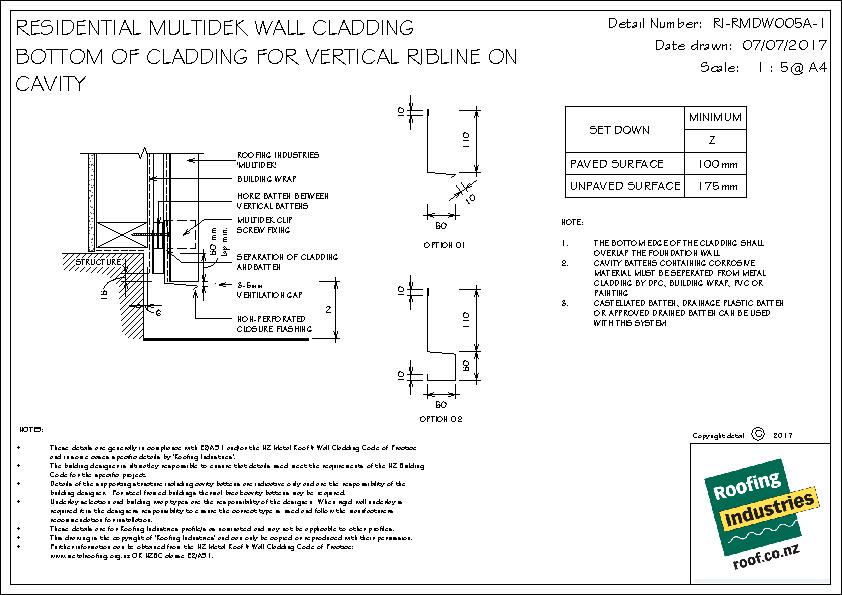

Multidek Bottom of Cladding for Vertical on Cavity

RI-RMD-W005A-1

dwg
pdf

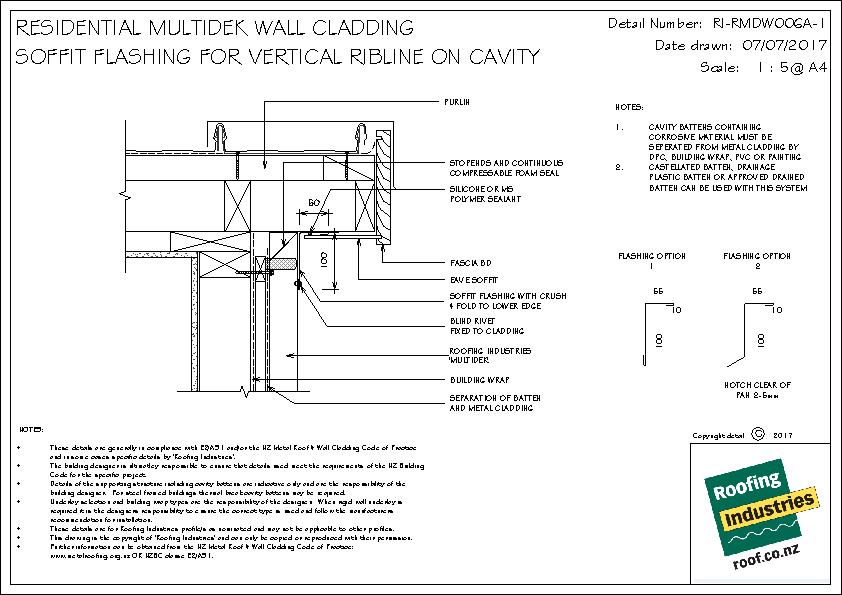

Multidek Soffit Flashing for Vertical on Cavity

RI-RMD-W006A-1

dwg
pdf

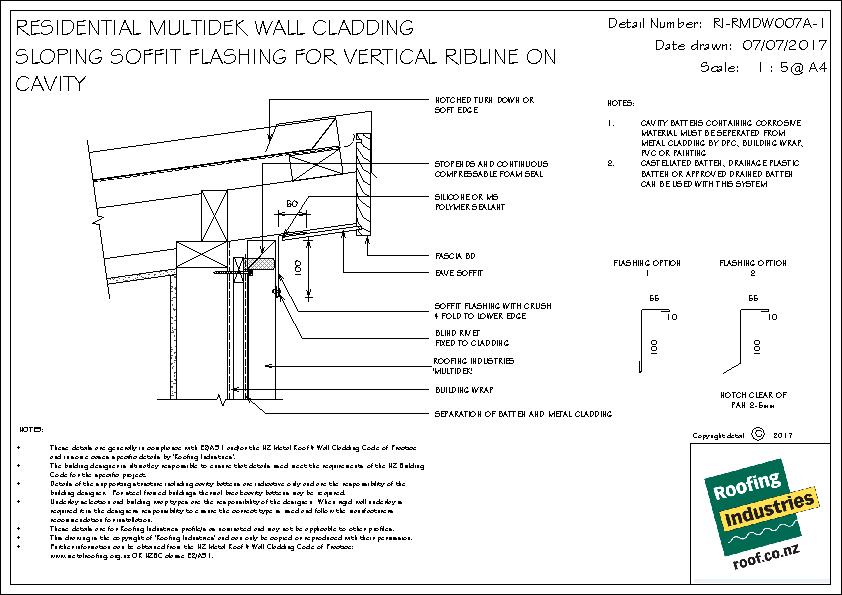

Multidek Sloping Soffit Flashing for Vertical on Cavity

RI-RMD-W007A-1

dwg
pdf
RI-RMDW009A-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg

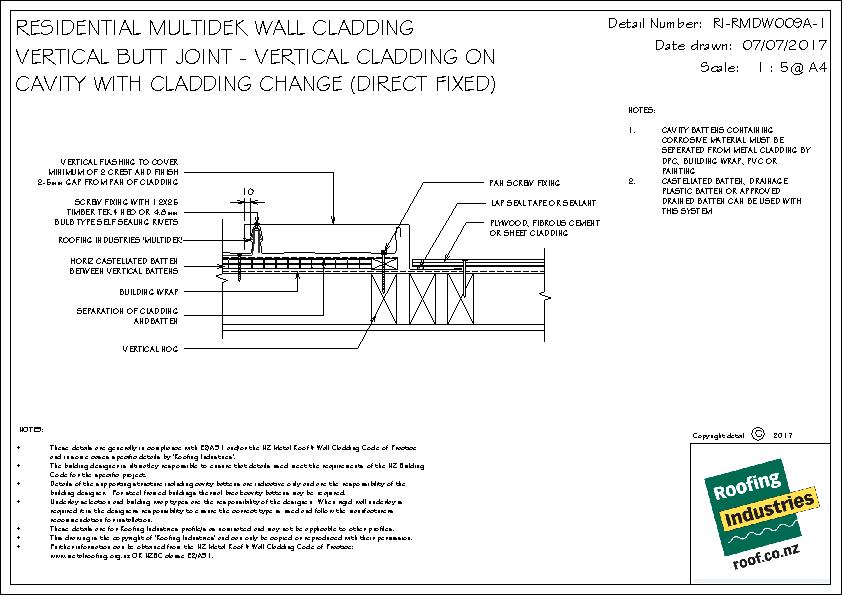

Multidek Vertical Butt Joint for Vertical Cladding with Cladding Change (Direct Fix)

RI-RMD-W009A-1

dwg
pdf
RI-RMDW009B-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg

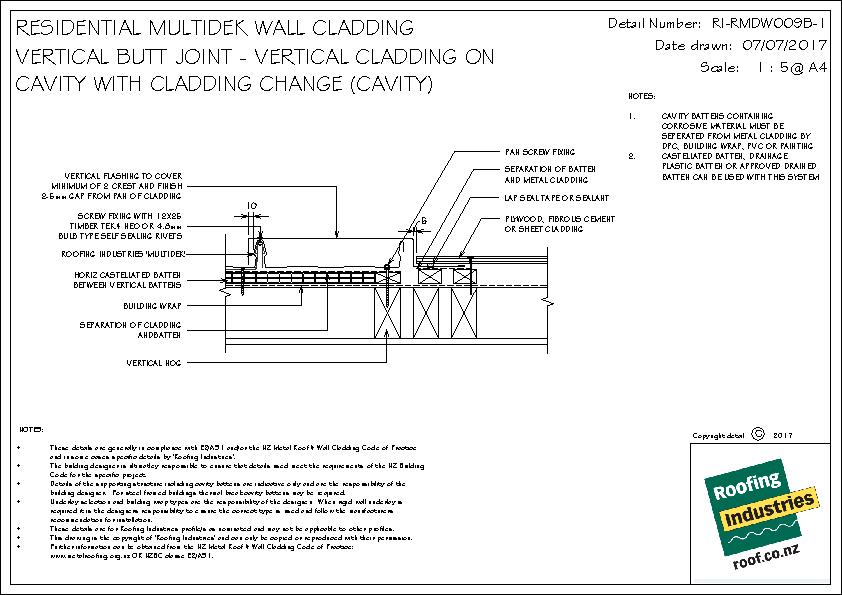

Multidek Vertical Butt Joint for Vertical Cladding on Cavity with Cladding Change (Cavity)

RI-RMD-W009B-1

dwg
pdf

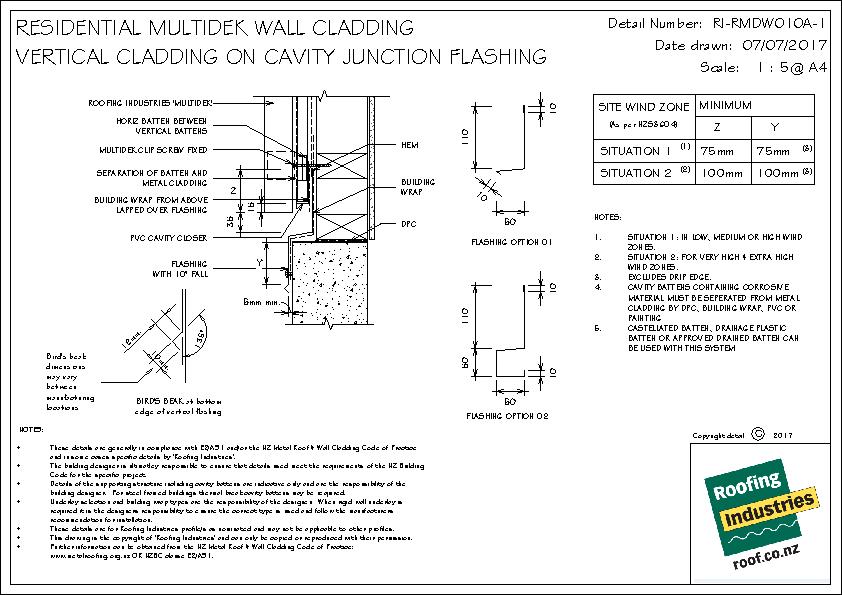

Multidek Vertical Cladding on Cavity Junction Flashing

RI-RMD-W010A-1

dwg
pdf
Multidek Balustrade for Vertical Cladding on Cavity

RI-RMD-W011A-1

dwg
pdf

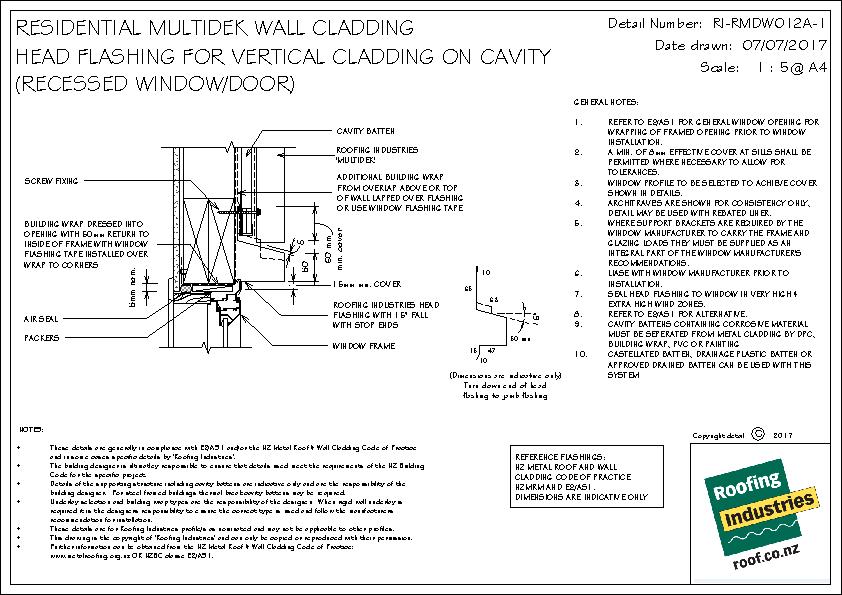

RI-RMDW012A-1-HEAD-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Multidek Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RMD-W012A-1

dwg
pdf
RI-RMDW012B-1-JAMB-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg

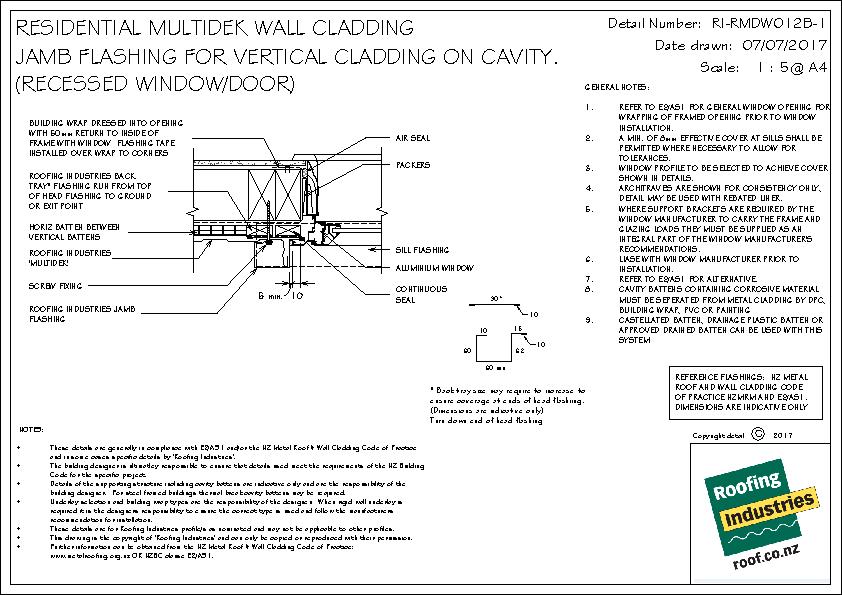

Multidek Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RMD-W012B-1

dwg
pdf
RI-RMDW012C-1-SILL-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg

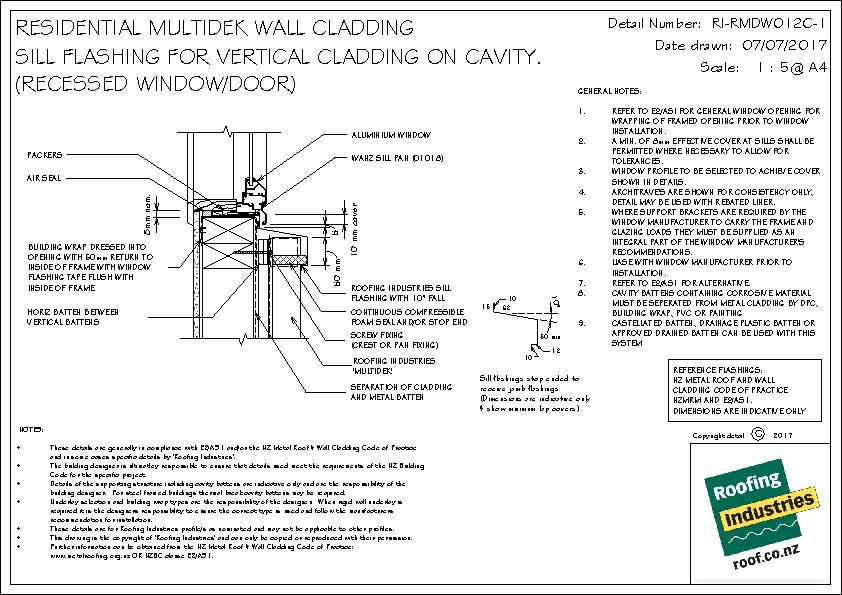

Multidek Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RMD-W012C-1

dwg
pdf

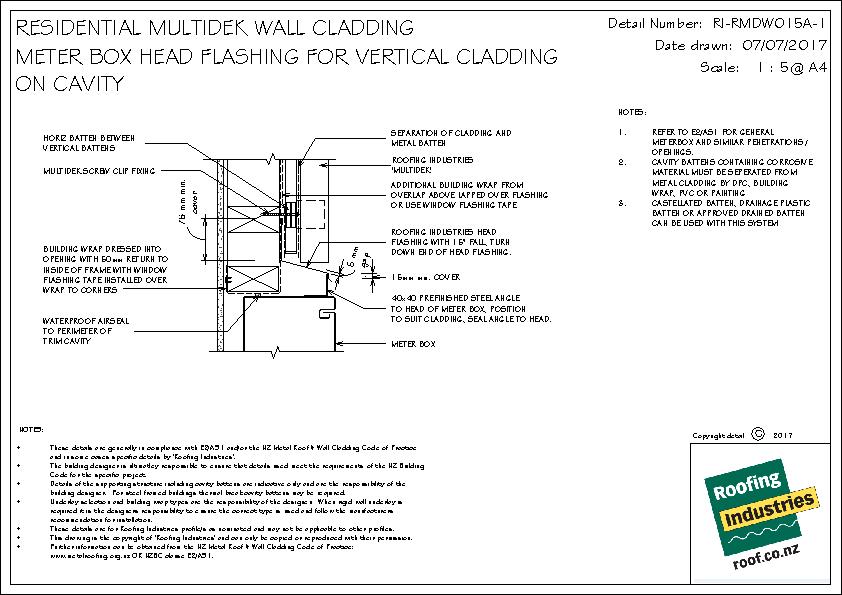

Multidek Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RMD-W015A-1

dwg
pdf

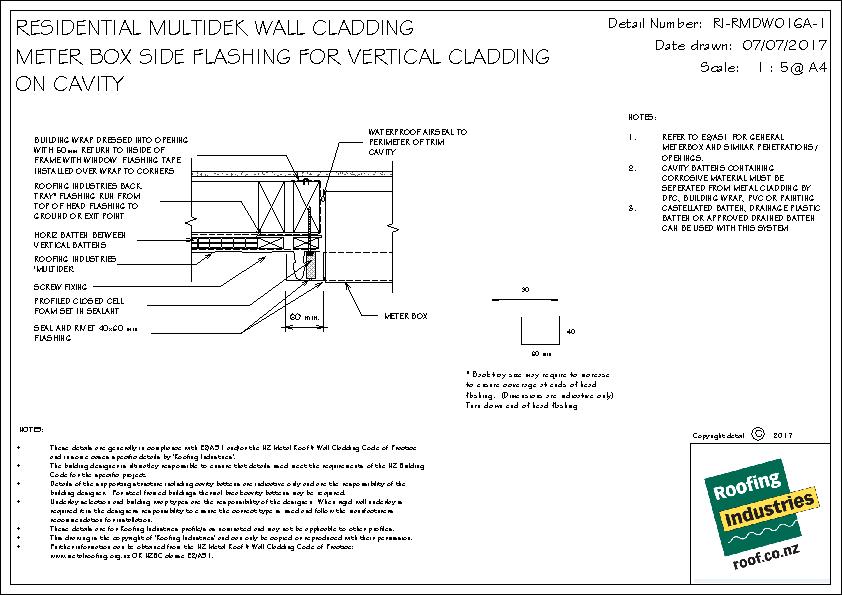

Multidek Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RMD-W016A-1

dwg
pdf

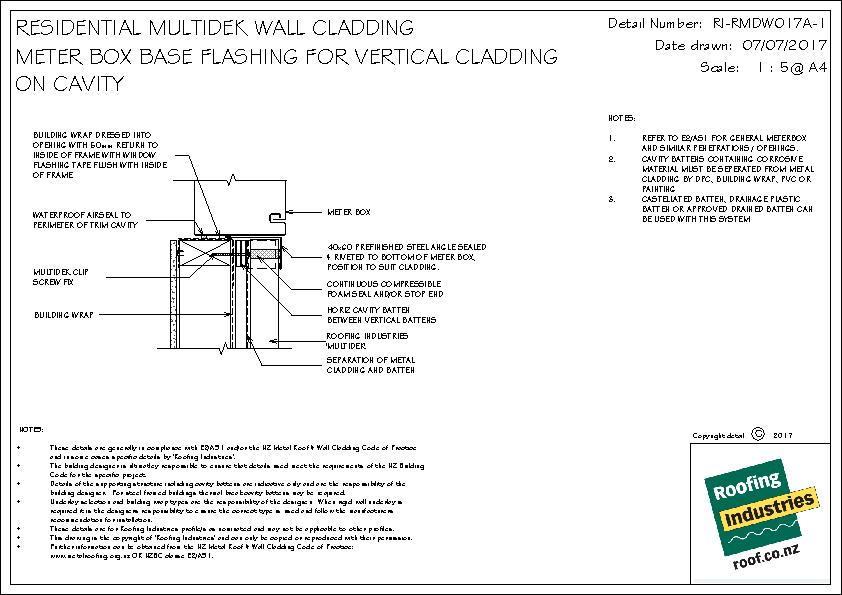

Multidek Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RMD-W017A-1

dwg
pdf

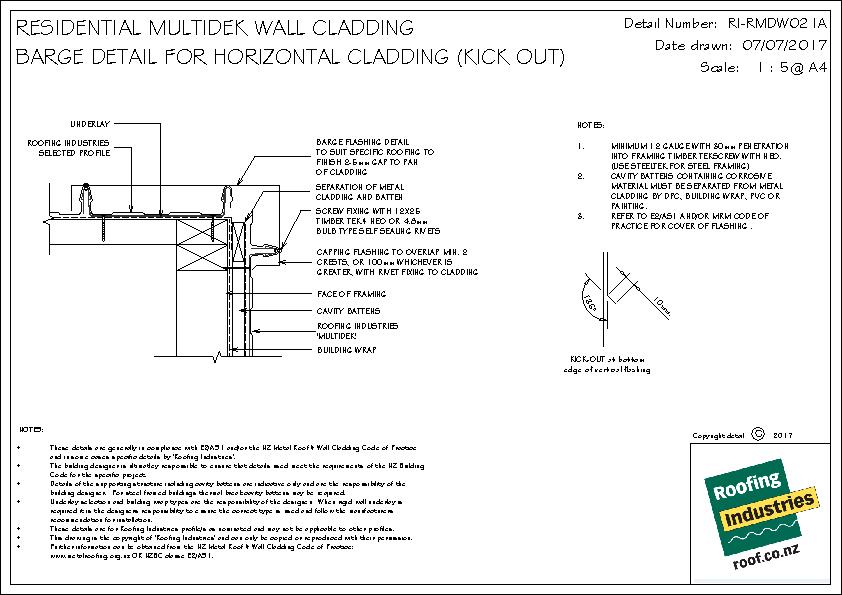

Multidek Barge Detail for Horizontal Cladding (Kick Out)

RI-RMD-W021A

dwg
pdf

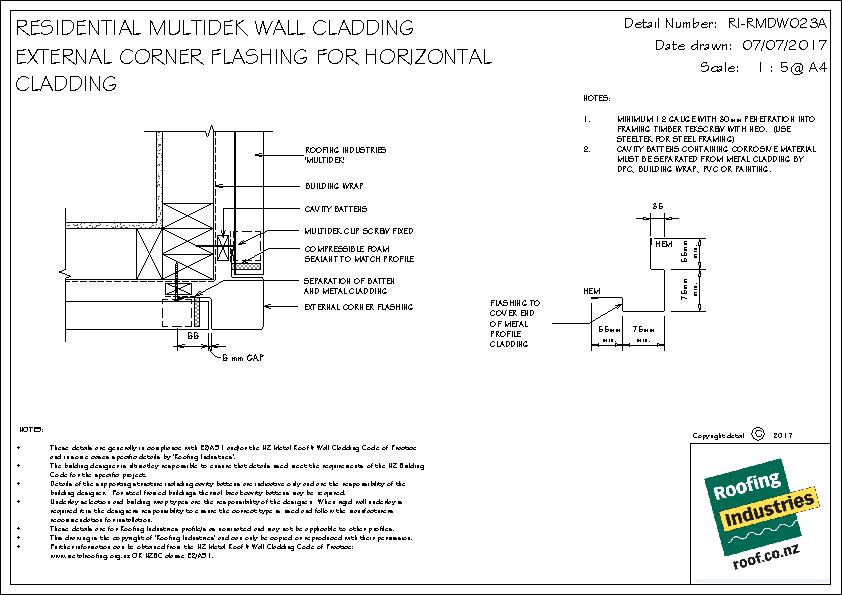

Multidek External Corner Flashing for Horizontal Cladding

RI-RMD-W023A

dwg
pdf

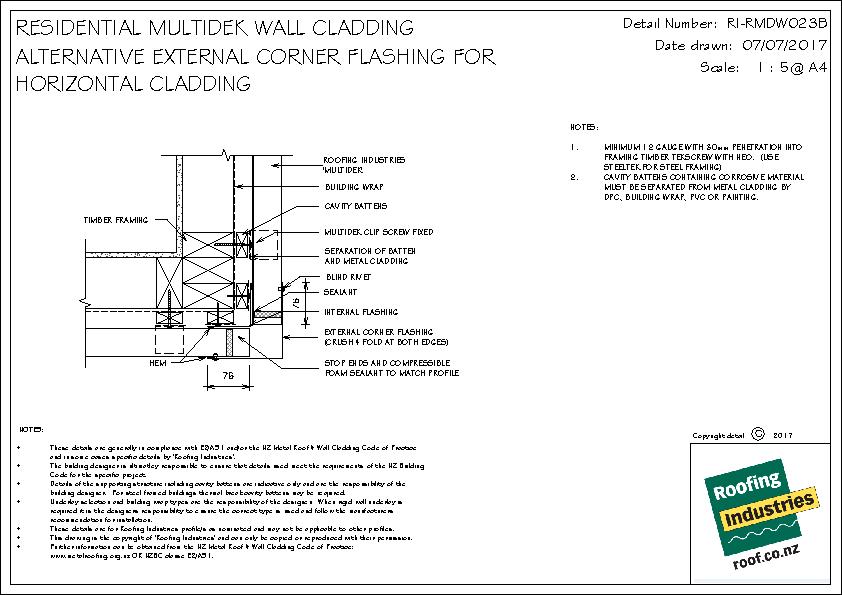

Multidek Alternative External Corner Flashing for Horizontal Cladding

RI-RMD-W023B

dwg
pdf

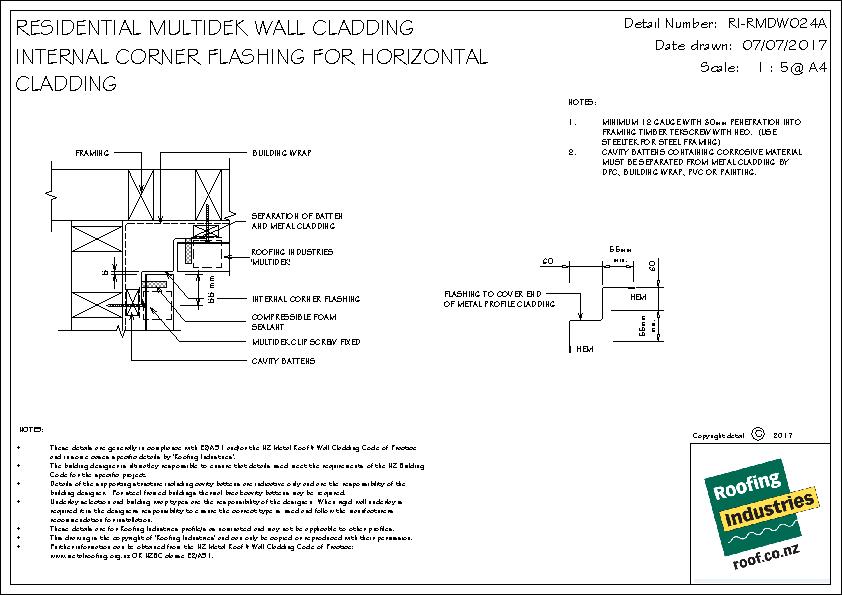

Multidek Internal Corner Flashing for Horizontal Cladding

RI-RMD-W024A

dwg
pdf

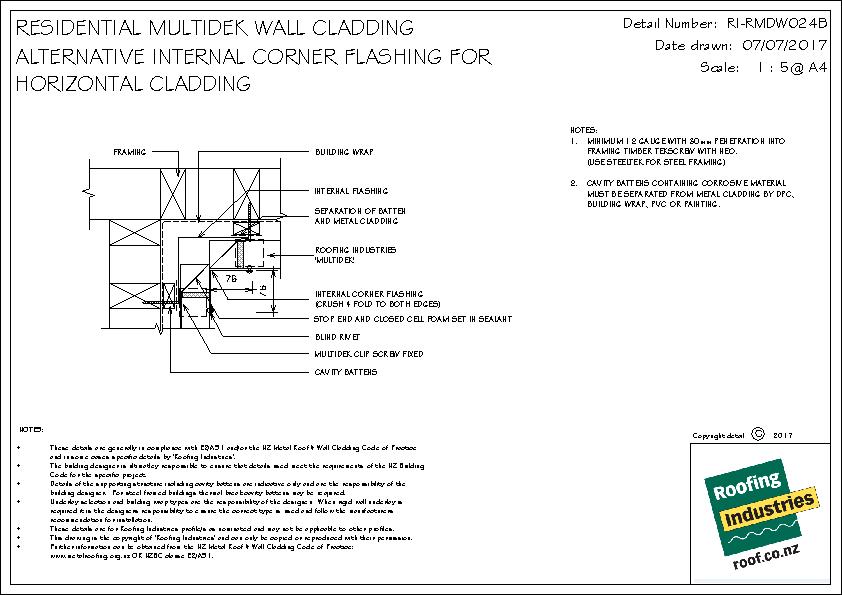

Multidek Alternative External Corner Flashing for Horizontal Cladding

RI-RMD-W024B

dwg
pdf

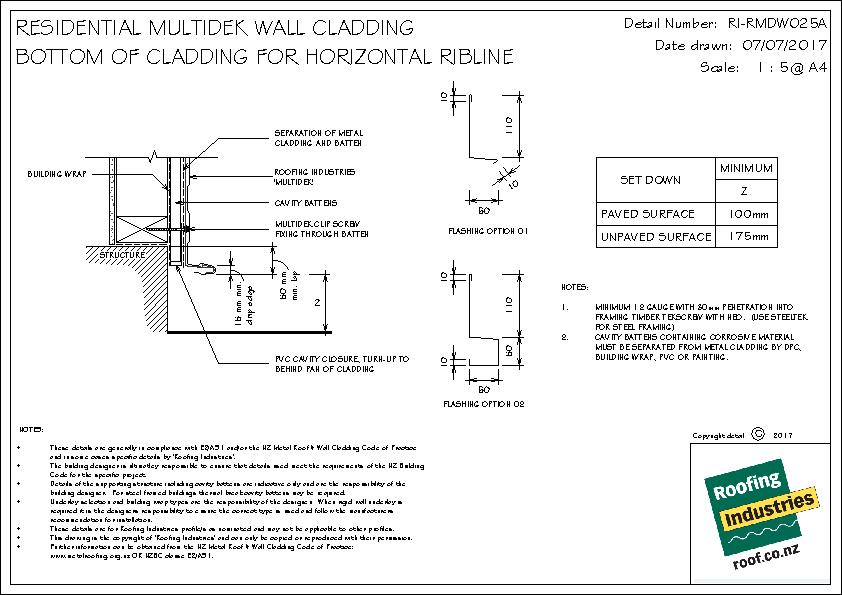

Multidek Bottom of Cladding for Horizontal

RI-RMD-W025A

dwg
pdf

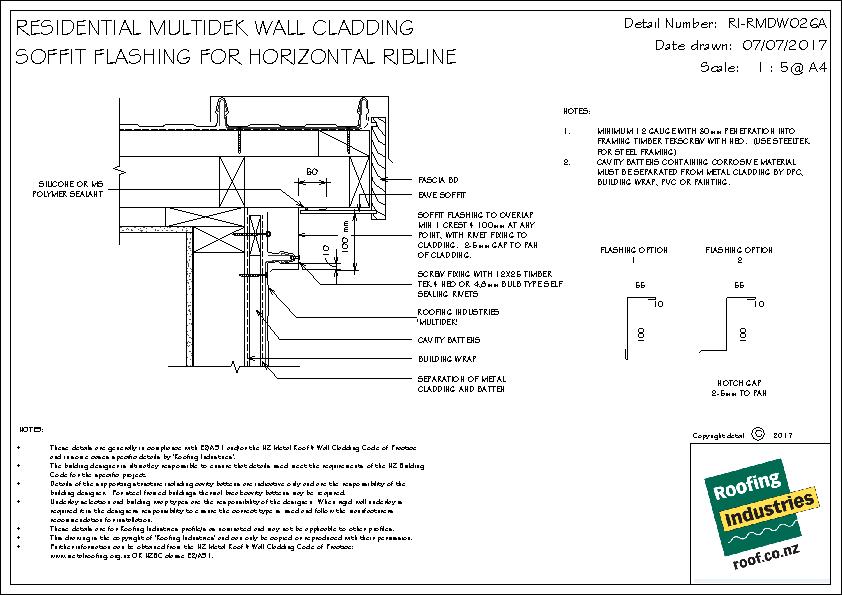

Multidek Soffit Flashing for Horizontal

RI-RMD-W026A

dwg
pdf

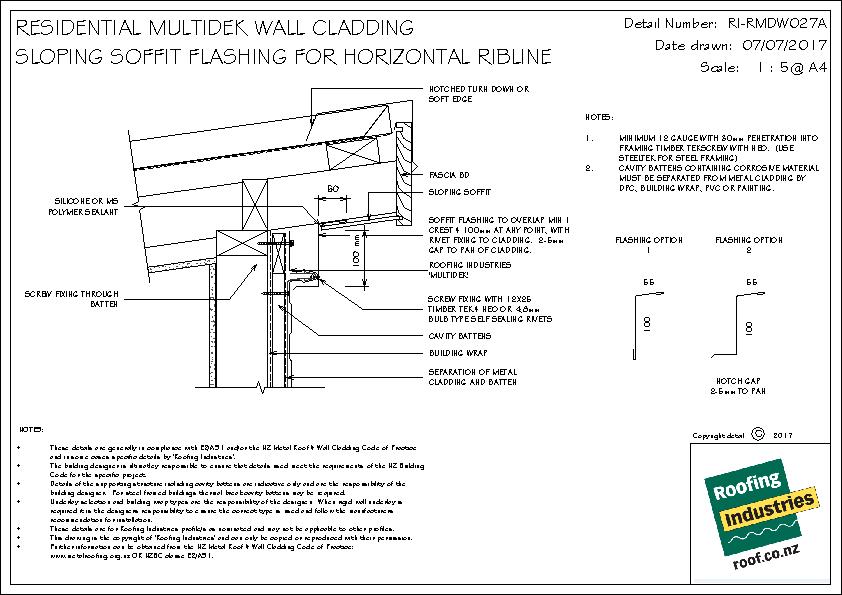

Multidek Sloping Soffit Flashing for Horizontal

RI-RMD-W027A

dwg
pdf

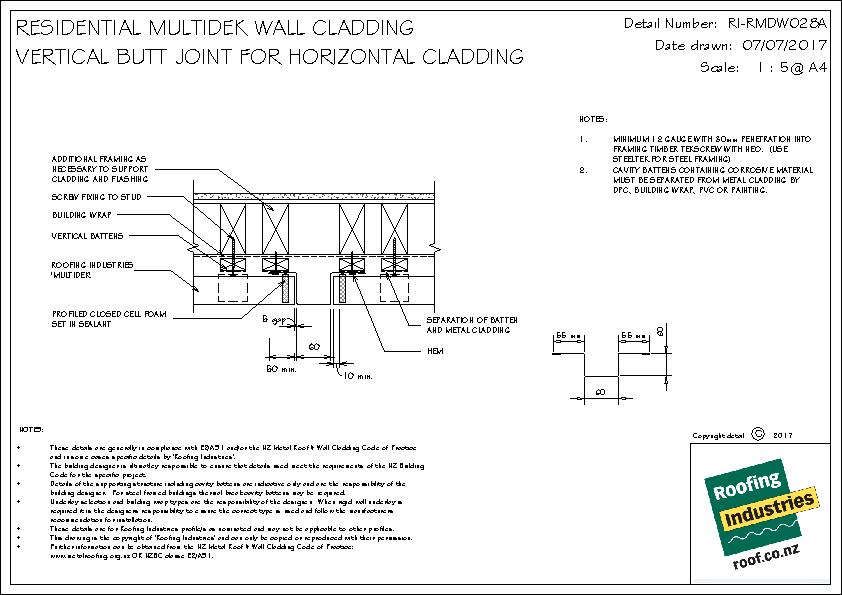

Multidek Vertical Butt Joint for Horizontal Cladding

RI-RMD-W028A

dwg
pdf

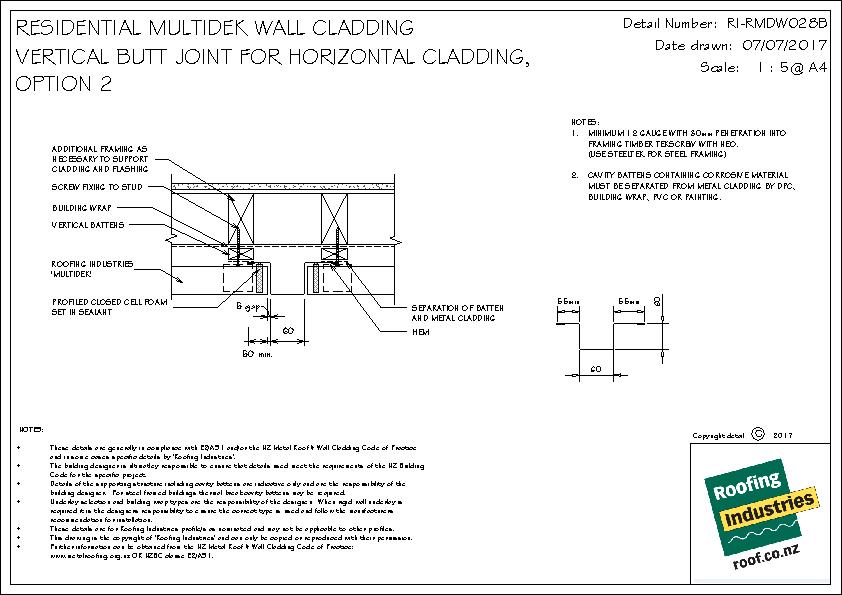

Multidek Vertical Butt Joint for Horizontal Cladding (Option 2)

RI-RMD-W028B

dwg
pdf
RI-RMDW029A-VERTICAL-BUTT-JOINT-FOR-HORIZONTAL-CLADDING-TO-ALTERNATIVE-CLADDING-UP-TO-25MM-pdf.jpg

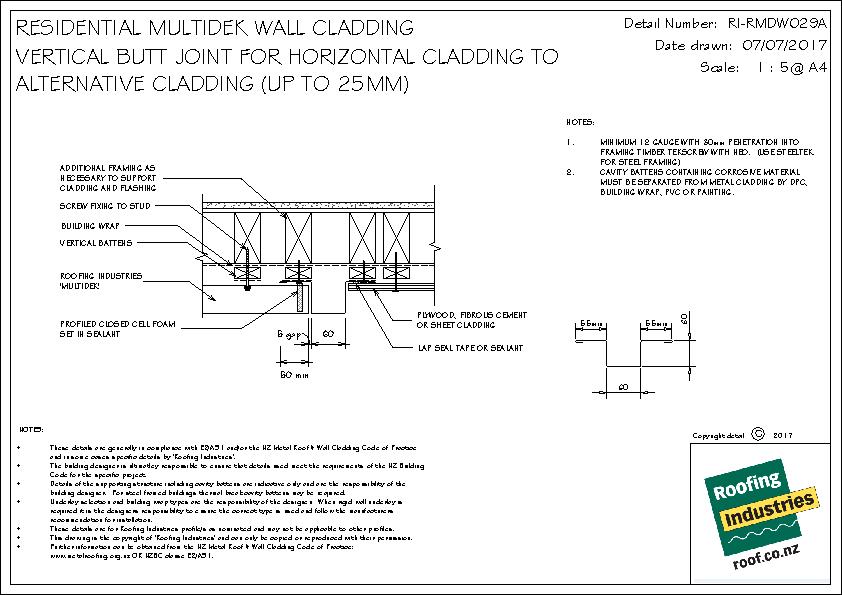

Multidek Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25m)

Ri-RMD-W029A

dwg
pdf

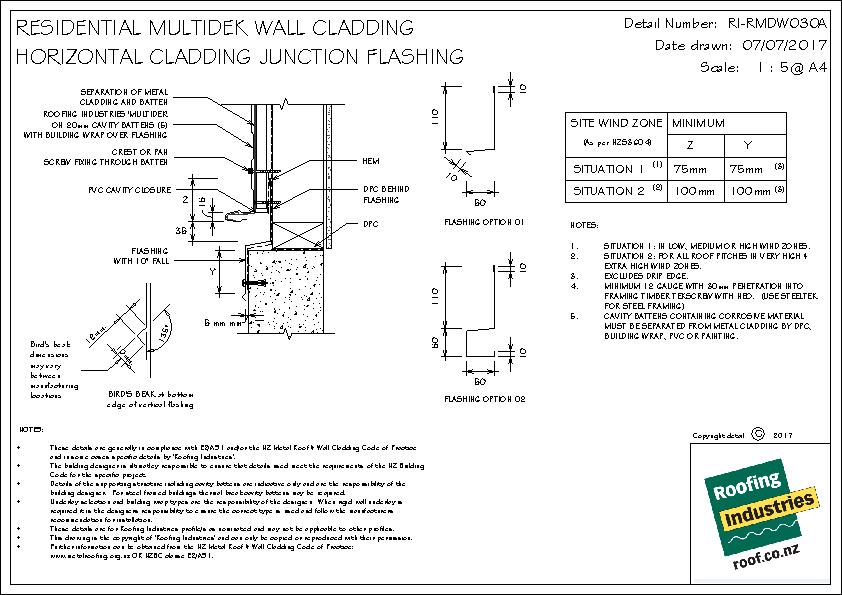

Multidek Horizontal Cladding Junction Flashing

RI-RMD-W030A

dwg
pdf

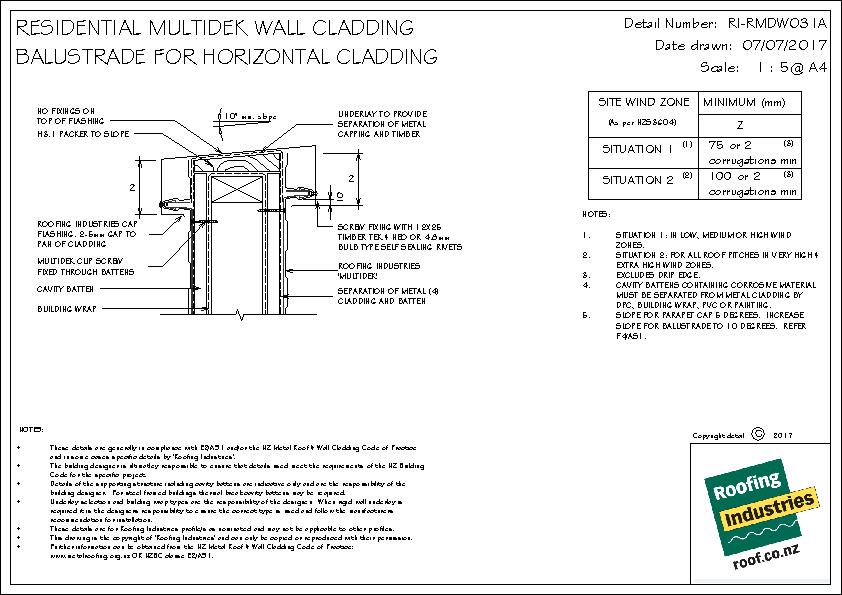

Multidek Balustrade for Horizontal Cladding

RI-RMD-W031A

dwg
pdf

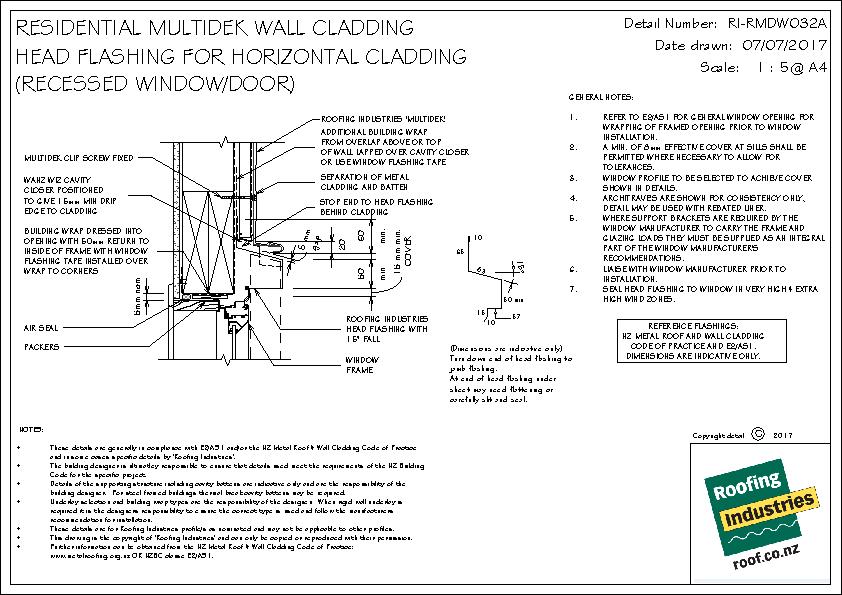

Multidek Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RMD-W032A

dwg
pdf

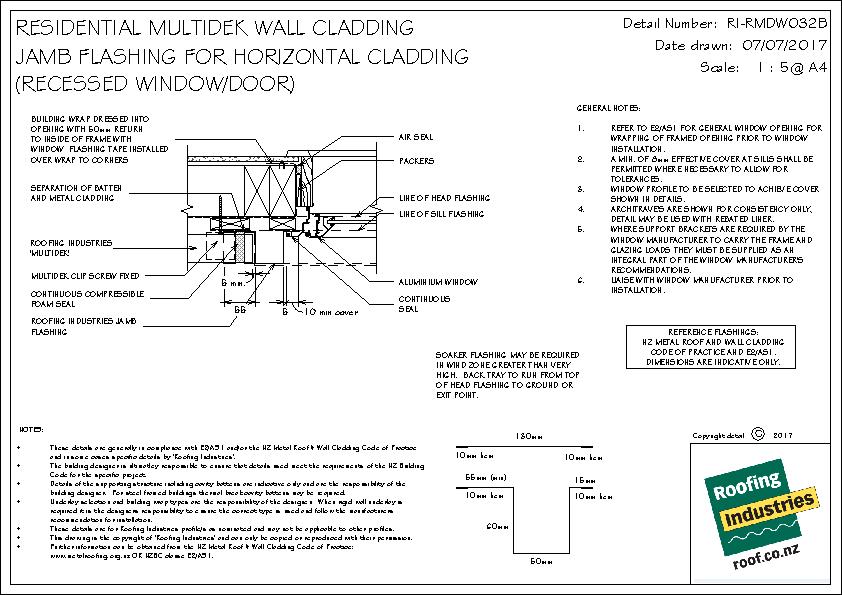

Multidek Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RMD-W032B

dwg
pdf

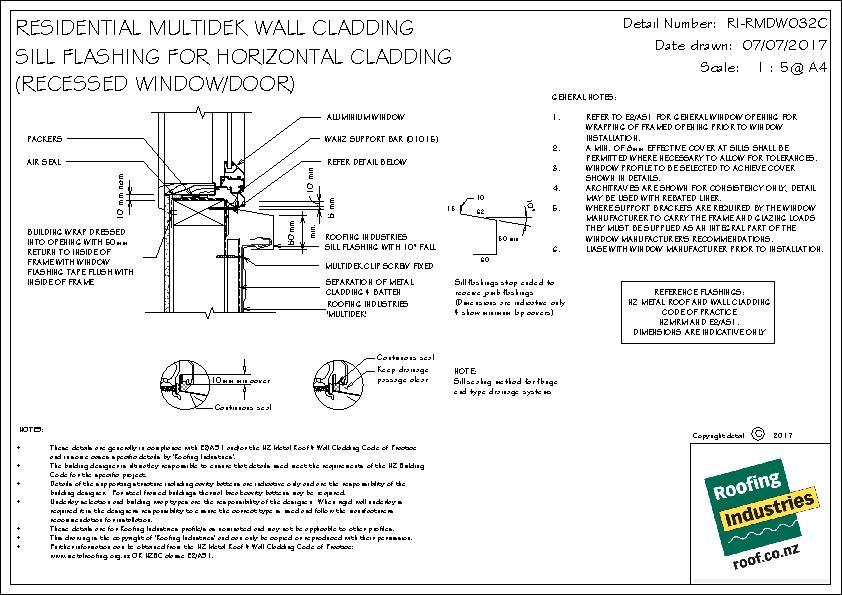

Multidek Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RMD-W032C

dwg
pdf

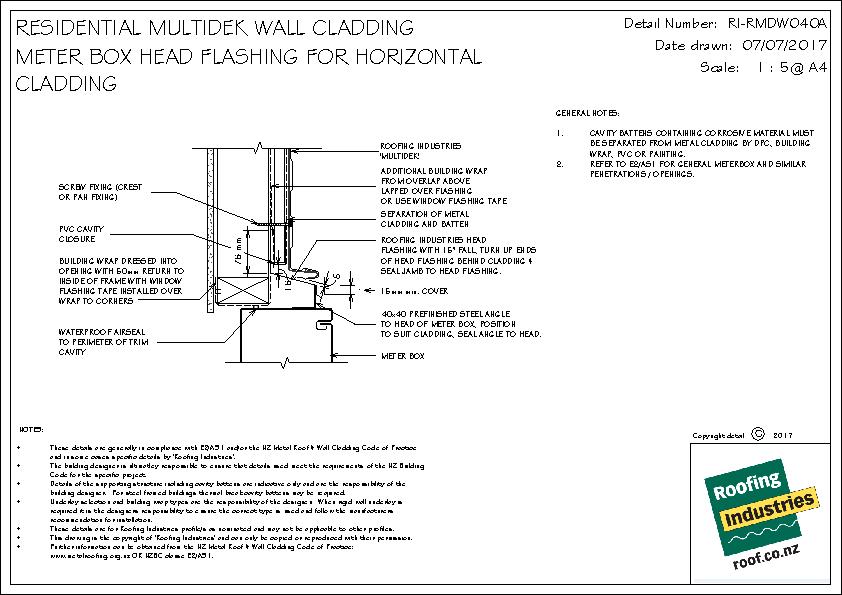

Multidek Meter Box Head Flashing for Horizontal Cladding

RI-RMD-W040A

dwg
pdf

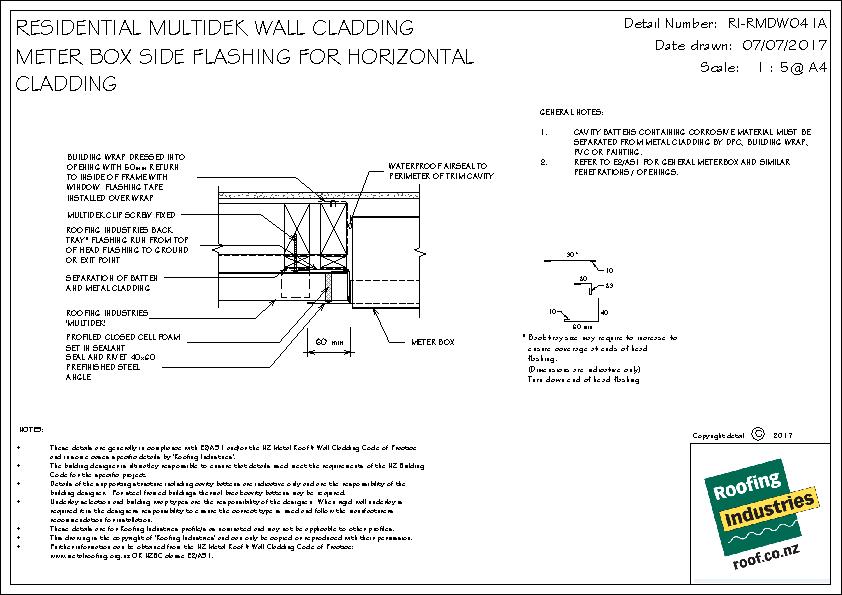

Multidek Meter Box Side Flashing for Horizontal Cladding

RI-RMD-W041A

dwg
pdf
Multidek Meter Box Base Flashing for Horizontal Cladding

RI-RMD-W042A

dwg
pdf
BIM
View full
Filters
RVT Version
Commercial or Residential
Clear filters
RI Fascia and gutters image
Fascia and Gutter Profiles

RI-AF01 2016

Revit 2016

rvt
RI RMD 00C
Multidek Residential Details 2016

RI-RMD 2016

Revit 2016

rvt
RI RMD 00C
Multidek Residential Details 2019

RI-RMD 2019

Revit 2019

rvt

Roofing Industries is a 100% New Zealand owned and operated metal roof and cladding manufacturing business.

Product Enquiries

News from Roofing Industries

New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control NEW
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control
Roofing Industries
November 2023 New Products

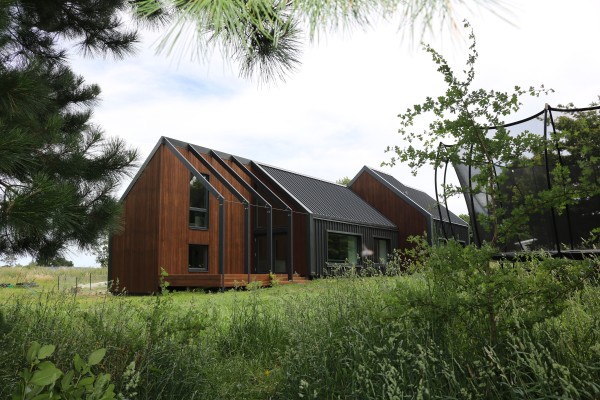

Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Roofing Industries
August 2023 Case Studies
Achieve a Classic Corrugate Look Down to 3 Degrees with Roofing Industries
Achieve a Classic Corrugate Look Down to 3 Degrees with Roofing Industries
Roofing Industries
April 2023 Product News
View all news

Popular Products from Roofing Industries

Roofing Industries Trimrib
Roofing Industries Trimrib
Roofing Industries
Eurostyle Spanlok Roofing and Cladding
Eurostyle Spanlok Roofing and Cladding
Roofing Industries
Roofing Industries Corrugate
Roofing Industries Corrugate
Roofing Industries

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
