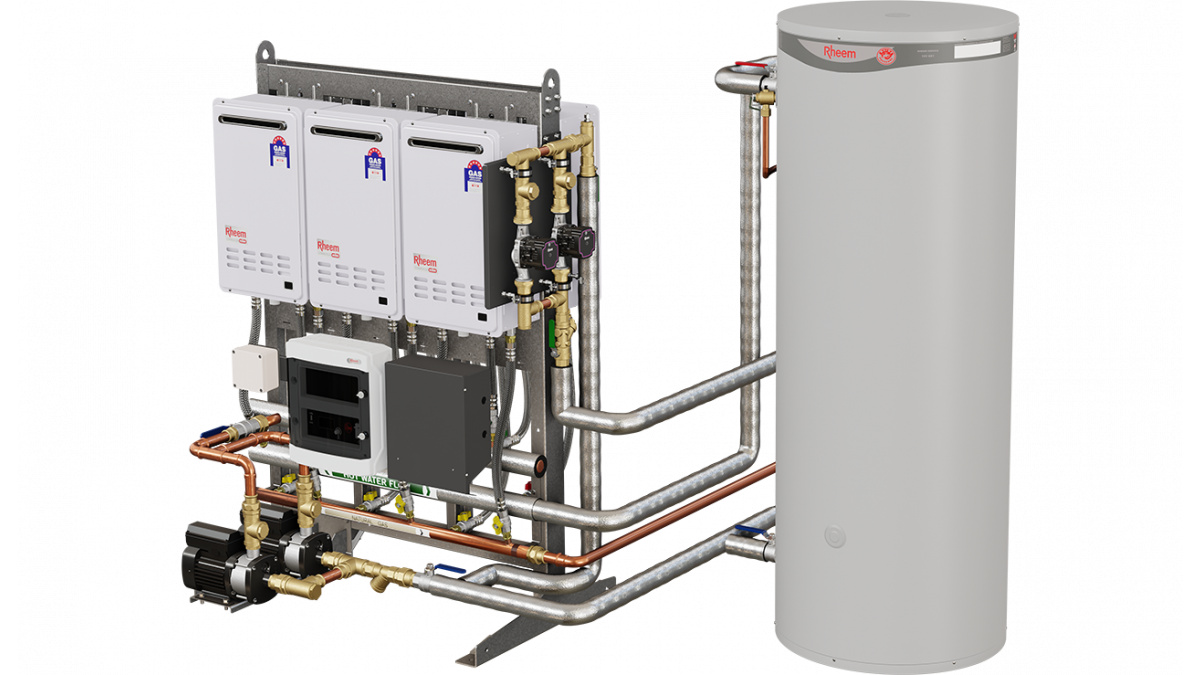

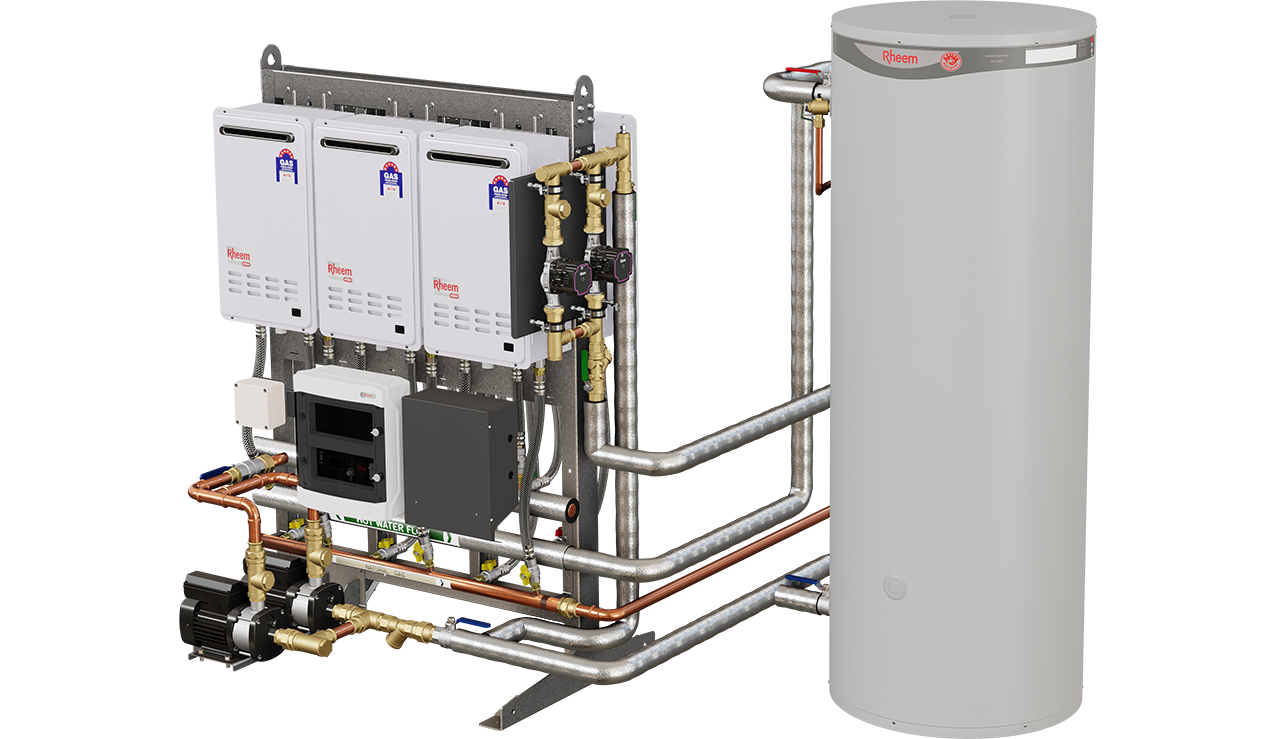

Tankpak Series 3 Gas Continuous Flow Water Heaters
Description

Rheem Tankpak Series 3 is the next phase in commercial water heating with electronic staging and rotation, for increased efficiency and product life. Combining the benefits of mains pressure and continuous flow water heating, Rheem Tankpak Series 3 is available in deluxe and standard models.

Key Features

The deluxe models are supplied with the master controller, optional duty/standby primary pumps, optional duty/standby secondary pumps customised for each site requirement, in line filter, BMS and remote monitoring capabilities and multiple sensors with digital display for total system diagnostics. Models up to TP04 are supplied with 10A plug and lead. Models over TP04 require hard wiring by qualified person on site.

Features for Deluxe models

  • Electronic staging and rotation with intelligent controller
  • BMS and remote monitoring capabilities
  • Duty/standby primary and/or secondary pumps options
  • System diagnostics with multiple sensors
  • Shorter and lighter frame design
  • Inline, wall mount or back to back mounting options
  • Reduced installation costs
  • 84% thermal efficiency 6 Star heat source
  • Vitreous enamel storage tank with 50mm fittings up to 82°C operation

Rheem Tankpak Series 3 Standard models are supplied with the controller, pump, in line filter and water heater power supply factory assembled and tested, requiring only connection of the storage tank on site.

Features of Standard models

  • Electronic staging and rotation
  • Shorter and lighter frame design
  • Inline, wall mount or back to back mounting options
  • 84% thermal efficiency 6 Star heat source
  • Vitreous enamel storage tank with 50mm fittings up to 82°C operation
  • Supplied with 10A plug and lead

Available in the following model configurations:

  • Tankpak Series 3 TPI02 | Indoor Installation | 2 CFWH Units
  • Tankpak Series 3 TPE02 | Outdoor Installation | 2 CFWH Units
  • Tankpak Series 3 TPI03 | Indoor Installation | 3 CFWH Units
  • Tankpak Series 3 TPE03 | Outdoor Installation | 3 CFWH Units
  • Tankpak Series 3 TPI04 | Indoor Installation | 4 CFWH Units
  • Tankpak Series 3 TPE04 | Outdoor Installation | 4 CFWH Units
  • Tankpak Series 3 TPI05 | Indoor Installation | 5 CFWH Units
  • Tankpak Series 3 TPE05 | Outdoor Installation | 5 CFWH Units
  • Tankpak Series 3 TPI06 | Indoor Installation | 6 CFWH Units
  • Tankpak Series 3 TPE06 | Outdoor Installation | 6 CFWH Units
  • Tankpak Series 3 TPI07 | Indoor Installation | 7 CFWH Units
  • Tankpak Series 3 TPE07 | Outdoor Installation | 7 CFWH Units
  • Tankpak Series 3 TPI08 | Indoor Installation | 8 CFWH Units
  • Tankpak Series 3 TPE08 | Outdoor Installation | 8 CFWH Units
  • Tankpak Series 3 TPI09 | Indoor Installation | 9 CFWH Units
  • Tankpak Series 3 TPE09 | Outdoor Installation | 9 CFWH Units
  • Tankpak Series 3 TPI10 | Indoor Installation | 10 CFWH Units
  • Tankpak Series 3 TPE10 | Outdoor Installation | 10 CFWH Units
  • Tankpak Series 3 TPI12 | Indoor Installation | 12 CFWH Units
  • Tankpak Series 3 TPE12 | Outdoor Installation | 12 CFWH Units
  • Tankpak Series 3 TPI14 | Indoor Installation | 14 CFWH Units
  • Tankpak Series 3 TPE14 | Outdoor Installation | 14 CFWH Units
  • Tankpak Series 3 TPI16 | Indoor Installation | 16 CFWH Units
  • Tankpak Series 3 TPE16 | Outdoor Installation | 16 CFWH Units
  • Tankpak Series 3 TPI18 | Indoor Installation | 18 CFWH Units
  • Tankpak Series 3 TPE18 | Outdoor Installation | 18 CFWH Units
Scope of Use
  • Commercial applications
  • Can deliver temperatures up to 82°C for sanitising requirements
  • Manifold multiple units for greater volumes
  • Designed to be disassembled on site quickly and easily to allow access into top floor plant rooms and tight spaces without the need for crane hire or additional trades
  • The assembly is certified for crane lifting
  • Plumbing is supplied right-handed but can be field altered for left-hand to suit installation requirements



Limitations on Use
  • Choose correct model to suit either indoor or outdoor installation
  • Gas, water and power are required to operate a Gas Continuous Flow Water Heater
  • Indoor models must be installed using a certified Rheem Flue System — Always check with local authorities that the installation complies with all regulations applicable in the area



Other Performance Attributes
  • Non-Domestic Warranty: Parts (Parts/Labour): 1 year
  • Non-Domestic Warranty: Cylinder/Tank (Labour): 1 year
  • Non-Domestic Warranty: Cylinder/Tank (Replacement): 5 year



Documents
Installation Instructions & Owner's Guide
Brochure
Commercial and Industrial Hot Water Solutions Brochure
Additional Information

Rheem provides reliable, efficient water heating and now also the latest in solar heating.
