RAUPIANO PLUS Acoustic Plumbing and Drainage System
Description

The RAUPIANO PLUS Acoustic Plumbing and Drainage System is a polypropylene-based plumbing and drainage pipe system that consists of discharge pipes and fittings that have been acoustically designed to reduce the noise caused by water and waste passing through the discharge system. The system is for use within multi-floor buildings such as, offices, hotels, or residential buildings where noise is an issue. They are also suitable for trade waste such as from commercial kitchens. The pipes are suitable for use both above and below ground. The pipes and fittings are white with a pink and a green stripe.

Key Features
  • Multi-layer pipe construction increases the pipe rigidity and enhances the sound insulation properties.
  • Smooth, abrasion-resistant inner layer optimizes flow.
  • Impact-resistant outer layer provides robustness for handling on construction sites.
  • The RAUPIANO PLUS system contains no toxic materials and is 100% recyclable (including PVC adaptors).

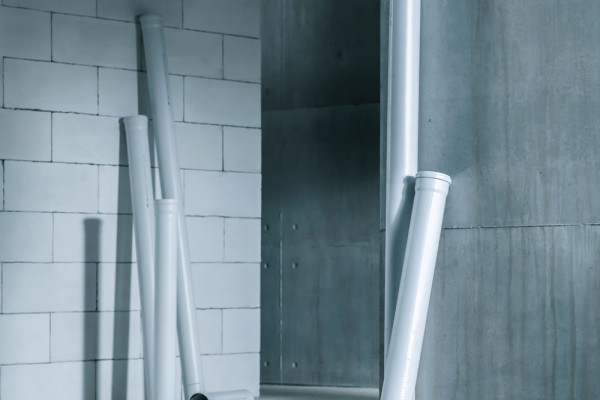

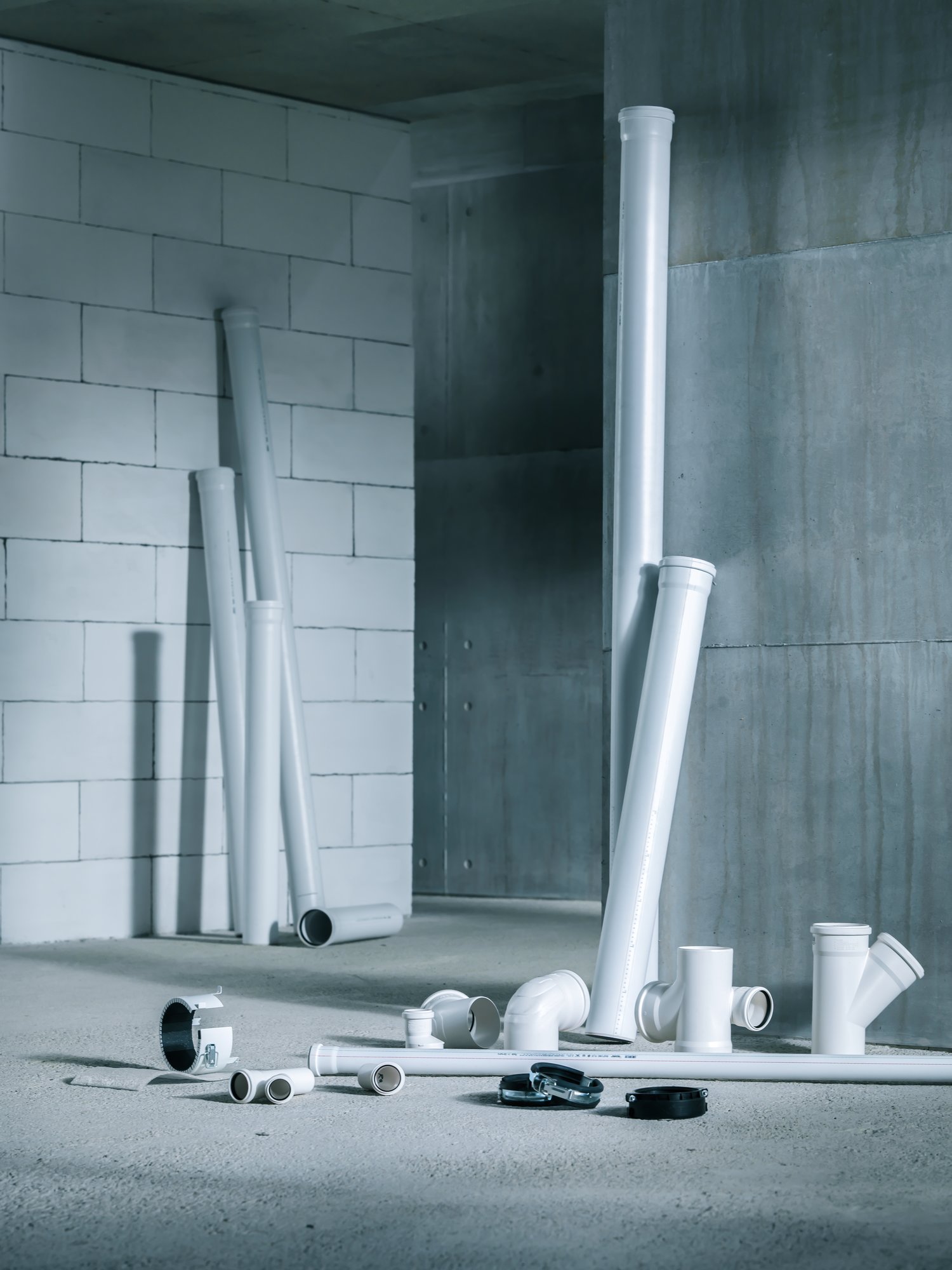

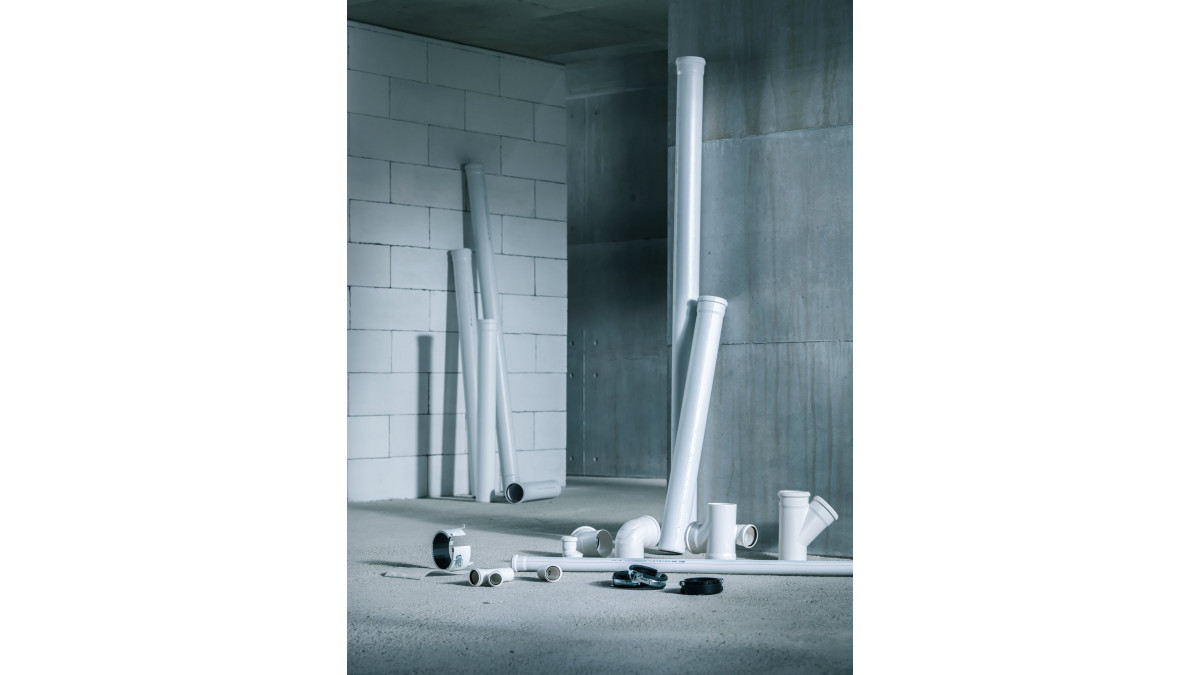

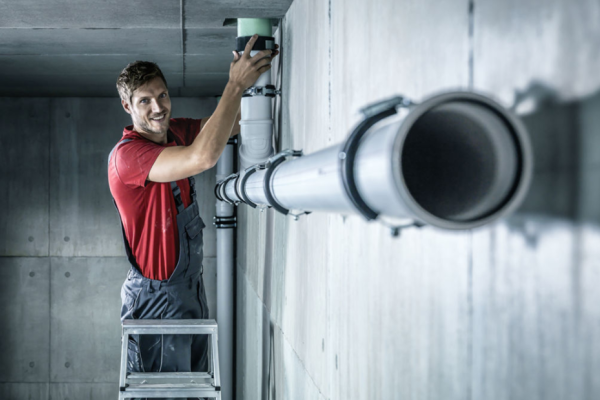

RAUPIANO PLUS Pipes

  • Multi-layer pipe construction achieves superior performance through the application of distinct functional layers.  Combined in a composite construction three separate layers impart unique characteristics on the pipe.
    • The abrasion-resistant, low friction inner layer ensures the easy transit of waste.
    • The mineral-filled mid-layer ensures superb sound dampening properties and offers increased stiffness.
    • Robust outer layer is tough enough to withstand impacts and shocks.
  • Combined together, the composite layers create a tough, durable pipe, with outstanding acoustic properties that gives all the functionality of a drainage pipe system combined with the noise insulating properties of lagging.

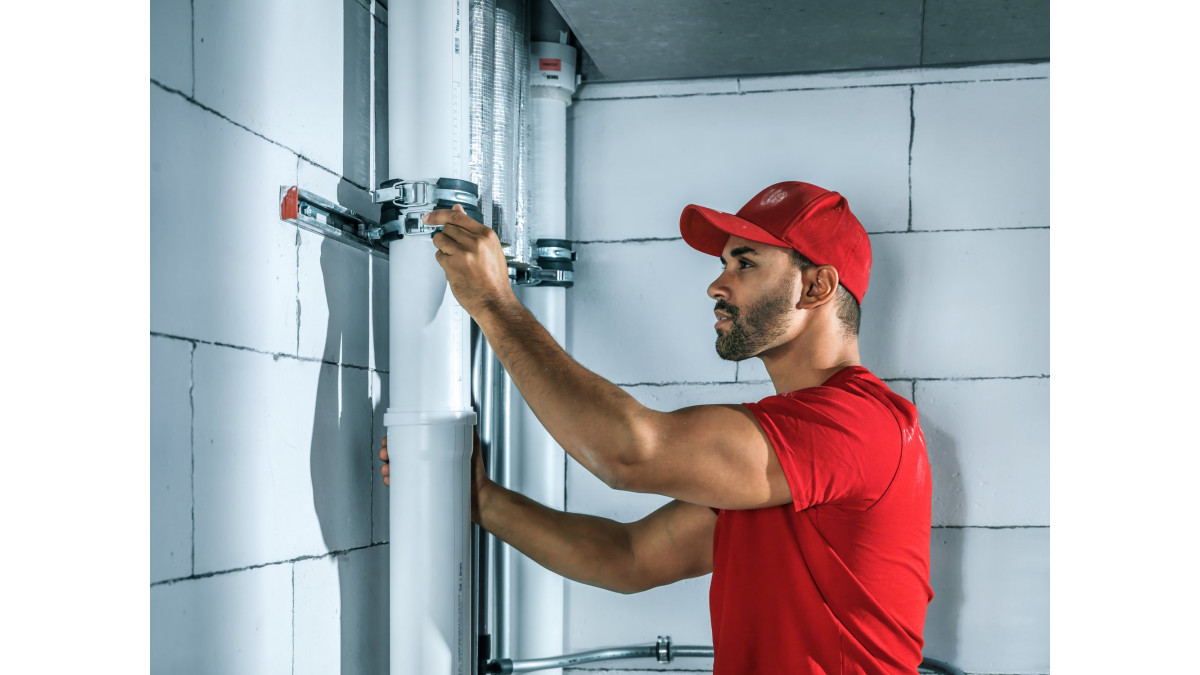

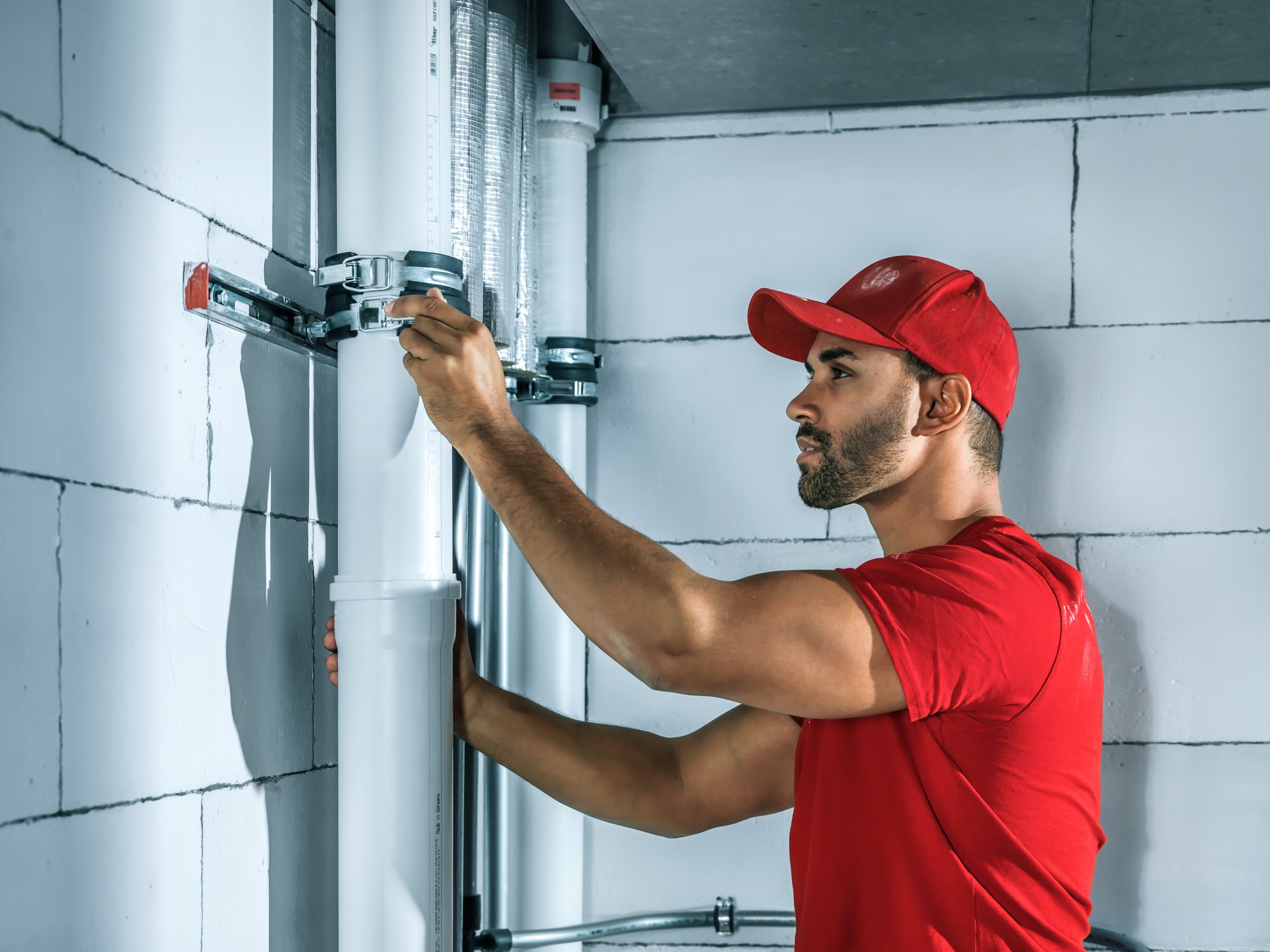

RAUPIANO PLUS Fittings

The pipe system can experience local vibrations at redirections due to critical drainage conditions, which can have a negative effect on sound performance. Targeted mass optimization of this effect was carried out in sound-critical areas of elbows with a nominal width of DN 90 to DN 160. This stabilizes the sound behavior, reduces sound generation and thus achieves even better noise dampening in the impact area.

Approved fire collar solutions for RAUPIANO PLUS pipe are available.

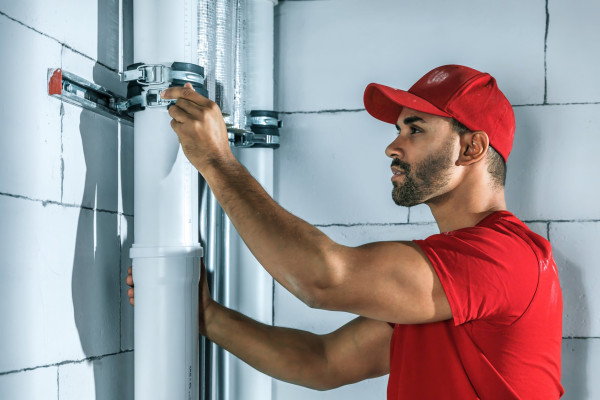

Scope of Use

The system is suitable in a wide range of buildings from comfortable homes, modern hospitals, and hectic commercial kitchens to contemporary skyscrapers.

The RAUPIANO PLUS Acoustic Plumbing and Drainage System has been appraised by BRANZ for use within the following scope:

  • as pipes, fittings and materials for sanitary plumbing system design and installation in accordance with NZBC Acceptable Solution G13/AS3 and AS/NZS 3500.2; and
  • for use as a sanitary plumbing system for internal use within buildings; and
  • for pipes and fittings of size 40 mm and greater, for drainage system design and installation in accordance with NZBC Acceptable Solution G13/AS3 and AS/NZS 3500.2.



Limitations on Use

Installation of components and accessories supplied by Rehau Ltd must be carried out only by licensed and registered plumbers and/or drainlayers.

Statement of Building Code Compliance

In the opinion of BRANZ, The RAUPIANO PLUS Acoustic Plumbing and Drainage System if designed, installed, used and maintained in accordance with the statements and conditions of Appraisal 809 (2013), will meet the following provisions of the NZBC.

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets this requirement. See Paragraph 8.1.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets this requirement and does not present a health hazard to People.
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets these requirements. See Paragraphs 7.1 to 7.5.
Other Performance Attributes
  • Acoustic Performance: REHAU RAUPIANO PLUS system has been independently tested by members of the Association of Australian Acoustical Consultants (AAAC).
    • The System exceeds the Rw + Ctr 40 requirement of the BCA/NCC in habitable areas, and that
    • An un-lagged RAUPIANO PLUS system is comparable in sound performance, to a fully lagged PVC system.
  • Temperature and Chemical Resistance: RAUPIANO PLUS has a high temperature resistance of 95 degrees (intermittent) and 90 degree (continuous operation) as well as a broad chemical resistance to aggressive waste.
  • Environment: Made 100% Polypropylene which takes comparatively low energy to manufacture. PP is also 100% recyclable and contains no harmful chemicals. Using PP drainage reduces the amount of PVC within a project which can award valuable credit points towards the buildings green star rating. RAUPIANO PLUS also requires no toxic glue or primer during installation.
  • Fire Resistance: For fire protection of penetrations through fire-rated ceilings and walls, it is compulsory to install suitable fire collars that will not reduce the fire rating of the particular building elements. RAUPIANO PLUS system can be installed with suitable fire collars which have been tested and proven according to AS 1530.4 to fulfill the fire protection requirements.
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
G13 Foul Water compliant
Foul Water
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
Acoustic Performance
Acoustic Performance Summary
Material Safety Data Sheet
Environmental Information
Independent Appraisal (BRANZ)
Specification Clause/Guide
Installation and Operation
Installation (Floor Waste Gully)
Brochure
Product Book
BIM
RAUPIANO PLUS Access Pipe
RAUPIANO PLUS Adaptor to PVC
RAUPIANO PLUS Bend
RAUPIANO PLUS Closet Bend
RAUPIANO PLUS Closet Connection
RAUPIANO PLUS Closet Connection Short
RAUPIANO PLUS Connection Elbow
RAUPIANO PLUS Connection Pipe
RAUPIANO PLUS Corner Double Branch
RAUPIANO PLUS Corner Double Branch Max Flow
RAUPIANO PLUS Deflection Bend 45
RAUPIANO PLUS Deflection Bend 87
RAUPIANO PLUS Double Branch
RAUPIANO PLUS Double Branch Max Flow
RAUPIANO PLUS Double Socket
RAUPIANO PLUS Floor Gully
RAUPIANO PLUS Long socket
RAUPIANO PLUS P-Trap Siphon
RAUPIANO PLUS P-Trap Siphon with Vent
RAUPIANO PLUS P-Trap Siphon without Vent
RAUPIANO PLUS Parallel Branch
RAUPIANO PLUS Reducer
RAUPIANO PLUS Rosette WC-17-90
RAUPIANO PLUS Rubber Sleeve Adaptor
RAUPIANO PLUS Securing Clip
RAUPIANO PLUS Shaft Branch Left
RAUPIANO PLUS Shaft Branch Right
RAUPIANO PLUS Single Branch
RAUPIANO PLUS Single Branch Max Flow
RAUPIANO PLUS Slip-On Socket
RAUPIANO PLUS Socket Plug
RAUPIANO PLUS Socket Plug with Sleeve
RAUPIANO PLUS Venting Connection Pipe

REHAU a leading systems and service provider for polymer-based solutions in construction, automotive and industry.

Product Enquiries

News from REHAU

REHAU Launches New Lead-Free Plumbing System NEW

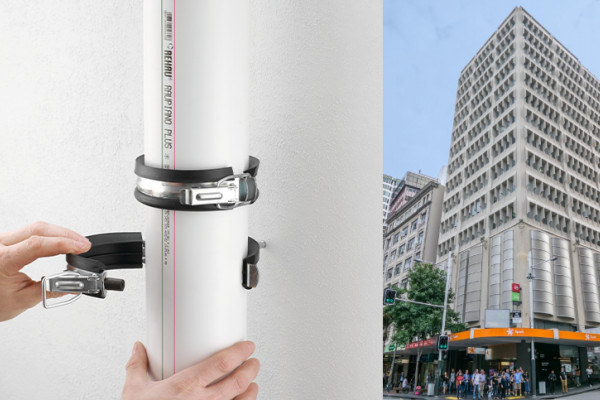

Acoustic Plumbing System Chosen for 18-Storey Building
