Hot Dip Galvanising Balustrade Panels
Description

Perry Metal Protection offer Hot Dip Galvanising of Balustrading Panels suitable for commercial, institutional, and residential applications.

Galvanising of steel is widely used in applications where corrosion resistance is needed without the additional cost of onsite painting and expensive touch ups caused by installation.

Batch hot dip galvanising provides Corrosion protection of steel by providing a thick, metallic envelope which completely covers the steel and seals it from the corrosive action of the environment. Metallic Zinc is strongly resistant to the corrosive action of normal environments and hot dip galvanising therefore provides long term protection for steel.

Key Features
  • Proven life cycles before first maintenance as per 2312 standard guide to the protection of structural steel corrosion against atmospheric corrosion by use of protective coating
  • All balustrade sizes can be accommodated — Perry Metal Protection have the expertise in designing to fit inside the galvanising kettle
  • Thicker coatings, paint systems over galvanising and an architectural finish can be achieved if Perry Metal Protection are consulted during the design phase of the balustrading panel
Categories
Protective Coatings
Scope of Use
  • Balustrading panels for:
    • Industrial buildings
    • Commercial and retail sector
    • Educational and institutional buildings
    • Residential, apartment and terrace housing
    • Roading and infrastructure
  • Applications where corrosion resistance is needed without the additional cost of on-site painting and expensive touch-ups

Locations and Bath Sizes:

    • Auckland: 5.0L x 1.35W x 2.4D
    • Hamilton: 9.5L x 1.6W x 2.8D
    • Wellington: 7.0L x 1.3W x 2.4D
    • Christchurch: 7.0L x 1.3W x 2.4D
    • Tauranga: depot only
Limitations on Use
  • Extreme corrosion environments C5 and CX may require duplex coatings over the batch hot dip galvanised coatings to achieve life before first  maintenance expectations — See Specifying Hot Dip Galvanising Guide
  • All balustrade sizes can be accommodated — Consult Perry Metal Protection for design advice to fit inside the galvanising kettle
  • Thicker coatings, paint systems over galvanising, and an architectural finish can be achieved if Perry Metal Protection are consulted during the design phase of the balustrade panels
Statement of Building Code Compliance
  • Perry Metal Protection is ISO 9000 certified and follows the worldwide practices concerning operating galvanising plants
  • Batch hot dip galvanising is a proven steel corrosion protection system with proven data as per the 2312 standard and the AS/NZ 4680 standard
In-Service History
  • New Zealand's largest and only ISO 9001 certified hot dip galvaniser
  • Perry Metal Protection have been galvanising steel in New Zealand since 1974
  • A long time proven solution to protecting steel from atmospheric corrosion
Other Performance Attributes
  • Standard 15 year warranty
  • 'Life before first maintenance' — see Specifying Hot Dip Galvanising Guide
Documents
Design Guide
Design Principles
Specification Clause/Guide
Specifying Hot Dip Galvanising
Coating Selection Process

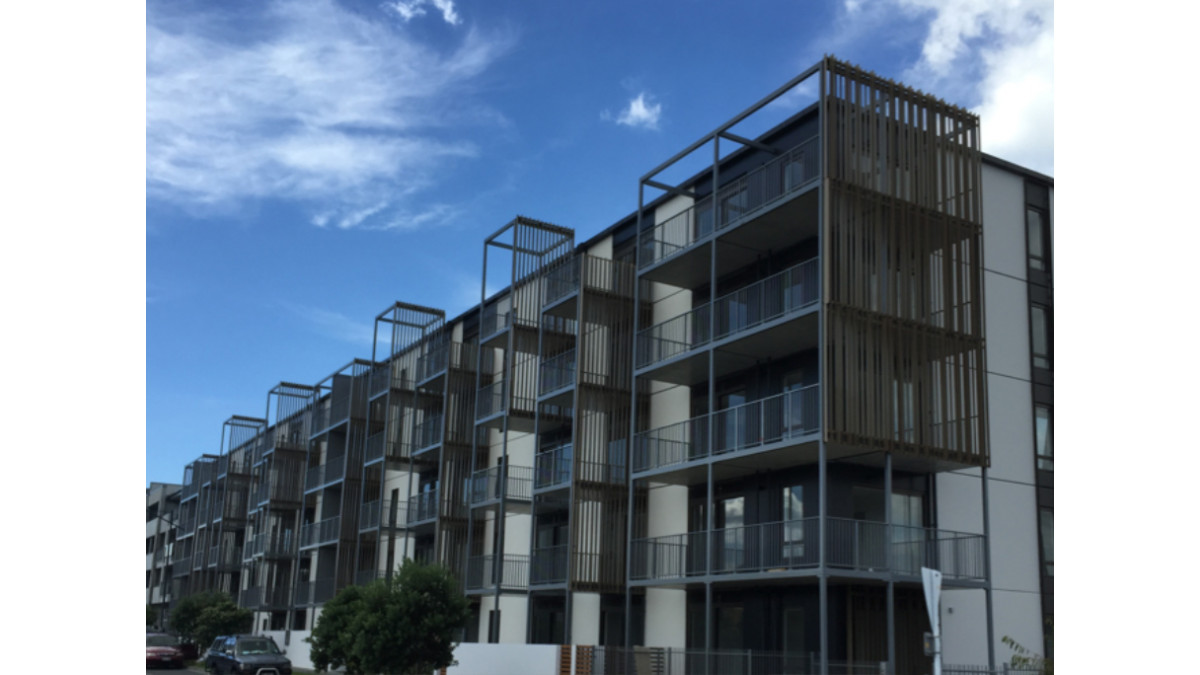

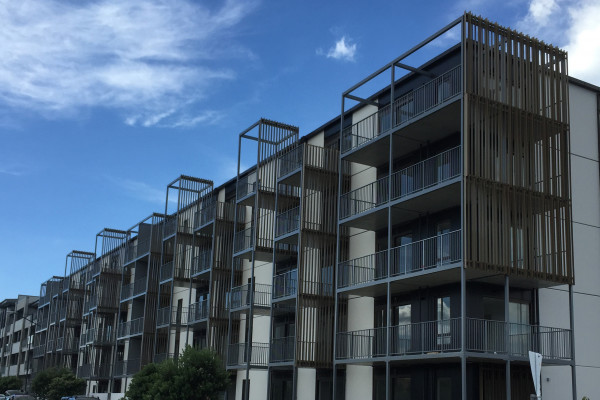

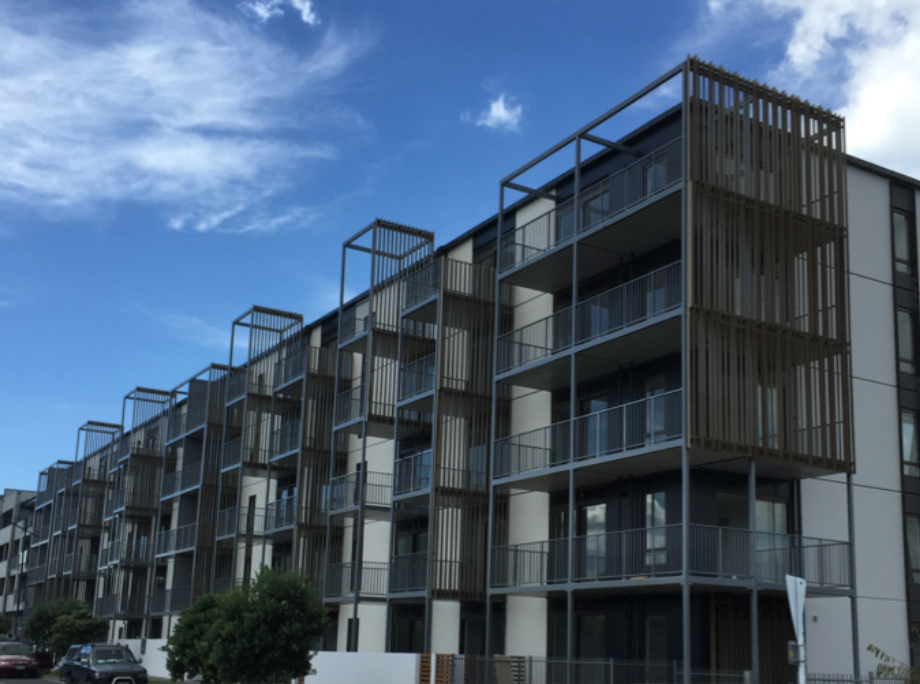

Case Study: Ilico Apartments

Perry Metal Protection operates sites in Auckland, Hamilton, Wellington and Christchurch which offer highly efficient galvanising facilities, as well as a collection depot in Tauranga.

Product Enquiries

News from Perry Metal Protection

Galvanising Ensures a More Resilient Structure for Prefab Factory
Galvanising Steel Retaining Walls: Maximum Value in Greenfield Developments

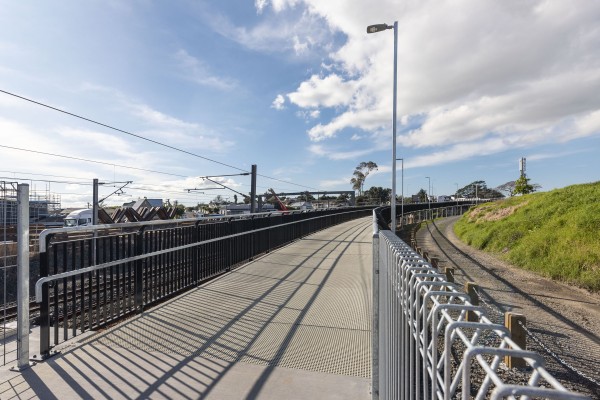

How Galvanising Kept the NL2A Shared Pathway on Track
