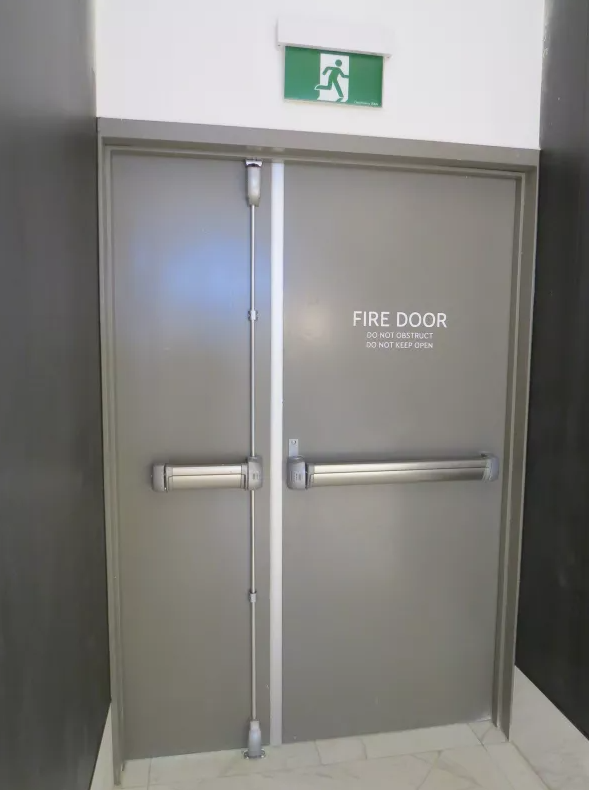

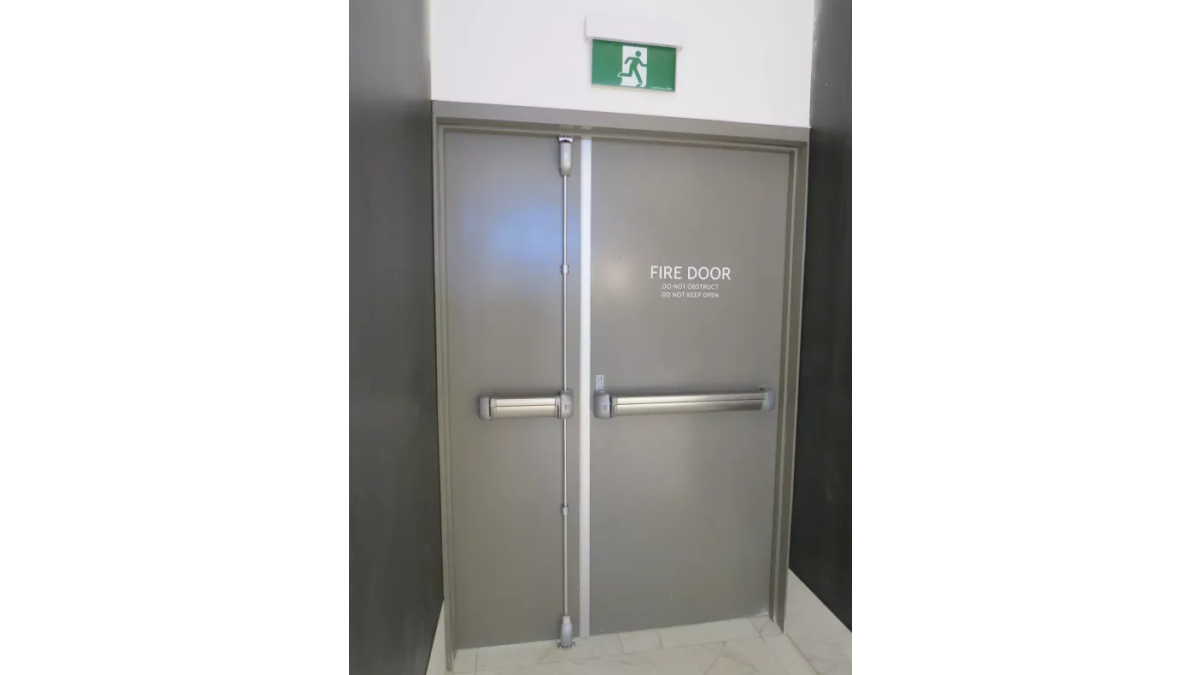

• Suitable for use where 30min fire rating is required.
• Single or pair.
• Compatible with timber stud, steel stud, masonry.

Leaf size:

• Timber-framed smoke control doors include a seal in the frame. Steel-framed doors include the PFS-4 frame seal. If required, bottom seals can be selected from the Hardware list.
• The thickness of the VP30A door leaf is 48mm with an approximate base leaf weight of 24kg/m2.

Wall type:

• Can be installed in masonry walls and timber stud drywalls of at least 30-minute fire resistance, and steel stud drywalls of at least 60-minute fire resistance.

Acoustical performance:

• An acoustic rating of STC 30 is available for this doorset. Tested frame seals are PFS-4, PFS-6 and LE1515. Tested drop seal is IS8011si.
• Doors are not acoustic tested with vision panels.

Thermal insulation:

• This door leaf has a thermal insulation rating (R-value) of 0.536 Km²/W.

• Meets NZS4520.2010 standard

Acoustical performance:

• An acoustic rating of STC 30 is available for this doorset. Tested frame seals are PFS-4, PFS-6 and LE1515. Tested drop seal is IS8011si.
• Doors are not acoustic tested with vision panels.

Thermal insulation:

• This door leaf has a thermal insulation rating (R-value) of 0.536 Km²/W.
