Austvision SpiderFit Spider Fittings — Heavyweight
Description

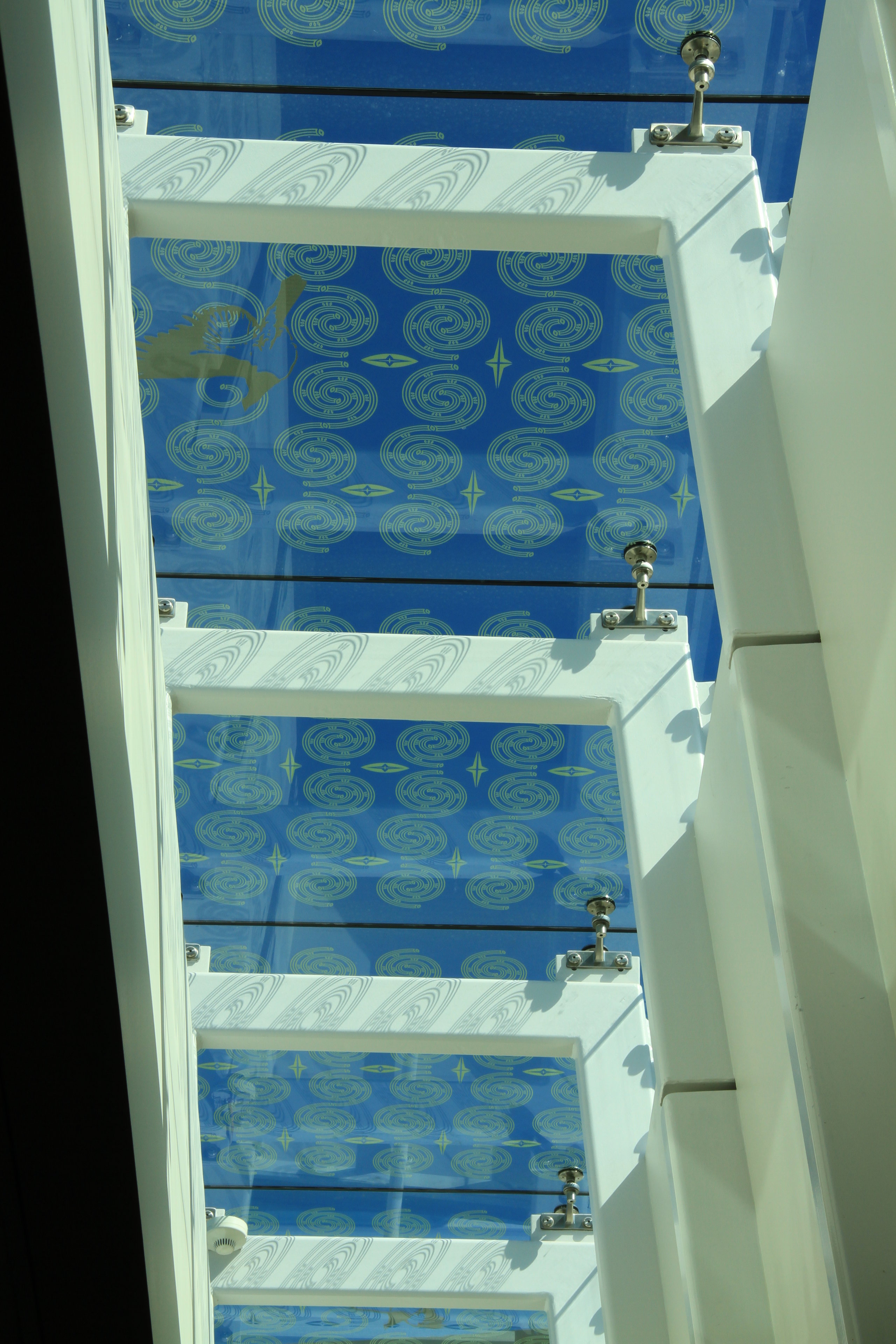

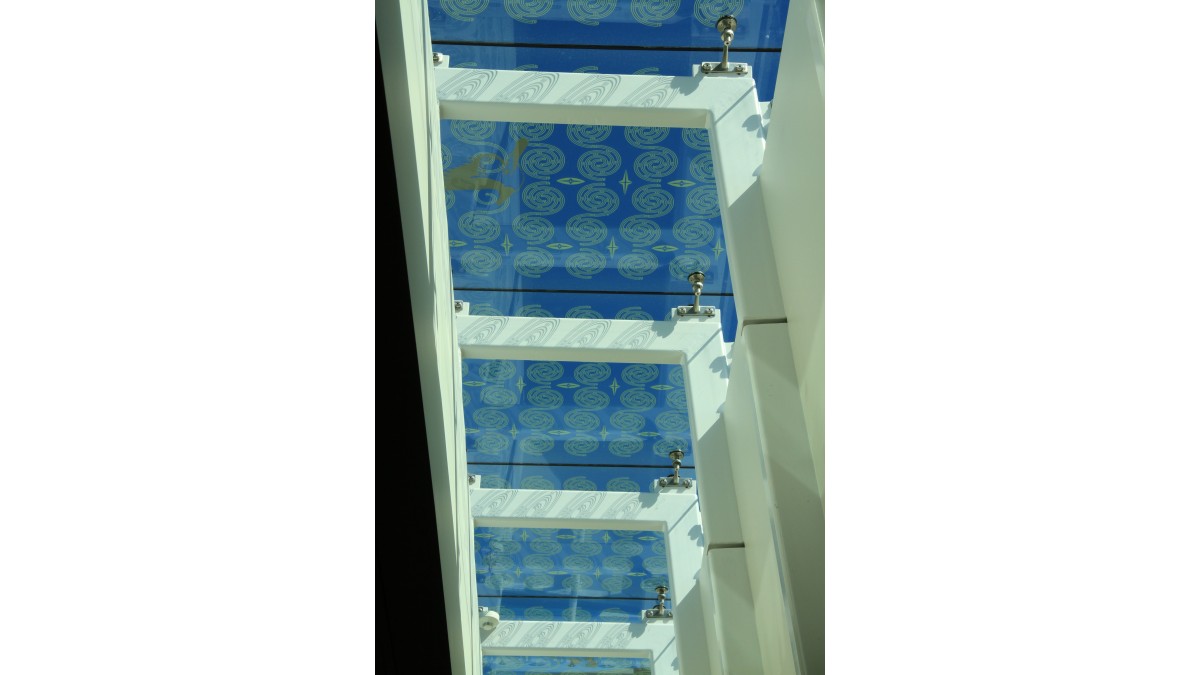

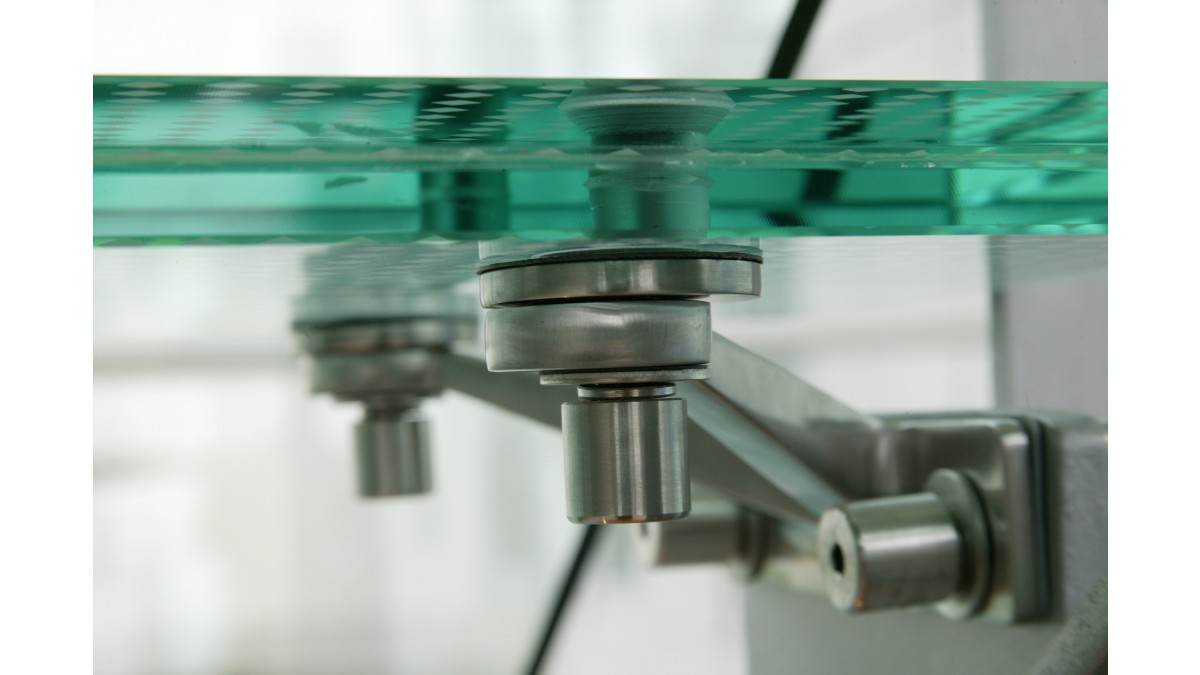

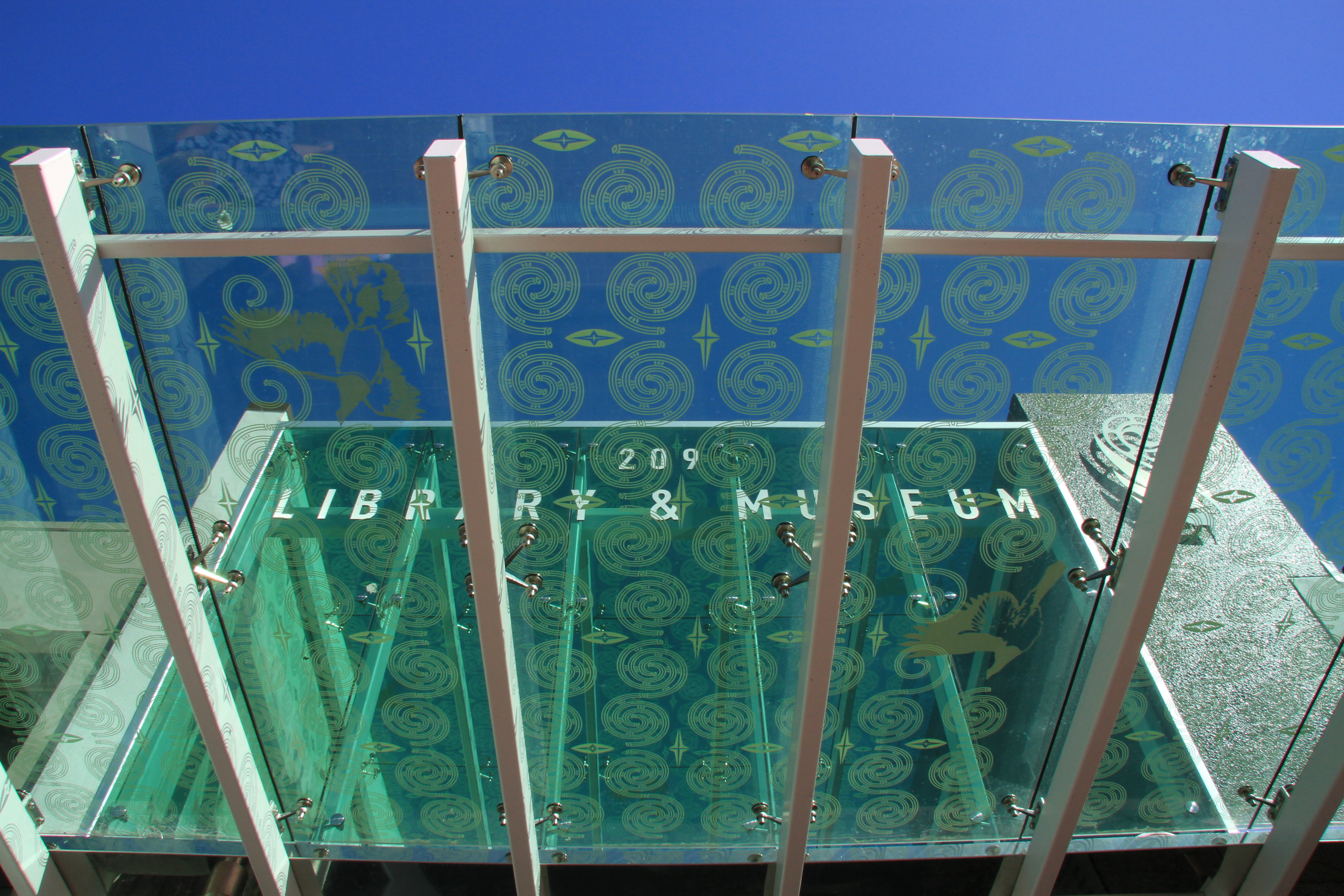

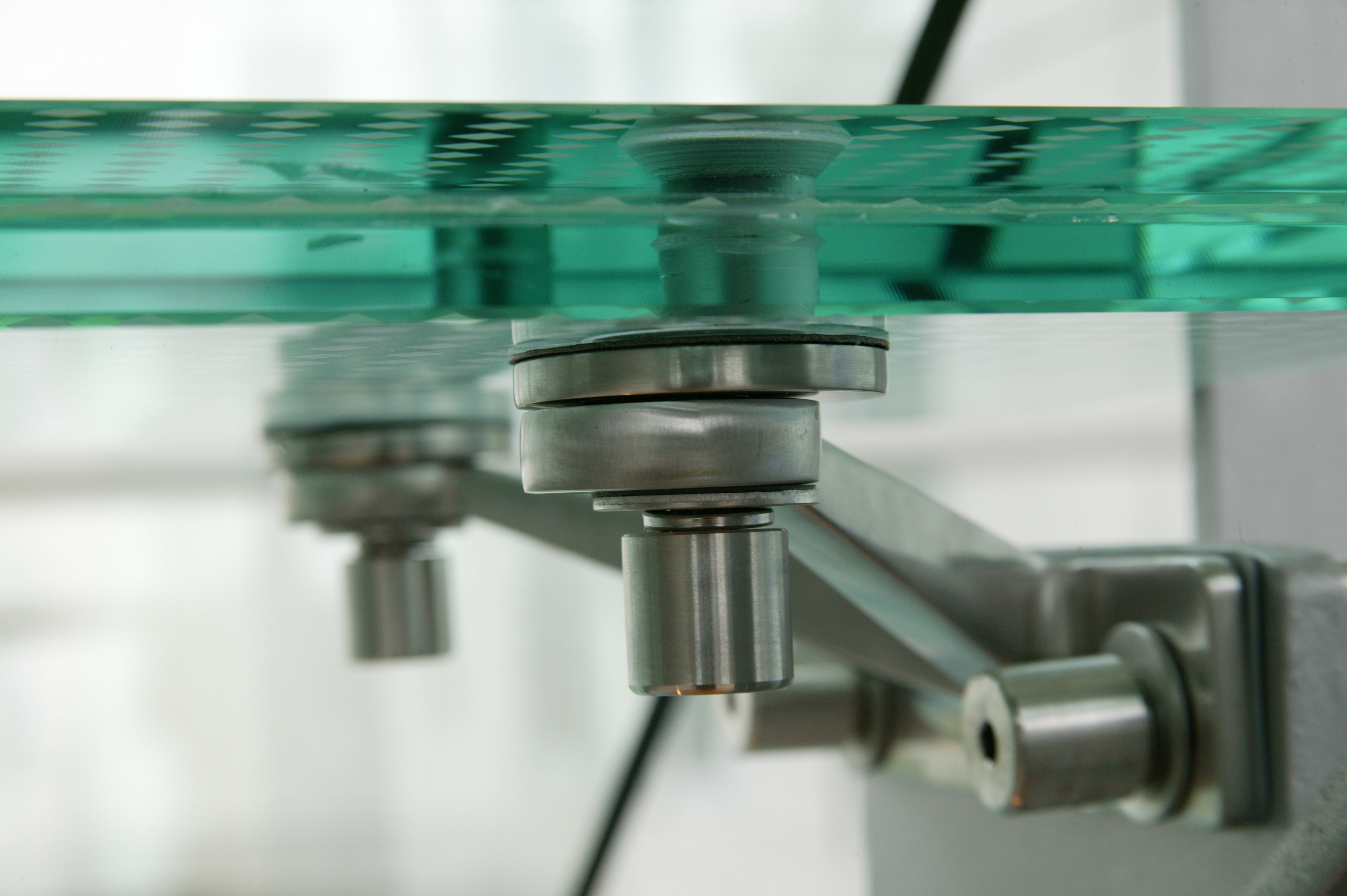

The Austvision SpiderFit provides a full range of cast 316 marine grade stainless steel spider fittings used in frameless glass point supported glass systems.

Key Features

Heavy Duty:

  • 445 series – 4, 3, 2 or 1 way

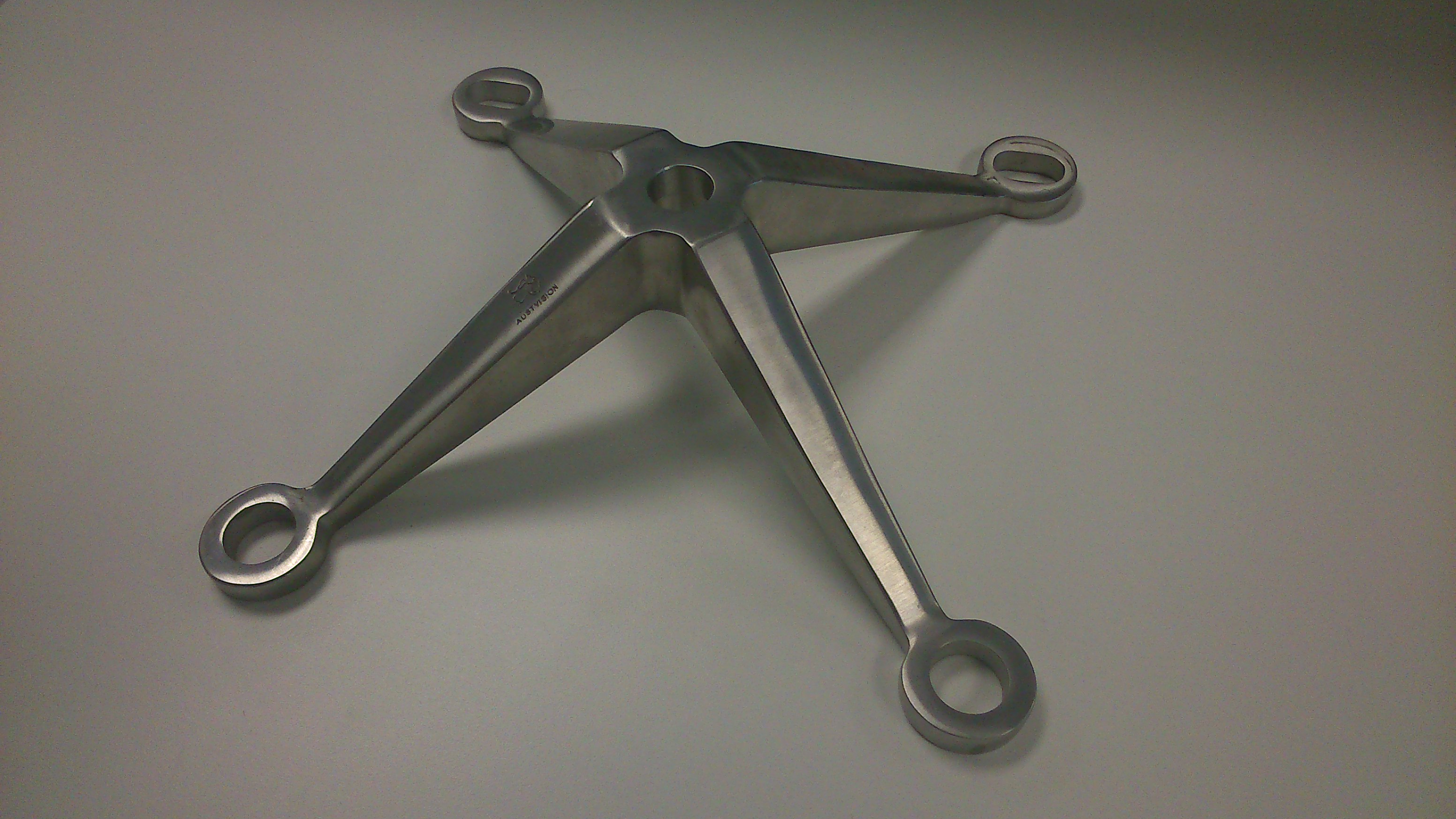

  • 446 series – 4, 3, 2 or 1 way
  • 448 series – 2 way

Door Series:

  • 421, 451, 452 and 453 Spider series
Limitations on Use

All the appropriate hole details for each fitting are provided with each type of spider fitting. In cases where no hole detail is provided, please contact MFG for the specific details.

Documents
Warranty
Austvision Frameless Assemblies Catalogue
CAD/PDF Details

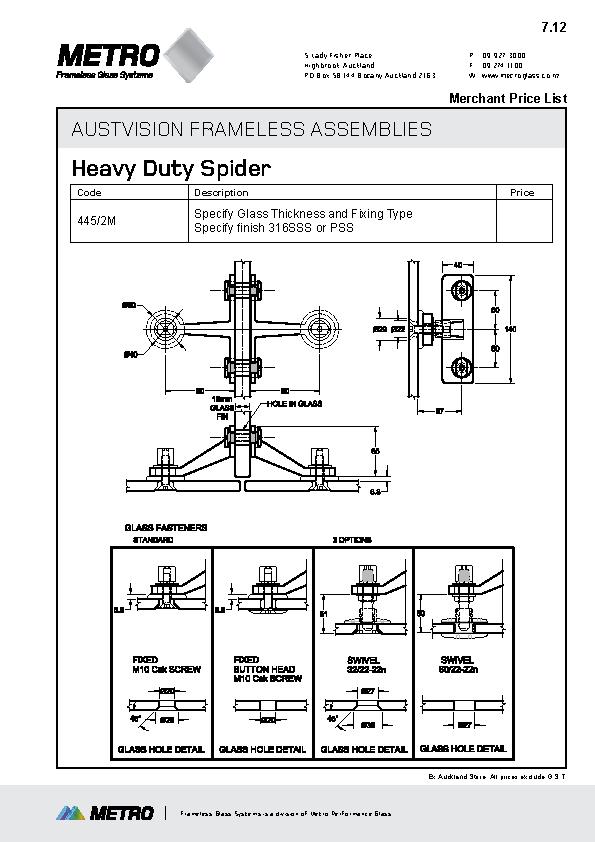

7.12 - 445/2M Heavy Duty Spider

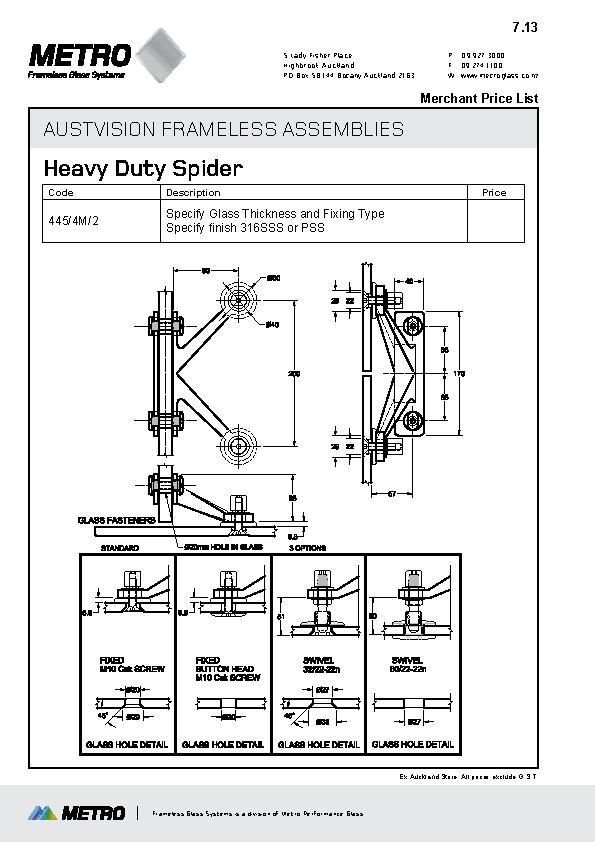

7.13 - 445/4M/2 Heavy Duty Spider
7.14 - 445/2M/1 Heavy Duty Spider

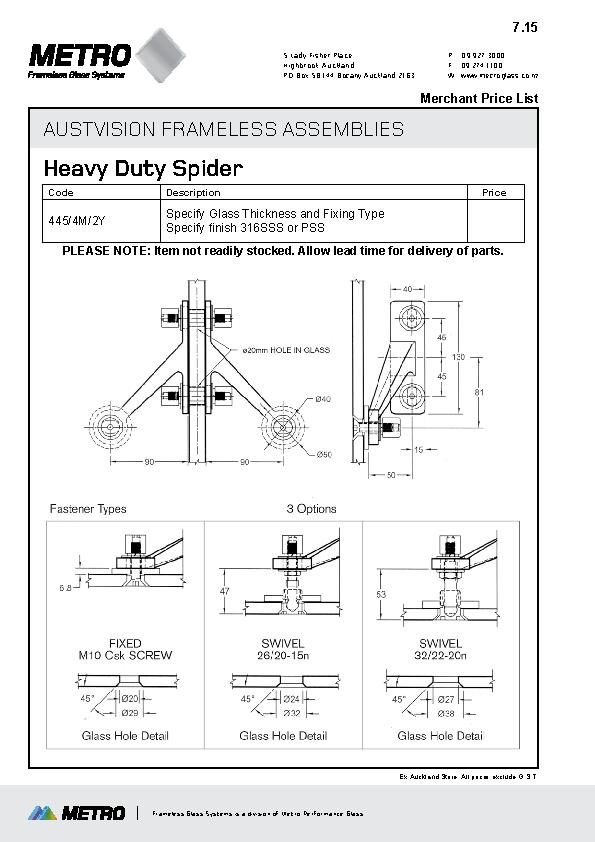

7.15 - 445/4M/2Y Heavy Duty Spider

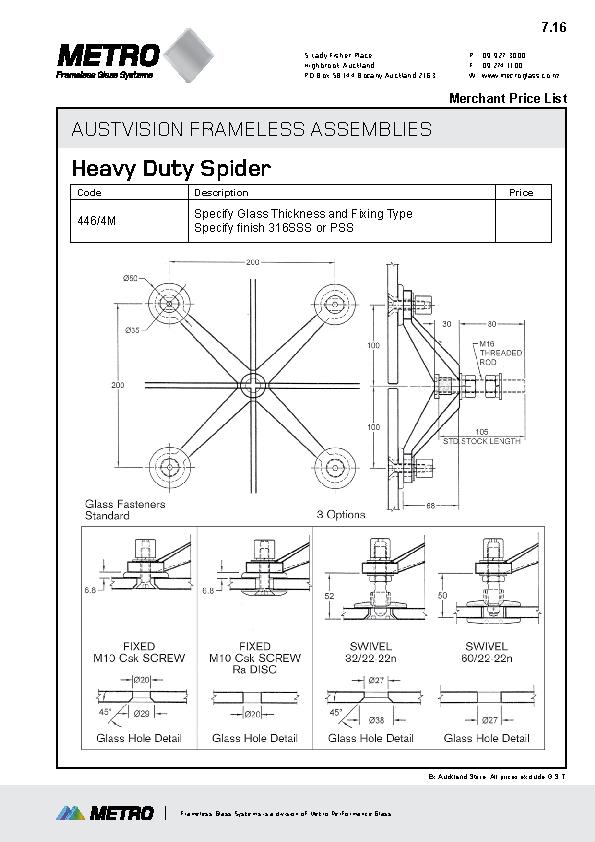

7.16 - 446/4M Heavy Duty Spider

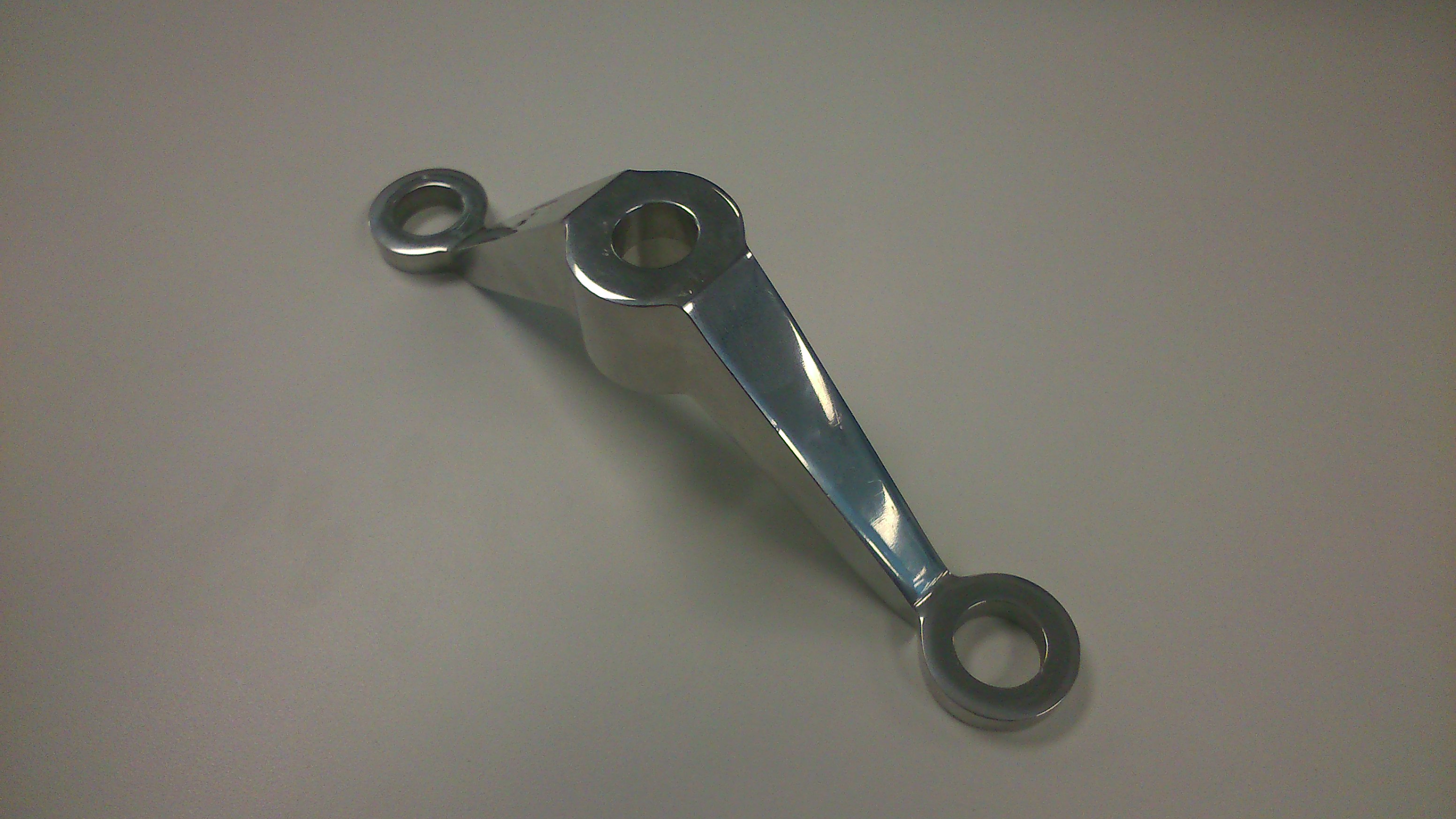

7.17 - 446/2M Heavy Duty Spider

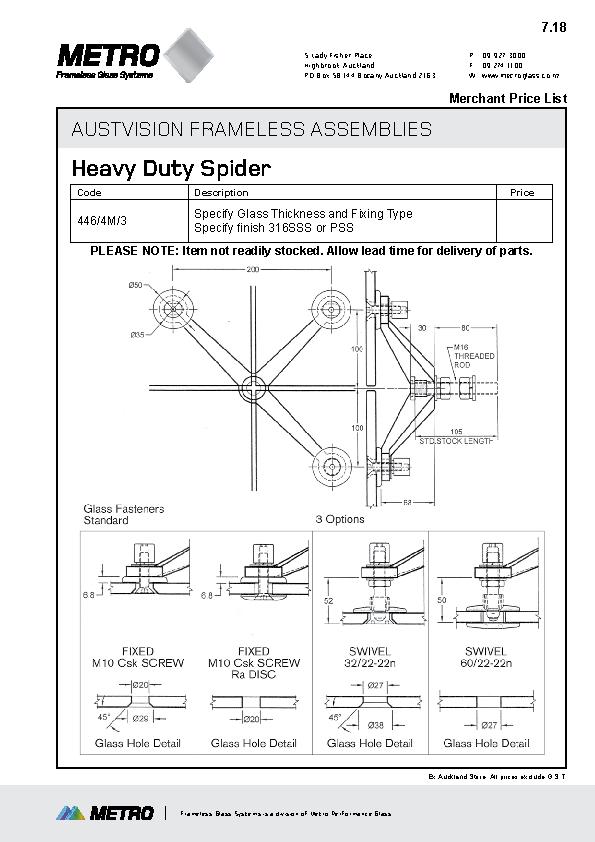

7.18 - 446/4M/3 Heavy Duty Spider

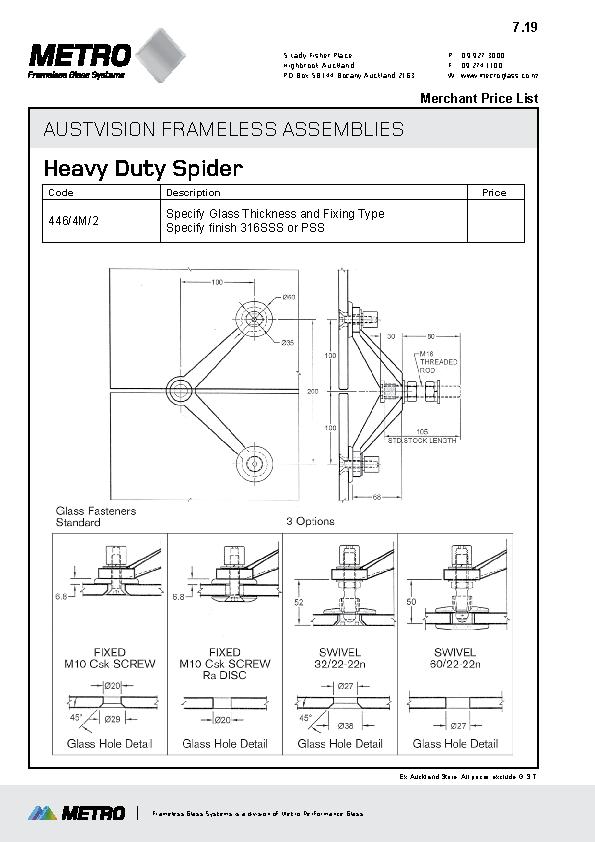

7.19 - 446/4M/2 Heavy Duty Spider

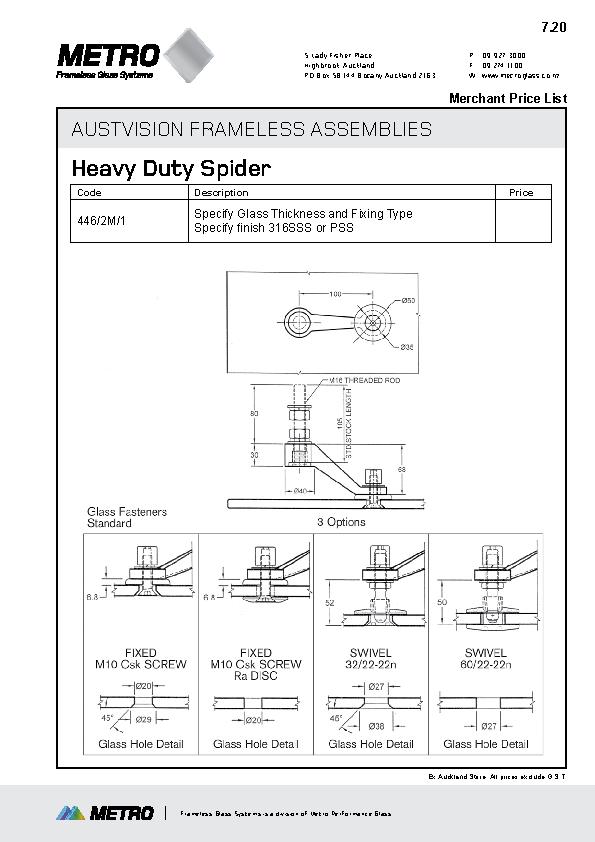

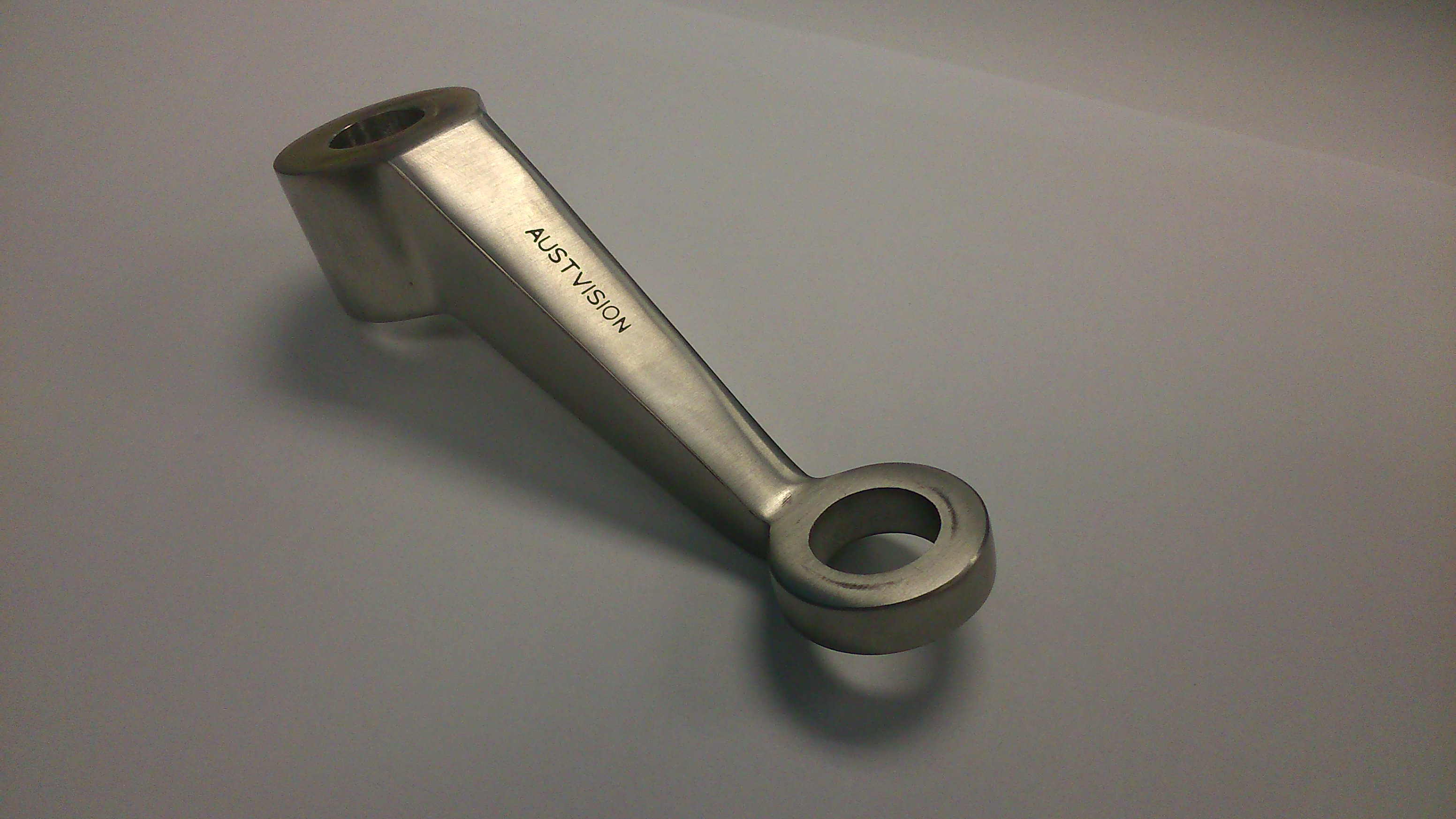

7.20 - 446/2M/1 Heavy Duty Spider

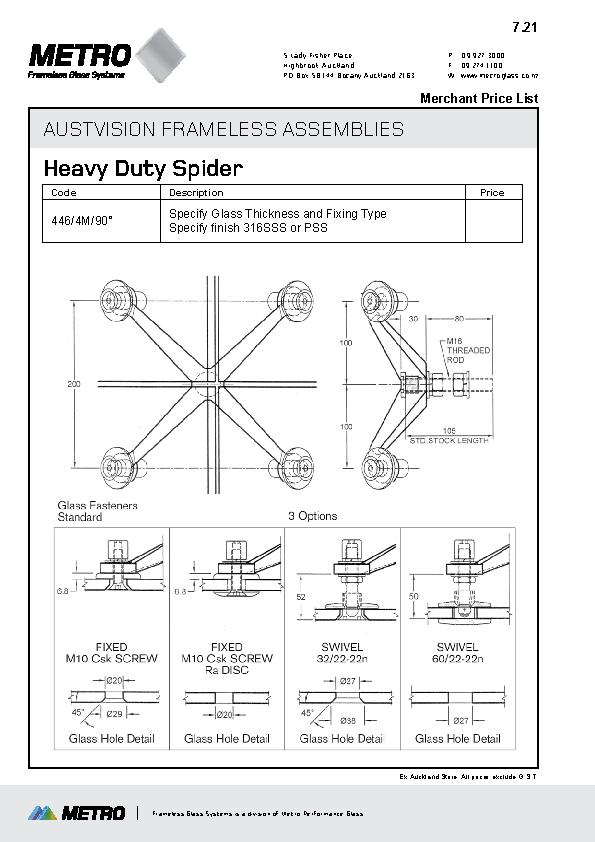

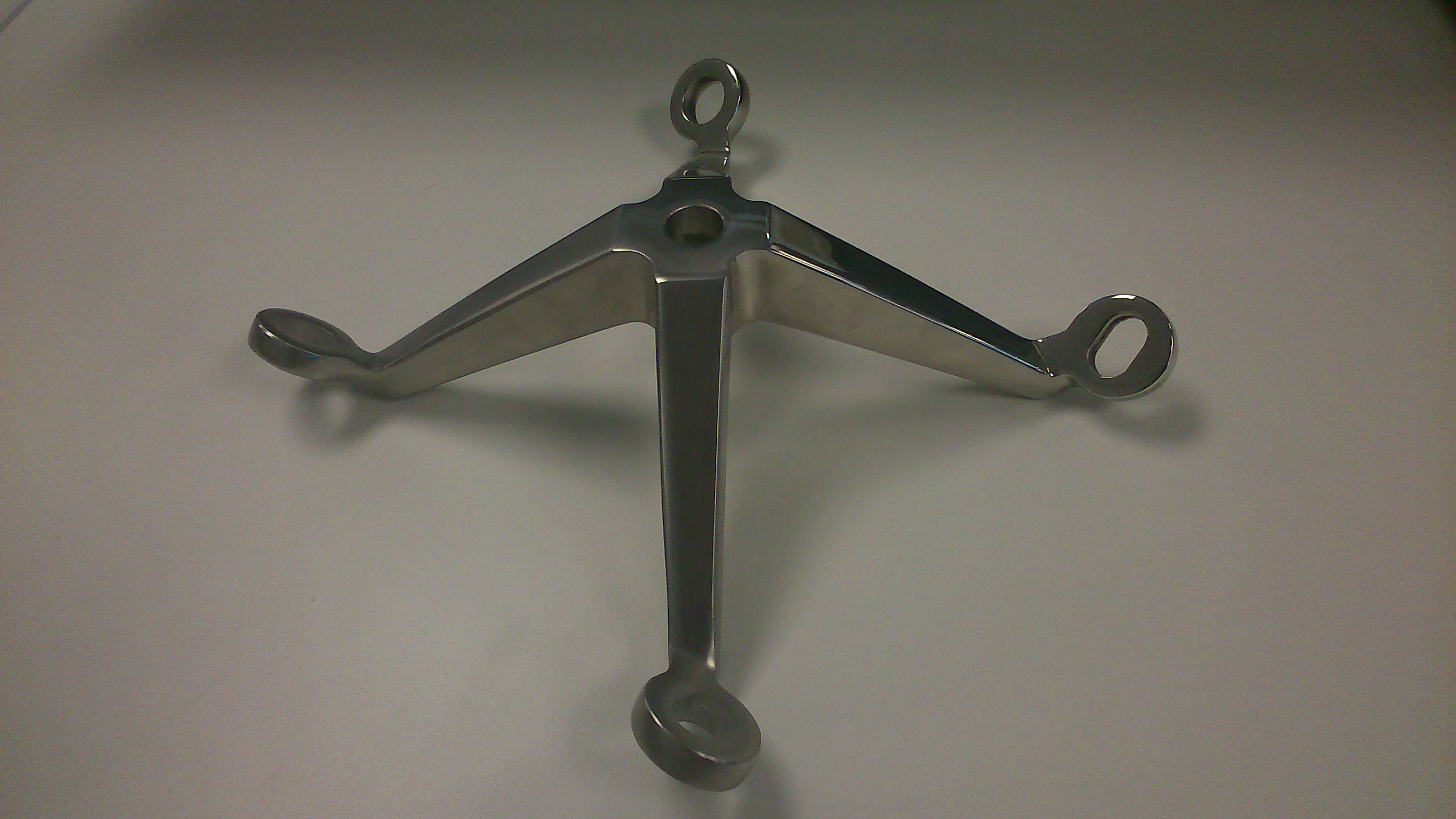

7.21 - 446/4M/90 Heavy Duty Spider

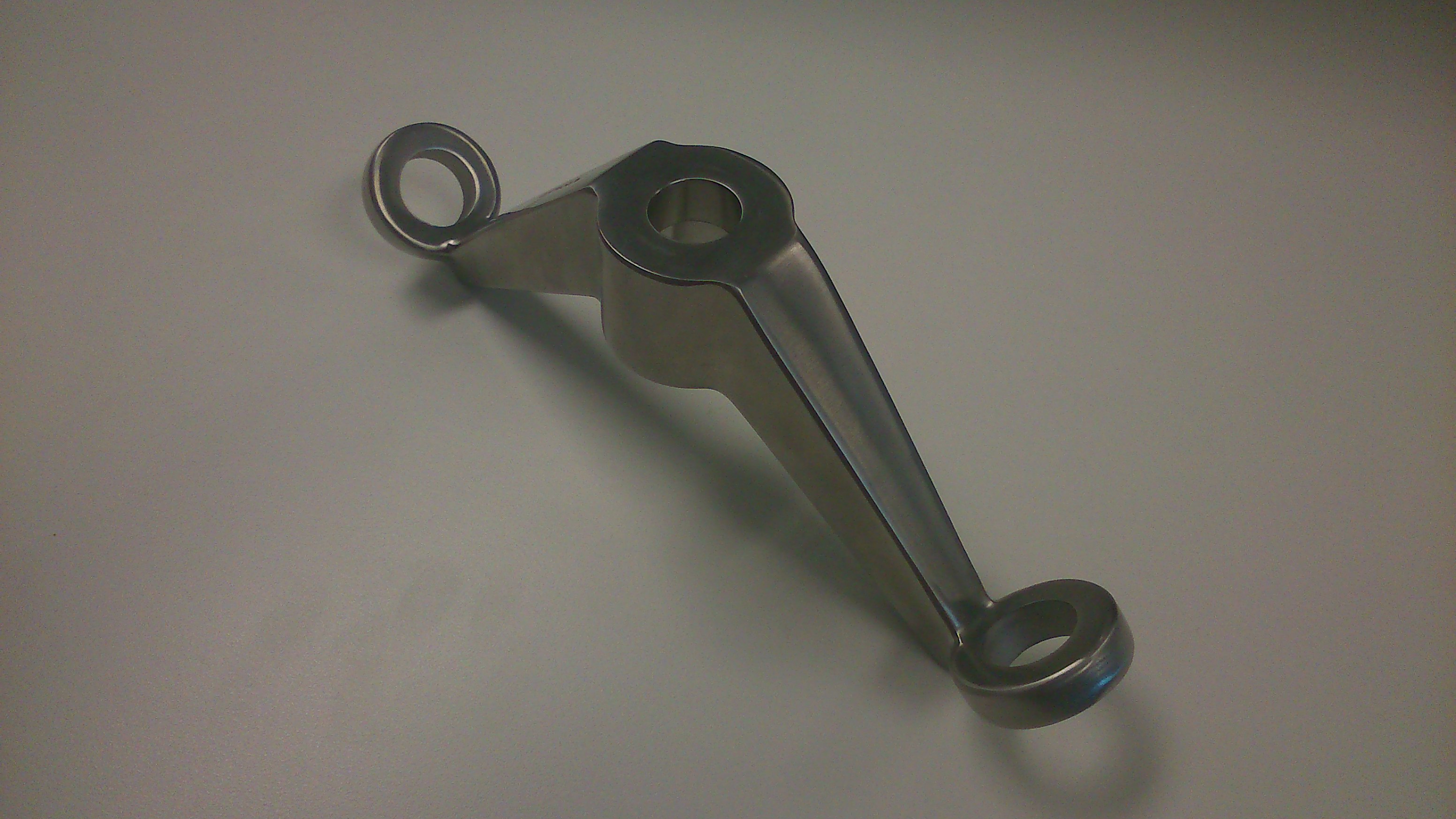

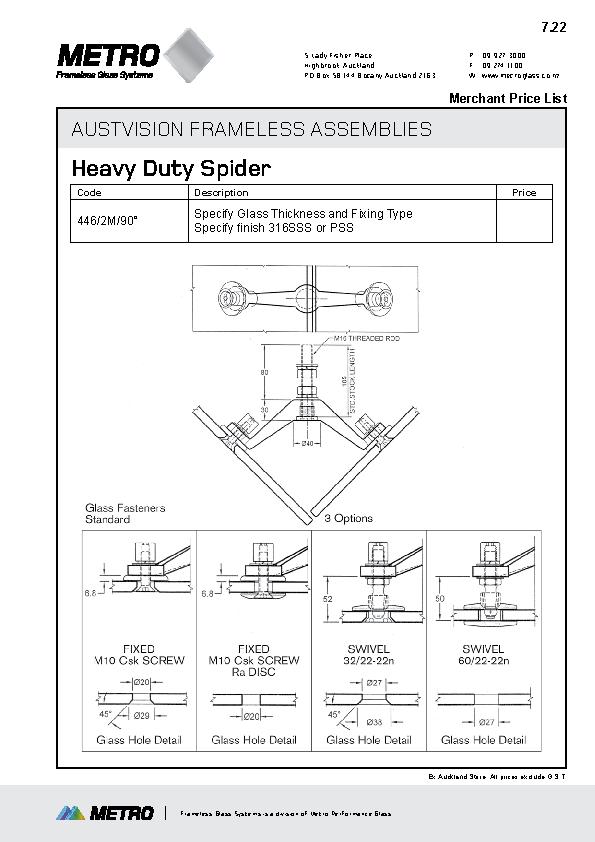

7.22 - 446/2M/90 Heavy Duty Spider

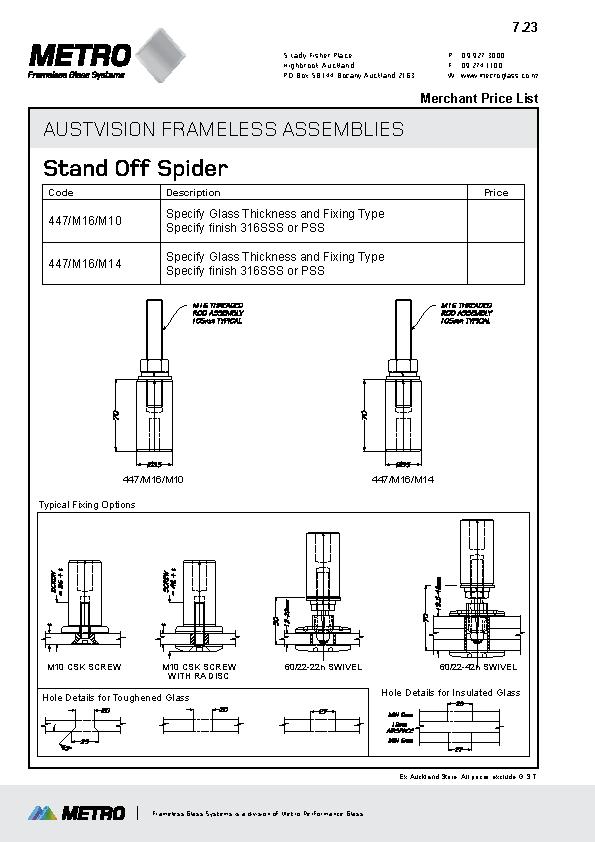

7.23 - Stand Off Spider 447

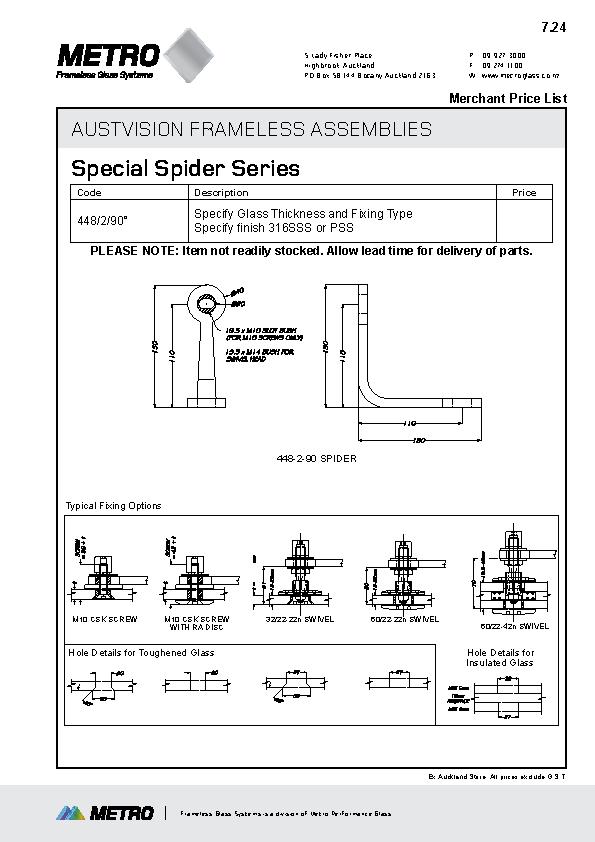

7.24 - Special Spider Series

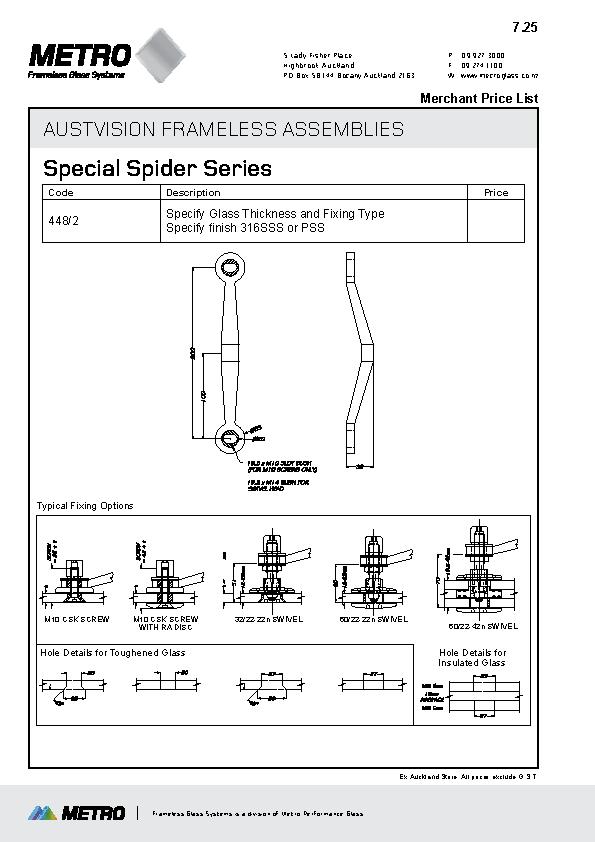

7.25 - Special Spider Series
