Metrib 750 Roofing and Wall Cladding System
Description

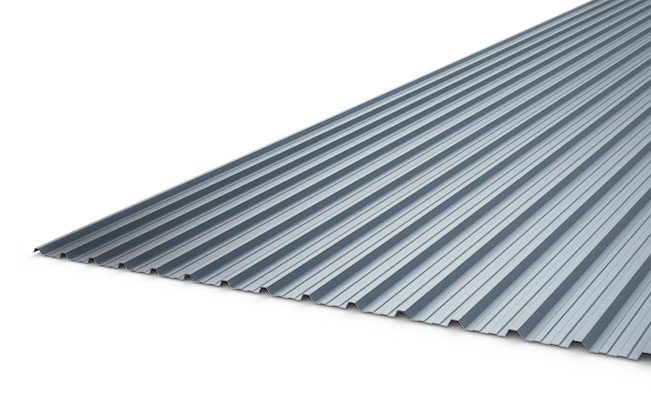

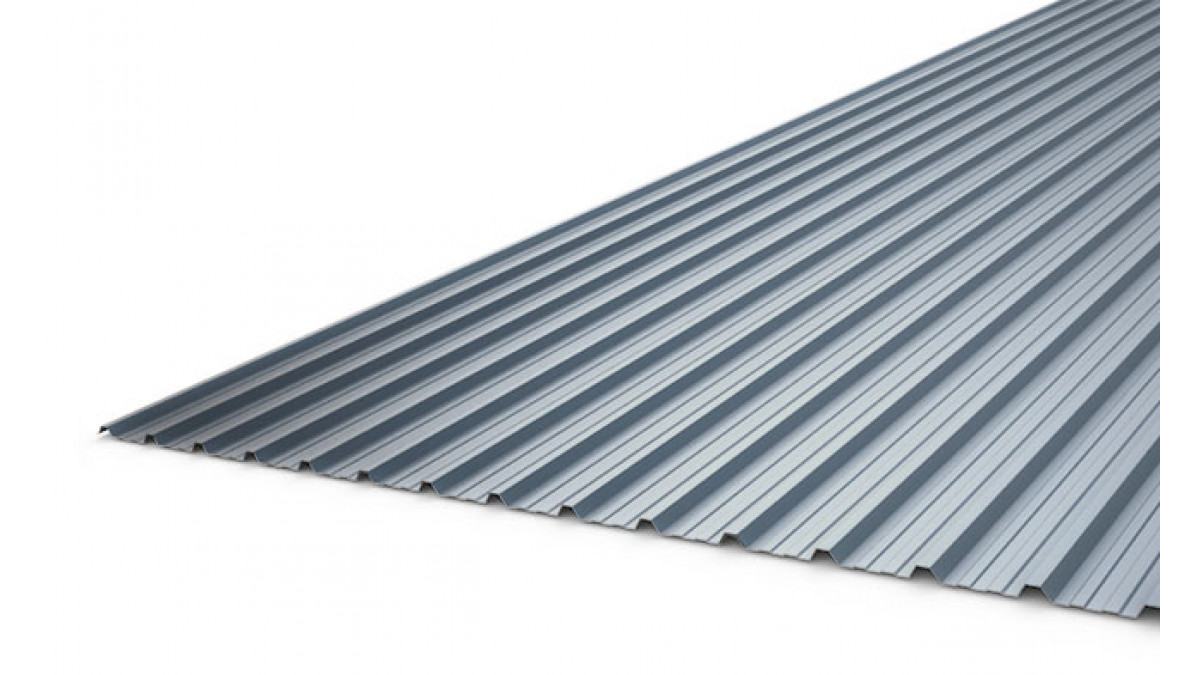

Metrib 750 Roofing and External Wall Cladding system is comprised of along run steel sheet with a 6 rib trapezoidal profile, along with associated design and installation information.

Metalcraft fabricates the Metrib 750 sheets from steel manufactured by New Zealand Steel. This steel is supplied with different protective coatings which are designed to withstand conditions in specific New Zealand Corrosion Zones.

Key Features
  • 6 rib trapezoidal profile
  • Suitable for roofing, and horizontal or vertical cladding
  • Roof pitches down to 8°
  • Bullnose, Drape and Spring Curving options available
  • Metrib 750 sheets are available in Colorsteel® Endura®, Galvsteel®, Colorsteel® Maxx®, and Zincalume®
  • Metrib 750 sheets are available in the following sizes:
    • Thicknesses: 0.4mm and 0.55mm
    • Width: Cover = 750mm Sheet = 800mm
Scope of Use

Metalcraft Roofing supply the Metrib 750 system as a horizontal and vertical external wall cladding, and for roofs with a defined minimum pitch for 8 degrees, for use on commercial and residential buildings within the following scope:

Location:

  • In wind zones:
    • Up to and including Extra High as defined by NZS-3604:2011
    • Subject to specific engineering, if the engineer has satisfied themselves that the product, pitch and fixings will meet the conditions
  • In all climate zones as defined by NZS-3604:2011, subject to the limitations set out below
  • On buildings located within 1m of the relevant boundary, in respect of fire spread only

Building:

  • On new buildings that have been designed and constructed to comply with the NZ Building Code (NZBC) using timber or steel framing
  • On existing buildings using timber and steel framing where the designer and installer have satisfied themselves that the building is suitable for the intended building work
  • In conjunction with a vapour permeable building wrap that has a permeability of 36g/m2/day of a vapour resistance of no more than 500MNs/g
  • Can be used in conjunction with a potable water collection system
Limitations on Use

Location:

  • Metrib 760 may be used as a roof cladding system in exposure zones B, C & D as defined in Sec 4, NZS3604:2011. For use in 'Microclimatic considerations,' (as defined in Sec 4.2.4) refer to Metalcraft Roofing
  • Metrib 750 may be used as a wall cladding system in exposure zones B & C
  • Where Metrib 750 is to be used in exposure Zone D, then only Colorsteel® Endura® or Colorsteel® Maxx® may be used

Building:

  • Where Metrib 750 is used in an insulated building in conjunction with steel framing, a thermal break is required
  • Contact with other materials must be in accordance with Table 21 (E2/AS1), or compatible with the The New Zealand Metal Roofing Manufacturers Association Inc (NZMRM) Code Of Practice
  • Building height and design wind speed is limited by the Metrib 750 design load span tables
  • Where it is used as a roof cladding, Metrib 750 sheet lengths of ≤ 40m must be installed on a roof with a minimum pitch of 8°. MC760 sheet lengths of > 40m but ≤ 60m must be installed on a roof with a minimum pitch of 9°
  • When used horizontally or vertically as a wall cladding, Metrib 750 must always be installed in conjunction with a drained cavity
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

f designed, installed and maintained in accordance with all Metalcraft Roofing requirements, the Metrib 750 Roofing and External Cladding system will comply with or contribute to compliance with the following provisions of the NZ Building Code:

  • B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b, c, d, g, i)
  • B2 Durability: B2.3.1 (b)
  • C3 Fire Affecting Areas Beyond the Fire Source: C3.4(a), C3.5, C3.7 (a)
  • E2 External Moisture: E2.3.1, E2.3.2, E2.3.7 (a-c)
  • F2 Hazardous Building Materials: F2.3.1

See product technical statement for full information.

In-Service History
  • Metrib 760 Roofing and External Cladding system will not contaminate potable water — AS/NZS 4020:2005
Other Performance Attributes
  • Metrib 750 will not contaminate potable water — AS/NZS 4020:2005
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
CAD/PDF Link
Product Technical Statement

02/2022

Loadspan Graph and Fixing Table
Fire Testing Document
Environmental Category Brochure
Metrib 750 Product Brochure
Colour Range
CAD/PDF Details

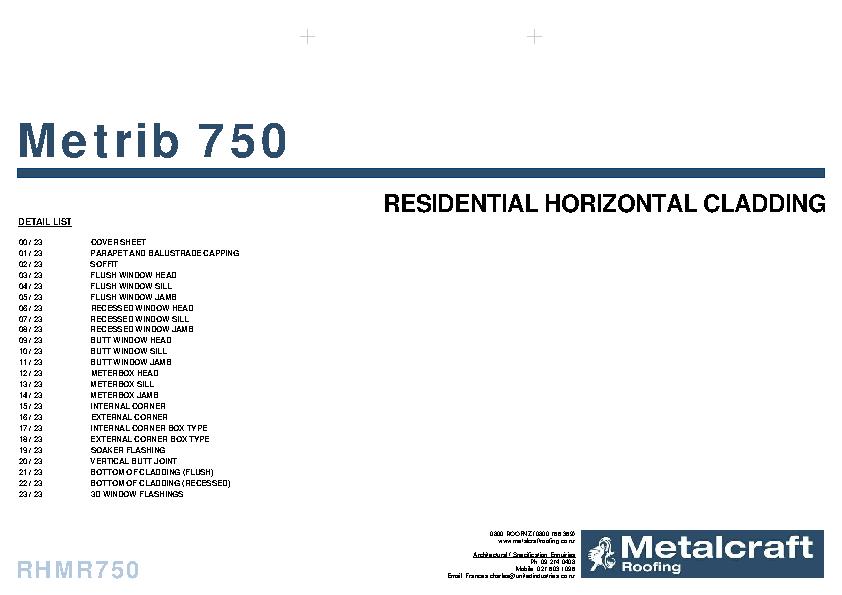

Residential Horizontal Cladding Details
Residential Horizontal Cladding Details DWG
Residential Horizontal Cladding Details DXF

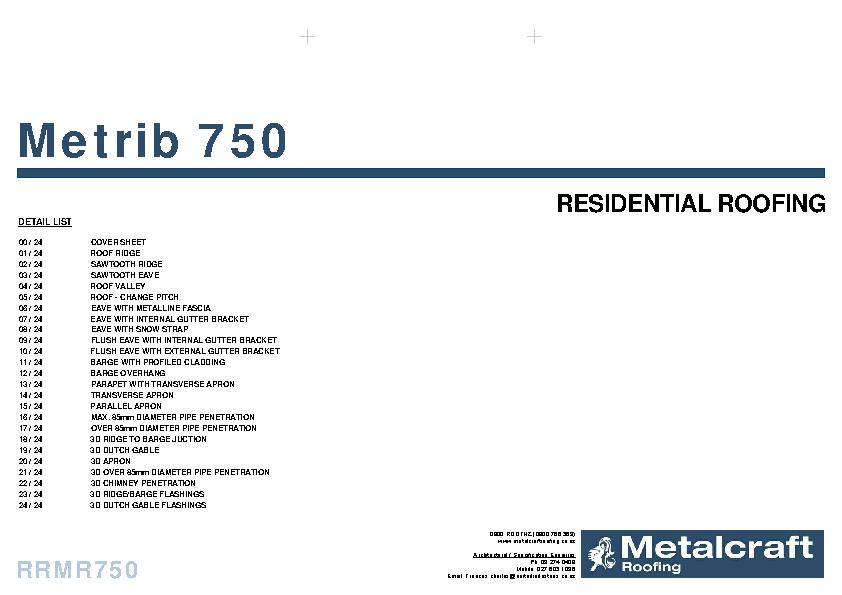

Residential Roof Details
Residential Roof Details DWG
Residential Roof Details DXF

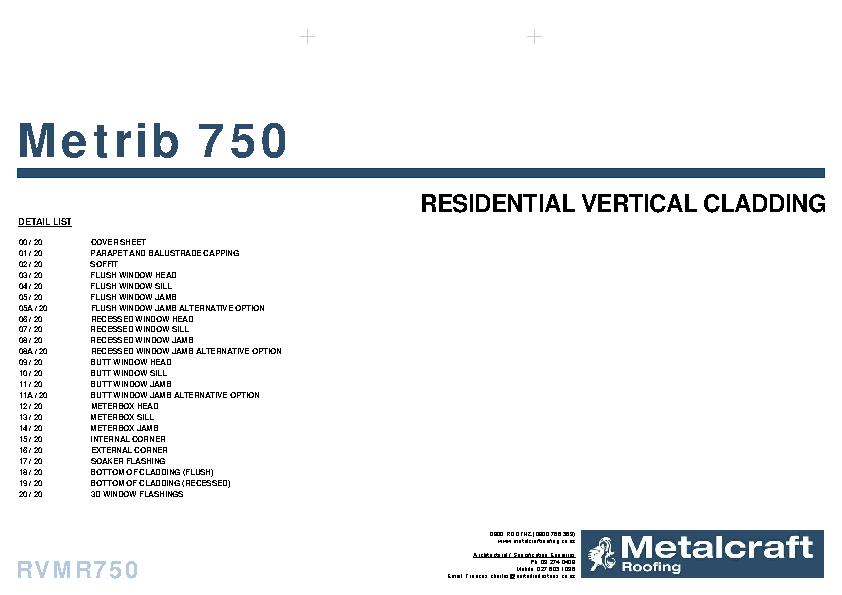

Residential Vertical Cladding Details
Residential Vertical Cladding Details DWG
Residential Vertical Cladding Details DXF
Residential Vertical Cladding Details RVT
BIM
Residential Horizontal Cladding Details RVT
Residential Roof Details RVT
