Euro Snaplock

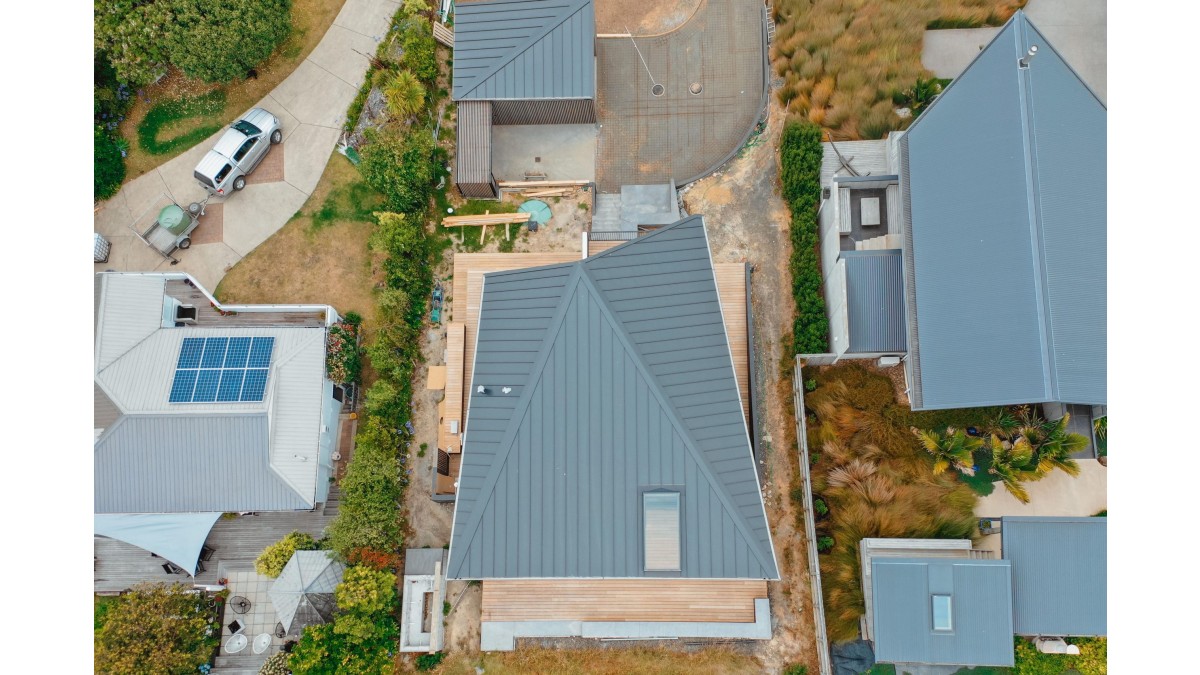

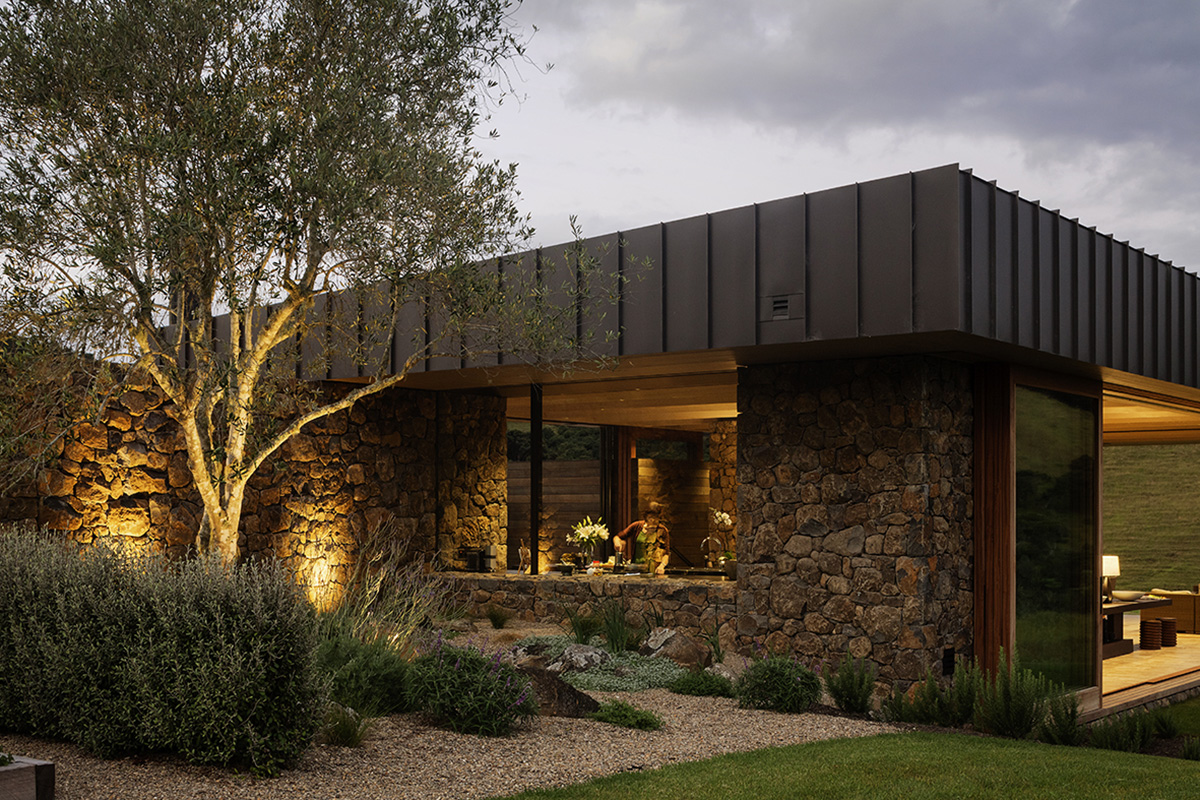

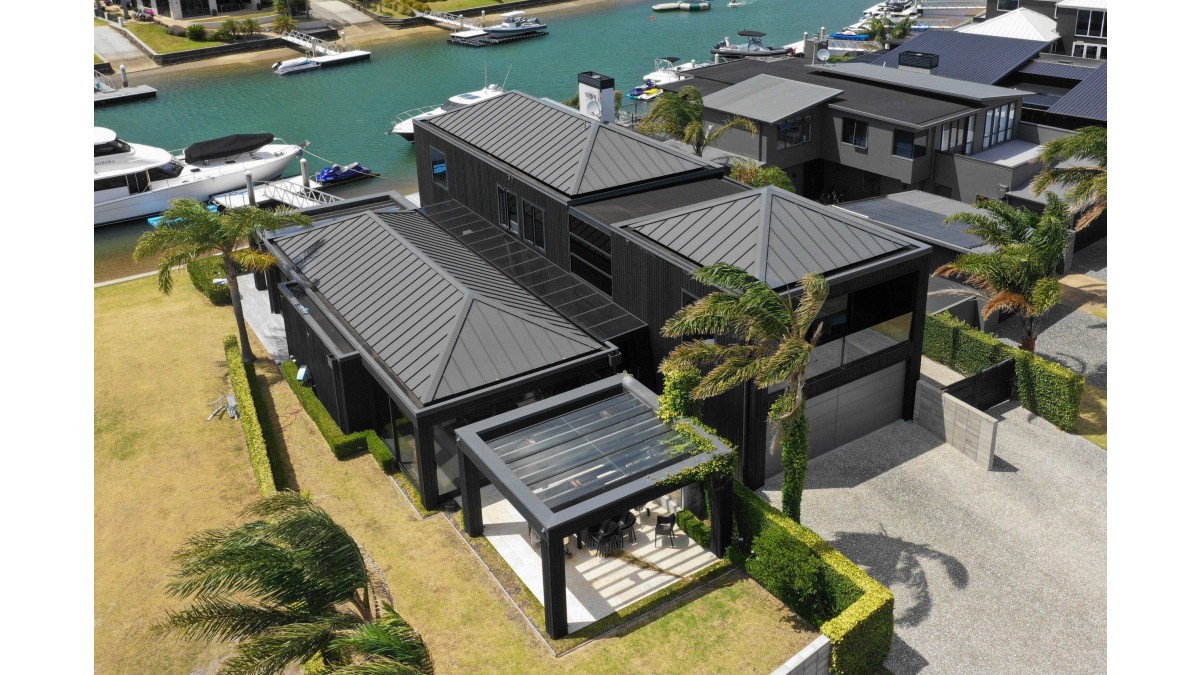

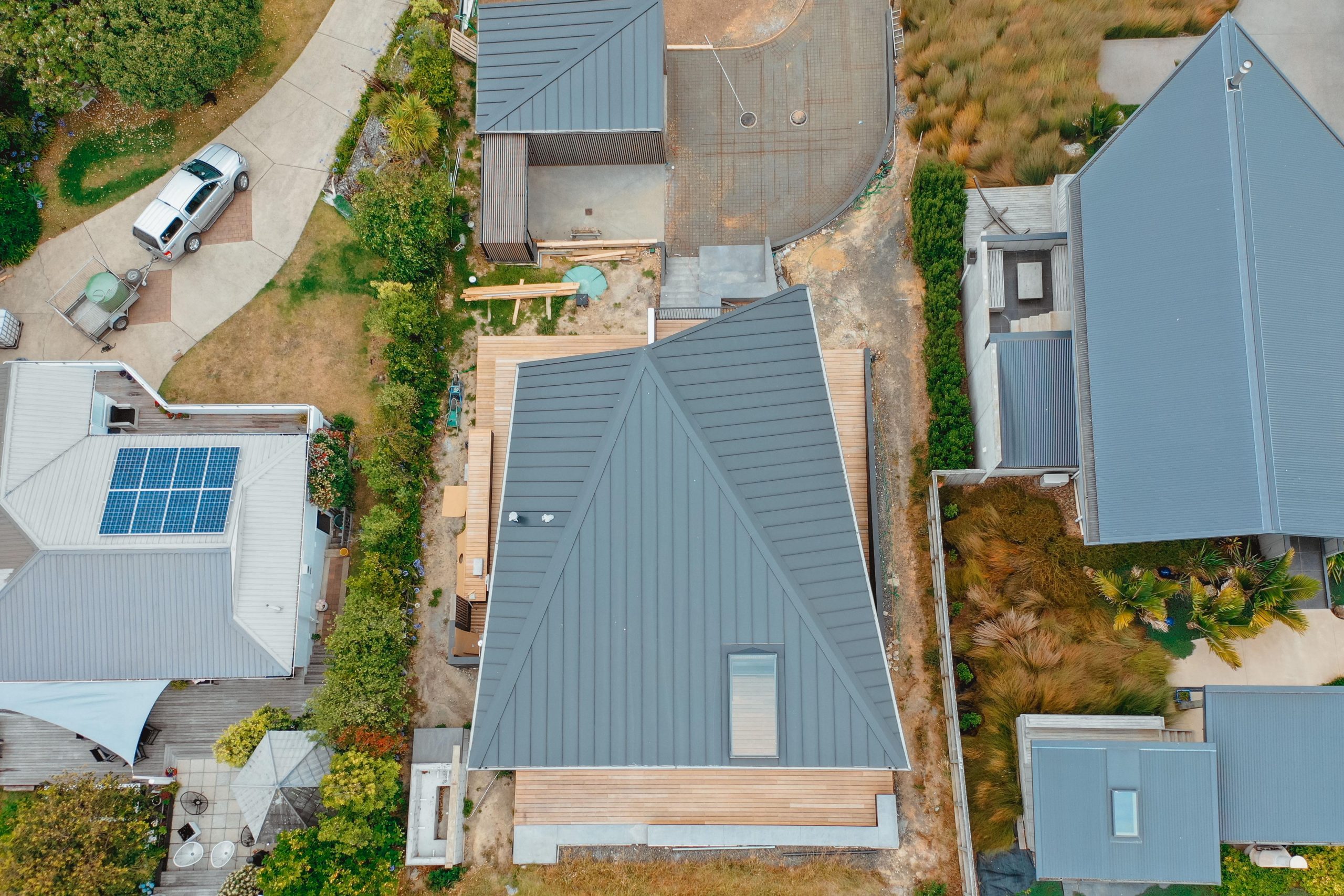

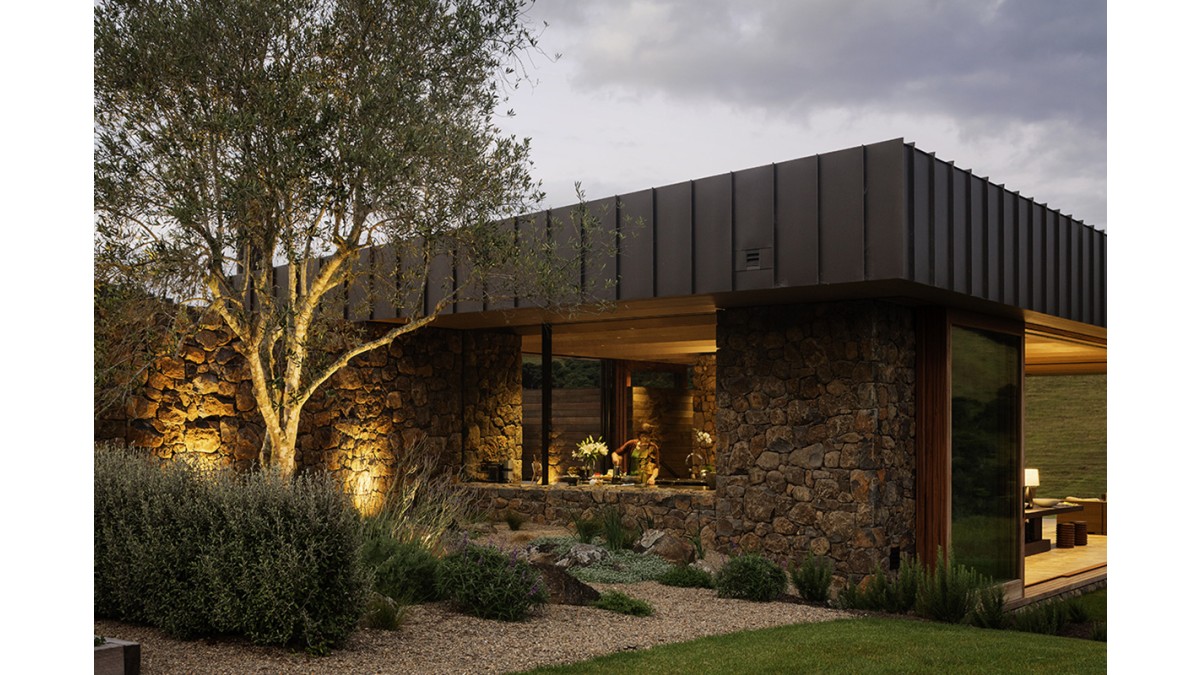

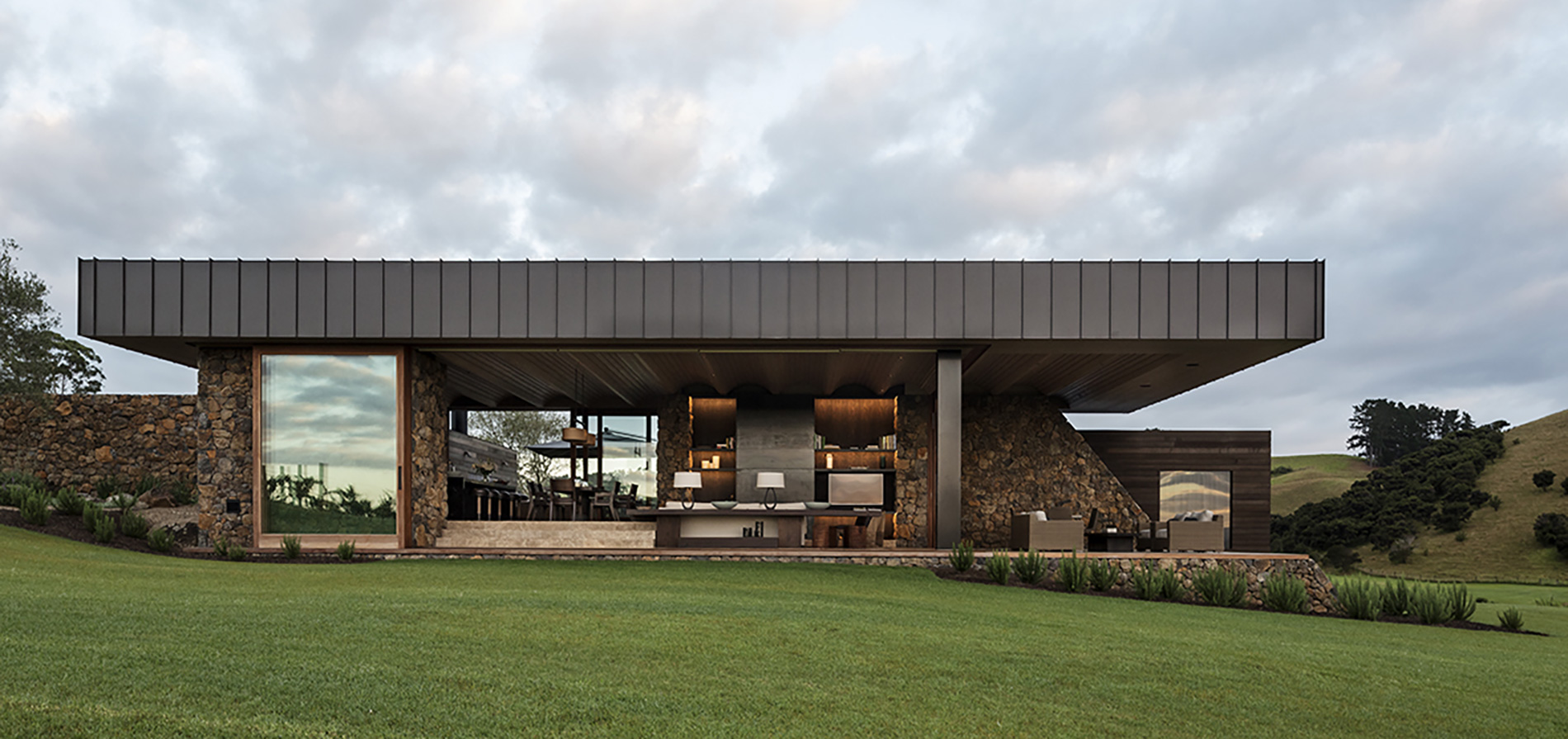

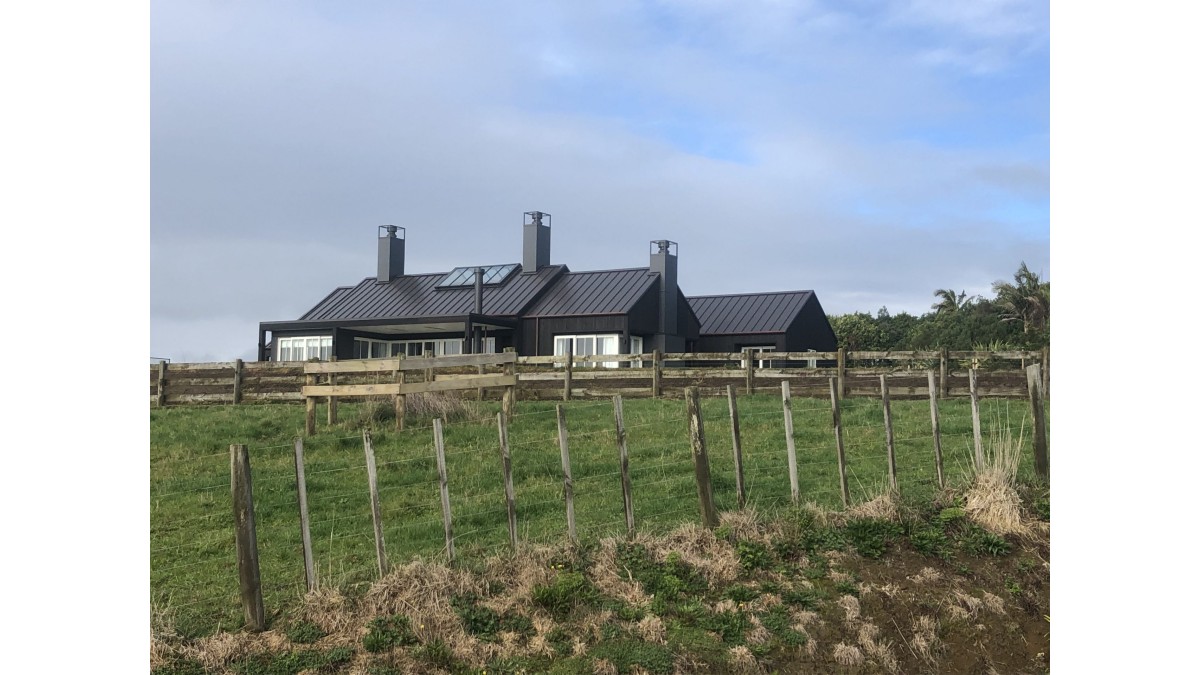

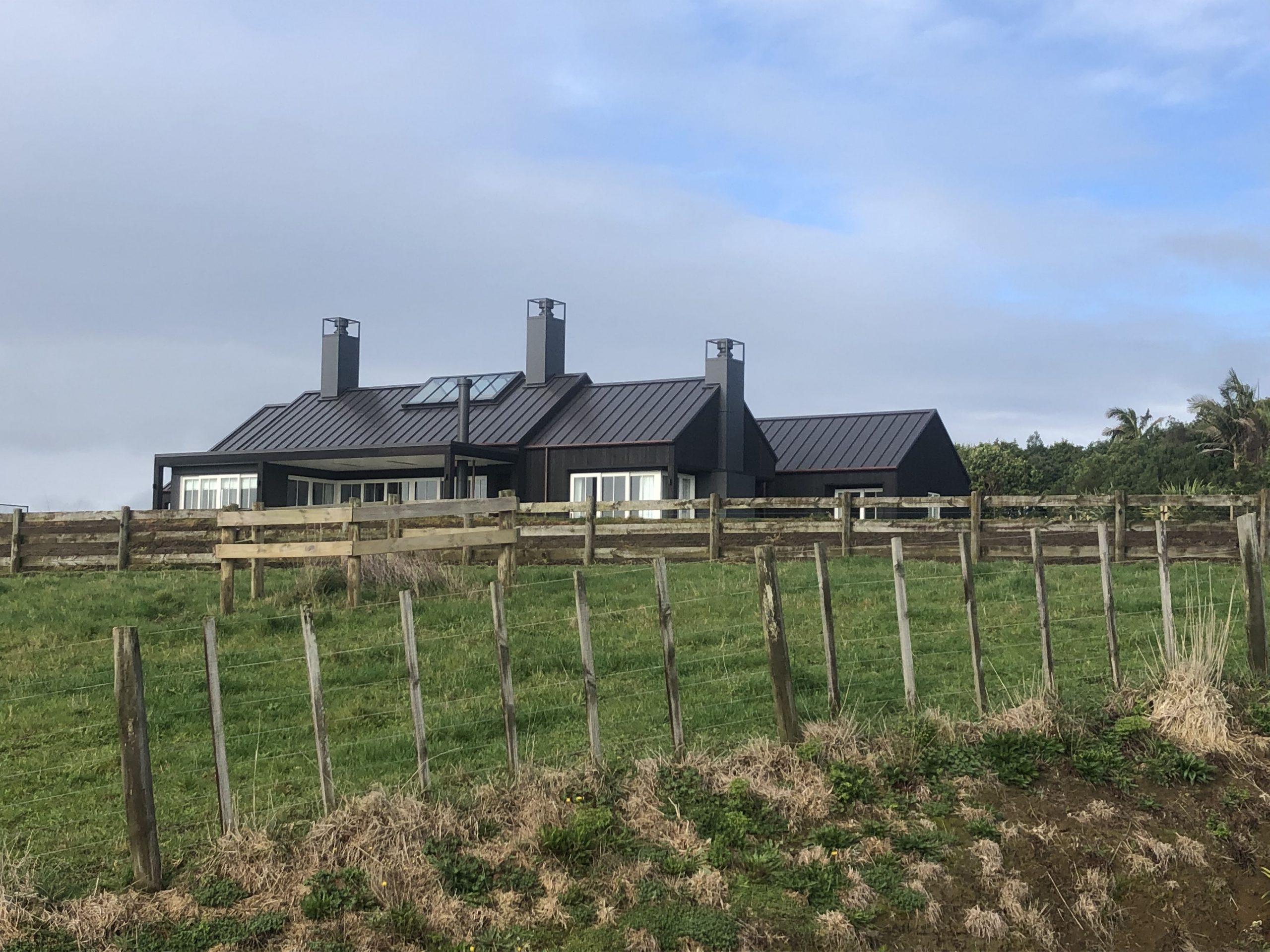

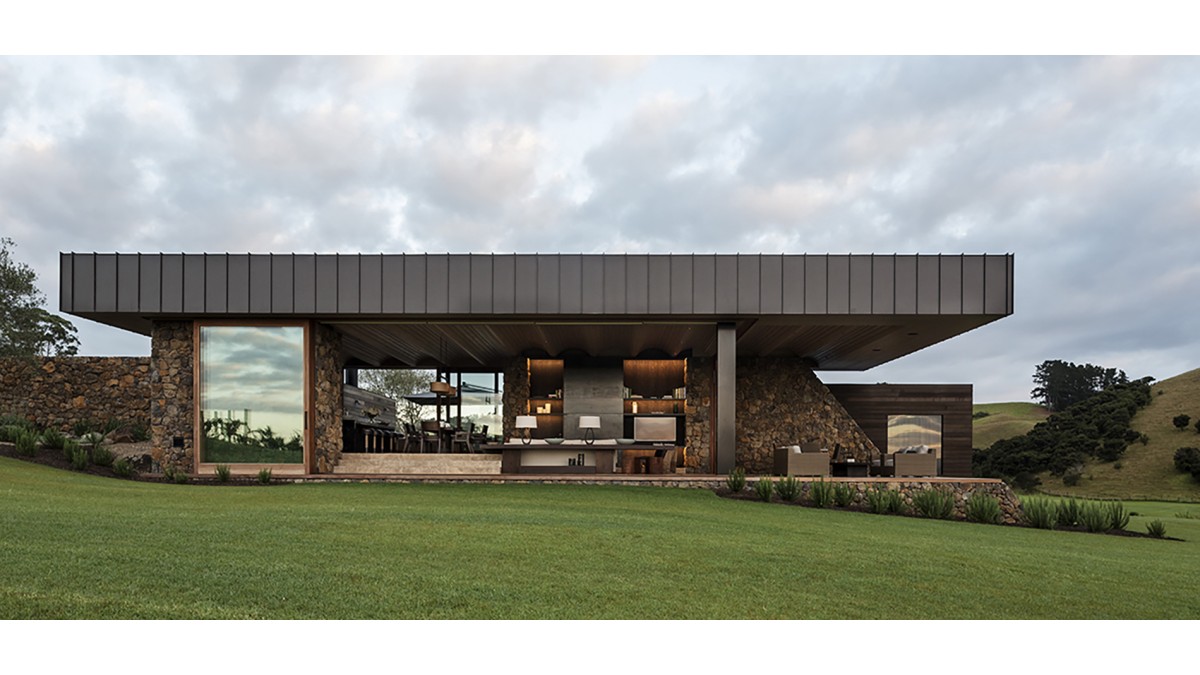

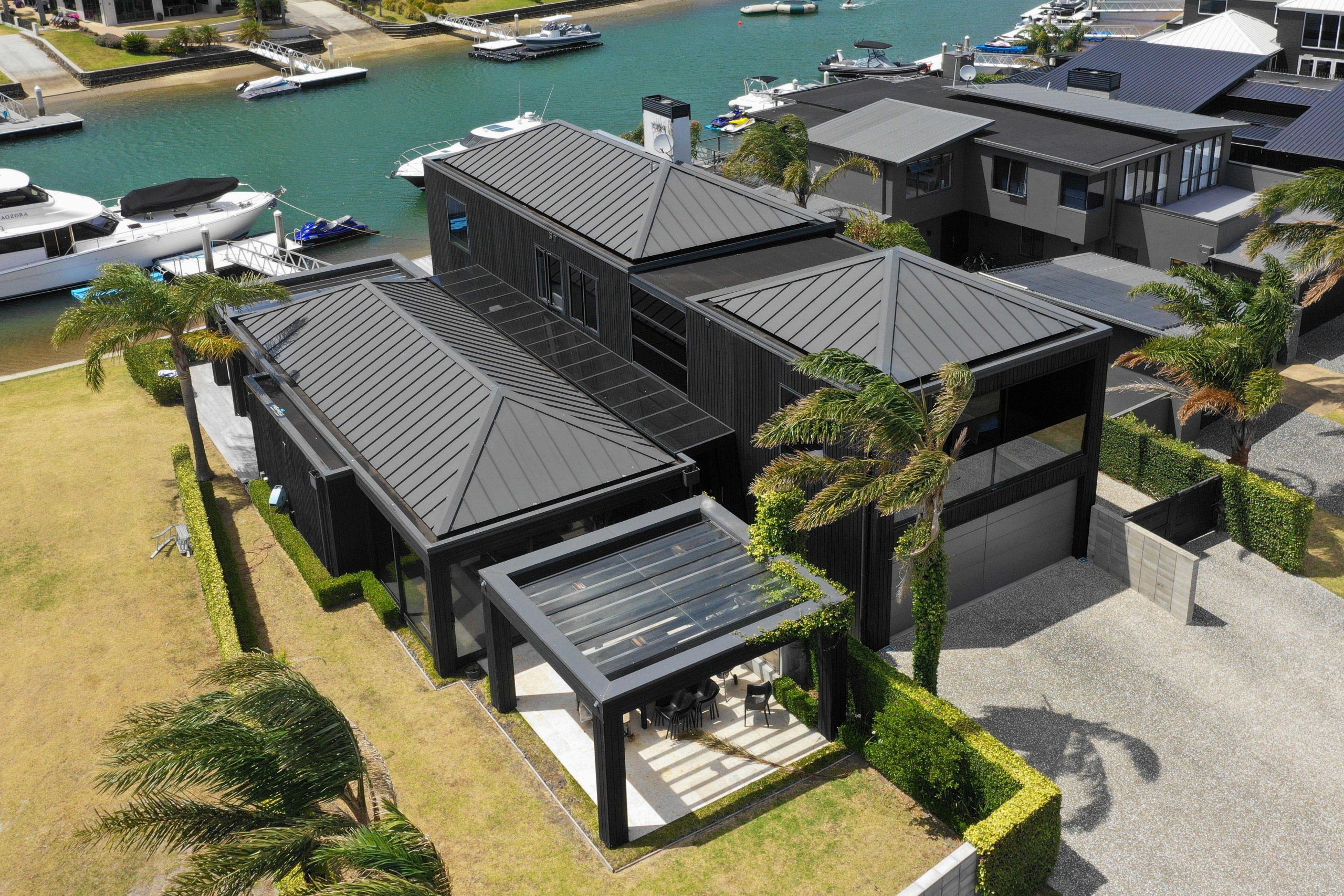

The Snaplock Profile is similar in appearance to the heritage standing seam profiles with a pleasing wide pan tray with an expressed seam detail. This profile is fixed directly to a plywood substrate with concealed fixings.

Available in two seam heights 25 and 38mm.

This profile is popular due to its simplified installation method and is available in pre-painted steel, pre-painted aluminium, zinc and copper.

Key Features
  • 25 or 38mm seam height
  • Both residential and commercial buildings
  • Installed on plywood substrate
  • Available in copper, zinc, pre-painted steel and pre-painted aluminium
Metal Roofing
Scope of Use
  • Residential and commercial
  • Concealed fixings on a plywood substrate
Limitations on Use
  • MDS to be consulted on roof pitch for 25mm seam height
  • Minimum 3° Pitch for 38mm seam height
Statement of Building Code Compliance

Installation of the profile is undertaken by an experienced Metal Design Solutions installers with installation carried out in accordance Metal Design Solutions standard details and in compliance with the NZ Metal Roof and Wall Cladding Code of Practice.

This product, if installed in accordance with the manufacturer's standard installation details, will on reasonable grounds meet the requirements of the following New Zealand Building Code clauses:

  • Clause B1: Structure, Performance, B1.3.1, B1.3.2, B1.3.3(a), (b), (c), (f), (g) + (h)
  • Clause B2: Durability, Performance, B2.3.1 (b), B2.3.2
  • Clause C3: Fire, Performance C3.7(a)
  • Clause F2: Hazardous Building Materials, Performance, F2.3.1
Other Performance Attributes
  • Regular maintenance is required to maximise the lifespan of this profile and components
  • Full maintenance guides are available based on material selection
  • Product warranties and material selection are available on request for specific projects
  • Metal Design Solutions warranty period is 5 years from the date of Practical Completion of the Contract Works for installation and workmanship
Masterspec: Euro Roofing
NZ Metal Roof and Wall Cladding Code of Practice
MDS Resources Page
CAD/PDF Details
SnapLock Roof: Full Set

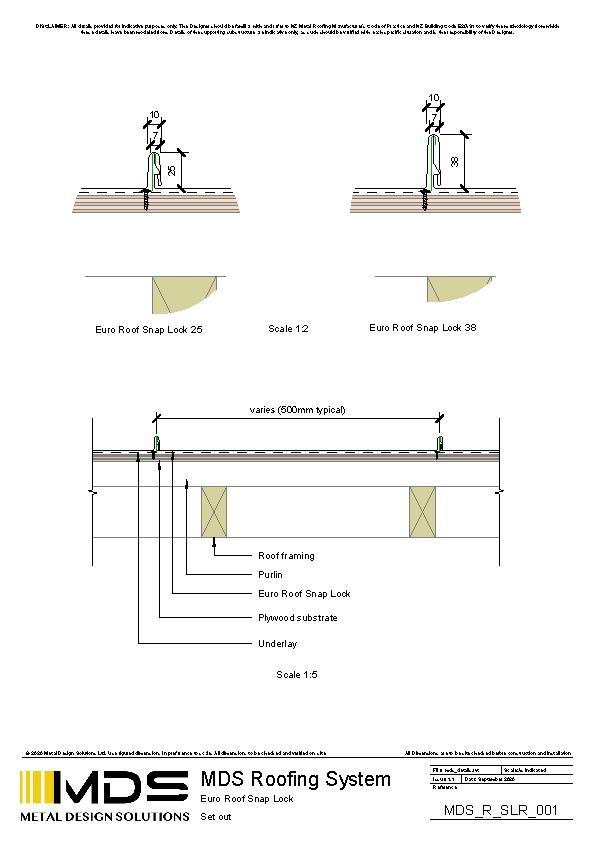

SnapLock Roof: Set Out

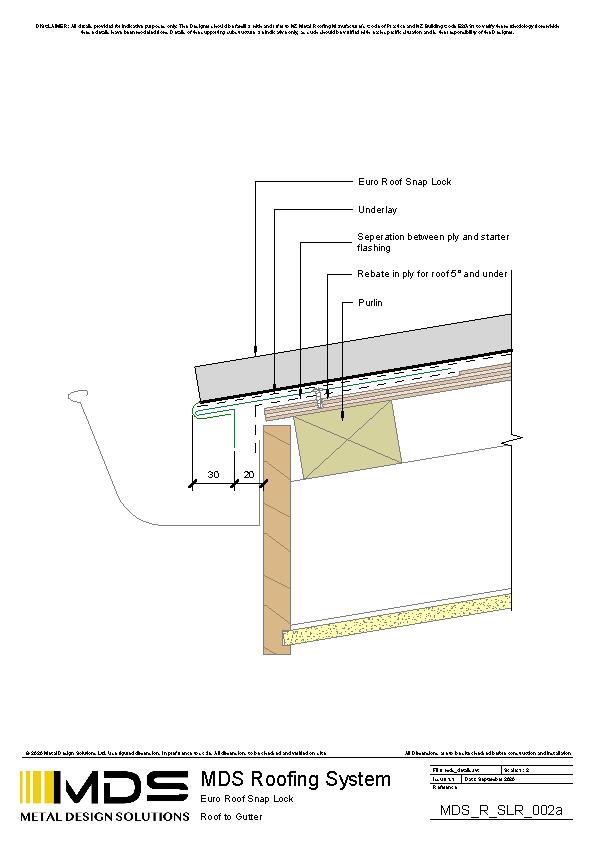

SnapLock Roof: Roof to Gutter

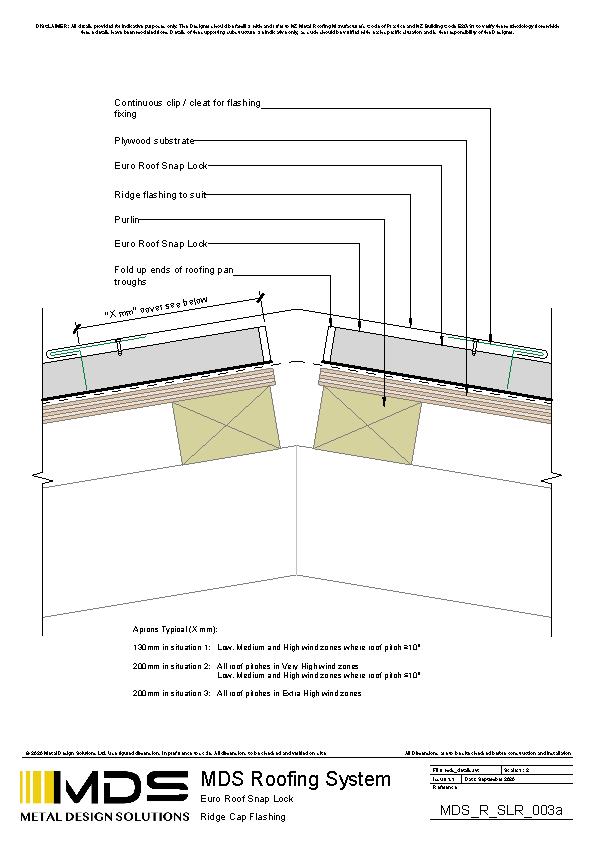

SnapLock Roof: Ridge Cap Flashing


SnapLock Roof: Ridge Cap Flashing — Ventilated

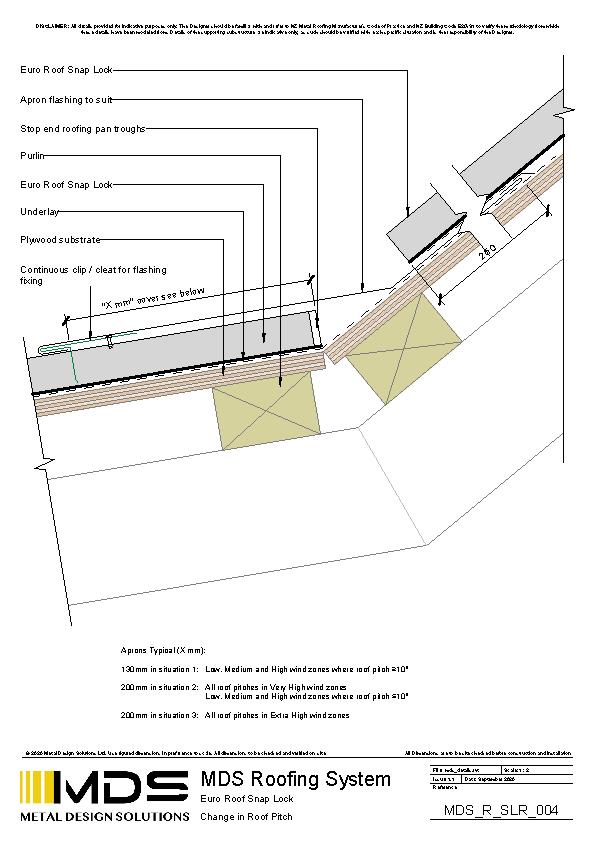

SnapLock Roof: Change in Roof Pitch

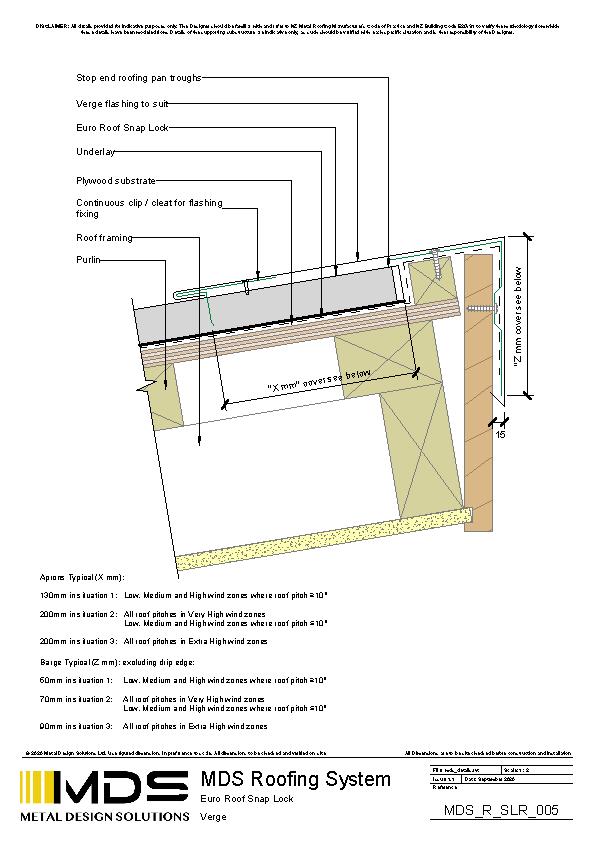

SnapLock Roof: Verge

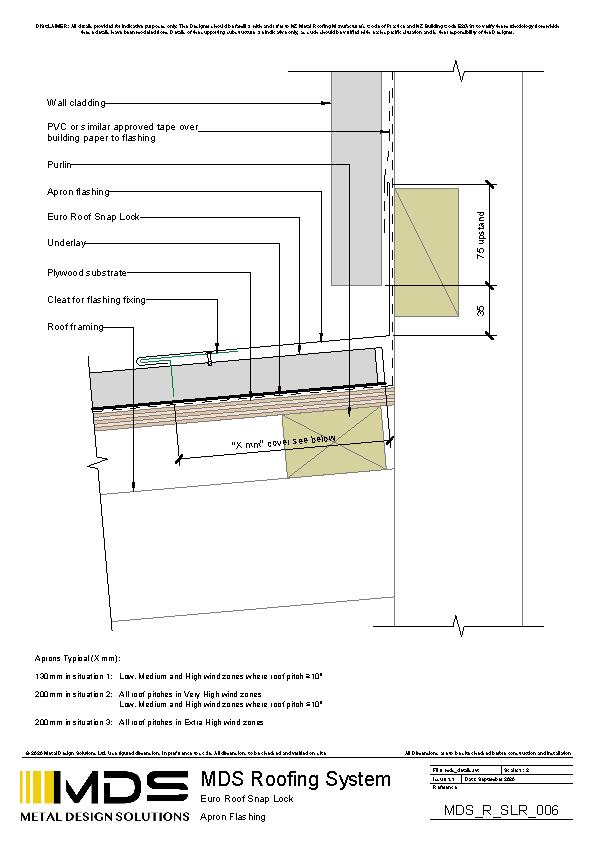

SnapLock Roof: Apron Flashing

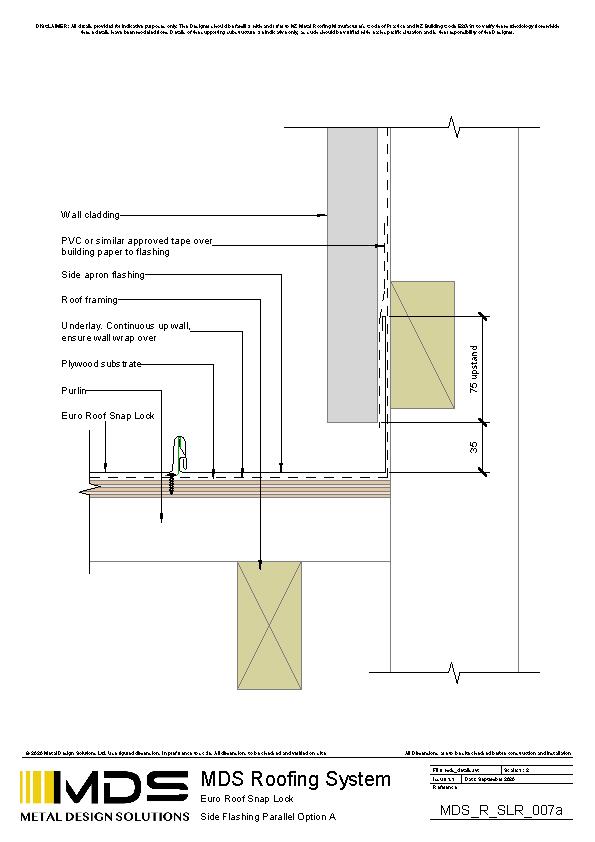

SnapLock Roof: Side Flashing Parallel — Option A

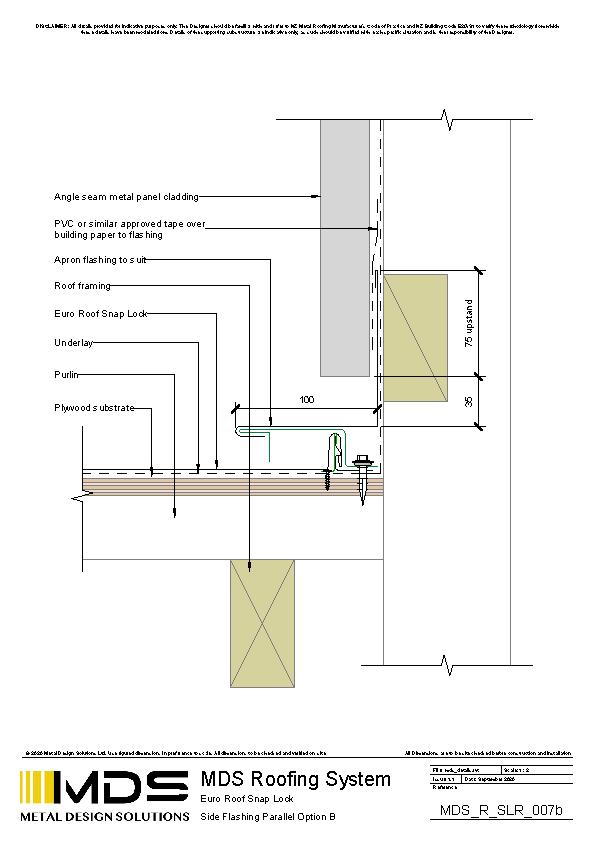

SnapLock Roof: Side Flashing Parallel — Option B

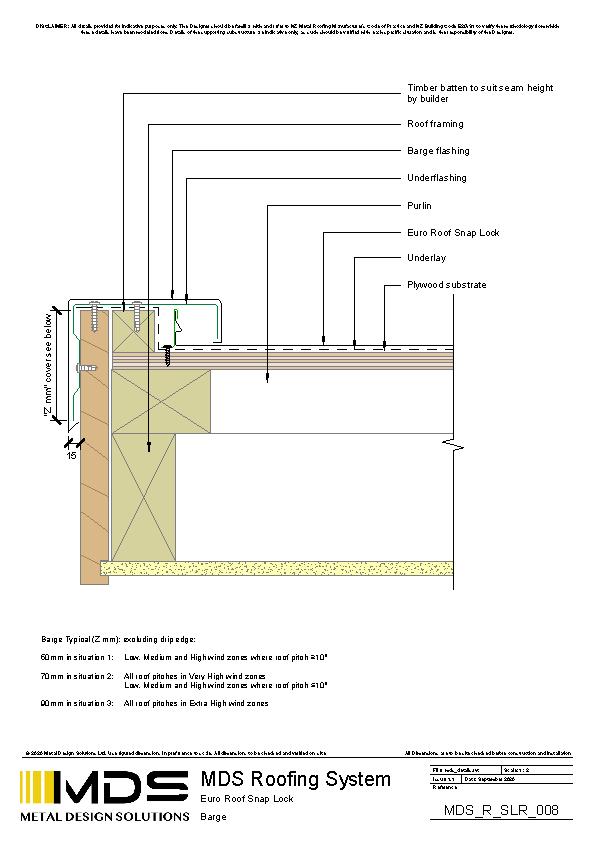

SnapLock Roof: Barge

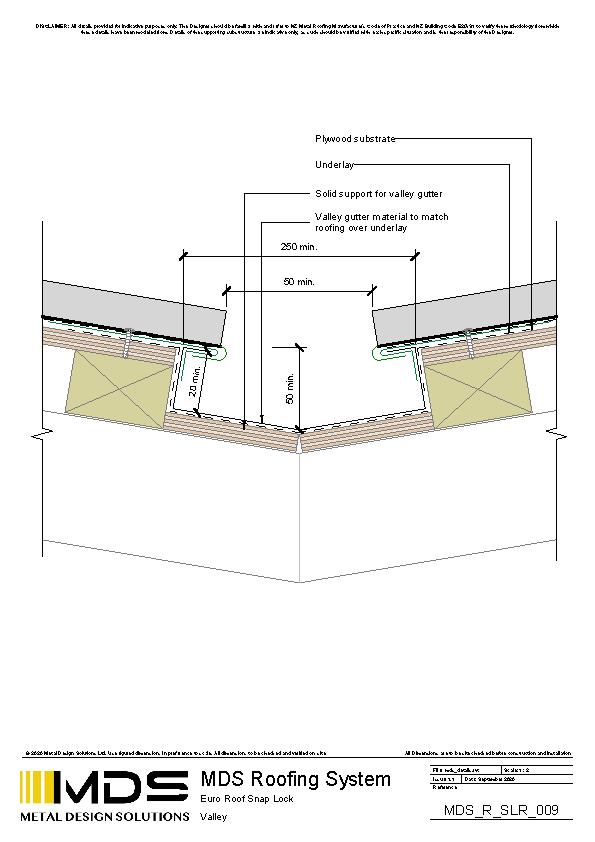

SnapLock Roof: Valley

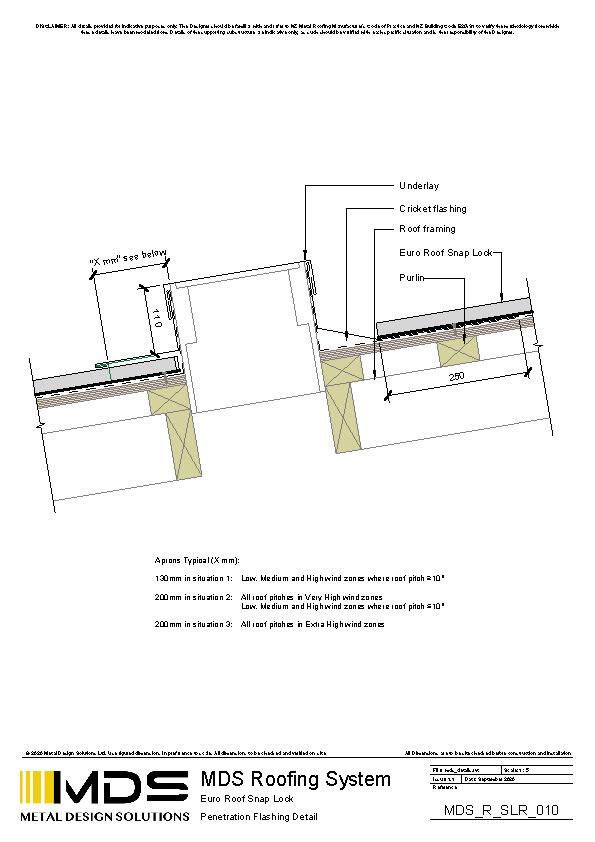

SnapLock Roof: Penetration Flashing Detail

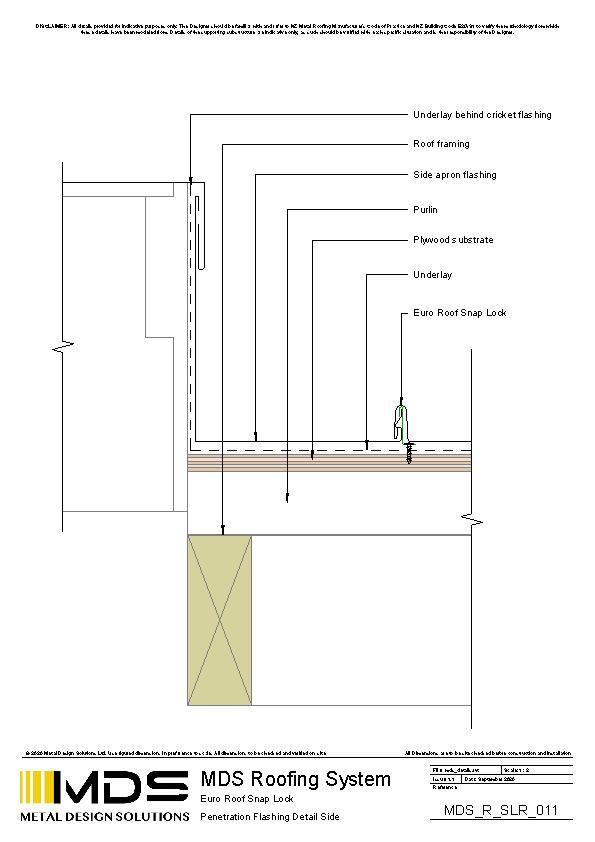

SnapLock Roof: Penetration Flashing Detail — Side

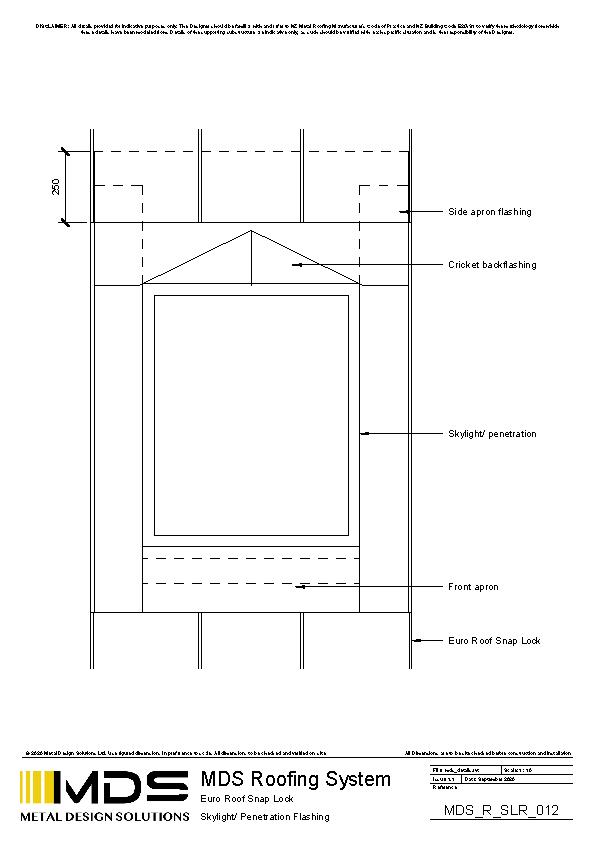

SnapLock Roof: Skylight Penetration Flashing

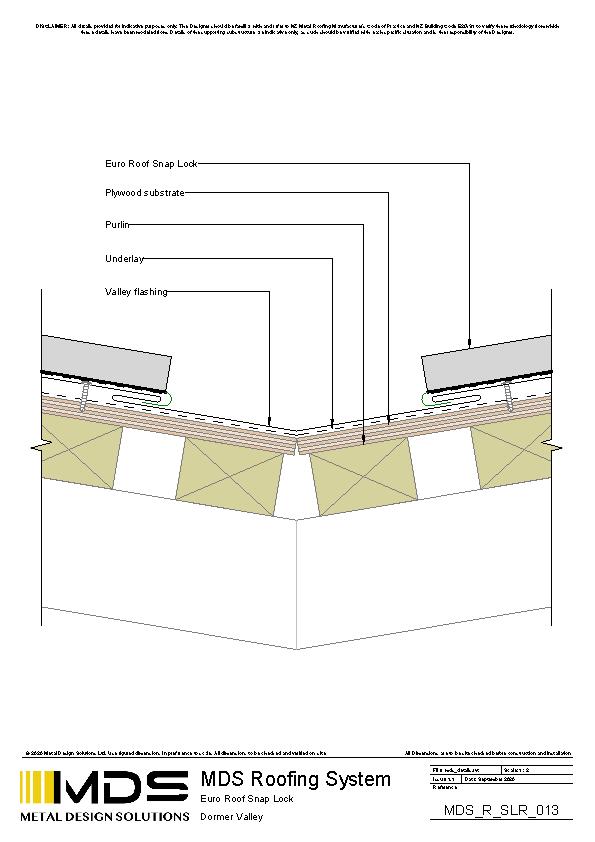

SnapLock Roof: Dormer Valley

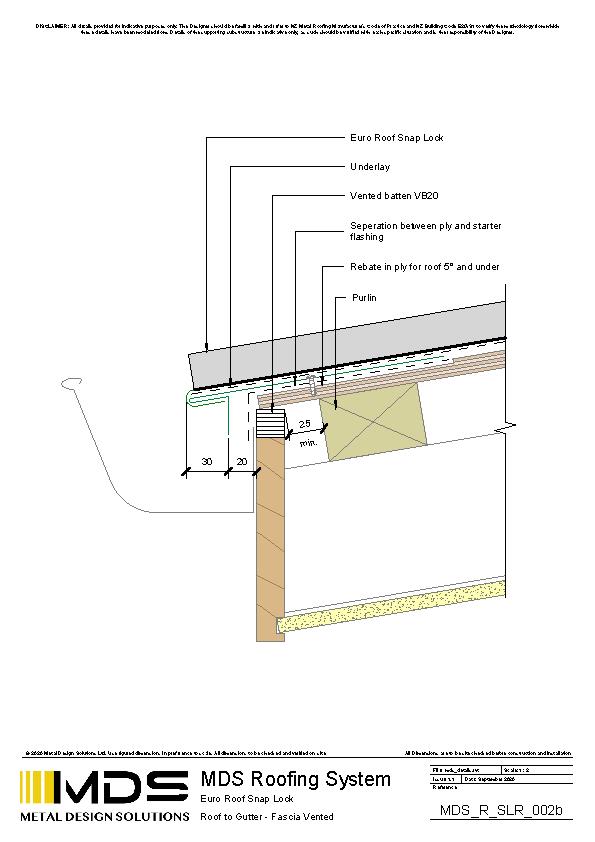

SnapLock Roof: Roof to Gutter — Fascia Vented
