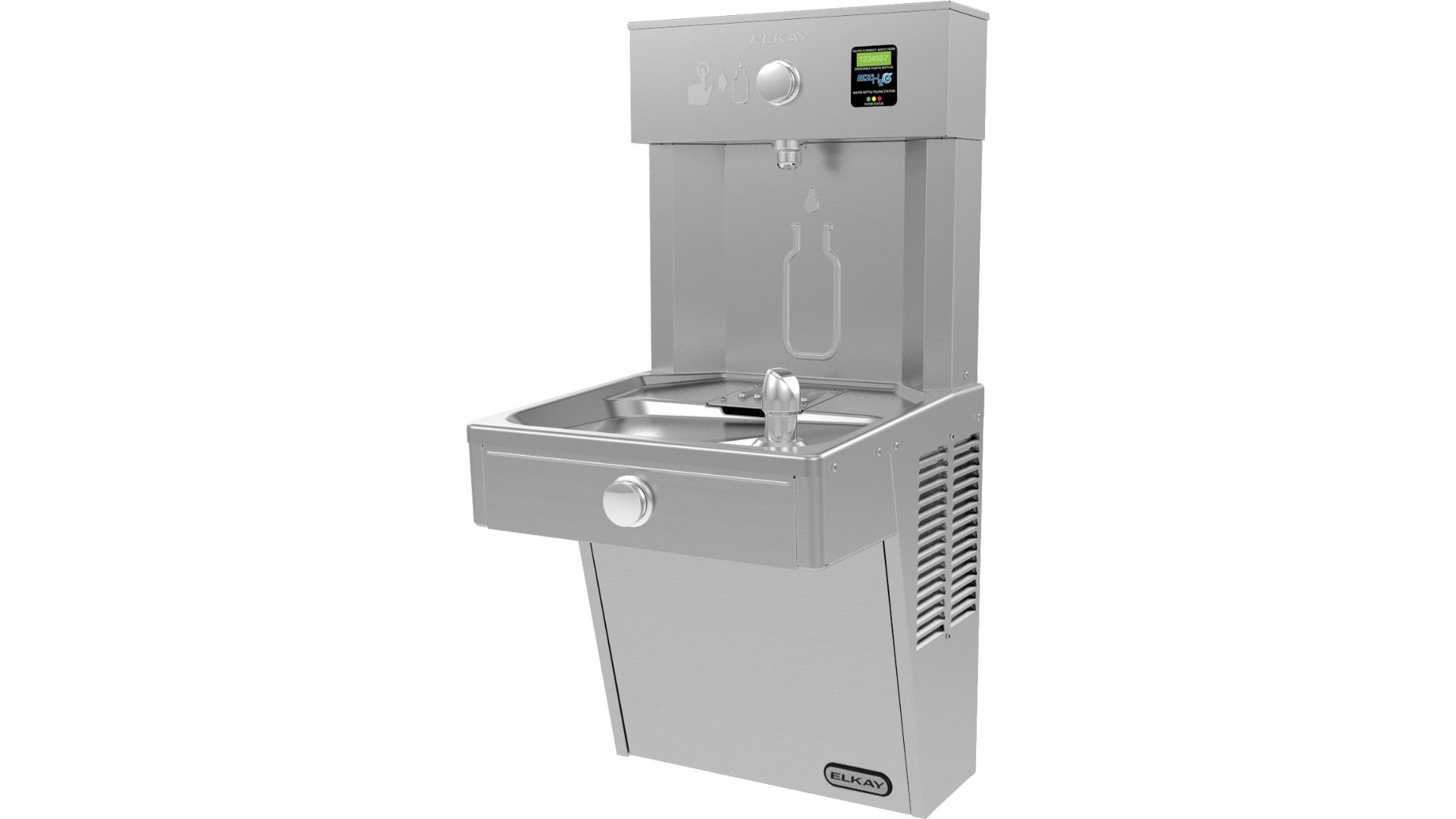

Elkay Vandal-Resistant Bottle Filler with Bubbler
Description

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimising dependency on disposable plastic bottles.

Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design.

Pushbutton activation with automatic 20-second shut-off timer on bottle filler. The laminar flow provides clean fill with minimal splash.

Key Features
  • Ideal for heavy-use installations such as educational and indoor recreational facilities
  • Vandal-resistant, push-button activation for both the bottle filler and the water cooler
  • Fill rate is 4.1 litres per minute
  • Visual filter monitor with LED filter status indicator for when filter change is necessary
  • The 11,400 litre filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odour reduction
  • Green Ticker informs user of number of 600ml plastic water bottles saved from waste
  • Laminar flow provides clean fill with minimal splash

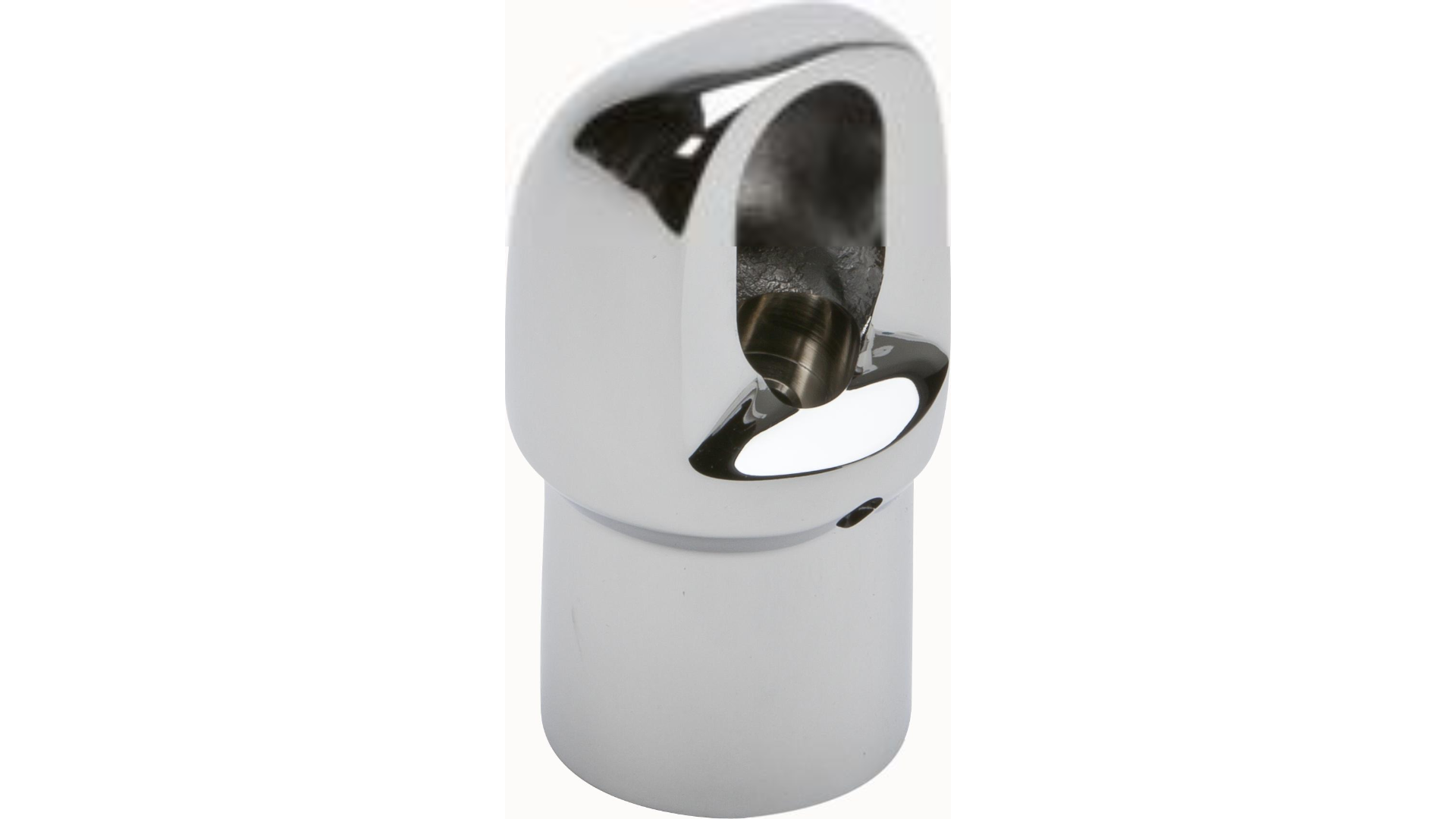

  • Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering
  • Rated for indoor use
  • Product dimensions: 457mm(L)x473mm(W)x986mm(H)
Scope of Use
  • Space saving design suitable for compact spaces
  • Wheelchair accessible
  • Fill rate 4 litres per minute
  • Wall mounted
  • Popular choice for schools, childcare centres, sporting facilities and commercial campuses
Other Performance Attributes
  • The 11,400 litres filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odour reduction (optional)
  • Green Ticker informs user of number of 600ml plastic water bottles saved from waste
  • A full 5-year warranty on the compressor and hermetically sealed refrigeration systems, and 24-month parts and labour warranty on all other components
Documents
Data Sheet
Installation and Operation
Brochure
Additional Information

Merquip distribute the Billi, Elkay, Schwan and Cosmetal, filtered drinking water systems, with ranges for instant boiling, chilled, or sparkling water, and bottle fillers, and fountains.
