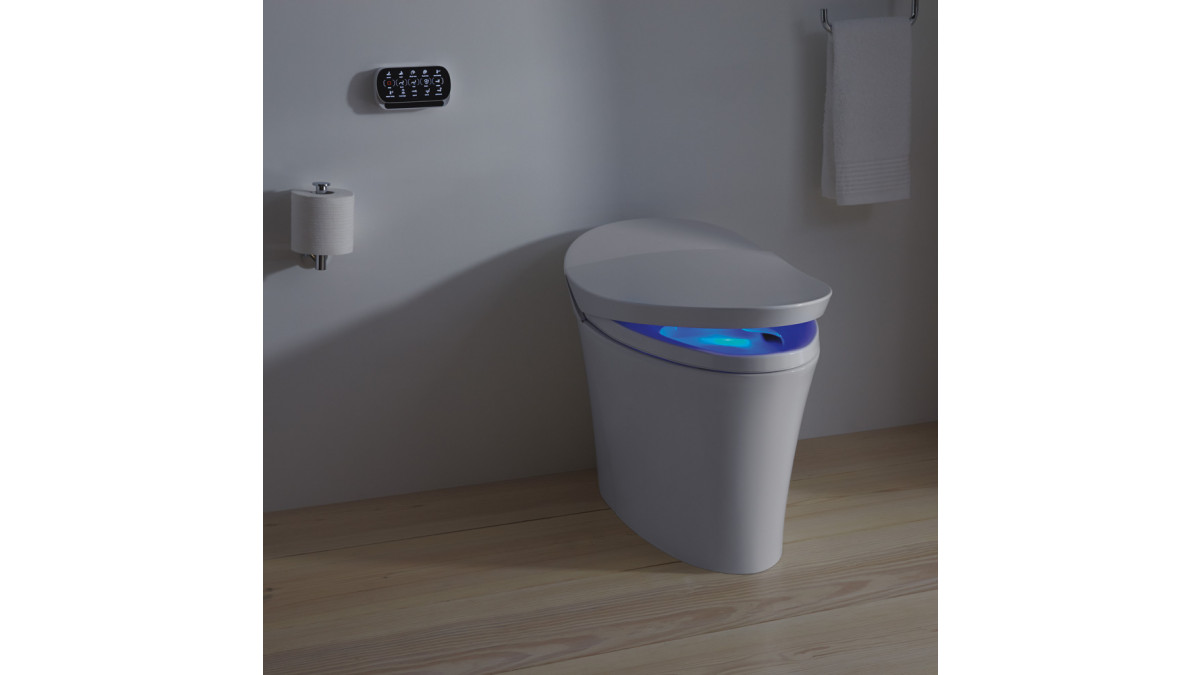

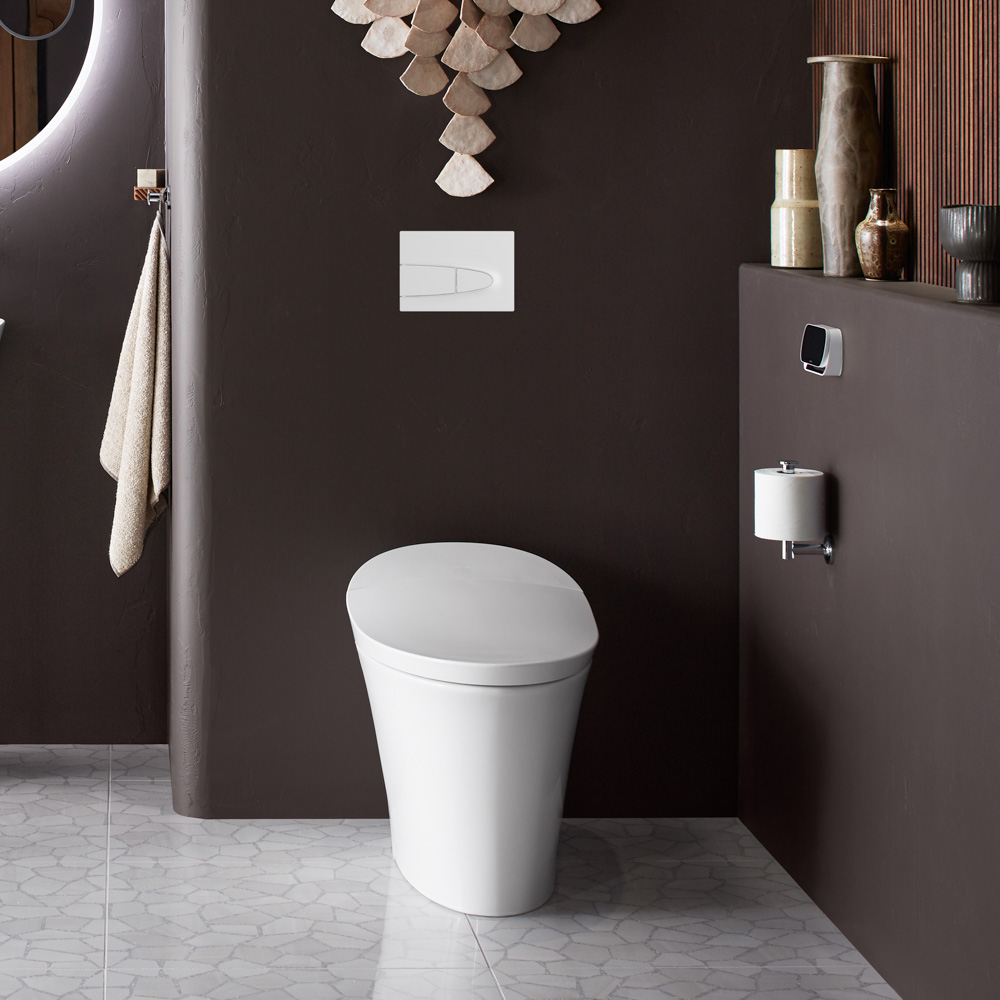

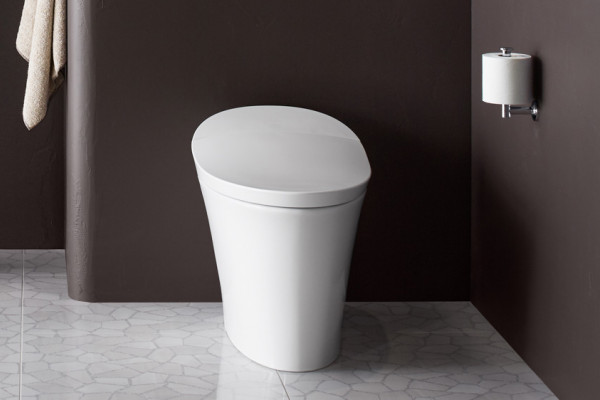

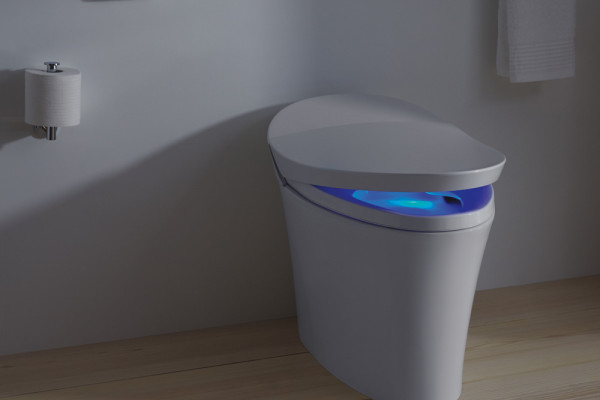

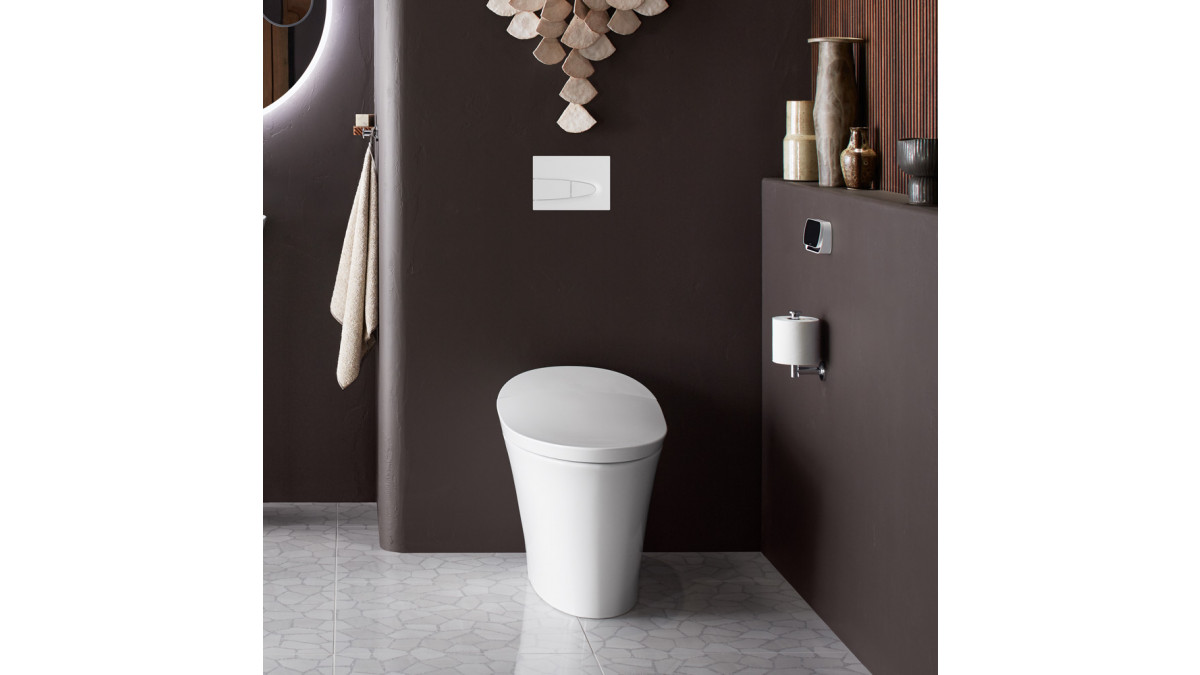

Veil Intelligent Wall Faced Toilet
Description

The Veil Wall Faced Intelligent Toilet integrates a toilet and bidet in one. Featuring touchless flushing, one touch remote control functionality, seamless, hygienic rimless bowl and built in UV self-cleansing bidet.

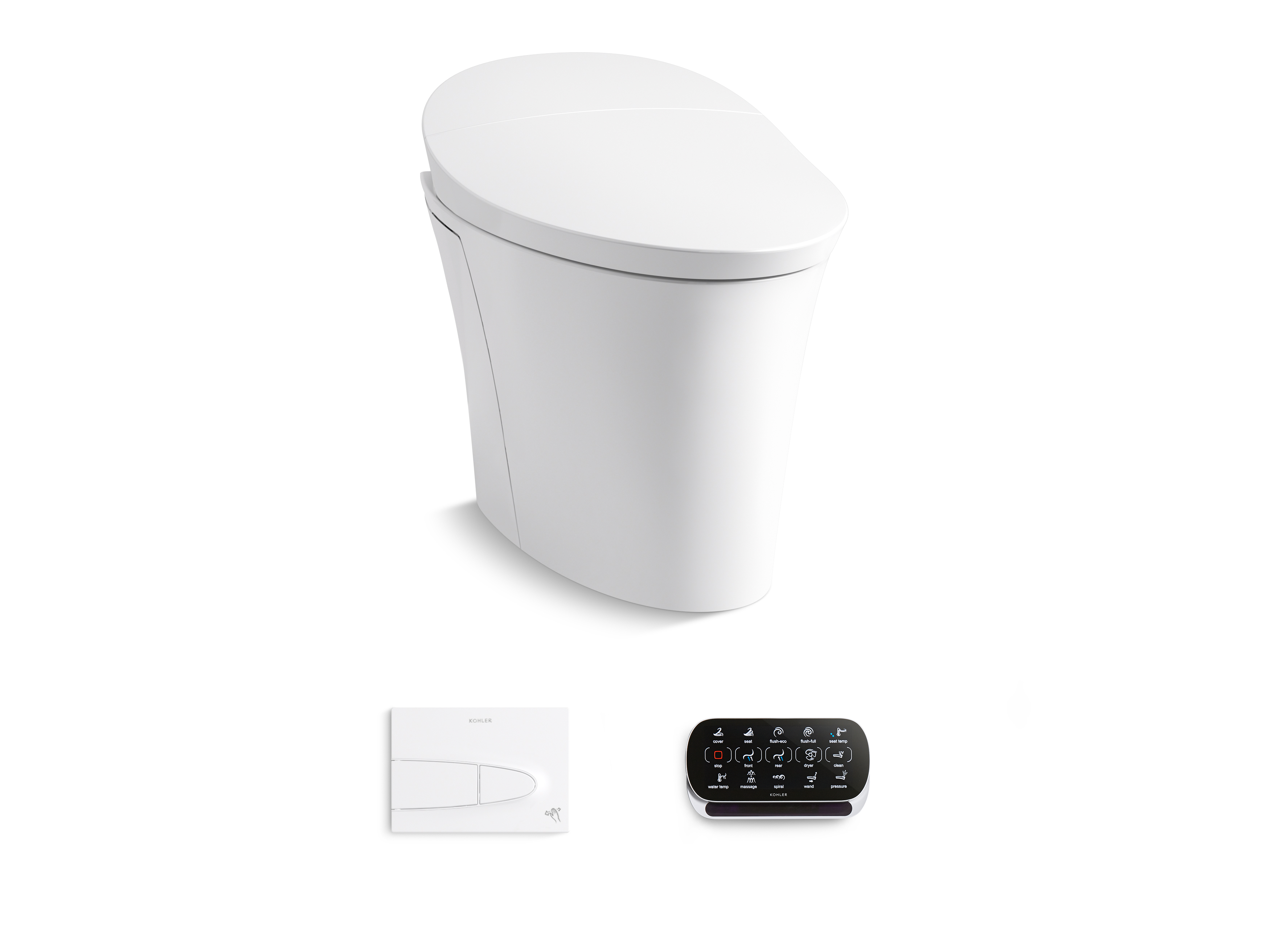

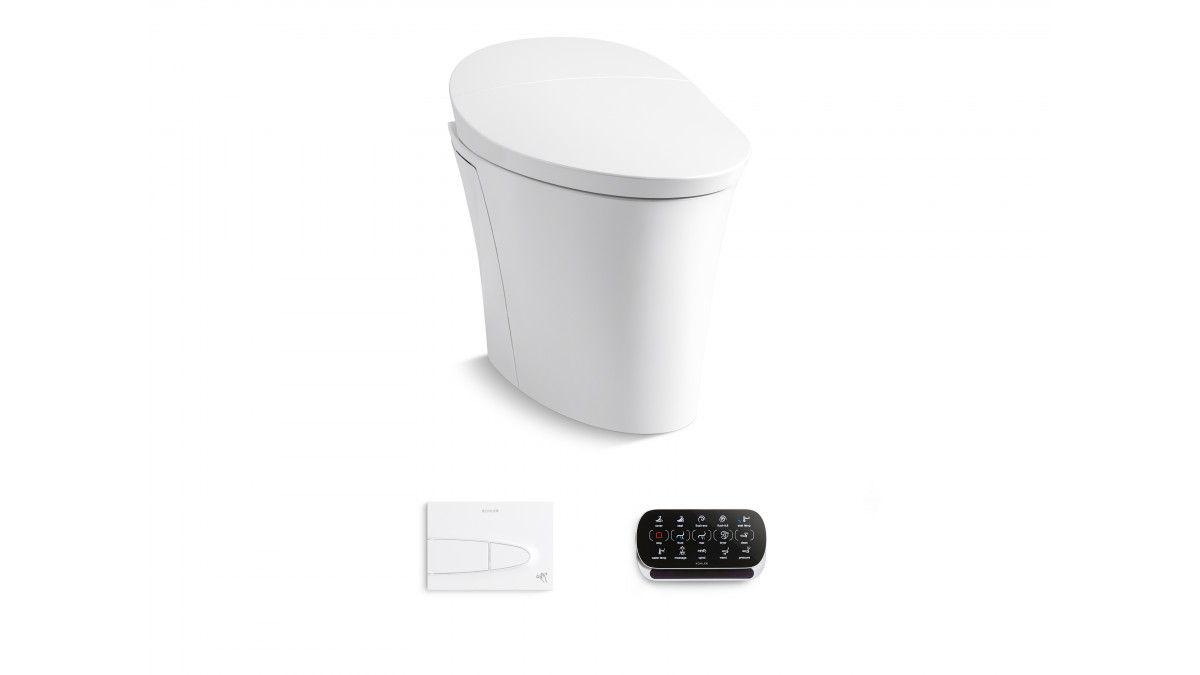

Included components:

  • Veil wall faced toilet with integrated bidet
  • In Wall cistern - Hydro tower 500 (4.5/L)
  • Touchless flush button panel
  • Wireless one touch remote
  • waste pipes (P Trap) and straight inlet connection pipe
Key Features
  • Touchless flush button panel in Honed White
  • Ergonomic french curve seat with antibacterial material
  • Sensor activated auto open and close function for seat lid
  • Insulated in-wall cistern -fully framed
  • Automatic, touchless or manual Dual flush (4.5/3L)
  • Built in LED night-light
  • Deodouriser function
  • Back up shut-off valve located on cistern
  • Rimless pan design
  • Vitreous china

Bidet Features:

  • Instantly heated water with stainless steel wand
  • Spray wand features adjustable water pressure and temperature, and oscillate and pulsate functions
  • Air blower and heated seat with adjustable temperature
  • Self cleaning and UV sanitising nozzle
Categories / Ranges
Bidets and Urinals Toilets Toilets
WELS 4 Star Rating
WELS 4 Star Rating
Scope of Use
  • Water supply pressure range: Min 70kPa - Max 500kpa
  • Power supply requirements: Dedicated 10A min, 220~240V AC, 50/60Hz supply with ELCB or GFCI. Rated power:1000W. Max instant power: 1600W
  • In-wall cistern has an adjustable height and is designed to be fixed to the floor and studs using coach screws (not supplied)
Limitations on Use
  • This toilet must be installed in accordance with AS/NZS 3500.1 Plumbing and Drainage
  • Maximum weight limit is 136kg
Other Performance Attributes
  • WELS rating: 4 stars — 3.5l average flush
Documents
Data Sheet
Warranty
Additional Information

Kohler are a global manufacturer of bathroom products, providing total design solutions that strike a perfect balance between form and function
