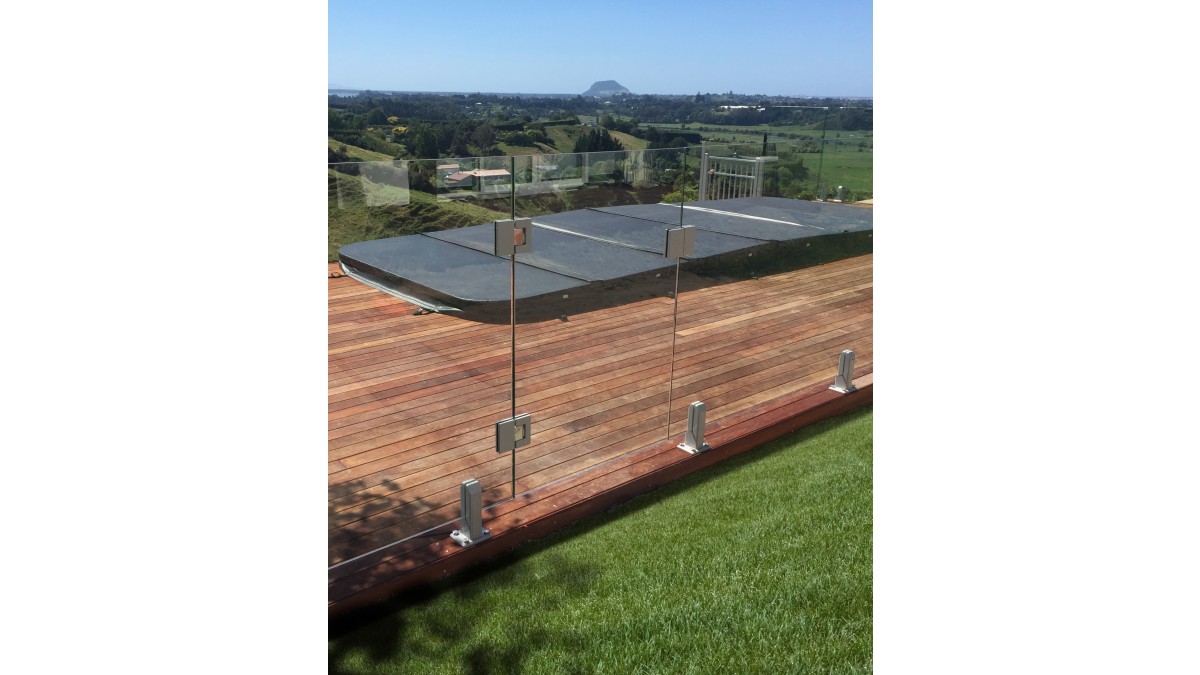

Glass Pool Gate System
Description

The Juralco Glass Pool Gate System can be used with any Juralco frameless glass system. Suitable for glass-to-glass gates on the Edge® Mini Post and Infinity systems, or on the post-to-glass Edge® system, using 10mm and 12mm toughened Glass, as applicable.

Key Features
  • Suitable with all Juralco Frameless Glass balustrade systems
  • 10 or 12mm toughened glass panels used
  • The hinges are available in 2 types:

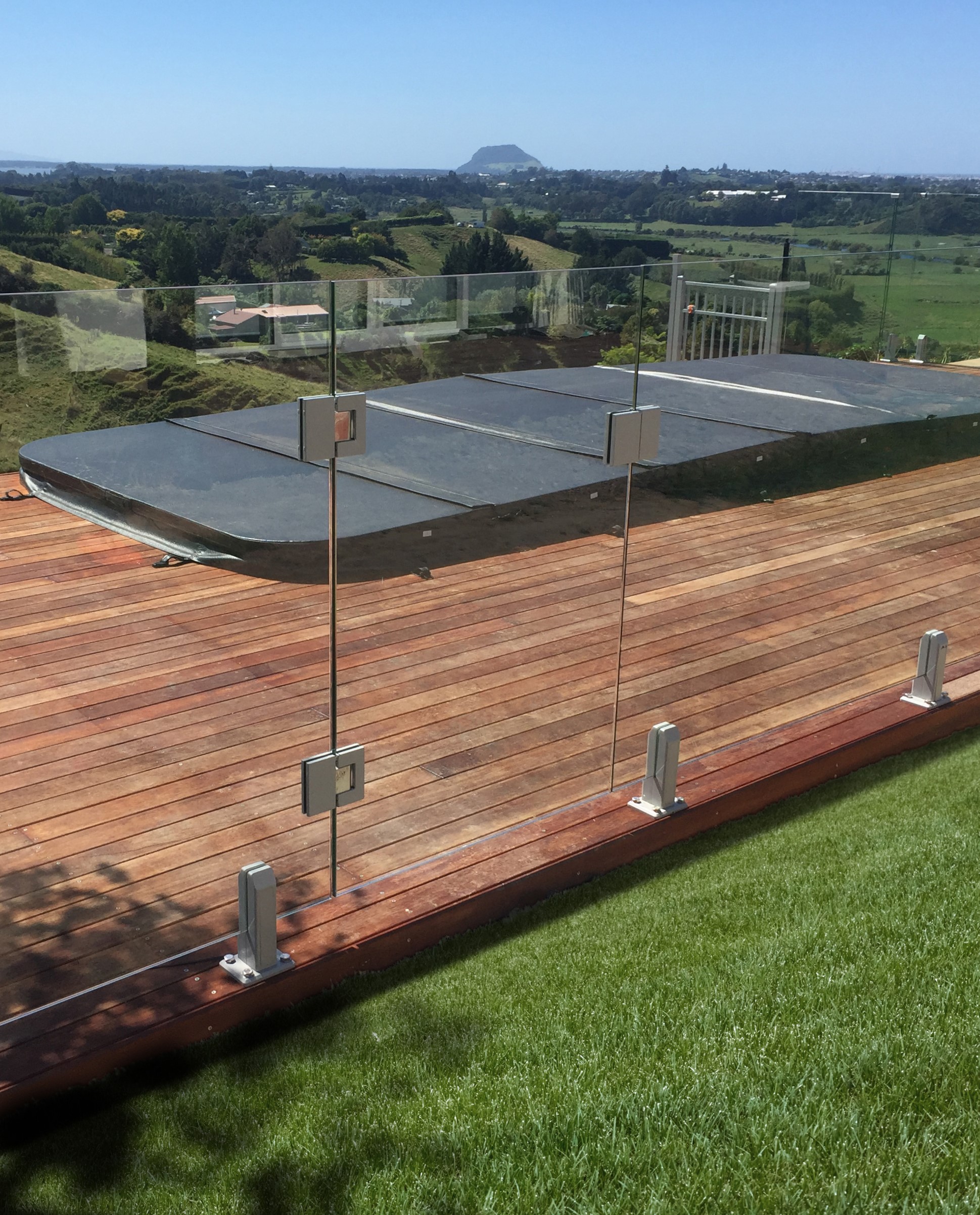

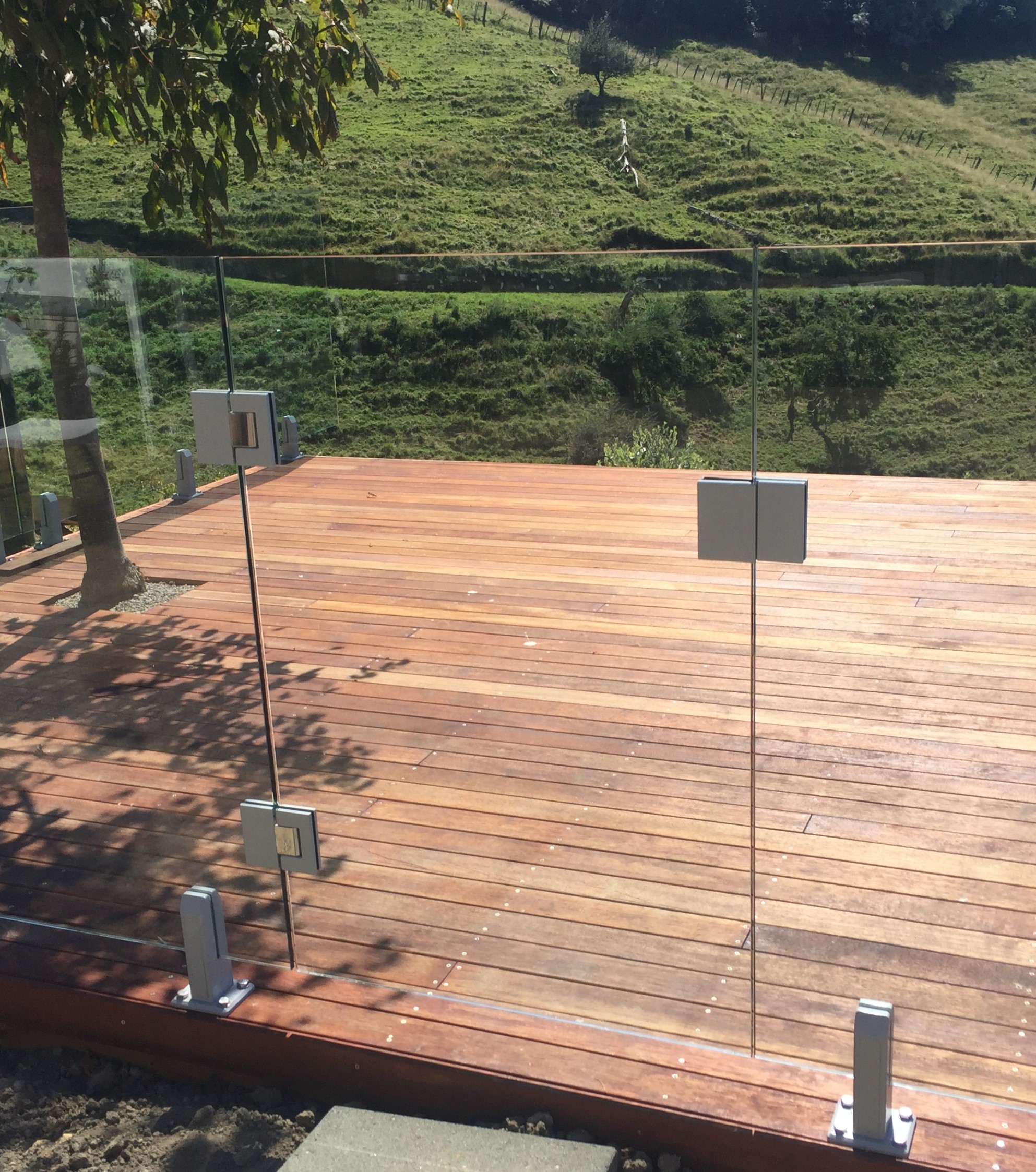

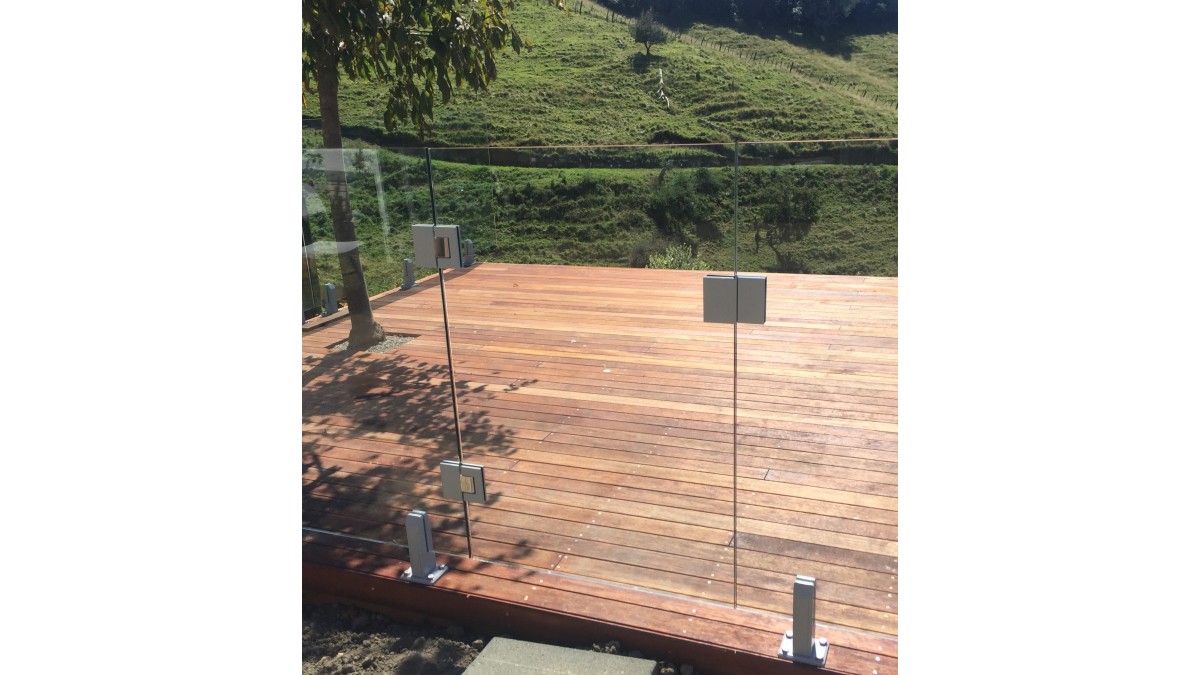

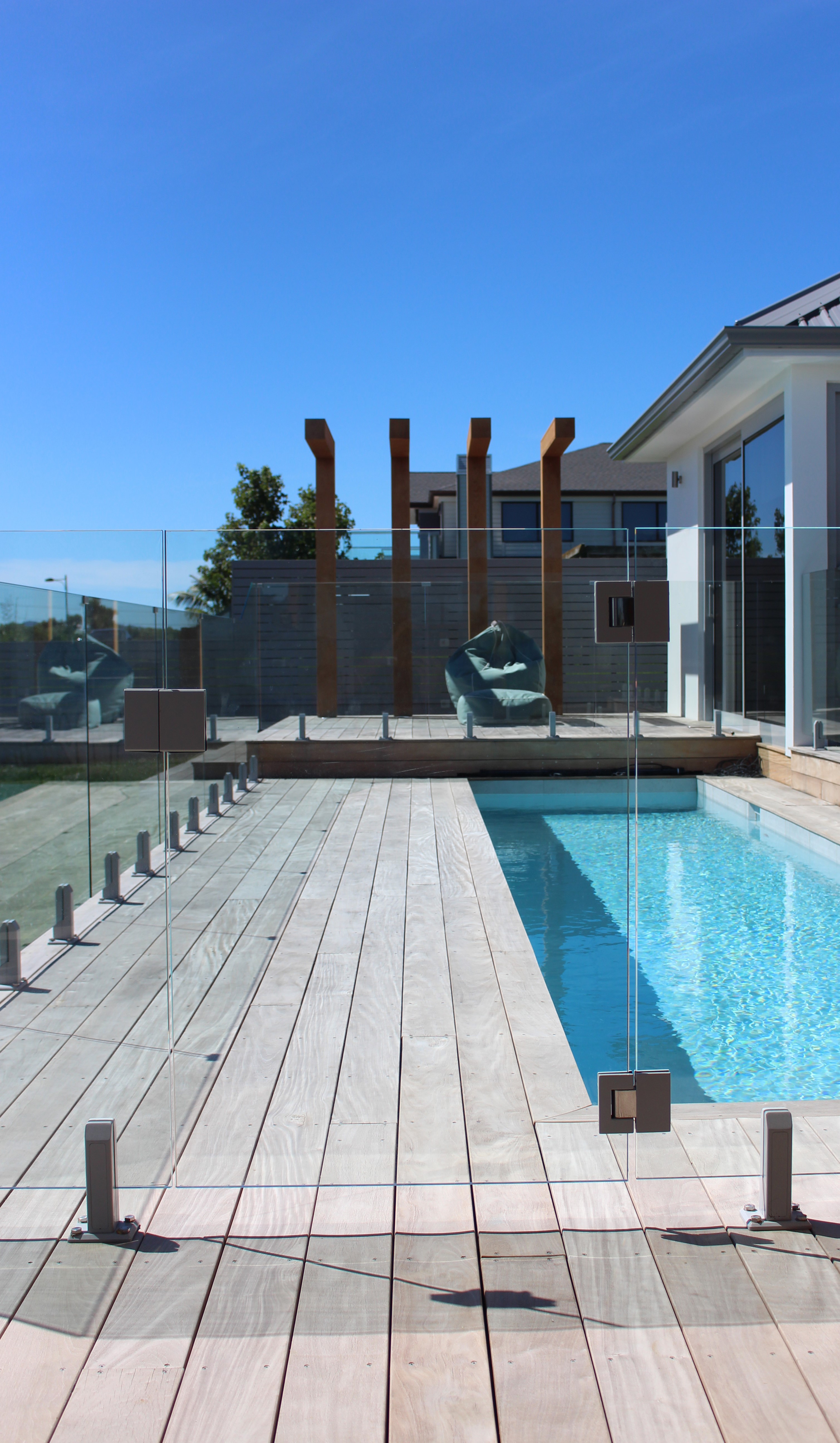

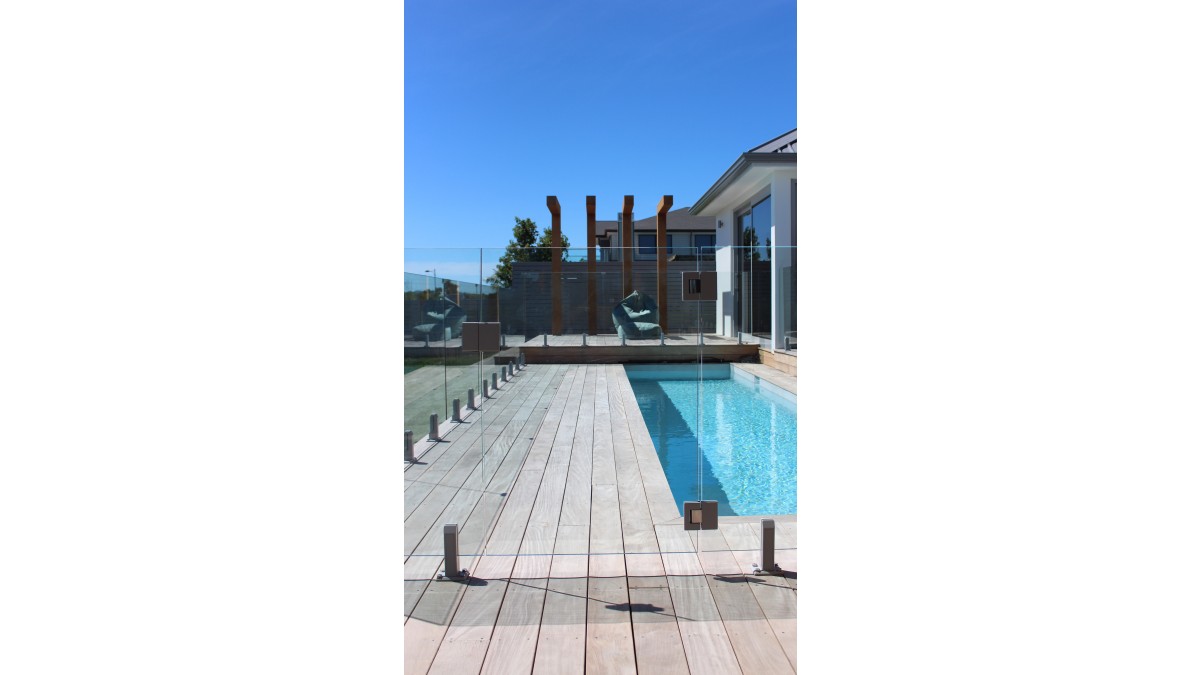

  • Suitable for Glass-to-Glass gates: Juralco Mini Post and Infinity systems

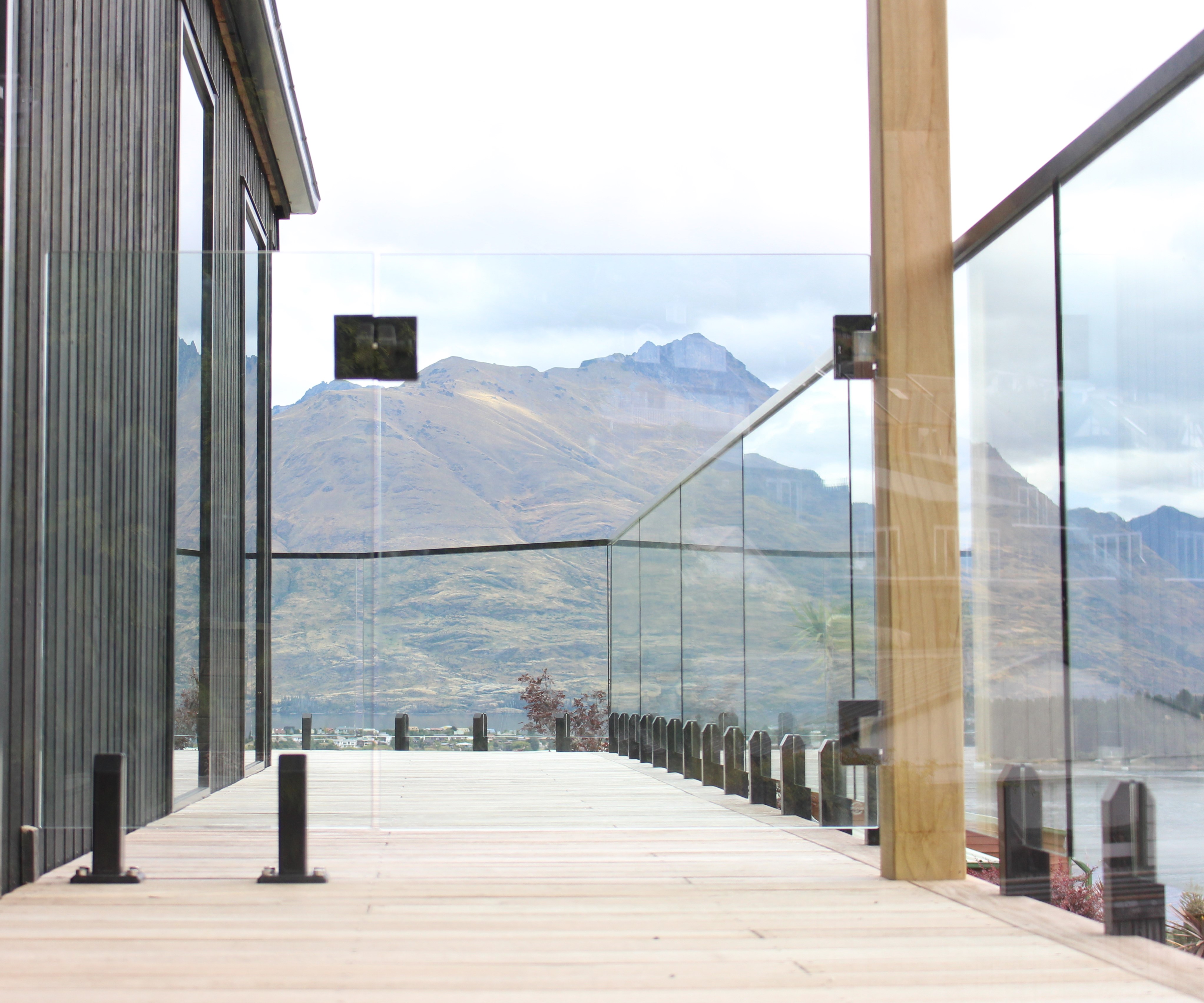

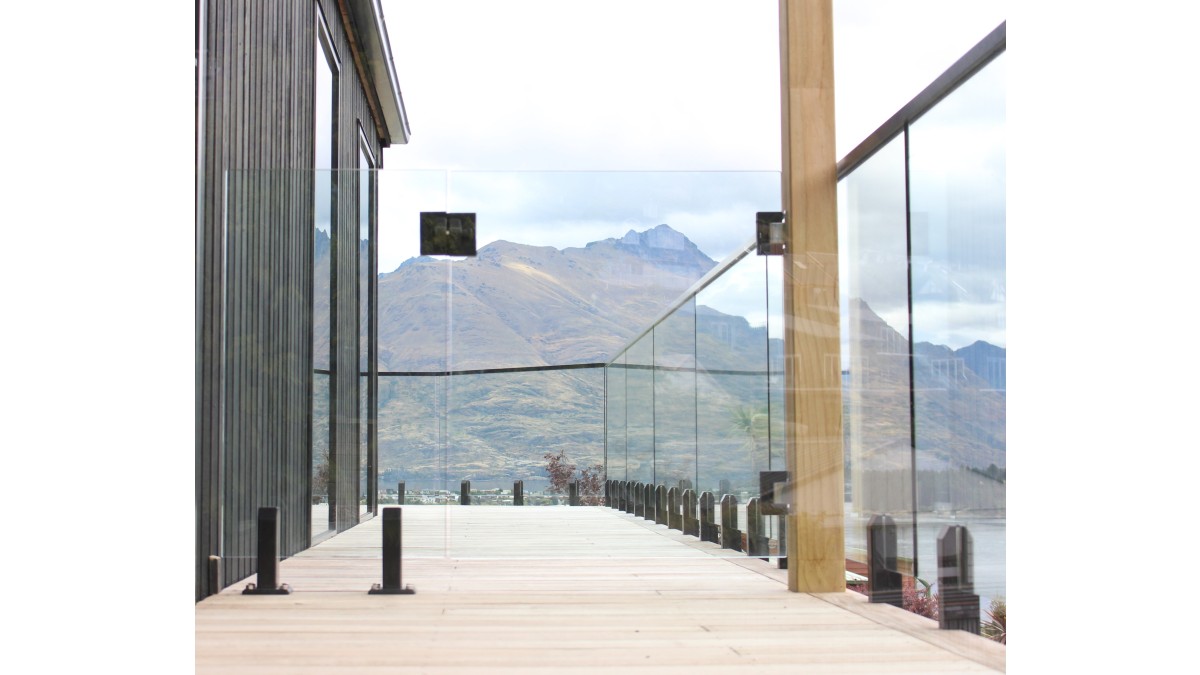

  • Suitable for Post-to-Glass Juralco Edge system
  • The glass must have a minimum strength of 100MPa

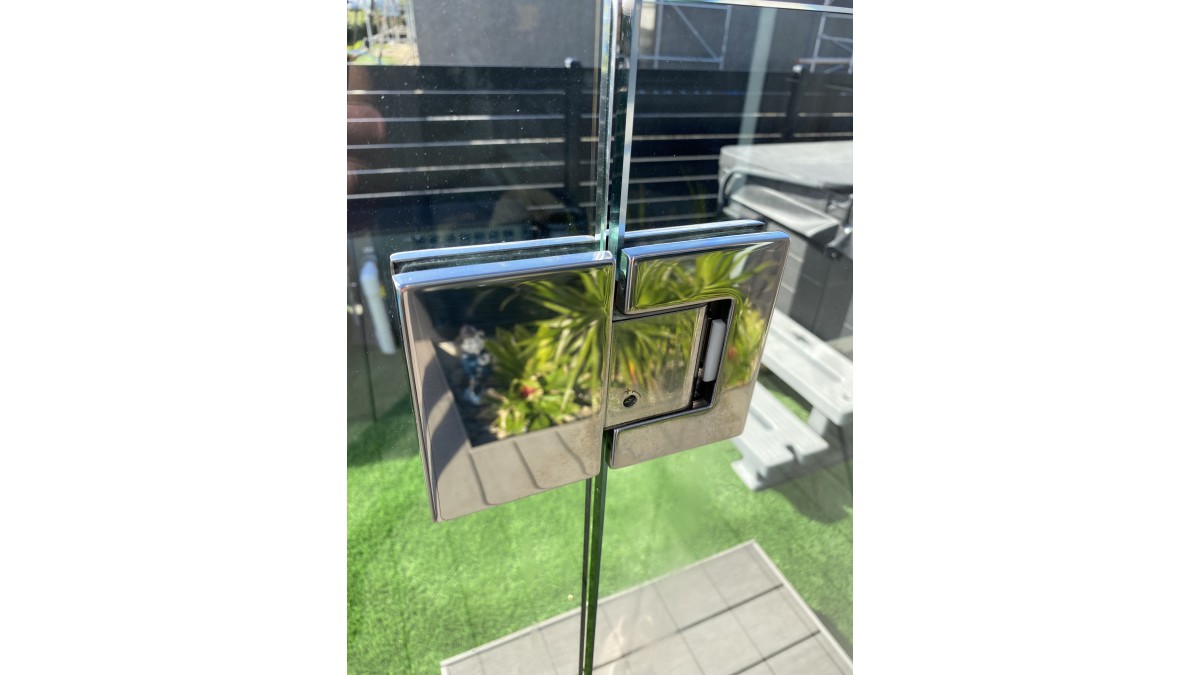

  • The system utilises adjustable hydraulic self-closing hinges (non-hold open) and a magnetic latch
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for all Juralco Frameless Glass Balustrade systems
  • 10 or 12mm toughened glass panels used
  • Suitable for Glass-to-Glass gates: Juralco Mini Post and Infinity systems
  • Suitable for Post-to-Glass Juralco Edge system
  • The glass must have a minimum strength of 100MPaThe system utilises adjustable hydraulic self-closing hinges (non-hold open) and a magnetic latch
  • Complies with the structural requirements of the New Zealand Building Code and AS/NZS 1170 : 2002 occupancy A, A Other, and C3
  • NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.39 kPa
Limitations on Use

Any deviation from the standard fabrication or installation/fixing must be accompanied by a site specific PS1 with site specific calculations and drawings

Only extrusions, components and hardware supplied by or specified by JABP may be used in the Juralco Glass Pool Gate. Aluminium extrusions, components and hardware, unless specified, are manufactured to 6060 T5 specifications. Stainless steel components, hardware, fixings — all components to 316 grade.

The Juralco Glass Pool Gate must only be installed in accordance with its Manual. Any deviation from that specified in the Juralco Glass Pool Gate manual must only be in accordance with the site specific PS1 with site specific calculations and drawings listing the non standard details — The Juralco Glass Pool Gate must only be fabricated/installed by a Juralco approved fabricator.

Upon completion of the installation the fabricator must supply the owner with a PS3 (Construction).

Statement of Building Code Compliance

NZBC Compliance

  • The Juralco Glass Pool Gate has been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and AS/NZS 1170 : 2002 occupancy A, A Other and C3, NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.39 kPa
  • The Structural Engineering design includes Building Code requirements, B1 Structure, B2 Durability, F2 Hazardous material and Clause F9
  • Verification Method B1 / VM1, B2/AS1
  • Complies with NZS 4223.3.2016
  • A Producer Statement 1(Design) is available
Other Performance Attributes

Warranty:

  • 5 year warranty
  • 15-25 year warranty on powder coating
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Installation and Operation
