IBS PRIMActu Ceramic Tile Underlay
Description

PRIMActu (ceramic tile underlay) is a cellulose fibre cement floor panel. Each panel has a smooth, sanded face which is sealed and ready for tiling. PRIMActu can be used as a ceramic tile underlay which has superior fire performance and is dimensionally stable which makes it an ideal substrate for ceramic tile underlay.

PRIMActu can be directly fixed to an existing timber, particle board, plywood floor and OSB EUROfloor.

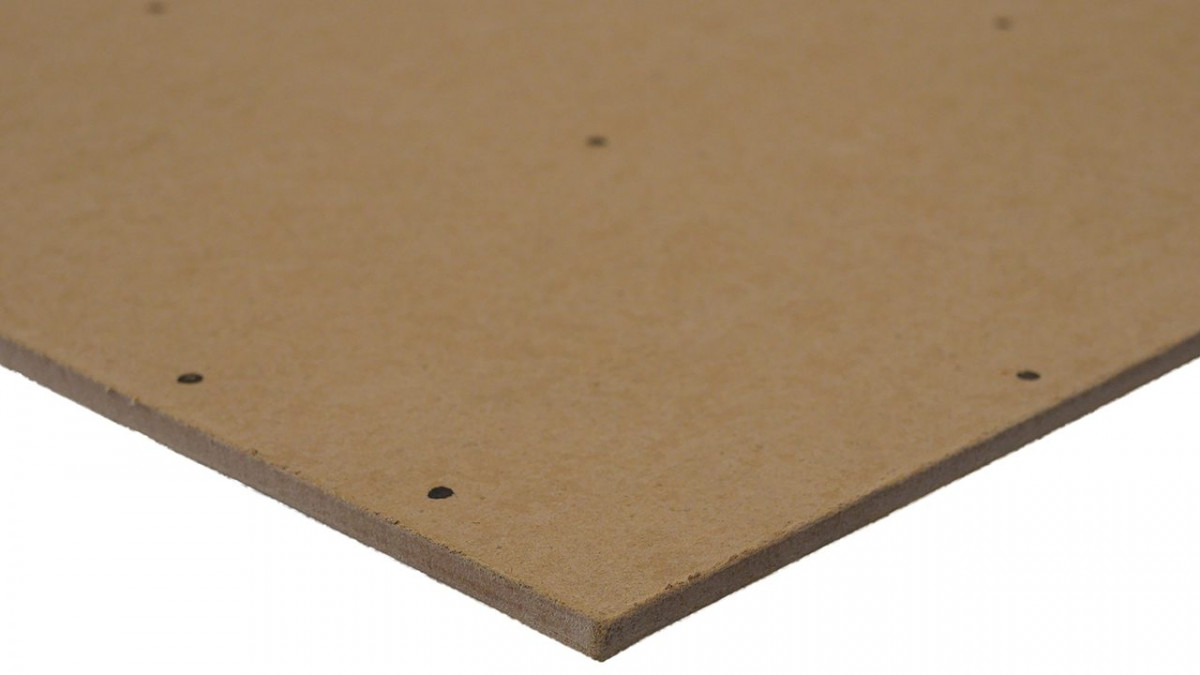

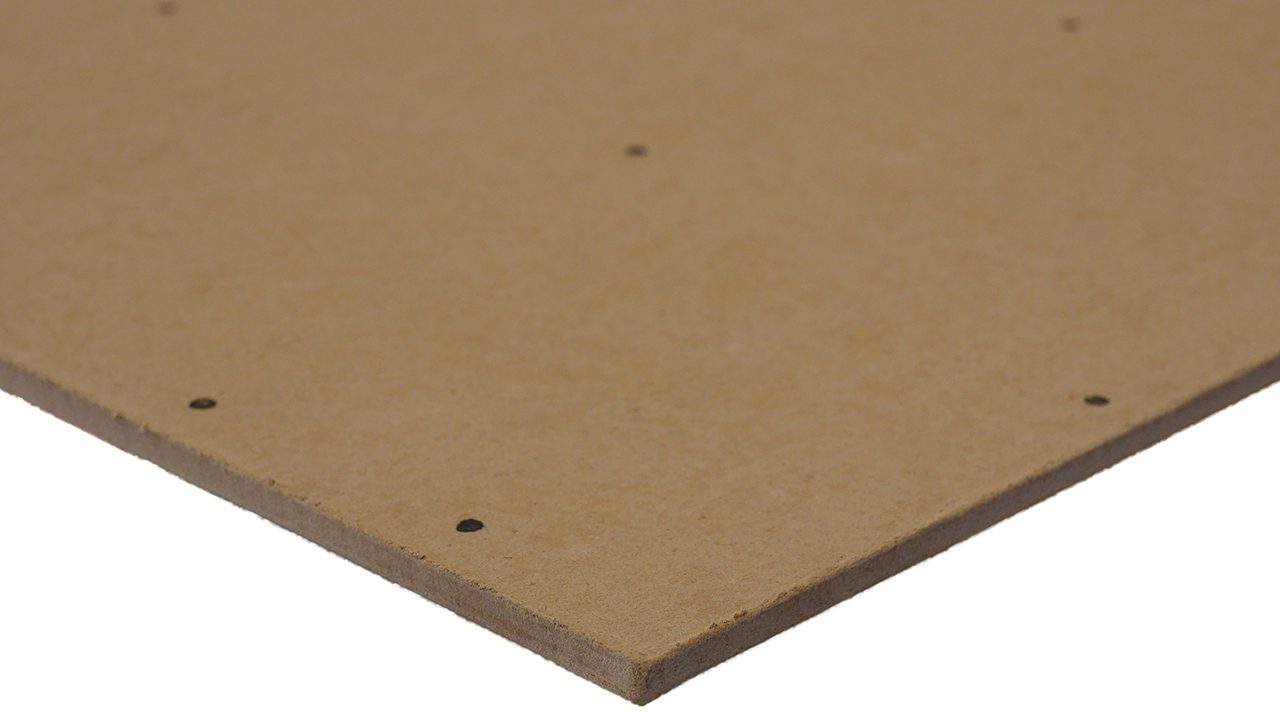

PRIMActu is manufactured to nominal 6.0mm thickness. The product has pre-printed fastener points for ease of installation. With each sheet of PRIMActu, you need to use the correct nails and to make sure that one nail is used on each of the dots.

Key Features
  • Immune to permanent water damage and will not rot
  • Fire resistant
  • Simple and quick to install
  • Includes a nailing pattern printed on the face of the sheet for easy installation
  • Excellent substrate for floor tiles, both slate and ceramic
  • For dry and wet areas
  • Can be applied to both new and existing timber
Categories
Tile Underlay
Ranges
Flooring
Scope of Use

IBS supply PRIMActu for use within the following scope:

  • In all buildings where the structure is suitable for the intended building work
  • As a tile substrate over existing or new reconstituted wood floors (e.g. plywood, particle board, Oriented Strand Board (OSB), EUROfloor and tongue and groove timber
  • As a wet area lining for bathrooms, kitchens, laundries and internal rooms with high humidity
Limitations on Use
  • When you are specifying and installing PRIMActu the IBS PRIMActu Design and Installation Guide must be followed
  • PRIMActu should not be installed on timber framing where the moisture content is greater than 18%
  • Tiles must be installed with a flexible tile adhesive that is also compatible with PRIMActu. Consult preferred adhesive manufacturer for recommendations
Statement of Building Code Compliance

If designed, used, installed and maintained in accordance with the scope, this product will meet the following provisions of the NZBC:

B1 Structure: B1.3.1; B1.3.3(a); B1.3.4(a, b, c, d)

B2 Durability: B2.3.1(b) when used as a substrate for tiles; B2.3.2

E3 Internal Moisture: E3.3.3, E3.3.5, E3.3.6 (contributes to)

F2 Hazardous Building Materials: F2.3.1

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E3 Internal Moisture compliant
Internal Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
CodeMark
CodeMark
Documents
PASS PTS: PRIMActu

PASS 17022

CodeMark CM20210

CM20210 2020

Installation Guide

August 2021

Care and Maintenance Guide

August 2021

Warranty General Terms

August 2021

Brochure

August 2021
