Metro Series ThermalHEART® with Centrafix™ Sliding Windows
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

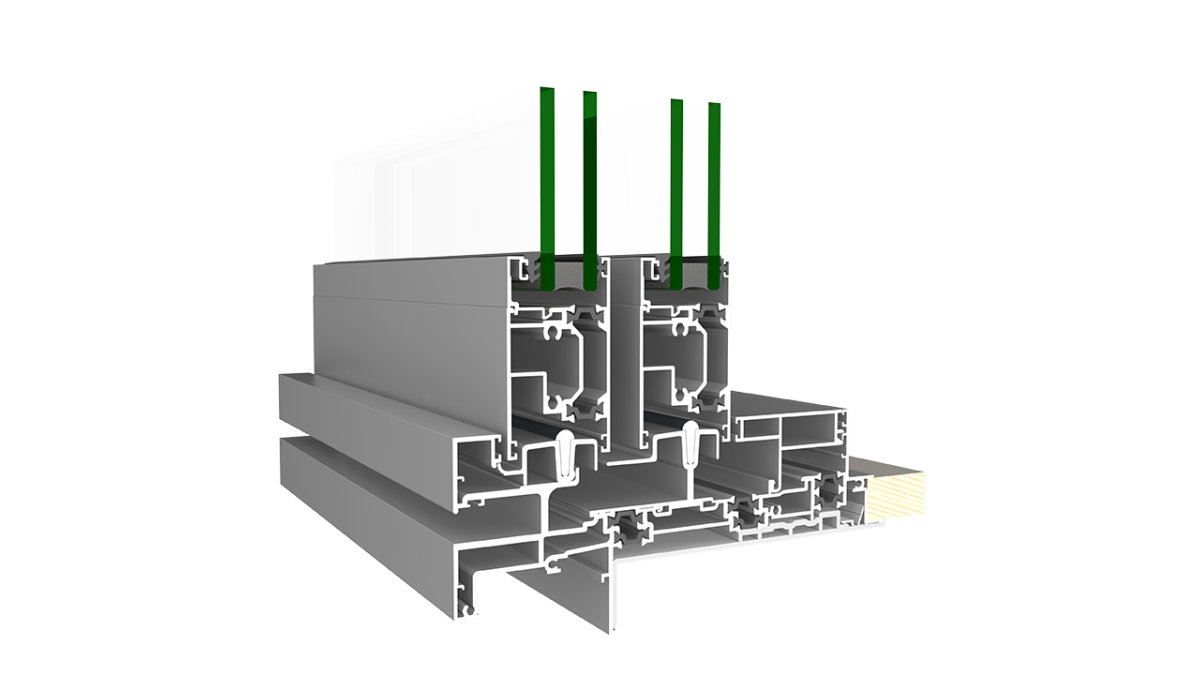

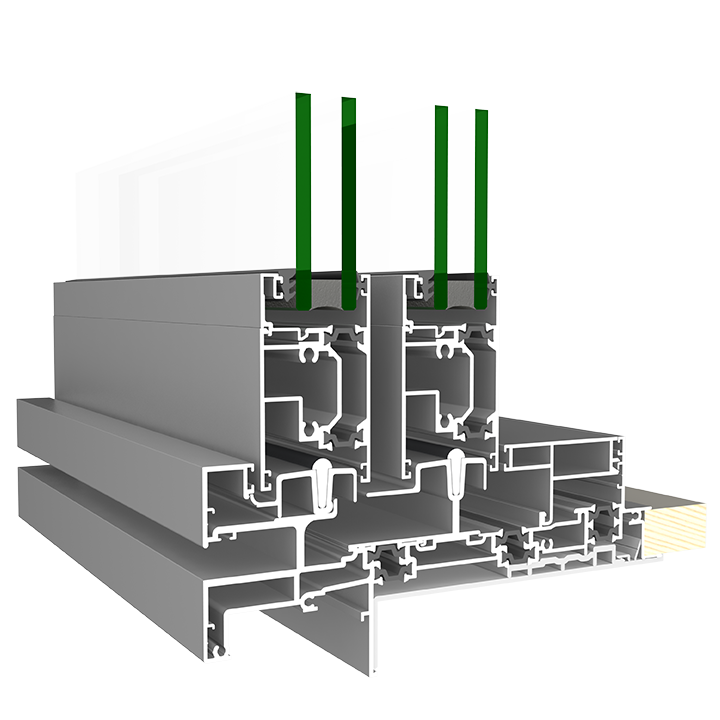

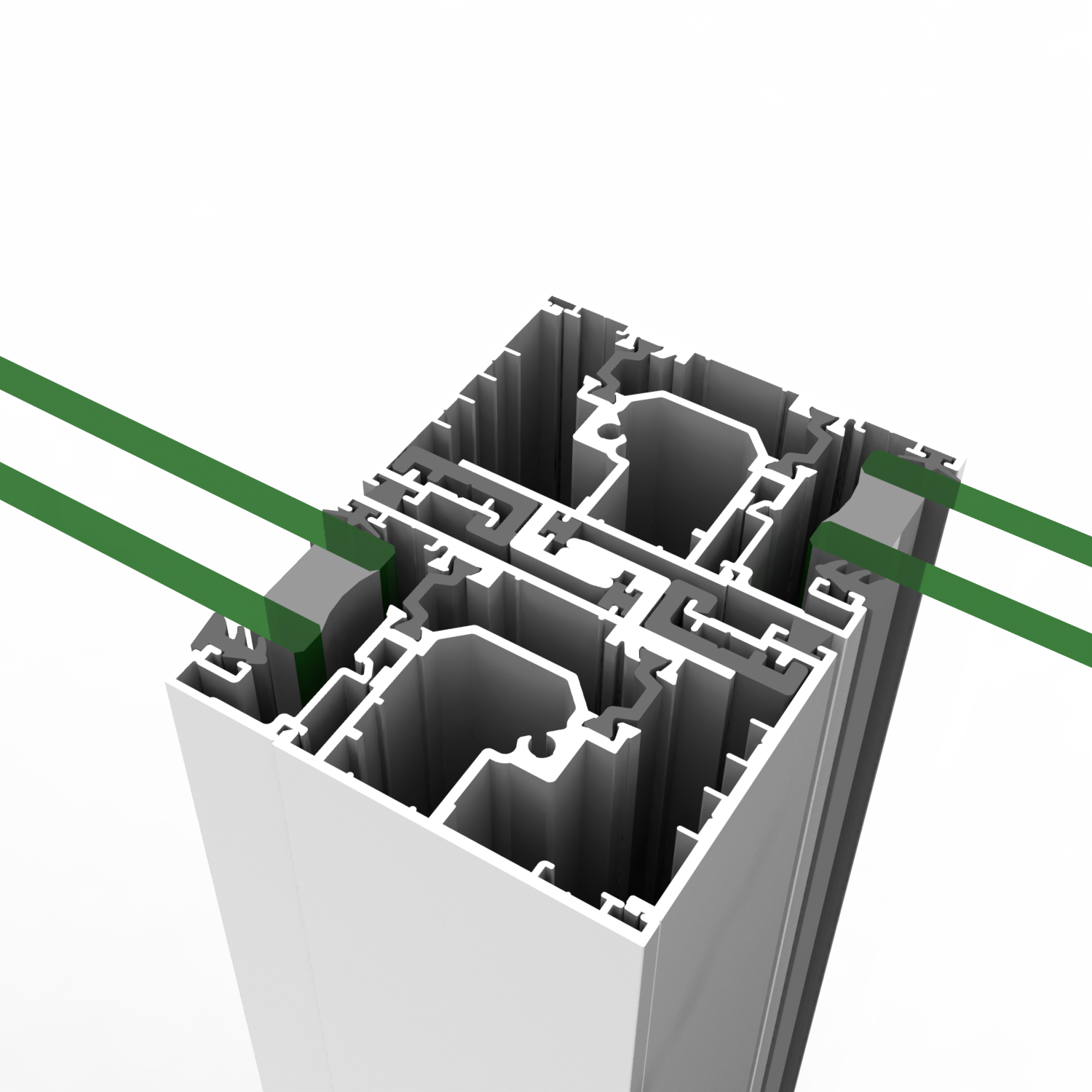

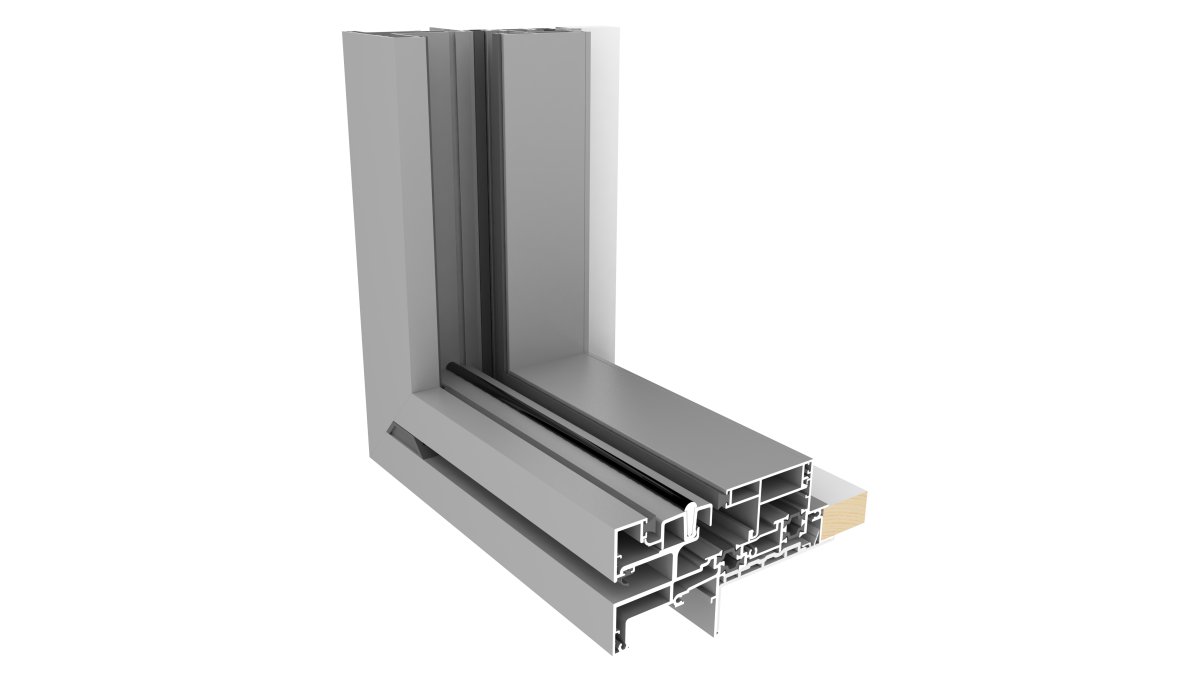

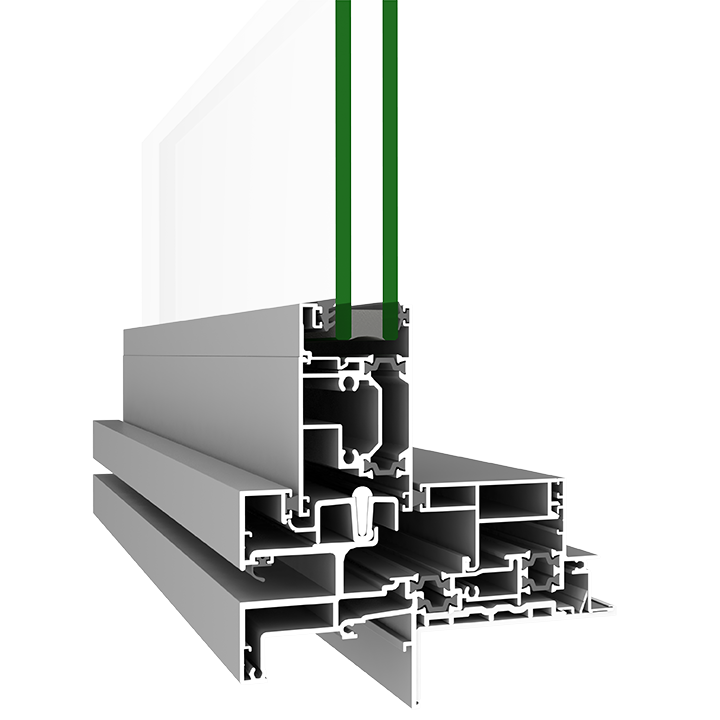

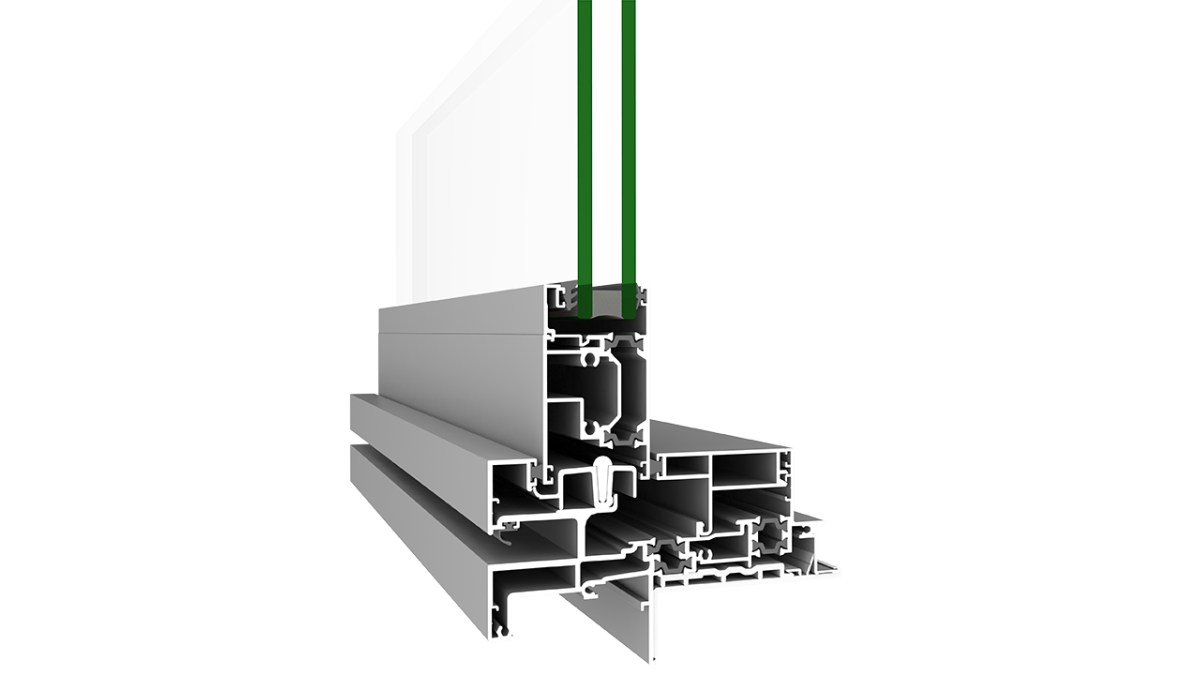

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

Key Features
  • An exterior sliding track as standard
  • Glazing is deeply set within the building wall, delivering a strong appearance
  • Ideal for non-projecting or servery windows
  • Smooth sliding action
  • Wide opening is possible in bi-parting or stacking configurations.
  • Stiles and rails feature slender sightlines

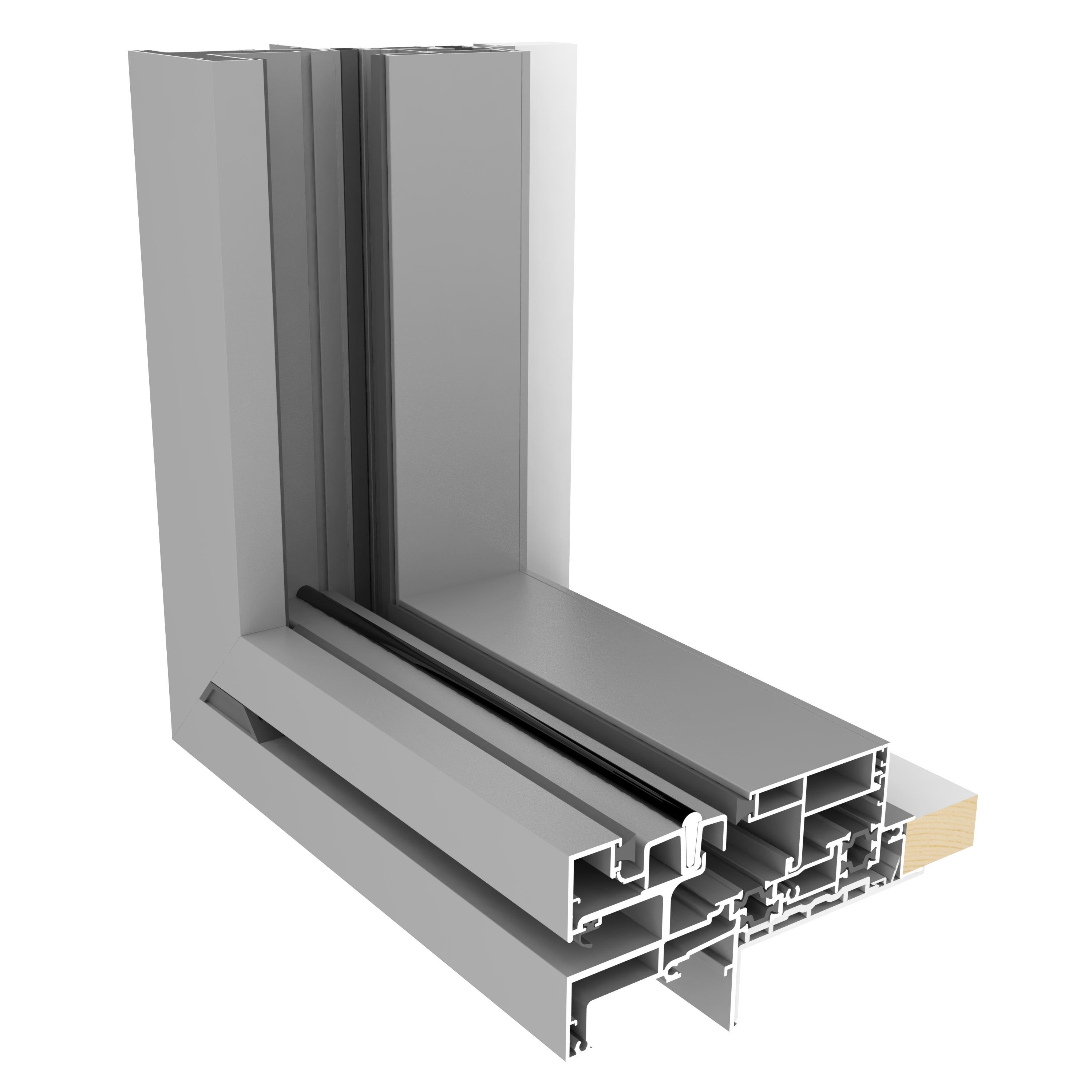

  • Corner sliding windows (90°) are available with no corner post (exterior and interior corners)
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended in maximum sizes
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Centrafix™ System Guide

2023

Data Sheet: Metro Series ThermalHEART® with Centrafix™ Windows

2023

Span Tables: Metro Series ThermalHEART® with Centrafix™ Sliding Windows

2023

Specifier Guide
FIRST on Masterspec
Full Specification Guide: Metro Series ThermalHEART® with Centrafix™
Specification Guide: Metro Series ThermalHEART® with Centrafix™ Sliding Windows
Declare Label
Manufacturer Contact List
AGP Cleaning & Maintenance
FIRST Care, Maintenance & Warranty Brochure (with AGP)
FIRST Brochure
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability
CAD/PDF Details
Metro Series ThermalHEART® with Centrafix™ Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

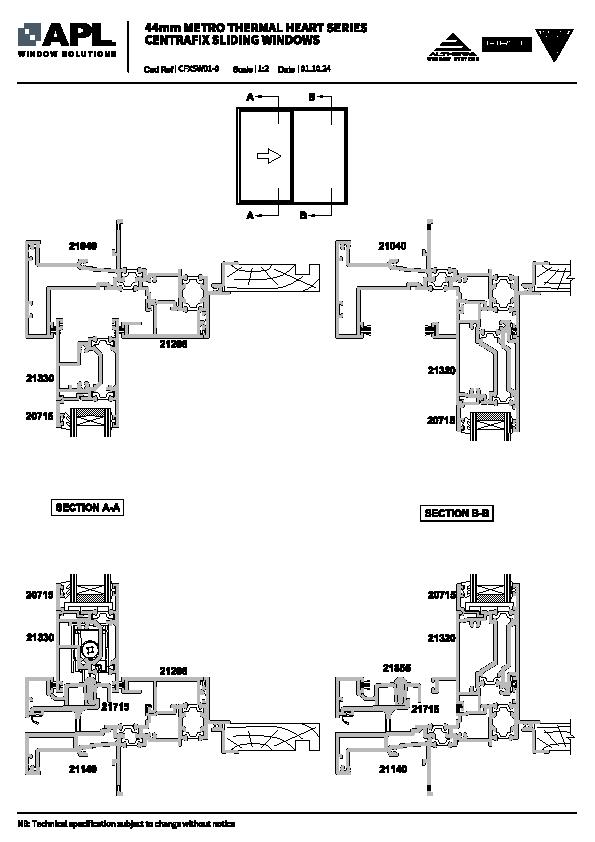

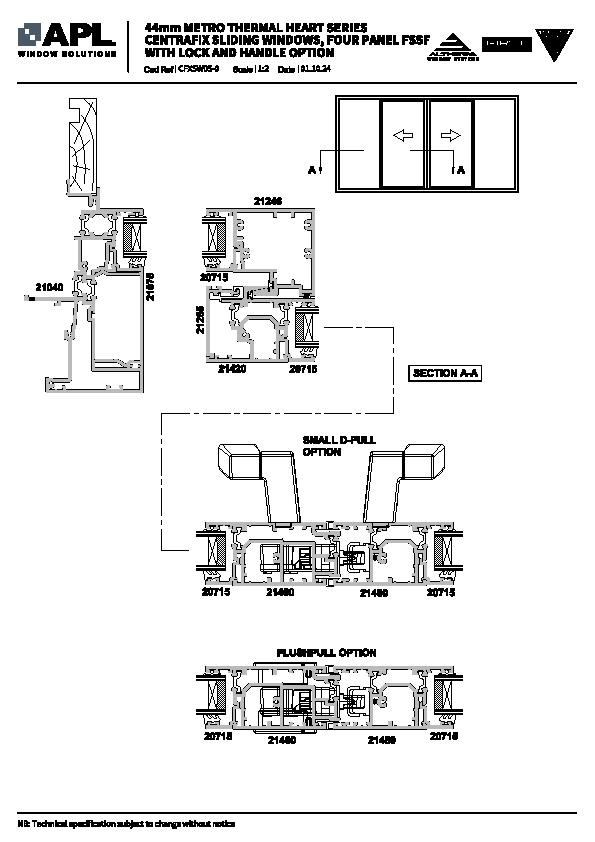

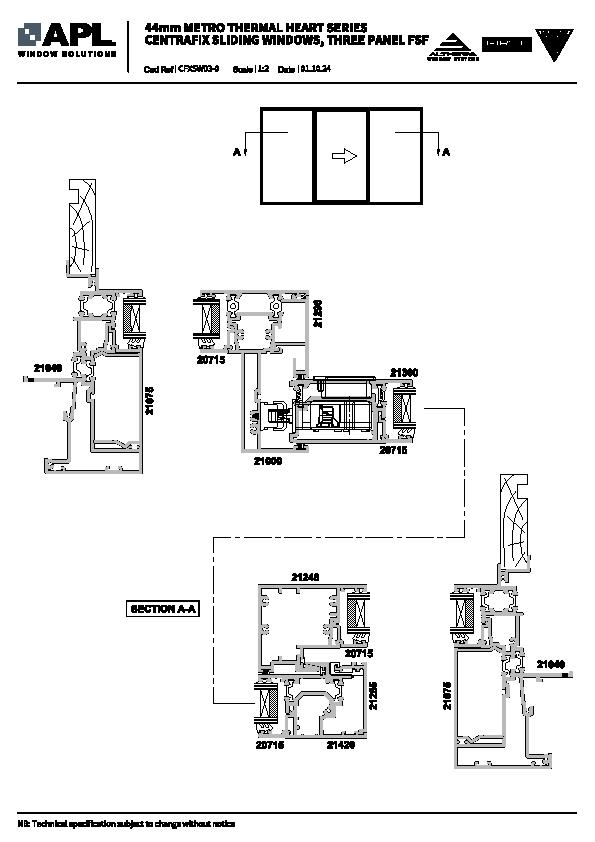

Metro Series ThermalHEART® with Centrafix™ Sliding Windows - Centrafix™ Frame

TMSW08

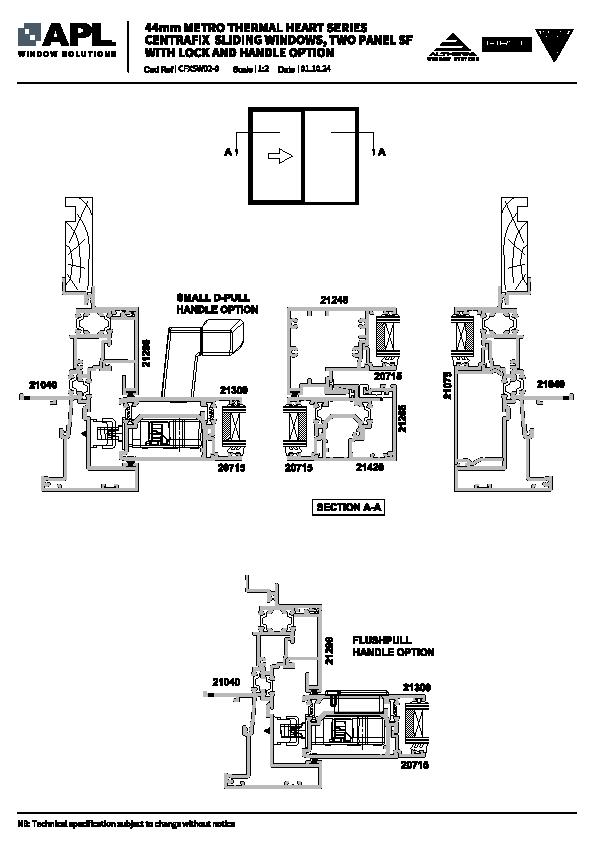

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Two Panel SF, Centrafix™ Frame

TMSW09

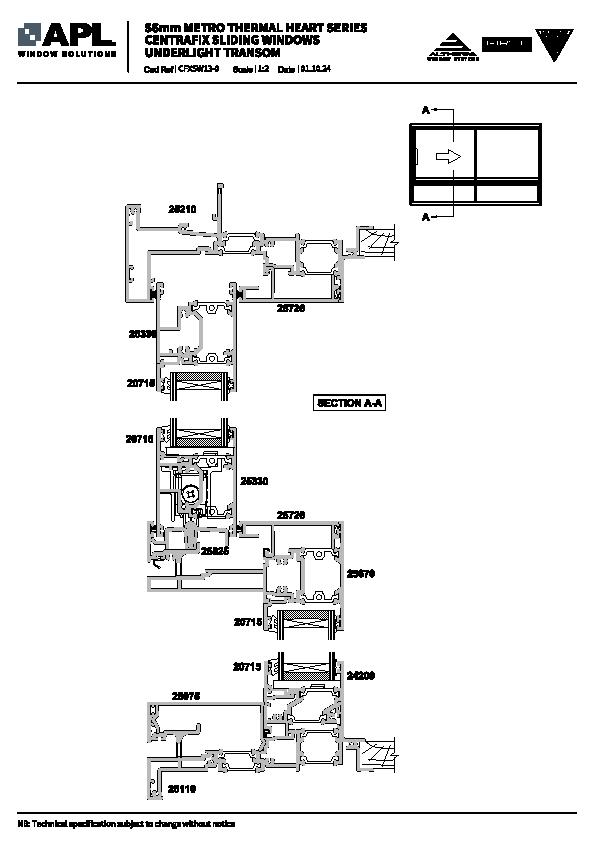

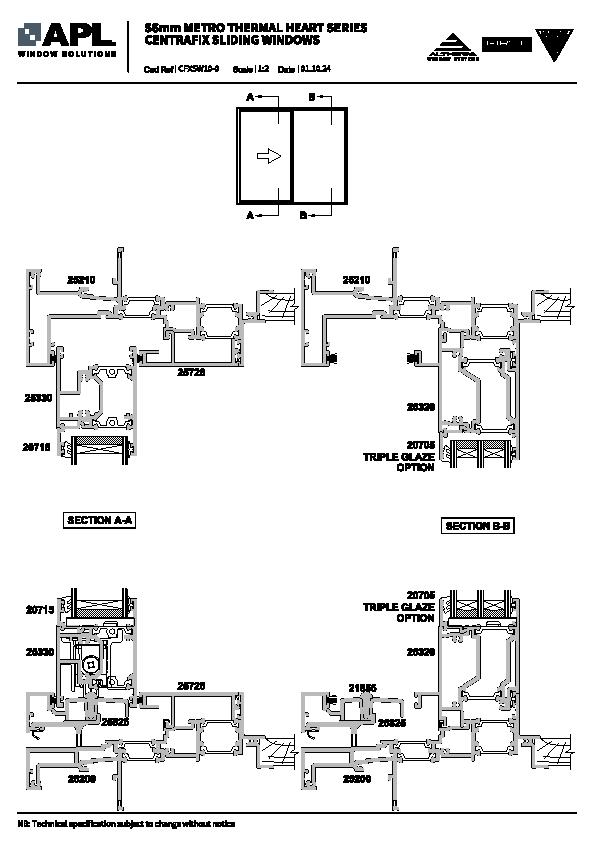

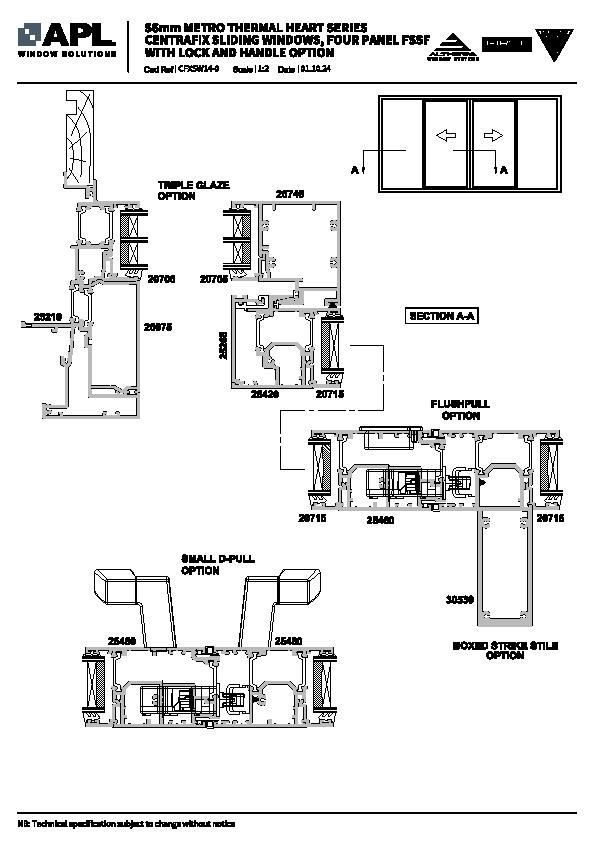

Metro Series ThermalHEART® with Centrafix™ Sliding Windows - Centrafix™ Frame (56mm)

TMSW18

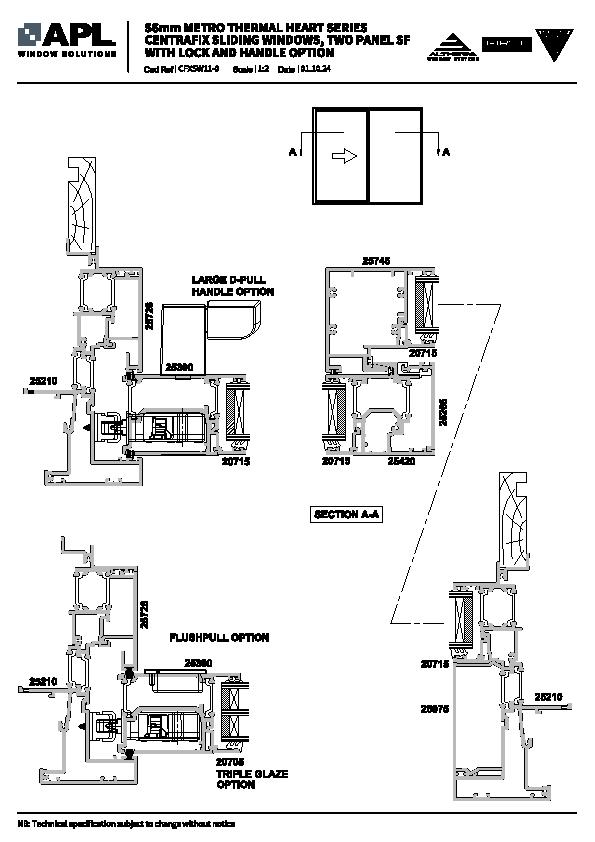

Metro Series ThermalHEART® with Centrafix™ Sliding Windows —Two Panel SF, Centrafix™ Frame (56mm)

TMSW19

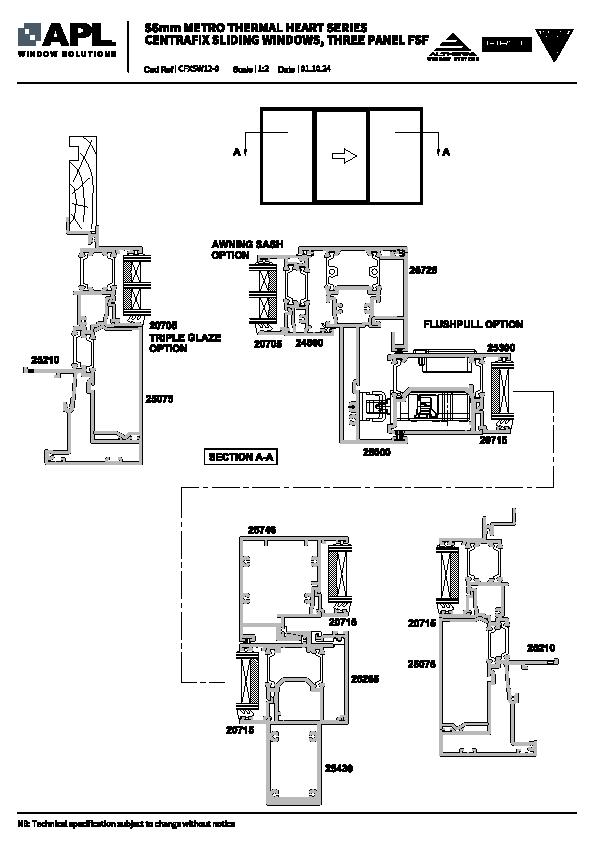

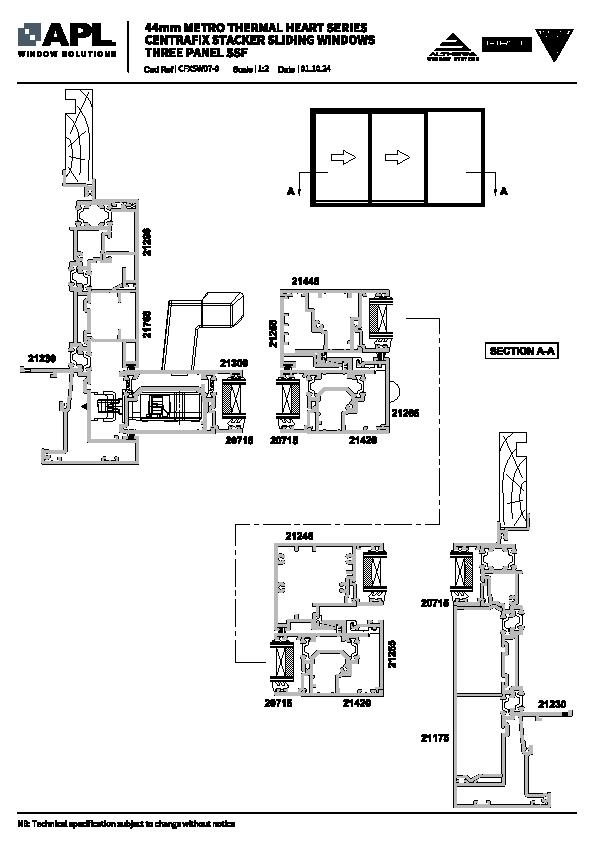

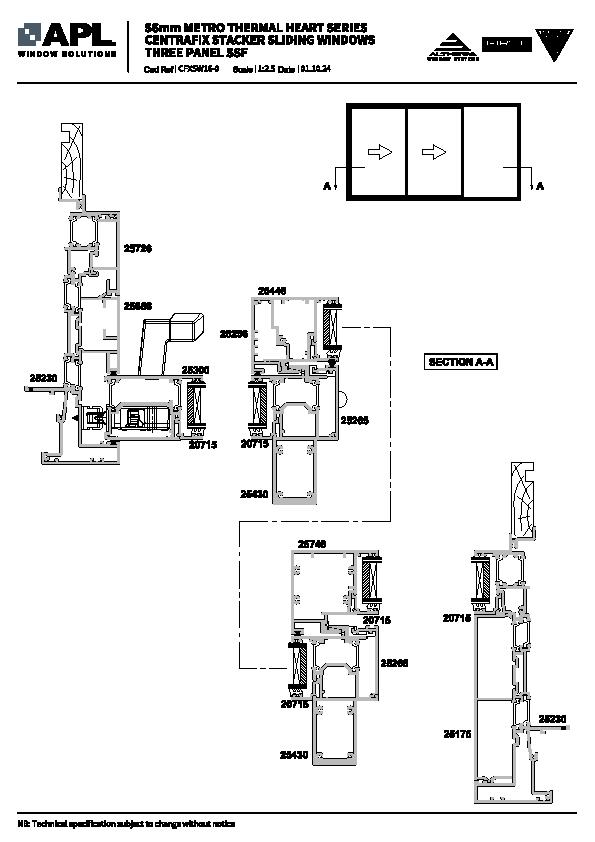

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Three Panel SSF, Centrafix™ Frame

TMSW20

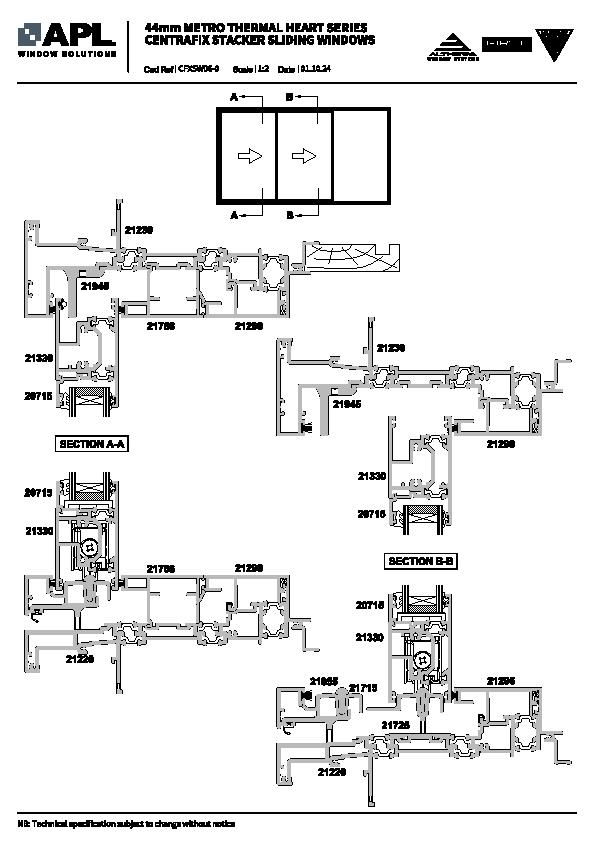

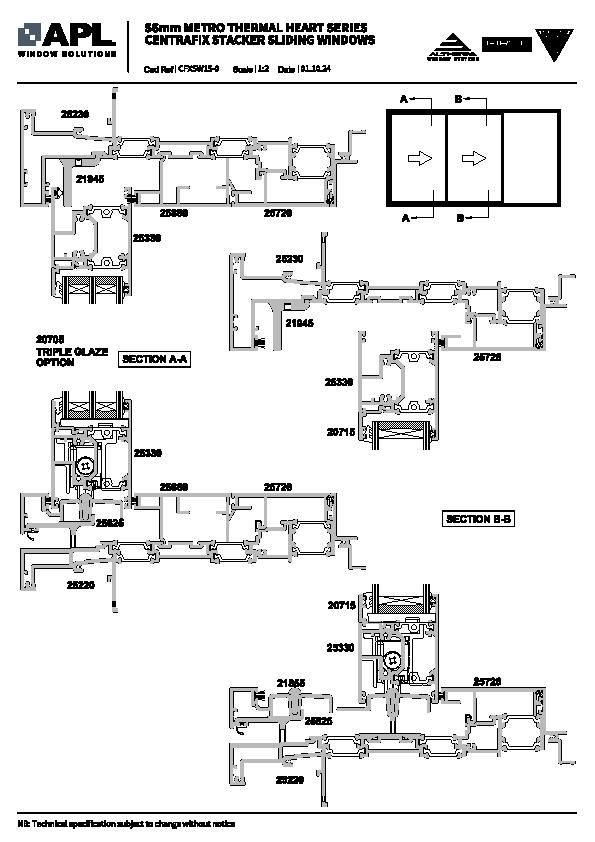

Metro Series ThermalHEART® Stacker Sliding Windows — Centrafix™ Frame

TMSW21

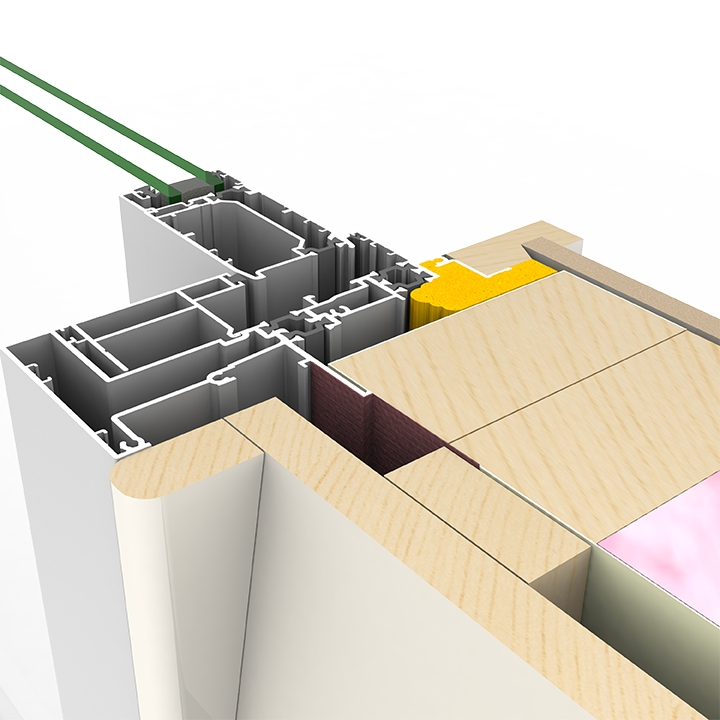

Installation Details
The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
Metro Series ThermalHEART® with Centrafix™ Multislider Window on Board & Batten

CFX44SWBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Window on Brick Veneer

CFX44SWBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Window on Bevelback Weatherboard

CFX44SWBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Window on Flat Sheet

CFX44SWFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Window on Profile Metal

CFX44SWPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Window on Rusticated Weatherboard

CFX44SWRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Multislider Window on Stucco

CFX44SWST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Board & Batten (56mm)

CFX56SWBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Brick Veneer (56mm)

CFX56SWBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Bevelback Weatherboard (56mm)

CFX56SWBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Flat Sheet (56mm)

CFX56SWFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Profile Metal (56mm)

CFX56SWPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Rusticated Weatherboard (56mm)

CFX56SWRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Metro Series ThermalHEART® with Centrafix™ Sliding Window on Stucco (56mm)

CFX56SWST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
